ECI6300S - Range hood ELECTROLUX - Free user manual and instructions

Brand	Electrolux
Model	ECI6300S
Product Type	Range Hood
Installation Type	Built-in / Wall-mounted
Width	60 cm
Depth	50 cm
Height (min-max)	60 - 110 cm
Weight	Approx. 12 kg
Power Supply	220-240 V, 50/60 Hz
Max Power Consumption	220 W
Motor Power	200 W
Max Extraction Rate	650 m³/h
Noise Level (max speed)	65 dB(A)
Number of Speeds	3
Controls	Electronic push buttons
Filter Type	Aluminum grease filter (washable)
Lighting	2 x 1.5 W LED
Energy Class	A+
Ducting Type	Recirculation or Ducted (optional charcoal filter)
Year Warranty	2 years
Color	Stainless Steel
Maintenance	Clean grease filter monthly; replace charcoal filter every 6 months
Safety Features	Auto shut-off timer, motor thermal protection
Spare Parts Availability	Filters, bulbs, motor available from Electrolux service

Frequently Asked Questions - ECI6300S ELECTROLUX

How do I install the Electrolux ECI6300S range hood?

Installation must be done by a qualified professional. Ensure the hood is mounted at a minimum height of 65 cm above electric cooktops and 75 cm above gas cooktops. Follow the manual's step-by-step instructions for wall mounting and ducting.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month or more frequently with heavy use. Remove the filter, wash it with warm water and mild detergent, or place it in the dishwasher. Dry it completely before reinstalling.

When should I replace the charcoal filter?

If the hood is used in recirculation mode, the charcoal filter should be replaced every 6 months. A dirty or clogged filter reduces efficiency and increases noise.

Why is my range hood making more noise than usual?

Check for a clogged filter or loose installation. Ensure the grease filter is clean and the ductwork is not obstructed. If noise persists, contact Electrolux service for motor inspection.

Can I use the hood without ducting?

Yes, the ECI6300S can be used in recirculation mode. You will need a charcoal filter (sold separately) to absorb odors. The filtered air is recirculated into the kitchen.

How do I reset the filter alarm?

After cleaning or replacing the filter, press and hold the speed button for 3 seconds until the indicator light turns off. This resets the filter saturation indicator.

What type of light bulb does the hood use?

The hood uses LED bulbs (2 x 1.5 W). These are energy-efficient and long-lasting. Replace only with identical LED modules available from Electrolux.

Is the Electrolux ECI6300S energy efficient?

Yes, it has an energy class A+ rating. The LED lighting and efficient motor contribute to low power consumption while maintaining high extraction performance.

What are the dimensions of the ECI6300S?

The hood is 60 cm wide, 50 cm deep, and has a height range of 60-110 cm. Ensure your cabinet cutout matches these dimensions for built-in installation.

Where can I find spare parts?

Spare parts such as filters, bulbs, and motors are available through Electrolux authorized service centers and online parts stores. Use your model number ECI6300S to locate the correct parts.

USER MANUAL ECI6300S ELECTROLUX

EN Cooker hood User manual

KR 주방 후드

사용자 매뉴얼

CONTENTS

1. SAFETY INFORMATION......3
2. USE 5
3. CARE AND CLEANING....5
4. CONTROLS....6
5. REMOTE CONTROL (Optional)....7
6. LIGHTING 7

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for

exhausting fumes from appliances burning gas or other fuels.

• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

⚠ WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only

discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced

approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

Diagram illustrating a shopping cart and battery with labeled parts, showing hand positioning and directional arrows.

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a small electronic device (no text or symbols visible)

- Clean the hood using a damp cloth and a neutral liquid detergent.

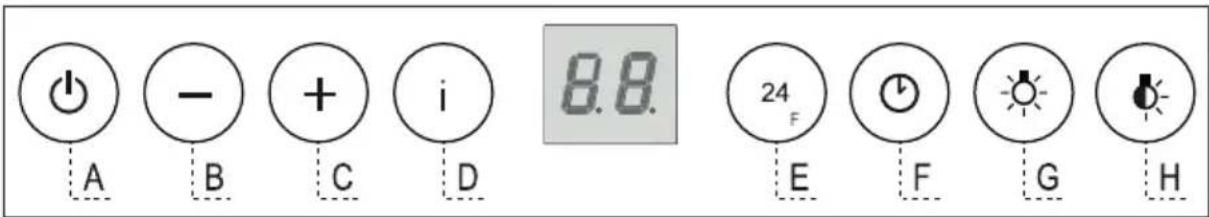

4. CONTROLS

A B C D i 8.8. 24 F E F G H

Button Function Display
A	Turns the suction motor on and off at speed one. Displays the set speed
B	Decreases the working speed. Displays the set speed
C	Increases the working speed. Displays the set speed
D	Activates Intensive speed from any other speed, including motor off. This speed is set to operate for 6 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes.	Displays HI and the time remaining once every second.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on/off.	FC+Dot (2 flashes)-Alarm On.FC+Dot (1 flash)-Alarm Off.
E	24H functionTurns the motor on at speed one and effects one 10 minute extraction every hour.	Displays 24 and the dot at the bottom right flashes once a second, while the motor is running. It is disabled by pressing the button.
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.	FF flashes three times.When the procedure terminates, the indication shown previously turns off:FG indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours.FC indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
F	Delay functionActivate automatic switch-off with a 30' delay.Suitable to complete elimination of residual odours. It can be activated from any position and is deactivated by pressing the button or turning the motor off.This mode does not function if Intensive or 24h is active.	Displays the operating speed and the dot at the bottom right flashes once a second.
G	Turns the lighting system on and off at maximum intensity.
H	Turns the lighting system on and off in Courtesy Light mode.

5. REMOTE CONTROL (OPTIONAL)

Diagram showing a shopping cart and a hand holding a Wi-Fi symbol, likely illustrating mobile payment or app usage.

6. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").

내용

Diagram illustrating a shopping cart being opened into a refrigerator, with a hand pointing to the refrigerator and a 'W' label indicating storage or inspection.

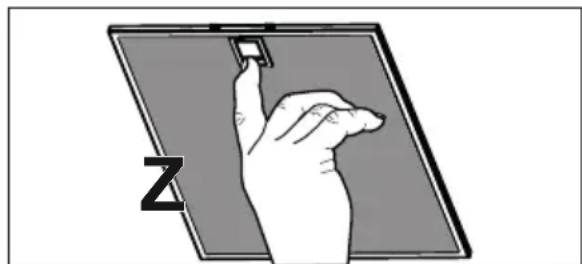

Illustration of a hand pressing down on a screen with a small object, labeled 'Z' (no text or symbols on the diagram itself)

Diagram showing a shopping cart and a hand holding a Wi-Fi symbol, likely illustrating mobile payment or app access.

6. 조명

Repeating pattern of gray geometric shapes on white background, no text or symbols present

EN INSTALLATION MANUAL

Warning! Before proceeding with installation, read the safety information in the User Manual.

KR 설치 설명서

$$ 1 2 c = 8 x 2, 9 x 6, 5 $$

$$ 1 2 h = 4 x 5, 2 \times 7 0 $$

$$ 1 2 q = 4 x 3, 5 \times 9, 5 $$

$$ 1 2 f = 2 x M 4 \times 8 0 $$

$$ 1 2 e = 4 x 2, 9 \times 9, 5 $$

$$ 1 2 \mathrm{g} = 4 \mathrm{xM6x80} $$

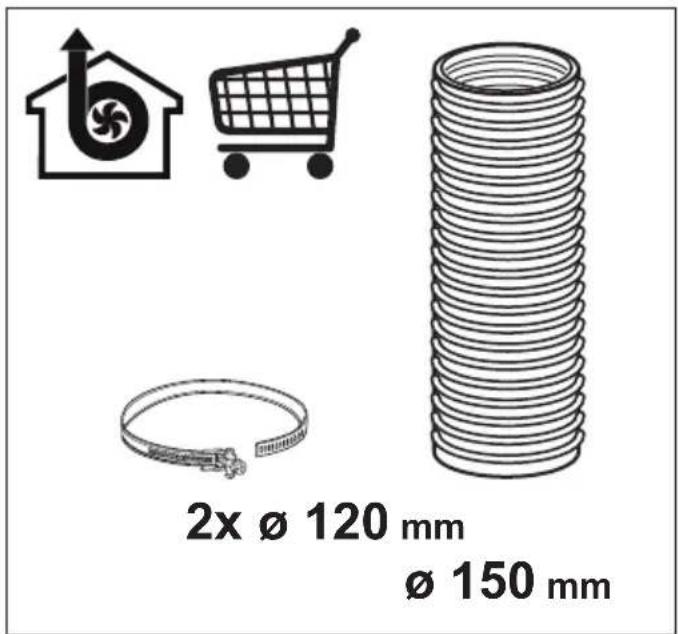

2x Ø 120 mm Ø 150 mm

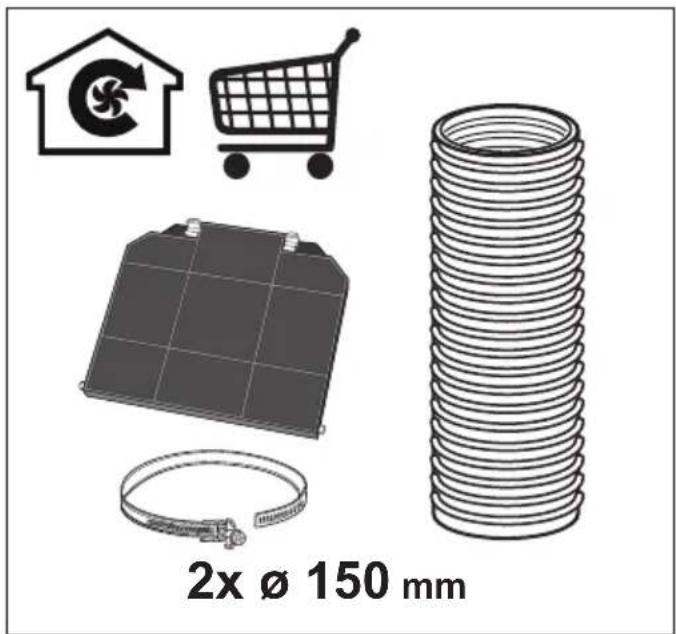

2x Ø 150 mm

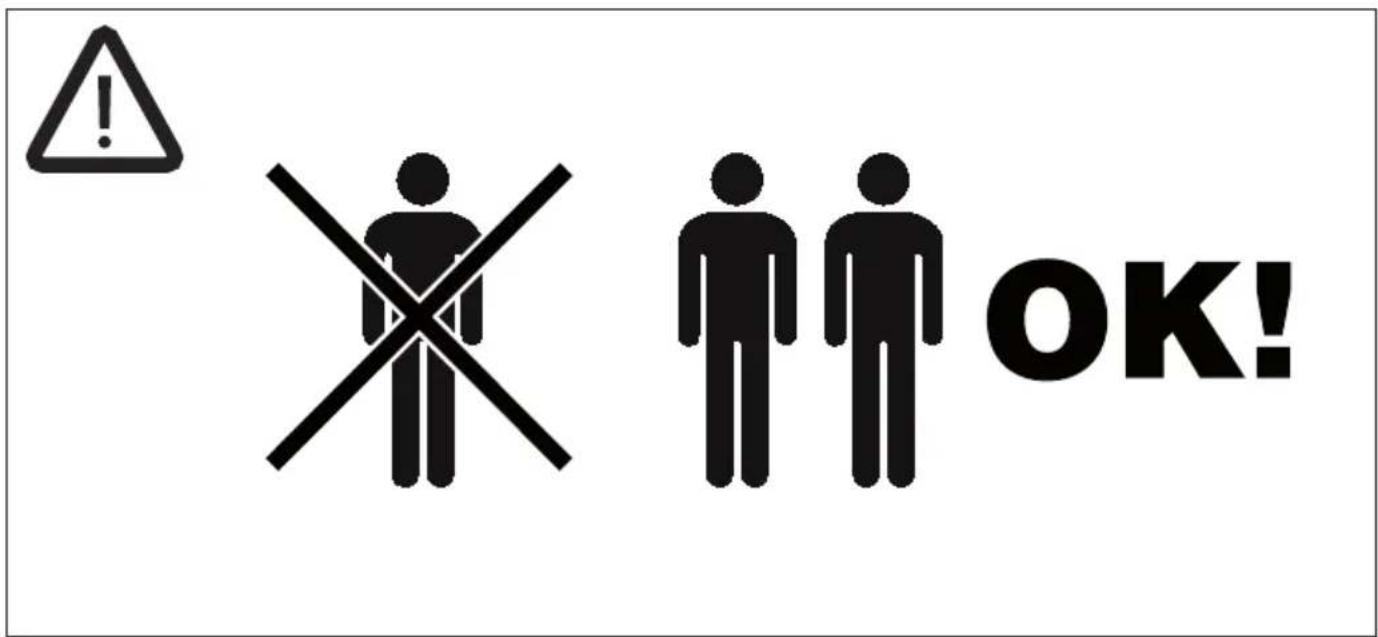

! OK!

Warning symbol and image showing a pair of gloves with an exclamation mark, indicating hazard or caution.

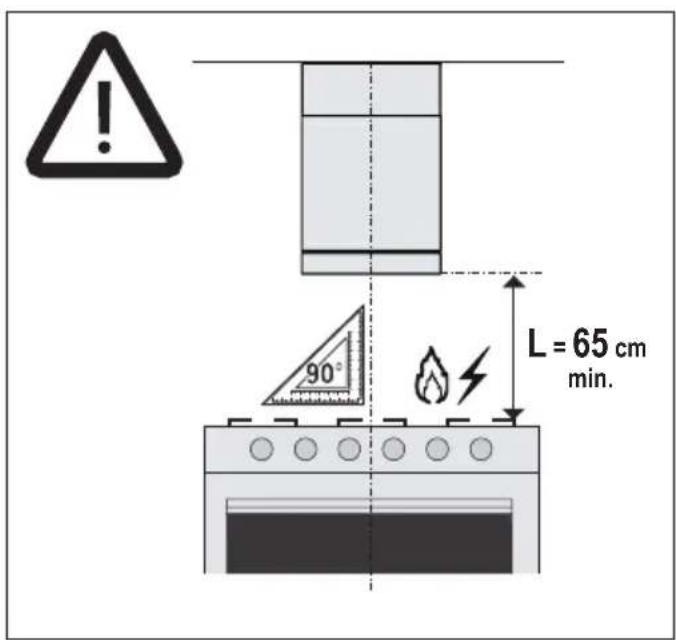

L = 65 cm min. 90°

Two stylized house icons with wind turbine symbols, no text or labels present

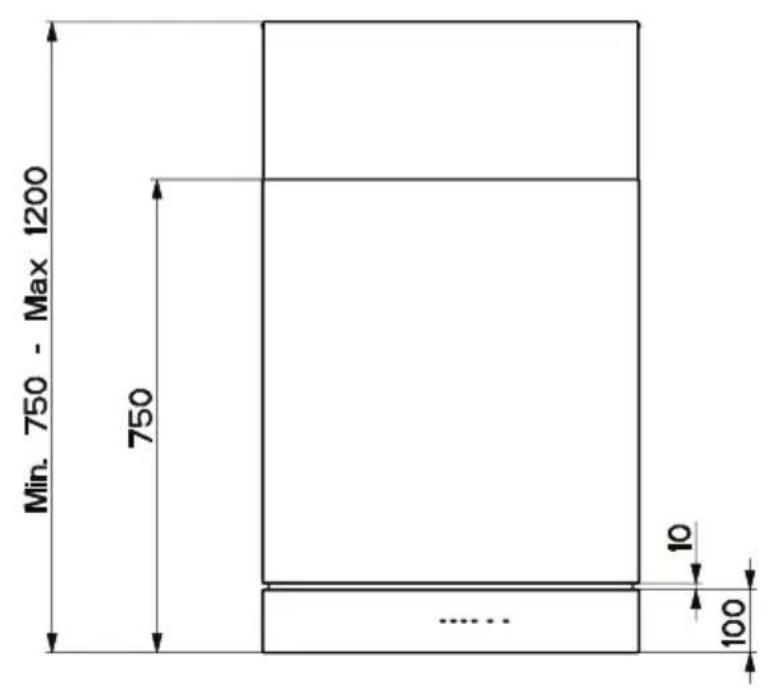

Min. 750 - Max 1200 750 10 100

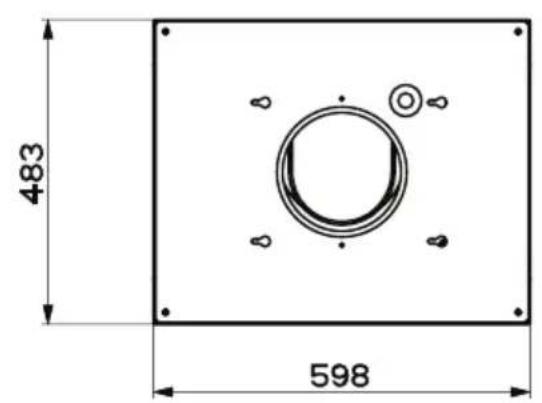

483 598

Min. 650mm Min. 650mm

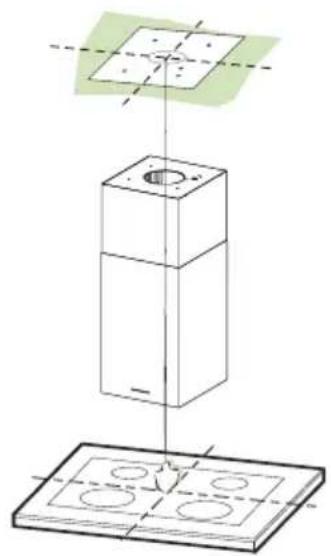

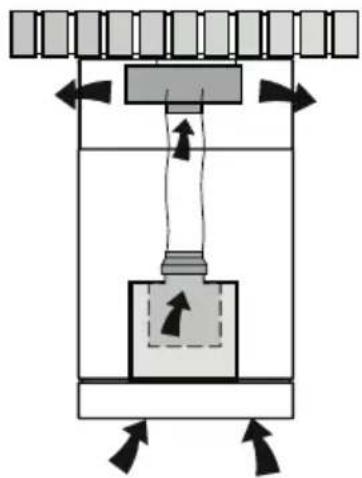

Diagram of a mechanical or fluid system with directional arrows and layered components (no text or symbols)

Pure mechanical diagram showing a piston-cranked press or actuator mechanism without any text, labels, or symbols.

Technical diagram showing a mechanical assembly with a square component and a base plate (no text or symbols)

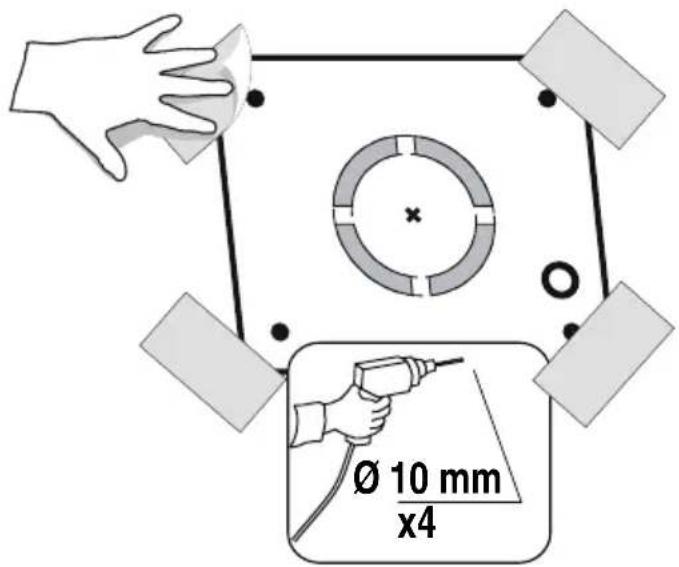

Ø 10 mm x4

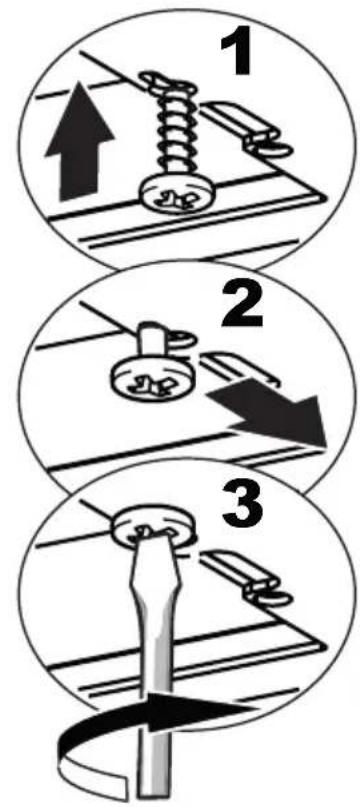

2 11 5 mm OK! 12h 23 22 12g 5 mm OK! 5 mm OK!

3 MIN 700 mm MAX 1040 mm MIN 700 mm MAX 1040 mm 4 5 6 3 2 1 4 12w 26

5 24 15 15 14 15 14 29 9

6 ø 150 ø 120

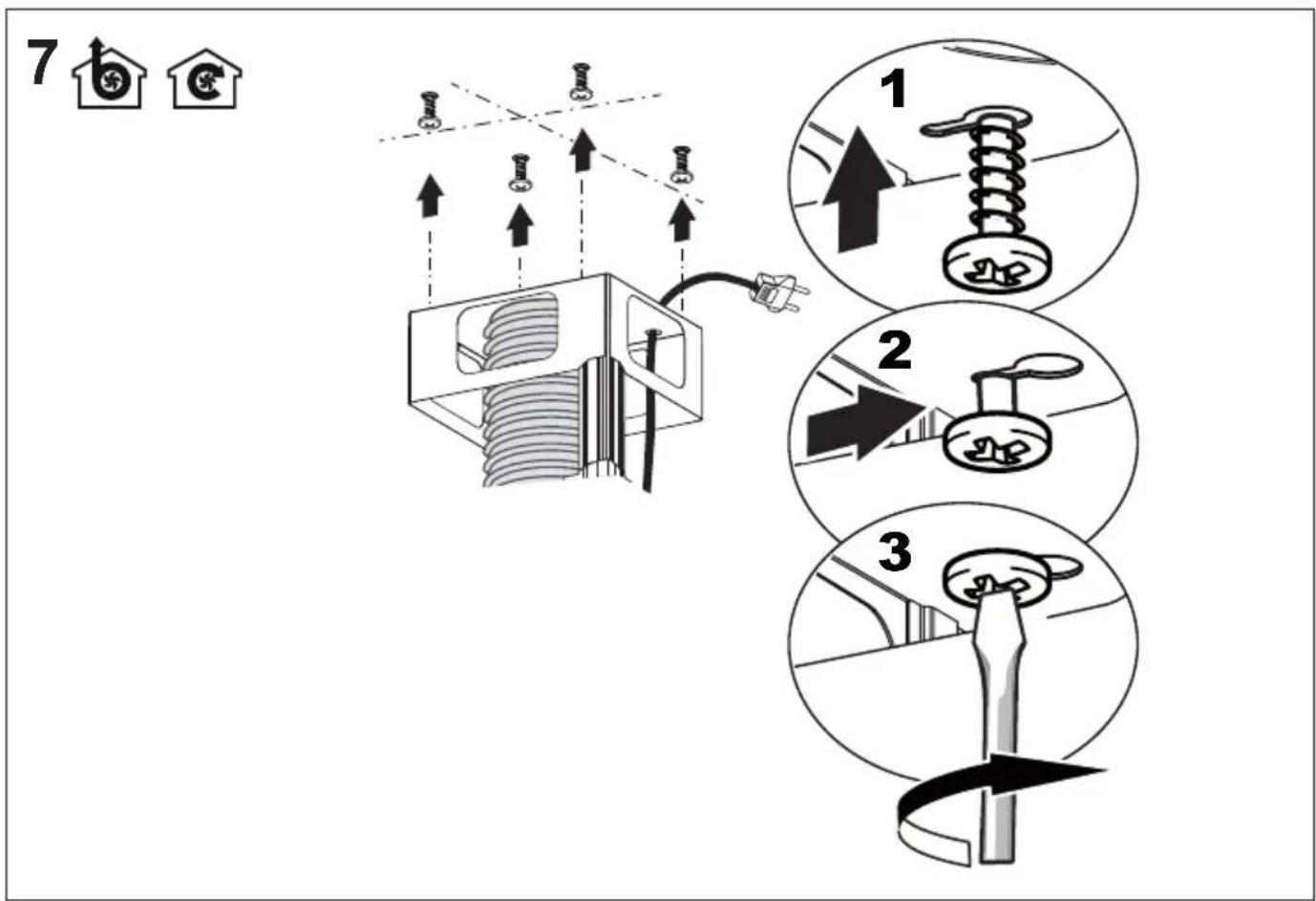

7 1 2 3

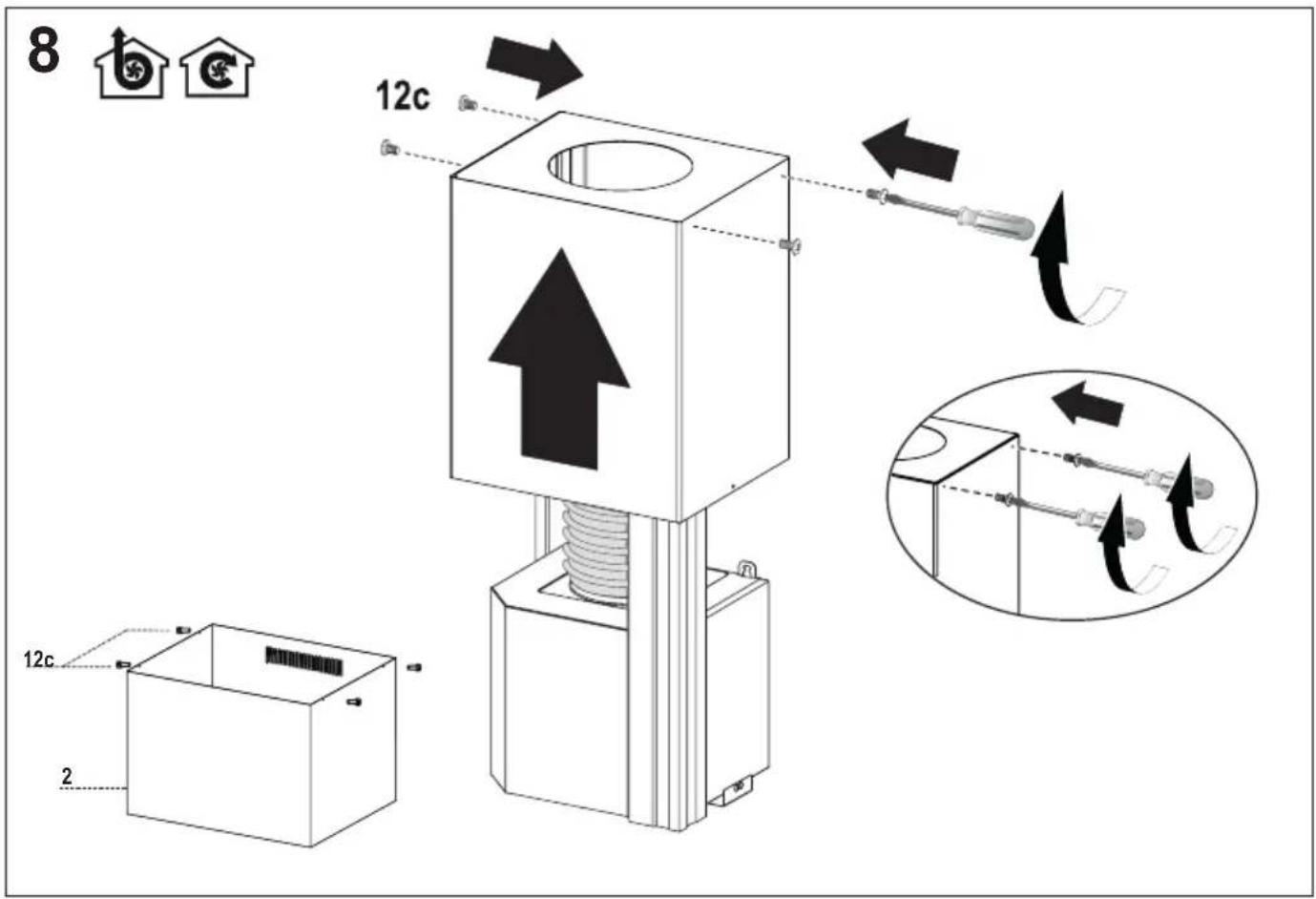

8 12c 12c 2

9 10 b 9 10

11

Pure diagram of a rectangular structure with two arrows indicating direction, no text or symbols present.

Simple line drawing of a 3D rectangular box with no text or symbols

12f 12f

1 2 3

12

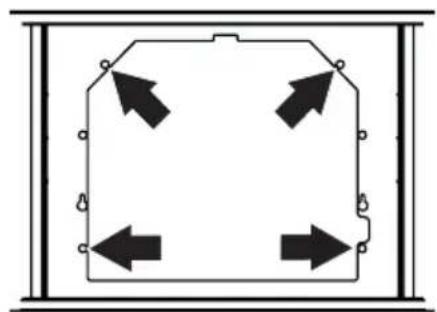

Pure diagram of a rectangular structure with four arrows pointing inward, no text or symbols present

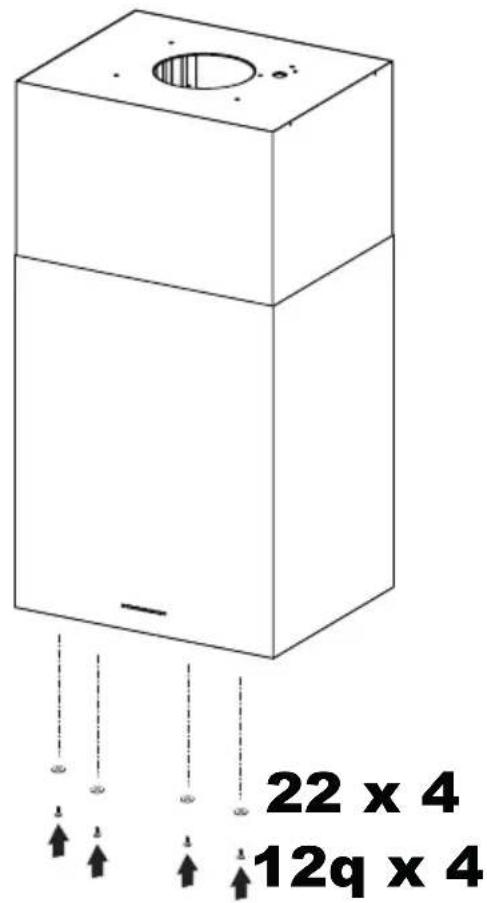

22 x 4 12q x 4

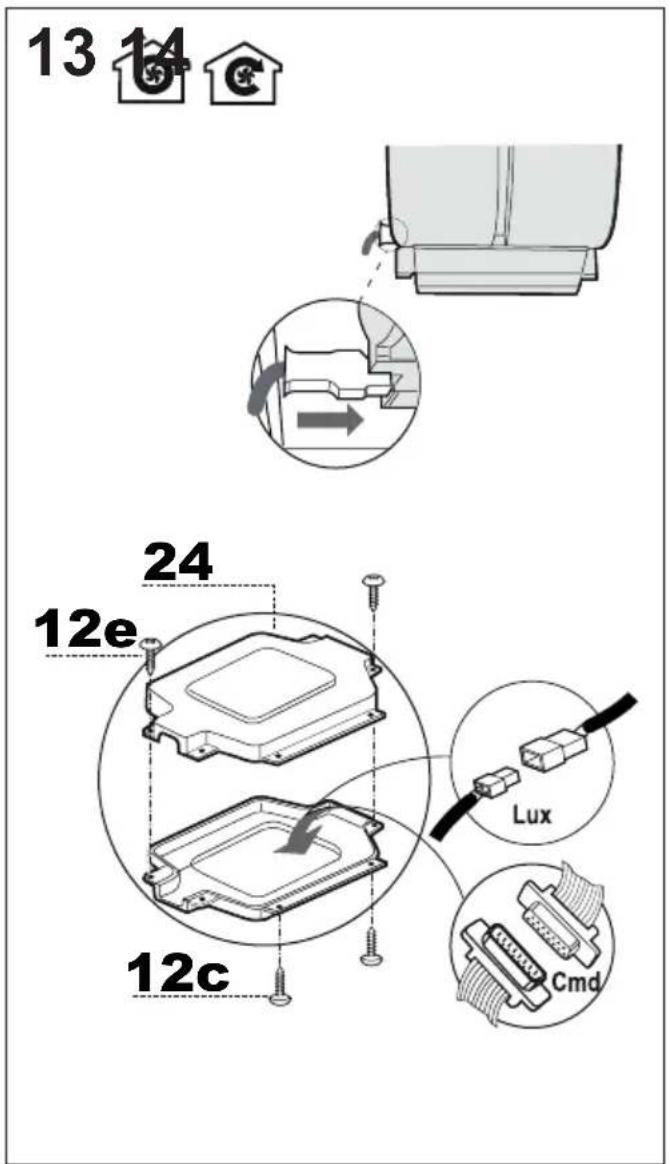

13 14 24 12e 12c Lux Cmd

Diagram illustrating a home improvement technique with hand positioning, tool application, and mechanical assembly steps

15 Z

16 W
