USER MANUAL SOA-AVS1 SANUS

Simple line drawing of a rectangular device mounted on a flat base (no text or symbols)

SOA-AVS1 INSTRUCTION MANUAL

We'll Make It Stress-Free

If you have any questions along the way, just give us a call. 1-800-359-5520. We're ready to help!

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Before You Begin

Please check the following items:

☐ Any accessories you plan to use do not exceed the specified weight limit.
☐ The wall you chose to mount your shelf is wood stud, drywall, solid concrete, or concrete block.
☐ You read and understand these directions.
☐ You have the tools needed for installation.

If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service or call a qualified contractor.

CAUTION: Avoid potential personal injuries and property damage!

• Do not use this product for any purpose not explicitly specified by manufacturer.
• Do not place objects heavier than 15 lb (6.8 kg) on shelf.
• Do not place a TV on shelf.
• Do not allow children to climb or hang on shelf.
  ● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• This product is designed for use in wood stud, drywall, solid concrete and concrete block walls.

If you have any questions, please contact

Customer Service: 1-800-359-5520

15 lb (6.8 kg)

DO NOT EXCEED!

Features

Can be mounted to drywall, wood stud, or concrete.

Stackable to accommodate multiple components

— DO NOT exceed 15 lb (6.8 kg) on each shelf.

3D diagram of a three-tiered mechanical assembly with a rectangular housing and mounting bracket (no text or symbols)

Tools NeededWeight Limit

Tape Measure

Pencil Level

Electric Drill

Screwdriver

Socket Wrench

Wood Stud Installations

Stud Finder

Awl

Drill Bit

Concrete Installations

Drill Bit

Hammer

Drywall Installations

Stud Finder

Drill Bit

Hammer

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 1 Parts and Hardware for STEP 2

Wall Plate 01 x1 For concrete installations ONLY CAUTION: Do not use in drywall or wood Anchor (Concrete) Ux10x60R 06 x1

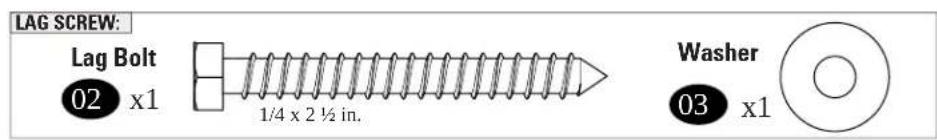

LAG SCREW: Lag Bolt 02 x1 1/4 x 2 ½ in. Washer 03 x1

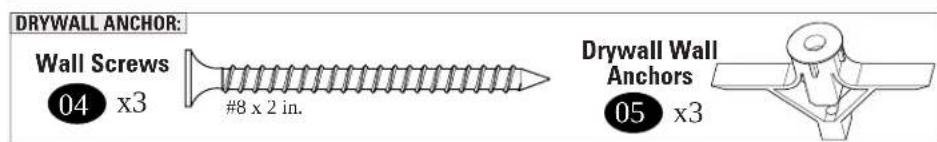

DRYWALL ANCHOR: Wall Screws 04 x3 #8 x 2 in. Drywall Wall Anchors 05 x3

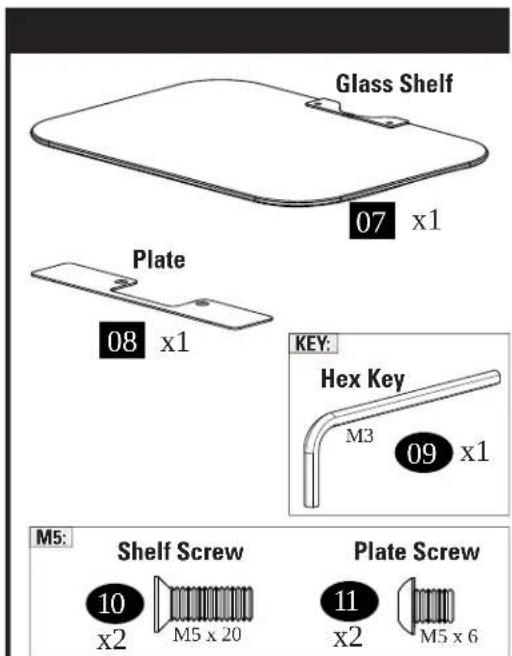

Glass Shelf 07 x1 Plate 08 x1 KEY: Hex Key M3 09 x1 M5: Shelf Screw Plate Screw 10 x2 M5 x 20 11 x2 M5 x 6

Dimension Specifications in. [mm]

Single shelf configuration

12.50 [317.5] 17.00 [431.8]

1.11 [28.1] 6.3 [159.9]

Stacked configuration

12.50 317.5 17.00 431.8

1.11 [28.1] 6.3 [159.9] 5.11 [129.8]

STEP 1A

Attach the Wall Plate to the Wall

Wood Stud Installation

▲ CAUTION: Avoid potential personal injuries and property damage!

• Drywall covering the wall must not exceed 16 mm (5/8 in.).

- Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.).

IMPORTANT: For multiple-shelf stacking configurations, stack from the top down.

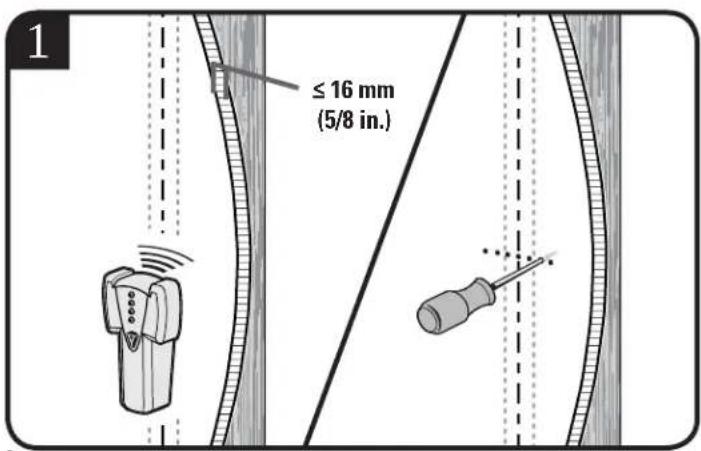

1. Locate your stud(s). Verify the center of the stud using an awl, a thin nail, or an edge to edge stud finder.
2. Remove the front (F) and top (T) covers from the wall plate 01

≤ 16 mm (5/8 in.)

2 (T) (F) 01

STEP 1A

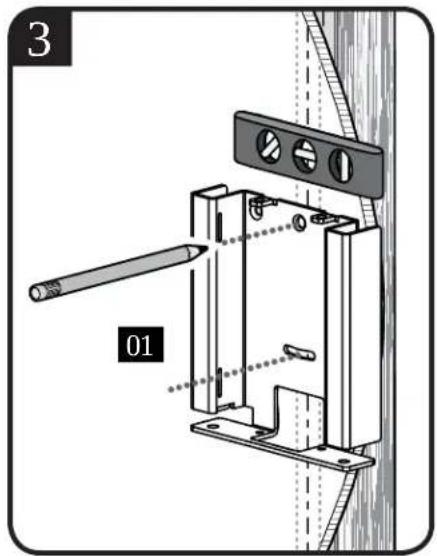

1. Level the wall plate 01 and mark the two middle hole locations.
2. Drill pilot holes using a 3 mm (1/8 in.) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 63.5 mm (2½ in.).

1. Install using lag bolt 02 and washer 03 in the TOP hole and a wall screw 04 in the BOTTOM hole. Tighten lag bolt 02 and screw 04 only until they are pulled firmly against the wall plate 01.

▲ CAUTION: Improper use could reduce the holding power of the lag bolt and screw. DO NOT over-tighten the lag bolt and screw.

3 01

4 63.5 mm (2½ in.) 3 mm (1/8 in.)

5 03 02 01 04

STEP 1B

Attach the Wall Plate to the Wall

Solid Concrete or Concrete Block Installation

CAUTION: Avoid potential personal injuries and property damage!

- Mount the wall plat01 directly onto the concrete surface

• Minimum solid concrete thickness: 203mm (8 in.)

• Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)

IMPORTANT: For multiple-shelf stacking configurations, stack from the top down.

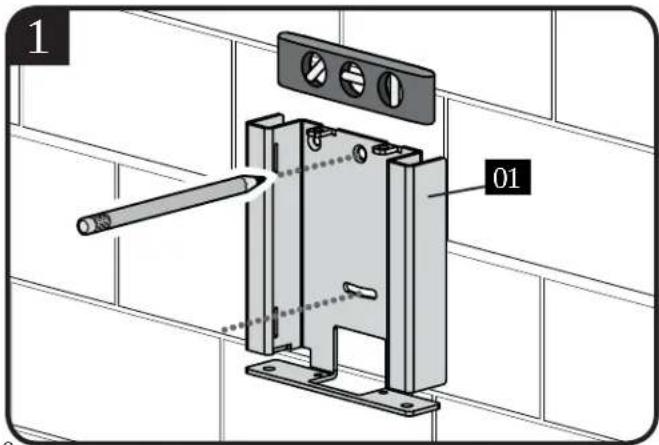

1. Level the wall plate 01 and mark the hole locations.

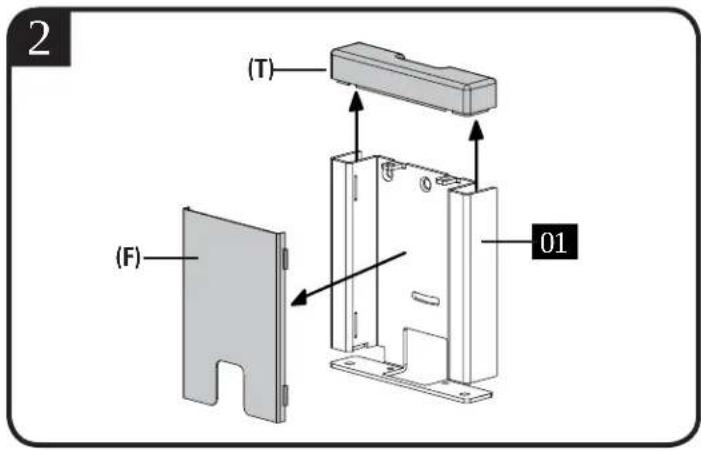

2. Remove the front (F) and top (T) covers from the wall plate 01.

1 01

2 (T) (F) 01

STEP 1B

1. Drill pilot holes using a 10 mm (3/8 in.) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.). Never drill into the mortar between blocks.

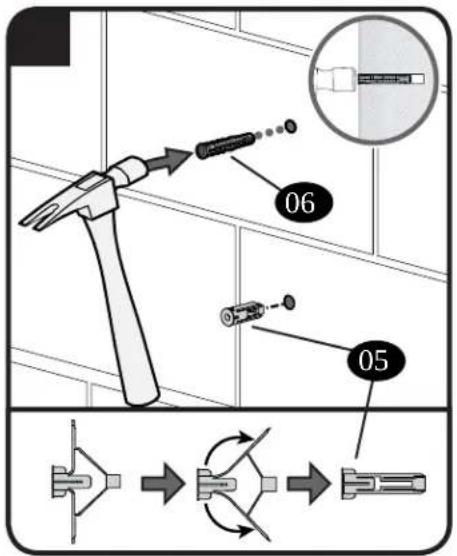

1. Insert anchor (concrete) 06 in the TOP hole and a dry wall anchor 05 in the BOTTOM hole.

▲ CAUTION: Be sure the anchors are seated flush with the concrete surface.

1. Install using lag bolt 02 and washer 03 (into anchor (concrete) 06) in the TOP hole, and a wall screw 04 (into dry wall anchor 05) in the BOTTOM hole. Tighten lag bolt 02 and screw 04 only until they are pulled firmly against the wall plate 01.

CAUTION: Improper use could reduce the holding power of the lag bolt and screw. DO NOT over-tighten the lag bolt and screw.

34 75 mm (3 in.) 10 mm (3/8 in.)

Technical diagram showing a hammer tool with labeled parts and directional arrows indicating assembly or process steps.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

STEP 1C Attach the Wall Plate to the Wall

Drywall Installation

▲ CAUTION: rAvoid potential injuries or property damage!

• Mount the wall plat01 directly onto the wall.
• Drywall covering the wall must not exceed 13mm (1/2 in.).
• Do not install anchors into the seam between drywall pieces.

IMPORTANT: For multiple-shelf stacking configurations, stack from the top down.

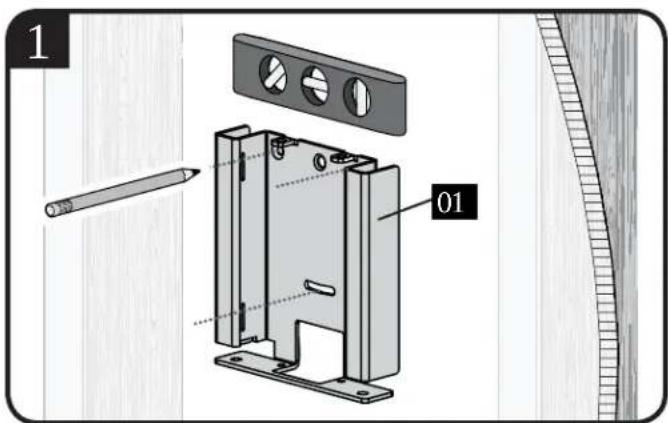

1. Verify a space BETWEEN any studs. Level the wall plate 01 and mark the three hole locations.
2. Remove the front (F) and top (T) covers from the wall plate 01

1 01

10

2 (T) (F) 01

STEP 1C

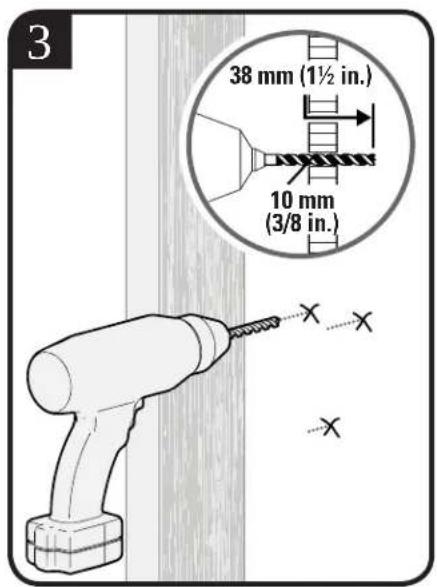

1. Drill three pilot holes using a 10 mm (3/8 in.) diameter drill bit.

IMPORTANT: Pilot holes MUST be drilled to a depth of 38 mm (1½ in.)

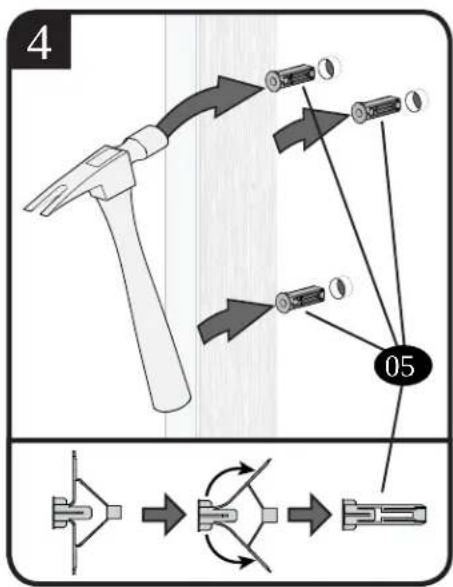

1. Insert three dry wall anchors 05.

CAUTION: Be sure the anchors are seated flush with the surface.

1. Install using three wall screws 04. Tighten the screws 04 only until they are pulled firmly against the wall plate 01.

CAUTION: Improper use could reduce the holding power of the screw. DO NOT over-tighten the screws.

3 38 mm (1½ in.) 10 mm (3/8 in.)

4 05

5 04 01

STEP 2 Attach Glass Shelf to Wall Plate

1. Slide the glass shelf 07 into the wall plate 01. Line up the holes in the shelf with the holes in the wall plate as shown.

1

01 07

12

STEP 2

1. Secure the glass shelf 07 to the wall plate 01 using screws 10.
2. Attach the safety plate 08 to the glass shelf 07 using screws 11.

2 010 07 09 10

3 07 08 09 11

STEP 3

Manage Cables

Single shelf configuration

Cables can be routed through the opening in the lower back of the wall plate 01.

When you are finsihed routing cables, replace the top (T) and front (F) covers.

01 (T) 01 (F)

14

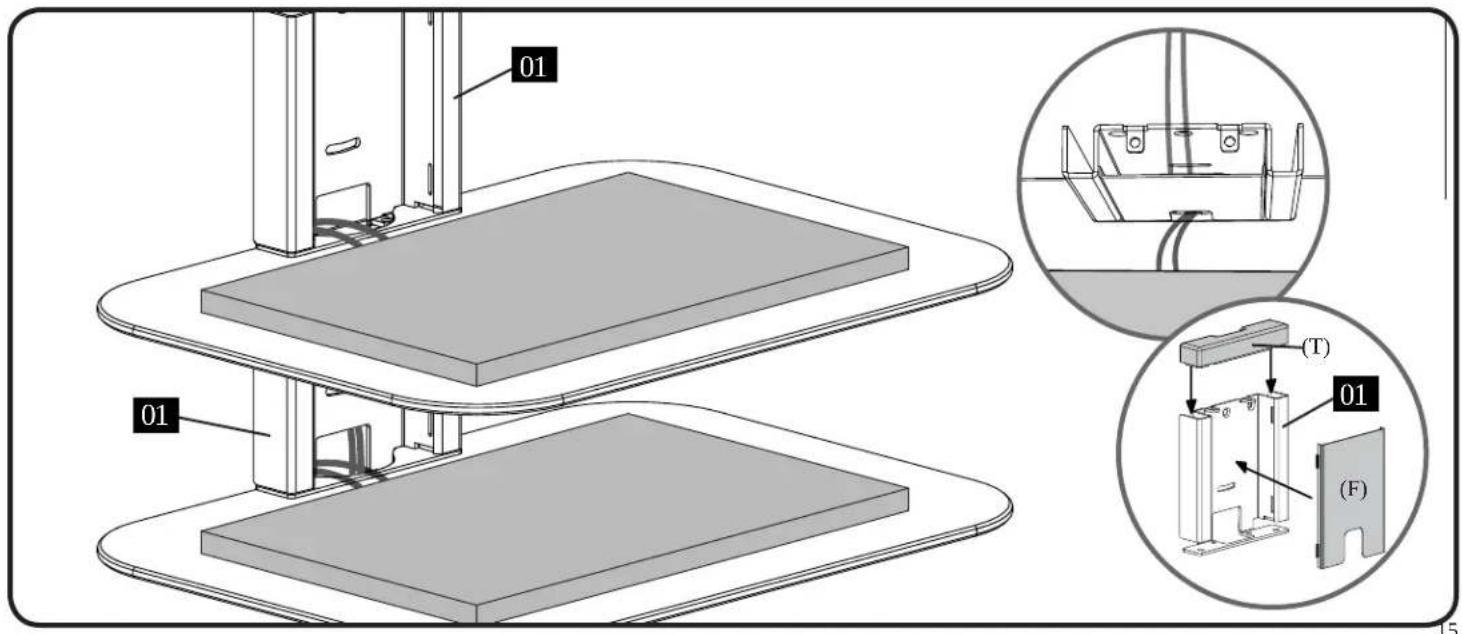

Stacked configuration

For stacked configurations, cables can be routed through the inside of the wall plates 01. When you are finished routing cables, replace the top (T) and front (F) covers.

01 01 (T) 01 (F)
