USER MANUAL MB-4 DataVideo

Technical line drawing of a mechanical component with mounting flanges and internal channels (no text or symbols)

DAC SERIES

BATTERY HOLDER

MB-4

Instruction Manual

Table of Contents

TABLE OF CONTENTS...... 2

FCC COMPLIANCE STATEMENT 4

WARNINGS AND PRECAUTIONS 4

WARRANTY 6

STANDARD WARRANTY....6

THREE YEAR WARRANTY....7

DISPOSAL 8

FEATURES....9

HOW TO MOUNT THE MB-4....9

COMPATIBLE BATTERIES......10

PACKING LIST......10

SERVICE & SUPPORT......12

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged

into the extension cord do not exceed the extension cord rating.

1. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

2. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

3. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.

4. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty Standard Warranty

- Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.

- The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

- The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.

- All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.

- Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.

- Viruses and malware infections on the computer systems are not covered under warranty.

- Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.

- All mail or transportation costs including insurance are at the expense of the owner.

- All other claims of any nature are not covered.

- All accessories including headphones, cables, and batteries are not covered under warranty.

- Warranty only valid in the country or region of purchase.

- Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

Register for 3 year warranty www.datavideo.com

- Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

Features

• Battery mount and adapter for DAC series
• Plate slides onto the bottom of the DAC
  • Supports Sony, Panasonic, Canon (BP-945 / 970G only) and JVC 14.4V or 7.2V
• Makes your DAC completely portable
  • Compatible with: DAC-60 | DAC-70 | DAC-8P | DAC-9P | VP-597 | TC-200 (Title generator for CG-200)

How to mount the MB-4

Close-up of a black battery mounted on a gray electronic device with a red arrow indicating compression or disassembly (no text or symbols visible)

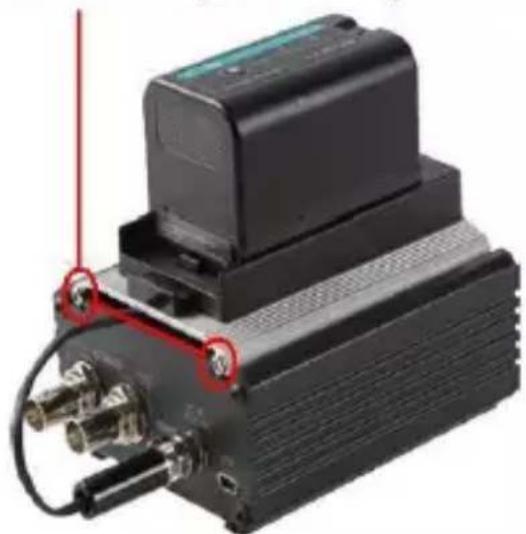

Use four screws (front and rear side) to secure the MB-4.

Close-up of a black electronic device with attached connectors and a red indicator line (no visible text or symbols)

Compatible batteries

Supported DV type	Battery	Voltage
Sony (S1)	SONY BP-U60, BP-U30	14.4V
Sony L series(S2)	SONY NP-F770/970/960/950 DV battery	7.2V
Panasonic	Panasonic CGA series DV batteries	7.2V
Canon	Canon BP-945/970G DV batteries	7.2V
Sony (S)	SONY NP-QM series DV batteries	7.2V
JVC	BN-VF823	7.2V
JVC	SSL-JVC50	7.2V

Packing List

No.	Description	Quantity
1	MB-4 product	1
2	Screw M3*6mm	4

NOTE

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

Please visit our website for latest manual update.

https://www.datavideo.com/product/MB-4
