USER MANUAL R-D6800N HITACHI

HITACHI Inspire the Next

For use in Singapore, Hong Kong, Malaysia, Indonesia and Vietnam only.

家庭用 For household use

型號 Model

R-D6800S

R-D6800H

R-D6800M

R-D6800N

R-D6200S

R-D6200H

R-D6200M

R-D6200N

R-D6800XS

R-D6800XH

R-D6800XM

R-D6800XN

Exterior view of a modern refrigerator with four doors and front panels (no visible text or symbols)

日本製 Made in Japan

六門 6 doors

非常感謝您購買日立電冰箱。

Thank you very much for purchasing a Hitachi Refrigerator. This refrigerator is designed for home use only.

Do not use this refrigerator for the business use and/or any purpose other than storing food.

Please read this operation manual carefully and ensure you use the appliance correctly. In particular, be sure to read the “Safety Suggestions” section of this operation manual before use. Please keep this operation manual along with your guarantee card.

Hand over this operation manual together with the refrigerator when the refrigerator is passed to a third party and used in a different location, or when it is sent to a recycling plant.

● 購買後初次使用時。→ 10,1頁

● It takes time to cool for the first time. →Pg.42, 43

It may take more than 4 \~ 24 hours to fully cool.

● Make sure that no food protrudes beyond the storage height limit of each compartment, and allow clearance between each food in each compartment. →Pg.48, 52

Otherwise, food and/or package may not be stored in each compartment properly, and as a result, the door may not be closed completely. It may cause the refrigerator not to cool sufficiently and/or not to make ice.

特長 FEATURES

Hitachi adds the Vacuum Compartment to "eco".

Adopting [Fresh Cassette] and evolving [Sleep Preservation] to keep freshness and preserve nutrients.

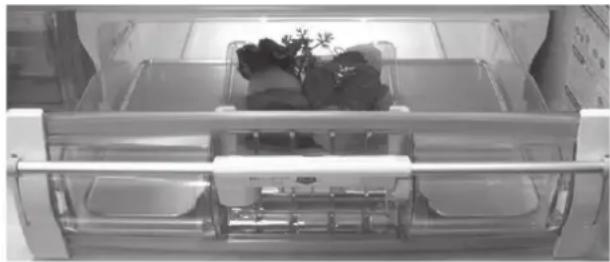

Our unique [Vacuum Compartment] keeping freshness and preserving nutrients in a vacuum state evolves. Newly adopted [Fresh Cassette] releases hot flavor to restrict activities of the enzymes to keep Umami taste of fish and textures. In addition, adding LED lights increases carbon dioxide gas yield to enhance effectiveness of the [Sleep Preservation] function.

※ Vacuum means the space where the pressure is lower than the atmosphere pressure. The pressure in the Vacuum compartment is about 0.8 hPa which is lower than the atmosphere pressure, so Hitachi calls such state as vacuum.

[Dual Fan] & [Frost Recycle Cooling] and others lead to

More energy saving

Interior view of a medical incubator with glass chambers and a small bed, no visible text or symbols

Thanks to various energy-saving technologies such as [Dual fan] using 2 fans to cool efficiently, [Frost Recycle Cooling] utilizing frost formed on the condenser effectively, etc., electric power consumption is reduced. If you want to save electricity more, "Energy Saving" mode is available.

Plentiful innovative functions to store more items

Spacious storage capacity

Structure design is improved by expanding / enlarging shelves, pockets and slide cases as much as possible as well as by using vacuum insulating material to thin the wall and others to maximize internal volumetric capacity for foods. Storing a pan with foodstuffs in, storing the whole large ingredients, bulk buying on weekends and others due to plentiful storage capacity may help your daily life change.

[三重抗菌除臭]

[Triple Power Deodorizing Effect]

A combination of 3 types of deodorizing materials leads to deodorize various odorous substances in the refrigerator including 4 major odors such as sulfur, nitrogen, aldehyde and oxygen odors. Activities of bacteria collected by the filter are also restricted.

Deodorant filter has the effect of sterile filtration.

- Testing laboratory: Boken Quality Evaluation Institute, a general incorporate foundation - Test method: Film contacting method (JIS Z 2801) - Name of the part used for treatment: Filter - Sterilization method: applying oxidation catalyst to the filter - Target: bacteria collected by the filter - Test result: sterilization effect of 99% after 24 hours by using a filter only. This has not always effect on the entire refrigerator or foods.

If the ice is not made

→ 30頁

→Pg.62

冰箱内冷度不夠時

If the refrigerator is not cooled

down well → Pg.62

結霜或結露時

If frost or dew is formed

→Pg.63

發出異常聲音時

Abnormal operating

is generated

→ 31頁

sound

→Pg.63

發現真空冰溫可能有異常時

There is something strange with the

Vacuum Compartment → Pg.64

顯示燈閃爍時

If any indicator lamp blinks

→Pg.64

目錄

使用之前

安全上的注意事項 4

確認事項 8

各室的名稱·存放食物 8

附屬品 8

操作面板的功能 9

事前準備 10

使用前的準備 10

Diagram showing electrical connections with a power outlet and a switch, marked with X symbols indicating disconnection or failure.

在已受損的狀態下使用時，

會引發觸電·短路·火災的危險。

Illustration of two children playing on a playground with climbing stairs (no text or symbols)

● 請注意不要讓孩子們玩耍。

禁止

● 請不要拆卸冰箱内燈的蓋子。

Illustration of a refrigerator and a person installing or cleaning a wall-mounted device (no text or symbols present)

Illustration of a child and an adult interacting with a refrigerator (no text or symbols)

注意

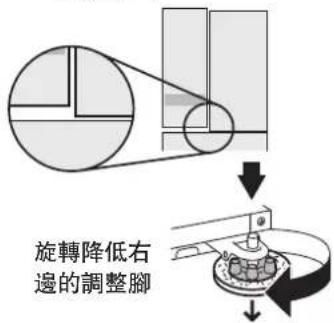

移動・搬運時

禁止

Simple line drawing of a hand holding a bag with motion lines indicating speed (no text or symbols)

禁止

Diagram showing a pulley system with a belt and a circular component, no text or symbols present

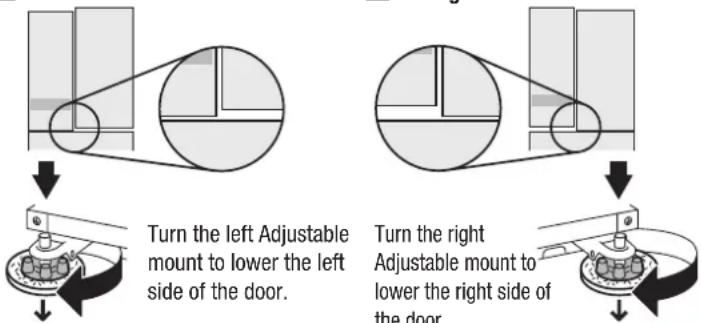

右側下歪

Illustration of workers installing or maintaining a large cylindrical object, with magnified insets showing hand and tool positions (no text or symbols)

9

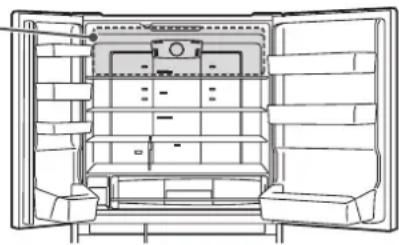

Diagram of an open refrigerator interior showing internal compartments and ventilation ducts (no text or labels)

■ 可調式層架 (下段)

Mid. Refrigerator Ice 按下 (Pr

Architectural line drawing of a refrigerator interior showing storage compartments and doorways (no text or labels)

2

Diagram of a mechanical assembly with a hand operating a component (no text or symbols visible)

Hand holding a wooden bracket with a zigzag handle, no text or symbols visible

1

將真空冰溫盒 往內推進

Diagram of a mechanical assembly with a hand pressing a component (no text or symbols visible)

2

將把手往下 扳，讓其鎖定

往下按把手鎖緊。

如果没有壓到最底部

時，則真空冰溫功能無法正常啟動。

注意事項

Hand placing a wall-mounted switch into a bracket (no text or symbols visible)

通知事項

Diagram of a multi-tiered storage or rack system with arrows pointing to components (no text or symbols)

中層滑動盒

· 冷凍包裝
· 密封容器等

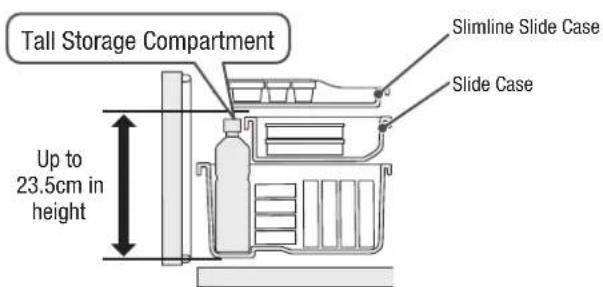

豎放儲存區

· 存放冷凍用瓶子等 (高約 23.5cm)

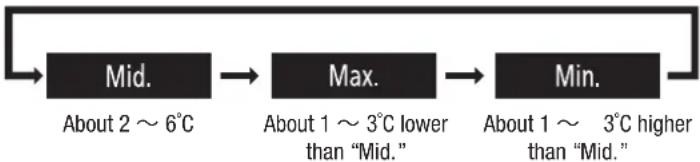

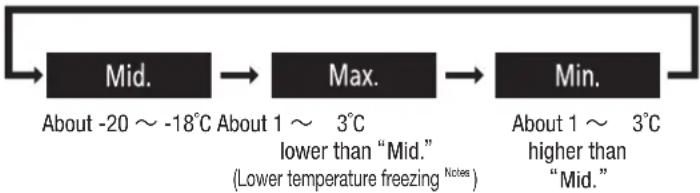


Mid. Freezer Refi 按下 Auto Door (Press 3 Sec.)

Technical line drawing of a mechanical component with no visible text or symbols

2

Three hand-drawn illustrations of garlic cloves, one with a flared rim, the other with a bent knife (no text or symbols)

若想以更冷的温度來保鮮時（蔬果室強）

1

Illustration of a refrigerator interior with a hand inserting a component into the refrigerator (no text or symbols)

電動抽屜

Architectural line drawing of a window frame with a shaded panel and vertical supports (no text or symbols)

通知事項

Line drawing of a hand inserting a component into a drawer (no text or symbols)

各種功能

「節電」模式的設定

Illustration of a hand inserting a component into a rack, with a black X symbol indicating a defect or error (no text or symbols present)

Line drawing of a kitchen appliance interior with shelves and a drawer (no text or symbols)

都確認完了之後請操作下一個步驟。

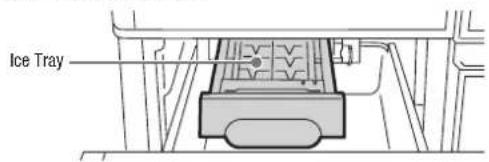

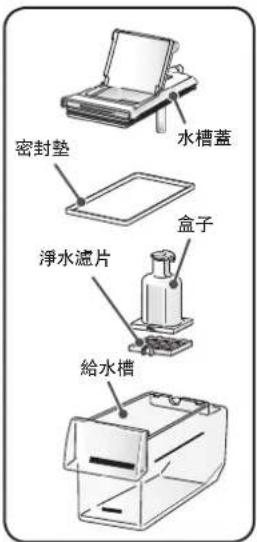

儲冰盒

· 有殘留冰塊時請清除

1

關閉所有的箱門

2

Illustration of hands operating a mechanical device with an arrow indicating rotation (no text or symbols)

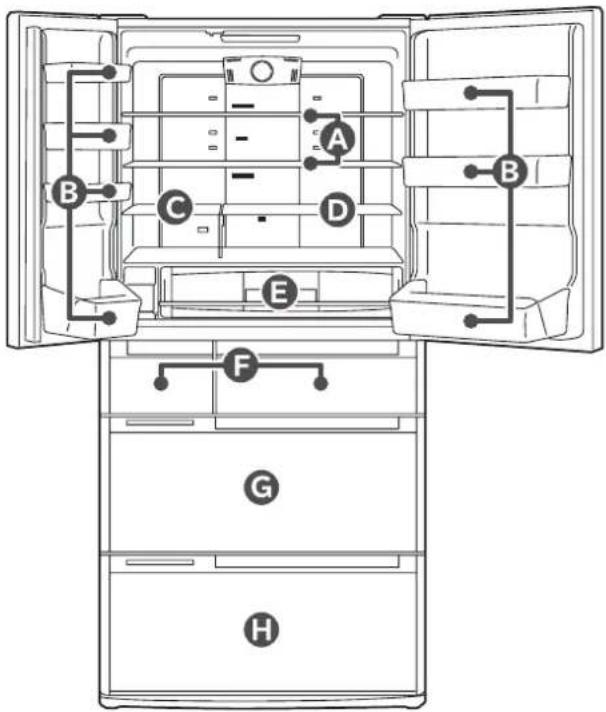

Diagram of a refrigerator interior with labeled compartments and doors, showing internal layout and numbered components.

A 可調式層架上段·中段（玻璃層架）

Two-step diagram showing hand positioning of a rectangular object with an arrow indicating rotation (no text or symbols)

Simple line drawing of a mechanical device with a handle and base, no text or symbols present

R-D6200型

Simple line drawing of a mechanical device with a top component and directional arrows (no text or symbols)

D 可調式層架下段

稍微抬高並取下。

R-D6800型

Diagram of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

R-D6200型

Simple line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

E 真空冰温盒

卸除方法 安装方法

Line drawing of a toolbox with a handle, no text or symbols present

Diagram of a printer drawer with an arrow indicating a process (no text or symbols present)

3 下層的置物盒朝身體方向向上抬起。

下層置物盒

SAFETY SUGGESTIONS 36

LEARN NAME & FUNCTION OF EACH PART ... 40

Name of each compartment/Food stored 40

Accessories 40

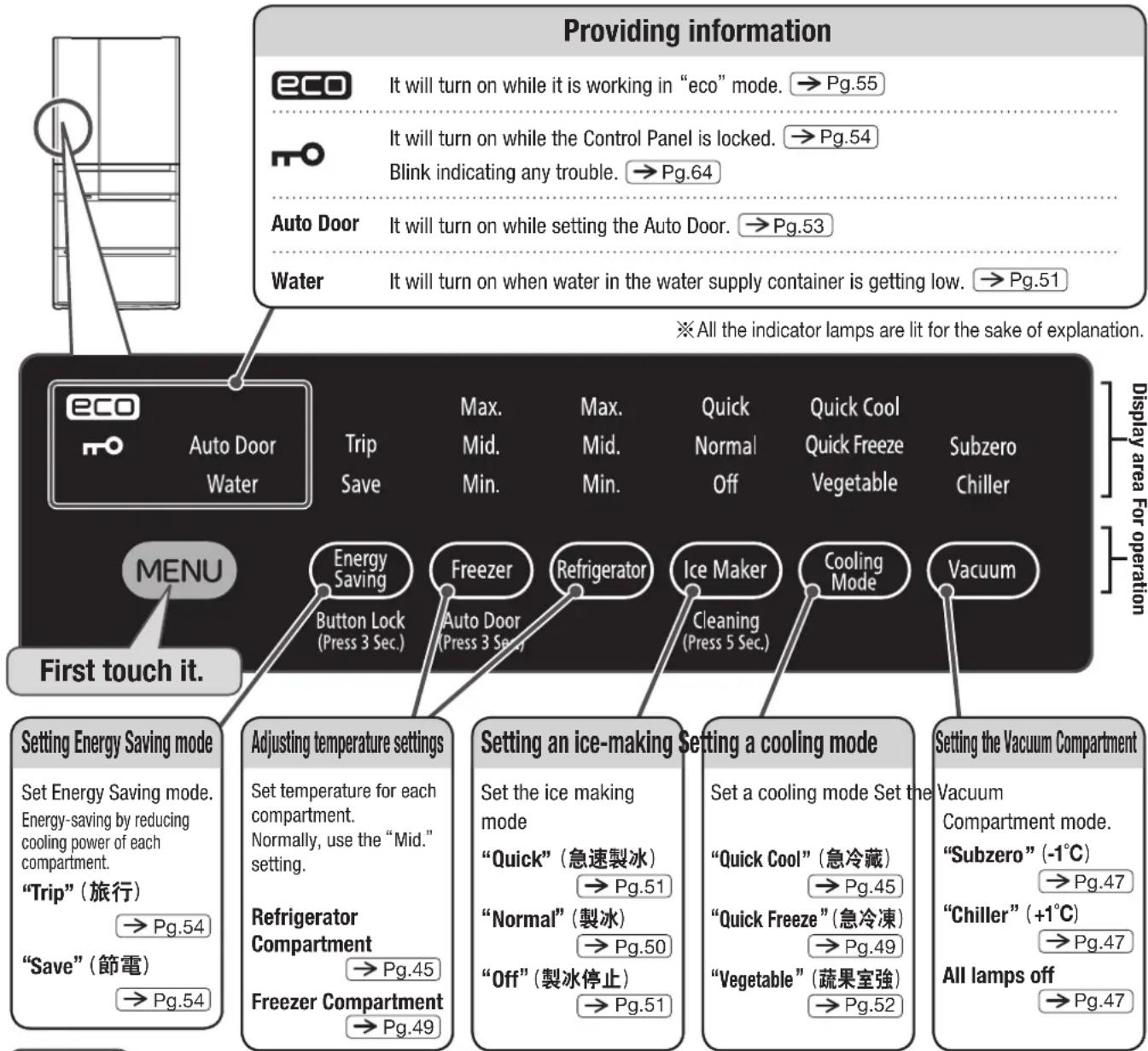

Functions of the Control Panel 41

BEFORE USE 42

Preparation before use 42

Transporting your refrigerator (transport for moving) .... 43

GENERAL USE

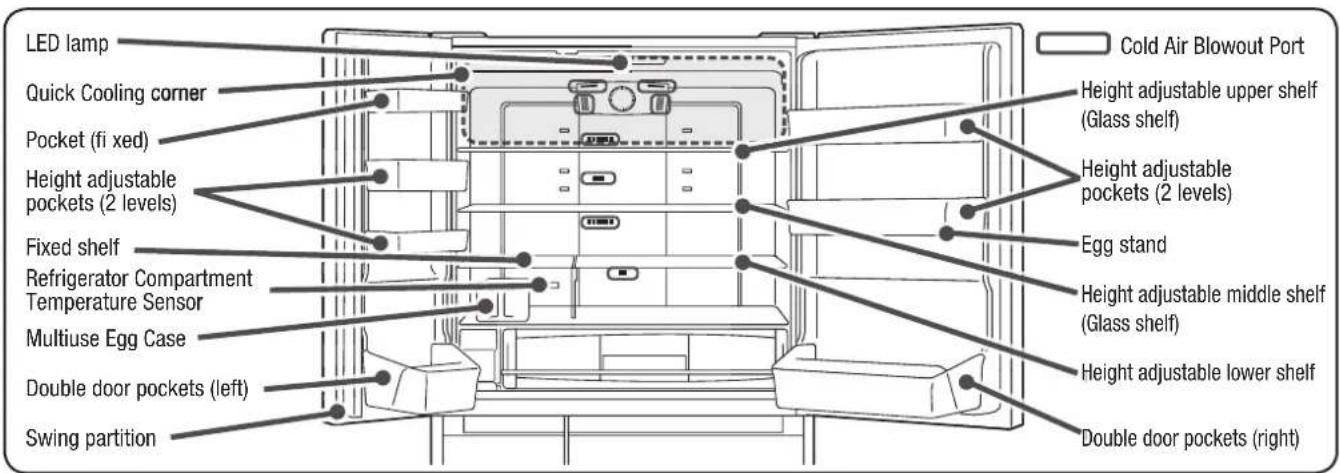

REFRIGERATOR COMPARTMENT 44

Adjust the height of a shelf or pocket 44

Using a multiuse egg case 44

Opening/closing a door 44

Adjusting temperature in a refrigerator compartment ... 45

Cooling food Quickly (Quick Cooling) 45

VACUUM COMPARTMENT 46

When opening/closing the door of the Vacuum Compartment ... 46

Change the settings of the Vacuum Compartment … 47

FREEZER COMPARTMENT 48

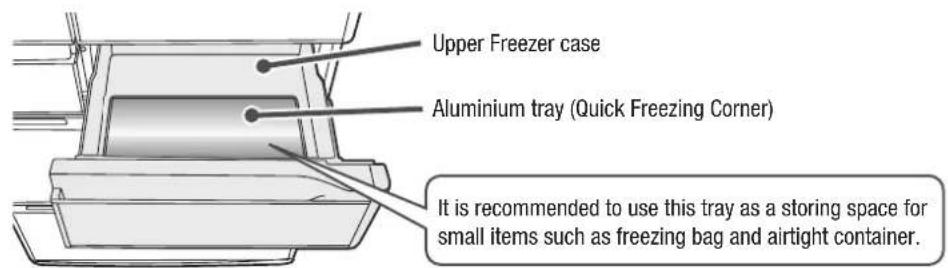

Using the Upper Freezer 48

Using the Lower Freezer 48

Precautions when storing foods 48

Adjust the temperature of the freezer compartment ... 49

Quickly freezing foods (Quick Freezing) 49

ICE COMPARTMENT (AUTOMATIC ICE MAKER) ... 50

How to make Ice 50

Quick Ice Making 51

Stop Ice Making 51

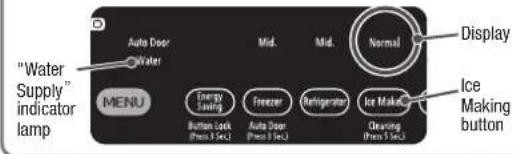

Water Supply indicator 51

Stored ice amount and ice-making time of the Ice Case … 51

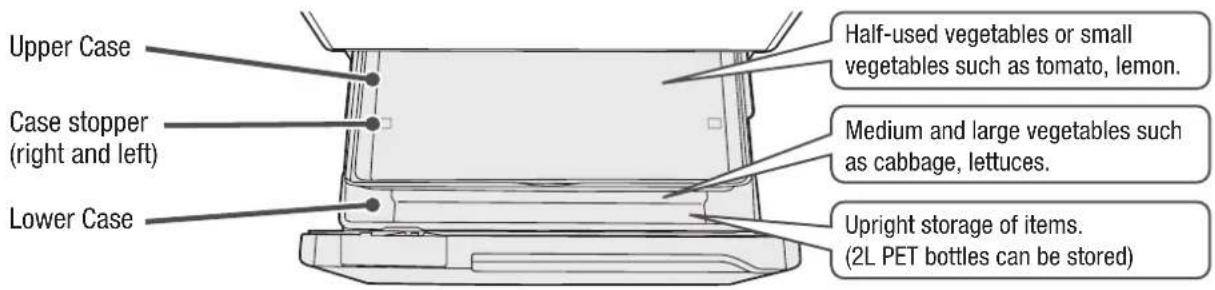

VEGETABLE COMPARTMENT 52

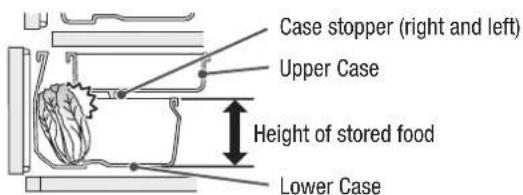

Using the Lower and Upper Cases 52

To cool it more [Vegetable] 52

AUTO DOOR COMPARTMENT 53

Set the AUTO DOOR 53

Using the AUTO DOOR 53

VARIOUS FUNCTIONS 54

Setting "Energy Saving" mode 54

Door Alarm and volume adjustment of the operation sound … 54

Locking the Control Panel 54

Set the condensation prevention heater 55

Fine adjustment of the temperature (Refrigerator 55

Compartment / Freezer Compartment) ....

"eco" Operation indicator lamp 55

Door Alarm 55

MAINTENANCE

MAINTENANCE (REGULAR CHECK) 56

Power plug/The back/floor of the refrigerator/Surface of door … 56

Door gaskets/Liquid receivers 56

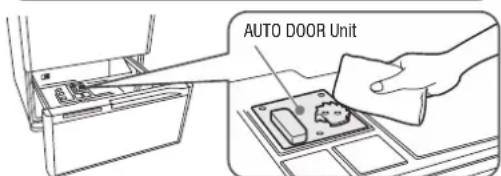

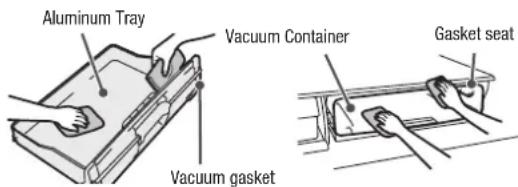

Vacuum Compartment/Auto Door Compartment 57

Ice Maker Cleaning 58

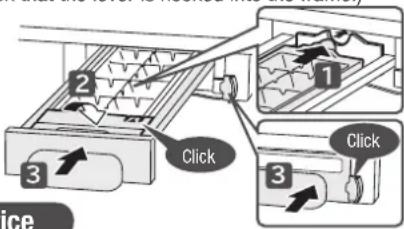

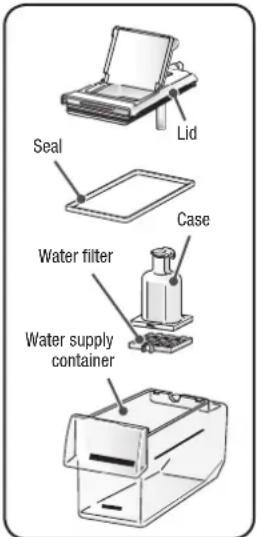

Water supply container/Ice tray 59

HOW TO REMOVE/ATTACH PARTS 60

Height adjustable upper and middle shelf (Glass shelf) … 60

Door pocket 60

Fixed shelf 60

Height adjustable lower shelf 60

Vacuum Case 60

Ice Case (Ice Compartment) • Upper Freezer case (Upper Freezer) … 61

Slimline slide case, slide case and lower freezer case (Lower Freezer) … 61

Upper Case, Lower Case (Vegetable Compartment) … 61

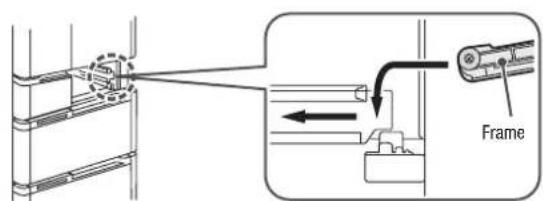

How to attach the slide door (Ice Compartment/Upper Freezer/Lower 61

Freezer/Vegetable Compartment)

TROUBLESHOOTING

TROUBLESHOOTING 62

Initial stage 62

Control Panel 62

Automatic ice making is not properly performed .... 62

Refrigerator does not cool 62

Frost and/or dew occur 63

Refrigerator cools overly 63

Door is not in a horizontal state 63

Abnormal operating sound is generated 63

Refrigerator becomes hot 63

It smells strange 64

There is something strange with the Vacuum Compartment … 64

[] display on the control panel flashes 64

Auto Door Compartment 65

Others 65

AVAILABLE PARTS 65

ABOUT NON-CFC REFRIGERATORS/67

STORABLE WEIGHT ......

SAFETY SUGGESTIONS

Ensure to follow these precautions

When using this appliance, failure to follow safety precautions may result in personal harm, harm to other people, and also damage to property.

The following pictographs categorize and explain the level of possible harm on damage that may occur from ignoring suggestions resulting in missing the appliances.

WARNING

Suggestions headed by this pictograph indicate "There is high chance of serious injury or death" if ignored.

CAUTION

Suggestions headed by this pictograph indicate "There is a high chance of injury or damage to property" if ignored.

How the suggestions should be taken are indicated and categorized by the following symbols accompanied by explanations. (The symbols below are examples)

This symbol indicates something you must not do. (Prohibited)

This symbol indicates something you must do. (Compulsory)

This refrigerator uses flammable refrigerants. The symbol column below states the precautions on flammable refrigerants.

R600a

This symbol denotes the precautions on flammable refrigerants.

WARNING

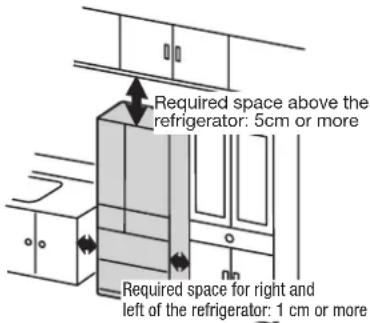

Installation

● Take measures to prevent overturning of refrigerator due to earthquake, etc.

• Overturning of the refrigerator could result in personal injury. 📄 Pg.43

Wetting Prohibited

- Do not install the refrigerator in damp places or where water may splash.

- This may impair electricity insulation causing electric shock or fire.

Handling the power and power cable

● Avoid usage that may cause the wall outlet or power cord components

Prohibited Prohib

to work beyond the specified voltage. Also do not use power sources

that are not a rated voltage current.

If a power source is shared with other appliances, double or multipoint adapters may heat up beyond normal levels and cause fire.

- Use a wall outlet rated above 10 ampere by itself.

- Do not do anything that may damage the power cord or plug.

The power cord or plug should not be cut, modified, touched with hot implements, bent by force, twisted, pulled, have heavy objects placed on it, squeezed by the refrigerator, or be bound or tied up.

Using a damaged power cord may cause electric shock, short circuits, or fire.

- Please consult with a retailer about the repair of the power cord or plug.

- Connect the power plug firmly to a power outlet with the cord running down.

- Connection of the power plug with the cord running up could apply stress on the cord and cause electrical short or overhe could result in electrical shock

- Incomplete connection of the power plug could result in electrical shock or fire due to heat.

Wet Hands Prohibited

- Do not insert or remove the power plug with wet hands.

- This may result in electric shock.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

WARNING

Handling the power and power cable

● Clean the dust on the power plug frequently.

Insulation failure from moisture when dust collects on the power plug may cause fire.

- Unplug the power plug and wipe it with a dry cloth.

● Be sure to unplug the power plug before maintaining the refrigerator.

Continued use may cause electric shock or injury.

Pg.56

• Always hold the plug when unplugging it.

During use

Wetting Prohibited

● Do not splash water on or inside the refrigerator.

- This may impair electrical insulation causing electric shock or fire.

Prohibited

- Do not put in things that may catch fire.

- Benzine, ether, LP gas, thinner, adhesives may ignite an explosion.

Wetting Prohibited

● Do not put water containers on the refrigerator.

- Spilled water may impair insulation of electrical components causing faulty electrical currents. This may result in electric shock or fire.

Prohibited

- Do not use flammable sprays near the refrigerator.

• Sparks from points of electrical contact such as door switches may ignite a fire.

Prohibited

● Do not put things on top of the refrigerator.

- Opening and closing doors etc. may cause things placed on top of the refrigerator to fall resulting in injury.

Prohibited

● Drugs, chemicals, research and experimental substances should not be stored in the refrigerator.

- Substances that require precise conditions for storage cannot be stored in a domestic refrigerator.

Contact Prohibited

● Do not touch the machinery components of the automatic ice maker.

- There is a danger of injury when the ice trays are rotating.

Prohibited

- Do not hang on the doors or step on the various compartments.

- Injury may be caused by the refrigerator tipping over or hands getting caught between doors.

Illustration of two children climbing a slide (no text or symbols)

● Children should be supervised to ensure that they do not play with the appliance.

Prohibited

- Do not remove the cover of the interior lamp.

- When the interior lamp is damaged, please contact the service centre for replacing the lamp to avoid injury.

Prohibited

- Do not add impact to the glass door.

WARNING

Concerning the refrigerant (Be careful of the following related to the use of flammable gas R600a: ISOBUTANE.)

Prohibited

- Do not scratch or damage the main body of the refrigerator with a sharp object such as screw.

Since the refrigerant used is flammable, any leakage from the pipe inside the wall may cause ignition and explosion.

- Allow clearance around the refrigerator and keep ventilation openings when installing it.

Pg.42

Leakage of the refrigerant may accumulate and cause ignition and explosion.

- Do not damage the refrigerant circuit. If you happen to damage the refrigerant pipe, stay away from the refrigerator and

Illustration of a refrigerator and a person installing or adjusting a wall-mounted device (no text or symbols present)

avoid using fire and electrical appliances.

Should you damage the refrigerator, open the window to ventilate and contact the authorised service centre.

- Please consult your dealer or the Recycle Hotline of the Recycle Centers in the Environmental Protection Administration when discarding the unit.

If the refrigerant is wet, it may cause ignition and explosion.

● Do not use mechanical devices or other means

Prohibited Prohib

to accelerate the defrosting process, other than those recommended by th

● Do not use electrical appliances inside the refrigerator.

- If the refrigerant leaks, sparks on the contact may cause ignition and explosion.

R600a

● The warning label and name plate including this symbol affixed on compressor and refrigerator should be kept throughout the life of the refrigerator.

In case of emergency

- Stop the refrigerator by unplugging it if it is not running properly or breaks down.

Continue may cause electric shock or injury.

• Always hold the plug when unplugging it.

Disassembly prohibited

- Do not disassemble, repair, or modify your refrigerator.

Injury may be caused by ignition of fire or faulty ru

- Please consult with a retailer if any repairs or disassembly are required.

● In the event of gas leak, do not touch the refrigerator and open windows to allow ventilation.

- Sparks from points of electrical contact such as door switches may ignite explosions causing fire or burn injuries.

turn off the switch

When discarding the unit

● Before discarding the unit or recycling, remove the door packing to avoid the risk of an infant or child to be entrapped inside.

Illustration of a child and an adult interacting with a refrigerator (no text or symbols)

When moving the refrigerator

Prohibited

- Do not move the refrigerator by using its wheels as it may damage the floor.

- Please lay a protective mat.

● Use the carrying handle when carrying it.

Your hands may slip resulting in injury if you hold the refrigerator at other places than the carry handles.

• More than 2 to 4 persons should carry the refrigerator for safety reasons.
- Carry it with the door facing upward; as shown in the illustration.
- Never hang the handle with a crane.
- Use a tape to fix an electric plug/power cord so that it may not hang down.

During use

Prohibited Prohibited of the front section.

- Do not put bottles in the Door Baskets if they do not sit properly on the bottom

- Forcing in items like large bottles may result in them getting tipped over, causing injury.

Prohibited

- Do not put the glass bottles in the Freezer Compartment.

- Bottles may break from the contents freezing and cause injury.

Prohibited

- Do not hold the top of the doors when closing them.

- If you hold the top of a door when closing it you may get your fingers caught or pinche

Prohibited

● Do not put your feet too close when opening the bottom door of the refrigerator.

- When opening this door you may hit the instep or other parts of your feet resulting in injury.

Prohibited

- Do not put your hands or feet under the base surface of the refrigerator.

When cleaning, putting your hands under

the base surface of the refrigerator may result in injury by cutting them on sheet metal parts.

Prohibited

- Do not give a hard impact to the glass shelf. (The glass shelf may be broken, causing personal injury).

● To prevent water from dripping on the floor. Water due to dew and/or frost may drip on the floor if there is a gap clearance around the door for a long time. Close the door completely without no gap.

● Do not have food items protruding over the front of the shelves.

- Injury may be caused from items like bottles getting knocked over.

Simple line drawing of a hand holding a bag with motion lines indicating speed (no text or symbols)

- When two or more doors are being opened or another person is using the refrigerator, make sure fingers do not get caught.

- Fingers may get caught in the spaces between doors causing injury.

Prohibited

- Do not touch the food and containers inside the Freezer Compartment with wet hands.

• This may cause frost injury. (Especially in the case of metal items)

Prohibited

- Do not eat food that smells strange or has changed color.

- Spoiled food may cause serious sickness.

stink

Prohibited

- Do not press the auto door switch on the auto door compartment with knee, etc.

● Avoid placing anything like a bottle near the auto door compartment.

Prohibited

● Neither heat the glass surface of the glass shelf nor put a thick item on it.

● Take care to remove the glass shelf because it is heavy.

LEARN NAME & FUNCTION OF EACH PART

Name of each compartment/Food stored

Refrigerator compartment → Pg.44 About 2°C ~ 6°C Refrigerating food The temperature at the door pocket is slightly high. Vacuum compartment → Pg.46 About -1°C ~ 1°C Fresh foods such as meat, fi sh and seafood Vacuum and photo-catalyst help to keep foods fresh. Ice compartment → Pg.50 About -20°C ~ -18°C The ice cubes made by the automatic ice maker. Vegetable compartment → Pg.52 About 3°C ~ 9°C Vegetable, fruits, drink Upper/lower freezer → Pg.48 About -20°C ~ -18°C Frozen food/ice-cream/dried food

※ The above temperatures are standard values under the condition that the refrigerator is stable with no food stored and the door closed, at ambient temperatures of 30^ C.
● Store foods in a loosely arranged way.
● It is recommended to wrap smelling foods.

Accessories

Warranty certifi cate	Please show it for repair.
Specialized tool (with 2 cushions) Please use it to fix the refrigerator.

The Control Panel is a touch panel made of glass.

If you touch button, the current settings will be displayed.

The upper portion of the Control Panel is the display and the lower portion is for operation.

Touch the lower portion of the Control Panel to change the settings, if necessary.

Providing information eco It will turn on while it is working in "eco" mode. → Pg.55 mp It will turn on while the Control Panel is locked. → Pg.54 Blink indicating any trouble. → Pg.64 Auto Door It will turn on while setting the Auto Door. → Pg.53 Water It will turn on when water in the water supply container is getting low. → Pg.51 ※All the indicator lamps are lit for the sake of explanation. ECO Auto Door Water Trip Save Max. Mid. Min. Max. Mid. Min. Quick Normal Off Quick Cool Quick Freeze Vegetable Subzero Chiller MENU First touch it. Energy Saving Button Lock (Press 3 Sec.) Freezer Auto Door (Press 3 Sec.) Refrigerator Ice Maker Cleaning (Press 5 Sec.) Cooling Mode Vacuum Setting Energy Saving mode Set Energy Saving mode. Energy-saving by reducing cooling power of each compartment. "Trip" (旅行) → Pg.54 "Save" (節電) → Pg.54 Adjusting temperature settings Set temperature for each compartment. Normally, use the "Mid." setting. Refrigerator Compartment → Pg.45 Freezer Compartment → Pg.49 Setting an ice-making Setting a cooling mode Set the ice making mode "Quick" (急速製冰) → Pg.51 "Normal" (製冰) → Pg.50 "Off" (製冰停止) → Pg.51 Set a cooling mode Set the "Quick Cool" (急冷藏) → Pg.45 "Quick Freeze" (急冷凍) → Pg.49 "Vegetable" (蔬果室強) → Pg.52 Setting the Vacuum Compartment Vacuum Compartment mode. "Subzero" (-1°C) → Pg.47 "Chiller" (+1°C) → Pg.47 All lamps off → Pg.47

Notice

• Close all the doors before adjusting the settings. While a door of the refrigerator is opened or an indicator lamp on the display is blinking, it will not work even if you touch the Control Panel.
  For checking the settings, please touch 📋END button. Once all the indicator lamps turn on, and then the current setting will be displayed. For energy saving, indicator lamps on the display and operation portions will be turned off 2 minutes after the operation. However, indicator lamps such as “Quick Freeze”, “Quick Cool”, “Save”, “Trip”, “Quick”, “Off”, “Water” and “eco operation” will not be turned off.

About the display
- When opening the refrigerator door, the displayed characters become lit. They become unlit about 15 seconds after closing it.
■ About the Control Panel
● Response of the touch panel may change depending on the surrounding temperature, humidity, physical condition of the user or operation status of the adjoining electric product.
- Release a finger and touch the panel again if the panel does not respond after touching it. False detection may occur (it may be kept pressed) if the time interval between key touches is too short. Response of the touch panel does not improve even if you touch it strongly.
● The panel may not respond if it is wet or dirty. Wipe it off with a dry cloth.

1

Please arrange it as shown below

● The floor should be sturdy and flat.

Lay a board with 1cm thickness on the floor if the refrigerator is installed on the carpet, tatami mat, flooring or PVC sheet flooring which may be hollow or discolor.

● Place the refrigerator away from direct sunlight and heat.
- Do not place it in damp areas, and ensure good air ventilation.

This will reduce adverse effects to refrigerating power and keep electricity cost down. This will also prevent the refrigerator from discoloring and rusting.

● The place separated from other equipment.

To prevent disturbance (noise / scattered image) to TV and others attributable to the refrigerator.

● To cool efficiently, allow enough space around the refrigerator for radiating heat.
- The actual size of the center part of the side of the refrigerator's main body is slightly larger than the nominal size. Therefore, please allow enough space around when installing the refrigerator.
- The back of the refrigerator can be placed very close to the wall. If any vibration sound occurs and/or any discolor/dirt is found on the wall, move the refrigerator away from the wall.

Required space above the refrigerator: 5cm or more Required space for right and left of the refrigerator: 1 cm or more

2

Fix the refrigerator

The adjustable mounts, which are located in the front bottom corners of the refrigerator, can be adjusted by turning them to level the refrigerator. (Make sure to use a supplied tool and 2 cushions)

1 To remove leg cover, hold both ends of it and pull it towards to you by applying some force.

Leg cover

2 Place pads under the adjustable mounts.

Place pads under the adjustable mounts evenly so that they can be leveled.

Cushion (Accessory) Adjustable mounts

3 Lower both adjustable mounts (left and right) by turning them to secure the refrigerator.

Clamp the supplied tool adjusting to the shape of the adjustable mounts.

Supplied tool (Accessory)

※ Always wipe the adjustable mounts and floor clean before placing pads. Adherents may scratch the floor if they remain.

Notice

- It is recommended to use 2 belts for preventing turnover caused by earthquakes (separately available) to fix it to the sturdy wall or pillar. Pg.65

3

Adjusting the refrigerator adjustable mount to keep it level

● Left side or right side of the door may be slightly lower when the surface of the installation place is not level or either of the left and right leg sinks in the floor surface because of the soft floor material and the addition of food weight.
→ This does not affect the refrigerator function. Adjust the refrigerator adjustable mount to keep it level according to the procedure listed below if you want to correct it.

Correcting any left/right lean and lifting slightly the front side of the refrigerator until the door can close easily and completely.

1 With the supplied tool, turn an adjustable mount on the side so that the refrigerator is lower to make the Refrigerator Compartment door level.

The height of the door can be adjusted 1mm every one turn of the adjustable mount.

■ The left side of the door is lower.

Turn the left Adjustable mount to lower the left side of the door. Turn the right Adjustable mount to lower the right side of the door.

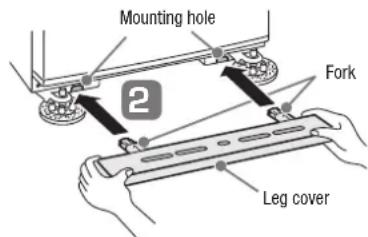

2 Insert the left and right pins of the leg cover into the mounting holes to attach the leg cover.

It may be approx. 5 days before the refrigerator conforms to the floor allowing the door to be leveled. Readjustment is required if the door is not leveled.

Mounting hole 2 Fork Leg cover

Notice

- When you release your hand from a refrigerator door with the door open, the door may move, but this is normal.

Peel off the seal from the Fresh Cassette in the Vacuum Compartment.

Peel off the seal from the Fresh Cassette set in front of the Vacuum Compartment before use.

● Hot flavor will not be released until the seal is peeled off.

Caution

• Do not wash it in water.
  ● Avoid to sniff the odor directly.

Pull it out right above. Peel off the seal, and then return it back.

On the Power Plug.

It is not a problem to plug in the power cord soon after installing the refrigerator.

Use a wall outlet exclusively when connecting the power cord. (Alternating current 220-240V, rated 10A or more)

Cooling inside the refrigerator starts.

• It may take more than 4 hours to cool well the inside of the refrigerator, depending on conditions such as the ambient temperature or storage state of foods. It may take 24 hours or more in summer, etc. Do not put ice cream, uncooled foods or perishable foods in it until the inside of the refrigerator is cooled well.
• Perform "Ice Maker Cleaning" when using the automatic ice making function first. Pg.58
  ● A series of ice making operation will start automatically after the inside of the refrigerator is cooled well. (When using for the first time, it may take 24 hours and more to make ice.)

Notice

● After the power plug is inserted, the motor continues to work for about 3 minutes to check the state of the automatic ice maker, cool air flap and refrigerant valve (it may sound louder than usual, but it means no trouble).
- It may smell of plastics in the beginning when you start to use. Keep the room well-ventilated. Such smell will disappear gradually.
- If you wish to install the refrigerator in a hot spring area exposed to sulfide gas, you may need to apply anti-rust treatment to the piping. Contact your dealer in advance. Failure caused by sulfide gas will not be covered under guarantee.
- Do not peel off the seal on the back or plastics at the lower part of the side.
- When a magnet or suction cup is attached on the side of the body or the surface of a door, it may leave a mark.
- If you wish to install the refrigerator in a hot spring area exposed to sulfide gas, you may need to apply anti-rust treatment to the piping. Contact your dealer in advance. Failure caused by sulfide gas will not be covered under guarantee.
- Do not peel off the seal on the back or plastics at the lower part of the side.
- When a magnet or suction cup is attached on the side of the body or the surface of a door, it may leave a mark.

Plastic parts - Left/Right

Caution

Transporting your refrigerator (transport for moving)

1

Take out foods or ice.

2

Pour off the water from the water supply container/ice tray.

3

Pull off the power plug.

No problem just before move.

4

Remove the leg covers, and raise the adjustable mounts.

5

Use a tape to secure the door/power cord.

6

Place a sheet or cloth for protection when moving / transporting it.

To prevent damage to the floor material or water from spilling out.

7

Place a sheet or cloth for protection first, and then lay it back to drain water. Such as old clot

Such as old cloth

8

Make sure to hold the handles when carrying it with 2 to 4 persons.

Do not lay it down horizontally for transportation (which may cause failure of the refrigerator).

Illustration of workers installing or adjusting a mechanical component, shown in two circular insets (no text or symbols present)

9

See “Preparation before use” for installing the refrigerator in a new location. → Pg.42

REFRIGERATOR COMPARTMENT

Refrigerator Compartment

LED lamp Quick Cooling corner Pocket (fi xed) Height adjustable pockets (2 levels) Fixed shelf Refrigerator Compartment Temperature Sensor Multiuse Egg Case Double door pockets (left) Swing partition Cold Air Blowout Port Height adjustable upper shelf (Glass shelf) Height adjustable pockets (2 levels) Egg stand Height adjustable middle shelf (Glass shelf) Height adjustable lower shelf Double door pockets (right)

Caution

● High moisture foods / canned beverages may be frozen or disrupted if they are placed around the Cold Air Blowout Port.
- Store hot foods in the Quick Cooling corner or on the Height adjustable shelf. If it is placed near the Temperature Sensor, the temperature inside may be cooled down too much.

Adjust the height of a shelf or pocket

You can adjust the position of the shelf or pocket depending on size of foods or beverage.

■ Height adjustable shelves (upper/middle) Height adjustable pockets

You can adjust the position of them depending on the height of foods or beverage.

For how to remove/attach, see Pg.60.

Diagram of a refrigerator interior showing internal compartments and doorways (no text or labels)

Caution

● Avoid a high impact on the glass shelf (broken glass may cause injury).
● Be careful to attach the glass shelves because they are heavy.

■ Height adjustable lower shelf

You can adjust them in three-stages depending on the height of foods or beverage. For how to remove/attach, see Pg.60.

R-D6800 Type

State in shipping

Storage of pans, etc.

Storage of milk carton, etc.

State in shipping

■ Storage of pans, etc.

Storage of milk carton, etc.

Using a multiuse egg case

This can hold eggs and others in it and be put in the refrigerator compartment.

10 eggs can be stored in this case.

The egg pack with eggs in it can be stored as it is.

Multiuse Egg Case

se Egg Case Handle Egg stand

When the egg stand is turned over, it can be used for small sized food.

Caution

● Hold the carry handle securely when handling it.
- Do not stack food, otherwise they may drop.
- Do not put tall food in because they may fall down.
- Do not make ice with this container.

Opening/closing a door

To open the door

Do not hold the swing partition to open the door.

(It may make it impossible to open the door.)

To close the door

Do not close the door with the swing partition erected.

Swing partition Swing partition (It may make it impossible to close the door completely.)

1

Touch button on the Control Panel to turn on the indicator lamp

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch Renjsson to set the temperature as you like.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below: The temperature is set to "Mid." before shipping.

Mid. Refrigerator Ice Touch it (Pr

※ The above temperatures are standard values in the Refrigerator Compartment under the condition that the refrigerator is stable with no food stored and the door closed, at ambient temperatures of 30^ C.
- SelectMid." in ordinary usage. The temperature may change depending on the operation states.
● If you adjust the temperature more finely. → Pg.55

Notice

● The temperatures of the Vacuum Compartment also change if selecting “Max.” or “Min.”
● Temperature of the door pocket is set slightly higher than the one in the left table.

Cooling food Quickly (Quick Cooling)

1

Place the foods in the Quick Cooling Corner.

Quick Cooling corner

The food cools more quickly if it is placed at the center part near the interior wall. (the front of the Cold Air Blowout Port)

Caution

• Don't place any juicy food near the Cold Air Blowout Port, as it may be frozen.
• Please avoid placing any carbonated can beverage near the Cold air blow out port as it may be frozen or explode.

Technical line drawing of an open refrigerator with doors open and shelves closed (no text or symbols)

2

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

3

Touch 📄 on to turn on “Quick Cool” indicator lamp.

“Quick Cool” indicator lamp is turned on during the “Quick Cool” operation, and other lamps will be turned off in about 2 minutes.

The operation will end automatically in about 50 minutes and "Quick Cool" indicator lamp will turn off.

Quick Cool Cooling Mode Touch it

To cancel it

Touch Button to turn on the indicator lamp, and then touch butt turn off "Quick Cool" indicator lamp.

VACUUM COMPARTMENT

Vacuum Compartment

Photocatalyst & LED light

Due to lights from LED lights and the effect of photocatalyst, odorous substances of foods and ethylene gas from vegetables are converted into carbon dioxide to restrict activities of the enzymes. The LED light illuminates the Vacuum Case when a door of the refrigerator is opened.

Vacuum Pump

Vacuum release valve (in blue)

Raise the handle to unlock it. The vacuum will be released by the vacuum release valve.

Hissing sound is generated when releasing the vacuum.

is opened.

Fresh Cassette

Be sure to peel off the seal

before use. → Pg.43

Hot fl avor contained in wasabi (green horseradish paste), etc. is released from the Fresh Cassette to restrict activities of the enzymes.

※ It is not required to replace it periodically.

Handle

Vacuum Case

(With an aluminum tray)

When opening/closing the door of the Vacuum Compartment

When opening the door When closing the door

1

Pull up the handle to unlock.

Handle Hiss Door

2

Pull out the Vacuum Case.

The door cannot be opened due to the vacuum state

when the hissing sound can still be heard.

When the hissing sound stops, pull the handle towards you to open.

Line drawing of a hand operating a mechanical device with a black arrow pointing to the component (no text or symbols present)

Caution

If you pull out the Vacuum Case without opening the door on the left/right, it may cause damage to parts.

Line drawing of a hand holding a wooden bracket with a zigzag handle (no text or symbols)

1

Push the Vacuum Case back to the end.

Line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

2

Press down the handle to lock.

Fully press down the handle to lock the door.

Hold down the handle to the end. Or the Vacuum function will not work properly.

Caution

If you close the door of the refrigerator with the handle unlocked, it may cause damage to parts.

Hand reaching toward a mechanical component with zigzag lines (no text or symbols visible)

Notice

● The vacuum pump is activated when the door of the Refrigerator Compartment is closed, with the door of the Vacuum Compartment closed and the handle locked.
● Sound occurs upon start of the vacuum pump, which is a normal event.
The vacuum pump requires about 3 minutes to produce a vacuum after its activation. No hissing sound comes out when the door of the Vacuum Compartment is opened within 3 minutes. Always wait for 3 minutes or longer before checking vacuum state.
- Adopting indirect cooling, the Vacuum Compartment requires longer time than other compartments to cool food.
- In the dark, you may see the light of LED light through the door gaskets of the Refrigerator Compartment while the photocatalyst function works.

Caution

• Do not rinse the Fresh Cassette in water. In case it is rinsed, dry it completely before use.
• Do no smell the Fresh Cassette directly. It may be irritating to the nose.
  ● Do not disassemble the Fresh Cassette.

1

Touch button on the Control Panel to turn on the indicator lamp

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch 📄 on to change the settings as you like

The display switches in sequence as shown below every time the button is touched.

The temperature is set to "Subzero" before shipping.

Subzero Vacuum Touch it

※The above values are obtained with an ambient temperature of 30^ C, the temperature in the Vacuum compartment in a stable state with no food stored and no door opened.

Settings and food stored

Vacuum

Subzero (About -1°C)

Chiller (About +1°C)

Vacuum OFF

OFF (About -1°C)

The following foods should be stored at "Subzero" setting.

● Meat, processed meat

● Fish, seafood, boiled fish paste

This setting is also suited for thawing. Foods high in water content may freeze.

The following foods should be stored at "Chiller" setting.

Fresh salad

● Precut vegetables and fruits

Japanese basil, oranges, kiwis etc.

● Food which form air bubbles inside if frozen

Tofu, konnyaku, deep-fried tofu, string konnyaku, boiled eggs etc.

● Dairy products

Yogurt, cheese etc.

Others

Vegetables in sealed bags or airtight containers, coffee beans, tea leaves etc.

Green beans, snow peas, tomatoes, strawberries etc.

The vacuum function/photocatalyst function is disabled. This setting is recommended to store food in “sealed bags” or “sealed container s” which requires caution in storing. Foods high in water content may freeze because this is a regular ice-temperature compartment.

Food and container for which care needs to be taken during storage

● Food contained in a sealed bag

The bag may be inflated during storage, which could result in crushing of other stored food.

Caution

Vienna sausage, sliced cheese etc.

● Plastic airtight container

The lid of the container may become loose or may not stay in place during storage. Be careful when you take out the container.

Caution

Food which are not suitable for storage

● Vegetable sensitive to low temperature

The surface of the vegetable may deteriorate due to low temperature. Store it in the Vegetable Compartment.

Eggplant

Okra, asparagus, ginger, and green pepper

Notice

Caution

● The vacuum effect will not be changed even if foods are wrapped.
● Foods high in water content may freeze if ambient temperature is low.
The temperatures of the Vacuum Compartments also change if the temperature of Refrigerator/Freezer Compartment is set to "Max." or "Min."

Request

Dew and/or frost may occur in the Compartment due to moisture contained in foods or in the air because the Vacuum Compartment is sealed.

● Wipe dew and/or frost off with a soft cloth wet by lukewarm water.
● Wipe water or soup spilled in the compartment soon, if any.
※ A water droplet and/or frost won't have a bad impact on performance.

Dew and/or frost

FREEZER COMPARTMENT

Upper Freezer Lower Freezer

Using the Upper Freezer

With Quick Freezing System, all the moisture, natural nutrients and good flavor in the foods are preserved in an instant. Pg.49

It is recommended to use this compartment when freezing meat and/or fish quickly.

Upper Freezer case Aluminium tray (Quick Freezing Corner) It is recommended to use this tray as a storing space for small items such as freezing bag and airtight container.

Using the Lower Freezer

3-layer freezer case provides you with large storage space compartment and convenient reach of your freeze food items.

It is suitable for storing the food preserved for a long time and the food that melt easily such as ice cream.

Slimline slide case • Small-item and frozen food, etc. Lower freezer case • Frozen food and bread Ice cream etc. Aluminum tray Slide Case • Freezing bag • Airtight container etc. Tall Storage Compartment • Suitable for storing the PET bottle for freezing (Up to 23.5cm in height)

● Moving the aluminium tray in the Upper Freezer to the left side of the Slimline slide case, it can be used as the Quick Freezing Corner.

Precautions when storing foods

Store foods properly depending on the height of them.

Otherwise, the door will not be closed tightly, which lead to inefficient cooling action. In addition, it may cause damage of food or each case. Keep the food off from the upper slimline case and/or the slide case.

As a guide of height

Upper Freezer Lower Freezer (Front) Upper Freezer case The top line of the case Slimline slide case Up to 5cm in height Slide case The top line of the case Lower freezer case The top line of the case

• Do not store any 500ml PET bottle in the Slimline slide case. It may not be taken out because it expands when it is frozen.
• Do not use with the slimline slide case and/or slide case removed. Food may drop to the inner part of the case, and as a result, the door may not close completely.

Tall Storage Compartment Up to 23.5cm in height Slimline Slide Case Slide Case

• When storing tall food in the tall storage Compartment, make sure that it does not contact with the Slimline Slide Case and/or the Slide Case.
  ● Store only food which can be frozen such as PET bottle which can be stored in freezer.

1

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch Inzion to set the temperature as you like

Each time you touch the button, the corresponding indicator lamp changes in the order shown below: The temperature is set to "Mid." before shipping.

Mid. Freezer Refi Touch it Auto Door (Press 3 Sec.)

※The temperatures are standard values under the specific condition (the surrounding temperature of 30^ C, no food stored, door closed and the temperature in the refrigerator is steady).

• Select"Mid." in ordinary usage. The temperature may change depending on the operation states.
  For more information about the panel for operation:→ Pg.55

Notes: Food is stored at a lower temperature than the conventional freezing temperature. The energy consumption is approximately 20% higher than that for the conventional freezing operation.

Notice

● Temperatures in the "Quick Freeze" operation are lower than the temperatures described above.
- If operating the refrigerator for a long time with the Max." selected, ice cream etc. may become hard or it may take a longer time to thaw food.

Quickly freezing foods (Quick Freezing)

1

Place the food wrapped with plastic film on the aluminium tray in the upper Freezer.

Dividing food into small pieces not only make them freeze soon, but also make them be taken out easily.

Quick Freezing Corner

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Touch Button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

3

Touch 📄 on to turn on the “Quick Freeze” indicator lamp.

"Quick Freeze" indicator lamp is turned on during the operation, and other lamps will be turned off in about 2 minutes. The operation will end automatically in about 120 minutes, and "Quick Freeze" indicator lamp will be turned off.

Quick Freeze Cooling Mode Touch it

To cancel it

Touch Button on the Control Panel to turn on the indicator lamp, and touch

button to turn off "Quick Freeze" indicator lamp.

Notice

• Freezing compartment is cooled preferentially in the "Quick Freeze" operation. For that reason, temperature of the Refrigerator Compartment may rise if opening/closing the Refrigerator Compartment door frequently.
• Warm food such as rice can be easily frozen by this function. Make sure that you never burn yourself when putting hot food in. It is recommended to put it in after it is cooled down to the temperature where you can hold it with your hand.
• Touching "Quick Freeze" again within 60 minutes after the end of the "Quick Freeze" operation, the lamp is illuminated, but the "Quick Freeze" operation does not start. The operation will start after 60 minutes pass.
  ● Make sure to wrap the food with plastic film to prevent it from sticking on the aluminium tray.

ICE COMPARTMENT (AUTOMATIC ICE MAKER)

Ice Compartment

Water Supply Container (Approx. 1.0 L) Control Panel Ice Making buttons "Water Supply" indicator lamp Display AUTO MATIC ICE MAKER ICE Making button MENU Auto Door Mid. Mid. Normal Ice Making button "Water Supply" indicator lamp Button Lock Press 3 Sec. Freezer Auto Door Press 3 Sec. Refrigerator Ice Make Cleaning Press 5 Sec. Ice Scoop Ice Compartment Ice Tray

How to make Ice

1

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch 📣kthe on to turn on “Normal” indicator lamp.

3

Take off the Water Supply Container.

When the "Water" indicator lamp is lit or the water level reaches to the "Add water line", replenish water.

Add water line

4

Open the lid and add water.

Water level can not exceed "Container-full line".

Container-full line

5

Replace the Water Supply Container.

Push it straight beyond the "Container set position" line completely.

Water will not be supplied until the water supply container is pushed to the end. ※ Water may spill out if the water supply container is inclined. Wipe off spilled water immediately.

Container set position

Ice-Making starts automatically

Ice cubes are stored in the Ice Case. 12 pieces of ice cubes are made by one ice-making operation.

"Water Supply" Indicator lamp Auto Door Water MENU Energy Saving Button Lock (Press 3 sec) Freezer Auto Door (Press 3 sec) Refrigerator Normal Display Ice Making button

Ice Tray

Notice

It may take longer time to make ice in the following cases:

• It is used for the first time (it may take 24 hours or more).
• It is set to the "Energy Saving" mode.
  • The door is opened/closed frequently.
  • Large volume of foods is stored in the refrigerator at one time.
  • In case of power outage.
• With the low ambient temperature in winter, etc.
  • After the ice tray is cleaned.
• When the door of the Freezer Compartment / Ice Compartment is not closed completely.

Perform "Ice Maker Cleaning" when making ice for the first time or for the first time in a week or more. Pg.58

Request

● WARNING: fill with potable water only.
● Water for ice making is according to your drinking standard. Quality of tap water may vary in different countries. Please check and verify with your local authority.
● Change water and clean the container at least once a week for hygiene purposes.
- If the ice made of mineral water containing a lot of mineral ingredients is put into water, white powder may come out, however this is due to those mineral ingredients and harmless.
● Furthermore, these types of water are easily contaminated with bacteria. Please wash the container usually once 3 days.

Mineral water (Hardness: 100mg/L or less)

Filtered water or boiled water

Well water (Required to satisfy the appropriate water quality standard)

- Do not use the following ones because they may cause malfunction, deformation or sticking ice.

Juice drink Sports drink Carbonated

drink

Quick Ice Making

1

Touch Button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch 📂 on to turn on "Quick" indicator lamp.

Ice cubes are made in a shorter time than that of "Normal" operation.

12 pieces of ice cubes are made by one ice-making operation.

"Quick" operation ends automatically in about 7 hours, and it is changed to "Normal" mode.

Stop Ice Making

1

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch Lettled on to turn on "Off" indicator lamp.

Auto Ice Making is stopped and no ice cubes are made.

※ If you set to "Off" for 1 week or more,

maintain the Automatic Ice Maker.

→Pg.58, 59

Notice

● "Off" indicator lamp won't turn off.

Water Supply indicator

“Water” indicator lamp comes on when water in the water supply container is getting low. Replenish the container with water.

Light ON Water Control Panel

Notice

● "Water" indicator lamp turns off for up to 3 hours when the left door of the Refrigerator Compartment is opened and closed while the indicator lamp is on, and it turns on again if no water is added to replenish the container.
● “Water” indicator lamp remains off when “Off” is selected for automatic ice making.

Caution

● “Water” may come on regardless of water level if the water supply container is not placed properly. Push in the container straight and completely if the indicator lamp comes on.

Stored ice amount and ice-making time of the Ice Case

Stored ice amount	Normal operation	About 120 pcs
	Ice is leveled	About 150 pcs
Required time for an ice making operation	“Normal”	About 110 minutes ~ 140 minutes
	“Quick”	About 70 minutes ~ 80 minutes

※ The above values are obtained with an ambient temperature of 30^ C, the temperature in each compartment set to “Mid.” and no door opened/closed.

Notice

● Amount of stored ice is automatically detected by the stored ice amount detecting lever of the Automatic ice maker which cannot be seen usually.
Automatic ice maker stops making ice when the amount of the stored ice reaches to the specified level and it restarts making ice when the amount is below the level.
- Limit line of stored ice amount represents the guide line of stored ice amount when the Automatic Ice Maker makes ice with ice leveled.
If the ice is stored partially, the detecting lever may contact the ice early. As a result, the Automatic Ice Maker may stop making ice before the amount of stored ice is enough.

Ice scoop Container-full line

Request

- Do not store any food such as frozen food other than ice in the Ice case when making ice automatically.

(Otherwise, it may not make ice, or the door may not open or parts may damage because the food interferes with the parts of the Automatic ice maker.)

● Gently open and close the door of the Ice Compartment, otherwise may fall out of the ice case onto the lower freezer.

Frozen food
Is any frozen food stored in the inner part of the ice case?

Detecting Lever Detecting Lever

Ice scoop
Is the ice scoop in the inner part of the ice case?

VEGETABLE COMPARTMENT

Vegetable Compartment

Upper Case Case stopper (right and left) Lower Case Half-used vegetables or small vegetables such as tomato, lemon. Medium and large vegetables such as cabbage, lettuces. Upright storage of items. (2L PET bottles can be stored)

Using the Lower and Upper Cases

Stored vegetables are not exposed to cold air directly, and they are cooled gently but thoroughly. All vegetables stay crisp, vibrant and fresh with their own moisture without wrapping with plastic film.

Case stopper (right and left) Upper Case Height of stored food Lower Case

Caution

- Do not pile foods higher than the case.

- Otherwise, the door may not close completely, and as a result, the refrigerator may not cool sufficiently.

• Food and/or the case may damage.

It is recommended to wrap vegetable with plastic film when the following conditions exist.

• When it is undesirable that the stored food absorb the smell of the vegetables such as scallion, leeks, and shallots
  ● When storing the vegetables and/or fruits which were used partially
• When the amount of the stored vegetables is small or many wrapped vegetables are stored

- When it is undesirable that dew occurs in the Vegetable Compartment

Illustration of two elongated, textured objects resembling tools or instruments (no text or symbols)

To cool it more [Vegetable]

1

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch

on to turn on

"Vegetable".

Foods are stored under the temperature lower than usual (approx. 1 to 5°C rather than approx. 3 to 9°C.)

※ The above temperatures are standard values for the Vegetable Compartment under the condition that the refrigerator is stable with no food stored and the door closed, at ambient temperatures of 30°C.

To cancel it

Touch button on the Control Panel to turn on the indicator lamp, and then touch cooling mode button to turn off the “Vegetable” indicator lamp.

Notice

- If foods are kept in the "Vegetable" for a long time, vegetables high in water content may freeze.

● You cannot set both "Vegetable" and "Quick Cool" / "Quick Freeze" concurrently.

If it is switched to "Quick Freeze" / "Quick Cool" mode during the "Vegetable" mode, it will not return to the "Vegetable" mode by itself after "Quick Freeze" / "Quick Cool" is ended automatically. Set it to the "Vegetable" again.

- When setting "Energy Saving" mode during the "Vegetable" mode, the cooling function is shifted to weaker cooling effects from the "Vegetable". Pg.54

Caution

- Dew may adhere to the spacious upper case or the ceiling in the Vegetable Compartment, depending on the volume/type of vegetables, because the humidity is high in the Vegetable Compartment. Water is no good to perishable food. Wipe off water with a dry cloth.

● Some kind of PET bottle may not be able to be stored.
Moreover, PET bottle may not be able to be stored if its cap is not completely tigh tened.
- When outer temperature is low, temperature within the case may also become low.
- Open/close the Vegetable Compartment Door slowly. Opening/closing the door mightily, the food stored in the tall storage compartment (PET bottle etc.) may overturn.

AUTO DOOR COMPARTMENT

Lower Freezer Vegetable Compartment

AUTO DOOR function helps you to pull out the case easily even if it is heavy with plentiful foods in.

AUTO DOOR switch

Handle
(You can also open the compartment manually.)

Warning

• Stop the auto door function if there is a chance that small children play with the auto door compartment.
• Do not hold the top, bottom or side face of the door to close it. This can cause pinching of fingers, which could result in injury.
• Do not bring your foot too near the refrigerator when you press the auto door switch of the vegetable compartment. You may knock your foot against the door and may cause injury.
  ● Operate the auto door switch with your hand.
  ● Make sure to disconnect the power plug from the power outlet before starting maintenance of the auto door compartment.

Set the AUTO DOOR

1

Touch Button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Hold down the 📂 on for 3 seconds or more until the preset sound is heard.

AUTO DOOR function changes to "On" or "Off" AUTO DOOR function is set to "On" before shipp

Light ON ECO Auto Door Mid. Mid. MENU Energy Saving Freezer Refrigerator Touch it Auto Door (Miss 3 Sec.)

AUTO DOOR function	“On” (AUTO DOOR switch is available)	“Off” (AUTO DOOR switch is not available)
“AUTO DOOR” indicator lamp	On Auto Door
Preset sound	1 beep	2 beeps

Notice

• When you set AUTO DOOR to "Off", pull out the handle manually to open.
• It is impossible to stop only one AUTO DOOR function of either "Lower Freezer" or "Vegetable Compartment".

Using the AUTO DOOR

The compartment opens and LED lamp is illuminated by pressing the auto door switch with your hand.

Hold the handle to close the compartment.

(Closing of the compartment is not electrically operated.)

Pure technical line drawing of a structural joint or panel assembly without any text, numbers, or symbols

Notice

• This function is to reduce an initial load when pulling out the AUTO DOOR Compartment. The AUTO DOOR Compartment to be pulled out by approx. 15 cm or more. The length may vary depending on installation conditions, or the AUTO DOOR Compartment may go back a little after the door is opened automatically. This is normal.
• “Lower freezer” and “vegetable compartment” cannot be electrically opened at the same time. Whichever the auto door compartments switch is pressed first only opens.
• When one of the “lower freezer” and “vegetable compartment” is open, the auto door function does not work.
  ● A sound is heard when you press the auto door switch. This is not abnormal.
• It is heavy to open or close the case when AUTO DOOR function is "Off" or in case of outage because AUTO DOOR function doesn't work.
  ● Wipe off spilled liquid soup and others on the AUTO DOOR switch immediately. Or AUTO DOOR switch may fail to work, causing the door open disorderly.

Line drawing of a hand inserting a component into a drawer (no text or symbols)

VARIOUS FUNCTIONS

Setting "Energy Saving" mode

Setting to “Energy Saving” mode (Save, Trip), the operation is changed to the following modes for energy saving.

"Energy Saving" mode	Save	Automatic temperature control to lower cooling loads in each compartment.Turning down the LED light in the Refrigerator Compartment and the LED light in the Vacuum Compartment if the door of the Refrigerator Compartment is left open for more than 30 seconds.
	Trip	Cooling down the inside of the refrigerator slowly leads to more reduction of power consumption.(Set it to this mode when you go out for a long time such as travel).※ When the door (except the door of the Upper Freezer) is opened/closed after it is set to "Trip", it will be switched to "Save" mode.

1

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch 📄 on to change the settings as you like.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below:

The Energy Saving mode is set to "Off" (all lamps off) before shipping.

Notice

• When both "Save" / "Trip" and "Quick (about 7 hours)" / "Quick Freeze (about 120 minutes)" / "Quick Cool (about 50 minutes)" modes are set concurrently, "Quick" / "Quick Freeze" / "Quick Cool" function is performed first, and it will be set to "Save" or "Trip" mode after the operations are completed. Pg.45, 49, 51
• When both "Save" / "Trip" and "Vegetable" modes are set concurrently, the cooling function will be weakened from the "Vegetable". Pg.52
• When the temperature in the "Freezer Compartment" / "Refrigerator Compartment" is set to "Min.", it will not be weakened so as to maintain the freshness of foods while LED lights in the Refrigerator Compartment and the Vacuum Compartment only are turned down.

Caution

● Automatic temperature control lowers cooling loads, which may cause ice cream to get soft and frost to form on frozen food. It also requires longer freezing time and ice making time.

Door Alarm and volume adjustment of the operation sound

You can set the sound level of the alarm louder or no alarm sound.

1

Touch button on the Control Panel to turn on the indicator lamp

All indicator lamps turn on once, and then the current settings are displayed.

2

Press down 📄 on for 3 seconds or more until the preset sound is heard.

The volume level is changed from "Standard" to "Louder" or "Sound off". Repeat the change of settings to set the operation sound you like (see the table shown below). The sound is set to "Standard" before shipping.

Volume level	Standard Louder	Sound off
Preset sound	2 beeps 2 long	beeps Long beep

Notice

● It is impossible to adjust the volume level of either door alarm or operation sound only.
- When the Door Alarm is disabled, characters on the Control Panel no longer blink and operation sound is no longer made, but alarm indicating "Ice Maker Cleaning" does sound.
- When connecting/disconnecting the power plug or after recovering from electric power failure, it will return to the standard setting where the Door Alarm sounds.

Locking the Control Panel

This can prevent erroneous operation of the Control Panel or misuse by children.

When this indicator lamp ☐ (Lock of the Control Panel) is illuminated, any other portion of the Control Panel will not be activated by touching it.

1

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Press down on 3 seconds or more until the preset sound is heard.

Lock of the Control Panel is changed to "On" or "Off". It is set to [m0] "Off" before shipping.

Setting of the Control Panel's lock	"On" (locked)	"Off" (unlocked)
" Indicator lamp"	On
Preset sound	Long beep 2 beeps

Notice

Electric pulling-out operation will not be disabled even if the Lock function on the panel for operation is set as On. To disable the Auto Door function, unlock the Control Panel and then press and hold the
button for 3 seconds or more until 2 beeps sound. → Pg.53

- When connecting/disconnecting the power plug or after recovering from electric power failure, lock of the panel for operation may be released.

Set the condensation prevention heater (Swing partition/Partitioning iron plates)

Swing partition

Partitioning iron plates

You can save electricity by setting the condensation prevention heater to a weaker level when the humidity in the room is low.

You can set the swing partition or the partitioning iron plates by 4 stages respectively (Level 4 means the most effective for energy saving).

Notice

● Dew condensation may be found in the swing partition or the partitioning iron plates when humidity is high. When dew is formed, cancel the setting.

● The setting will be cancelled when the power plug is connected and disconnected or power failure recovery takes place.

Setting the swing partition Setting the partition plate

1	Open the door of the Lower Freezer Compartment.
2	Touch Button on the Control Panel to turn on the indicator lamp. All indicator lamps turn on once, and then the current settings are displayed.
3	Press down 3 seconds or more until the preset sound is heard. Settings of condensation prevention heater (Energy Saving level) will be changed. Repeat the change of settings to set the operation sound you like (see the table shown below).
4	Close the door of the Lower Freezer Compartment.

1	Open the door of the Lower Freezer Compartment.
2	Touch button on the Control Panel to turn on the indicator lamp. All indicator lamps turn on once, and then the current settings are displayed.
3	Press down 3 seconds or more until the preset sound is heard. Settings of condensation prevention heater (Energy Saving level) will be changed. Repeat the change of settings to set the operation sound you like (see the table shown below).
4	door of the Lower Freezer Compartment.

Set the condensation prevention heater	Level 1 for saving electricity	Level 2 for saving electricity	Level 3 for saving electricity	Level 4 for saving electricity	Deactivate
Preset sound	Long beep Long	beep (2 beeps) Long beep (3 beeps) Long beep (4 beeps) 2 beeps

The energy saving mode of the condensation prevention heater is set to off before shipping.

Fine adjustment of the temperature (Refrigerator Compartment / Freezer Compartment)

Temperature settings for Refrigerator and Freezer Compartments can be more finely adjusted by 9 levels.

1	Open the door of the Lower Freezer Compartment.
2	TouchButton on the Control Panel to turn on the indicator lamp.All indicator lamps turn on once, and then the current settings are displayed.
3	Press downfor 5 seconds or more until 1 beep is heard.
4	Close the door of the Lower Freezer Compartment.
5	Touchbutmake an adjustment.The temperature becomes higher by 1 level every time you touch the button. (Touching "Max." returns to "Min.") (mining Blinkmin. Turned of)Indicationlamp Min. Mid. Min. Mid. Min. Mid. Max. Mid. Max. Mid. Max. Mid. Setting Min. Mid. → → → → → → Max.
To cancel	Follow the operations shown in Step 1, 2 and 3.2 beeps sound and you can set the temperature by normal step.

"eco" Operation indicator lamp

When the refrigerator is operated in a manner to reduce power consumption, such as Frost Recycle Cooling, the indicator lamp is automatically lit to indicate that the refrigerator is operating in the energy saving mode.

to cycle "eco" Operation indicator lamp PCO Auto D MENU

Notice

If ["eco" Operation indicator lamp] isn't illuminated, check the following things.

• Immediately after it is installed, plentiful foods are stored at a time or the door is opened / closed frequently
• "Quick Freeze", "Quick Cool", "Quick" or "Vegetable" is set.
  • The ambient temperature of the refrigerator is about 35^ C or higher.

Door Alarm

When the door is opened for more than 1 minute, sound and light occur indicating the door is open as shown in the table below. The Refrigerator Compartment, Ice Compartment, Lower Freezer and Vegetable Compartment have the Door Alarm function (, but the Upper Freezer doesn't).

Duration when door is open	1 minute 2 minutes	3 minutes
Alarm sound	Long beep (3 beeps)	Long beep (5 beeps)	Long beep (continuously), Louder
Display	It blinks.	It blinks.	It blinks.
Control Panel	Lamp on.	Lamp on.	Lamp on.

※ From 30 seconds onwards with the door opened, the Door Alarm sounds only when the energy saving mode is set. (In this case the indicator lamp on the Control Panel wouldn't blink.)
※ When the indicator lamp on the display area blinks due to the Door Alarm function, the Control Panel will not be activated by touching it.

MAINTENANCE (REGULAR CHECK)

Warning

● Make sure to unplug the power plug when maintaining the refrigerator.

When dirt is found

● Wipe off it immediately. It is recommended to clean the hidden places once a year.

Power plug Once or twice a year

1

Unplug the power cord from the outlet.

If the dust on the power plug remains not cleaned, it may cause a fire.

2

Check the following matters.

• Is any damage found on the power cord?
- Does the power plug become hot?

3

Remove the dust and wipe it with a dry cloth.

4

Connect the power plug firmly to a power outlet.

The back/floor of the refrigerator

Once or twice a year

1

Pull the leg cover and remove it.

Push it in from the front when installing it.

2

Float the Adjustable mounts from the floor and draw the refrigerator straight.

Lay the protection board etc. on the floor which can be easily scratched.

Lift up the adjustable mount by turning it anticlockwise.

3

Wipe off dirt on the back of the refrigerator, wall and floor.

The back of the refrigerator easily becomes dirty because fine dust is accumulated on it by convection of air.

Surface of door Once a month

Wipe the surface of door using a soft cloth wet by lukewarm water.

Remaining adhesives on glass surfaces, if any, can be removed clearly by using a plastic eraser to rub it and then wiping it off with a dry cloth.

Door gaskets Once a month

Wipe it thoroughly because it can become easily dirty.

Liquid receivers Once a month

Wipe off them if liquid collects and/or they becomes dirty.

Liquid receivers

Caution

• Do not use the following items because it may cause damage and discoloration of the door, paintwork and plastic parts.
  Alkaline and alkalescence detergent for kitchen, plate powder, powder soap, oil, hot water, scrubbing brush, acid, benzine, thinner, alcohol, and bleach, etc.
• When using a chemical dustcloth, follow the instructions of it.
  ● Make sure to wipe off spilled cooking oil, citrus fruits juice and food soup.
• Do not wipe off lubricant applied to movable contact surfaces of cases and rails for the slide door.
• When a magnet or suction cup is attached on the side surface of the body or the surface of a door, it may leave some mark.
  ● Wipe off dirt on the surface of the refrigerator soon, because it may cause discoloration or stain if it is left as it is.

1

Pull out the Vacuum Case.

For how to remove, Pg.60

Be sure to remove foods contained in the Vacuum Case.

2

Remove the Fresh Cassette.

Wipe off dirt from the Fresh Cassette with a firmly wringed wet cloth.

3

Wipe off following parts with a soft cloth which is steeped in lukewarm water.

Aluminum Tray Vacuum Container Gasket seat Vacuum gasket

4

Attach the Fresh Cassette to the Vacuum Case.

5

Attach the Vacuum Case.

For how to attach, Pg.60

Caution

• Do not rinse the Fresh Cassette in water.
• Do not touch the glass on the ceiling in the compartment (photocatalyst & LED light) with a finger or do not rub it with a dry cloth. Use a wet cotton-tipped stick, etc. to remove dirt, gently, if any.
• If detergents and others except lukewarm water are used to clean the vacuum gasket, the vacuum gasket may be damaged, deformed or change in color, which may cause the vacuum state unable to keep well.
  ● Loosened vacuum gasket or loose-fitting door of the Vacuum Case may cause the vacuum state unable to keep well.

When vacuum gasket has heavy dirt

1

Remove the vacuum gasket from the Vacuum Case.

Grasp the tab of the vacuum gasket on the observer's upper right and remove it by hand carefully.

acuum gasket er right and refully. Tab

2

Rinse dirty portion in water using a soft sponge, etc.

※ Do not use the detergents, etc.

Vacuum gasket

Line drawing of a hand holding a mechanical component, no text or symbols present

Groove for attaching the vacuum gasket.

Wipe off dirt from the groove for attaching the vacuum gasket.

3

Wipe off excess moisture with a dry cloth and dry it out naturally.

4

Attach the vacuum gasket.

Align the tab to the notch accurately, and then combine them together.

Auto Door Compartment

Clean the auto door unit when food falls onto or is caught in the upper part of the auto door unit and when liquid is deposited on the auto door unit.

1

Unplug the power plug.

2

Remove each case of the Lower Freezer or the Vegetable Compartment. Pg.61

3

Remove all foods which drop or are caught in.

4

Wipe off deposited liquid soup using a soft and dry cloth.

Caution

● Make sure that water never splash to the AUTO DOOR unit. Otherwise, it may cause malfunction.
- Do not disassemble the AUTO DOOR unit. Otherwise, it may cause injury and/or malfunction.

Warning

● Make sure to disconnect the power plug from the power outlet before starting maintenance to avoid injury.

AUTO DOOR Unit

MAINTENANCE (CONTINUED)

Warning

- Do not place your hand in the mechanical section of the automatic ice maker. (Rotation of the ice tray may cause injury.)

Illustration of a hand inserting a component into a rack with a cross mark (no text or symbols)

Ice Maker Cleaning

When using for the first time

When not used for more than one week

Preparation

Be sure to check the followings before starting the operation.

Water supply container

• Water is filled in it up to the limit line.
- The container is set properly as specified.

Line drawing of a kitchen appliance with shelves and a drawer (no text or symbols)

Go to the next step after checking them.

Ice case

- If there remains ice, remove it.

1

Close all the doors.

2

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

3

Hold down 📄 take on for 5 seconds or more until the alarm sounds.

When the 3 indicator lamps "Quick", "Normal" and "Off" start to blink and alarm starts to sound, stop holding the button.

It blinks Quick Normal Off Icor Ice Maker Touch it Cleaning (Press 5 Sec.)

"Ice Maker Cleaning" (water supply route) starts (for about 3 minutes).

• The indicator lamp will flash and the buzzer will sound for about 3 minutes.
• “Ice Maker Cleaning” can’t be interrupted.
• If you open any of the refrigerator doors during Ice Maker Cleaning, the cleaning may not work properly. Do not open or close the door until cleaning is completed.
• Door alarm sounds even if alarm is disabled. Pg.54

4

Put a clean towel, etc. under the Ice Case after the alarm and blinking of the indicator lamp end, and then remove the Ice Case.

Use a water-absorbing towel under the Ice Case to prevent water after cleaning from spilling out of the cutout of the Ice Case.

Cutout Towel

5

Wipe off water inside the Ice Case completely, and then set it to the Ice Compartment.

Remove the Ice Case, wipe off water inside the Ice Case, and then remove the towel. There is no problem with using water remaining in the water supply container, if any. After “Ice Maker Cleaning”, it is set to “Normal” mode, etc.

1

Remove the water supply container, and then the lid.

Take up the near side of the lid toward in the direction of the arrow, and then remove it.

Illustration of hands using a mechanical device to adjust or install a component (no text or symbols visible)

Lid Seal Case Water filter Water supply container

2

Remove the packing from the lid and then the case.

Turn the case and remove it from the lid.

3

Remove the water filter from the case.

Pull the tab of the water filter with fingers and remove it from the case.

4

Rinse each part of the water supply container in water.

Wash it with a soft wash sponge etc. Do not use the detergents etc. Replace the water filter normally every 3 \~ 4 years.→Pg.65

5

Attach each part to the water supply container, pour water in and then set it.

Insert the lid from its rear side and close it in the direction of the arrow.

Notice

● Dechlorinated water such as mineral water, well water, filtered water, cool water after boiling and others tends to cause water stain / slime compared with tap water. So it is recommended to maintain once every 3 days.
- When the Ice Maker is not used for more than 1 week, dry out the water supply container, and then set it in place (dry out the water filter, among others).
When not used for more than 1 week, it is recommended to start Ice Maker Cleaning before use. → Pg.58

1

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on once, and then the current settings are displayed.

2

Touch ☐: Vak; on to turn on "Off" indicator lamp.

It stops water supply to the ice tray. ※ When Off" indicator lamp blinks, wait for about 1 minute for it to turn on, and then follow the next steps.

3

Open the door of the Ice Compartment, and take out the ice tray.

1 Push the level laterally. 3 draw the frame.
3 Raise the cover ( ▲ part) in the direction of the arrow.
4 Remove the ice tray from the frame.

remove the ice tray from the frame. Ice tray Cover 1 2 3 Frame Lever 4

4

Empty the ice tray and wash it lightly in the stream.

Do not use a sponge / cleanser, etc. Be sure not to scarify.

5

Open the Ice Compartment, and then attach the ice tray.

1 Set the ice tray
2 Hold down the cover to the end until it snaps.
3 Push the frame to the end until it snaps. (Check that the lever is hooked into the frame.)

2 1 3 Click 3 Click ice

Notice

- When the frame for the ice tray cannot be pushed into the back, the motor that drives the ice-tray may have operated. Remove the ice tray once and then push the frame alone into the back, and then touch a mouse button with all the doors closed to turn on "Off". After a while, the ice-tray driving motor gets ready, allowing you to mount the ice-tray.

6

Touch button on the Control Panel to turn on the indicator lamp, and then touch Ice Maker button to turn on the "Normal" indicator lamp. Automatic Ice Making starts.

HOW TO REMOVE/ATTACH PARTS

Caution

● Before removing parts, take out all the foods on the parts.
- Do not remove parts except the ones listed here.

Please contact with a Hitachi customer service centre for cleaning such parts after removing them.

Diagram of a refrigerator interior with labeled compartments and electrical connections

Height adjustable upper and middle shelf (Glass shelf)

Slightly lift up the back of the shelf and draw it.

Raise the shelf as shown in figure, and turn it and remove it.

Two-step illustration showing hands holding a rectangular object with a curved arrow inside, before and after (no text or symbols)

When installing the shelf, slide it until it reaches to the interior wall, then slightly lift up the back of the shelf and push it in. (hitch the forks of the shelf to the parts on the back of the shelf)

Caution

Door may damage if drawing the shelf without turning it. Be careful to attach/remove the glass shelf because it is heavy. If it drops, it may break and cause bruise or injury.

Door pocket

Lift up the door pocket while tapping the left/right of its bottom surface, and remove it. (It is fixed a little tightly.)

Insert the door pocket fully to the end when installing it.

Tap Tap

Fixed shelf

Draw the shelf, and pull off the 2 pins on the lower right and remove it.

R-D6800 Type R-D6800(TypeR-D6200 Type R-D6200

Simple line drawing of a mechanical device with a handle and base, no text or symbols present

Simple line drawing of a mechanical device with a top component and base, no text or symbols present.

Height adjustable lower shelf

Slightly lift up and pull out.

Type

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Simple line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Vacuum Case

How to remove How to attach

Pull the door, lift the Vacuum Case with a door at the edge of it lightly, and then pull it out, jiggling it up and down.

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Insert the Vacuum Case (with the door) so that both right and left convex ribs on the case can slide under the guide rail of the Vacuum

Container.

Lastly, hold down the handle to lock.

Convex rib

Guide rail

F Ice Case (Ice Compartment) • Upper Freezer case (Upper Freezer)

Draw the door fully and lift up the case towards you.

Put the case bottom on the frame and set the case.

Underside of the case Frame

G Slimline slide case, slide case and lower freezer case (Lower Freezer)

1 Draw the door fully, and draw the Slimline slide case and the Slide case respectively.

Slimline slide case Slide case Pin (right and left) Fork (right and left) Rectangle hole in the frame

2 Lift up the Lower freezer case.

Lower freezer case Frame

When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it. Moreover, hitch the pins on the left/right of the Slide case to the outside of the Lower freezer case.

H Upper Case, Lower Case (Vegetable Compartment)

1 Draw the door fully and pull up the Vegetable case as shown in the figure.

Upper Case

2 Lift up the front part of the door, and draw it further and incline it.

Diagram of a mechanical device with a handle and internal component, showing a curved arrow indicating direction (no text or symbols present)

3 Lift up the Vegetable Case toward you.

Lower Case

If the lower case is not removed as shown in Step 3 remove the door and then remove the lower case. For how to remove the door. When installing it, insert the pins on the left/right inner sides of the Vegetable Case into the square holes on the frame, and put the edge of the Vegetable Case on the frame to install it.

How to attach the slide door (Ice Compartment/Upper Freezer/Lower Freezer/Vegetable Compartment)

Ice Compartment/Upper Freezer Lower Freezer/Vegetable Compartment

Technical diagram showing mechanical assembly with labeled frame and directional arrow indicating movement or motion

Diagram showing a device with a circular component and a labeled frame, illustrating a mechanical or electrical process.

TROUBLESHOOTING

Check the following points before asking repair. Contact your dealer or our customer center if the problem still exists after checking them.

When this happens Check Item How to solve/repair
Initial stage	Not cooled well.	It takes time to cool in summer or when a lot of foods are stored.	No trouble Immediately after installation, it may take more than 24 hours.
	No ice is made.	When using for the first time, it takes time to make ice because ice making starts after cooling fully.It may take more than 24 hours to make ice according to the amount of food and the way of packing it.	No trouble Open/close the door quickly and/or minimize the number of times of opening and closing the door.Allow clearance between each food in each compartment.
Control Panel	The Control Panel does not respond.	Is "Button Lock" selected by using the lock function on the panel for operation?	Cancel the lock of the Control Panel. Pg.54
		Is Refrigerator Compartment Door open? Operate after closing it.
		Isn't a water drop or dirt attached to the Control Panel? Wipe it with a soft cloth.
		Are you wearing gloves or applying a plaster? Touch directly with your finger.
		Are you touching a next button? Touch only 1 button at a time.
Automatic ice making is not properly performed	Ice cannot be made at all.	Is the auto ice maker set to "Off"? Set it to "Normal" or "Quick" mode.	Pg.50, 51
		Is Water Supply indicator lamp turned on? Pour water into the water supply container.	Pg.50, 51
		Is the water supply container pushed firmly until it is beyond the "container set position" line?	Push it beyond the "Container set position" line. Pg.50
		Do you push it to the end until it snaps? Push the frame back until it snaps.
		Is anything other than ice stored in the ice case? Remove it from the Ice Case.
		Is the ice case filled with ice over the limit line of stored ice amount? Level the ice. Pg.51
	It takes a long time to make ice.There is no ice in the ice tray.	Do you open the door frequently or store a large amount of food at one time? Refrigerator may not cool fully.	Minimize the number of times of opening and closing the door until it cools fully. Allow clearance as much as possible between each stored food.
		It may take more than 4 hours to make ice in winter. No trouble
		Immediately after changing from "Off" to "Normal", it may take longer than usual to make ice.	No trouble
		Does any food or package caught in the door of the Freezer or Ice Compartments prevent the door from closing completely?	Check that there is not any gap between the door gasket and its contact surface when the door is closed.
		Is the compartment in "Energy Saving" mode? Exit the "Energy Saving" mode.	Pg.54
	Projection is generated on ice.	It is frozen water collected in the ice tray groove.	It does not indicate any trouble.
	Stored ice becomes small. Ice sticks together.	Ice naturally becomes small or sticks together if ice is stored for a long term.	Dispose of old ice cubes, and try to make ice again.
		Do you open the door frequently or store a large amount of food at one time?	As a result, temperature in the refrigerator rises and stored ice becomes small or sticks together.
		The door or the drawer compartment may not have been closed completely.	No trouble
	Small ice is made.	Small ice may be made if only a small amount of water remains in the water supply container.	Add water until water level reaches to the "Container-full line" of the water supply container. Pg.50
	Connected ice is made.	If the frame is not set in place properly, ice cubes may stick each other.	Set the frame to the right place. Pg.59
		If the ice tray is damaged, ice may not be easily separated from the ice tray and ice stuck together may be made.	If same trouble occurs many times, consult your dealer and replace the ice tray.
	There is white impurity in ice.	It is because the fine air bubble in water is contained in ice.	This is not malfunction.
		Did you use mineral water to make ice?	Mineral contained in water may freeze and become white impurity in ice. It may remain after thawing in water, but it is harmless.
	Ice tray frame cannot be drawn.	Is the "Normal" indicator lamp blinking? Is "Off" indicator lamp turned on again?	The ice tray cannot be drawn when the auto ice maker is operating. Set it to "Off". When the "Off" indicator lamp is blinking, wait for 1 minute until "Off" is lit, and then draw the ice tray. Pg.59
Refrigerator does not cool	Refrigerator does not cool.Frost and/or dew occur. Ice cream becomes soft.	Does any food or package caught in the door prevent the door from closing completely?	Check that there is no gap between the door gasket and its contact surface when the door is closed.
		Is food squeezed in? or Is a large amount of food put in at one time?	Follow the rules on the height of food that can be stored. Pg.44, 48, 52Allow clearance between each food in each compartment.
		Are Upper Freezer case and Slimline slide case installed correctly?	Install them correctly. Pg.61
		Food cannot be cooled enough, depending on the installation place or surrounding situation.	Check to see if the refrigerator is installed properly. Pg.42
		Is the compartment in "Energy Saving" mode?	Exit the "Energy Saving" mode. Pg.54
		Refrigerator may not cool fully when the temperature setting is "Min".	Switch the temperature setting of the compartment where it does not fully cool to "Mid." or "Max". Pg.45, 49
		Does the temperature around the refrigerator become high due to weather (ex: in summer)?	Switch the temperature setting of the compartment where it does not fully cool to "Max". Pg.45, 49, 52
		Temperature in the refrigerator rises little by little while its door is open.If the door is opened/closed frequently or left open for a long time, temperature cannot easily lower.	Reduce the number of times of opening and closing the door, or open/close the door quickly.
Frost and/or dew occur	Frost and/or dew adhere to the refrigerator interior or the frame of the drawer compartment.	The door or the drawer compartment may not be closed completely.	Check whether the drawer compartment or the door has been closed completely after closing them.
		The door may be opened/closed frequently or door may remain open for a long time.	Reduce frequency of opening and closing the door or open/close the door quickly.
		Frost or condensation may be formed when the warm air contacts with inside the compartment or the door frame.	Wipe it off with a dry cloth.
		Frost or condensation is formed on the wall or any part of the freezer compartment due to the moisture in the air when the door is opened or closed.	No troubleWipe it off with a dry cloth.
	Dew adheres to the outside of the refrigerator (exterior, door seal, door and drawer compartment etc).	Dew may adhere to those parts when the indoor humidity is high (ex: rainy day).	No troubleWipe it off with a dry cloth.
		When the dew-proof heater is set to low, high humidity may cause condensation on the iron partition, the door gasket or the door.	No troubleCancel the settings of the condensation prevention heater.Wipe it off with a dry cloth.
		When the temperature is set to "Max.", it may cause condensation on the surface of the door.	Wipe it off with a dry cloth.Please set the temperature to "Mid.".
	Dew condensation occurs in the Refrigerator Compartment.	Condensation may form on the wall and/or around the cold air blowout port when the door is opened and closed frequently or the humidity is high around the refrigerator.Dew condensation	No troubleWipe it off with a dry cloth.
	Dew condensation occurs in the Vegetable Compartment.	The humidity in the Vegetable Compartment is higher than other compartments. (To prevent vegetables from drying and to make them last longer)	If it is undesirable that dew adheres to the stored vegetables, wrap them with the plastic film.
		Water may drop into cases placed in the Vegetable Compartment due to dew concentration.	Wipe it off with a dry cloth.
Refrigerator cools overly	Refrigerator cools overly Food freeze.	"Max." is selected in the temperature setting. Switch it to "Mid.".	→Pg.45, 49
		The surrounding temperature is lower than 5°C.	When the ambient temperature is low, the inside of the refrigerator may cool overly. Switch the temperature setting to "Min.".
		Is it placed in front of the Cold Air Blowout Port? Do not place any food in front of the cold air blowout port.
Abnormal operating sound is generated	Door is not in a horizontal state.	The installation site may not be level.	This does not affect the refrigerator performance. Adjust the refrigerator adjustable mount to keep it level if you want to correct it. [→Pg.42]
		Does the soft floor material sink in around the legs due to the weight of stored items?	Lay a firm board which has more than 1cm thickness on the floor if the refrigerator itself inclines.
	More force is required to open the door immediately after closing the door.	It is because the air that entered the Refrigerator Compartment is rapidly cooled and the pressure in the Refrigerator Compartment temporarily lowers.	This is not malfunction.
	Another door opens after closing 1 door.	Another door may open for a moment by the wind pressure because cool air path connects each compartment.	This is not malfunction.
	Annoying sound is generated by the refrigerator.	Does the floor bend? Lay a firm board and then install the refrigerator thereon.	→Pg.42
		Does the refrigerator come in contact with the wall or furniture, etc.?	Install the refrigerator with clearance around it.
		Does the leg cover come off? Install it firmly.	→Pg.42
		You may feel that the operation sound is loud because the compressor operates in high-speed under the following conditions: the refrigerator does not cool fully on the occasion such as using it for the first time, opening/closing the door frequently, the surrounding temperature is high.	The sound becomes soft after cooling fully.The compressor operates at low speed at night, for long vacations or absences, potentially developing large vibrations.
		When it is set to "Quick Freeze"/"Quick Cool"/"Quick", operation sound of the compressor or the fan motor gets louder because of high-speed revolution.	This is not malfunction.
	Operation sound lasts long.	It is because the compressor operates in low-speed for conserving energy.	This is not malfunction.
	Operation sound sometimes becomes louder.	It is because the system changes the operating power of the refrigerator according to the temperature change.	This is not malfunction.
	When other sounds such as shown in the right table are generated by the refrigerator.	Sound like water flowing (trickling)Sound like collision (tapping)Sound like water boiling (bubbling up)Sound like meat roasting (sizzling)	These sounds are caused when the refrigerant flows or water flows/ evaporates to remove frost.This is not malfunction.
		Sound like squeaking (cracking) (knocking)	This sound is caused because the parts squeaks when the refrigerator temperature changes.This is not malfunction.
		Sound like something is caught (clacking)Sound like roaring (horking)Sound caused immediately after closing the door (booming)	These sounds are caused when the electric parts to control the refrigerator temperature operates.This is not malfunction.
		Sounds caused by the Automatic ice maker (zooming)(rattling)(clunking)	These sounds are made when ice is separated from the ice tray of the auto ice maker or water is supplied to the ice tray. These sounds are also heard every 2 or 3 hours when the water supply container is empty.This is not malfunction.To stop the sound, touch the button to change it to "Off".[→Pg.51]
		Sound occurs sometimes (clacking) This sound is caused when the refrigerator starts the operation to cool.
Refrigerator becomes hot	The side of the refrigerator becomes hot. Hot air comes from the bottom of the refrigerator.	Hot air may come from the bottom of the refrigerator to exhaust the heat generated when the cooling device operates.	The temperature may rise to 50 - 60 °C immediately after installation or during summer.It does not pose safety or performance problems, but avoid touching it.

TROUBLESHOOTING (CONTINUED)

When this happens Check Item How to solve/repair
It smells strange	Plastic smells	This smell occurs because a lot of plastic parts are used in the refrigerator, but the smell decreases gradually while cooling.	This is not malfunction.
	Ice smells	Do the water supply container and/or water filter become dirty? Or does ice become old?	Wash them regularly to prevent "slime" and/or "fur". Pg.59
		Chlorine may strongly smell because chlorine in tap water is condensed.	This is not malfunction.
	It smells in the refrigerator	Is any food which strongly smells stored without any wrapping?	The deodorizing function cannot completely remove all smells.Seal that kind of food with plastic film etc.
There is something strange with the Vacuum Compartment	Hissing sound does not occur when opening.	Is the handle pulled up? Hold down the handle to lock.
		Is the handle held down to the end and locked?	The vacuum function will not work unless it is locked.Lock it.
		Does the vacuum gasket/the support get dirty? Wipe it off them if it is dirty.	Pg.57
		Is the vacuum gasket or vacuum release valve (in blue) out of place or loosened?Vacuum release—valve (in blue)
		Is a food package or a hair caught in the vacuum gasket and the support?Waste —thread Scraps —	Attach the vacuum gasket. Pg.57Attach the vacuum release valve to the hole on the handle securely.
		Is it immediately after opening/closing the Vacuum Compartment?	Hissing sound may not occur because the vacuum pump enters the preparation state for starting the operation, but it does not indicate any trouble.
	It is not clear whether the Vacuum Compartment has been vacuumized.	The Vacuum Compartment has been vacuumized properly if a vacuum releasing sound (hissing sound) is heard when opening it.	-
	The handle cannot be locked.	Is there any food etc. caught in the inner part of the Vacuum Compartment Case or the vacuum gasket?	Remove any food if it is caught in.
		Is the Vacuum Case set in place? Attach the Vacuum Case according to the procedure.	Pg.60
	Booming sound and vibration occur around the Vacuum Compartment.	This sound is caused when the vacuum pump operates. This is not malfunction.
		You can stop the vacuum pump operation when you want to stop the sound (ex: night time).	Change the setting of the Vacuum Compartment to "Off". Pg.47
		If the sound and the vibration occur frequently, something may be caught in the door or there may be dirt on the vacuum gasket.	Remove any packing material of foods or other things which are caught in.Clean the vacuum gasket if it is dirty. Pg.57
	Drop of water or frost occurs in the Vacuum Compartment.	The moisture from the juicy food may cause dew condensation and/or frost adhering insider the compartment because the Vacuum Compartment is sealed.Dew and/or frost	It is recommended to wrap the juicy food with plastic film, etc.Wipe dew and/or frost off with a soft cloth wet by lukewarm water.
	The surface of stored vegetables is dented or gets discolored.	Is any vegetable sensitive to low temperature such as eggplant and cucumber stored?	Move them to the Vegetable Compartment. Pg.47
	Food in the Vacuum Compartment freezes.	Is the Vacuum Compartment set to "Subzero" or "OFF (Non-vacuum and -1°C)?"	Set the "Chiller". Pg.47
Display on the control panel flashes	flashing 3 times	Food etc. may come in contact with the ice tray or the stored ice amount detection lever.	Empty the Ice Compartment and perform "Cleaning the Ice Making". Pg.58
	flashing (more than 3 times)	This flashing shows that there is a problem. Consult your dealer.
	Subzero flashing	It may be in the operation check mode for serviceman. (※1)	It will return to the normal mode after about 15 minutes. There is no problem with using the refrigerator.
	Auto Door flashing	It may be in the operation check mode for serviceman. (※1)	It will return to the normal mode after about 10 minutes. There is no problem with using the refrigerator.
	Quick Normal Off flashing	It is in process of Ice Maker Cleaning. Read "HOW TO MAINTAIN THE AUTOMATIC ICE MAKER".	Pg.58
	Off flashing	It will flash if you "Off" during the ice making process. Read "HOW TO MAINTAIN THE ICE TRAY".	Pg.59
	All displays flashing	Door remains open for more than 1 minute. (ex: door is not completely closed.)	Check "Door Alarm". Pg.55
	Blinks other than those above	It may be in the operation check mode for serviceman. (※1) Consult your dealer.

※ 1 Touching the button long (more than 10 seconds), the refrigerator may go into the operation check mode.

When this happens Check Item How to solve/repair
Auto Door Compartment	Noise is loud.There is an abnormal noise.	Hitting sound (thumping sound)	This is the operating sound of the electrical drawer compartment.This is not malfunction.
		Buzzing sound (whirring, grunt)	This is the operating sound of the door.This is not malfunction.
		Operation sound of the Vegetable Compartment is louder.	Operation sound of the "vegetable compartment" is louder than the "lower freezer". This is not malfunction.
	The compartment does not open even if the electrical drawer switch is pressed.	Is the Auto Door in the light. Turn on the indicator lamp.	Auto Door Pg.53
		Is either one of the lower freezer or the vegetable compartment open?	Close the open electrical drawer compartment and then press drawer switch for the compartment you want to open.
	The auto door compartment does not open/close.	Is any food or food bag caught on the compartment? Remove foods and others that are caught in.
		Did a power failure occur or did the compartment knock against any obstacle during electrical operation?	The door does not open/close smoothly because the electrical drawer function is stopped before the operation completes.Manually push in the door with strength. Otherwise, unplug the power plug with the door drawn, and connect it after 10 seconds.
	The auto door does not open much.	The AUTO DOOR Compartment is pulled out by approx. 15 cm or more.	The length may vary depending on installation conditions, or the AUTO DOOR Compartment may go back a little after the door is opened electrically.This is not malfunction.
	AUTO DOOR Compartment moves even if it is locked on the panel for operation.	AUTO DOOR Compartment can not be locked from the panel for operation.	In order to stop AUTO DOOR Compartment function, unlock it first on the panel for operation, and then touch button for 3 seconds or more until it bleeps. Pg.53, 54
Others	Radio and/or television are disturbed by noises.	It is caused by the electromagnetic radiation slightly generated from this refrigerator.	Install the refrigerator away from the television, radio and interphone.It is recommended to connect the power plug to the power outlet separated from the antenna terminal. Pg.43
	There are thin lines like scratches on the plastic parts.	Those lines are caused by the liquid resin flowing when plastic is molded.	They are especially conspicuous for the transparent parts, but there is no problem with the strength and they can never lead to any cracks.
	There are waving and/or distortions on the door surface, the side and the top surface of the refrigerator.	Slight waving and/or distortions are generated in the manufacturing process of the refrigerator.	They may be conspicuous according to the position of the light source and/or the brightness etc., but there is no problem with the performance.
	The Control Panel is unlit.	Approximately 2 minutes after the end of operation, indicator lamps.	This is not malfunction.excluding "Quick Freeze", "Quick Cool", "Save", "Trip", "Quick", "Water" and "eco Operation", become unlit for energy saves.Open the door of the Refrigerator Compartment or touchMENU button to turn it on.
	There is a small hole inside the door.	This hole is used to escape the air inside when filling the heat insulation material into the door during the production process.Hole (Inside of the door)	It is neither a flaw nor abnormal thing.
	The electric supply failed.	Reduce the number of times of opening and closing the door and avoid storing food additionally until the electric supply is restored.	Please check each setting on the panel for operation after the power comes back on.
	The refrigerator is not expected to use for a long term.	Remove all the items in the refrigerator, unplug the power plug and maintain the inner of the refrigerator and the Automatic Ice Maker.	Leave all the doors open to dry the refrigerator for 2 or 3 days. Pg.51, 58-61
	When no ice-making is required.	Is either Quickator Normalled on? See "Stop Ice Making".	Pg.51
	Remove frost.	Any operation to remove frost is not required because this refrigerator remove frost automatically.	Thawed water is collected in the evaporating tray and automatically evaporates.
	Transporting and moving care.		See "Transporting your refrigerator (transport for moving)" Pg.43

AVAILABLE PARTS

If you order any part listed below, specify the type of your refrigerator to a dealer for purchasing genuine parts.

Subject Product Name Type Product Type
Ice smells● Water filter may be old and dirty (available about 3 or 4 years, as a guide)	Water filter for the automatic ice maker	Common for all models RJK-30
Vacuum state can't be maintained● It may be damaged, deformed or discolored.	Vacuum gasket	R-D6800S, R-D6800H, R-D6800M, R-D6800N R-D6800XS, R-D6800XH, R-D6800XM, R-D6800XN	R-C6700 321
		R-D6200S, R-D6200H, R-D6200M, R-D6200N	R-A6200 321
In case of an earthquake	Safe belt for preventing turnover of the refrigerator (2 sets are required)	Common for all models	R-826CV 300

MEMO

The following table shows the weight of food that can be stored on the shelves and in the cases.

	零件名稱 Name of parts		R-D6800S R-D6800XSR-D6800H R-D6800XHR-D6800MR-D6800N R-D6800XN	R-D6200SR-D6200HR-D6200MR-D6200N
冷藏室Refrigeratorcompartment	可調式層架上段	Height adjustable upper shelf	21.0kg	19.5kg
	可調式層架中段	Height adjustable middle shelf	21.0kg	19.5kg
	可調式層架下段,固定層架	Height adjustable lower shelf, Fixed shelf	21.0kg	19.0kg
	真空冰温室上方的層架	Upper shelf of the vacuum compartment	11.0kg	10.0kg
	真空冰温室盒	Vacuum compartment case	5.0kg	4.5kg
	活動式萬用盒	Multiuse Egg Case	2.0kg	2.0kg
製冰室Ice compartment	儲冰盒	Ice case	請勿存放不是本自動製冰機製成的冰塊。→19頁Do not store any ice cubes other than the ones made by the automatic ice maker. →Pg.51
上層冷凍室Upper freezer	上層冷凍盒	Upper Freezer case	9.0kg 8.0kg
下層冷凍室Lower freezer	上層滑動盒	Slimline slide case	5.5kg	5.3kg
	中層滑動盒	Slide case	7.0kg	6.5kg
	下層冷凍盒	Lower freezer case	17.0kg	15.5kg
蔬果保鮮室Vegetable compartment	上層滑動盒	Upper Case	8.5kg	7.0kg
	下層置物盒	Lower Case	22.0kg	18.0kg

關於廢棄之重要警告 Severe warning signs for Disposal

Cyclopentane is used in the insulation material.

The gases in insulation material require a special disposal procedure.

Please contact your local authorities in regard to the environmentally safe disposal of this product.

AFTER-SALES SERVICE

關於售後服務

Please contact the following Hitachi Service Centre if power cord is damaged or service is required.

If some malfunction occurs during operation, unplug the power plug immediately and contact the service centre to have the refrigerator repaired.

18/F., Ever Gain Centre, 28 On Muk Street, Shatin,

N.T., Hong Kong, China

Tel : [phone]

Fax: [phone]

- Malaysia

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kemajuan, Bangi Industrial Estate,

43650 Bandar Baru Bangi,

Selangor Darul Ehsan, Malaysia

Tel : [phone]

Fax: [phone]

- Singapore

Hitachi Home Electronics Asia (S) Pte. Ltd.

438A Alexandra Road, #01-01/02/03,

Alexandra Technopark, Singapore 119967

Tel : [phone]

Fax: [phone]

香港

香港日立有限公司
