USER MANUAL Zelig Pad 970H Hamlet

Exterior view of a modern tablet device with a colorful app interface (no visible text or symbols on the device itself)

USER MANUAL

XZPAD970H

www.hamletcom.com

Dear Customer,

thanks for choosing an Hamlet product. Please carefully follow the instructions for its use and maintenance and, once this item has run its life span, we kindly ask You to dispose of it in an environmentally friendly way, by putting it in the separate bins for electrical/electronic waste, or to bring it back to your retailer who will collect it for free.

We inform You this product is manufactured with materials and components in compliance with ROHS directives: 2002/95/CE; with RAEE Directives: 2003/96/CE, Italian Legislative Decree 2005/151 and EMC Directive 2004/108/EC for the following standards:

EN 55022: 2006 + A1: 2007

EN 55024: 1998 + A1: 2001 + A2: 2003

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2008

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

The complete CE declaration of conformity of the product can be obtained by contacting Hamlet at [e-mail].

The information on the importer for your country are available in the “About Us” section of the Hamlet website at www.hamletcom.com.

Trademarks

All trademarks and company names mentioned in this manual are used for description purpose only and remain property of their respective owners.

Changes

The material in this document is for information only and subject to change without notice. Specifications and appearance are subject to change without prior notice.

Support

The support service for the Exagerate by Hamlet tablets is provided by:

You can contact technical support phone number: 0331-674306 or e-mail at [e-mail].

For more information on Zelig Pad Tablets visit the web site www.hamletcom.com/ZeligTab.aspx.

1 Introduction

1.1 What's Included

The following components are included with your purchased product:

• Zelig Pad 970H Tablet PC
- Power Adapter
- USB Cable
- Instruction Manual

1.2 Getting Started

Before operating your Tablet PC for the first time, please read this manual carefully and follow the instructions as below.

1.3 Battery charging

The tablet is equipped with a built-in rechargeable Lithium battery. It is suggested to fully charge the battery before use.

We strongly recommend to use the power adapter included in the packaging, using other adapter may damage the tablet and void the warranty.

Charging Process

• Connect the power adapter to your tablet, and plug the power adapter to the nearest electrical outlet.
• Users can still use the tablet while it is being charged.

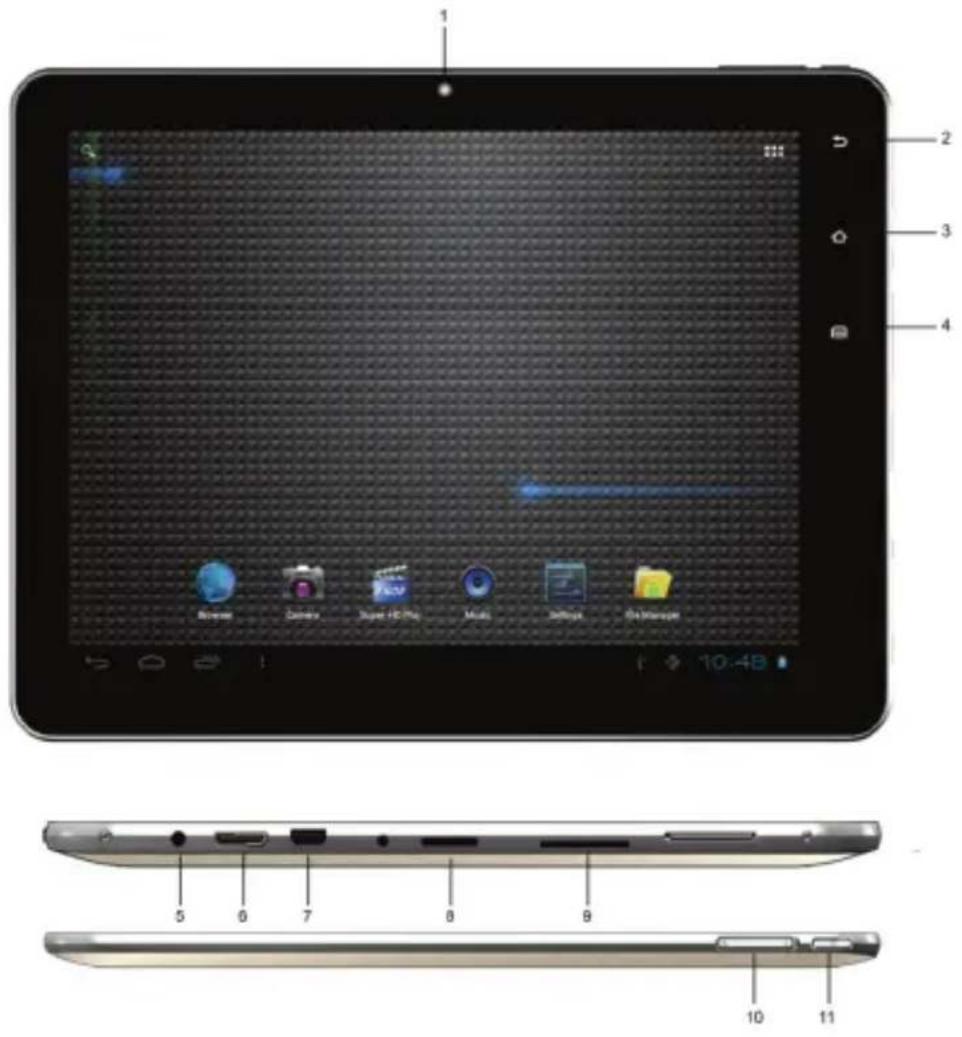

2 Appearance and buttons

Diagram of a tablet device with labeled components and internal layout, showing screen, app icons, and status bar.

2.1 Camera

2.2 ESC

Tapping on ESC button will return the previous interface.

2.3 HOME

Tapping on HOME button will return to the main interface.

2.4 Menu

During operations, tap Menu button to show you the menu options.

2.5 Headphone Socket

3.5 mm standard earphone jack

2.6 HDMI output interface

2.7 Mini USB

Mini USB port: you can use it to connect to PC for data transmission, charging or connection with external USB devices.

2.8 MicroSD card slot

2.9 Speaker

2.10 Volume +, Volume-

Press on the Volume +, Volume – buttons to increase or decrease the sound volume.

2.11 ON/OFF Power Switch

Turn on/off tablet

3 Turn ON/OFF Tablet

3.1 Turn On: after the battery has been fully charged, press & hold the power switch for around 3 seconds to turn on the device. Screen lock will be showed after starting up.
3.2 Turn Off: When the tablet is ON, press & hold the power switch for around 3 seconds and the system will popup out power off option, tap on it to turn the tablet off.
3.3 Lock screen: quickly press Power Switch and release to lock screen.
3.4 Unlock screen: slide the lock icon rightward onto the unlock icon to unlock the screen and go to main interface; Slide the lock icon leftward onto the camera icon to open camera.

6:37 Thu, March 8 Charging, 95%

6:37 Thu, March 8 Charging, 95%

11:39 Fri, March 16 Charging, 94%

Remarks:

• When battery power has been used up, the tablet will shut down itself automatically.
• If you illegally turn off the device, restart will scan and restore the disk, it may take longer time to enter into system.

4 Connection with PC

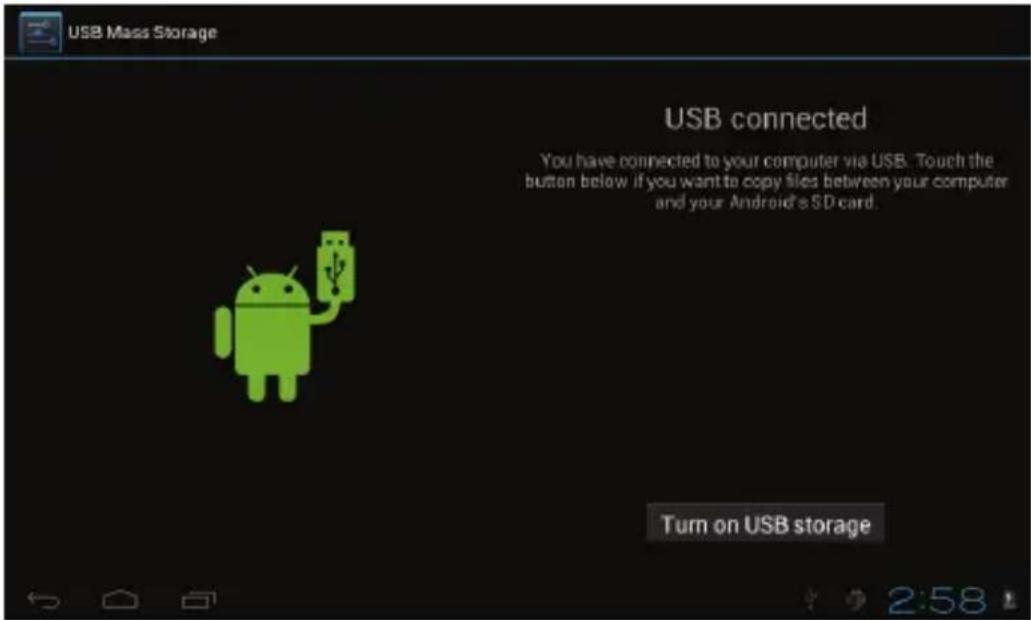

4.1 Use the USB cable provided to connect the tablet with PC, device will pop up the USB connection window, click “Turn on USB storage” to connect to PC, in the connection mode, you can copy or delete the file on the device or the file on the memory device.

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

5 Tablet Operation Interface

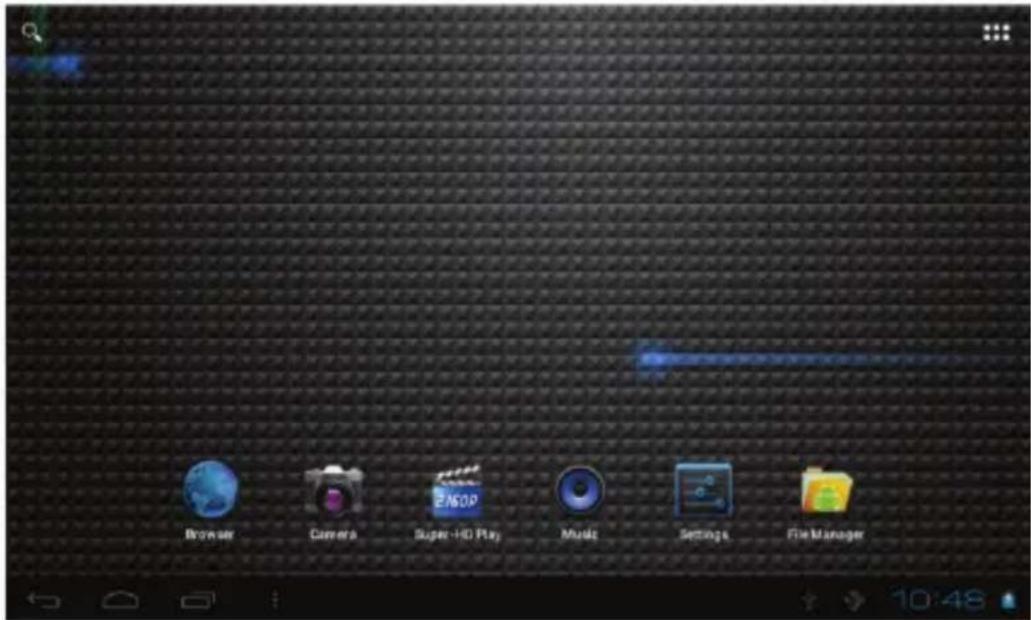

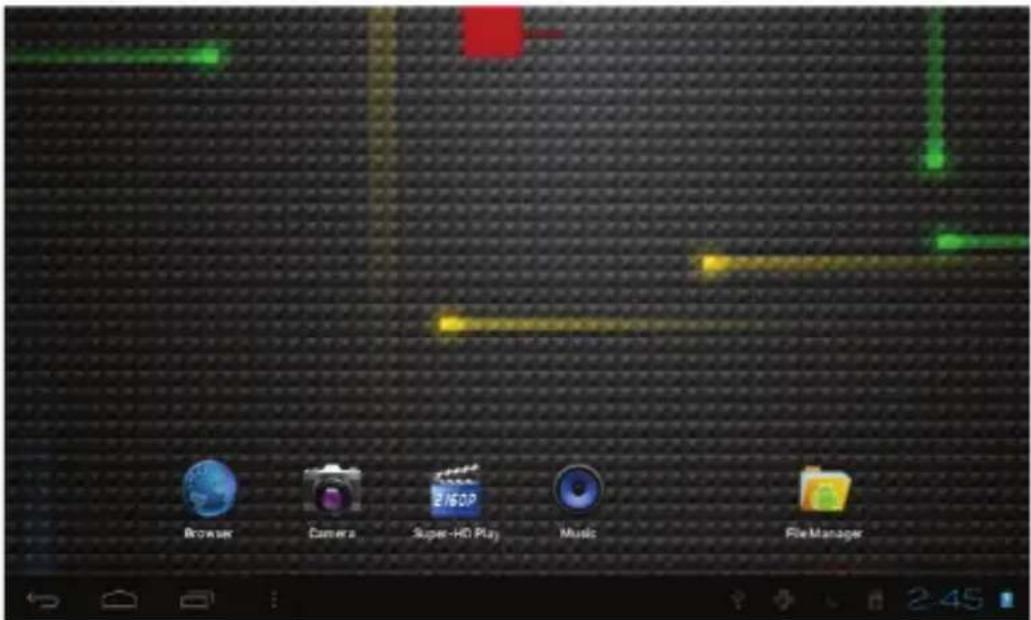

5.1 After starting up, you will enter into below main screen interface.

Browser Camera Super-HO Play Music Settings File Manager

5.2 In the main interface, you can manage main interface software icons: press the icon and hold it for 3 seconds, then you can drag anywhere in the main interface.

5.3 Delete icons: press the icon and hold it for 3 seconds, and drag the icon onto the “Remove” icon, then you can delete that icon from desktop.

Remove Browser Camera Super-HO Play Music FileManager

Browser Camera Super-HO Play Music FileManager

5.4 Touch the screen and hold for around 4 seconds, the dialog box “Choose wallpaper from” will pop out as shown below:

Choose wallpaper from Live Wallpapers Super-HD Player Wallpapers

You can choose the wallpaper from different sources and change the wallpaper.

5.5 Status Bar Descriptions

User interface toolbar with navigation icons and time display showing 2:45

From left to right: Back to previous interface, Back to main interface, Display the Apps performed previously, Menu key, USB connected, USB connected, USB debugging connected, TF-card information, Current time, battery charge icons, current time.

5.6 Quick Guide For Touch Operations

- No matter which interface you are on the screen, you can go back to main screen by tapping the key located at the left bottom corner of the main screen.

【Attention】The key functions as back to main screen interface.

• During options, by tapping the back key ← at the left bottom corner of the touch screen, you can return to previous screen interface.

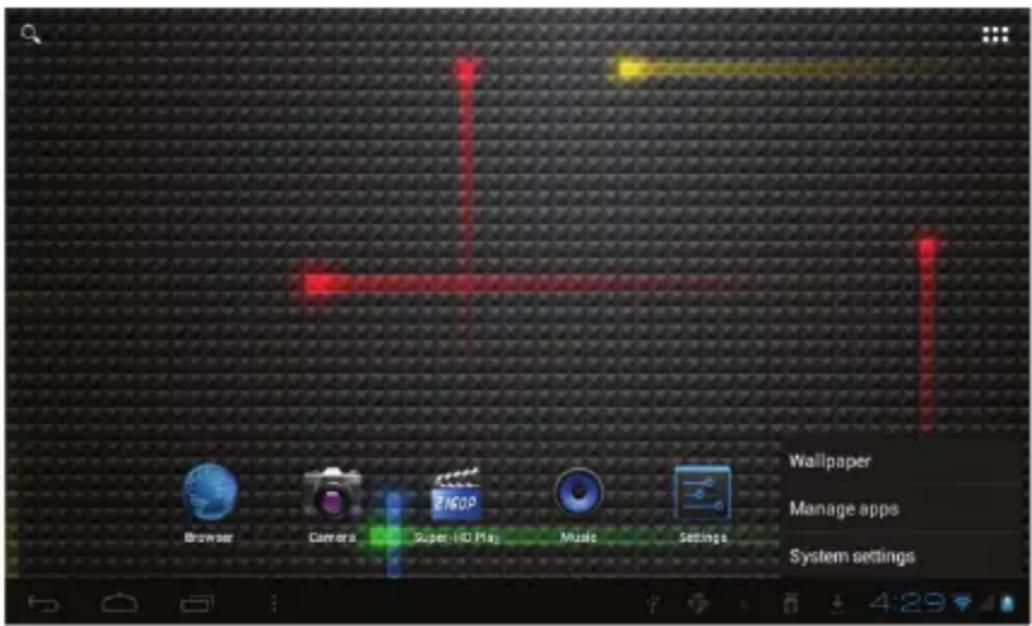

  ● During operations, by tapping the menu key ☐ on the left bottom corner of touch screen, the screen will pop out the below interface:

Browser Camera Super-HO Play Music Settings Wallpaper Manage apps System settings

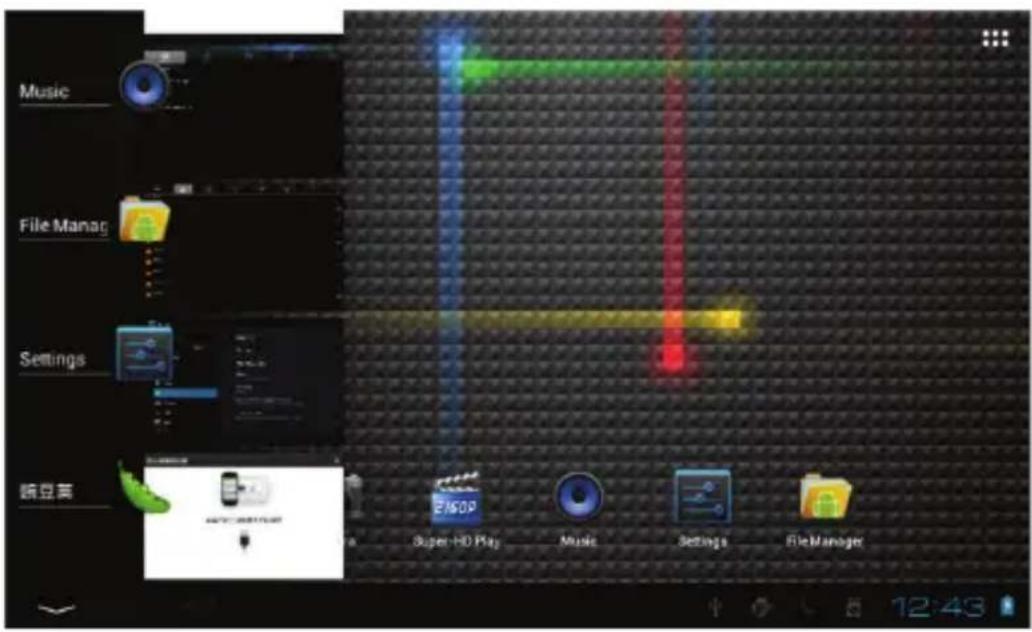

- Click to see all history of Apps performed previously.

Music File Manac Settings 听豆菜 Super-HD Play Music Settings File Manager 12:43

- In the main interface, you can touch the icon 📁 to see all the APPS, tap on any App icon and hold it for around 3 seconds, you can drag that App icon onto main screen interface.

6 Basic Settings

6.1 WIRELESS & NETWORKS

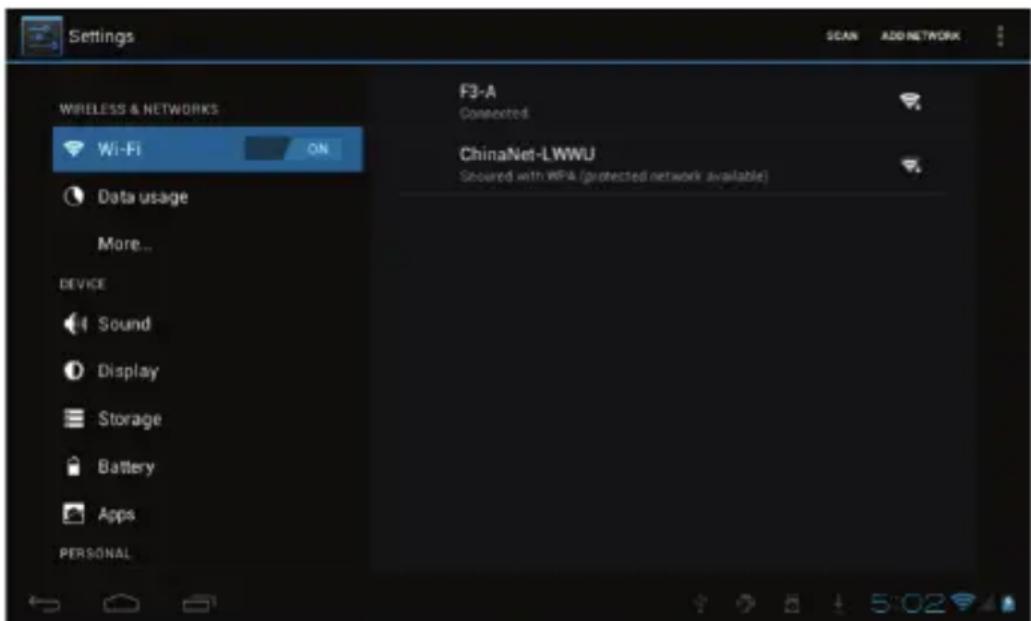

Wi-Fi

Tap on setting icon, then tap on the "OFF" to open Wi-Fi, All available Wi-Fi networks will be listed, tap on your Wi-Fi network and start to connect. If the Wi-Fi network does not need a password, tap "connect" to start the connection. If the Wi-Fi network needs a password, then input the password and tap "connect" to start the connection. If the Wi-Fi network has been successfully connected before, that information will be stored.

Connection will be done automatically. Once your tablet connects to Wi-Fi successfully, the Wi-Fi icon will appear on the status bar at the below of the screen.

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL F3-A Connected ChinaNet-LWWU Scoared with WPA (protected network available)

- Data Usage

Select to turn on/off Mobile data, Set mobile data limit.

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Mobile data Data usage cycle Feb 17 – Mar 16 Feb 17 Mar 16 Mar 9 - 16: about 0.00B used Measured by your tablet. Your carrier's data usage accounting may differ. No apps used data during this period 11:28

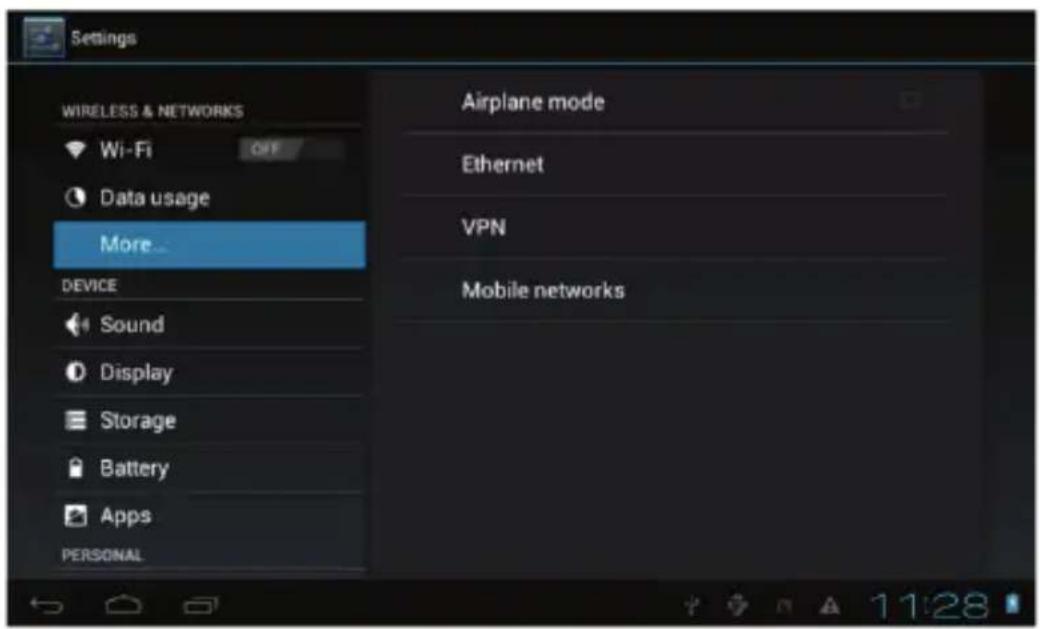

- More...

Select to turn on/off Airplane mode, to setup Ethernet connection, VPN and Mobile networks.

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Airplane mode Ethernet VPN Mobile networks

6.2 DEVICE

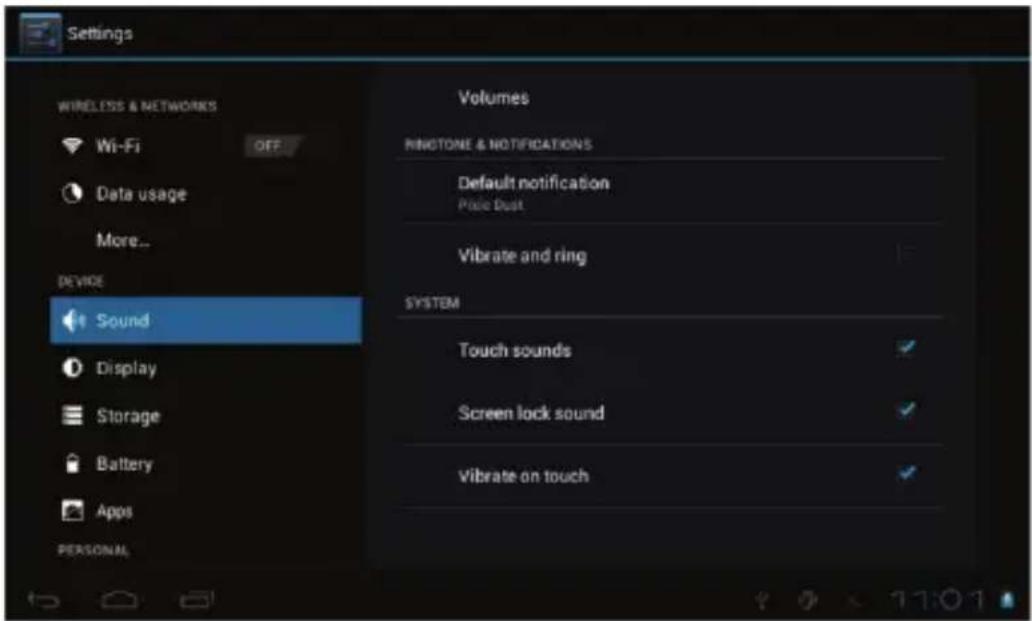

- Sound

Settings on Volume, Ringtone & Notifications, you can also tick to select or untick to unselect for Vibrate and ring, Touch sounds, Screen lock sound and Vibrate on touch.

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Volumes RINOTONE & NOTIFICATIONS Default notification Price Dust Vibrate and ring SYSTEM Touch sounds ✓ Screen lock sound ✓ Vibrate on touch ✓

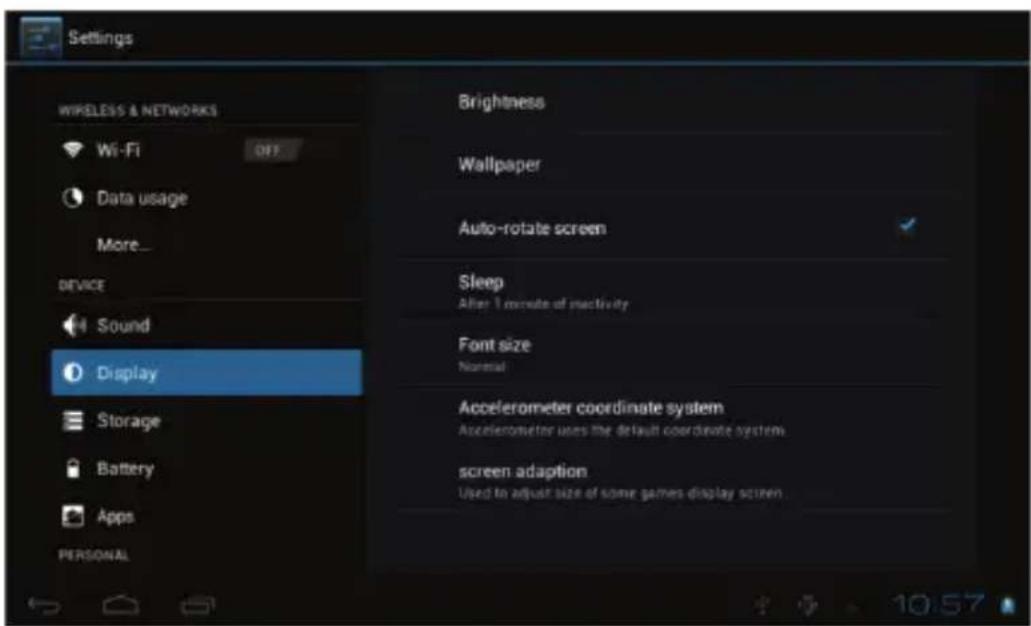

- Display

Settings on LCD Panel brightness, Wallpaper, Auto-rotate screen, sleep, Font size, Accelerometer coordinate system, Screen adaption.

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Brightness Wallpaper Auto-rotate screen Sleep After 1 minute of reactivity Font size Normal Accelerometer coordinate system Accelerometer uses the default coordinate system screen adaption Used to adjust size of some games display screen. 10:57

- Storage

To view the available storage space, Erase SD card (format the internal memory) and select the option of enabling media scanning of external SD card or external USB devices.

Settings More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Total space 2.710B Available 2.710B Erase SD card Erases all data on the SD card, such as music and photos EXTSD Minimum 400 mmio Insert an SD card for mounting Enable media scanning on extsd USBHOST1 Minimum 400 mmio Insert an SD card for mounting Enable media scanning on usbhost1

【Remarks】:

1. If you want to safely remove the Micro SD card or USB flash drive, please tap on the option "Unmount SD card", and confirm the selection, after this, you can safely remove SD card/USB host.
2. Make sure to tick the option of “Enable media scanning on extsd” and “Enable media scanning on usbhost 1”, this way, your tablet can scan and display the files in the external TF card and USB devices.

- Battery

To know the battery usage information.

Settings WIRELESS & NETWORKS Wi-Fi Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Battery usage data not available 76% - Charging (USB) 4m 36s on battery

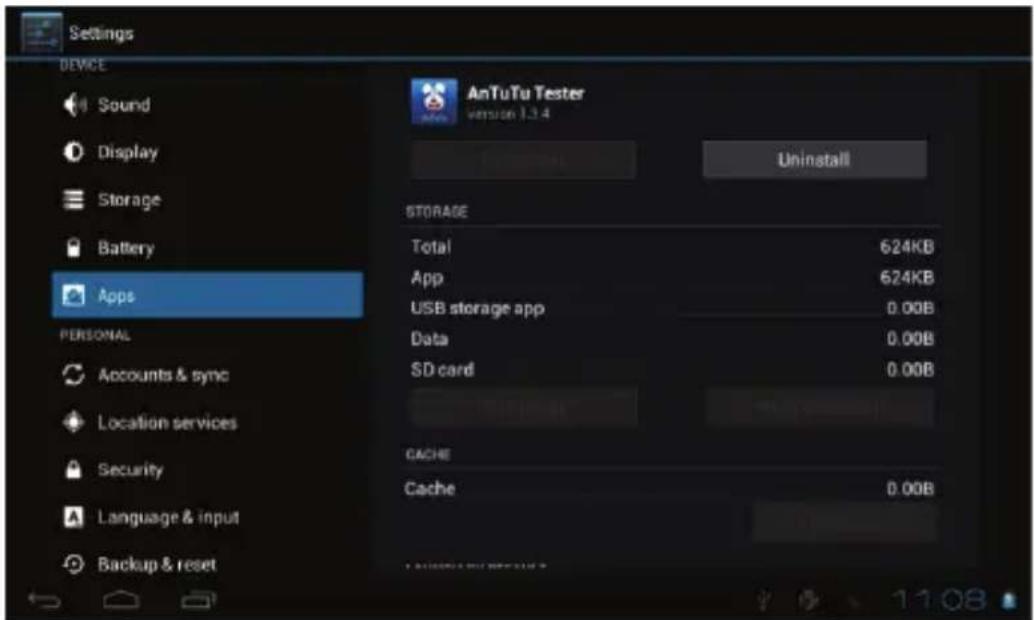

- Apps

To Manage the applications. Tap on the directories (DOWNLOAD, ON SD CARD, RUNNING or ALL) and select the application which you want to uninstall, you will enter into the following interface, tap on Uninstall, then you can remove that application from tablet.

Settings DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset AnTuTu Tester version 1.3.4 Uninstall STORAGE Total 624KB App 624KB USB storage app 0.00B Data 0.00B SD card 0.00B CACHE Cache 0.00B

6.3 PERSONAL

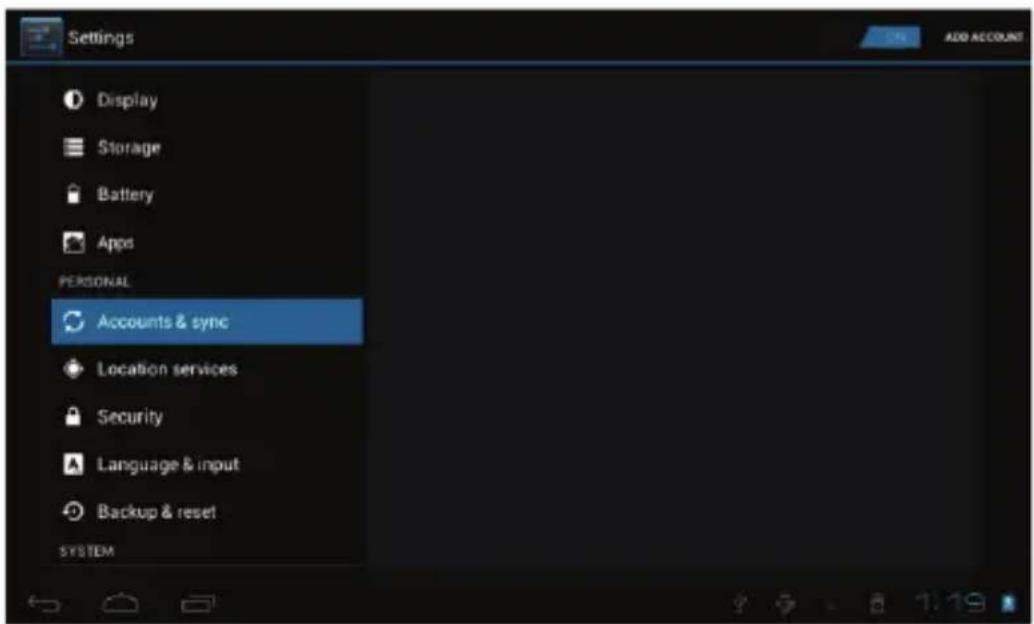

- Accounts & sync

To set up the account and synchronization information.

Settings Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM

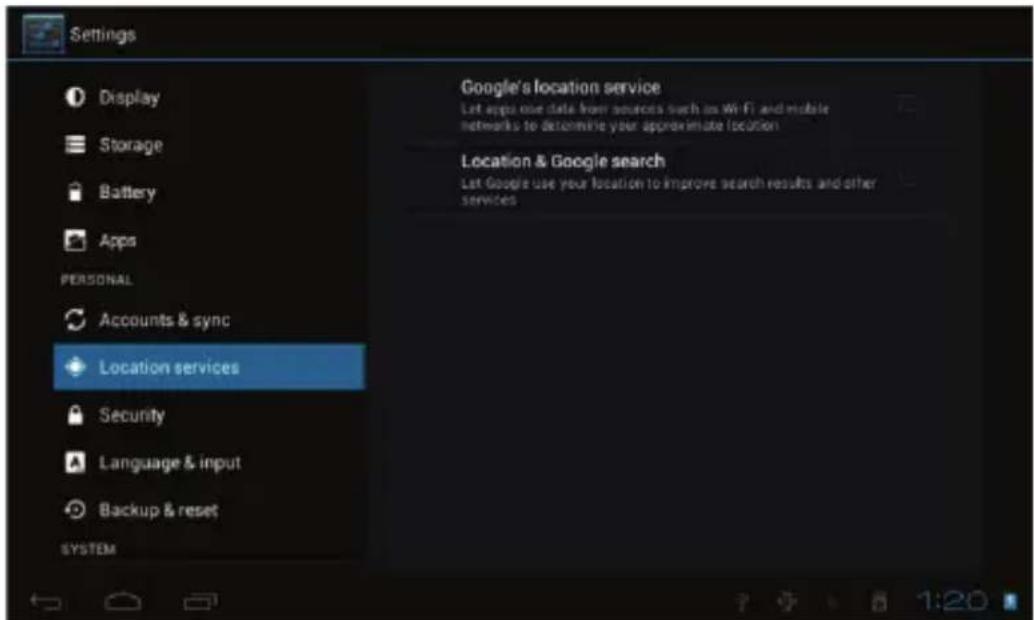

- Location services

Options for you to select “Google’s location service” and “Location & Google search”.

Settings Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Google's location service Let apps use data from sources such as WiFi and mobile networks to determine your approximate location. Location & Google search Let Google use your location to improve search results and other services

- Security

Settings for Screen lock, Owner info, Encrypt tablet, Make passwords visible, Device administrators, Unknown sources, Trusted credentials, Install from SD card.

Settings Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility power it on PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps CREDENTIAL STORAGE Trusted credentials Display trusted CA certificates Install from SD card install certificates from SD card 11:02

- Language & keyboard

Language selection, text input and automatic error correction option, select your desired Keyboard & Input methods, and settings on Text-to-speech output, Pointer speed.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Language English (United States) Spelling correction Personal dictionary KEYBOARD & INPUT METHODS Default English (US) - Android keyboard Android keyboard English (US) Japanese IME 谷歌拼音输入法 3:31

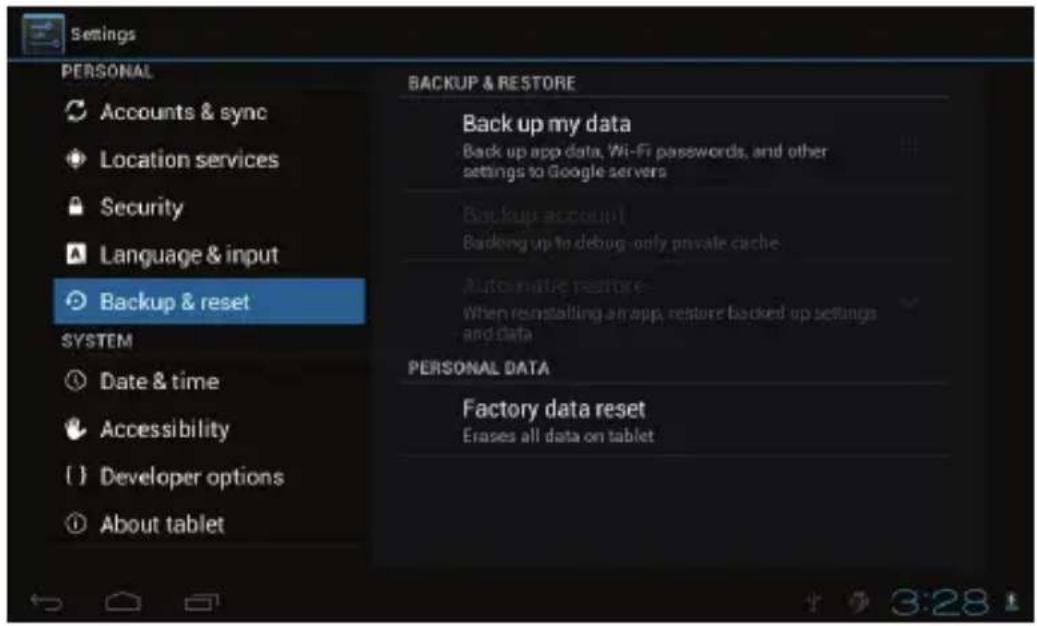

- Backup & reset

Option of for backup & restore, erase personal data.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet BACKUP & RESTORE Back up my data Back up app data, Wi-Fi passwords, and other settings to Google servers Backup account Backing up to debug-only private cache Automatic restore When resinstalling an app, restore backed up settings and data PERSONAL DATA Factory data reset Erases all data on tablet

Warning: once you perform the “Factory data reset”, it will erase all personal data in tablet, make sure to back up your personal data before performing this function.

6.4 SYSTEM

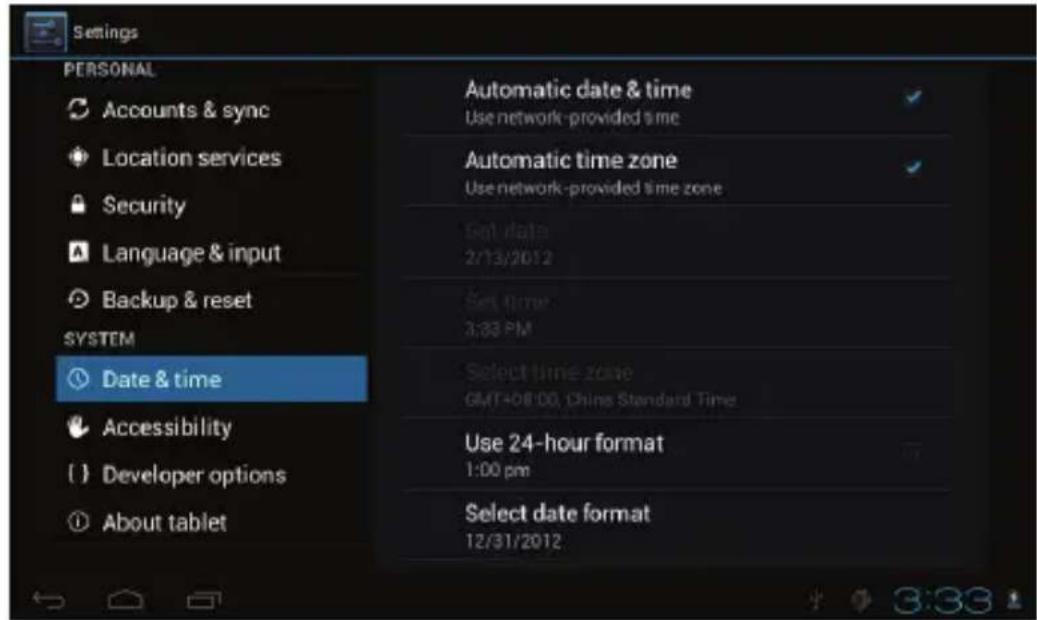

- Date & time

You can use network-provided time or time zone, or you can manually setup date, time, select time zone and you can also select time format and date format.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Automatic date & time Use network-provided time Automatic time zone Use network-provided time zone Set date 2/13/2012 Set time: 3:33 PM Select time zone GMT+08:00, China Standard Time Use 24-hour format 1:00 pm Select date format 12/31/2012

- Accessibility

TalkBack provides spoken feedback help blind and low-vision users. You need to download this application from Android Market.

You can also setup system settings here. You can choose the options of Large text, Auto-rotate screen, Speak passwords, Touch & hold delay time and Install web scripts.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet SERVICES No services installed SYSTEM Large text Auto-rotate screen Speak passwords Touch & hold delay Shall Install web scripts Not allowed

- Developer options

Some advanced settings for the tablet.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility { } Developer options About tablet USB debugging Debug mode when USB is connected Development device ID J265-NLLA-YX6A-K Stay awake Screen will never sleep while charging Allow mock locations Allow mock locations HDCP checking Use HDCP checking for DRM content only Desktop backup password Desktop full backups aren't currently protected. USER INTERFACE Strict mode enabled Flash screen when apps do long operations on main the next

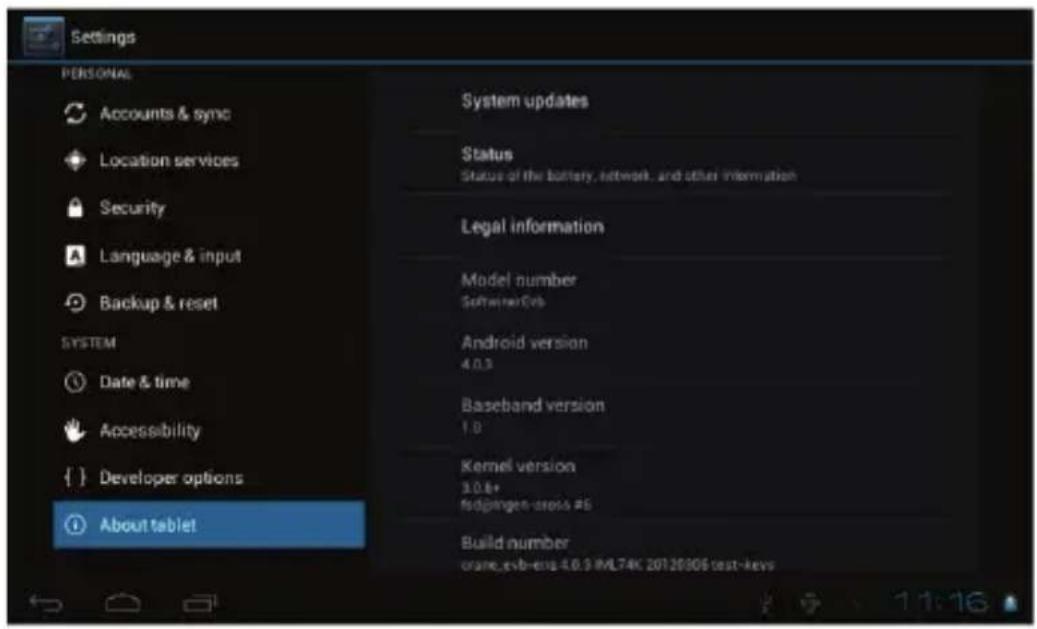

- About tablet

Additional informations about the Tablet.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet System updates Status Status of the battery, network, and other information Legal information Model number SoftwareHub Android version 4.0.3 Baseband version 1.0 Kernel version 3.0.8+ Sodgingen cross #6 Build number organe_evb-eng-4.0.9 IML74K 20120306 test-keys

7 Apps Installation

You can download the Apps from Android Market and install them online, or you can install the Apps from your Micro SD card or USB devices. Just tap on the App and run the installation, you can finish the installation and run that App right away.

8 Introductions of Typical Applications

- Browser

After connecting your tablet to Wi-Fi network, tap the Browser icon on desktop to open web browser. The following interface pops up immediately:

Google Accounts https://accounts.google.com/ServiceLogin?hl=en&continue=http://www.goa Google Accounts Google has more to offer when you sign in to your Google Account. Sign in on the right or create an account for free. Email Gmail Chat with friends and never miss on important email. Personalized Search Get more relevant results based on your past searches. Like Google? Make Google your homepage. Sign in Google Email Password Sign in ✓ Stay signed in Can't access your account? See more benefits of a Google Account.

Then you can start web surfing now, during web surfing, tap on the menu icon located at the right top corner of the screen to get more options:

New window: to open up new window of web browser

Bookmarks: to see the Bookmarks, Most visited websites and History

Windows: to see different windows of web surfing

Refresh: to refresh the page

More: more options of "Add bookmark", "Find on page", "Select text", "Page info", "Share page", "Downloads", "Settings".

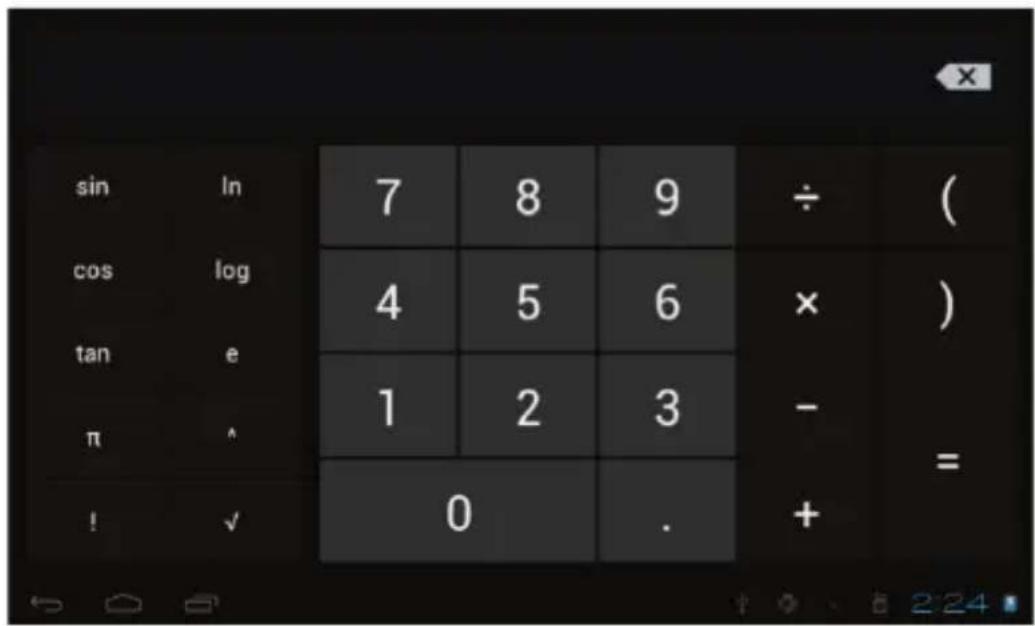

- Calculator

The tablet is with built-in calculator, tap on the Calculator icon to carry out your calculations:

sin ln 7 8 9 ÷ ( cos log 4 5 6 × ) tan e 1 2 3 - π ^ = ! √ 0 . +

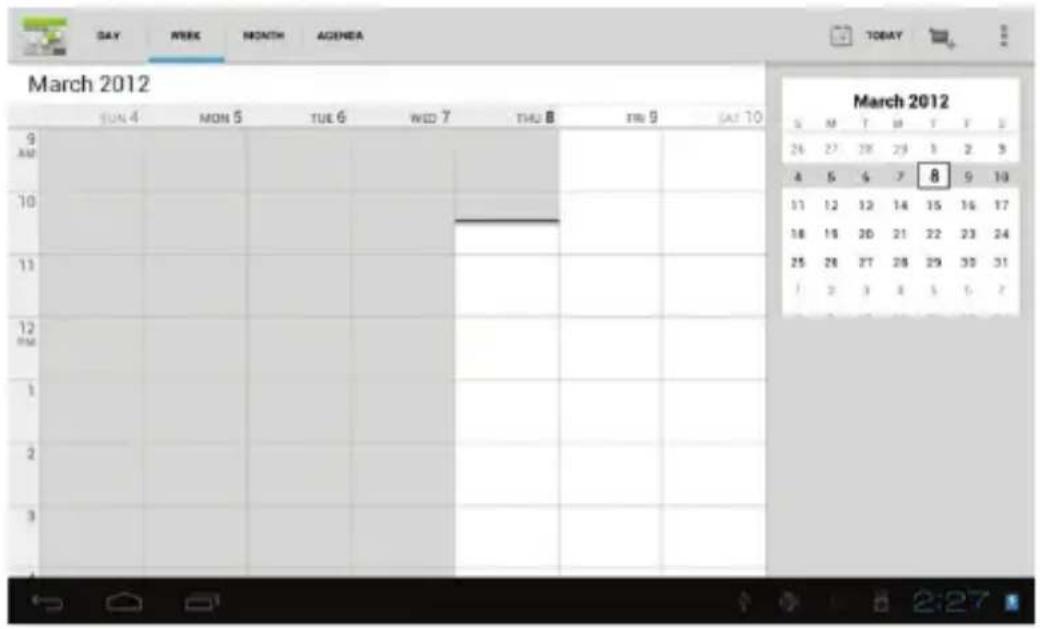

- Calendar

Users can use the Calendar to check date, time and memorandum or add memorandum etc. But before doing this, you have to sign in the Google Account.

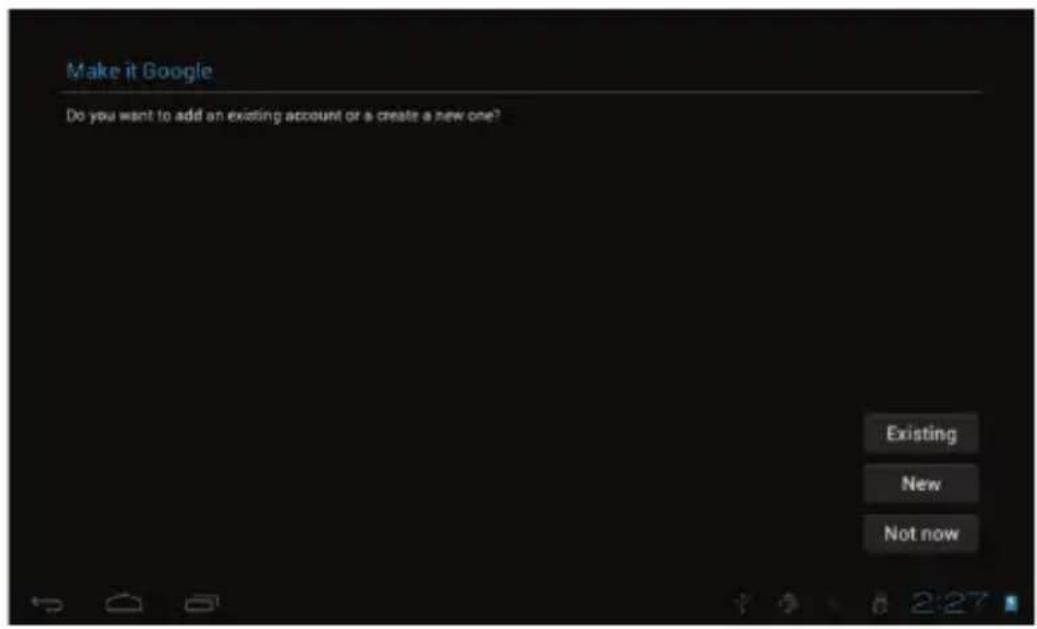

1. Tap on the Calendar icon, then a dialog box of "New a Google Account" will pop up. Tap "Next" to go the next step.

2. If you do not have a Google Account, then tap "Create" to create a new Google account, if you already had a Google Account, tap on "Sign in" to go to next step.

3. Input Gmail address and password, then tap "Next" to go forward.

4. After you finish the setup, the interface will automatically exit and return to the main interface. Tap on the Calendar icon again to check date, time and add memorandum etc. Tap on the menu button to popup more setting

options of 1 Day, 7 Weeks, Agenda, Today, More, see the screen interface as below:

Make it Google Do you want to add an existing account or a create a new one? Existing New Not now

March 2012 SUN 4 MON 5 TUE 6 WED 7 THU 8 THU 9 SAT 10 9 AM 10 11 12 PM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 / 2 3 4 5 6 7 March 2012 S M T M T F D 26 27 28 29 3 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 / 2 3 4 5 6 7

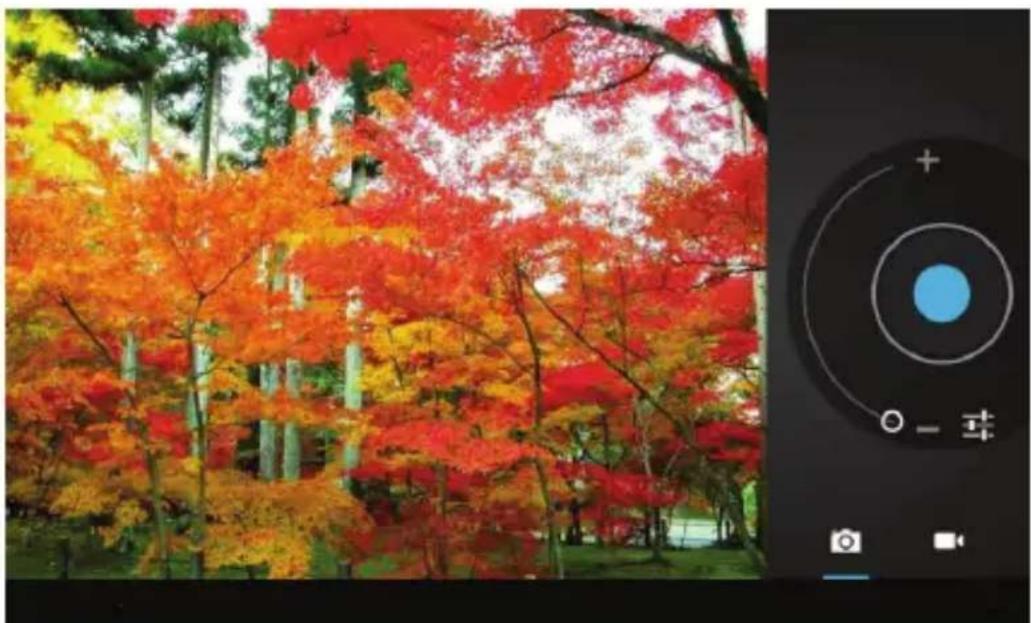

- Camera

Tap on the Camera icon to run the application.

The camera is located at the right of tablet top, aim at it when you take photo or video. Tap on the circular button to take a photo or record a video.

If you want to take photo, tap on the icon 📷 to take photo; if you want to take video, tap on the icon 📄 to take video, tap on 📋 icon to take panoramic photography, tap on the icon 📞 to switch front/rear cameras.

The photos or videos will be saved automatically to internal memory, select “File Manager”, then select folder “DCIM”, select “Camera” to find the photos or videos just took.

You can also view your previous photos or videos by tapping on the photo icon at the top right corner of screen. When you view the photos or videos, tap on it to display more options of slideshow, delete, share, zoom in/out, clip, rotating, or set as wallpaper etc.

Autumn park scene with vibrant red and orange foliage, no visible text or symbols

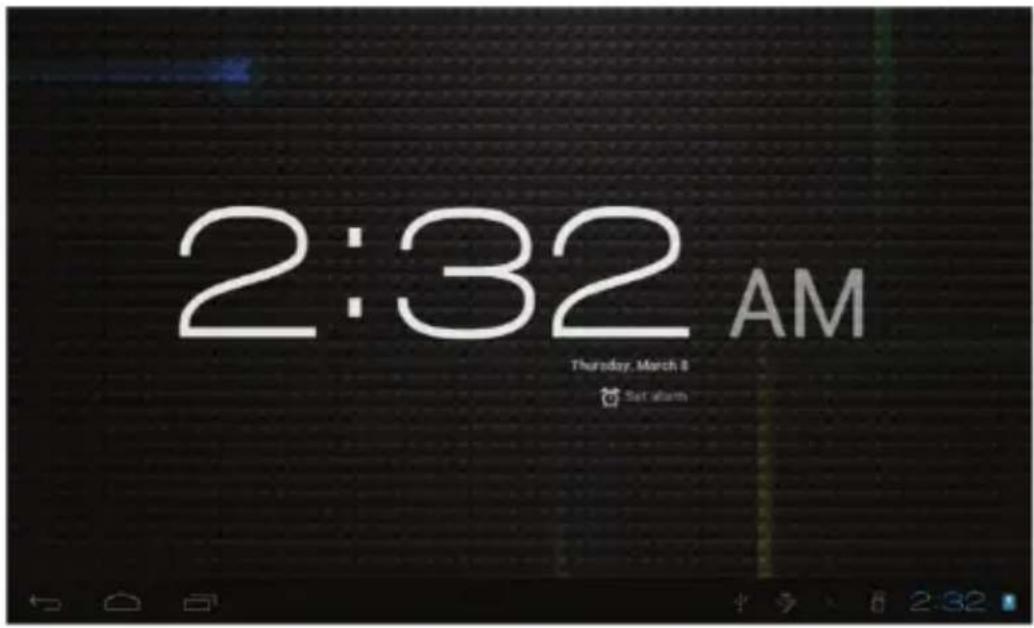

- Clock

Tap on the Clock icon to run the application.

After running the Clock application, you can setup alarm clock.

2:32 AM Thursday, March 8 Set alarm

- Dev Tools

Development tools provided by Android.

Dev Tools AccountsTester Bad Behavior Configuration Connectivity Development Settings Google Login Service GTalk Service Monitor Instrumentation

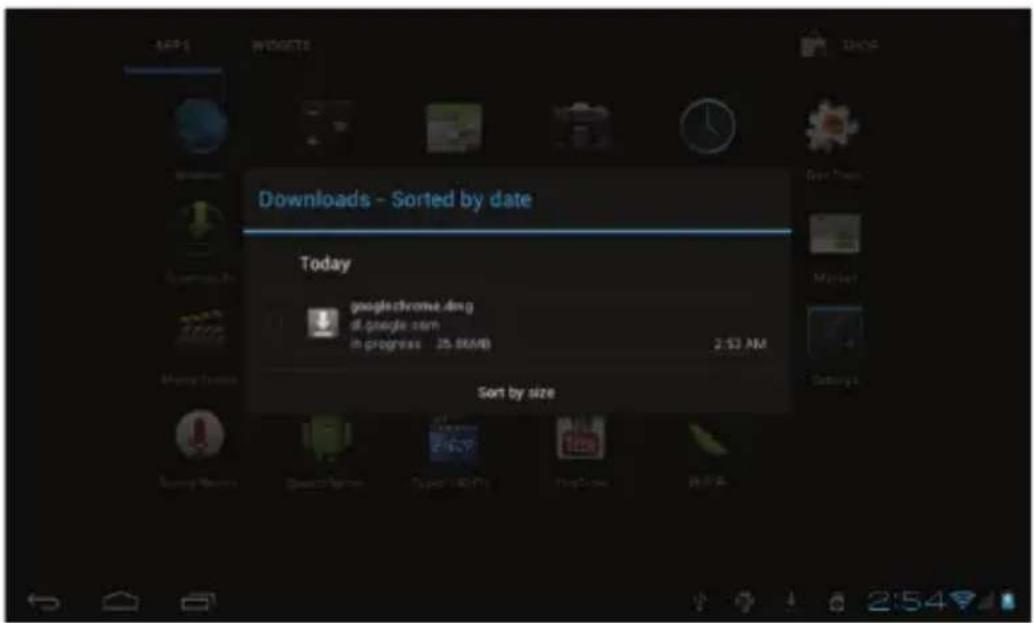

- Downloads

Tap to check all downloaded history.

Downloads - Sorted by date Today googlechrome.dwg all.google.com in progress 25.86MB 2:53 AM Sort by size

- Email

You can enter one or more personal email address which you would like to access through this tablet.

Tap on Email icon to setup your email account according to the procedures. You can receive or send e-mails after setup.

To read emails, tap on the Email icon, if you setup only one email account, it opens immediately, if you have setup multiple accounts, they will be listed in the Accounts screen. Tap on the desired email account, and then tap "Inbox", all emails will be listed, tap on the email which you want to open. You can also Reply, Forward or Delete the emails.

On the Inbox screen, you can Compose New Email, type on menu icon for more settings on your Email account.

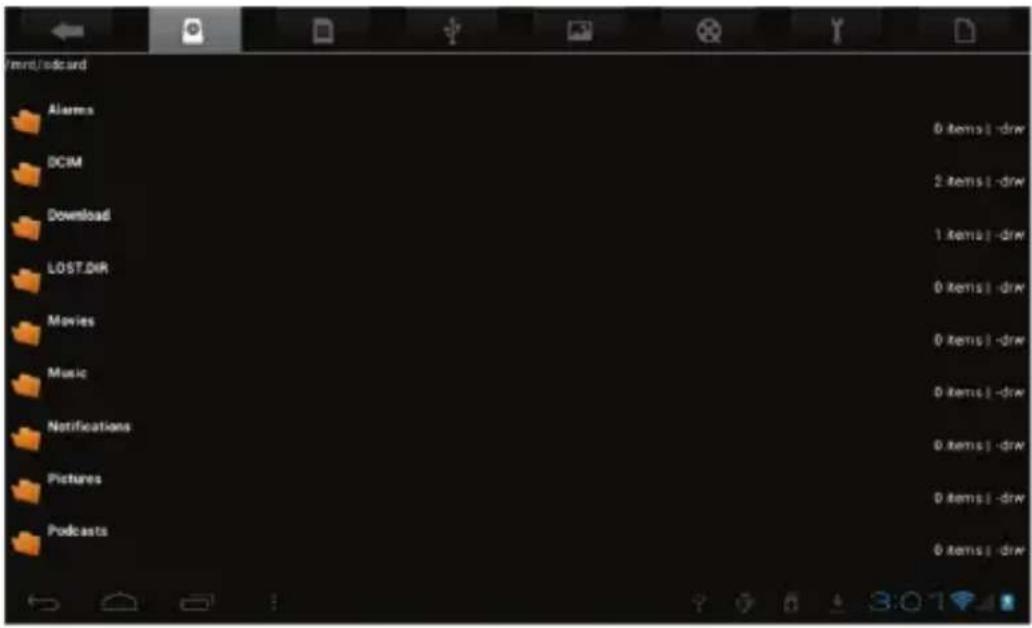

- File Manager

Tap on File Manager icon to browse the files saved in your memory devices (Local, SD card or U-Disk). You can view the files by categories.

Iamid/odscurd Alarms DCIM Download LOST.DIR Movies Music Notifications Pictures Podcasts 0 items1 -drw 2 items1 -drw 1 items1 -drw 0 items1 -drw 0 items1 -drw 0 items1 -drw 0 items1 -drw 0 items1 -drw 0 items1 -drw 0 items1 -drw 0 items1 -drw

Tap on corresponding memory devices (Local, SD card or U-Disk) to see the files inside. Tapping on the file and hold it for 3 seconds, you will have the options of: Delete File, Rename File, Copy File, Move File and Email File. You can also Copy, Move or Paste files between each memory device. You can have the options of Delete Folder, Rename Folder, Copy Folder, Move Folder, Zip Folder when you tap on a folder and hold it for 3 seconds.

How to copy file: to copy a file: tap on the file and hold it for 3 seconds, select Copy, then tap&hold on the folder which your file needs to be copied into, select “Paste into folder” to copy your file into that folder.

- Play Store

After you signed in the Google Account (mentioned above), tap on the Play Store icon, and accept the Google Play Terms of Service to enter into play shop. You can download more apps from the Android market.

If you want to download apps from Android market, tap on the app icon which you want to download, follow the procedures to download the app and install it onto you tablet.

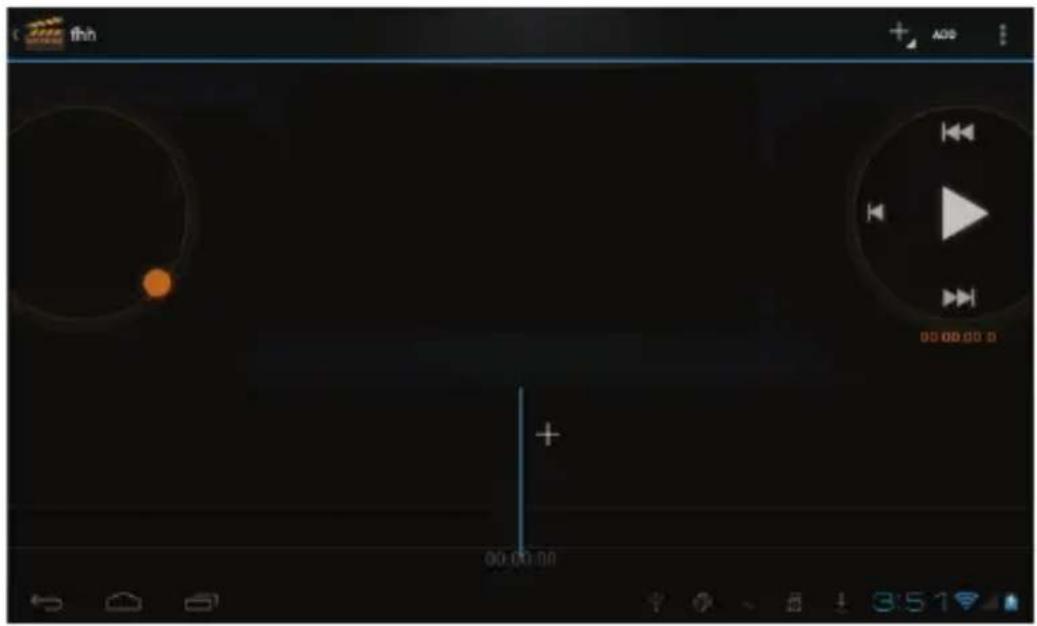

- Movie Studio

Tap on Movie Studio icon to run the application, you have to Create New Project first, then tap on “ADD” to Record a video, Take a photo, Import video clip or import image.

fsh 00:00:00 0 00:00:00 3:51

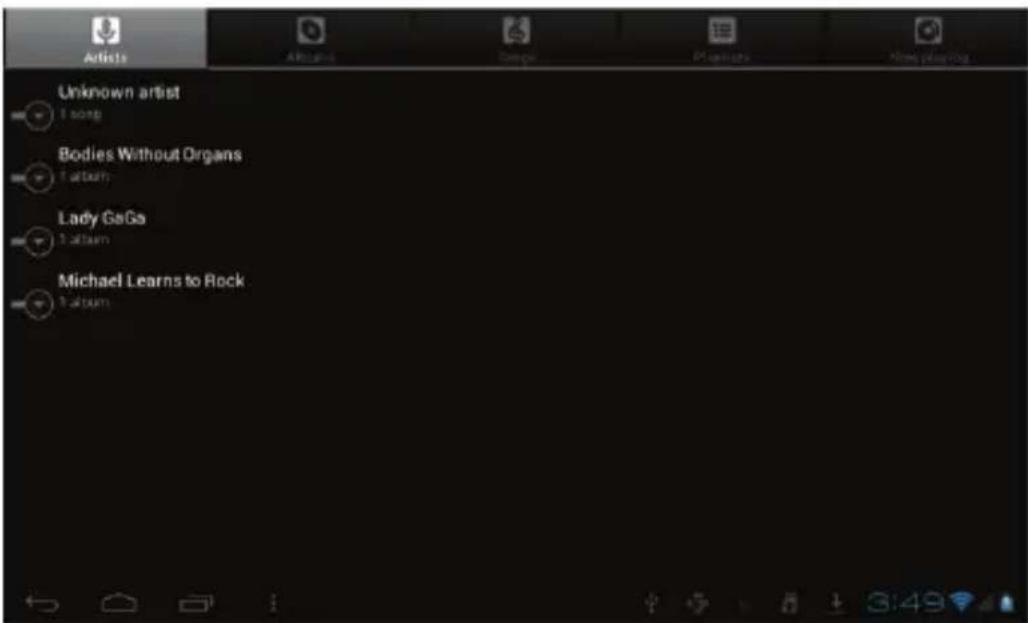

Music

To play the music, tap on the Music icon to run the application.

All songs will be listed and tap on your desired song to play it.

Unknown artist 1 song Bodies Without Organs 1 album Lady GaGa 1 album Michael Learns to Rock 1 album

- People

You can create an address book of your personal contacts.

1. Tap on the People application icon to run the application.
2. If you already logged into your Google account, then you can run the application right away, if you have not logged into your Google account, please log into your Google account by following the steps.
3. After entering into People application, you can see the all your contacts informations, you can also Search, Add, Edit your contacts. Tap on the menu icon to display below options:

Share: to share contacts

Delete: to delete the contacts

Contacts to display: to select the options for contacts display.

Import/Export: import/Export contacts.

Accounts: sync your accounts

Settings: display options for your contacts

1. In the Contacts screen, tap on the desired contact, then tap the "star" icon at the right side of screen to add the Contact to Favorites.

No contacts. Create a new contact Sign in to an account Import/export contacts

- Phone

This Tablet does not support Phone function.

- Search

Search the APK files in your tablet or search online.

To search online, please tap on the icon

Email Applications

q w e r t y u i o p a s d f g h j k l ◇ z x c v b n m , . 7123 → / -

● Sound Recorder

To start the sound recorder, tap on the Sound Recorder icon.

Tap on the icon ☐ to start recording.

Tap on the icon □ to stop recording.

Once you stopped the recording, system will prompt: Discard or Done.

Tap on Discard to discard the recording; Tap on Done to save the recording.

The recorded files can be found at root directory of folder File Manager.

Record your message 00:00

- Video Player

To play the videos, tap on the Video Player icon to run the application.

All videos will be listed and tap on your desired video to play it.

Two-panel image showing a blue water surface with a play button and a crowd watching, no visible text or symbols.

9 Forced shutdown

In case of your tablet was down and you are unable to turn it off according to standard procedures, press the power switch and hold it for 7 seconds, the tablet will be turned off.

10 Factory Reset

To restore the tablet to original factory settings and erase all personal informations, tap on “Settings”→“Backup&reset”→“Factory data reset”.

Warning: After resetting the device, Google account, data, system settings, and downloaded applications will be removed from your tablet.

11 Battery Management

The battery is not fully charged from factory, so it is recommended that you charge the battery for at least 6 hours before you start to use the device.

The rechargeable battery is designed and manufactured to be used and recharged frequently. As same with all of lithium batteries, the capacity of the battery reduces each time it is charged. However, you can still try to prolong the battery's lifetime by following the suggestions below:

• Use your Tablet at least once a week.
  • Fully charge the battery regularly.
• Never leave the battery fully discharged for a long period of time.
  • Always keep the device and the battery away from heat and moisture.

12 Charge Battery

Plug the power adapter into an electrical wall outlet and then connect to the device to fully charge the battery before use.

You can charge the battery by using the USB cable.

When fully charged, the battery icon displays as:

A fully discharged battery will take you approximately 6 hours, but you can use the device while it is being charged.

Do not use other adapters than the one provided in your packaging, it may cause damage to the Lithium battery inside.

Do not attempt to open the tablet to replace the battery inside, this will damage the tablet and void the warranty.

13 Important Safety Precautions

Always follow these basic safety precautions when using your Tablet. This reduces the risk of fire, electric shock, and injury.

• Do not expose this product to rain or moisture.
• Keep the device out of direct sunlight and heat sources.
• Do not place other objects on LCD screen, as it may crush and damage the LCD screen.
• Do not use any sharp objects to touch the LCD screen, as this will scratch the screen.
• Only use the AC adapter included with the device. Using any other power adapters will damage your tablet and void the warranty.
• Do not attempt to dismantle the tablet by yourself to do any repair, this will damage the tablet and void the warranty.

14 Clean Your Device

To clean fingerprints or dust from the screen, we recommend to use soft, non-abrasive and non-corrosive cloth for cleaning, such as a camera lens cloth.

Frequently Asked Questions

Android

Q: What Android OS version is on my Device?

A: Android 4.0.3.

Basic Functionality

Q: Do I have to charge the battery before use?

A: You should charge the battery for at least 6 hours, but you can use the device while it's being charged. Use the included power adapter to charge.

Email

Q: Can I use any of my personal email addresses to send/receive email?

A: The device supports POP3 accounts. Some free email accounts are not supported on mobile devices. Check with your email provider to see if you account is supported.

Media Cards

Q: Which media cards are compatible with my Device?

A: Micro SD cards.

Music

Q: What type of music files can I play on my device?

A: MP2, MP3, WAV, AAC, WMA.

Q: How do I add music files to my device?

A: Copy the music files from your PC, Micro SD card or USB storage device directly to your device.

Photos

Q: What type of photo files can I view on my device?

A: JPEG, BMP, GIF, PNG.

Q: How do I add photo files to my device?

A: Copy the photos from your PC, Micro SD card or USB storage device.

Videos

Q: What type of video files can I play on my device?

A: Video decoding (Full HD) support all formats of video such as H.264, H.263, VC-1, MPEG-1/2/4, DIVX-3/4/5/6, XVID, WMV 7/8, VP6, AVS and other popular video formats.

Q: Can I play YouTube videos on my device?

A: Yes, you can run the YouTube application icon to play the videos.

Q: How do I add video files to my device?

A: Copy the video files from your PC, Micro SD card or USB storage device.

Wi-Fi

Q: Do I need a Wi-Fi adapter to connect to the Internet?

A: No, the Wi-Fi adapter is built-in to the device.
