USER MANUAL 8" Air Circulator Fan EE-8634 Easy Home

Black hard fan with spiral blades and 'EASY HOME' branding on the front panel (no other text or symbols visible)

English.....3

Español.....11

Contents

Parts list....3

Contents ....3

General informaon....4

Safety instrucons ....5

User instrucons ....7

Cleaning and maintenance....8

Other useful informaon 9

Technical specicaons 9

Storing 9

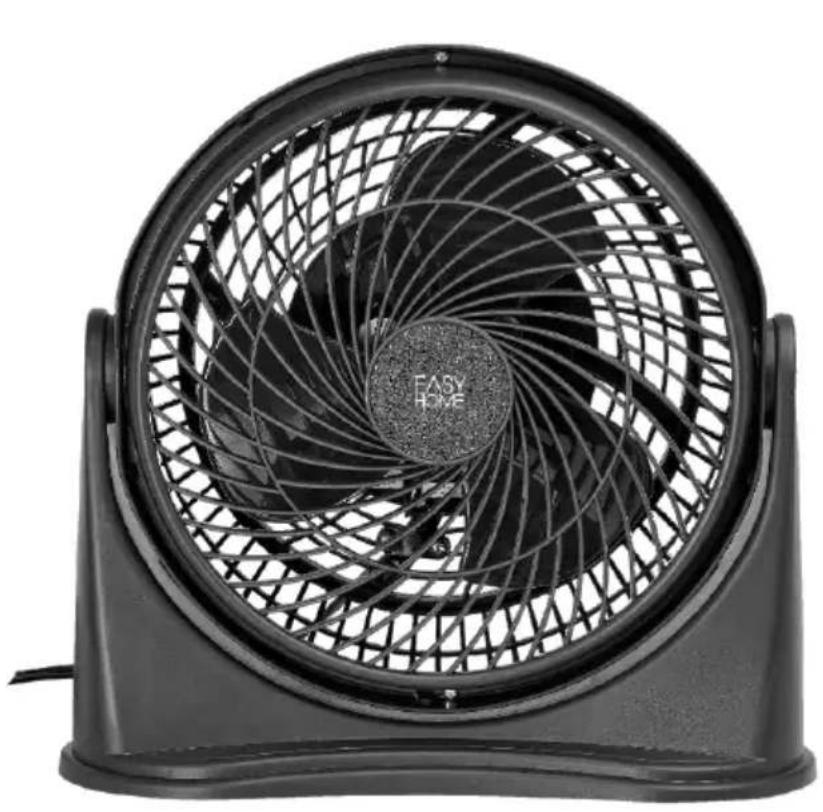

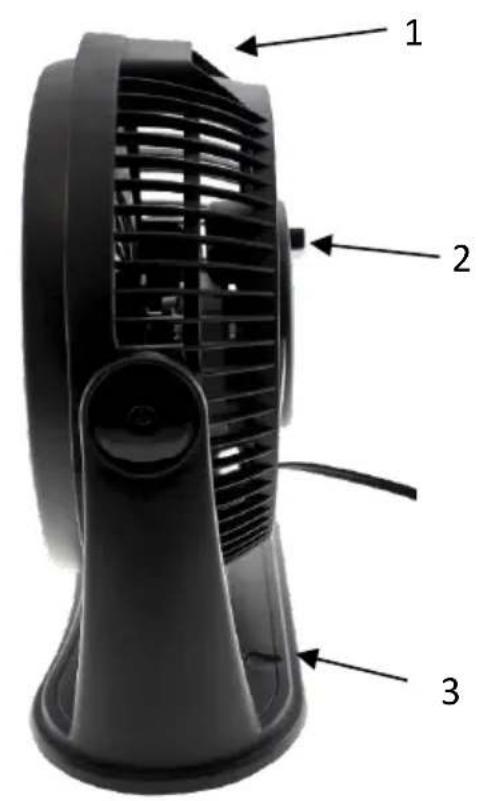

Main parts

1. Concealed Carrying Handle
2. 3 Speed Knob
3. Wall Mount Opening

Black hard fan with spiral blades and a 'EASY HOME' logo on the front panel (no text or symbols on the fan itself)

1 2 3

Contents of packaging

• Instrucon Manual
  • Air Circulator Fan

DO NOT USE ANY ABRASIVE MATERIAL TO CLEAN THE SURFACE

DO NOT IMMERSE THE AIR CIRCULATOR FAN INTO WATER AT ANY TIME

General informaon

When using electrical appliances, basic safety precautions should always be followed. PLEASE READ AND SAVE ALL INSTRUCTIONS BEFORE USING THE AIR CIRCULATOR FAN.

1. This product is intended for indoor household use only and not for commercial or industrial applicaons.
2. ALWAYS turn the fan o before removing the plug from the outlet.
3. ALWAYS turn the fan o and unplug it immediately aer using and before cleaning.
4. To protect against electrical hazards, do not place the fan in water or other liquids.
5. DO NOT allow the fan to become wet or damp.
6. DO NOT store the fan where it can fall into water or other liquids.
7. Turn the fan o when leaving the fan for an extended period.
8. NEVER submerge the fan in water or any other liquids.
9. Use the fan only for its intended use as described in these operang instrucons.
10. DO NOT unplug by pulling on the cord. To unplug the fan, grasp the plug, not the cord.
11. DO NOT operate any appliance if its cord or plug is damaged, aer the appliance has malfunconed, or aer it has been dropped or damaged in any way. Always follow the warranty instrucons.
12. Avoid contact with moving parts.
13. NEVER drop or insert any object into any opening OR into the area protected by the guards.
14. DO NOT obstruct the airow.
15. DO NOT operate the fan without the front guard/grill in place.
16. DO NOT operate the fan directly adjacent to curtains, plants, window covers, etc. to avoid accidental entanglement or create a re hazard.
17. DO NOT use the fan if it has not been fully assembled.
18. Keep the cord away from heavy trac areas. To avoid re hazard, NEVER put cord under rugs, radiators or stoves.
19. To maintain operang eciency, user should not operate the fan 24 hours a day, seven days a week.
20. NOTE: This fan employs overload protecon (fuse). A blown fuse indicates an overload or short-circuit situaon. If the fuse blows, unplug the fan from the outlet. Replace the fuse and check the fan. If the replacement fuse blows, a short circuit may be present and you should contact customer service for instrucons.
21. WARNING: To reduce the risk of re or electrical shock, do not use this fan with any solid-state speed control device.

SAVE ALL INSTRUCTIONS!

Safety instrucons

WARNING: Read and understand all instrucons. Failure to follow all instrucons listed below may result in electric shock, re or serious personal injury. The warnings, cauons, and instrucon discussed in this instrucon manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and cauon are a factor which cannot be built into this product, but must be supplied by the operator.

CAUTION: A short power supply cord is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a longer cord. Extension cords are available from local hardware stores and may be used if care is exercised in their use. If an extension cord is required, special care and cauon is necessary. Also the cord must be: (1) marked with an electrical rang of 125V, and at least 13 A., 1625 W., and (2) the cord must be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over accidentally.

Polarized plug

NOTE:

• This fan has a polarized plug (one blade is wider than the other).
• As a safety feature to reduce the risk of electrical shock, this plug is intended to t in a polarized outlet only one way.
• If the plug does not t fully in the outlet, reverse the plug.
• If the plug sll does not t, contact a qualified electrician. Do not aempt to defeat this safety feature.

Electric power

If electric circuit is overloaded with other appliances, your air circulator fan may not operate properly. The air circulator fan should be operated on a separate electrical circuit from other operang appliances.

Safety warning

Although your air circulator fan is easy to operate, for your safety, the warnings below must be followed:

1. Do not place the fan near a heat source.
2. Never leave the fan unaended while connected to the electrical outlet.
3. Use the fan on a stable at surface away from water.
4. Do not unplug from the wall socket by pulling on the supply cord.
5. The fan must be unplugged:

A. Aer each use.
B. If it appears to be faulty.
C. Before cleaning or maintenance.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. SAVE THESE INSTRUCTIONS!

User instrucons

1. Place the fan on a level and dry surface. Plug the power cord into a polarized 120V AC wall outlet.

2. Select the desired speed O (O), L (Low), M (Medium), H (High).

Close-up of a black mechanical dial with labeled buttons (H, M, L, O) and a knob, showing no readable text or symbols beyond the lettering.

1. Adjust the angle of the fan to the desired air output direcon.

2. To move the fan, turn fan OFF and use concealed carrying handle on back of fan.

Wall Mounng (oponal)

1. Locate and mark a suitable posion on the wall to mount the fan (preferably at a wall stud).

2. Hold the fan against the wall at the locaon you would like it to be installed.

3. Use a pencil to mark the locaon of the mount opening screw holes on the base of the fan. Place fan aside and drill pilot holes through the marks you have made on the wall.

4. Insert anchors (not included) into the holes.

5. Place mount screws (not included) through the holes in the wall mount openings, and then place the fan into posion on the wall.

6. Tighten the screws unl the wall mount is ush against the wall.

7. Once securely aached to the wall, the fan can be plugged into an electrical outlet.

Cleaning and Maintenance

CAUTION:

Always be sure that the appliance is switched OFF before cleaning the appliance or aempng to store the item. DO NOT IMMERSE THE AIR CIRCULATOR FAN IN WATER OR ANY OTHER LIQUID.

1. Before cleaning, turn the fan o and unplug from electrical outlet.
2. Wipe o excess dust with a lint free cloth.
3. A vacuum cleaner brush aachment can be used to clean the fan guards. This will help remove lint and dirt from inside the fan. DO NOT ATTEMPT TO TAKE THE FAN APART.
   NOTE: A can of compressed air may also be used to help push any excess dirt out of the fan and into the vacuum cleaner.
4. DO NOT immerse the fan in water and never allow the water to enter the motor housing.
5. DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

IT USE ANY ABRASIVE MATERIAL TO CLEAN THE SURFACE!

DO NOT IMMERSE THE AIR CIRCULATOR FAN INTO WATER OR ANY OTHER LIQUID!

Other useful informaon

Technical specicaons

Model Number EWCF8B

Rang Voltage 120V – 60Hz

Rated Waage 35W

Storing

• Store the Air Circulator Fan in a dry locaon.
• Do not place any heavy items on top of the Air Circulator Fan during storage as this may result in possible damage of the Air Circulator Fan.

Service Center

If you have any quesons in regards to the operaon of this Air Circulator Fan please contact our service center at:

Tel: [phone]

Business Hours: Mon-Fri 10:00am – 5:00pm EST

Email: [e-mail]

Environmental Protecon

If the Air Circulator Fan should no longer work at all, please make sure that it is disposed of in an environmentally friendly way.

Contenido

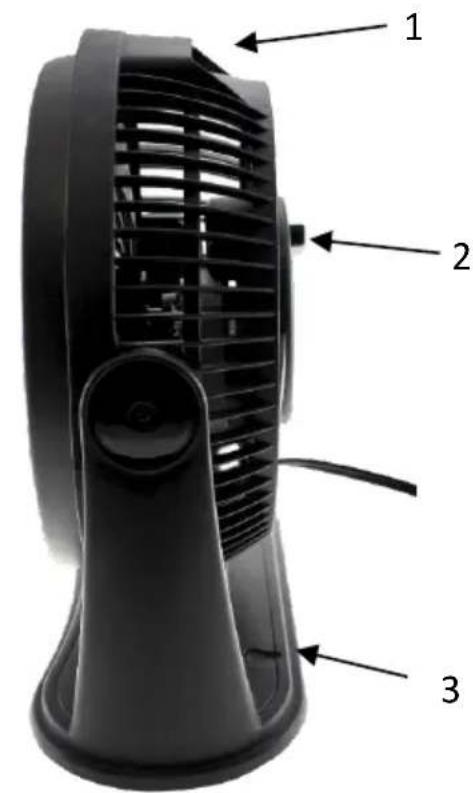

Lista de componentes 11

Contenido 11

Información general....12

Black square electric fan with spiral blades and 'EASY HOME' branding on the front (no additional text or symbols)

Diagram of a black electric fan with labeled parts 1, 2, and 3

Contenido

Close-up of a black mechanical dial with labeled buttons (H, M, L) and a knob, showing no readable text or symbols beyond the lettering.

*We recommend you keep the receipt with this warranty card

Locaon of purchase

Descripon of malfuncon:

Black office air conditioner fan with visible blades and grille (no text or symbols)

Return your completed warranty card to:

Wachsmuth & Krogmann, Inc.

1015 Hawthorn Drive

Itasca, IL

60143

USA

[e-mail]

AFTER SALES SUPPORT 45072

888 367 7373

[e-mail]

MODEL:

EWCF8B 07/2017

Hotline:

888-367-7373

Operang hours:

Monday – Friday

10:00am - 5:00pm EST

2

YEAR WARRANTY AÑOS DE GARANTÍA

ALDI INC. FULL WARRANTY CONDITIONS

Dear Customer:

The ALDI warranty is a fully warranty oering you the following benets:

Warranty period: 2 years from date of purchase.

6 months for movable parts and consumables under normal and proper conditions of use (e.g. rechargeable baeries).

Costs: Free repair/exchange or refund.

No transport costs.

ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors.

In order to make a claim under the warranty, please send us:

The faulty item with all the component parts, the original receipt and the warranty card properly completed.

The warranty does not cover damage caused by:

Accident or unanticipated events (e.g. lightning, water, re).

Improper use or transport.

Failure to follow the safety and maintenance instrucons.

Other improper treatment or modicaon of the product.

Aer the expiraon of the warranty period, you may wish to have your product repaired at your own expense.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state but this warranty is not intended to exceed statutory minimum requirements beyond what is included above.

This warranty does not limit the statutory obligaon of the seller arising from any implied warranes. The period of warranty can only be extended in accordance with applicable law.

Neither the service company nor ALDI will assume any liability for data or sengs stored on any returned product.
