USER MANUAL GFD45ESSKWW GE

SAFETY INSTRUCTIONS ..... 2

OPERATING INSTRUCTIONS

Controls 4

Loading and Using 8

CARE AND CLEANING....8

Venting 9

Reversing the Door Swing .....10

Stacking 14

TROUBLESHOOTING TIPS ..... 17

CONSUMER SUPPORT

Warranty 21

Consumer Support 22

Write the model and serial numbers here:

Model # ____

Serial # ____

They are on the label on the front of the dryer behind the door.

OWNER'S MANUAL

GFDS175

GFDS170

GFDN160

GFD45

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, explosion, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
  ■ DO NOT dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
  ■ DO NOT place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
  ■ DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is used near children. Before the appliance is removed from service or discarded, remove the door to the drying compartment.
  ■ DO NOT reach into the appliance if the drum is moving.
  ■ DO NOT install or store this appliance where it will be exposed to the weather.
  ■ DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.
  ■ DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
  ■ DO NOT use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
  ■ Clean lint screen before or after each load. DO NOT operate the dryer without the lint filter in place.
  ■ Do not store combustible materials, gasoline or other flammable liquids near the dryer. Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. Keep dryer area clear and free from items that would obstruct the flow of combustion and ventilation air.
  ■ The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
  ■ Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power or Start/Pause button DOES NOT disconnect power.
  ■ DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
  ■ DO NOT spray any type of aerosol into, on or near dryer at any time. Do not use any type of spray cleaner when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
  ■ See “Electrical Connection” located in the Installation Instructions for grounding instructions.

SAVE THESE INSTRUCTIONS

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent damage, personal injury, or death.

• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.
- DO NOT touch any electrical switch; DO NOT use any phone in your building.
- Clear the room, building, or area of any occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

State of California Proposition 65 Warnings

WARNING

This product contains one or more chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Gas appliances can cause low-level exposure to some of these substances, including benzene, carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Exposure to these substances can be minimized by properly venting the dryer to the outdoors.

SAVE THESE INSTRUCTIONS

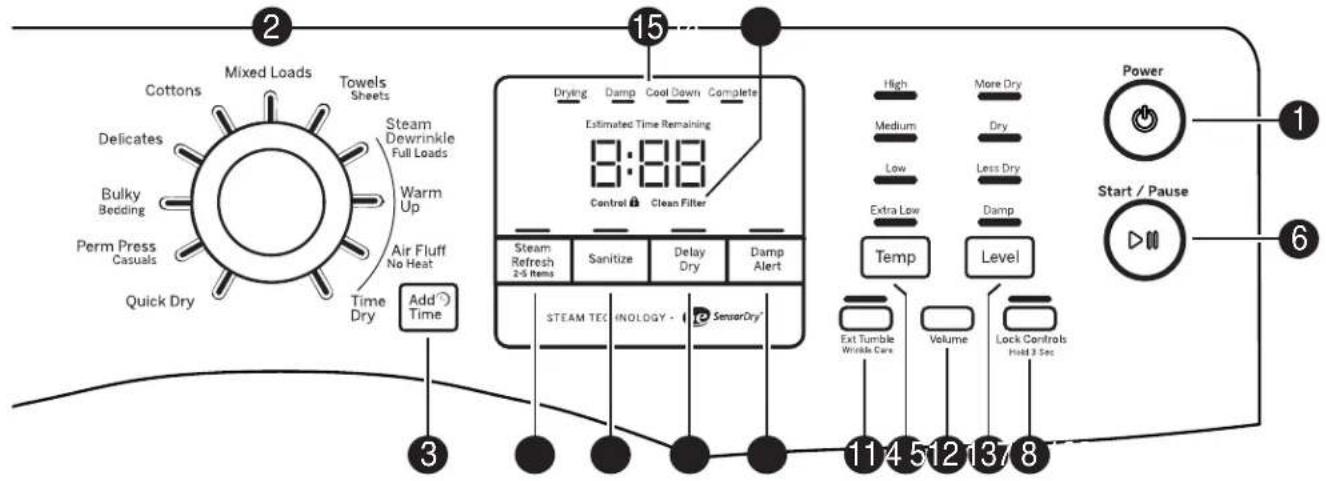

About the dryer control panel.

WARNING!

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

DO NOT dry anything that has ever had anything flammable on it (even after washing).

Failure to do so can result in death, explosion, or fire.

WARNING

Fire Hazard

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Items containing foam, rubber, or plastic must be dried on a clothesline or by using an air dry cycle.

Failure to follow these instructions can result in death or fire.

Throughout this manual, features and appearance may vary from your model.

Models: GFDS170, GFDS175 and GFD45–Steam Dryer with HE SensorDry™

2 Cottons Mixed Loads Towels Sheets Delicates Steam Dewrinkle Full Loads Warm Up Bulky Bedding Perm Press Casuals Quick Dry Time Dry Add Time 3 15 Drying Damp Cool Down Complete Estimated Time Remaining 8:88 Control Clean Filter High Medium Dry Low Less Dry Extra Low Damp Temp Level Power Start / Pause 6 11 4 5 12 13 8

Model: GFDN160 – Dryer with HE SensorDry™

2 Cottons Mixed Loads Towels Sheets Delicates Bulky Bedding Perm Press Casuals Quick Dry Time Dry Add Time 3 15 Drying Damp Cool Down Complete Estimated Time Remaining 8:88 Control Clean Filter My Cycle Sanitize Delay Dry Damp Alert SensorDr High Medium Dry Low Less Dry Extra Low Damp Temp Level Ext Tumble Wricks Cars Volume Lock Controls Hold 3 Sec 11 4 5 12 13 6 8 Power Start / Pause 1 6

Quick Start

1 Press the Powerbutton.

If the screen is dark, a press of the Power button will "wake up" the display.

3 Press the Start/Pause button.

2 Select a dry cycle. (Defaults are set for each cycle. These default settings can be changed. See Control settings for more information.)

Mixed Loads Cottons Delicates Bulky Bedding Perm Press Casuals Quick Dry Towels Sheets Steam Dewrinkle Full Loads Warm Up Air Fluff No Heat Time Dry

1 Power

Press to "wake up" the display. If the display is active, press to turn the dryer off. NOTE: Pressing Power does not disconnect the appliance from the power supply.

2 Dry Cycles

The dry cycle controls the length and tumble speed of the drying process. The chart below will help you match the dry setting with the loads.

Mixed Loads	For loads consisting of cottons and poly-blends.
Cottons	For cottons and most linens.
Delicates	For lingerie and special-care fabrics.
Bulky/ Bedding or Bulky Items	For large coats, bed spreads, mattress covers, sleeping bags, blankets, comforters, jackets, small rugs, and similar large and bulky items.
Perm Press/ Casuals	Clothing worn for active sports exercise and some casual wear. Fabrics include new technology finishes and stretch fibers such as Spandex. Also for clothing labeled Easy Care or Perma Press: For wrinkle-free and permanent press items.
Quick Dry	For small loads that are needed in a hurry, such as sports or school uniforms. Can also be used if the previous cycle left some items damp, such as collars or waistbands.
Towels/ Sheets	Use for towels OR sheets. It is not recommended to mix towels and sheets in the same load.
Steam Dewrinkle Full Loads (on some models)	Provides 20 minutes of steam drying to assist with dewrinkling clothes. Ideal for loads left in dryer for an extended time.
Dewrinkle Full Loads (on some models)	Provides 20 minutes of drying to assist with dewrinkling items that are dry or slightly damp. This cycle is not recommended for delicate fabrics.
Warm Up	Provides 10 minutes of warming time to warm up clothes.
Air Fluff/ No Heat	Provides 10 minutes of tumbling time without heat.
Time Dry	Use to set your own dry time. Time Dry is also recommended for small loads. To use:1. Turn dry cycle dial to Time Dry.2. Increase the drying time by pressing the Add Time button.Note: This button only increases the time. When max time is reached, pressing the button again will reset the counter to the lowest setting.3. Select the Temp.4. Close the door.5. Press Start/Pause.

Add Time

Press to add time to the Steam Dewrinkle, Dewrinkle, Warm Up, Air Fluff or Time Dry cycles in 10 minute increments.

Control settings.

4

Temp

You can change the temperature of your dry cycle.

High For regular to heavy cottons.

Medium For synthetics, blends and items labeled Permanent Press.

Low For delicates, synthetics and items labeled Tumble Dry Low.

Extra Low For lingerie and special-care fabrics.

5

Level

The sensor continuously monitors the amount of moisture in the load. When the moisture in your clothes reaches your selected dry level, the dryer will stop.

NOTE: Sensor dry Level only works with Cottons, Normal, Perm Press, Delicates, Quick Dry, Bulky, Towels/Sheets, Dewrinkle and Steam Dewrinkle cycles.

More Dry Use for heavy or mixed type of fabrics.
Dry	Use for normal dryness level suitable for most loads. This is the preferred cycle for energy saving.
Less Dry	Use for lighter fabric (ideal for ironing).
Damp For leaving items partially damp.

6

Start/Pause

Press to start a dry cycle. If the dryer is running, press it once and it will pause the dryer. Press it again to resume the dry cycle.

7

Steam Refresh Cycle (on some models)

For slightly wrinkled dry garments. Significantly reduces wrinkles on up to 5 garments. After the Steam Refresh Cycle, the unit will beep and display "0:00." If the unit is not turned off or if the door is not opened, the dryer will continue to tumble for 30 minutes. At the end of 30 minutes, it will display "0:00" and the cycle will be complete.

NOTE: A single extremely light fabric item may need to have an additional item included to achieve optimum results.

8

Sanitize

This option reduces certain types of bacteria by 99.8%, including: Staphylococcus aureus, Pseudomonas aeruginosa and Klebsiella pneumoniae. The anti-bacterial process occurs when high heat is used during a portion of the drying cycle.

NOTE: Do not use this cycle on delicate fabrics.

9

Delay Dry

Use to delay the start of your dryer.

1. Choose your dry cycle and any options.
2. Press Delay Dry. You can change the delay time in 1 hour increments up to 24 hours, using the Delay Dry button.
3. Press the Start/Pause button to start the countdown.

NOTE: If the door is opened while the dryer is in Delay Dry, the countdown time will not restart unless the door is closed and Start/Pause button has been pressed again.

10		Damp AlertThis option causes the dryer to beep when clothes have dried to a damp level. Remove items that you wish to hang dry. TheDamp Alertwill only beep when this option is selected, and the dryer will continue to dry.	Removing clothes and hanging them when they are damp can reduce the need to iron some items.
11		Ext Tumble/Wrinkle CareMinimizes wrinkles by adding approximately 60 minutes of no-heat tumbling after clothes are dry. The beeper will sound every five minutes as a reminder to remove the clothes.	The estimated time remaining display will show “0:00”.The extended tumble time does not get added to the cycle time on the display.
12		VolumeAlerts you that the cycle is complete. The beeper will continue to sound every minute for the next 5 minutes, until the clothes have been removed. The clothes should be removed when the beeper goes off so wrinkles don't set in.	PressVolumeto select low, medium or high volume, or to turn the beeper off.To turn on or off the sounds the buttons make when pressed, press and hold theVolumebutton for 3 seconds.
13	[L]	Lock ControlYou can lock the controls to prevent any selections from being made. Or you can lock or unlock the controls after you have started a cycle.Children cannot accidentally start the dryer by touching buttons with this option selected.To lock the dryer, press and hold theLockControlbutton for 3 seconds.	To unlock the dryer controls, press and hold theLock Controlbutton for 3 seconds.A sound is made to indicate the lock/unlock status.The indicator light above the button will illuminate when the controls are locked.NOTE:ThePowerbutton can still be used when the machine is locked.
14	Clean Filter	Clean Filter MessageThis message represents only a reminder and doesnotalways appear when the filter needs cleaning. The filter should be cleaned after every drying cycle is complete.	This message will disappear after theStart/Pausebutton is pressed. Even though you may have already cleaned the filter (before or after thePowerbutton has been pressed), the “Clean Filter” message will still be displayed until theStart/Pausebutton is activated.
15		DisplayDisplays the approximate time remaining until the end of the cycle.As the cycle begins, you will see an initial approximate total cycle time in the display.	Then lights will “race” in the display. This means the dryer is continuously monitoring the amount of moisture in the load. The lights will continue until the dryer senses a low level of moisture in the load. At that point, the dryer will calculate and display the approximate time remaining.
16		My Cycle(on some models)Set up your favorite combination of settings and save them here for one touch recall. These custom settings can be set while a cycle is in progress.To store a My Cycle combination of settings:Select your drying cycle.ChangeTempandLevelsettings to fit your needs.Select any drying options you want.	4. Press and hold theMy Cyclebutton for 3 seconds to store your selection. A beep will sound and the button will light up.To recall your stored My Cycle combination:Press theMy Clecebutton before drying a load.To change your stored My Cycle combination:Repeat steps 1–4.

Always follow the fabric manufacturer's care label when laundering.

Sorting and Loading Hints

As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer. Try also to sort items according to size. For example, do not dry a sheet with socks or other small items.

Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce® Fabric Conditioner Dryer Sheets have been approved for use in this dryer when used in accordance with the manufacturer's instructions.

Do not overload. This wastes energy and causes wrinkling.

Care and Cleaning of the Dryer.

Diagram of a car interior showing a seatbelt and wheel, with arrows indicating direction (no text or symbols)

The Lint Filter: Clean the lint filter before each use.

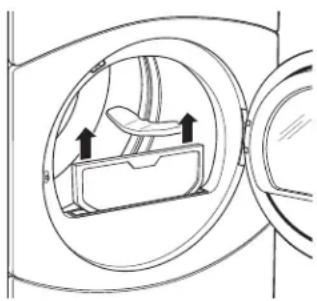

Pull out the lint filter. Moisten your fingers and remove the captured lint. Once clean, slide the filter back into position. Have a qualified technician vacuum the lint from the dryer once a year.

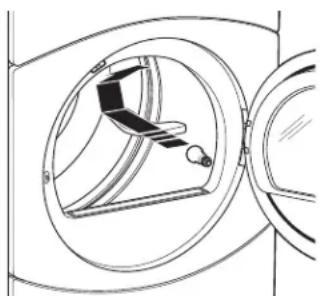

NEVER OPERATE THE DRYER WITHOUT ITS FILTER IN PLACE.

Stainless Steel: To clean stainless steel surfaces use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel surfaces. Remove the cleaner residue and then dry with a clean cloth.

The stainless steel used to make the dryer drum provides the highest reliability available in a GE Appliances dryer. If the dryer drum should be scratched or dented during normal use, the drum will not rust or corrode. These surface blemishes will not affect the function or durability of the drum.

The Exterior: Wipe or dust any spills or washing compounds with a damp cloth. Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products. Apply these products away from the dryer. The fabric may then be washed and dried normally. Damage to your dryer caused by these products is not covered by your warranty.

Dryer Interior and Duct: The interior of the appliance and exhaust duct should be cleaned once a year by qualified service personnel.

The Exhaust Duct: Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.

The Exhaust Hood: Check with a mirror that the inside flaps of the hood move freely when operating. Make sure that there is no wildlife (birds, insects, etc.) nesting inside the duct or hood.

Technical line drawing of a mechanical component with circular and rectangular features (no text or symbols)

Drum Lamp

The drum lamp comes on automatically when the door is opened.

Before replacing the light bulb, be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker. Reach above dryer opening from inside the drum. Remove the bulb and replace with the same size bulb.

Order replacement bulb WE4M305 on-line at GEApplianceParts.com, by phone at 800.626.2002 during normal business hours, or purchase appliance bulb 7C7 from your local retailer.

Venting the Dryer

For the best drying performance, the dryer needs to be properly vented. The dryer will use more energy and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the Installation Instructions.

■ Use only rigid metal 4" diameter ductwork inside the dryer cabinet. Use only rigid metal or UL listed flexible metal 4" diameter ductwork for exhausting to the outside.
■ Do not use plastic or other combustible ductwork.
■ Use the shortest length possible.
■ Do not crush or collapse.
■ Avoid resting the duct on sharp objects.
■ Venting must conform to local building codes.

WARNING

- Fire Hazard

This dryer MUST be exhausted to the outdoors.

Use only 4" rigid metal ducting for the home exhaust duct.

Use only 4" rigid metal or UL-listed dryer transition duct to connect the dryer to the home exhaust.

DO NOT use a plastic vent.

DO NOT exhaust into a chimney, kitchen exhaust, gas vent, wall, ceiling, attic, crawl space, or concealed space of a building.

DO NOT install a screen in or over the exhaust duct.

DO NOT install a booster fan in the exhaust duct.

DO NOT use duct longer than specified in the exhaust length table.

Failure to follow these instructions can result in death or fire.

Correct Venting

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure architectural line drawing of a building corner with stairs and windows (no text or symbols)

Incorrect Venting

Simple line drawing of a windmill with a ladder and cross symbol (no text or labels)

Pure electrical circuit lines without any symbols

REVERSING THE DOOR SWING (if desired)

IMPORTANT NOTES

• Read the instructions all the way through before starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid using them in the wrong places.
• Provide a non-scratching work surface for the doors.
• Normal completion time to reverse the door swing is 30–60 minutes.

IMPORTANT: Once you begin, do not move the cabinet until door-swing reversal is completed.

These instructions are for changing the hinges from the right side to the left side—if you ever want to switch them back to the right side, follow these same instructions and reverse all references to the left and right.

TOOLS YOU WILL NEED

☐ Phillips-head screwdriver

☐ Putty Knife or Thin-Blade Screwdriver

DOOR PARTS

Inner DoorOuter Ring

Hinge

Hinge Cover

6 - Tapping Screws 4 - Hinge Screws 8 - Machine Screws 4 - Beauty Buttons 2 - Strike Bracket
Screws

BEFORE YOU START

Unplug the dryer from its electrical outlet.

Illustration of a plug entering an electrical outlet with two socket switches (no text or symbols)

① REMOVE THE DOOR ASSEMBLY

A. Open the door to approximately 130 degrees.

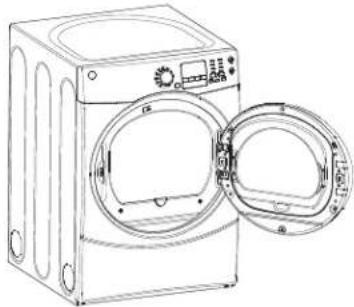

Line drawing of a front-loading washing machine with two doors open, showing front and back views (no text or symbols)

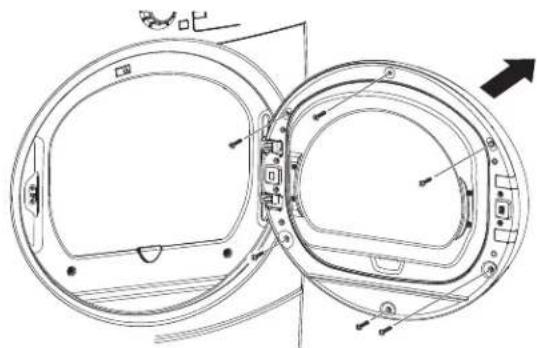

B. Remove the 6 tapping screws located around the perimeter of the door outlining the gasket. Remove the outer ring.

Technical line drawing of a dual-part mechanical device with internal components and mounting features (no text or symbols)

C. Remove 3 hinge screws starting at the bottom and move up. Make sure the door is supported while removing the screws.

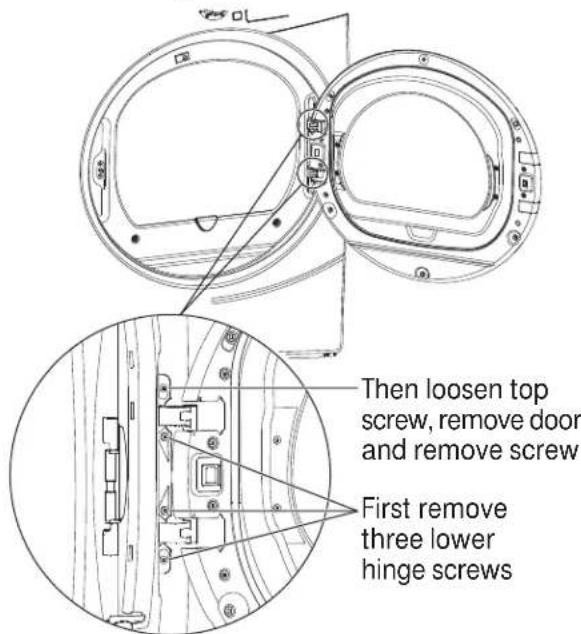

Then loosen top screw, remove door and remove screw First remove three lower hinge screws

D. Loosen the top screw as shown. Unhook the door by lifting and pulling. Remove the top screw.

② REMOVE HINGE AND COVER

IMPORTANT: Note the location of the hinge (left or right) before removing.

A. Remove the 6 machine screws from the hinge and the 2 machine screws from the hinge cover.

Hinge Cover Hinge

B. With the screws removed, turn the door over and separate the outer door assembly and hinge cover of the door from the door frame and set aside.

Hinge Hinge Cover

③ REINSTALL HINGE ASSEMBLY

A. Place the hinge in the opposite side of the door as shown. Push the hinge in place until the hinge holes align with the door holes.

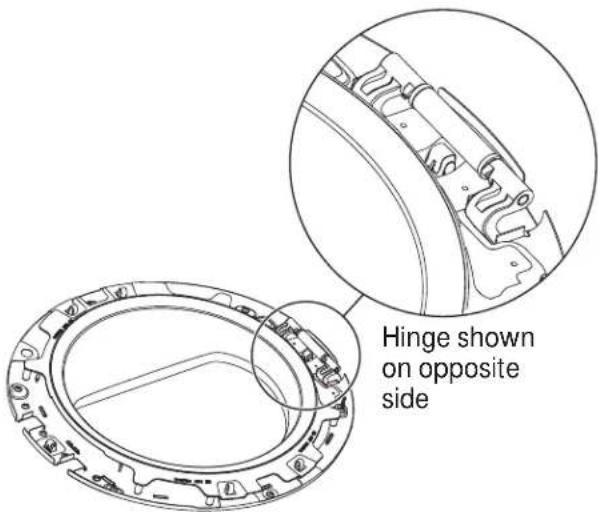

Hinge shown on opposite side

REVERSING THE DOOR SWING (if desired)

③ REINSTALL HINGE ASSEMBLY (cont.)

B. Hold the hinge in place and turn the door over. Install the hinge using the 6 machine screws removed earlier.

Hinge

4 REINSTALL HINGE COVER

A. Turn the door over and place the hinge cover in the opposite side of the door as shown. Align the hinge cover holes with the holes in the door.

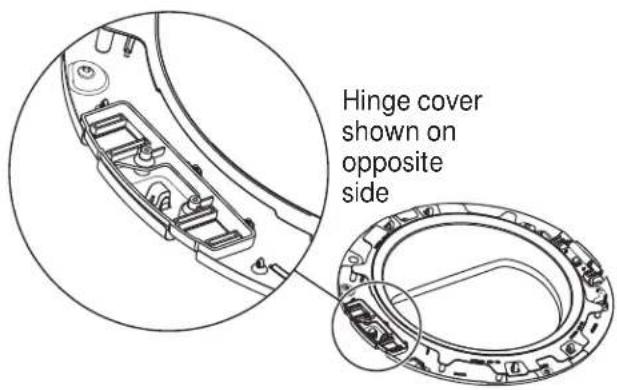

Hinge cover shown on opposite side

4 REINSTALL HINGE COVER (cont.)

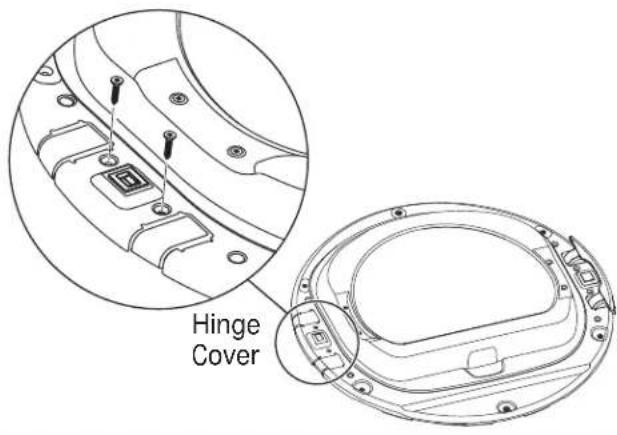

B. Hold the hinge cover in place and turn the door over. Install the hinge cover using the 2 machine screws removed earlier.

Hinge Cover

A. Using a putty knife or any other flat tool, remove the 4 beauty buttons located on the dryer where the door will be installed and install them on the opposite side.

Technical line drawing of a mechanical component with curved and straight lines, no visible text or symbols

B. Switch the strike bracket and its cover to the opposite side by removing the screws. Reinstall both on the opposite side.

Technical line drawing of a mechanical component with no visible text or symbols

6 REINSTALL DOOR ASSEMBLY

A. Install the door on the dryer. To ease this step, the hinge has keyholes that allow a partially fastened screw to be used as a hook. Partially fasten a screw to the uppermost screw hole. Hook the door on the partially fastened screw. Fasten the hinge by installing the other 3 screws and tightening the partially fastened screw above.

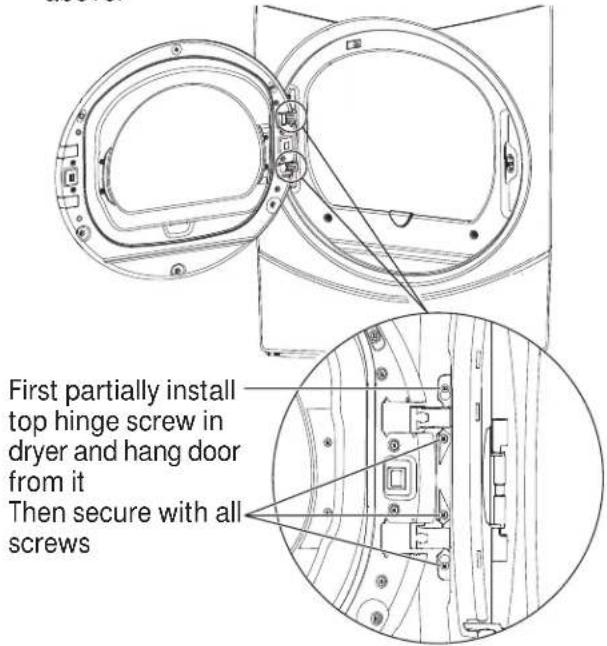

First partially install top hinge screw in dryer and hang door from it Then secure with all screws

B. Align the outer ring in the door and fasten the 6 tapping screws located around the perimeter of the door outlining the gasket.

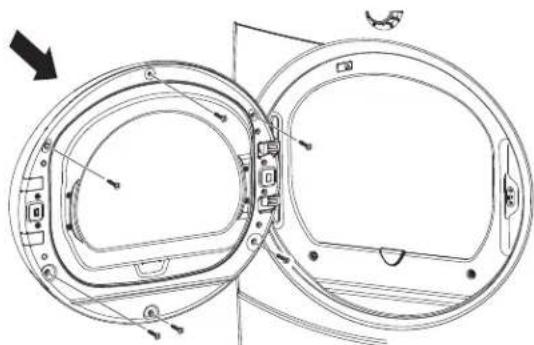

Technical line drawing of a mechanical assembly showing two open circular components with internal components and a directional arrow (no text or symbols)

STACKING THE WASHER AND DRYER (if desired)

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local electrical inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Service must be performed by a qualified installer.
• Proper installation is the responsibility of the installer.

- Disconnect power before installing. Failure to do so could result in serious injury or death.

WARNING

Excessive Weight Hazard

Use two or more people to install dryer.

Failure to do so may result in back or other injury.

• Avoid Tipping and Rupture of Utility Services. Dryer must be securely attached to the washer. DO NOT place the washer on top of the dryer. Failure to do so could result in personal injury/death or property damage.
• Mobile Home or Manufactured Home Installation – Stacking of a gas dryer is not permitted in a mobile home or manufactured home.

MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET INSTALLATION

Minimum clearance to combustible surfaces and for air opening are: 0" both sides; 1" rear; 1" top. Consideration must be given to provide adequate clearance for installation and service.

REQUIREMENTS FOR ALCOVE OR CLOSET INSTALLATION

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Place dryer at least 18" (46 cm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

• The dryer MUST be vented to the outdoors. See the EXHAUSTING THE DRYER section.
• Minimum clearance between dryer cabinet and adjacent walls or other surfaces is:

0" either side

1" front

1" rear

1" top

• Consideration must be given to provide adequate clearance for installation and service.
• Closet doors must be louvered or otherwise ventilated and have at least 60 square inches (387 square cm) of open area. If the closet contains both a washer and a dryer, doors must contain a minimum of 120 square inches (774 square cm) of open area.

NOTE: WHEN THE EXHAUST DUCT IS LOCATED IN THE REAR OF THE DRYER, THE CONFIGURATION OF THE DUCTING MAY REQUIRE GREATER THAN 1" OF REAR CLEARANCE.

Gas Dryers Only:

• No other fuel burning appliance shall be installed in the same closet as a gas dryer.
• The dryer must be disconnected from the gas supply piping during pressure testing at pressures greater than 12 psi (3.5 kPa).
• A 1/8 inch NPT minimum plugged tapping, accessible for test gauge connection, must be installed immediately upstream of the gas supply connection to the dryer.

GE APPLIANCES STACK KIT:

Order on-line at GEApplianceParts.com, 24 hours a day or by phone at 800.626.2002 during normal business hours.

Part Number Accessory

GEFLSTACK Complete Stack Kit

STACKING THE WASHER AND DRYER (if desired) (cont.)

STACKING KIT GEFLSTACK CONTENTS (OPTIONAL ACCESSORY)

□ Left hand bracket

☐ 4 #12 x 1" screws

☐ Right hand bracket

☐ 4 #8 x 1/2" screws

□ 4 rubber pads

TOOLS YOU WILL NEED

□ Phillips screwdriver

Gloves

□ Open-ended wrench

□ Level

□ Pliers

INSTALLATION PREPARATION

Remove the packaging.

Flatten the product carton to use as a pad to lay the dryer down on its side. Continue using the carton to protect the finished floor in front of the installation location.

INSTALLING THE STACK BRACKET KIT

① REMOVE THE DRYER LEVELING LEGS

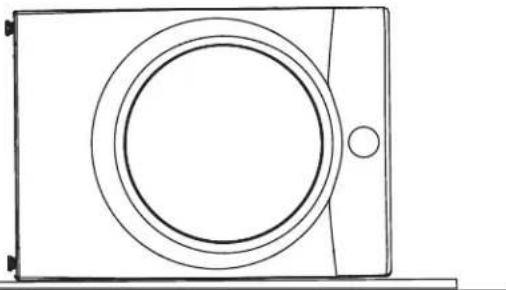

A. Carefully lay the dryer on its side. Use the packing material so you don't scratch the finish on the dryer.

Line drawing of a rectangular device with a circular top and side panel (no text or symbols)

B. Use an open-end wrench or pliers to remove the dryer leveling legs.

Back out and remove all 4 leveling legs

② INSTALL RUBBER PADS TO DRYER BASE

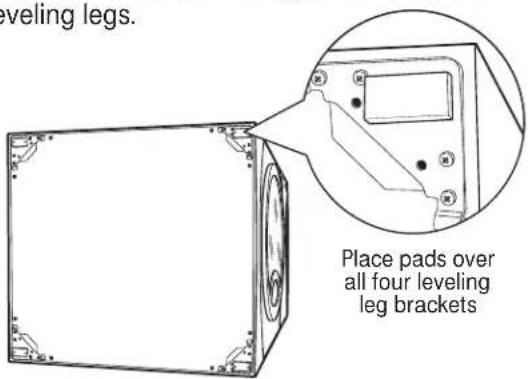

Locate the 4 rubber pads in the parts package. Remove the adhesive backing and firmly place over each bracket where you removed the leveling legs.

Leveling legs. Place pads over all four leveling leg brackets

STACKING THE WASHER AND DRYER (if desired)

③ INSTALL BRACKET TO DRYER

A. Align the holes in the left bracket with the holes in the bottom left corner of the dryer. Use a Phillips screwdriver to install the 2 #12 x 1" tapping screws.
B. Repeat the above step with the right bracket on the bottom right corner of the dryer.
C. Set the dryer upright.

NOTE: Make sure to set the dryer on a piece of packing material so the brackets that are attached to the bottom of the dryer do not damage the floor.

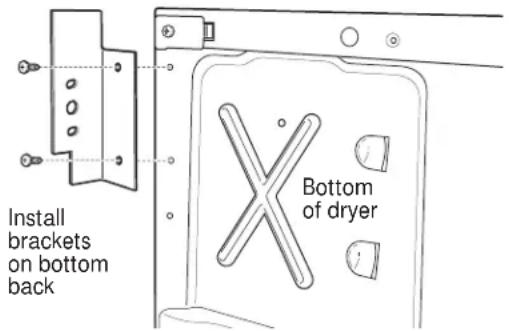

Install brackets on bottom back Bottom of dryer

④ PREPARE WASHER AND DRYER

A. Place the washer in the approximate location.
B. Make sure the washer is level. Refer to washer Installation Instructions for details.
C. Reverse dryer door swing if desired. See dryer Installation Instructions for details.
D. Place the washer in the approximate location.

NOTE: The washer door swing is not reversible.

⑤ INSTALL DRYER AND BRACKET ON WASHER

A. Lift the dryer on top of the washer. Be careful not to scratch the top of the washer with the brackets. Protect the washer control panel with cardboard or other protection. Be sure to lift the dryer high enough to clear the washer control panel.

More than two people are recommended to lift the dryer into position because of its weight and size. Failure to do so could result in personal injury or death.

5 INSTALL DRYER AND BRACKET ON WASHER (cont.)

B. Align the holes in the bracket with the holes in the back of the washer. Using a Phillips screwdriver, attach the 2 #8 x 1/2" tapping screws. Repeat on both sides of the washer.

Attach brackets to back of washer

6 FINALIZE THE INSTALLATION

A. Refer to the washer Installation Instructions to complete the washer installation.
B. Refer to the dryer Installation Instructions to complete the dryer installation.
C. Carefully slide or walk the stacked washer and dryer into place. Use felt pads or other sliding device to assist moving and to protect flooring.

Do not push on the dryer once installed to top of the washer. Pushing on the dryer may result in pinched fingers.

Place hands here Place hands here

Troubleshooting Tips

Save time and money! Review the charts on the following pages, or visit GEAppliances.com. You may not need to call for service.

PROBLEM Possible Causes What To Do

Dryer shakes or makes noise	Some shaking/noise is normal. Dryer may be sitting unevenly	·Move dryer to an even floor space, or adjust leveling legs as necessary until even.
Clothes take too long to drydryer venting is correct. ·Make sure ducting is clean, free of kinks and ·Check to see if outside wall damper operates easily.	Improper or obstructed ducting	·Check the Installation Instructions to make sure the unobstructed.
	a well-sorted washer load is a well-sorted dryer load).	·Separate heavy items from lightweight items (generally,
	loads to speed drying time.	·Large, heavy fabrics contain more moisture and take longer to dry. Separate large, heavy fabrics into smaller
	Controls improperly set	·Match control settings to the load you are drying.
	Lint filter is full	·Clean lint filter before every load.
	Blown fuses or tripped circuit breaker	·Replace fuses or reset circuit breakers. Since most dryers use 2 fuses/breakers, make sure both are operating.
	Overloading/combining loads	·Do not put more than one washer load in the dryer at a time.
	Underloading to ensure proper tumbling.	·If you are drying only one or two items, add a few items
The Dry dryness level was chosen but load is still damp	Load consists of a mixture of heavy and light fabrics	·When combining heavy and light fabrics in a load, choose More Dry.
	Exhaust system is blocked	·Inspect and clean exhaust system.
Control buttons not responding service mode lock mode	Controls accidentally put in	·Press Start/Pause.
	Controls accidentally put in	·Hold the Lock Control button for 3 seconds to unlock the dryer.
Controls performed an incorrect operation	·Reset the in-house breaker.
Dryer doesn't startuse two fuses or breakers.	Control panel is “asleep”	·This is normal. Press Power to activate the control panel.
	Dryer is unplugged	·Make sure the dryer plug is pushed completely into the outlet.
	Fuse is blown/circuit breaker is tripped	·Check the building's fuse/circuit breaker box and replace fuse or reset breaker. NOTE: Electric dryers
	Dryer was accidentally paused when starting Delay Dry	·If the light on the Start/Pause button is flashing, the dryer is paused. Press Start/Pause to restart the countdown.
No numbers displayed during cycle, only lights	Dryer is continuously monitoring the amount of moisture in the clothes	·This is normal. When the dryer senses a low level of moisture in the load, the dryer will display the dry time remaining.
PROBLEM Possible Causes What To Do
Time Remainingjumped to a when a smaller load than usuallower number is drying	The estimated time may change	This is normal.
Cannot make a selection and the or option dryer beeps twice with the chosen dry cycle	The dryness Level, Temp that you are trying to select is incompatible	This is normal.
Dryer is running but END is displayed in Time Remaining	The Ext Tumble/Wrinkle Care option was chosen	This is normal. During extended tumbling, the time remaining is not displayed. The extended tumbling option lasts approximately 60 minutes.
Clean Lint Filter (message)	Power button was activated	Press Start/Pause to begin a dry cycle and the message will disappear.
Dryer doesn't heat	Fuse is blown/circuit breaker is tripped; the dryer may tumble but not heat	Check the building's fuse/circuit breaker box and replace both fuses or reset both breakers. Your dryer may tumble if only one fuse is blown or one breaker tripped.
	Gas service is off (gas models only)	Make sure gas shutoff at dryer and main shutoff are fully open.
	LP gas supply tank is empty or there has been a utility	Refill or replace tank. Dryer should heat when utility service is restored.
interruption of natural gas (gas models only)
Inconsistent drying times	Type of heatIf you recently changed from an electric to a gas (natural or LP) dryer, or vice versa, the drying time could be different.	Drying time will vary according to the type of heat used.
	Type of load and drying conditions	The load size, types of fabric, wetness of clothes and the length and condition of the exhaust system will affect drying times.
Clothes are still wet and dryer shut off after a short time without selecting a new cycle	The door was opened mid-cycle. The load was then removed from the dryer and a new load put in	A dry cycle must be reselected each time a new load is put in.
	Small load	When drying 3 items or less, choose Quick Dry or Time Dry.
	Load was already dry except for collars and waistbands	Choose Quick Dry or Time Dry to dry damp collars and waistbands. In the future, when drying a load with collars and waistbands, choose More Dry.
	Dryer is not level as necessary until even.	Move dryer to an even floor space or adjust leveling legs
Clothes are wrinkled	Overdrying	Select a shorter drying time.Remove items while they still hold a slight amount of moisture. Select a Less Dry or Damp setting.
	Letting items sit in dryer after cycle ends	Remove items when cycle ends and fold or hang immediately, or use the Ext Tumble/Wrinkle Care option.
	Overloading	Separate large loads into smaller ones.
Clothes shrink when washed. Others can be safely washed, but will shrink in the dryer. item, do not machine wash or tumble dry it.	Some fabrics will naturally shrink	To avoid shrinkage, follow garment care labels exactly.Some items may be pressed back into shape after drying.If you are concerned about shrinkage in a particular
Greasy spots on clothes with clean ones	Improper use of fabric softener	Follow directions on fabric softener package.
	Drying dirty items stain clean items and the dryer.	Use your dryer to dry only clean items. Dirty items can
	Clothes were not completely clean procedures before drying.	Sometimes stains which cannot be seen when the clothes are wet appear after drying. Use proper washing
Lint on clothes	Lint filter is full	Clean lint screen before each load.
	Improper sorting	Sort lint producers (like chenille) from lint collectors (like corduroy).
	Static electricity can attract lint	See suggestions in this section under Static occurs.
	Overloading	Separate large loads into smaller ones.
	Paper, tissue, etc., left in pockets	Empty all pockets before laundering clothes.
Static occurs	No fabric softener was used	Try a fabric softener.Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Appliances Dryers when used in accordance with the manufacturer's instructions.
	Overdrying	Try a fabric softener.Adjust setting to Less Dry or Damp.
	Synthetics, permanent press and blends can cause static	Try a fabric softener.
Collars and waistbands still wet at end of cycle	The dryness monitor senses that the body of the clothes is dry	Choose Quick Dry or Time Dry to dry damp collars and waistbands. In the future, when drying a load with collars and waistbands, choose More Dry.
Slight variation in metallic color	This is normal viewing angles and lighting conditions.	Due to the metallic properties of paint used for this unique product, slight variations of color may occur due to
Door is too foggy to see clothes during a steam cycle	Steam condenses on inner door	This is normal.
Water seen on inside of door and top of lint filter when opening door after steam cycle	Steam condenses on these surfaces	This is normal.
Small areas on clothes are damp after steam cycle	Steam condenses on inner drum garments to the load.	If using the Steam Dewrinkle cycle, manually reduce the cycle time. If using the Steam Refresh cycle, add more

Before you call for service...

PROBLEM Possible Causes What To Do
Small amount of water on floor in front of dryer condenses inside cabinet and leaks out	Inadequate load size for steam cycle selected, excess steam and garments to the load.	·If using theSteam Dewrinklecycle, manually reduce the cycle time. If using theSteam Refreshcycle, add more
Water on floor in back of dryer valve connection with valve	Loose water hose connection to	·Tighten connection.
	Hose missing rubber washer at	·Install rubber washer provided with hose.
Dryer makes water noises steam into drum	Water valve is open filling steam generator	·This is normal.
	Steam generator is dispensing	·This is normal.
Water drips from door when opened after a Steam Cycle	Steam condenses on inner door	·This is normal.
Cannot see steam at beginning of cycle	Steam released at different times in the cycle	·This is normal.
Cannot see steam at any time during cycle water supply	The steam nozzle might be clogged with debris from your	·Call800.GE.CARESto order nozzle replacement kitWE25M71or to request a technician to replace this for you.
Garments still wrinkled after steam cycle	Too many garments	·Load fewer garments; manually increase time.
Dryer continues to tumble after display says Complete	Ext Tumble/Wrinkle Care was selected	·EnsureExt Tumble/Wrinkle Careoption is not selected.For theSteam Refreshcycle, Ext Tumble/Wrinkle Carewill automatically be turned on and cannot be turned off.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, visit us at GEAppliances.com, or call 800. GE.CARES (800.432.2737).

Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One Year

From the date of the original purchase costs to

Any part of the dryer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part.

What Is Not Covered:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused or used for other than the intended purpose or used commercially.
■ Replacement of the light bulb after its expected useful life.
■ Replacement of house fuses or resetting of circuit breakers.

■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Defects or damage due to operation in freezing temperatures.
■ Products which are not defective or broken, or which are working as described in the Owner's Manual.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer Support.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE Appliances supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE Appliances Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Appliances Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEApplianceParts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

SECADORAS

INSTRUCCIONES DE

SEGURIDAD....2

Cottons Mixed Loads Towels Sheets Delicates Steam Dewrinkle Full Loads Warm Up Bulky Bedding Perm Press Casuals Quick Dry Air Fluff No Heat Time Dry Add Time 15 Estimated Time Remaining 8:88 Control Clean Filter High Medium Dry Low Less Dry Extra Low Damp Temp Level Steam Tech NOLOGY - SensorDry 3 11 4 5 12 13 7 8 Power Start / Pause 1 6

Cottons Delicates Bulky Bedding Perm Press Casuals Quick Dry Mixed Loads Towels Sheets Steam Dewrinkle Full Leads Warm Up Air Flush No Heat Time Dry

1 Power (Encendido)

Diagram of a car interior showing a seatbelt and wheel, with arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical component with circular and rectangular features (no text or symbols)

La bombilla del tambor giratorio

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure architectural line drawing of a building corner with no text or symbols

Simple line drawing of a windmill with a handle and ladder, no text or symbols present

Pure electrical circuit lines without any symbols

Diagram showing a plug inserted into an open electrical outlet with two outlets (no text or symbols)

Line drawing of a washing machine with two doors open, showing front and side views (no text or symbols)

Technical line drawing of a dual-chamber device with mounting brackets and control panel (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of two circular mechanical components with internal components and directional arrows (no text or symbols)

Line drawing of a rectangular device with a circular top and side button (no text or symbols)

Diagram of a computer rear panel showing internal components like CPU socket, cable, and ventilation slots (no text or labels)

Garante: General Electric Company. Louisville, KY 40225

GE Appliances, Appliance Park Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
