GTDS820GDWS - Tumble drier GE - Free user manual and instructions

Product Type	Tumble Dryer
Brand	GE
Model	GTDS820GDWS
Capacity	7.4 cu ft
Dimensions (H x W x D)	43 in x 27 in x 30 in
Weight	120 lbs
Power Requirements	240V, 30A, 60Hz
Drying System	Electric vented
Control Type	Electronic with digital display
Cycle Options	Normal, Delicates, Heavy Duty, Timed Dry, Steam Refresh
Sensor Dry	Yes
Steam Function	Yes (Steam Refresh)
Wrinkle Care	Wrinkle Care option
End-of-Cycle Signal	Yes
Lint Filter	Removable mesh filter
Drum Material	Stainless steel
Door Swing	Reversible
Energy Star Certified	Yes
Installation Type	Freestanding
Warranty	1 year limited

Frequently Asked Questions - GTDS820GDWS GE

How do I clean the lint filter?

Remove the lint filter from the dryer drum, open it, and remove the lint by hand or with a soft brush. Rinse with water if needed, then dry and replace. Clean before every load for optimal performance.

What does the Steam Refresh cycle do?

The Steam Refresh cycle uses steam to reduce wrinkles and freshen clothes without a full wash. It is ideal for items that are lightly worn or stored, reducing the need for ironing.

Why is my dryer not heating?

Check if the dryer is properly plugged in and the circuit breaker is not tripped. Ensure the vent is not clogged. If still not heating, the heating element or thermal fuse may need replacement.

How do I reverse the door swing?

The door is reversible. Refer to the user manual for detailed steps: remove door hinge screws, swap hinge and striker positions, and reattach door on the opposite side. This is a common DIY task.

What is the recommended venting for this dryer?

Use a rigid or flexible metal vent with a diameter of 4 inches. Keep the vent length as short as possible, with minimal bends, to ensure proper airflow and drying efficiency.

Can I use dryer sheets with this dryer?

Yes, fabric softener sheets can be used. However, avoid using too many as they can coat the lint filter and reduce airflow. Clean the filter regularly for best results.

How do I reset the dryer after a power outage?

Simply press the Power button or unplug the dryer for 30 seconds, then plug back in. The electronic controls will reset automatically.

Why does my dryer take too long to dry?

Check for a clogged vent or lint filter. Ensure the load is not too large. Use the correct cycle setting. Also, verify the room temperature is not too cold, as it can affect drying time.

How do I clean the moisture sensor?

The moisture sensor is located inside the dryer drum. Clean it with a soft cloth and mild detergent to remove any residue. Avoid abrasive cleaners. This ensures accurate drying.

What should I do if the dryer displays an error code?

Refer to the user manual for specific error codes. Common codes like 'E1' or 'F1' may indicate a sensor or heating issue. Try resetting the dryer. If persistent, contact GE service.

USER MANUAL GTDS820GDWS GE

Safety Instructions ..... 2, 3

Operating Instructions

Appliance Communication ... 10,11 Features ....7 Loading and Using the Dryer ....8 Operating Instructions ....4 - 7 Reversing the Door ....12, 13 Venting the Dryer ....9

Troubleshooting Tips ... 14-16

Consumer Support

Consumer Support.... 18 Parts and Accessories.... 3, 18 Warranty.... 17

laundry your way!

Write the model and serial number here:

Model # ____

Serial # ____

You can find them on a label on the front of the dryer behind the door.

Owner's Manual

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:

! DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, explosion, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
  ■ DO NOT dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
  ■ DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is used near children.
  ■ Before the appliance is removed from service or discarded, remove the door to the drying compartment.
  ■ DO NOT reach into the appliance if the drum is moving.
  ■ DO NOT install or store this appliance where it will be exposed to the weather.
  ■ DO NOT tamper with controls.
  ■ DO NOT repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.
  ■ DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
  ■ Do NOT dry articles containing rubber, plastic, foam or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, plastic bags, pillows, etc., that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.
  ■ Clean lint screen before or after each load.

■ DO NOT OPERATE THE DRYER WITHOUT THE LINT FILTER IN PLACE.

- Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt.

■ The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.

■ DO NOT place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

- Keep all laundry aids (such as detergents, bleaches, etc.) out of the reach of children, preferably in a locked cabinet. Observe all warnings on container labels to avoid injury.

- Keep the floor around your appliances clean and dry.

The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's care instructions.

■ Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power or Start/Pause button DOES NOT disconnect power.

■ DO NOT attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

■ DO NOT use aerosols in or near the dryer.

■ DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

■ See "Electrical Requirements" located in the Installation Instructions for grounding instructions.

SAVE THESE INSTRUCTIONS

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent damage, personal injury, or death.

- DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.
- DO NOT touch any electrical switch; DO NOT use any phone in your building.
• Clear the room, building, or area of any occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

California Safe Drinking Water and Toxic Enforcement Act

This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

PROPER INSTALLATION

This dryer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions, you can receive one by visiting GEAppliances.com or by calling 800.GE.CARES (800.432.2737).

■ Properly ground dryer to conform with all governing codes and ordinances. Follow details in Installation Instructions.
■ Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
■ Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
■ Remove all sharp packing items and dispose of all shipping materials properly.
■ Remove the colored protective tape from the control panel.
■ Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs against the front or back of the dryer.

Steam Water Hoses:

GE strongly recommends the use of factory specified parts. A list of factory hoses available for purchase are listed below. These hoses are manufactured and tested to meet GE specifications.
GE strongly recommends the use of new water supply hoses. Hoses degrade over time and need to be replaced every 5 years to reduce the risk of hose failures and water damage.

Parts and Accessories

Order on-line at GEApplianceparts.com today, 24 hours a day or by phone at 800.626.2002 during normal business hours.

Part Number Accessory

WE25M53 Complete Kit (hoses, Y-adapter

washers)

(included)

OR

WE1M847 Long Hose and

WE1M849 Short Hose

PM14X10056 Dryer door opening vent brush

(not included)

WX14X10007 LintEater™ Dryer rotary tube brush

(not included)

DR07X10002 6' Cable

DRM2E300V0 ACM, Splitter, two 6' Cables & a 1' Cable

Exhaust/Ducting:

1 All dryers MUST be exhausted to the outside to prevent large amounts of moisture and lint from being blown into the room.
2 Use only rigid metal 4" diameter ductwork inside the dryer cabinet and use only rigid metal 4" diameter or UL approved transition ducting between the dryer and the home duct. USE OF PLASTIC OR OTHER COMBUSTIBLE DUCTWORK CAN CAUSE A FIRE. PUNCTURED DUCTWORK CAN CAUSE A FIRE IF IT COLLAPSES OR BECOMES OTHERWISE RESTRICTED IN USE OR DURING INSTALLATION.

For complete details, follow the Installation Instructions.

SAVE THESE INSTRUCTIONS

Operating instructions

WARNING!

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

DO NOT dry anything that has ever had anything flammable on it (even after washing).

Failure to do so can result in death, explosion, or fire.

WARNING

Fire Hazard

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Items containing foam, rubber, or plastic must be dried on a clothesline or by using an Air Dry cycle.

Failure to do so can result in death, explosion, or fire.

Throughout this manual, features and appearance may vary from your model.

Step 1 Step 2

Simple line drawing of a cabinet with an open door and arrow indicating direction (no text or symbols)

• Clean lint filter

Simple line drawing of a box with an open door opening a T-shirt (no text or symbols)

• Add clothes
• Shut door

Step 3

Simple diagram showing a circular arrow with an internal symbol, enclosed in an oval (no text or labels)

• Select drying cycle

Step 4

Hand holding a tool with a black arrow indicating downward motion (no text or symbols)

• Push Start

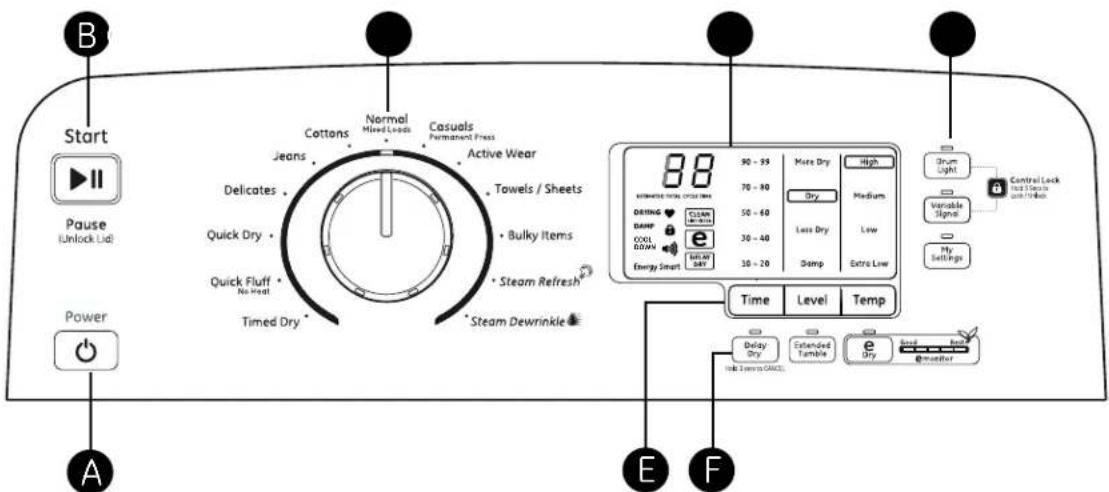

Controls

Start Pause Unlock Lidl Power A B Cottons Normal Mixed Loads Casuals Permanent Press Jeans Active Wear Delicates Towels / Sheets Quick Dry Bulky Items Quick Fluff No Heat Steam Refresh Timed Dry Steam Dewrinkle 88 90 - 93 More Dry High 70 - 80 Dry Medium 50 - 60 Less Dry Low 30 - 40 Damp Extra Low Energy Smart BOLK DAY Drum Light Control Lock Variable Signal Yes/No. Limits My Settings Time Level Temp Delay Dry Extended Tamble Dry Reacher Take I serve to CANCEL. E F

Power

Press to "wake up" the display. If the display is active, press to put the dryer into idle mode.

NOTE: Pressing Power does not disconnect the appliance from the power supply.

B Start and Pause Press Start to begin t

Press Start to begin the cycle. NOTE: The door must be closed for the dryer to start the cycle. Pressing Start again will pause the cycle, the Start will blink and "PAUSE" will scroll across the LCD.

To continue the cycle, press Start again.

Display and Status Lights

The display shows the approximate time remaining until the end of the cycle.

In addition, this display will, "scroll" the dryer status:

• PAUSE The message "PAUSE" will scroll across the display when the dryer's cycle is paused. The cycle may be re-started by pressing the Start button.
• door The message "door" will be displayed when the door is opened during the dryer's cycle.
• CyCLE The message "CyCLE" will be displayed when the clothes are dry and the washer is recommending a preferred cycle for the next load (see CleanSpeak section).
• dELAY The message "dELAY" will be displayed when Delay Dry is initiated. It will be replaced with the estimated time when cycle starts.
• ES Dryer in a delay start (4 hour maximum) awaiting lower energy rates (see About Appliance Communication - Energy Smart section).

Cycle status lights

Shows whether the washer is in the DRYING, DAMP, or COOL DOWN cycle.

Feature status lights indicate:

♥ The My Settings feature is on for this cycle.

The dryer is locked - will blink once if you press any button or turn the cycle knob.

The signal is on. See the Variable Signal description.

Energy Smart The Energy Smart feature is selected. See About Appliance Communication - Energy Smart section.

The Clean Lint Filter light will stay on for 15 seconds after the cycle stops.

The eDry feature is selected.

A Delay Dry time is set.

Drying Cycles-Sensor cycles automatically determine fabric dryness.

Timed cycles run for the selected time.

Timed	Day the Cycle Selector at the desired drying time.
Quick Fluff/No Heat	For freshening or fluffing up already dry clothing, fabric, linens and pillows.Provides 10 minutes of no-heat tumbling.
Quick Dry	For small loads that are needed in a hurry, such as sport or school uniforms. Can also be used if the previous cycle left some items damp, such as collars or waistbands.NOTE: On some models, the time remaining in the cycle will show counting down in the display.
Delicates	For delicate items, special-care fabrics and knits.
Jeans	For jeans.
Cottons	For cottons and most linens.
Normal/Mixed Loads	For loads consisting of cottons and poly-blends.
Casuals/Permanent Press	For wrinkle-free, permanent press, delicate items and knits.
Active Wear	For sports and exercise wear.
Towels/Sheets	For most towels and linens.
Bulky Items	For large coats, bed spreads, mattress covers, sleeping bags and similar large/bulky items such as blankets, comforters, jackets, and small rugs.
Steam Refresh ➤	For slightly wrinkled dry garments. Significantly reduces wrinkles.NOTE:A single extremely light fabric item may need to have an additional item included in theSteam Refreshcycle to achieve optimum results.

Steam Dewrinkle For use with larger loads than Steam Refresh. Ideal for loads left in the dryer for an extended time.

Steam Cycle (P & ) Notes:

• Important - The temperature setting must be set to HIGH and water must be turned on before running the steam cycles.
  • The Extended Tumble option will be turned on.
• After the steam cycle, the unit will beep (if Variable Signal is on) and display "00".
• Do not use a steam cycle with items such as wool, leather, silk, lingerie, foam products or electric blankets.
• Do not use steam cycles on new clothes without first washing.
• Steam cycles are not intended for use with towels.

Operating instructions

Settings

Individual settings for Timed Dry cycle minutes (Time), dryness level (Level), and temperature (Temp) can be set from the minimum (lowest in column) to maximum (highest in column). In general, the higher up the column, the more energy will be used.

Time - Selection only for Timed cycles.

Each "setting" allows you to specify a lower (1 tap) or an upper (2 taps) time working your way from a minimum 10 minute to a maximum 99 minute dry time (10, 20, 30, 40, ... 80, 90, 99, 10...)

Dryness Level - Selection only used for Sensor cycles. Timed cycles run for the selected time.

More	Dry	Use for heavy-duty or mixed type fabrics.
Dry	Use for a normal dryness level suitable for most loads. This is the preferred cycle for energy savings.
Less Dry	Use for lighter fabrics.
Damp	For leaving items partially damp.
Temperature
High	For regular to heavy cottons. NOTE: Steam Dewrinkle and Steam Refresh require the High temperature setting.
Medium	For synthetics, blends, delicates and items labeled permanent press.
Low	For delicates, synthetics and items labeled tumble dry low.
Extra Low	For delicates, synthetics and items labeled tumble dry low.

Options

Delay Dry

As the Delay Dry button is repeatedly pressed, the delay time sets to from 1 to 9 hours, and back to clear (0). After selecting the delay time, press Start and the delay time will count down the time remaining until the cycle starts.

If the Delay Dry button is pressed for 3 seconds, it clears (regardless of the delay time) or terminates a delaying cycle.

Extended Tumble

Use this option to minimize the wrinkles in clothes. It provides 1 hour of no-heat tumbling after the clothes are dry. If you are using the Variable Signal and you select the Extended Tumble option, a signal will sound at the end of the drying time and every 5 minutes during the Extended Tumble cycle. This will remind you that it is time to remove the clothes.

eDry

Available for Bulky Items, Towels/Sheets, Cottons, Normal/Mixed Loads, Jeans, Casuals/Permanent Press, Active Wear, and Delicates. When the eDry button is pressed, cycle settings change to reduce the total energy consumption of the selected sensor cycle. NOTE: Cycle times will change when eDry is selected.

The eMonitor lights display the relative energy use of your selected cycle and options. They are provided as an energy guide and range from Good (1 light) to Better (5 lights). Cycle (time), dryness level, temperature, and additional tumble options can increase or decrease your energy efficiency. Some special cycles will not provide a display.

More Options

Drum Light

The drum light will go on if the Drum Light button is pushed or the door is opened. It will stay on until the door is shut or the Drum Light or Power button is pushed.

Variable Signal

Use the Variable Signal button to change the volume of the end of cycle and control signals. Press the button until you reach the desired volume (low-med-high) or off. The clothes should be removed when the beeper goes off so wrinkles do not set in.

NOTE:

• Remove garments promptly at the sound of signal. Place clothes on hangers so wrinkles will not set in.
• Use the Variable Signal especially when drying fabrics like polyester, knits and permanent press. These fabrics should be removed so wrinkles will not set in.

Control Lock

You can lock the controls to prevent any selections from being made. Or you can lock the controls after you have started a cycle. Children cannot accidentally start the dryer by touching buttons with this option selected.

To lock the dryer controls, press and hold the Drum Light and Variable Signal buttons at the same time for 3 seconds. The control lock icon will light up when locked. To unlock the dryer controls, press and hold the Drum Light and Variable Signal buttons at the same time for 3 seconds.

My Settings ♥

As the cycle selector knob is turned, the Time (Timed Dry), Level (Dryness Level), and Temp (Temperature) settings change to automatic pre-set default settings. If you desire a different setting, press the appropriate button(s). Then press and hold the My Settings button for 3 seconds. The status heart and button lights will turn on and the dryer will save these settings for that knob selection. In the future, when you turn the selector knob to that cycle, your settings will be automatically recalled.

To temporarily (for this load) return to the pre-set default settings, depress the My Settings button for 1/2 second. The status heart and button lights will turn off and the options will change back to these defaults. To make these default settings permanent, hold the My Settings button again for 3 seconds to make them your preferred settings (the lights will turn back on).

NOTE: Variable Signal volume cannot be set for My Settings.

About the dryer features.

Sensor Dry	This feature activated in all but the Timed (Timed Dry & Quick Fluff) and Steam (Steam Refresh & Steam Dewrinkle) cycles.The Sensor Dry provides greater drying accuracy than standard machines, resulting in shorter dry times and better clothes care. As the clothes tumble, they touch a moisture sensor. The sensor will stop the heating cycle as soon as the clothes have reached the selected dryness.	This dryer will adjust the initial estimated drying time of the sensor dry cycles as it “learns” its installation and usage profile. Please allow several weeks for the dryer to customize itself to “you”.
Time Dry	This feature is activated in Timed Dry & Quick Fluff cycles. The time (10, 20, 30, 40, . . . 80, 90, 99) is specified via the Time button.
	Stainless Steel DrumThe stainless steel used to make the dryer drum provides the highest reliability available in a GE dryer. If the dryer drum should be scratched	or dented during normal use, the drum will not rust or corrode. These surface blemishes will not affect the function or durability of the drum.

Drum Light

The drum light is an LED light. Replacement must be done by a qualified technician.

About loading and using the dryer.

Always follow the fabric manufacturer's care label when laundering.

Sorting and Loading Hints

As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer.

Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.

Do not overload. This wastes energy and causes wrinkling.

Do not dry the following items: fiberglass items, woolens, rubber-coated items, plastics, items with plastic trim and foam-filled items.

Fabric Care Labels

Below are fabric care label "symbols" that affect the clothing you will be laundering.

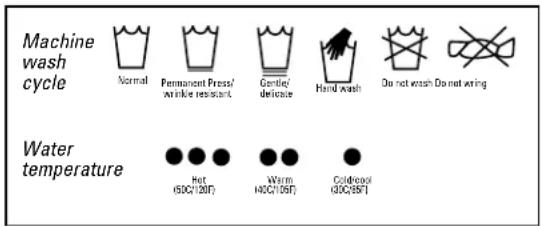

WASH LABELS

Machine wash cycle Normal Permanent Press/ wrinkle resistant Gentle/ delicate Hand wash Do not wash Do not wring Water temperature Hot (HOC/100F) Warm (HOC/100F) Coldpeak (HOC/50F)

BLEACH LABELS

DRY LABELS

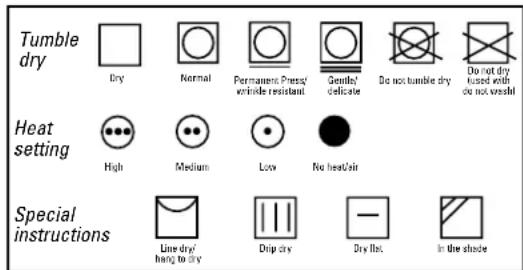

Tumble dry Dry Normal Permanent Press/ vinside resistant Gentle/ delicate Do not tumble dry Do not dry tused with do not vowel Heat setting High Medium Low No heat/air Special instructions Line dry/ hanging to dry Drip dry Dry hot. In the shade

Care and Cleaning of the Dryer

The Exterior: Wipe or dust any spills or washing compounds with a damp cloth. Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products. Apply these products away from the dryer. The fabric may then be washed and dried normally. Damage to your dryer caused by these products is not covered by your warranty.

The Lint Filter: Clean the lint filter before each use. Remove by pulling straight up. Run your fingers across the filter. A waxy buildup may form on the lint filter from using dryer added fabric softener sheets. To remove this buildup, wash the lint screen in warm, soapy water. Dry thoroughly and replace. Do not operate the dryer without the lint filter in place. Vacuum the lint from the dryer lint filter area if you notice a change in dryer performance.

Illustration of a hand cleaning a tray with a cloth (no text or symbols)

Stainless Steel: To clean stainless steel surfaces, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel surfaces. Remove the cleaner residue, and then dry with a clean cloth.

The Exhaust Duct: Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.

To clean the duct, follow these steps:

1 Turn off electrical supply by disconnecting the plug from the wall socket.
2 Disconnect the duct from the dryer.
3 Vacuum the duct with the hose attachment and reconnect the duct.

The Exhaust Hood: Check from the outside that the flaps of the hood move freely when operating. Make sure that there is not wildlife (birds, insects, etc.) nesting inside the duct or hood.

For the best drying performance, the dryer needs to be properly vented. The dryer will use more energy and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the Installation Instructions.

■ Use only rigid metal 4" diameter ductwork inside the dryer cabinet. Use only rigid metal or UL listed flexible metal 4" diameter ductwork for exhausting to the outside. Minimize flexible ductwork sections to increase dryer efficiency.
■ Do not use plastic or other combustible ductwork.
■ Use the shortest length possible.
■ Do not crush or collapse.
■ Avoid resting the duct on sharp objects.
■ Venting must conform to local building codes.

Correct Venting

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure architectural line drawing of a building facade with stairs and windows (no text or symbols)

Incorrect Venting

Pure technical diagram of a mechanical assembly with no text or symbols

Pure electrical circuit lines without any symbols

CleanSpeak™

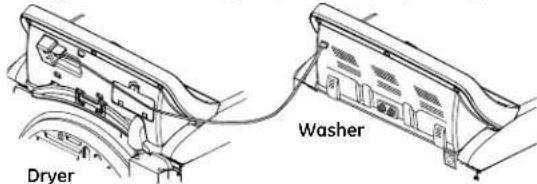

This dryer can communicate with a compatible washer (one whose Owner's Manual contains a CleanSpeak description) via a cable between these appliances. This cable comes with CleanSpeak dryer models or may be purchased separately.

Dryer Washer

At the end of the wash cycle, the washer sends a signal to the dryer to indicated a preferred dry cycle. When the dryer becomes idle ("End" display times out - or- the door is opened) "CYCLE" will scroll across its cycle time display, its current cycle knob setting LED will be lit, and (if different) a second recommended cycle LED will blink. If "CYCLE" times out, pressing Power will refresh it and the LEDs. If the dryer cycle knob is turned, the solid LED will move accordingly. Pressing the dryer Start will initiate the cycle knob setting (solid LED) and turn off the recommended (blinking LED) if a different cycle is started.

Brillion Enabled Communication

This dryer (and/or compatible washer) can communicate with your Home Computer and/or iPhone®. By using the GE Nucleus™ Home Energy Manager and Appliance Communication Module (ACM) you will be able to see the following:

On your home computer or iPhone®:

• Which cycle is running and what its current cycle segment is (example, "Cool Down").
• The estimated time remaining of the cycle that has been selected.
• When a cycle has completed or if it requires maintenance or servicing.
• Alerts notifying you if the washer needs maintenance or servicing.

What your software allows you to do:

NOTE: Messages are displayed in English. See www.gebrillion.com or call 1-800-220-6899 for possible language options.

Cycle display will provide the current status of the wash cycle:

• Drying, Damp, Cool Down or Complete.

Alerts will notify you of problems. Some examples:

- Inlet Thermostat problem

- Outlet Thermostat problem

What you will need for two-way communication:

• Nucleus home energy manager model

• Appliance communication Module model

- Broadband connection with router (Wi-Fi for iPhone® connection)

- Computer (Mac ^® or PC) and/or Internet capable iPhone ^® .

NOTE: If you also have a compatible Energy Smart washer, see Installation Instructions for additional parts.

Installation

Step 1: Install your Nucleus Home Energy Manger/Cable - near your internet router.

Refer to the Quick Start Guide/Installation Instructions included with this device for information needed to download software to a desktop and/or iPhone®.

Step 2: Install your Appliance Communication Module (ACM) in your Laundry area. Determine the most convenient location for your ACM. Install the ACM according to the Quick Start/Installation Instructions included with the device.
Step 3: Connect your ACM to your dryer or dryer-washer.

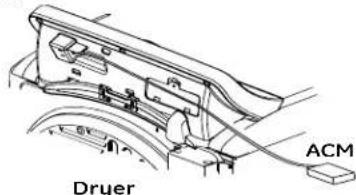

Dryer ACM

- OR - Dryer Splitter ACM Washer

The ACM comes with a splitter, two 6' cables, and a 1' cable (see Parts and Accessories section). If you also have an Energy Smart washer, use the splitter to connect both appliances. NOTE: If this dryer did not come with a 6 foot cable, you may need to purchase a second 6 foot cable (see Parts and Accessories section).

For more information or questions, please visit: www.gebrillion.com or call 1-800-220-6899.

Energy Smart™

Energy Smart enables your dryer to reduce energy consumption during periods of high energy costs. If you live in an area where your power provider charges different rates at various times of the day, your dryer will inform you of those times when you are paying the highest rate. The Energy Smart icon will illuminate on the dryer control panel, the cycle time will display "ES", and the operation will be in a delay mode. The dryer will delay start (up to 4 hours) until the rate goes down. You can override this feature by holding the Delay Dry button for 3 seconds to cancel and run it at your convenience (immediately or delayed 1-9 hours).

What you will need:

• Smart Meter to communicate with your washer (call your power provider)
  • An Energy Smart dryer (like this one)
  • An Appliance Communication Module (ACM)

Installation:

Step 1: Power provider installs a Smart Meter

Steps 2 & 3: Install an ACM. See the Brillion Enabled

Communication section.

About reversing the door.

Reversing the Door

Tools needed:

■ Standard #2 Phillips screwdriver
■ Tape-tipped putty knife
■ Small flat blade screwdriver

Before you Start

Unplug the dryer from its electrical outlet.

Simple line drawing of a light bulb and a socket (no text or symbols)

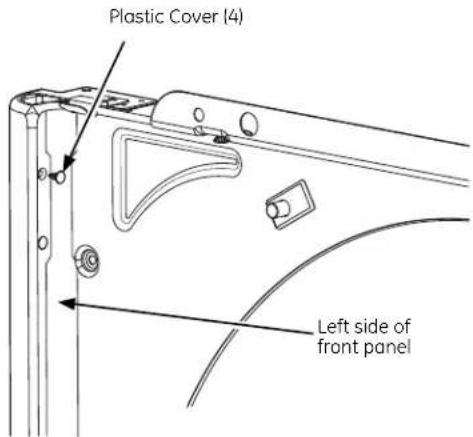

1 Open the door approximately 170 degrees. With a putty knife, remove the 4 plastic covers located along the left side of the front panel and set them aside.

Plastic Cover (4) Left side of front panel

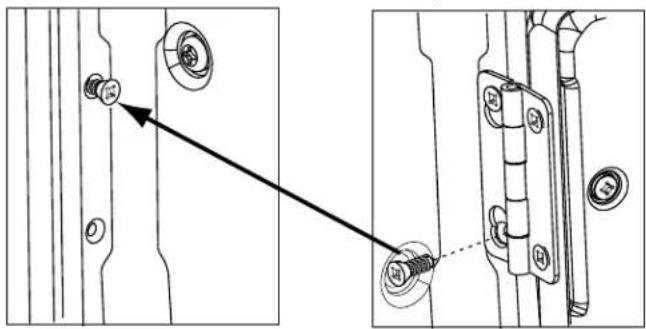

2 Remove the bottom screw from each hinge (right side) and partially insert them into the top left side hinge holes.

NOTE: All 4 front panel hinge screws will now be in the top hinge holes - 2 on the left and 2 on the right.

Technical diagram showing mechanical assembly with bolted components and a dashed line indicating connection (no text or symbols)

3 Loosen the bottom 2 right side hinge screws. Remove the door and place it on a protected flat surface to avoid any damage. Remove both the Blind Plate and the Strike Plate and install them in opposite positions.

Blind plate Inner door Strike plate

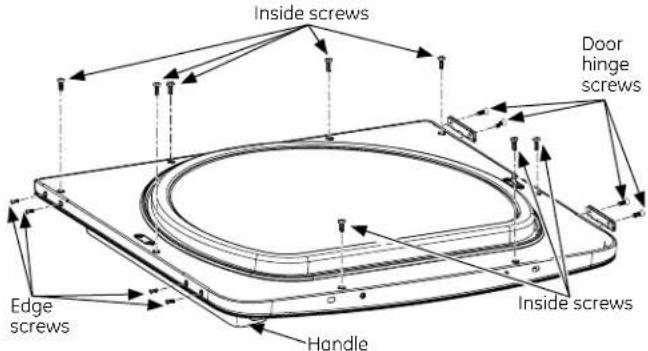

4 Remove the 4 door hinge screws, 4 edge screws, and 8 inside screws. Lift the inner door upwards using a flat blade screwdriver.

Inside screws Inner door Edge screws Inside screws Door hinge screws Outer door

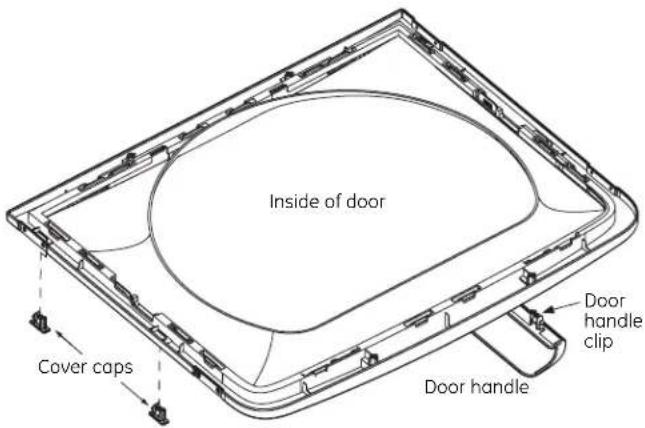

5 Remove and swap the 2 cover caps and door handle from the outer door:

A. Squeeze the tabs on the inside of the door handle clips. Push clips through the outer door.
B. Squeeze the tabs on the inside of the cover caps. Push caps through the outer door.

Inside of door Cover caps Door handle clip Door handle

C. Push the door handle clips into the openings on the opposite side of the outer door making sure you flip the handle so it curves to the inside.
D. Push the cover caps into the openings on the outer door where the handle was removed.

Inside of door Cover cap Door handle clip Door handle

6 With the cover caps and door handle in place, mount the inner door back into the outer door with the screws removed in step 4. Make sure you mount the hinges on the side opposite the handle.

Inside screws Door hinge screws Edge screws Handle Inside screws

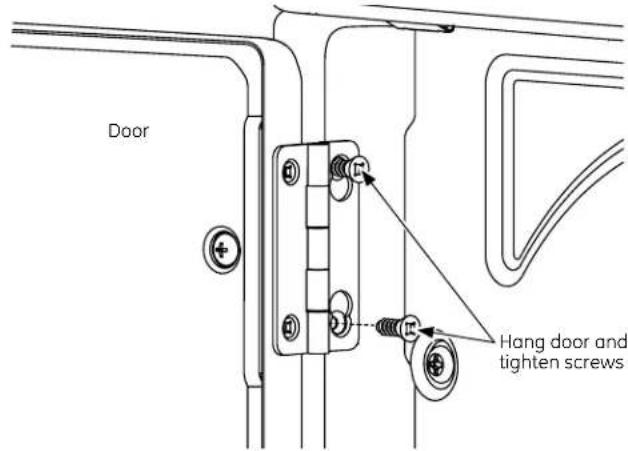

7 Mount the assembled door on the 2 upper left side hinge screws installed in step 2. Move the hinge screws loosened in step 3 into the lower left side screw holes and firmly tighten all 4 screws.

Door Hang door and tighten screws

8 Install the 4 plastic caps removed in step 1 into the 4 right side front panel holes.

NOTE: To return the door to the original setup, follow these instructions, swapping "left" and "right".

When you finish

Plug the dryer back into its electrical outlet.

Simple line drawing of a light bulb connected to an electrical outlet (no text or symbols)

Before you call for service...

Troubleshooting Tips

Save time and money! Review the charts on the following pages,

or visit GEAppliances.com. You may not need to call for service.

Problem Possible Causes What To Do
Dryer doesn't start breaker is tripped	Dryer is unplugged	Make sure the dryer plug is pushed completely into the outlet.
	House Fuse is blown/circuit r	Check the house fuse/circuit breaker box and replace fuse or eset breaker.NOTE:Most electric dryers use two fuses/breakers.
	Dryer fuse blownthe backsplash blew because the house circuit protection didn't work.	The single (Gas) or one of the two (Electric) fuses in the rear of work. Have a qualified technician check for power at outlet.
Dryer doesn't heat	House Fuse is blown/circuit breaker is tripped; the dryer may tumble but not heat	Check the house fuse/circuit breaker box and replace both fuses or reset both breakers. Your dryer may tumble if only one fuse is blown or one breaker is tripped.
	Gas service is off	Make sure gas shutoff at dryer and main shutoff are fully open.
Dryer shakes or makes noise	Some shaking/noise is normal. Dryer may be sitting unevenly	Move dryer to an even floor space, or adjust leveling legs as necessary until even.
Greasy spots on clothes	Improper use of fabric softener	Follow directions on fabric softener package.
	Drying dirty items with clean ones	Use your dryer to dry only clean items. Dirty items can stain clean items and the dryer.
	Clothes were not completely clean	Sometimes stains which cannot be seen when the clothes are wet appear after drying. Use proper washing procedures before drying.
Lint on clothes	Lint filter is full	Clean lint screen before each load.
	Improper sorting	Sort lint producers (like chenille) from lint collectors (like corduroy).
	Static electricity can attract lint	See suggestions in this section under Static occurs.
	Overloading	Separate large loads into smaller ones.
	Paper, tissue, etc., left in pockets	Empty all pockets before laundering clothes.
Static occurs approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.	No fabric softener was usedBounce	Try a fabric softener.® Fabric Conditioner Dryer Sheets have been
	Over-drying	Try a fabric softener.Adjust setting to Less Dry or Damp.
	Synthetics, permanent press and blends can cause static	Try a fabric softener.
Inconsistent drying times wetness of clothes and condition of exhaust ducts.	Type of heat	Automatic drying times will vary according to the type of heat used (electric, natural or LP gas), size of load, types of fabrics,
The Dry dryness level was chosen but load is still damp	Load consists of a mixture of heavy and light fabrics	When combining heavy and light fabrics in a load, choose More Dry or Extra Dry if you are using a sensor cycle.
	Exhaust system is blocked	Inspect and clean exhaust system.

Problem Possible Causes What To Do

Clothes take too long to dry a well-sorted washer load is a well-sorted dryer load.		Improper sorting	Separate heavy items from lightweight items (generally,
		Large loads of heavy fabrics(like beach towels)	Large, heavy fabrics contain more moisture and take longer to dry. Separate large, heavy fabrics into smaller
loads to speed drying time.		Controls improperly set	Match control settings to the load you are drying.
		Lint filter is full	Clean lint filter before every load.
dryer venting is correct.		Improper or obstructed ductingCheck to see if outside wall damper operates easily.Check the Installation Instructions to make sure the	Check installation instructions for proper ducting/venting.Make sure ducting is clean, free of kinks and unobstructed.
		Blown fuses or tripped circuit breaker	Replace fuses or reset circuit breakers. Electric dryers use 2 fuses/breakers, make sure both are operating.
		Overloading/combining loads	Do not put more than one washer load in the dryer at a time.
		Under-loading	If you are drying only one or two items, add a few items
to ensure proper tumbling.
Clothes are wrinkled	Over-dryingRemove items while they still hold a slight amount of moisture. Select a Less Dry or Damp Dry setting.		Select a shorter drying time.
	Letting items sit in dryer after cycle ends		Remove items when cycle ends and fold or hang immediately.
	Overloading		Separate large loads into smaller ones.
Clothes shrinkwhen washed. Others can be safely washed, but will shrinkin the dryeritem, do not machine wash or tumble dry it		Some fabrics will naturally shrink	To avoid shrinkage, follow garment care labels exactly.Some items may be pressed back into shape after drying.If you are concerned about shrinkage in a particular
Collars and waistbandstill wet at end of cycle	The dryness monitor senses that the body of the clothes is dry		Choose Speed Dry or Timed Dry to dry damp collars and waistbands. In the future, when drying a load with collars and waistbands, choose More Dry.
Slight variationin metallic color	This is normal		Due to the metallic properties of paint used for this unique product, slight variations of color may occur due to viewing

angles and lighting conditions.

Before you call for service...

Problem Possible Causes What To Do
Small amount of water on floor in front of dryer leaks out	Inadequate load size for steam cycle selected, excess steam condenses inside cabinet and	·If using theSteam Dewrinklecycle, manually reduce time. If using theSteam Refreshcycle, add more garments to the load.
Water on floor in back of dryer connection with valve	Loose water hose connection to valve	·Tighten connection.
	Hose missing rubber washer at	·Install rubber washer provided with hose.
Water drips from door when opened after a Steam Cycle	Steam condenses on inner door	·This is normal.
Cannot see steam at beginning of cycle	Steam released at different time in cycle	·This is normal.
Cannot see steam at any time during the cycle water supply	The steam nozzle might be clogged with debris from your	·Call800.GE.CARESto order nozzle replacement kitWE25M71or to request a service technician to replace this for you.
Garments still wrinkled after steam cycle	Too many garments	·Load fewer garments; manually increase time.
Garments are wet after Steam cycle	Lint filter not clean	·Clean lint filter
	Load is children/infant garments	·Use theSteam Refreshcycle.
No numbers displayed during cycle, only lights	Dryer is continuously monitoring the amount of moisture in the clothes	·This is normal. When the dryer senses a low level of moisture in the load, the dryer will display the dry time remaining.
Time Remaining jumped to a lower number	The estimated time may change when a smaller load than usual is drying	·This is normal.
Dryer is running but 00 is displayed in Time Remaining	The Extended Tumble option/Steam Refresh cycle was chosen	·This is normal. DuringExtended Tumbleoption/Steam Refreshcycle, the time remaining is not displayed. The extended tumble option lasts approximately 60 minutes.
Clothes are still wet and dryer shuts off after a short time without selecting a new cycle	The door was opened mid-cycle. The load was then removed from the dryer and a new load put in	·A dry cycle must be re-selected each time a new load is put in.
	Small load	·When drying 3 items or less, chooseSpeed DryorTimed Dry.
	Load was already dry except for collars and waistbands	·ChooseSpeed Dryortimed Dryto dry damp collars and waistbands. In the future, when drying a load with collars and waistbands, chooseMore Dry.
	Dryer is not level as necessary until even.	·Move dryer to an even floor space or adjust leveling legs

Dryer turns off Very small load (such as one item) • Use the Timed Dry cycle option, select the desired dry time. is not activating the dry sensor

All warranty support provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com or call 800. GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain support under the warranty.

For The Period Of: GE Will Replace:

One YearFrom the date of the original purchase to replace the defective part.	Any part of the dryer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service costs
Second YearFrom the date of the original purchase	Any part of the dryer which fails due to a defect in materials or workmanship. During this additional one-year limited warranty, you will be responsible for any labor or related service costs.
Second through Fifth YearFrom the date of the original purchase	The extra large or super capacity dryer drum and main electronic control board, if any of these parts should fail due to a defect in materials or workmanship. During this additional four-year limited warranty, you will be responsible for any labor or related service costs.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.

■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Defects or damage due to operation in freezing temperatures.
■ Products which are not defective or broken, or which are working as described in the Owner's Manual.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Consumer Support.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEApplianceparts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Instrucciones

de seguridad 2,3

Start Pause (Unlock Lidl) Power A B C D E F Cottons Normal Mixed Loads Jeans Casuals Permanent Press Active Wear Delicates Towels / Sheets Quick Dry • Bulky Items • Quick Fluff • No Heat • Stearn Refresh Timed Dry • Steam Dewrinkle 88 90 - 93 More Dry High 70 - 80 Dry Medium 50 - 60 Less Dry Low 30 - 40 Temp 10 - 20 Energy Smart Slow Dry Drum Light Variable Signet My Settings Control Lock Red Trench Lock/Liquid Lack/Flush Delay Dry Extended Toggle Dry Send to Cancel Slow Trench to Cancel

Power (Encender)

Illustration of a hand cleaning a plastic bag with a cloth (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a building with stairs and a chimney (no text or symbols)

Simple line drawing of a windmill with a cross symbol, no text or labels present

Pure electrical circuit lines without any symbols

Illustration of a light bulb connected to a wall socket (no text or symbols)

Technical diagram showing mechanical assembly with bolted joints and a dashed line indicating connection (no text or symbols)

Illustration of a light bulb connected to an electrical outlet (no text or symbols)

GE Appliances, Appliance Park Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
