BoostPlus - Pregnant Zagg - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Zagg
Model	BoostPlus
Dimensions (H x W x D)	7.5 x 3.5 x 3.5 inches
Weight	1.2 lbs (0.54 kg)
Power Source	Rechargeable lithium-ion battery (2200 mAh)
Battery Life	Up to 12 hours of playback
Charging Input	Micro USB (5V/1A)
Wireless Range	Up to 30 feet (10 meters)
Bluetooth Version	4.2
Speaker Drivers	Two 40mm full-range drivers
Passive Radiator	Yes, for enhanced bass
Water Resistance	IPX5 (splash-proof)
Built-in Microphone	Yes, for hands-free calls
Control Buttons	Power, Volume +/-, Play/Pause, Bluetooth pairing
Additional Features	AUX input, speakerphone, built-in echo cancellation
Care and Cleaning	Wipe with a soft, dry cloth. Avoid using liquids or solvents.
Safety Warnings	Do not expose to extreme heat or moisture. Use only approved chargers.
Spare Parts Availability	Contact Zagg support for replacement cables or batteries.
Warranty	1-year limited warranty

Frequently Asked Questions - BoostPlus Zagg

How do I pair my Zagg BoostPlus speaker with my phone?

Press and hold the Bluetooth button until the LED flashes blue. Enable Bluetooth on your device and select 'Zagg BoostPlus' from the list.

Can I connect multiple devices at once?

No, the BoostPlus supports pairing with only one device at a time. To connect a new device, disconnect the current one first.

How do I charge the speaker?

Use the included Micro USB cable and connect it to a USB power adapter (5V/1A). The LED indicator will turn red while charging and green when fully charged.

How long does the battery last?

The battery lasts up to 12 hours at moderate volume levels. Actual battery life may vary based on usage and volume.

Is the speaker waterproof?

The BoostPlus has an IPX5 rating, meaning it is splash-proof but not fully waterproof. Avoid submerging it in water.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is plugged in, but it may extend the charging time.

How do I reset the speaker?

To reset, turn off the speaker and press and hold the Power and Volume Up buttons simultaneously for 5 seconds until the LED flashes.

Why is the sound distorted at high volume?

Distortion at high volume is normal for small speakers. Try lowering the volume on your device or the speaker to avoid clipping.

Can I connect the speaker via AUX cable?

Yes, the BoostPlus has a 3.5mm AUX input. Connect your device using a standard AUX cable and press the Play button.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners that may damage the device.

USER MANUAL BoostPlus Zagg

by Cifrogz

1. INTRODUCTION

The Boost speaker uses patent pending NearFA™ technology.

Simply place a mobile device such as an iPhone™ on top of the Boost speaker and the sound from the internal speaker is magically amplified. Unlike Bluetooth® or WiFi the Boost requires no setup, no installation, and no configuration.

NearFA™

This product is compatible with iPhone ^™ 4S, iPhone ^™ 4, iPhone ^™ 3GS, iPhone ^™ 3G, iPod ^™ Touch 4, and other mobile devices with an external speaker.

2. FEATURES

• First in the world to use NearFA™ (Near Field Audio™)
• Magically amplifies the sound from iPhone™ etc
  • No configuration such as paring is needed
  • Automatically turns on and off

• Supported by most iOS devices and Android phones
• Powerful output of 2W x 2 RMS
- High efficiency - 15 hours play time* for AA Akline batteries x 3
- Battery low indication
- Includes Audio in (3.5mm) and DC in (Micro USB) sockets
* Average volume levels

3. USER INTERFACE

1 2 3 4 5

LocationDescription
1	Blue LED
2	Power Button
3	Micro USB DC in
4	Audio In
5	Air Passage

4. OPERATION

4.1 Near FA ^™ Wireless Operation

iOS Devices:

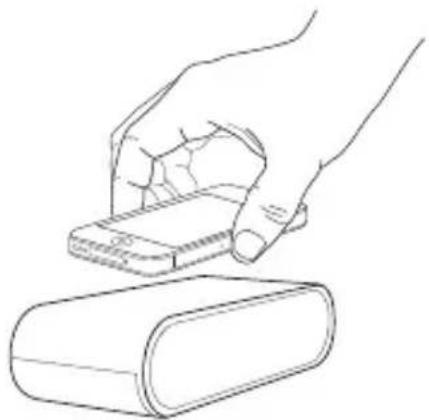

When in Standby or Power On modes, placing an iPhone™, iPod™, or other device, with the external sound or music being played in the correct direction activates the speaker. Example - align the bottom of the iPhone™/iPod™ to the front of the speaker:

Android and other Devices:

Different audio devices require different positioning. Experiment with the placement of the device until the device and speaker sensors are in alignment.

Line drawing of a hand holding an eraser above a cylindrical object (no text or symbols)

4.2 Volume Control

To adjust the volume simply change the volume level on your mobile device and the Boost automatically adjusts the output volume.

4.3 Audio in Operation

The 3.5mm jack is for optional wired audio input for most mobile devices.

5. POWER

The speaker can be powered by three AA batteries or external DC in from the Micro USB socket.

When the batteries are first inserted, the speaker will stay in its default Standby Mode.

5.1 Power Status:

Every time the Power Button is pressed, the power status advances one step in a cycle as follows: Off -> Standby -> On -> Off...

The Power Status is indicated by the Blue LED:

Status Blue LED
Power On Lights up
Power Off Off
Standby Flashes once every 3 seconds (approx.)
Music Playing Synchronized with the music
Battery Low Flashes 3 times every 4 seconds (approx.)

5.2 Automatic Power on/off:

When the speaker is in Standby mode, if music is played while the device is placed on top of the unit in the correct position, the speaker will turn on automatically.

The speaker will return to Standby mode 1 minute after the music has stopped. When using Alkaline batteries, the speaker can stay in Standby mode for over 6 months.

When the speaker is in Power On mode, it will switch automatically to Power Off 10 minutes after the music has stopped.

5.3 Battery Low Indication:

The blue LED flashes 3 times every 4 seconds to indicate the battery low status.

This happens only in Standby mode. Please note that when the batteries are relatively low, the sound may be distorted when playing in high volume.

When the batteries are too low, the system will cut off power to prevent the batteries from being damaged.

5.4 External DC 5V in:

The micro USB socket is for external power of DC 5V. When the external power is plugged in, the AA batteries will not be used.

QR code image containing encoded data, no visible human-readable text

Please Recycle

www.IFROGZ.COM

919 N. 1000 W. LOGAN UT 84321

MADE IN CHINA • FABRIQUE EN CHINE

ifrogz LIMITED LIFETIME WARRANTY ★★★

iPhone™ and iPod™ are registered trademarks of Apple Inc.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.

ifrogz

1. INTRODUCCÓN

Diagram of a device with labeled components including a rectangular body, three numbered parts, and a base with circular elements.

Line drawing of a hand holding an eraser above a rolled document (no text or symbols)

4.2 Control de Volumen

QR code image containing encoded data, no visible human-readable text

Please Recycle

www.IFROGZ.COM

919 N. 1000 W. LOGAN UT 84321

MADE IN CHINA • FABRIQUE EN CHINE

ifrogz LIMITED LIFETIME WARRANTY ★★★

iPhone™ and iPod™ are registered trademarks of Apple Inc.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.

ifrogz
