USER MANUAL AS 500 POLTI

Thank you for having chosen our product. Please read these instructions carefully before connecting and using the appliance.

A knowledge of the operating principles will help guarantee correct and safe use of the appliance.

If the appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.

CONTENTS

NOTES AND ADVICE FOR THE USER 3-4

• Technical information 3

DESCRIPTION OF THE APPLIANCE 5

INSTALLING THE APPLIANCE 6-7

• Installation 6
  • Levelling the appliance 6
• Connecting the air exhaust tube 6
• Connecting to the mains supply 7

USING THE APPLIANCE 7-9

• Description of the functions 7
- Door 8
• Drying the washing correctly 8
• Precautions for fabrics 8
- Program table 9
- Weights of washing 9

MAINTENANCE 10

• Cleaning the filter 10
• Fault finding 10
• Resolving problems 10
• Optional accessories 10

NOTES AND ADVICE FOR THE USER

Dimensions:	Widht cm.:	59.5
	Height cm.:	85.0
	Depth cm.:	57.0
Max. capacity		see characteristics plate
Power rating		see characteristics plate
Voltage		see characteristics plate

MODEL:

SERIAL NUMBER:

DATE OF PURCHASE: ____

NOTES AND ADVICE FOR THE USER

This appliance has been designed for use as a domestic drier. Any other use is considered as improper and therefore dangerous.
- Keep this instruction book near to the appliance always, in order that it can be easily consulted when necessary.
Any modifications or attempts to interfere with the appliance can be dangerous for the user and may damage the product.
On delivery of the appliance, check that it has not been damaged during transport. If any damage is discovered, report the matter to the retailer immediately.
During the drying cycle, the air in the room is ducted through the back of the appliance. Do not cover the drier with washing or

any other items.

When positioning the appliance, ensure that the power supply cable is not kinked or squashed and is accessible.
Remember that the door glass and exhaust tube will heat up during a drying cycle and can reach temperatures of up to 60°. Do not touch these parts before the cooling cycle has been completed.
The appliance must not be used by children unless supervised.

Never dry washing that has been in contact with chemical agents such as dry-cleaning fluids

These products are volatile by nature and could cause an explosion.

Do not dry items with parts containing foam rubber or rubber

in general, in that the material could melt and damage other items or even the appliance itself.

If the appliance is sold or given away, remember to hand over this instruction book with it. This will help the new owner use the drier both correctly and safely.
Do not attempt to repair any appliance faults alone, in that repairs carried out by a non-professional may cause serious damage and will nullify any rights to repairs under guarantee.
Repairs to the appliance can only be carried out by personnel authorised by the customer service centres. All repairs must make use of original spare parts only.
Spin dry or wring the washing well before loading it into the drier.

Cartoon illustration of a steaming hot plate with steam rising, held by hands and a power outlet (no text or symbols)

Never insert or remove the plug from the mains socket with wet hands.

Cartoon illustration of a smiling computer monitor character holding an electrical outlet (no text or symbols)

The machine must be connected to a mains socket fitted with an efficient earth complying with current safety standards.

Cartoon illustration of a distressed, anthropomorphic character surrounded by steam and electrical plugging (no text or symbols)

Do not use extension leads or multiple plug adapters to connect the appliance to the mains supply.

Cartoon illustration of a distressed car under rain with falling snow and raindrops (no text or symbols)

Do not expose the appliance to atmospheric agents.

Cartoon illustration of a smiling hardcover character holding a wrench and pointing at an electrical outlet (no text or symbols)

When servicing or cleaning the appliance, remember to disconnect it from the mains supply.

Cartoon illustration of a distressed card character being pulled by an electrical plug, with lightning bolts indicating electrical instability (no text or symbols)

Do not pull the power supply cable to unplug the appliance from the mains supply. Pull the plug only.

NOTES AND ADVICE FOR THE USER

Spun dry washing will dry quicker.

Clean the filter thoroughly each time the drier is used in order to guarantee perfect air circulation.
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The

symbol ☒ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your

household waste disposal service or the shop where you purchased the product.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.

DESCRIPTION OF THE APPLIANCE

The drier is a domestic appliance capable of drying any type of fabric at any time.

The machine has been constructed in steel panels which have been treated and painted to guarantees that its aesthetic qualities remain unaltered over time.

The motor and all moving parts have been designed and manufactured to guarantee the minimum possible noise levels
The control panel has been

designed to enable the user to run the desired drying program without difficulty.

The wide door makes loading and unloading the washing much easier.

2 8 9 10 11

1 - START button
2 - Delicate or energetic drying button
3 - Drying time control knob
4 - Spin function active indicator light
5 - Door

6 - Filter
7 - Adjustable feet
8 - Exhaust outlet
9 - Outlet coupling
10- Exhaust tube
11- Tube support

1 2 3 4 5 6 7 1

INSTALLING THE APPLIANCE

INSTALLATION

Installation must be carried out by qualified personnel in line with the instructions supplied by the manufacturer. Incorrect installation may result in damage and injury.

Install the drier near to a window to facilitate the evacuation of the damp air from the drier.

The exhaust tube must be used to prevent condensation, and must be inserted in hole A at the bottom of the back panel of the appliance (fig. 3).

Never cover the air intake at the back of the appliance.

Place the filter in its normal position as shown (fig. 4).

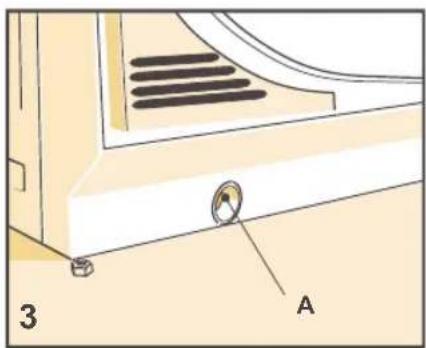

3 A

Clean the inside of the drying drum using a damp cloth to remove any dust deposits.

Diagram showing a ventilation duct inside a door with a circular base, no text or symbols present

LEVELLING THE DRIER

Adjustable feet. Place the drier upright so that it rests firmly on all four feet. Level the drier by adjusting the feet as follows:

Lift the drier slightly.

Adjust the feet to the correctheight (fig. 5).

(Do not unscrew the feet to much and do not use a screwdriver).

Lower the drier.

A badly levelled machine may cause damage to the bearings and lead to their premature wear. This drier does not need to be anchored to the floor.

Illustration of a hand holding a small object near a window, with motion arrows indicating movement (no text or symbols)

CONNECTING THE AIR EXHAUST TUBE

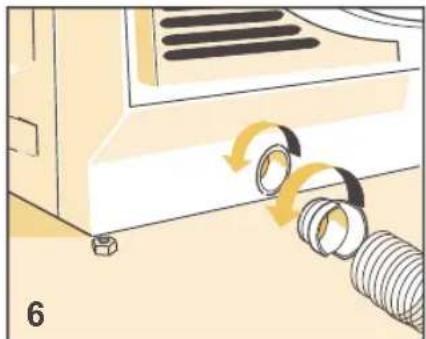

Connect the exhaust tube to the outlet on the back of the drier (fig.6), as follows:

Connect one end of the tube to the connector piece supplied.
Rotate the connecting piece (together with the tube) anticlockwise in the drier outlet hole.
Carry the tube away from the

Illustration of a washing machine with coiled tubing and a valve, no text or symbols present

back of the drier to the left or right by means of the recess at the bottom of the drier body.

Position the other end of the tube near to a window or a ventilation outlet on an external wall. If this is not possible, ensure that the room is well ventilated when the drier is being used. Use the support supplied to anchor the tube (fig. 7).

Illustration of a coiled hose attached to a wall-mounted device, labeled with number 7 (no text or symbols on the diagram itself)

Important: The air exhaust tube must be connected even if the air is not discharged outdoors, otherwise the drier will re-absorb the discharged damp air and thus prolong the drying time. Damp air can also damage the drier. Although the air discharged from the exhaust tube is only warm and damp and does not constitute a danger, it must never be directed towards people, animals or plants.

Important: The exhausted air must not be conveyed to a chimney discharging fumes generated by gas or other fuel burning appliances.

INSTALLING THE APPLIANCE

ELECTRICAL CONNECTION

Make sure that the voltage indicated on the identification plate attached to the back of the appliance corresponds to that of the mains supply.

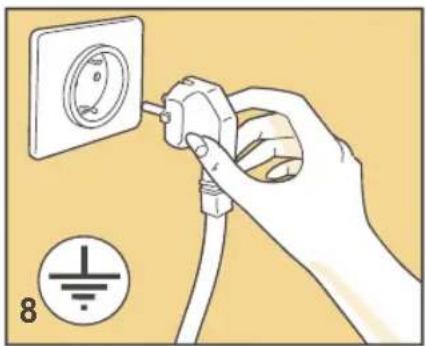

On completion of the installation, the appliance must be connected to the mains supply through a two-pole switch.
All cutouts, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.
The mains supply to which the appliance is connected must be fitted with an earthing system. If

Hand inserting a plug into an electrical socket (no text or symbols visible)

this is not the case, the manufacturer will not be held liable for any incidents that may occur (fig. 8).

If the power supply cable is damaged in any way, contact the appropriate specialised customer

technical service centre.
The drier must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.
Position the appliance so that the power supply cable is easily accessible for disconnection when the need arises.

Important: On completion of the drying cycle, disconnect the appliance from the mains supply to prevent young children from operating the drier.

USING THE APPLIANCE

DESCRIPTION OF THE FUNCTIONS

Illustration of a hand inserting a circular component into a box, with no visible text or symbols

Drying time control knob: Rotate the knob to select the required drying times (fig._9). Refer to the program table to select the program according to the type of fabric.
At the end of each drying cycle, the appliance effects a 10 – 15 minute cooling cycle, during which time the appliance is still switched on.

START 10

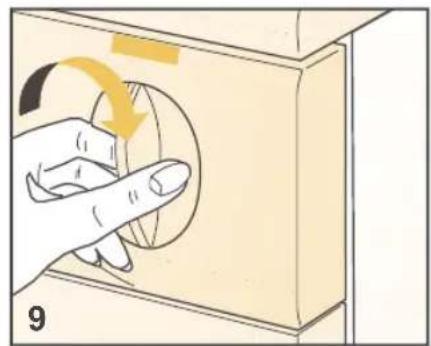

N.B. The timer knob must always be rotated clockwise (fig. 9).

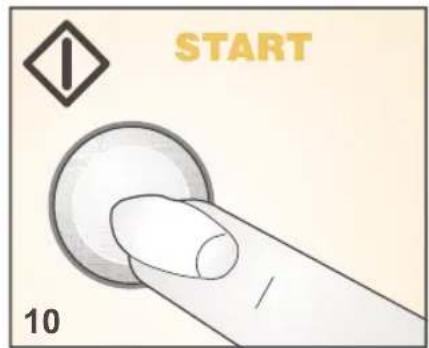

START button: Press this button to start the drying cycle (the indicator will light up) (fig. 10).

0 1 11

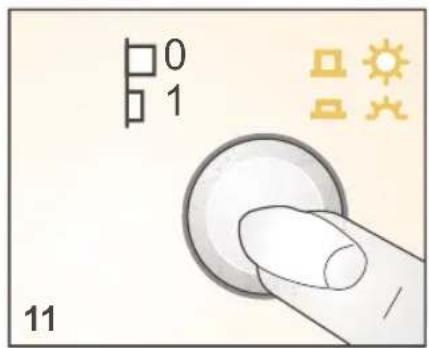

Delicate or energetic drying button: This button is used to select the type of drying cycle to run: Energetic or delicate (fig.11).

USING THE APPLIANCE

DOOR

The drier is the front-loading type. Pull the handle outwards, without forcing it, and gently open the door. The appliance will stop if the door is opened during a drying cycle. The drum will continue to rotate for a while, slowing down gradually to a stop.

Important:

Obviously, during a drying cycle the washing in the drum will be hot. The washing is cooled during the cooling cycle (the last few minutes indicated on the programmer knob).

To avoid being scalded by steam

or burned by the hot washing, do not open the door during the drying phase.

If the need arises to interrupt the drying cycle, allow the drier to rotate for a few minutes in the cooling cycle.

Illustration of a hand holding a small object inside a circular container with arrows indicating motion (no text or symbols)

DRYING THE WASHING CORRECTLY

Follow the procedure below:

A

▼ Spin the washing.

B

Separate the items into types or fabrics.

▼ Close any zips and fasten buttons and remember to empty the pockets of any clothing.

▼ Turn jumpers inside out.

C

▼ Open the door

▼ Load the washing in the drum and remember to load sheets from a corner first.

▼ It is advisable to load small and large items together.

D

▼ Close the door

▼ Dry your hands (never touch electric appliances with wet hands).

▼ Insert the plug in the mains socket.

E

▼ Select the drying cycle recommended for the load (see program table).

▼ Set the timer knob to the required drying time.

▼ Press the START button to start the cycle.

F

▼ To stop the machine during a drying cycle, simply open the door (the drum will slow down then stop).

▼ To continue the drying cycle, close the door and press the start button.

The drying time can be reduced or increased during the drying cycle by rotating the timer knob clockwise.

G

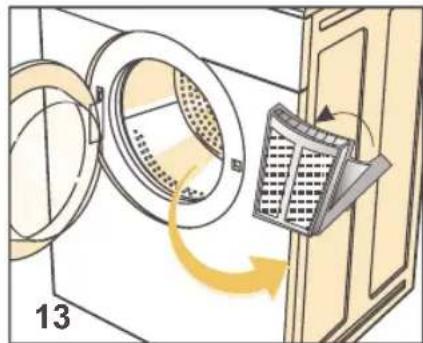

▼ After having removed the dry washing, clean the filter as follows:

- Lift the filter- Open it and clean it using a soft brush

- Close it and replace it in its seating

- The filter must be washed periodically using soapy water in order to remove very small particles.

▼ Unplug the appliance from the mains supply.

PRECAUTIONS FOR FABRIC TYPES

In the case of doubt as to the type of fabric, read the label on the item itself. Almost all items that can be machine dried have this information specified on the label. To avoid static electricity being generated in the items, add a conditioner to the rinse cycle of the washing machine.

Remove synthetic materials from the drum immediately to prevent them from creasing.

USING THE APPLIANCE

PROGRAM TABLE

Fabric	Weight of dry washing	Type of drying to utilise	Times in minutes
			Wardrobe dry	Idron dry	Slightly damp
TIMER CONTROLLED PROGRAM
Cotton/ Linen	MAXIMUM LOAD		80-120 min.	60-100 min.	50-80 min.
Cotton/ Linen	HALF LOAD		50-80 min.	40-60 min.	30-50 min.
Synthetics	HALF LOAD		60-100 min.	—	—
Delicate synthetics	1,5 kg		50-80 min.	—	—
Mixed fabrics	2,0 kg		40-60 min.	—	—

ENERGETIC DRYING

DELICATE DRYING

Important: The drying time is dependent on a number of factors: weight, size of the items, type of fabric, degree of dampness. Well wrung/spun items dry quicker. To prevent items from creasing, do not overload the drier.

WASHING WEIGHTS

The indicated weights are approximate and may vary according to their manufacture, quality and finish.

Bedding

Quilt	700 g
Bottom sheet	550 g
Top sheet	600 g
Pillowcase	180 g

Household linen

Tea towel (dishes)	90 g
Tea towel (glasses)	70 g
Flannel	20 g
Hand towel	200 g

Other linen items

Bath robe

1200 g

Bath towel	800 g
Lady's blouse	300 g
Man's shirt	600 g
Blouse/shirt in synthetic material	300 g

Table linen

Tablecloth	250 g
Large tablecloth	1000 g
Napkin	80 g

Men's clothing

Wash ‘n wear shirt	250 g
Vest (sleeveless)	120 g

Briefs	80 g
Long johns	250 g
Pyjamas	480 g
Nightshirt	400 g
Handkerchief	25 g

Ladies' clothing

Blouse	100 g
Jumper	100 g
Briefs	80 g
Slip	150 g
Nightdress	180 g
Pyjamas	450 g
Handkerchief	15 g

MAINTENANCE

CLEANING THE FILTER

In order to guarantee optimum drying results under all circumstances, remember that the filter must be cleaned regularly. Remember to check and clean the filter after each drying cycle.

Important:

The filter must only be cleaned when the appliance is cold! Clean the filter following the procedure described below:

▼ Open the door.
▼ Grasp the filter in both hands and push it upwards to remove it.
▼ Carefully widen the top edge and open the filter.
▼ Remove the woollen particles.
▼ Close the filter, making sure that

the catch closes at the correct position.

▼ Clean the filter slide guides on the appliance, using a vacuum cleaner if necessary.
▼ Reposition the filter in the slide guides (fig. 13).

Diagram of a washing machine with a fan blade and vent, showing airflow direction (no text or symbols)

FAULT FINDING

All electric appliance may breakdown at some time. Remember to call a qualified electrician in these cases. However, many problems can be resolved without the need for external intervention.

Important: If a fault occurs, disconnect the appliance from the mains supply immediately. Before calling the customer service centre, check the points listed below.

RESOLVING PROBLEMS

If the drier doesn't start

• Check that:
  1) The appliance is plugged into the mains supply.
  2) The mains socket is working correctly:
  2a) The fuse has not blown. (Check by plugging in another appliance such as a table lamp).
  2b) All the instructions in the manual have been followed.

If the drier doesn't start

• Check that:
  1) The door is closed properly.
  2) The "START" button has been pressed.
• Check that:
  1) The air exhaust tube is not twisted or kinked.
  2) The filter is not blocked. (Remember that when the door is opened, the internal parts of the drier and the washing may be very hot).

The washing does not dry

If, after all these checks have been carried out, the appliance still does not work, inform the nearest customer service centre.

When contacting the service centre, inform them of the appliance model, serial number and type of fault.

This information will help the service centre operator in procuring the necessary spare parts, thus guaranteeing a speedy and efficient repair.

OPTIONAL ACCESSORIES

The retailer can provide an accessory to enable the drier to be mounted on top of a front-loading washing machine, thus saving space. The installer will inform you of the appliance model for which this option is possible.

FRANÇOISE

Cher Client,

Cartoon illustration of a steaming hot plate with steam rising, being struck by a hand holding a plug and lightning bolt (no text or symbols)

Cartoon illustration of a smiling computer monitor character holding a power outlet, with no text or symbols present.

Cartoon illustration of a distressed, anthropomorphic character surrounded by steam and electrical plugging (no text or symbols)

Cartoon illustration of a distressed computer character with angry expression, surrounded by raindrops and falling domes (no text or symbols)

Cartoon illustration of a smiling hard hat character holding a wrench and pliers, with an electrical outlet symbol nearby (no text or symbols present)

Cartoon illustration of a distressed computer with a torn paper, reacting with a power plug and lightning bolts (no text or symbols)

Diagram showing a door with a circular component and a grid-patterned structure, no text or symbols present

NIVELLEMENT DU SÈCHE-LINGE

Illustration of a hand holding a small object near a window, with motion arrows indicating movement (no text or symbols)

CONNEXION DU TUYAU D'ÉVACUATION DE L'AIR

Illustration of a washing machine with coiled tubing and a valve, no text or symbols present

Illustration of a coiled cable or hose attached to a wall-mounted device, with no visible text or symbols.

Hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a hand inserting a circular component into a box, with no visible text or symbols

DEPART 10

Illustration of a hand holding a small object through a circular pipe with directional arrows indicating flow or movement (no text or symbols)

POUR EFFECTUER CORRECTEMENT LE SÉCHAGE DU LINGE

Diagram of a kitchen appliance with a circular vent and fan, showing airflow direction (no text or symbols)

Cartoon illustration of a steaming hot plate with steam rising, being struck by a hand holding a plug and lightning bolt (no text or symbols)

Cartoon illustration of a smiling computer with a power outlet, no text or symbols present

Cartoon illustration of a distressed, anthropomorphic character surrounded by steam and electrical plugging (no text or symbols)

Cartoon illustration of a distressed computer character with angry expression, surrounded by raindrops and smoke (no text or symbols)

Cartoon illustration of a smiling hardcover character holding a wrench and pliers, with an electrical outlet symbol nearby (no text or symbols present)

Cartoon illustration of a distressed document being pulled by a plug, with lightning bolts and smoke effects (no text or symbols)

Illustration of a door with a circular component and a grid-patterned cover, no text or symbols present

Illustration of a hand holding a small object near a window, with motion arrows indicating rotation (no text or symbols)

Illustration of a washing machine with coiled tubing and a valve, no text or symbols present

Illustration of a mechanical device with a coiled spring attached to a wall, labeled '7' (no text or symbols on the diagram itself)

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Illustration of a hand pressing down on a circular component inside a cabinet (no text or symbols)

Illustration of a hand holding a small object inside a circular container with arrows indicating motion (no text or symbols)

PARA SECAR CORRECTAMENTE LA ROPA

Camisa wash and wear	250 g
Camisola, sin mangas,	120 g

Calzoncillos	80 g
Bragas	250 g
Pijama	480 g
Camisón	400 g
Pañuelos	25 g

Vestuario mujer

Camisa	100 g
Camiseta	100 g
Braguitas	80 g
Enaguas	150 g
Camisón	180 g
Pijama	450 g
Pañuelos	15 g

MANTENIMIENTO

LIMPIEZA DEL FILTRO

Diagram of a door with a perforated opening and a gridded vent, showing airflow direction (no text or symbols)

Cartoon illustration of a steaming hot plate with steam rising, being struck by a hand holding a power outlet (no text or symbols)

Cartoon illustration of a smiling computer with a power outlet, no text or symbols present

Cartoon illustration of a distressed, anthropomorphic character surrounded by steam and electrical equipment (no text or symbols)

É proibido ligar a máquina à tomada eléctrica utilizando extensões ou fichas múltiplas.

Cartoon illustration of a distressed computer character with angry expression, surrounded by raindrops and falling snow (no text or symbols)

Cartoon illustration of a smiling hardcover character holding a wrench and pliers, with an electrical outlet symbol nearby (no text or symbols present)

Cartoon illustration of a person screaming while holding an electrical plug, with lightning bolts indicating stress (no text or symbols)

Diagram showing a door with a circular component and a grid-patterned panel, no text or symbols present

Illustration of a hand holding a small object near a window, with motion arrows indicating movement (no text or symbols)

Illustration of a car air conditioner unit with hoses and a valve, no text or symbols present

Illustration of a coiled hose attached to a wall-mounted air conditioner unit (no text or symbols)

Hand inserting a plug into an electrical socket (no text or symbols visible)

Illustration of a hand pressing down on a circular component inside a box, with no visible text or symbols.

Illustration of a hand holding a small object through a circular pipe, with directional arrows indicating flow or movement (no text or symbols)

COMO SECAR A ROUPA CORRECTAMENTE

Diagram of a washing machine with a circular vent and fan, showing airflow direction (no text or symbols)

DETECÇÃO DE AVARIAS
