Introduction

With the CHAOS EXXTREME II MOSFET amplifier series, we are introducing thirteen new amplifiers, all designed in the USA. This new series includes three monoblock amps, five 2-channel, four 4-channel amplifiers and a 5-channel amp.

All CHAOS EXXTREME II models feature variable low pass and high pass crossovers and variable input gain controls.

For further flexibility in the use of a subwoofer, 0-+18dB Bass Boost control has been included on all amplifiers. You can control the subwoofer level with the remote level control module.

BOSS understands that amplifiers are placed in many different kinds of installations, so we incorporated a very flexible system of controls in these amplifiers in order to help you integrate the amp into your system regardless of the nature of your input source.

What is included?

When first unpacking your new amplifier, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the amplifier.

• CHAOS EXXTREME II amplifier
- Remote subwoofer level control
• High input cable with connector
• Four (4) mounting screws

Features

Your new CHAOS EXXTREME II amplifier features the following:

• Class A-B operation

• Bridgeable outputs (except CXXM1250 CXXM1800 and CXXM2200)

• Tri-Mode capable (except CXXM1250 CXXM1800 and CXXM2200)

• MOSFET PWM (Pulse Width Modulated) Power Supply

• 2 Ohm stable stereo operation with output power increase

• Thermal and speaker short protection

- Soft turn-on circuit

- Remote turn-on/turn-off circuit

• Variable input gain control

• Variable low pass crossover(s)

• Fixed high pass crossover(s)

• Variable 0 to +18dB Bass Boost

- Nickel-plated RCA low level and high level inputs

• LED power and protection indicators

• Silver anodized heatsink

- Remote subwoofer level control

About 2 Ohm operation

Your CHAOS EXXTREME II amplifier has been designed to operate efficiently at loads down to 2 Ohms. This means that you can install four 8 Ohm speakers per channel, when using parallel wiring.

Increasing the number of woofers per channel at low frequencies (below 100Hz) produces an acoustic coupling effect. This acoustic coupling effect increases your power output by about 3dB per speaker, or the equivalent of an additional 10W per speaker.

When operating at 2 Ohms, the amplifiers will increase their output power by approximately 50%. The current draw will also increase by about the same amount, so be sure you have enough current to run the amplifiers into a 2 Ohm load.

If you lack adequate current, your music reproduction will be distorted.

General precautions

Before installing and using your new BOSS amplifier, please become familiar with all the information contained in this manual.

Please keep this manual in a safe place for future reference.

• Do not open or attempt to repair this unit yourself. Dangerous high voltages are present which may result in electric shock. Refer any repairs to a qualified service technician.
  • To avoid risk of electronic shock or damage to the amplifier, do not permit any of this equipment to become damp or wet from water or drinks. If this does occur, immediately unplug the power wires and send the amplifier to your local dealer or service center as soon as possible.
• If there is smoke or any peculiar odor present during use or if there is damage to any of the component enclosures, immediately unplug the power wire and send the amplifier to your local dealer or service center as soon as possible.

Installation precautions

Before you drill or cut any holes, investigate your car's layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electrical wiring.

Never operate the amplifier when it is unmounted. Attach all audio system components securely to prevent damage, especially in an accident.

Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is turned off while connecting the input jacks and speaker terminals.

If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the amplifier. Using a fuse of a different type or rating may result in damage to your audio system or your amplifier which is not covered by the manufacturer's warranty.

Mounting the amplifier

1. Find a suitable location in the vehicle in which to mount the amplifier.
2. Make sure there is sufficient air circulation around the intended mounting location.
3. Mark the location for the mounting hole screws by positioning the amplifier where you wish to install it. Use a scribe or mounting screw, inserted through each of the amp's mounting holes, to mark the mounting surface. If the mounting surface is carpeted, measure the hole centers and mark with a felt tip pen.
4. Drill pilot holes in the mounting surface for the mounting screws. Place the amplifier in position, and attach the amplifier to the mounting surface securely using screws.

SHOCK HAZARD! Do not open the case of this product. There are dangerous voltages present within the unit. There are no user-serviceable parts within the unit.

Connecting the amplifier

Before doing any wiring, look through this manual and identify the diagrams to follow for power, input and speaker connections for your particular installation. Be sure you understand all the connections before you proceed.

1. Connect the power ground terminal to the closest point on the chassis of the car. Keep this ground wire to less than 39" (100 cm) in length. Use 8 gauge (or heavier) wire.
2. Connect the remote terminal to the remote output of the head unit using 16 gauge (or heavier) wire.
3. Connect an empty fuse holder within 18" (45 cm) of the car battery, and run 8 gauge (or heavier) cable from this fuse to the amplifier location.
4. Check that the fuse holder is empty. Then connect the fuse holder to the "BATT+" connection on the amplifier.
5. If multiple amplifiers are being used in your system, either:
6. Run a separate pair of cables from the battery and a chassis ground point to each amplifier. Each (+) cable must have its own inline fuse.

-or-

• Run a #4 cable from the fuse holder at the battery to a distribution block at or near the amplifier's location. Then run separate cables from the amplifier to this distribution block and to independent chassis ground points.

• Connect all line inputs and outputs (if used) using high-quality cables. Connect all speakers, following the diagrams in this manual. Be sure to observe proper polarity to avoid audio phase problems.

• Insert fuse(s) into the battery fuse holder(s).

• Recheck all connections before powering up the amplifier.
• Set all level controls to minimum position, and set all crossover controls/switches to the desired frequency points.
• Power up the head unit and the amplifier. Then set the volume control on the head unit to about 3/4 volume, and adjust the amplifier's input level control(s) to just below the level of distortion.
• Further fine tuning of the various controls may be necessary to obtain best results.

Don't misuse the level control!

Do not mistake the input level control for a volume control! It is designed ONLY to match the output level of your audio source to the input level of your amplifier.

Do not adjust this input level to maximum unless your input level requires it.

Ignoring these instructions will result in an input overload to the amplifier, and excessive audio distortion. It can also cause the protection circuit to engage.

Low Level Input Wiring

Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance.

NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

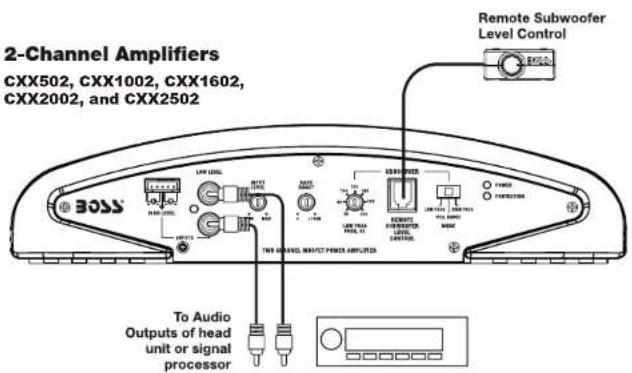

2-Channel Amplifiers CXX502, CXX1002, CXX1602, CXX2002, and CXX2502 Remote Subwoofer Level Control BOSS LW LEVEL TWO SENSILE, MAXIST FINESE AMPLIOTS To Audio Outputs of head unit or signal processor

4-Channel Amplifiers

CXX1204, CXX1604, CXX2004, and CXX2404 Remote Subwoofer Level Control To FRONT Audio Outputs of head unit or signal processor To REAR Audio Outputs of head unit or signal processor

CHAOS EXXTREME II MOSFET Amplifier User's Manual - page 6

Low Level Input Wiring

Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance.

NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

5-Channel Amplifier CXX2705 Remote Subwoofer Level Control BOSS To FRONT Audio Outputs of head unit or signal processor To REAR Audio Outputs of head unit or signal processor To SUBWOOFER Audio Outputs of head unit or signal processor (if present)

CHAOS EXXTREME II MOSFET Amplifier User's Manual - page 7

Low Level Input Wiring

Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance.

NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

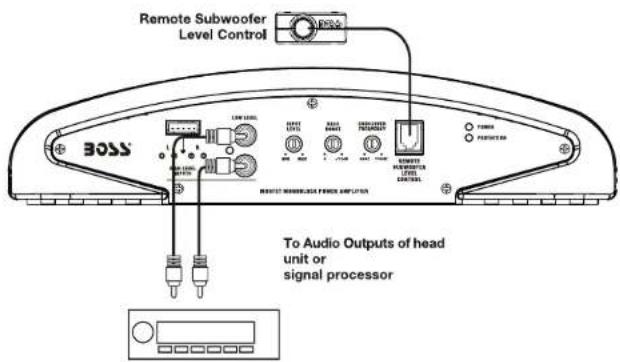

MonoBlock Amplifier
CXXM1250

Remote Subwoofer Level Control BOSS HOLDATE AVOCATOR LEVEL COMPACT BASE SWITCH BRISE CLOSING RIVER INPUT SWITCH DATA POWER PANWATER RIP LAYER METHI METHI METHI To Audio Outputs of head unit or signal processor

MonoBlock Amplifier

CXXM1800,CXXM2200

Remote Subwoofer Level Control BOSS To Audio Outputs of head unit or signal processor

CHAOS EXXTREME II MOSFET Amplifier User's Manual • page 8

High Level Input Wiring

The high level input(s) should only be used when your head unit lacks RCA outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.

NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

2-Channel Amplifiers
CXX502, CXX1002, CXX1602, CXX2002, and CXX2502

Remote bwoofer Level Control BOSS L+ L- R- R+ To Speaker Terminals of head unit

4-Channel Amplifiers

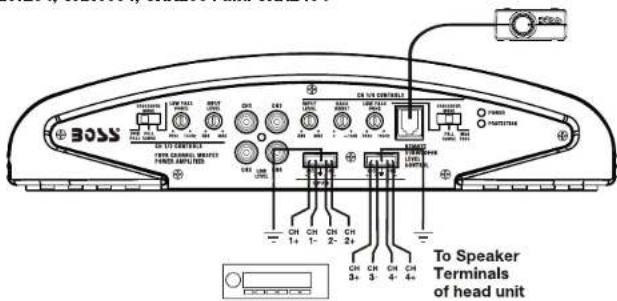

CXX1204, CXX1604, CXX2004 and CXX2404

BOSS ON 1/2 CANDRUM ON CHANNELS / PANEER AMOUNTED ON 1/2 CONTROLLED ON 1/2 CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH CH To Speaker Terminals of head unit

CHAOS EXXTREME II MOSFET Amplifier User's Manual • page 9

High Level Input Wiring

The high level input(s) should only be used when your head unit lacks RCA outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.

NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

5-Channel Amplifier CXX2705

CH1+ CH1- CH2- CH2+ To Speaker Terminals of head unit Ch3+ CH3- CH4- CH4+ To Speaker Terminals of head unit Remote Subwoofer Level Control BOSS

High Level Input Wiring

The high level input(s) should only be used when your head unit lacks RCA outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.

NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

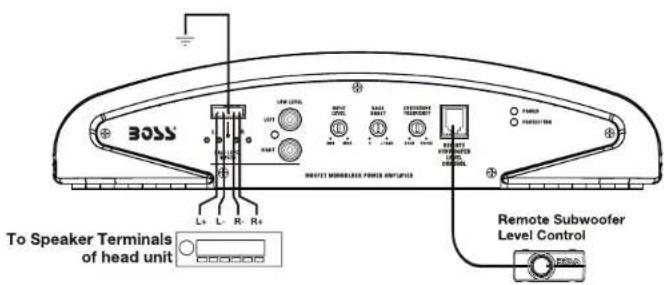

MonoBlock Amplifier CXXM1250

BOSS Remote Subwoofer Level Control To Speaker Terminals of head unit

MonoBlock Amplifier CXXM1800,CXXM2200

BOSS L+ L- R- R+ INSERT WORKBLOOD POWER ANTIPLES To Speaker Terminals of head unit Remote Subwoofer Level Control

Power and Speaker Wiring
2 Channel and Bridged Modes
2-Channel Amplifiers
CXX502, CXX1002, CXX1602, CXX2002, and CXX2502

Two Channel Mode BOSS LEFT Speaker RIGHT Speaker SPEAKER IMPEDANCE 2-8 OHMS THO CHANNEL SWITCH POWER EXPLIATION Chassis ground point to REMOTE TURN-ON terminal of head unit FUSE Battery

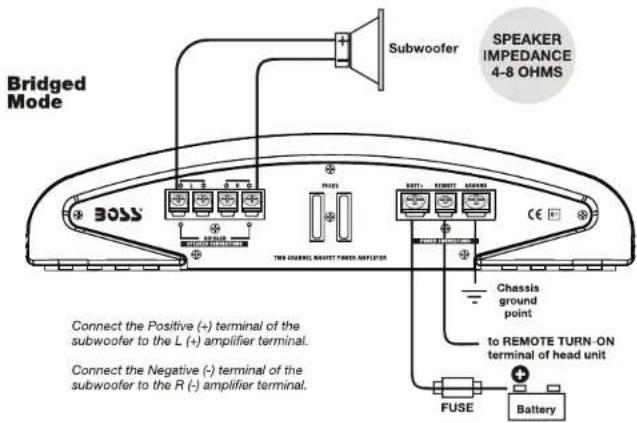

Bridged Mode BOSS SPEAKER IMPEDANCE 4-8 OHMS CHASSIS ground point to REMOTE TURN-ON terminal of head unit FUSE Battery Connect the Positive (+) terminal of the subwoofer to the L (+) amplifier terminal. Connect the Negative (-) terminal of the subwoofer to the R (-) amplifier terminal.

Power and Speaker Wiring
Tri-Mode
2-Channel Amplifiers
CXX502, CXX1002, CXX1602, CXX2002, and CXX2502

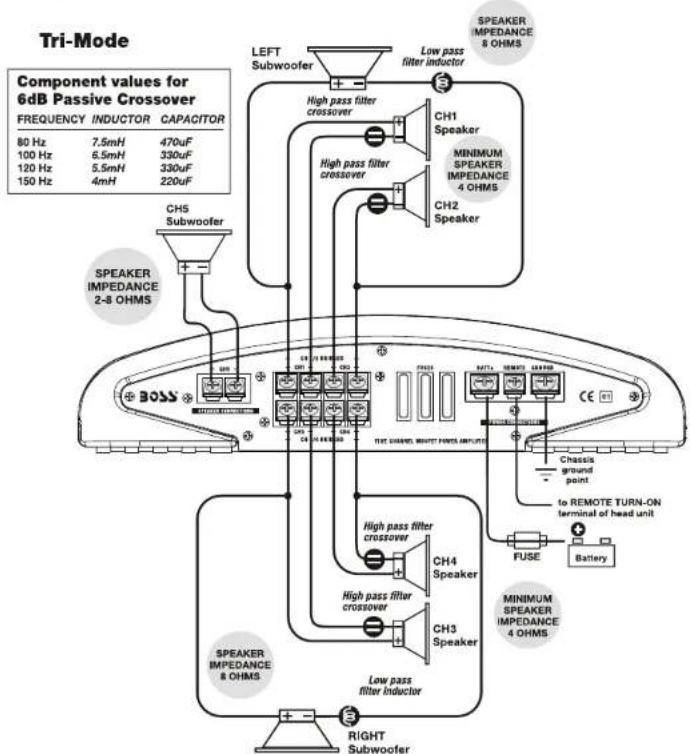

Tri-mode operation allows you to connect this amplifier to a pair of main speakers plus a subwoofer on one pair of output channels. The main speakers will operate in STEREO while the subwoofer simultaneously operates in MONO.
To set up the amplifier to run in this mode, put the crossover switches in the FULL position. Insert high pass filter capacitors and a low pass filter inductor into the wiring as shown below. Be sure to check the table at the bottom of this page to determine the correct capacitor and inductor values for the crossover frequency you wish to achieve.

Component values for 6dB Passive Crossover
FREQUENCY	INDUCTOR	CAPACITOR
80 Hz	7.5mH	470uF
100 Hz	6.5mH	330uF
120 Hz	5.5mH	330uF
150 Hz	4mH	220uF

Tri-Mode

BOSS MINIMUM SPEAKER IMPEDANCE 4 OHMS LEFT Speaker RIGHT Speaker Low pass filter inductor Subwoofer High pass filter crossover High pass filter crossover SPEAKER IMPEDANCE & OHMS THE CHANNEL, MOUNT POWER AMPLIPTER FUSE Chassis ground Point to REMOTE TURN-ON terminal of head unit Battery

Power and Speaker Wiring
4 Channel and Bridged Modes
4-Channel Amplifiers
CXX1204, CXX1604, CXX2004 and CXX2404

CH2 Speaker CH1 Speaker Four Channel Mode SPEAKER IMPEDANCE 2-8 OHMS BOSS SPEAKER IMPEDANCE 2-8 OHMS CH3 Speaker CH4 Speaker FUSE Chassis ground point to REMOTE TURN-ON terminal of head unit Battery

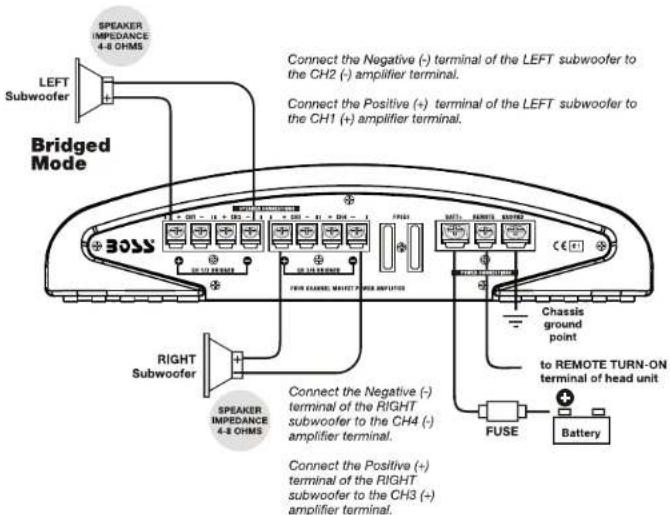

SPEAKER IMPEDANCE 4-8 OHMS LEFT Subwoofer Bridged Mode Connect the Negative (-) terminal of the LEFT subwoofer to the CH2 (-) amplifier terminal. Connect the Positive (+) terminal of the LEFT subwoofer to the CH1 (+) amplifier terminal. BOSS CHASSIS ground point to REMOTE TURN-ON terminal of head unit FUSE Battery RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICH COARSE MOUNT FOR IMPUPTOR RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCOUIST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST RICHCAUST

CHAOS EXXTREME II MOSFET Amplifier User's Manual • page 14
Power and Speaker Wiring
Tri-Mode
4-Channel Amplifiers
CXX1204, CXX1604, CXX2004 and CXX2404

Tri-mode operation allows you to connect this amplifier to a pair of main speakers plus a subwoofer on one pair of output channels. The main speakers will operate in STEREO while the subwoofer simultaneously operates in MONO.

To set up the amplifier to run in this mode, put the crossover switches in the FULL position. Insert high pass filter capacitors and a low pass filter inductor into the wiring as shown below. Be sure to check the table at the bottom of this page to determine the correct capacitor and inductor values for the crossover frequency you wish to achieve.

Tri-Mode Component values for 6dB Passive Crossover FREQUENCY INDUCTOR CAPACITOR 80 Hz 7.5mH 470uF 100 Hz 6.5mH 330uF 120 Hz 5.5mH 330uF 150 Hz 4mH 220uF SPEAKER IMPEDANCE 8 OHMS RIGHT Subwoofer High pass filter crossover CH3 Speaker MINIMUM SPEAKER IMPEDANCE 4 OHMS CH4 Speaker Low pass filter inductor BOSS THIRD CROSS CHASSIS ground point to REMOTE TURN-ON terminal of head unit CH2 Speaker MINIMUM SPEAKER IMPEDANCE 4 OHMS CH1 Speaker Low pass filter inductor LEFT Subwoofer FUSE Battery

CHAOS EXXTREME II MOSFET Amplifier User's Manual • page 15

Power and Speaker Wiring

5 Channel Mode

5-Channel Amplifier

CXX2705

Five Channel Mode

MODE SPEAKER IMPEDANCE 2-8 OHMS CH5 Subwoofer CH1 Speaker CH2 Speaker SPEAKER IMPEDANCE 2-8 OHMS BOSS SPEAKER IMPEDANCE 2-8 OHMS CH3 Speaker FUSE Chassis ground point to REMOTE TURN-ON terminal of head unit Battery

Power and Speaker Wiring

Bridged Mode

5-Channel Amplifier

CXX2705

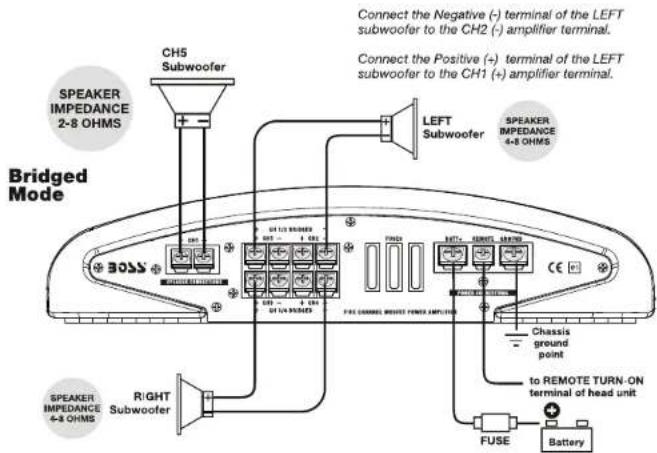

SPEAKER IMPEDANCE 2-8 OHMS CH5 Subwoofer Bridged Mode RIGHT Subwoofer SPEAKER IMPEDANCE 4-8 OHMS CH3 CH2 CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16 CH17 CH18 CH19 CH20 CH21 CH22 CH23 CH24 CH25 CH26 CH27 CH28 CH29 CH30 CH31 CH32 CH33 CH34 CH35 CH36 CH37 CH38 CH39 CH40 CH41 CH42 CH43 CH44 CH45 CH46 CH47 CH48 CH49 CH50 CH51 CH52 CH53 CH54 CH55 CH56 CH57 CH58 CH59 CH60 CH61 CH62 CH63 CH64 CH65 CH66 CH67 CH68 CH69 CH70 CH71 CH72 CH73 CH74 CH75 CH76 CH77 CH78 CH79 CH80 CH81 CH82 CH83 CH84 CH85 CH86 CH87 CH88 CH89 CH90 CH91 CH92 CH93 CH94 CH95 CH96 CH97 CH98 CH99 FUSE BATTERY

Connect the Negative (-) terminal of the LEFT subwoofer to the CH2 (-) amplifier terminal.

Connect the Positive (+) terminal of the LEFT subwoofer to the CH1 (+) amplifier terminal.

Connect the Negative (-) terminal of the RIGHT subwoofer to the CH4 (-) amplifier terminal.

Connect the Positive (+) terminal of the RIGHT subwoofer to the CH3 (+) amplifier terminal.

Power and Speaker Wiring

Tri-Mode

5-Channel Amplifier

CXX2705

Tri-mode operation allows you to connect this amplifier to a pair of main speakers plus a subwoofer on one pair of output channels. The main speakers will operate in STEREO while the subwoofer simultaneously operates in MONO.

To set up the amplifier to run in this mode, put the crossover switches in the FULL position. Insert high pass filter capacitors and a low pass filter inductor into the wiring as shown below. Be sure to check the table at the bottom of this page to determine the correct capacitor and inductor values for the crossover frequency you wish to achieve.

Tri-Mode Component values for 6dB Passive Crossover FREQUENCY INDUCTOR CAPACITOR 80 Hz 7.5mH 470uF 100 Hz 6.5mH 330uF 120 Hz 5.5mH 330uF 150 Hz 4mH 220uF CHS Subwoofer SPEAKER IMPEDANCE 2-8 OHMS LEFT Subwoofer Low pass filter inductor CH1 Speaker MINIMUM SPEAKER IMPEDANCE 4 OHMS CH2 Speaker THY CHANNEL, MAX/THY POWER AMPTUER CHASSIS ground point to REMOTE TURN-ON terminal of head unit FUSE Battery MINIMUM SPEAKER IMPEDANCE 4 OHMS SPEAKER IMPEDANCE & OHMS HIGH PASS FILTER Crossover CH4 Speaker High pass filter crossover CH3 Speaker SWEER Filter Inductor RIGHT Subwoofer

CHAOS EXXTREME II MOSFET Amplifier User's Manual • page 18

Power and Speaker Wiring

MonoBlock Mode

Monoblock Amplifiers

CXXM1250 CXXM1800 and CXXM2200

MonoBlock Mode Speaker SPEAKER IMPEDANCE 2-8 OHMS BOSS RESET REFERENCE PRESS AMOUNTED Chassis ground point to REMOTE TURN-ON terminal of head unit FUSE Battery

CHAOS EXXTREME II MOSFET Amplifier User's Manual • page 19

Troubleshooting

If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips which may help eliminate the problems.

SYMPTOM POSSIBLE REMEDY

Amplifier will not power up.	Check to make sure you have a good ground connection.Check that the Remote Input (Turn-On) has at least 3VDC.Check that there is battery power on the (+) terminal.Check that there is at least 12v.Check all fuses, replace if necessary.Make sure that the Protection LED is not illuminated. If it is lit, shut off the amplifier briefly, and then repower it.
Protection LED comes on when amplifier is powered up.	Check for short circuits on speaker leads.Turn down the volume control on the head unit to prevent overdriving.Remove speaker leads, and reset the amplifier. If the Protection LED still comes on, then the amplifier is faulty and needs servicing.
No output.	Check that all fuses are OK.Check that amplifier is properly grounded.Check that the Remote Input (Turn-On) has at least 3VDC.Check that the RCA audio cables are plugged into the proper inputs.Check all speaker wiring.
Low output.	Reset the Level Control.Check the Crossover Control settings.
Audio present in only one channel.	Check the RCA interconnect cables.Check all speaker wiring.
High hiss in the speakers.	Disconnect all RCA inputs to the amplifiers. If the hiss disappears, then plug in the component driving the amplifier and unplug its inputs. If the hiss disappears at this point, go on until the faulty/noisy component is found.It is best to set the amplifier's input level control as low as possible. The best subjective signal-to-noise ratio is achieved in this manner. Try to set the head unit as high as possible (without distortion) and the amp input level as low as possible.
Squealing noise from speakers.	Check for improperly grounded RCA interconnects.
Distorted sound.	Check that the Input Level Control is set to match the signal level of the head unit. Always try to set the Input Level as low as possible.Check that all crossover frequencies are properly set.Check for short circuits on the speaker leads.
Amplifier gets very hot.	Check that the minimum speaker impedance for the amp model is correct.Check that there is good air circulation around the amp. In some applications, it may be necessary to add external cooling fan(s).
Engine noise (static type)	This is usually caused by poor quality RCA cables,which can pick up radiated noise. Use only the best quality cables, and route them away from power cables.
Engine noise (alternator whine)	Check that speaker leads are not shorted to the vehicle chassis.Check that the RCA grounds are not shorted to the vehicle chassis.Check that the head unit is properly grounded.

Specifications

2-Channel MOSFET Amplifiers

MODEL	CXX502	CXX1002	CXX1602	CXX2002	CXX2502
RMS POWERinto 4 Ohms	75W x 2	100W x 2	220W x 2	300W x 2	380W x 2
MAX POWERinto 2 Ohms	250W x 2	500W x 2	800W x 2	1000W x 2	1250W x 2
BRIDGED POWERinto 4 Ohms	500W x 1	1000W x 1	1600W x 1	2000W x 1	2500W x 1
Min. speakerimpedance	2 Ohm Stereo4 Ohm Mono Bridged
THD	0.01%
Frequency response	9Hz-50kHz
Signal-to-noise ratio	103dB
Channel separation	90dB
Damping factor	125+
Crossover rangelow pass	35Hz-160Hz
high pass	fixed, 80Hz
Bass boost	Variable 0 - +18dB
Fuse rating	30A	40A	25A x 2	30A x 2	40A x 2
Dimensions:(11.00" x 2.87" x ...)	8.27"	12.20"	13.78"	15.75"	19.69"

MODEL	4-Channel MOSFET Amplifiers				5-Channel MOSFET Amplifier	MonoBlock MOSFET Amplifiers
	CXX1204	CXX1604	CXX2004	CXX2404	CXX2705	CXXM1250	CXXM1800	CXXM2200
RMS POWER into 4 Ohms	75W x 4	100W x 4	150W x 4	200W x 4	120W x 4 + 200W x 1	250W x 1	450W x 1	500W x 1
MAX POWER into 2 Ohms	200W x 4	250W x 4	400W x 4	500W x 4	300W x 4 + 600W x 1	1100W x 1	1800W x 1	2000W x 1
BRIDGED POWER into 4 Ohms	400W x 2	500W x 2	800W x 2	1000W x 2	600W x 2 + 600W x 1	n/a	n/a	n/a
Min. speaker impedance	2 Ohm Stereo4 Ohm Mono Bridged
THD	0.01%
Frequency response	9Hz-50kHz
Signal-to-noise ratio	103dB						9Hz-130Hz	9Hz-130Hz
Channel separation	90dB
Damping factor	125+
Crossover range low pass	35Hz-160Hz						60Hz-130Hz	60Hz-130Hz
high pass	fixed, 80Hz						n/a	n/a
Bass boost	Variable 0 - +18dB						0 - +12dB	0 - +12dB
	Switchable 0 / +18dB				0 / +18dB	0 / +18dB
Input mode selector	n/a	n/a	n/a	n/a	4CH/SCH	n/a	n/a	n/a
Fuse rating	25A x 2	30A x 2	35A x 2	30A x 3	30A x 3	30A	30A x 2	30A x 2
Dimensions: (11.00" x 2.87" x ...)	12.99"	13.75	16.93"	23.23"	20.26"	10.63"	13.76"	16.93"

All specifications subject to change without notice.
