Product Type	Wired Dynamic Microphone
Brand	AmpliVox
Model	SW212
Category	Microphone
Color	Black
Material	Metal body with grille
Connectivity	Wired (XLR output)
Frequency Response	50 Hz - 15 kHz
Impedance	600 ohms
Sensitivity	-54 dBV/Pa
Output Connector	3-pin XLR male
Cable Length	15 ft (4.5 m) detachable
Included Accessories	Microphone clip, cable, carrying pouch
Dimensions (H x W x D)	7.5 x 7.5 x 12 in (19 x 19 x 30 cm)
Weight	0.9 lbs (0.4 kg)
Power	No batteries required (passive dynamic)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Warranty	1 year limited
Certifications	CE, RoHS
Manual Included	Yes (downloadable PDF)

Frequently Asked Questions - SW212 AmpliVox

How do I connect the SW212 microphone to my sound system?

Connect the XLR cable to the microphone and plug the other end into a mixer or amplifier with an XLR input. Ensure the channel is turned down before connecting to avoid loud pops. For best results, use a balanced XLR cable.

What type of cable does the SW212 use?

The SW212 comes with a detachable 15 ft (4.5 m) XLR cable. You can replace it with any standard 3-pin XLR male to female cable if needed.

Is the SW212 compatible with mixers and amplifiers?

Yes, the SW212 is compatible with any device that has an XLR microphone input, including mixers, PA amplifiers, and audio interfaces. It works with both dynamic and line-level inputs.

How should I clean and maintain the microphone?

Wipe the exterior with a soft, dry cloth. For the grille, use a soft brush to remove dust. Avoid liquids near the capsule. Store in a dry place. Do not use abrasive cleaners or solvents.

Can I use the SW212 for recording vocals?

Absolutely. The SW212 is a dynamic microphone suitable for both live performances and recording vocals. Its frequency response is tailored for speech and singing. Use a pop filter to reduce plosives.

What is the polar pattern of the SW212?

The SW212 typically features a cardioid polar pattern, which picks up sound from the front and rejects noise from the sides and rear. This helps reduce feedback and background noise.

Does the SW212 require phantom power?

No, the SW212 is a dynamic microphone and does not need phantom power. It works purely on electromagnetic induction. Connecting phantom power will not damage it, but it is unnecessary.

How do I reduce feedback when using the SW212?

Position the microphone close to your mouth and point it away from speakers. Use a cardioid pattern to reject rear sound. Reduce monitor volume and avoid placing speakers directly behind the microphone.

What is the warranty period for the AmpliVox SW212?

The AmpliVox SW212 comes with a 1-year limited warranty covering defects in materials and workmanship. Keep your proof of purchase for warranty claims.

Where can I find the user manual for the SW212?

The user manual is available as a free PDF download on the product page at notice-facile.com or the AmpliVox website. Search for SW212 AmpliVox manual to access it.

USER MANUAL SW212 AmpliVox

WIRELESS RECHARGEABLE MITY-VOX AMPLiVox PL RF1 MIC CO IN TREBLE BASS ECHO MIC CO IN REC OUT ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

PARTS DESCRIPTION

1 Wireless Antenna - adjustable
2 On/Off Switch & Power Indicator light
3 Wireless Mic Volume & Indicator Light
4 Wired Microphone Jack with Volume Control
5 Audio input jack w/ volume control
6 Treble/Base Control
7 Jack Out for Recording
8 Reverb/Echo control
9 Speaker 6.5-in
10 Wireless Handheld Mlc or Lapel Mlc with Transmitter
11 Power Cord & Audio Input Cable
12 Handle

FRONT VIEW

Coiled black audio jack with three leads and a separate 3-pin microphone (no text or symbols visible)

OPERATING INSTRUCTIONS

1. Ready to speak out of the box!

a. AC power - Before use, please make sure the voltage of power supply is the same as that indicated on the unit. If different, it will cause damage to the unit.
b. DC power – supplied from the DC input jack. The voltage should be 12V-15V
c. Battery - Included SLA (sealed lead acid) rechargeable battery.

1. Before switching the unit on, adjust the master volume, treble, bass and echo (reverb) controls to minimum, then turn unit on. Adjust levels accordingly.
2. If feedback occurs turn down the treble tone control. If feedback still exists, turn master volume down.
3. If volume is getting lower, receiving distance is shortened or sound is not normal, change the batteries.
4. The wireless microphone and wired microphone can be used together.

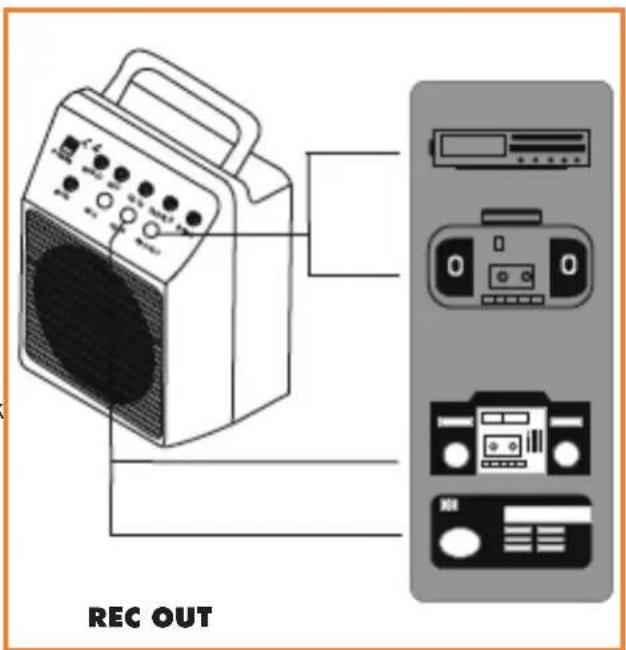

5. CD IN can connect with the portable Radio, CD player, VCR player or MP3 Player and other sound sources.
6. REC OUT can connect with a recorder to have on-site recording of your presentation OR with the output jack of a larger amplifier to enlarge the coverage. You can also plug into a house system.

REC OUT

Labeled diagram of a device showing internal components with numbered annotations for identification.

REAR VIEW

PARTS DESCRIPTION

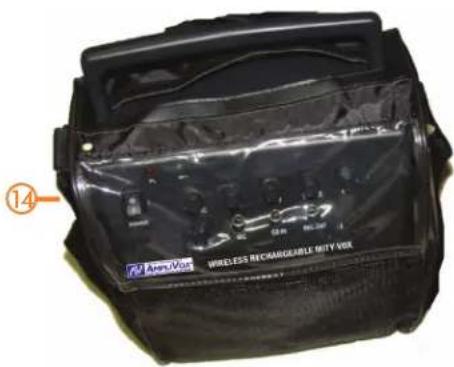

14 Carrying Case

15 Rechargeable Battery

16 Compartment for AC cord

17 AC Input

18 Fuse

19 Camera Tripod Mount

20 Optional Alkaline Battery Compartment

21 DC Input Jack

22 Charge LED Indicator

23 Power Supply Label

Wireless Rechargeable MITY V68 Aren V68 120 W. 350-200 V.

1. When not using the system, remember to turn off the ON/OFF switch of the microphone and turn off the switch on the amplifier in order to avoid wasting power.
2. Do not use different brands of batteries together or mix old and new batteries together. Always change all 8 batteries at the same time.
3. Remove the optional 8-D cell batteries when the amplifier will not be used for long periods of time, since they can leak and damage the unit. Our warranty does not cover damage caused by leaking batteries.
4. Don't open the chassis.
5. Don't get unit wet.
6. Don't use any volatile chemicals on unit.

If you have any questions please call 1-800-267-5486 Monday to Friday 8 am to 6 pm CST.

Specs:

Operating Range: 64 to 128 ft (20-40m)

Receiving Mode: VHF

S/N Radio: 60dB

Dynamic Range: 80dB

Power: 30 Watts

Impedance: 600 Ohm

Amplifier Battery: Built in SLA

rechargeable or optional 8 D-cells

Transmitter Battery: 9V

Frequency Range: 100 - 15,000Hz

VHF FM Band

1 Unbalanced 6.3mm jack input for microphone

1 unbalanced 6.3mm jack for CD

1 unbalanced 6.3mm jack out for REC

Dimensions: 11.25-in. H x 9-in. W x 6.5-in.D

Weight: 7.5 lbs. without batteries
