Product Type	Electric Kettle
Brand	Breville
Model	VKJ718
Capacity	1.7 L
Power	1500 W
Voltage	120 V (US) / 230 V (EU) depending on region
Frequency	50/60 Hz
Weight	1.2 kg
Dimensions	22.5 x 17.0 x 24.0 cm
Cord Length	0.75 m
Material	Stainless Steel body with BPA-free plastic lid
Color	Stainless Steel / Black
Temperature Settings	Variable: 50°C to 100°C in 5°C increments
Keep Warm Function	Up to 30 minutes
Boil Dry Protection	Yes
Auto Shut-Off	Yes
Cool Touch Handle	Yes
360° Swivel Base	Yes
Water Level Window	Yes, with markings
Filter	Removable scale filter
Descaling	Regular descaling recommended with vinegar or citric acid
Warranty	2 years (subject to region)
Repair Information	Spare parts available via Breville customer service

Frequently Asked Questions - VKJ718 BREVILLE

How do I set the temperature on the Breville VKJ718 kettle?

Press the temperature button repeatedly to cycle through the preset temperatures (50, 65, 80, 85, 95, 100°C). The selected temperature will be indicated on the display.

Can I keep the water warm after boiling?

Yes, the Keep Warm function automatically activates after boiling and holds the water at the selected temperature for up to 30 minutes.

How do I descale the kettle?

Fill the kettle with a mixture of 50% white vinegar and 50% water up to the MAX line. Boil, then let it sit for 30 minutes. Empty, rinse thoroughly, and boil fresh water twice to remove any residue.

What does the boil-dry protection do?

If the kettle is accidentally turned on without enough water, the boil-dry protection automatically switches it off to prevent damage.

Why does my kettle make a clicking sound?

The clicking sound is normal; it is the thermostat switching on and off to maintain the water temperature.

How do I clean the scale filter?

Remove the filter by pulling it up from the spout. Rinse under running water while brushing with a soft brush. Replace it after cleaning.

What is the correct water level to fill?

Fill between the MIN and MAX markings on the water window. Do not overfill to avoid spitting during boiling.

Can I use the kettle to boil other liquids?

No, only water should be boiled in this kettle. Other liquids can damage the appliance and void the warranty.

How long does it take to boil a full kettle?

Boiling a full 1.7L kettle typically takes 4-6 minutes, depending on the starting water temperature.

Is the kettle suitable for use with a power strip?

It is recommended to plug the kettle directly into a wall outlet. If a power strip is unavoidable, ensure it is rated for at least 1500W.

USER MANUAL VKJ718 BREVILLE

Black glass coffee kettle with water bubbles, labeled 'Breville' at bottom (no other text or symbols visible)

glass jug kettle

instruction booklet

Close-up of a black and white kitchen blender with liquid being poured into it (no text or symbols visible)

This product can be used by children aged 8 years and above, and persons who require supervision, provided:

• they are familiar with the hazards associated with the product, and,
• they receive instruction by a competent person on how to safely use the product.

Children must not play with the product. Cleaning and user maintenance must not be done by children unless they are aged 8 or older and are supervised.

Never use a power base other than the one supplied with the appliance.

Never fill the kettle above the MAX marking. If the kettle is overfilled, boiling water may be ejected.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Please read these instructions before operating the appliance and retain them for future use.

This appliance generates heat during use. Adequate precaution must be taken to prevent the risk of burns, scalds, fires or other damage to persons or property caused by touching the exterior whilst in use or during cooling.
⚠️ Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.
⚠ Always ensure that hands are dry before handling the plug or switching on the appliance.
⚠ Always use the appliance on a stable, secure, dry and level surface.
This appliance must not be placed on or near any potentially hot surfaces (such as a gas or electric hob).
⚠ Do not use the appliance if it has been dropped, if there are any visible signs of damage or if it is leaking.
⚠ Ensure the appliance is switched off and unplugged from the supply socket after use and before cleaning.
△Always allow the appliance to cool before cleaning or storing.
⚠️ Never immerse any part of the appliance or power cord and plug in water or any other liquid.
⚠️ Never let the power cord hang over the edge of a work top, touch hot surfaces or become knotted, trapped or pinched.
⚠️Never leave the appliance unattended when in use.
⚠ Beware of steam coming from the spout or lid especially during refilling. Never open the lid during the boiling cycle.
⚠️Never fill the appliance when it is positioned on the power base.
⚠️ Never use the kettle without sufficient water in the kettle for it to operate correctly.
⚠️Never allow the appliance to boil dry.

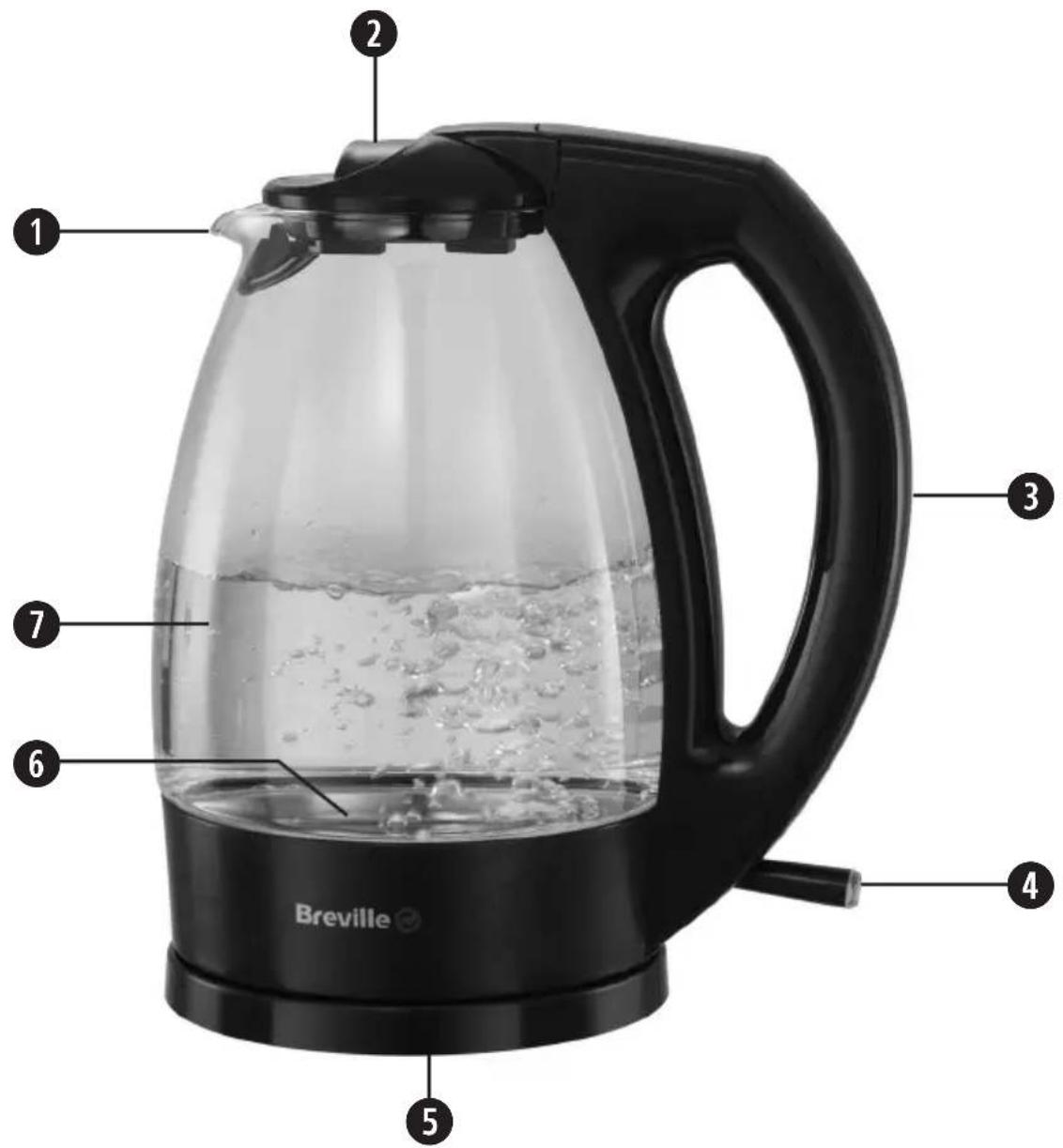

1 2 3 4 5 6 7 Breville

1 Spout
2 Lid
3 Handle
4 Illuminated on/off switch
5 360° rotational power base with cord storage
6 Easy clean, fast boil concealed element
7 Schott glass body

Due to our policy of continuous improvement, the actual product may differ slightly from the one illustrated in these instructions.

Before first use

Remove any packaging and promotional material from your kettle and position it on a stable, secure, dry and level work surface away from the edge.

Before connecting to a power source, make sure your mains supply voltage is the same as the one indicated on the appliance. Connect the plug to a suitable power outlet and make sure that the power cord does not overhang the work surface. Excess power cord can be stored in the power base.

Remove your kettle from the power base and open the lid. Fill your kettle to the maximum mark and close the lid.

Place your kettle back onto the power base. Switch your kettle on, allow it to boil then discard the water. Repeat twice. This will remove any residue left over from the manufacturing process.

If this kettle is filled above the maximum level mark, hot water may be ejected from the spout during boiling.

Beware of steam coming from the spout or lid especially during refilling. Never open the lid when the kettle is boiling.

1. With your kettle switched off, plug the power base into a suitable power outlet.
2. Remove your kettle from the power base before filling it with water.
3. Fill your kettle with water. You can fill it through the spout or by opening the lid. Don't overfill your kettle and always ensure that there is sufficient water in your kettle for it to operate correctly. This is approximately 250ml or 1 teacup full. Always check the water level when your kettle is positioned on its power base.
4. If opened previously, close the lid and then switch your kettle on. Make sure that the lid is correctly closed to ensure safe operation.
5. When your kettle is switched on, the on/off switch will illuminate.
6. When the water reaches boiling point, your kettle will switch off automatically.
7. You may also switch your kettle off manually at any time by moving the switch to the off position.

Always use caution when carrying your kettle when it is full of boiling water and when pouring it.

If your kettle boils dry

If your kettle is operated with insufficient water a built in fail-safe device will automatically switch it off.

• Unplug your kettle and allow it to cool. When it has cooled down sufficiently the safety device will reset itself.
• Once the safety device has reset, refill your kettle with cold water and use it as normal.

Energy saving hints and tips

A Breville kettle, if used correctly, is a very energy efficient device. Why not try some of these energy saving tips:

• Only boil the water you need. Overfilling your kettle by one cup is the equivalent to using an energy saving light bulb for one hour!
• It is not always necessary to re-boil your kettle. For example, one litre of water will still be at 90°C after five minutes—the perfect temperature for a cup of coffee.

Always unplug the kettle from the mains supply socket and allow it to completely cool down before cleaning or descaling it. Do not immerse the kettle, power base or power cord and plug in water or any other liquid.

1. Clean the exterior surface of the kettle with a damp cloth and then polish with a soft dry cloth. Do not use steel wool pads or harsh/abrasive cleaners.
2. In hard water areas, your kettle may require descaling occasionally. Use a proprietary descaling product following the manufacturer's instructions carefully. If required, carefully clean the filter with a soft brush.

This appliance must be earthed.

This appliance is fitted with either a moulded or rewirable BS1363, 13 amp plug. The fuse should be rated at 13 amps and be ASTA approved to BS1362.

If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted. The appliance must not be used without the fuse cover fitted.

If the plug is unsuitable, it should be dismantled and removed from the supply cord and an appropriate plug fitted as detailed below. If you remove the plug it must not be connected to a 13 amp socket and the plug must be disposed of immediately.

The wires of the mains lead are coloured in accordance with the following code:

$$ \text { GREEN / YELLOW } = \text { EARTH } $$

$$ \text { BLUE } = \text { NEUTRAL } $$

$$ B R O W N = L I V E $$

The wire which is coloured GREEN/YELLOW must be connected to the terminal in your plug which is marked with an E or by the earth symbol ( 12 or coloured GREEN or GREEN/YELLOW.

The wire which is coloured BLUE must be connected to the terminal in your plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in your plug which is marked with the letter L or coloured RED.

If any other plug is used, a 13 amp fuse must be fitted either in the plug or adaptor or at the distributor board.

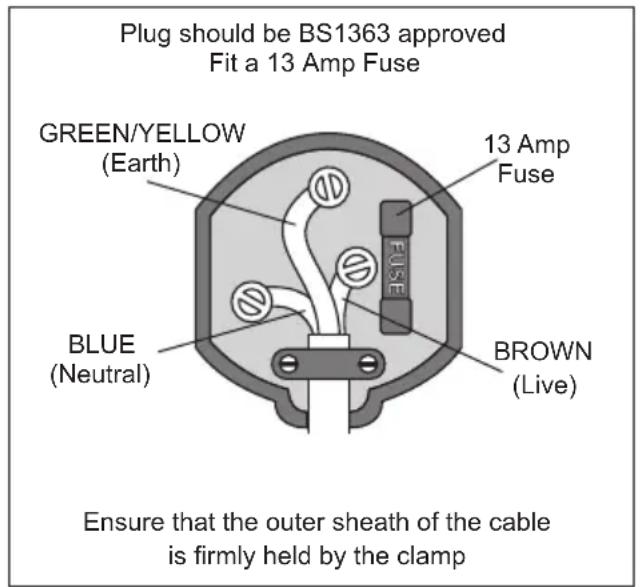

Plug should be BS1363 approved Fit a 13 Amp Fuse GREEN/YELLOW (Earth) 13 Amp Fuse BLUE (Neutral) BROWN (Live) Ensure that the outer sheath of the cable is firmly held by the clamp

These appliances are built to the very highest of standards. There are no user serviceable parts. Follow these steps if the unit fails to operate:

1. Check the instructions have been followed correctly.
2. Check that the fuse has not blown.
3. Check that the mains supply is functional.

If the appliance will still not operate, return the appliance to the place it was purchased for a replacement. To return the appliance to the Customer Service Department, follow the steps below:

1. Pack it carefully (preferably in the original carton). Ensure the unit is clean.
2. Enclose your name and address and quote the model number on all correspondence.
3. Give the reason why you are returning it.
4. If within the guarantee period, state when and where it was purchased and include proof of purchase (e.g. till receipt).
5. Send it to our Customer Service Department at the address below:

Customer Service Department

Jarden Consumer Solutions (Europe) Limited

Middleton Road

Royton

Oldham

OL2 5LN, UK.

Telephone: [phone] Fax: [phone]

e-mail: [e-mail]

Please keep your receipt as this will be required for any claims under this guarantee.

This appliance is guaranteed for 1 year after your purchase as described in this document.

During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe) Limited (“JCS (Europe)”) has the right to change these terms.

JCS (Europe) undertakes within the guarantee period to repair or replace the appliance, or any part of appliance found to be not working properly free of charge provided that:

• you promptly notify the place of purchase or JCS (Europe) of the problem; and
• the appliance has not been altered in any way or subjected to damage, misuse, abuse, repair or alteration by a person other than a person authorised by JCS (Europe).

Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts of nature, events beyond the control of JCS (Europe), repair or alteration by a person other than a person authorised by JCS (Europe) or failure to follow instructions for use are not covered by this guarantee. Additionally, normal wear and tear, including, but not limited to, minor discoloration and scratches are not covered by this guarantee.

The rights under this guarantee shall only apply to the original purchaser and shall not extend to commercial or communal use.

If your appliance includes a country-specific guarantee or warranty insert please refer to the terms and conditions of such guarantee or warranty in place of this guarantee or contact your local authorized dealer for more information.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. E-mail us at [e-mail] for further recycling and WEEE information.

Jarden Consumer Solutions (Europe) Limited

Middleton Road

Royton

Oldham

OL2 5LN

UK

Pure diagram of a trash bin with diagonal lines crossing it, no text or symbols present

Breville

©2013 Jarden Consumer Solutions (Europe) Limited

All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited, Royton, Oldham OL2 SLN, United Kingdom.

The product you buy may differ from the one shown due to continuing product development. One (1) Year Limited Warranty—see inside for details. Jarden Consumer Solutions (Europe) Limited is a subsidiary of Jarden Corporation (NYSE:JAH). Made in PRC
