USER MANUAL PD01CMS NEC

INSTALLATION INSTRUCTIONS

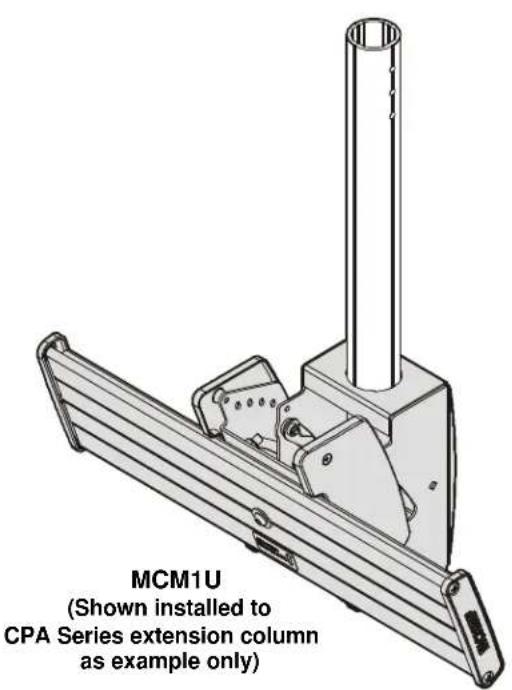

MCM1U (Shown installed to CPA Series extension column as example only)

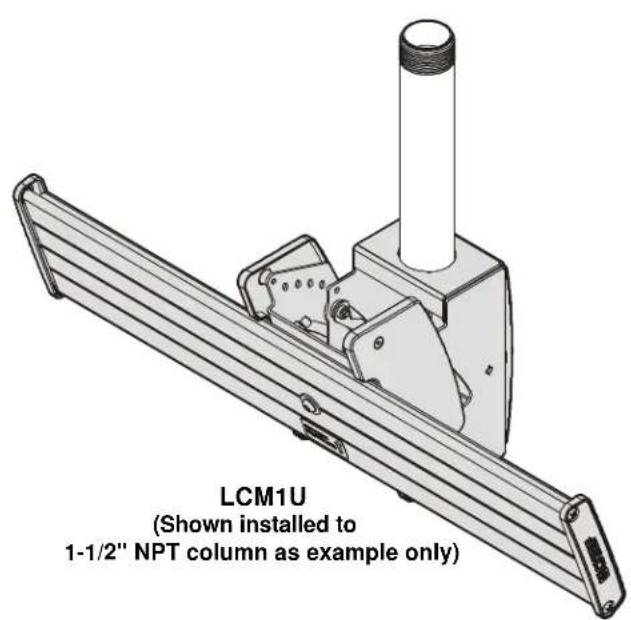

LCM1U (Shown installed to 1-1/2" NPT column as example only)

Single Flat Panel Ceiling Mounts

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located between the mount up to (and including) the display does not exceed 125 lbs (56.7 kg).

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The MCM1U/LCM1U and MCM1US/ LCM1US mounts are designed to be mounted to a 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum-ASTM B221) threaded extension column (not included); OR a UL Listed Chief CPA Series extension column (not included).

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

MCM1U/MCM1US 5.22 [132.6] 6.37 [161.7] 4.75 [120.7] 0.50 [12.7] 18.13 [460.4] MAX MOUNTING PATTERN 7.87' [200] MIN MOUNTING PATTERN 5.56 [141.3] 15.75 [400.0] MAX MOUNTING PATTERN 5.38 [136.5] 20.82 [528.8] 16.50 [419.1] 3.95 [100.2] 7.94 [201.6] 20°

LCM1U/LCM1US 5.22 [132.6] 4.25 [108.0] 6.37 [161.7] 24.25 [616.0] MAX MOUNTING PATTERN 7.87 [200] MIN MOUNTING PATTERN 5.56 [141.3] 15.75 [400.0] MAX MOUNTING PATTERN 5.38 [136.5] 26.81 [681.0] 16.50 [419.1] 3.95 [100.2] 7.94 [201.6] 20°

LEGEND

	Tighten Fastener		Adjust
	Apretar elemento de fijación		Ajustar
	Befestigungsteil festziehen		Einstellen
	Apertar fixador		Ajustar
	Serrare il fissaggio		Regolare
	Bevestiging vastdraaien		Afstellen
	Serrez les fixations		Ajuster
	Loosen Fastener		Remove
	Aflojar elemento de fijación		Quitar
	Befestigungsteil lösen		Entfernen
	Desapertar fixador		Remover
	Allentare il fissaggio		Rimuovere
	Bevestiging losdraaien		Verwijderen
	Desserrez les fixations		Retirez
	Phillips Screwdriver		Optional
	Destornillador Phillips		Opcional
	Kreuzschlitzschraubendreher		Optional
	Chave de fendas Phillips		Opcional
	Cacciavite a stella		Opzionale
	Kruiskopschroevendraaier		Optie
	Tournevis à pointe cruciforme		En option
	Open-Ended Wrench		By Hand
	Llave de boca		A mano
	Gabelschlüssel		Von Hand
	Chave de bocas		Com a mão
	Chiave a punte aperte		A mano
	Steeksleutel		Met de hand
	Clé à fourche		À la main
	Hex-Head Wrench
	Llave de cabeza hexagonal
	Sechskantschlüssel
	Chave de cabeça sextavada
	Chiave esagonale
	Zeskantsleutel
	Clé à tête hexagonale

TOOLS REQUIRED FOR INSTALLATION

1/2" or 13mm

2

3/32" (included)
1/8" (included)
5/32" (included)
M5 (included)

PARTS

[Interface Bracket Hardware Kit]

A (8)
M4x16mm

x20mm

C (6)
M4x25mm

D (6)
M5x16mm

E (6)
M5x20mm

F (6)
M5x25mm

G (6)
M6x16mm

H (6)
M6x25mm

I (6)
M8x20mm

J (6)
M8x30mm

M8x50mm

L (8)
750x.323x.250

M (8)
.750x.344x.500

N (8)
Universal
washer]

[In bag
labeled "N"]

O(1)
Q(1) 3/32"

R (1) 1/8"

S (1) 5/32"

T(1)
10-24×1/4"

U (2)
5/16" × 1"

V (2) 5/16"

W (4)
10-24" × 1/2"

5/16" × 3/4"

Y(2)
10-24 x 1/2"

Z (2) 10-24

AA (1)
[Bottom stop collar]
(Used with CPA Series extension column system)

BB (1)
[Bottom coupling]
(Used with 1-1/2"
NPT column system)

CC (1) teiling mount - MCM1U/MCM1US1

OR

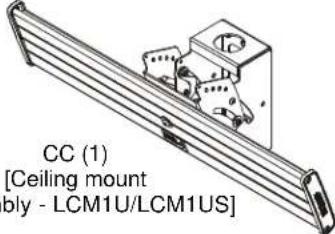

CC (1) [Ceiling mount bly - LCM1U/LCM1US]

assembly - LCM1U/LCM1US]

DD (1)
[Back cover]

EE (2)
[Side cover]

FF (2)
[Interface bracket]

GG (4)
[Interface
bracket cover]

HH (2)
10-24 × 5/8"

INSTALLATION

WARNING: FAILURE TO PROVIDE ADEQUATE STRUCTURAL STRENGTH FOR THIS COMPONENT CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

IMPORTANT ! : These instructions assume that a 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum-ASTM B221) threaded extension column (not included); or a UL Listed Chief CPA Series extension column (not included) -- has been properly installed and is in place.

NOTE: Proceed to Attaching Mount to NPT Column section or Attaching Mount to CPA Extension Column section, as appropriate.

Attaching Mount to NPT Column

CAUTION: WATCH FOR PINCH POINTS! Do not place fingers between moveable parts.

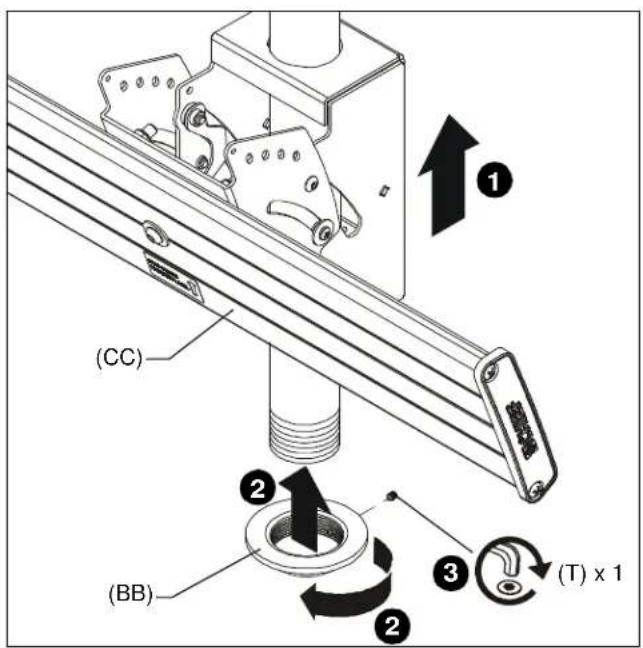

1. Slide ceiling mount (CC) up from below onto installed column (not included). (See Figure 1)
2. Thread bottom coupling (BB) onto installed column until tight, with a minimum of four threads engaged.

(CC) (BB) ① ② ③ ④ (T) x 1

Figure 1

1. Install and tighten one 10-24 x 1/4" set screw (T) into bottom coupling (BB). (See Figure 1)

2. Install and tighten two 5/16" set screws (X) through back of mount (CC) and against column. (See Figure 2)

(X) x 2

Figure 2

Attaching Mount to CPA Extension Column

CAUTION: WATCH FOR PINCH POINTS! Do not place fingers between moveable parts.

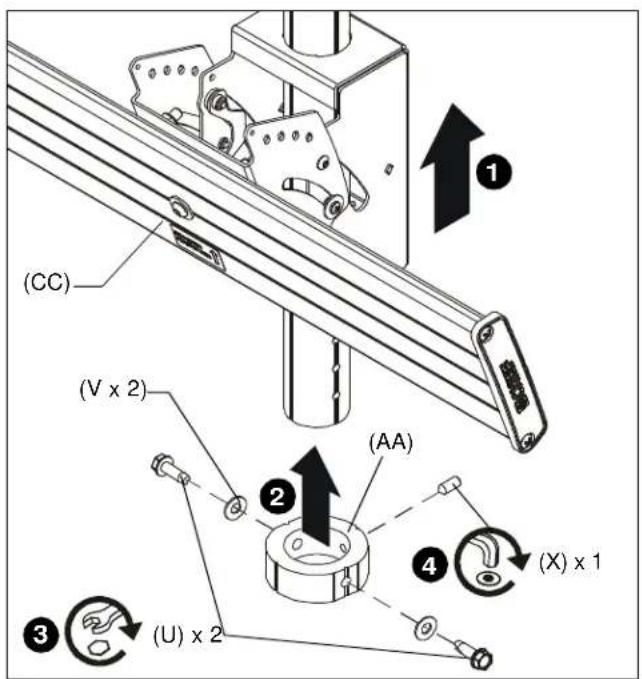

1. Slide ceiling mount (CC) up from below onto installed column (not included). (See Figure 3)
2. Slide bottom stop collar (AA) onto installed column, lining up holes in collar with holes in column.

(CC) (V x 2) (AA) (3) (U) x 2 (1) (4) (X) x 1

Figure 3

1. Install two 5/16" x 1" self-tapping screws (U) through two 5/16" flat washers (V), bottom stop collar (AA), and into installed column.

2. Install and tighten 5/16" x 3/4" set screw (X) into bottom stop collar (AA). (See Figure 3)

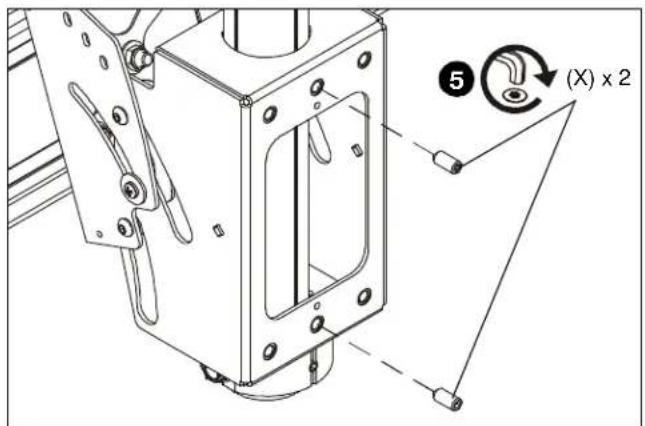

3. Install and tighten two 5/16" x 3/4" set screws (X) through back of mount (CC) and against column. (See Figure 4)

(X) x 2

Figure 4

Attaching Interface Brackets to Display

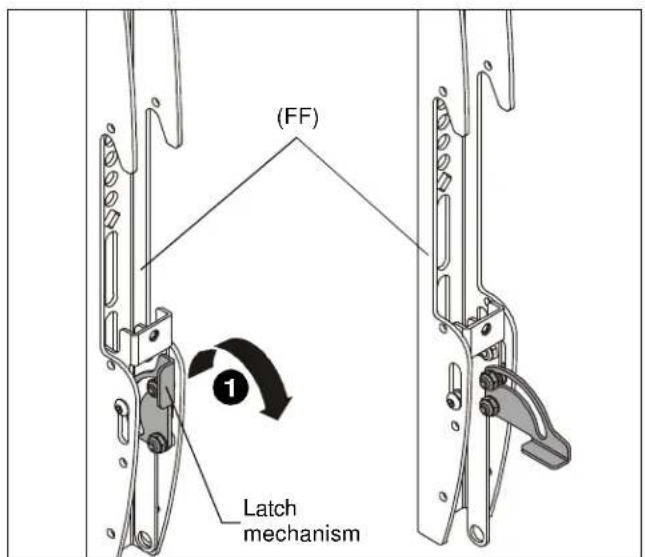

1. Lower the latch mechanism on each interface bracket (FF). (See Figure 5)

(FF) 1 Latch mechanism

Figure 5

1. Align the center of the interface bracket (FF) with center of screen. (See Figure 6)

NOTE: The diamond-shape hole in the bracket corresponds to the center of the mount.

(L or M) (N) (2) Center of bracket (FF) 3 (A-K)

Figure 6

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display. Properly sized screws will easily and completely thread into display mounting holes. If spacers are required, be sure to use longer screws of the same diameter.

1. Select correct screws, spacers (if necessary) and universal washers from the hardware bag (A-N) and attach brackets (FF) to back of screen. (See Figure 6)

Attaching Display to Ceiling Mount

1. Ensure that the latch mechanisms on interface brackets (FF) are already lowered. (See Figure 5)

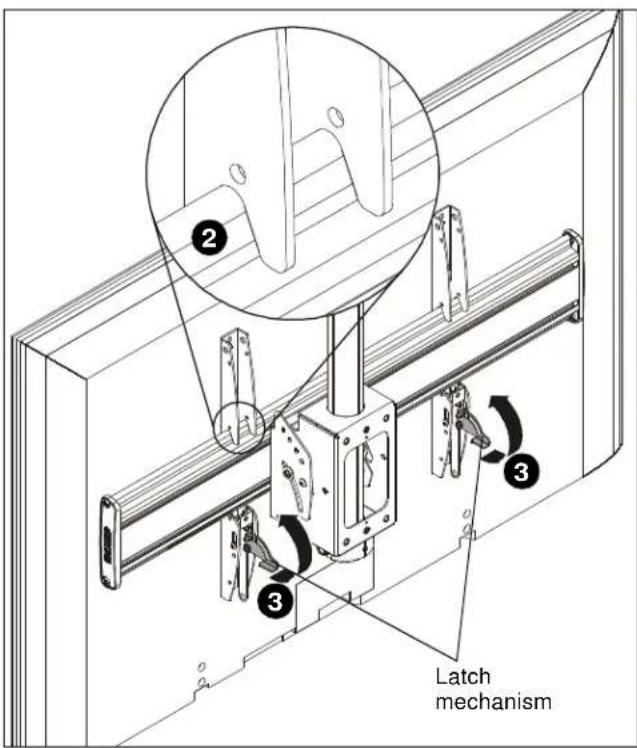

2. While supporting both sides of display, lower display onto ceiling mount, hooking top of interface brackets onto front of ceiling mount. (See Figure 7)

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The display MUST be centered on the ceiling mount.

Latch mechanism

Figure 7

1. Raise the latch mechanism on both interface brackets to lock bracket in place. (See Figure 7)
2. Fasten bracket against ceiling mount extrusion using one 10-24 x 5/8" button head cap screw (HH). (See Figure 8)
3. Repeat for other interface bracket.

(Ceiling mount not shown for clarity) (HH) x 2

Figure 8

Adjustments

CAUTION: Watch for pinch points! Do not place fingers between moveable parts.

IMPORTANT ! : Always use two hands (one at bottom of display and one at top of display) to adjust ceiling mount.

Roll

The ceiling mounts allow up to 3° roll each direction.

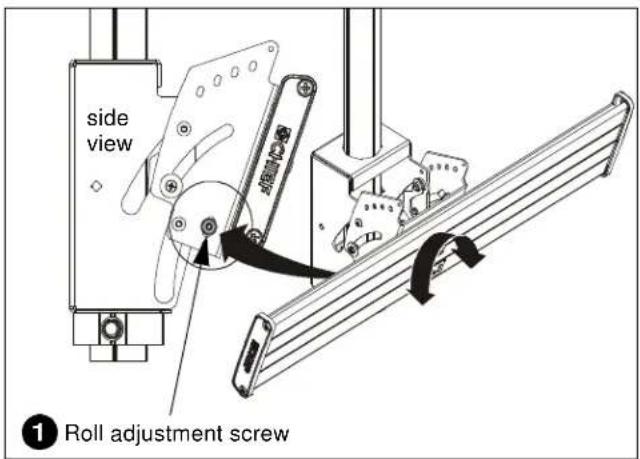

1. Turn the roll adjustment screw in the direction necessary for the desired roll. (See Figure 9)
2. Stop adjusting when the desired setting is reached.

side view 1 Roll adjustment screw

Figure 9

Tilt

The ceiling mounts allow -5^ to 20^ tilt. The ceiling mount can be locked at 0^ , 5^ , 10^ and 15^ tilt.

1. Loosen two tilt friction screws (located each side). (See Figure 10)
2. Adjust tilt as required. Note specific degrees of tilt. (See Figure 10)
3. Tighten two tilt adjustment screws if NOT using the 0°, 5°, 10° or 15° settings.

Tilt friction screw 4 3 5 -5° 10° 5° 0° 15° 20°

Figure 10

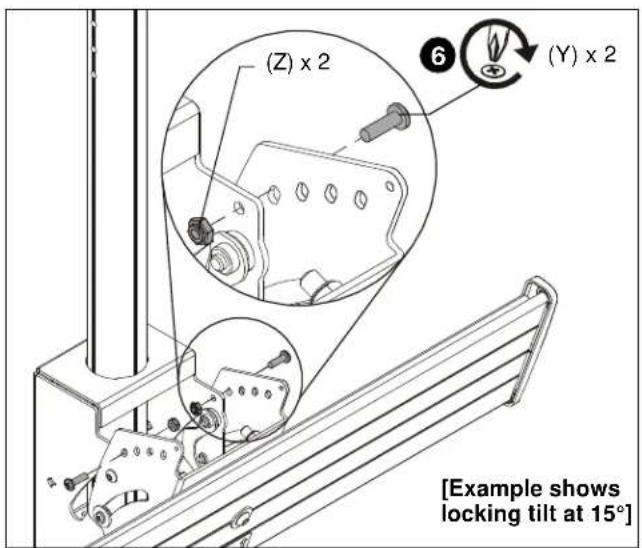

1. If using the tilt settings of 0^ , 5^ , 10^ or 15^ , insert two 10-24 x 1/2" Phillips head screws (Y) and two 10-24 lock nuts (Z) to lock mount at the specific tilt. (See Figure 11)

(Z) x 2 (Y) x 2 [Example shows locking tilt at 15°]

Figure 11

OPTIONAL: Security

1. OPTIONAL: Add padlock (not included) to each interface bracket to lock display to ceiling mount. (See Figure 12)

Padlock (Optional) (Ceiling mount not shown for clarity)

Figure 12

Installing Covers

1. Install four interface bracket covers (GG) over the top and bottom of both interface brackets. (See Figure 13)

NOTE: Be sure to line up tabs inside the bracket covers with holes on sides of interface brackets. (See Figure 13)

Technical diagram showing mechanical assembly with labeled components and directional arrows, including a label (GG) pointing to a component.

Figure 13

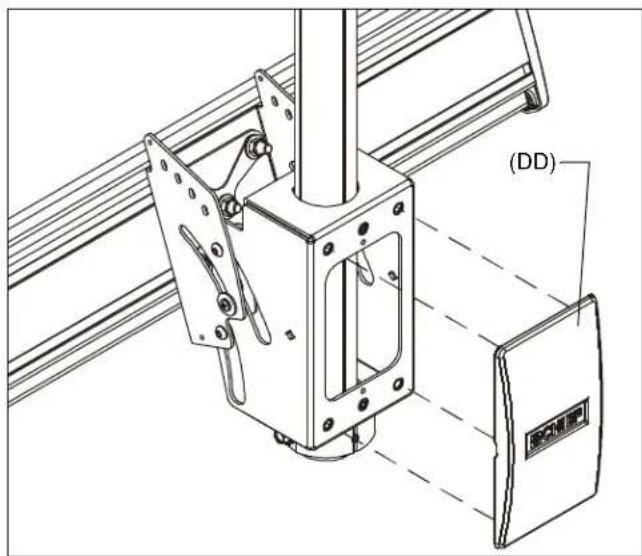

1. Install back cover (DD) into four holes on back of ceiling mount. (See Figure 14)

Technical line drawing of a mechanical assembly with mounting bracket and control panel (no text or symbols)

Figure 14

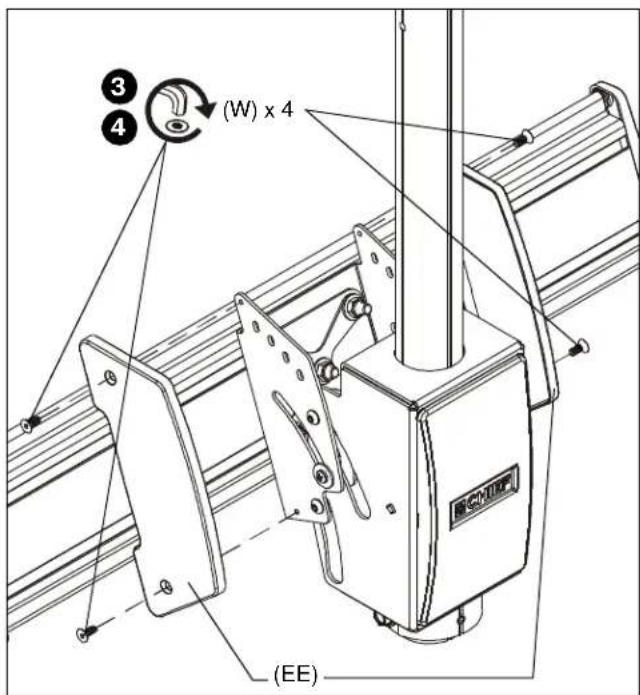

1. Install one side cover (EE) onto side of ceiling mount using two 10-24 x 1/2" flat head screws (W). (See Figure 15)
2. Repeat for other side of ceiling mount.

(W) x 4 (EE)

Figure 15

MCM1U / LCM1U / MCM1US / LCM1US

Installation Instructions
