USER MANUAL M56-190AWFX MCCULLOCH

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Keep people and animals well away from the working area.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

Warning: rotating parts. Keep hands and feet clear.

This product is in accordance with applicable EC directives.

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in the Technical data chapter and on the label.

Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas.

Risk of explosion

Always shut off the engine before refuelling.

Hot surface.

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT!

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

Contents

KEY TO SYMBOLS

Key to symbols 2

Explanation of warning levels 2

PRESENTATION

Contents 3

Dear Customer, 3

WHAT IS WHAT?

What is what on the lawn mower? 4

MACHINE'S SAFETY EQUIPMENT

General 5

ASSEMBLING AND ADJUSTMENTS

General 6

Handle 6

Cutting height 6

Catcher 6

Mulcher insert 6

Filling with oil 6

FUEL HANDLING

General 7

Fuel 7

Fueling 7

Transport and storage 7

OPERATING

Personal protective equipment 8

General safety precautions 8

Basic working techniques 9

Transport and storage 9

Starting and stopping 10

MAINTENANCE

General 11

Maintenance schedule 11

General inspection 11

Spark plug 12

Adjusting the clutch wire 12

Air filter 12

Oil change 12

Fuel system 12

TECHNICAL DATA

Technical data 13

EC-declaration of conformity 14

Dear Customer,

Thank you for choosing a McCulloch product. You are thereby part of a story that started long ago, when the McCulloch Corporation started its manufacturing of engines during World War II. In 1949, when McCulloch introduced its first light one-man chainsaw, woodworking would never be the same again.

The line of innovative chainsaws would continue over the decades, and business was expanded, first by airplane and kart engines in the 1950s, then by mini chainsaws in the 1960s. Later, in the 1970s and 80s, trimmers and blower vacs were added to the range.

Today, as a part of the Husqvarna group, McCulloch continues the tradition of powerful engines, technical innovations, and strong designs that have been our hallmarks for more than half a century. Lowering fuel consumption, emissions and noise levels are of top priority to us, as is improving safety and user-friendliness.

We certainly hope that you will be satisfied with your McCulloch product, as it is designed to be your companion for a long time. By following this operators manual's advice on usage, service, and maintenance, its lifespan can be extended. If you should need professional help with repair or service, please use the Service Locator at www.mcculloch.com.

McCulloch has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

This manual can also be downloaded at www.mcculloch.com.

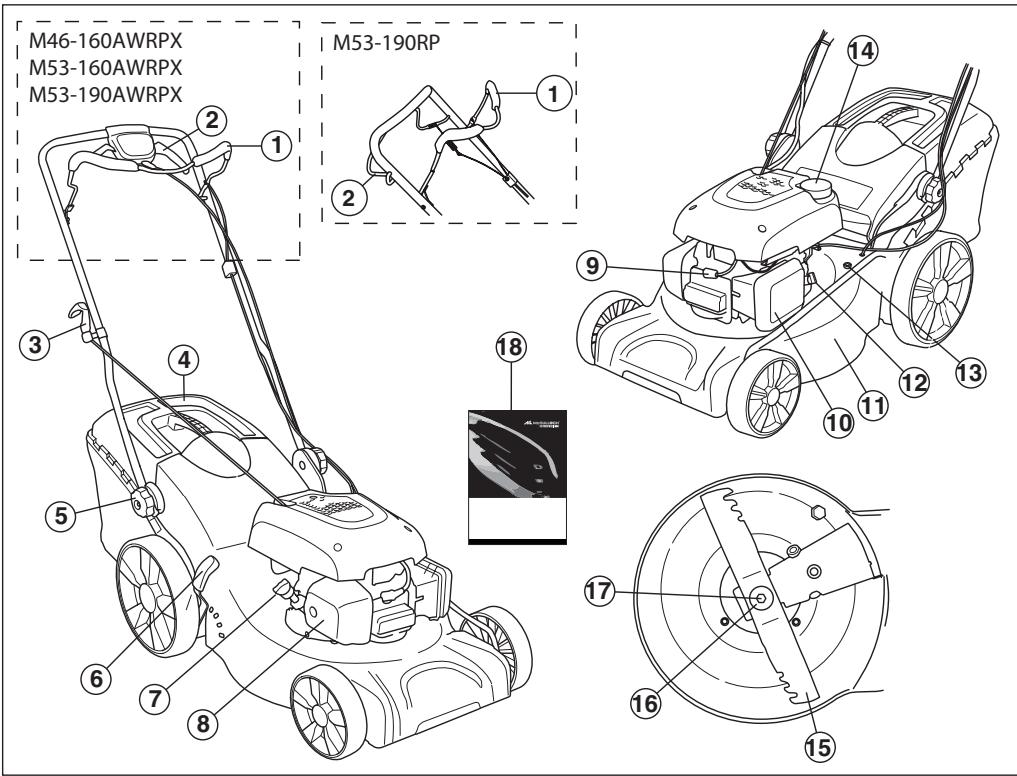

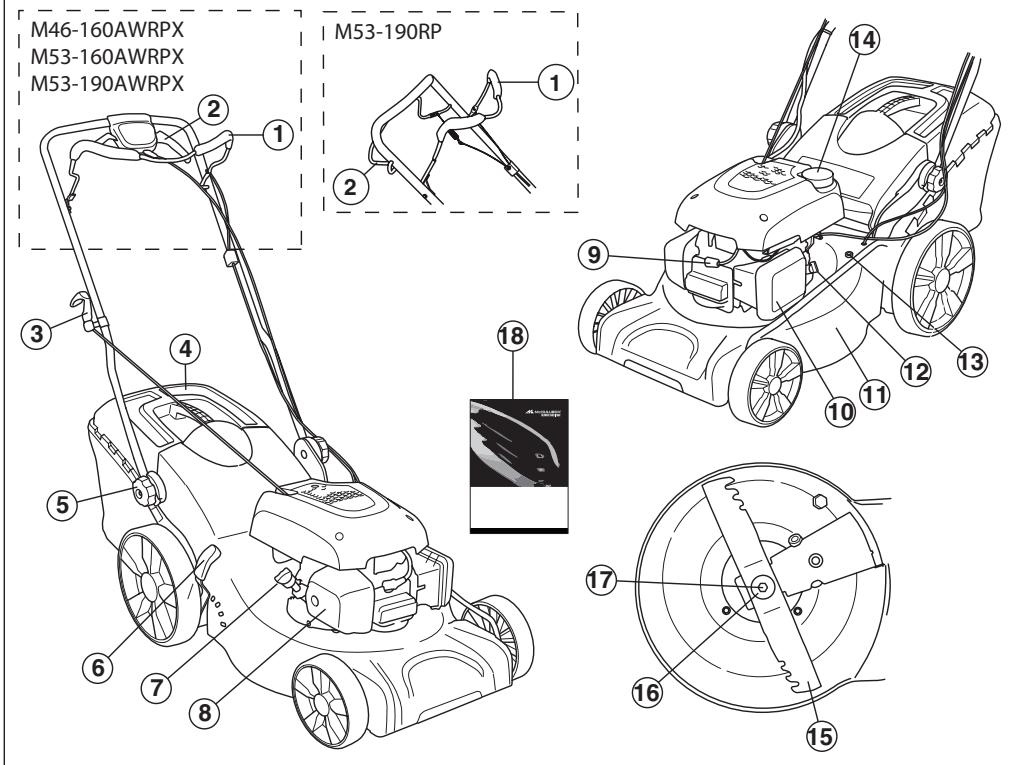

What is what on the lawn mower?

1 Engine brake handle
2 Propulsion bar
3 Starter handle
4 Catcher
5 Handle, handle height
6 Cutting height control
7 Dipstick/oil filler
8 Muffler
9 Spark plug

10 Air filter
11 Cutting cover
12 Fuel valve
13 Water connector
14 Refuelling
15 Cutter
16 Spring washer
17 Cutter bolt
18 Operator's manual

General

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

WARNING! Never use a machine that has faulty safety equipment! If your machine fails any checks contact your service agent to get it repaired.

Prevent unintentional starting by removing the ignition cable from the spark plug.

Cutting cover

• The cutting cover is designed to reduce vibration and to reduce the risk of cuts.

Checking the cutting cover

• Make sure the cutting cover is not damaged and that there are no visible defects such as cracks.

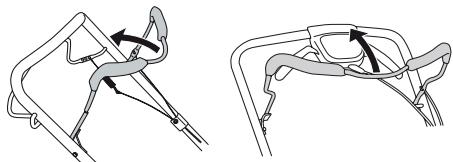

Engine brake handle

• The engine brake is designed to stop the engine. When the grip on the engine brake handle is released the engine should stop.

Checking the engine brake handle

Apply full throttle and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds.

Muffler

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

• The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Inspecting the muffler

• Check regularly that the muffler is complete and secured correctly.

General

IMPORTANT! Prevent unintentional starting by removing the ignition cable from the spark plug.

Handle

Assembly

Top handle

Place the handlebar's tubular construction in direct opposite to the lower part of the handlebar. Tighten the knobs properly.

Settings

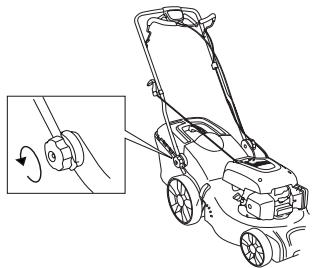

Handle height

• Loosen the lower knobs.

• Adjust the height. Tighten the knobs properly.

Cutting height

NOTICE! Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.

Move the lever to the back for higher cutting height and to the front for lower cutting height.

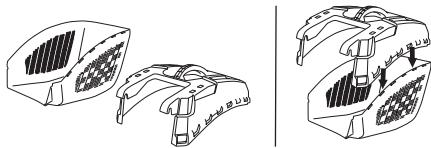

Catcher

• Fit the catcher bag.

• Attach the hooks in the upper edge of the chassis.

• Fit the bagger bottom in the discharge hole.

Mulcher insert

• Raise the discharge guard to mount / dismount the mulch plug.

Hook the spring in the frame.

Filling with oil

• The oil tank is empty at delivery. Fill the oil slowly. See instructions under the heading Maintenance. The engine oil should be changed the first time after 5 hours running time.

General

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

Fuel

NOTICE! The machine is equipped with a four-stroke engine. Make sure that there is always sufficient oil in the oil tank.

Petrol

• Use good quality unleaded or leaded petrol.
• The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 so-called knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.
• Use low-emission petrol, also known as alkylate petrol, if it is available.

Engine oil

NOTICE! Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine. See instructions in the section "Maintenance".

• The engine oil should be changed the first time after 5 hours running time. Refer to Technical Data for recommendations on which oil type to use. Never use oil intended for two-stroke engines.

Fueling

WARNING! Always stop the engine and let it cool for a few minutes before refuelling.

Use a petrol can at all times to avoid spillage.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refuelling. Negligence may lead to the start of a fire.

Move the machine at least 3m from the refuelling point before starting it.

Never start the machine:

• If you have spilt fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.
• If you have spilt fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
  If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or naked flames, for example, from electrical machinery, electric motors, electrical relays/switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

• When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to find out where to dispose of excess fuel.

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

Always wear:

Use ear muffs if the noise level exceeds 85 db.
- Sturdy, non-slip boots or shoes.
- Heavy, long pants. Do not wear shorts, sandals or go barefoot.
- Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

• Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.
• The machine must be kept clean. Signs and stickers must be fully legible.

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

The machine should not be used by people with reduced physical or mental capacities or people who are unsuitable for health reasons to operate the machine, without supervision of a person responsible for their safety.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists.

Always use genuine accessories.

Work area safety

• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.
• Objects hitting against the cutting attachment could be thrown and cause damage to people and objects. Keep people and animals well away.
• Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Observe your surroundings to ensure that nothing can affect your control of the machine.
• Beware of roots, stones, twigs, pits, ditches etc. Tall grass can hide obstacles.
• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes. The lawn mower should not be used on inclines greater than 15 degrees.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• Be careful when you are approaching hidden corners and objects that could block your view.

Work safety

• A lawn mower is only designed to mow lawns. All other use is forbidden.
• Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.
• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.
• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.
• The brake handle must never be permanently anchored in handle when the machine is running.
• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.
  Always place yourself behind the machine. Allow all the wheels to remain on the ground and keep both hands on the handle when mowing. Keep your hands and feet away from the rotating blades.
• Do not tilt the machine when the engine is running.
• Pay particular attention when pulling the machine towards you during work.

• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.

• Never run with the machine when it is running. You should always walk with the lawn mower.
• Shut down the engine before changing the cutting height. Never make adjustments with the engine running.
• Never leave the machine unsupervised with the motor running. Turn off the motor. Ensure the cutting attachment has stopped rotating.
• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage.

Basic working techniques

Always cut with a sharp blade for optimal results. A dull blade gives an uneven cut and the grass becomes yellow on the surface of the cut.
- Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.
- Cut in different directions each time in order to avoid stripes in the lawn.

Transport and storage

• Secure the equipment during transportation in order to avoid transport damage and accidents.
• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.
• Store the machine and its equipment in a dry and frost proof place.
• For transport and storage of fuel, see the section "Fuel handling".

Starting and stopping

Before starting

WARNING! Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.

• Keep people and animals well away from the working area.
• Perform daily maintenance. See instructions in the section "Maintenance".
• Ensure the ignition lead sits correctly on the spark plug.

Starting

Open the fuel valve.

• The engine brake handle must be held against the handlebar when the engine is started.

Position yourself behind the machine.
- Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter paws grip). Pull with force to start the engine. Never twist the starter cord around your hand.

Drive

• Push the propulsion bar in towards the handle in order to start the drive.

Before pulling the machine towards you, disengage the drive and push the machine forward approx. 10 cm.

Stopping

• Stop the engine by releasing the engine brake handle.

• Close the fuel valve.

General

WARNING! The user must only carry out the maintenance and service work described in this Operator's Manual. More extensive work must be carried out by a service workshop.

Prevent unintentional starting by removing the ignition cable from the spark plug.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.

CAUTION! When the machine is tilted, make sure the air filter always is placed in the highest position.

Always use genuine accessories.

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.

Before starting	Weekly maintenance	Monthly maintenance
General inspection	Spark plug	Air filter
External cleaning	Muffler*	Fuel system
Oil level
Cutting equipment
Cutting cover*
Adjusting the clutch wire
Engine brake handle*

*See instructions in the section "Machine's safety equipment".

General inspection

• Check that nuts and screws are tight.

External cleaning

Brush leaves, grass and the like off of the lawn mower.
- Do not use a high pressure washer to clean the machine.
- Never flush water directly on the engine.
Clean the air intake on the starter. Check the starter and starter cord.
- When cleaning under the cutting deck, turn the machine with the spark plug upwards. Empty the fuel tank.

Oil level

The lawn mower should stand on flat ground when you check the oil level. Check the oil level with the dipstick on the oil filler cap.

• Remove the oil cap and wipe the dipstick clean.
• Put the dipstick back in. The oil filler cap must be completely screwed down to give a correct picture of the oil level.
• If the oil level is low, fill using engine oil up to the upper level on the dipstick.

Cutting equipment

• Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.
  Always ensure the cutter is well ground and balanced correctly.

CAUTION! The blades should be balanced after sharpening. Balancing, replacing or sharpening the blades should be conducted by a service workshop.

Damaged blades should be replaced when hitting obstacles that result in a breakdown. Let the service centre assess whether the blade can be sharpened or must be replaced.

Replacing the blades

WARNING! Always wear heavy-duty gloves when servicing and maintaining the cutting equipment. The cutters are very sharp and cuts can occur very easily.

Dismantling

• Unscrew the bolt holding the cutter.

• Remove the old blade. Make sure the blade bracket is free of damage. Also check that the cutter bolt is undamaged and that the engine shaft is not bent.

Assembly

Make sure the cutter centres correctly on the shaft.

• Fit the washer and tighten the bolt correctly. The bolt should be tightened with a torque of 45-60 Nm.

Pull the blade around by hand and make sure it rotates freely. Test run the machine.

Spark plug

NOTICE! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

• If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.
  If the spark plug is dirty, clean it and check that the electrode gap is 0.5mm . Replace if necessary.

Adjusting the clutch wire

M53-190RP

• Finely adjust the wire using the adjuster screw.

• Roughly adjust the cluch wire when the fine adjustment is not enough.
• Extend the wire using the fine adjustment screw.
• Roughly adjust the clutch wire by attaching it to the different brackets on the clutch bar. Then adjust the wire finely.

M46-160AWRPX, M53AWRPX, M53-190AWRPX

Finely adjust the wire using the adjuster screw.

Air filter

• Remove the air filter cover and take out the filter.
  An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.
• When reassembling, make sure that the filter completely seals against the filter holder.

Clean the paper filter

• Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

Cleaning the foam plastic filter

• Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. After cleaning the filter should be oiled using engine oil. Wipe away excess oil by pressing a clean cloth against the filter.

Oil change

Empty the fuel tank.
- Unscrew the oil filler cap.
- Place a suitable vessel to collect the oil in.
- Drain the oil by tipping the engine so that the oil runs out through the filler pipe. When the machine is tilted, make sure the air filter always is placed in the highest position. Ask where you can dispose of surplus engine oil at your local petrol station.
- Fill with new engine oil of a good quality. See instructions in the section "Technical data".

Fuel system

• Check that the fuel cap and its seal are not damaged.
• Check the fuel hose. Replace if necessary.

TECHNICAL DATA

Technical data

	M46-160AWRPX	M53-160AWRPX	M53-190AWRPX	M53-190RP
Engine
Engine manufacturer	Honda	Honda	Honda	Honda
Cylinder displacement, cm3	160	160	187	187
Speed, rpm	2900	2900	2900	2900
Nominal engine output, kW (see note 1)	2,9	2,9	3,8	3,8
Ignition system
Spark plug	NGK BPR6ES	NGK BPR6ES	NGK BPR6ES	NGK BPR6ES
Electrode gap, mm	0,5	0,5	0,5	0,5
Fuel and lubrication system
Fuel tank capacity, litre	0,9	0,9	0,9	0,9
*Engine oil	SAE 30/SAE10W-30	SAE 30/SAE10W-30	SAE 30/SAE10W-30	SAE 30/SAE10W-30
Weight
Machine with empty tanks, kg	39,3	43,2	43.8	42.6
Noise emissions (see note 2)
Sound power level, measured dB (A)	94	96	96	96
Sound power level, guaranteed LWA dB (A)	95	97	97	97
Sound levels (see note 3)
Sound pressure level at the operators ear,dB(A)	80	82	82	82
Vibration levels, a hveq (see note 4)
Handle, m/s2	3,3	4,0	4,0	4,0
Cutting system
Cutting height, mm	30-80	30-70	30-70	30-70
Cutting width, cm	40	46	46	46
Cutter	Combi 40	Combi 46	Combi 46	PX3
Bagger capacity, litre	50	50	50	50

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power (L_WA) in conformity with EC directive 2000/14/EC.
Note 3: Noise pressure level according to EN 836. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2dB(A)
Note 4: Vibration level according to EN 836. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0.2m/s^2 .
*Use engine oil of quality SF, SG, SH, SJ or higher. See the viscosity chart in the engine manufacturer's manual and select the best viscosity based on the expected outside temperature.

EC-declaration of conformity

(Appplies to Europe only)

Husqvarna AB, SE-561 82 Huskvarna, Sverige, tel: [phone], declares under sole responsibility that the lawn mowers McCulloch M46-160AWRPX, M53-160AWRPX, M53-190AWRPX, M53-190RP from the serial numbers 13XXXXXX and onwards comply with the requirements of the COUNCIL'S DIRECTIVE:

of May 17, 2006 "relating to machinery" 2006/42/EC
of December 15, 2004 "relating to electromagnetic compatibility" 2004/108/EC.
of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

For information relating to noise emissions, see the Technical data chapter.

The following standards have been applied: EN 836, ISO 11094, EN 55012.

Notified body: 0404, SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, has issued reports regarding the assessment of conformity according to annex VI of the COUNCIL'S DIRECTIVE of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

Huskvarna, 29 November 2012

Bengt Ahlund, Development manager

(Authorized representative for Husqvarna AB and responsible for technical documentation.)

Symbolförklaring

Det违法犯罪 and the criminality of the people in the country.

Brennstoff

MERKNAD! Maskinen er utstyr med en firetaktsmotor. Pase at det alltid er tilstrekkelig med olje i oljetanken.

Bensin

Attention: projections et ricochets.

Substituir as laminas

PpeJe Yem npncTyntb K pa6oTe C MaunHOB BHMaTeJbHo PpouNTaTe NcHtpyKUHO u y6eIHTecb, YoBAM BceNoTHo.

I03a60tBtEcB, yTO6bI B pa6ooye 3OHe N He HaxoDInIOcB JIODeI N HIXBOTbIx.

PpeoTbPaTeHe NhepeHaMepeHnBHy 3aynck, ChyB Ka6eJIb 3aHnraHnco CBeue 3aHnraHn.

BepenTebc otckaKbAioxu npdMeTOB nPkoTeOB.

PpeDynpEnDeHne:bpaaOuOpncEpaHynue yacTN.DepHnTe pyKn HnO H BuCTOTE.

IpeDynpEeHdEHe: BpaAhoUeNecs
auctn. DepnTe pyKn HOrn Ha
6e3onachom pacCToHn.

3Ta npOdyKmIOn OTBvEAeT Tpe6oBaHN m COOTBcTCTByUOuNx HOpMaTINBOB EC.

Uymo3aunTHbIe 3MnccnB OkpynaIOuyo CpeDy coIacHO DupeKTNBBy Ebponeckoro Coo6ueCTBa.3MnccnMaunHbI npBieDeHa BJraBe TexNueceKn DaHHbe N Ha Ta6JIuKe.

Hikorda He noIb3yItecb MaunHOB NOMeUeHNu IN B HEnpoBeTpnBaembIX MeCTax B BxIOnhBX ra3ax coepHHITcO NKcB yIqePoDa -- 6ecuBeTHbIy, JIOBNTbN KpaIHe onaChbra3.

OnachocTb B3pbIbA

Ipepe I03a npAkoBcRgda octaHOBNTe DnrgaTeJIb.

Togya noBepxHoctb.

IopcHHeNKe KypOBHrM npdeynpeKdEHH

CyueCTByeT Tpr ypoBn npdeynpeHdenn.

IPEdYIPPEXDEHNE!

PNEIpyPEKJDEHNE!IcnoJIb3ayetc, KOrJa Heco6JIIOJeHne INHCTpyKUIN pyKOBoJCTBA MoHTe CO3aTb YrPo3y npuHNHeNc cepBe3hX TpaBM NlIM CMEpTOnepaTopa NIO NOBpeHNe HaxOJaIeOcR pADOM IMyIecTBA.

BAXHO!

BAJHHO!IcnoJIb3ayetc, KOrda Heco6JIIODeHnne INHCTpyKUIN pyKOBODCTBa MOHeT CO3DAbTy yRpO3y npuHHeNn TpaBM OpeaTopy NIn NOBpeKeHdEHN HxOJaueGeroC pIdom IMyUeCTBa.

06paTnTe BnImaHne!

06paTIne BHNMaHnE！NcNoIb3yEtC8，KoTda HecO6JIIODeHnIHCTpyKlunI pyKOBoIDCTBa MoHET CO3dAaTB yIgPo3y NOBpeHJDeHIN MaTePvaJIOB NII MaMInHb.

CoeepkaHne

IPORCHHECNMBOJIOB

YcNoBhble 603HaueHnra 145

IopcHHeNKe KypOBnM npeDynpEHHeHn 145

IPE3EHTALIY

CoepKaHne 146

YBaHaembI nokynteIb! 146

UTO ECTb UTO?

UToecb UToHa rα3oHokocnJIke? 147

CPEДСТВА 3AùNTbI PE3UKNA

06uie cBeHn 148

CSOPKA IN HACTPOIKN

06uie cBeHn 149

Pyuka 149

BbIcota cTpHHKn 149

C6opHnK 149

HacaKa IJIa MyIbUPOBaHnI 149

3aJIbBaHne MacJa 149

ПРавиJAOBPAUSEHINCTOJIINBOM

06uie cBeHn 150

IoproToBKa TOnJIINBHOcMecn 150

3anpaBka 150

TpaHcnpTpObKa n xpaHeHne 150

3KcπIyATAUIA

CpeDCTBa 3aunTbI onepaTopa 151

06iue Mepb6e3oNaChocTn 151

OchOBHbIe npHcUInbI pa6oTbI 152

TpaHcnopTnpOBka n xpaHeHne 153

3anyckIOcTaHOBka 153

TEXHINCHECKOE OBCJYKBAHNE

O6uue cBeJeHn 154

TpaΦNK TexHnueckOro 06cLyHnBaHnra 154

O6ua npoBepka 154

Cbeua 3aiknraHna 155

PerynilopbKa Tpoca czenleHnra 155

Bo3duhnybHnBnBtp 156

3aMeHa Macla 156

ToJIINBHa cncTeMa 156

TEXHINUCKNEXAPAKTEPNUCTUKN

TexHnueckne xapaKTepcntIKN 157

TapaHTy EC o COOTBeTCTBn 158

YBaXhaEmbI nokypaTeIb!

Cnacn6o 3a To, YTo BBy Bb6paJn npOdyKUIO McCulloch! Tenepb BBy cTaN HAcTbO NcTOpN, KOTOPa NaHauanac BoOBBoHb DaBHO, BO BpeMBA BTOPOm MIpBOoB BoHNb, KOrJa KOpnpaoua McCulloch NaHauaBa BInyck DInrAteJeB. B 1949 r. McCulloch BByBeJaHa bHyOK nepByu nopTaTHBHyU ueHyu NiLy, KOTOpoi MOr UnpaBJIb Tb OINH ueLOBek, YTo B KopHe n3MeHnlo npOcecc depeBo06pa6oTkI.

Линna no npoIN3BOIDCTBY INHOBaCIOHOHHbIX ZeINbIX nIл pa6OtaJa Na npToJHEmN DeceTnJIeTn, DeLo pacIIPraIPOCb: cHaayaJa B 50-x 6bln N3rOTOBJIeHb I neBbIe DBnIgAteJI NДЯ caMOJIeTOBи KapTOB,a 3aTeM B 60-x npOByJIncMb MInN IIHn. Po3JHe, B 70-x 80-x npOdyKTOByU JInHeKY nONJHnJIy TpIMMepbI y HaHHTaTeJIbHbIe BO3DyXODyBKN.

CeroHnMaCulloch BxOoNTB rpynny Husqvarna.3a npoWeDnne noIbBeKa KOMmaHnIO6mJAcB 3amETHO ycHexa B npoOn3BOcCTBe MOChbIX DBrTaTeLe, pa3pa60TKe INHHOBaUOnHOHHBX npoDKYKToB n pODoMaHbX KOHcTpyKTmbHbX peSeHn, n ceoHn KOMmaHn IpoDoJIHaet NOdEepKinBaTb 3Tu TpaDiUzNo. PnpOpTeTHbIMN 3aDaayAmn dJa KOMmaHn YBJLTOCTc CHnHeHnpeXoJaTOnJIbA, Bb6pocB uPovBnShuMa, a TaKHe NObbUeHne 6e3OnaChOCTNu yOboCTBa 3KcPnLyatauIn npOn3BOImoRO eO o6OpdyoBaHn.

HaedeemcraToBbOctaHeteCbdoBoIbHb npdykUnei McCulloch, nTo OHa 6yDeT Bawm CnTyNHKOM Ha doJIIOe BpeM. HeyKoCHiTelbHoe BblNOJHeHOM Tpe6oBaHnO THOCHTeJIbHO 3KnIpyaTaLNIu N TeXo6cLyHHBaHn, N3LOHeHHbIX B HAcTOAeM pyKOBOdCTBe, NOMoTe 3NaHTeJIbHO yBeLIuNTb cPOK cNHyHbIobOpyIDoBaHn.EcJIN Bam noTpe6yeTcra TexMHuecka NOMoUbB peMOHTe N o6cLyHHBaHnOBopyIDoBaHn, Bbl MoHETe BocNoJIb30BaTbcra FyHKUeN Service Locator Ha caIte www.mcculloch.com.

Фирма McCulloch nocToHno pa6oTaet NaD yCOBepWeHCTBOBaHMeN p4aBNTHeM CBOUX npOdyKToBn oNoTOMy ocTaJIeT 3a c6oB npaBO h BA HeCeHne N3MeHEnB VOpMy nДИЗaH 6e3 npEdBaprTeJbHo rnpdUnpEKeHn.

Kpome TOrO,Ha caIe Te www.mcculloch.com TaKHe paCNoJIoHeHa KOnIa HAcTOnIeRo pyKOBoDcTBa.

UTo eCTb UTo Ha rAzoHOKoCNIke?

1 PykoTka TopMo3a DnVraTeJia
2 CkO6a npVbOda
3 Pyka cTapTepa
4 C6opHnK
5 PyKoTka, Blicota pyKoTkn
6IyIbTpereyIInpOBKnBbICOTbl
7 MacIIOmePbIy /MacIIO3aINBHa rOpIOBnHa
8 TnyuHTeJIb
9 Cbeya 3aHnraHna

10 Bo3dUshnbln
11 KpbuKa JIa HooJei
12 TOnJIbHbI KJIanaH
13 MyfTa NoDKJIIOUChENI BOIDI
14 3aJIbAHHaTOnJIbBa
15 Hox
16 PnyHHHaJ 7aH6a
17 BnHT HOKeI
18 PykoBoDCTO NO 3KcNyaTaUIN

06uie cBeJeHnIa

B daHmopaaJepe paccMaTpnaBoTcpaaJIuHbIe 3aunTHbe npncocO6JeHnmaHbI,ix pa6oTa, n npBeHbOcHOBhIe pInHUnIbI npabNla, KOTope Heo6xOJIMO co6JIIOaTb IJa o6ecneueHn 6e3onacHoI pa6oTb.

PNEyIpyEHEH!HkoIa He noJIb3yIteCb MaunHOc DeeKTHbIMn 3JeMeHTAMN 3aunTb. EcIn B pe3yJIbTaTe tnx npOBepok 6byT 06hApuyHeB HeNCpABHoCTn, HEmeJLHeHO Bb3OBeTc CneUaJIInCTa DJIpeMOHTa.

PpeoTbpTaTne HnpedHaMepeHnBHy 3aynck, ChyB Ka6eJIb 3aHnIgAHHaC O CBeu 3aHnIgAHHa.

KpbiKaДЯHoxeI

KpbIkaДлЯHOnKe pa3pa6oTaHaДлЯСнIHENHЯ Bn6paCmN yMeHbIeHnIpyCKaNoIyUeHNI nope3OB.

PpOBepKa KoxyHa HoHei

Поверпьт,Чтобьл рирсocбдпгдляЗштbl npaBoY pky He IMeLo NOBpeJdEHHI TAKINX BUNIMbIX DekeKtOB, KAK TpeuHbI.

PykoTka TopMo3a DvrgaTeJIa

TopMo3 dBnIaTeJI pNeHa3NaHeH IJIa octaHOBKn DnBraTeJI. PnC nCycke pyKoRTKn TopMo3a DnBraTeJIb octaHaBJNlBaTeTc.

• YctaHOBnTb pyKoRTky Ha HyHHyBO BbCOTy. HaJeHHO 3aTaNHTe ΦHKcaTopbl.

BbICota cTpHHKn

3AMEUAHHE! He yctaHaBnBaIte CImKoM Hn3Km yPoBeHb, T.K. Ra3OHOKocNJa MOHeT COpNKacTaBcA C HepOBHbIM NOBepxHOCTaMn.

IpepeBnHytbpyaarHa3a,IyTo6bINoDnHrTbHOHH, nBnepeI—YTo6bIOnyCTnTB.

C6opHnK

• YctaHOBtB c6OpHbI MeJok.

3aKpEnIte KpOKn B BepxHeu qactn uaccn.

IoproTOBKa TOnJIINBHOcMecn

3AMEUAHNE! MaunHa KOMnIeKTyeTcayTbIpyExTakThbIM DInrTaTeJIem. Heo6xOIMO noCToHNO npOBepaTb ypOBeHb Macla.

Бeнзин

ПользуITECBВИСОКOKаЧЕТБЕНHBМ 6eH3INHOM,B TOM YIcJIe He3TNIJIpOBAHHbIM.
- Pekomehdyemoe MHHMmaJIbHoe OKTaHOBoe cNo 90 (RON). EcIa DBuRatTeIb 6yIeT pa6oTaTb npIb 6OJIee Hn3KOM OKTaHOBOM YcIe cHem 90,To DBuRatTeIb MoHET DaBaTb CTUK.3TO pNBoDNT K yBeJIuYeHIO TempePaTybl DBuRatTeIy,HTO B CBOI OuepeIb MOHET npVBecTI K eRO cepB3HbIM NOfOMKaM.
Пи ВОЗМонь�СТИ ПОЛБУНТecь ЗКОЛогИЧЕСКIM,Т.H.ДELOчБМбEHЗИНOM.

MacIIO IJIa IDBiRaTeJIa

3AMEUAHHE!peepzanyckomra3oHokocnknnpoBeBpTe yypoBeHb MaCJa.CnIshKOM Hn3KnymypoBeHb MacJa MoHeT npBecTe N cepBe3hBmnoPbeDHeNAM DVBrAteJl.Mc.yka3aHnBpa3dJe "TexHnueckoe 6cbLyHnBaHne".

MoTopHoeMacloCneIyET3aMeHnTbBnpBbIpa3noCle8cacobpa6oTB.PekOMeHdaUmNoBb6OpTytnaMacla cm.Bpa3JeTe"TexHnueckne daHbIe".HnKoTaHe npImMeHnyTeMacLoDJIaDbYxTaKTbIxDbnAteJeI.

3a npaBka

OchOBHbIe npIHcInbI pa6oTbI

Дя ONТИМАЛьНО резУЛБТа TсЕДуET ИСЮЛБЗОВТ оCTPoE ЛЗВe. 3ATyNIMBUEecЯЛЗВe 6уДeТ CTрчИ БерOBH，ИВ МсteСеЗа ТраВа 6уДeТ JжЛТeTB.
He ckaunBaIte 6oJee 1/3 Bcei DInHb TpaBb. 3To Kacaetcra, B nepByu OuepeB, 3acyuINBOrO BpemeHn rOda. BblnoHNITe nepBoe ckaunBaHne Ha 60JIbwe BbICOTe. 3aTeM npOBepBeT pe3yIbTaT n CKocHTe TpaBy Do Heo6xOIMoro UypBnH. EcI npBa BVicKa, nepEbnIgAarTe ra3OHOKOCNky MeJeIeHNO, npn Heo6xOIMOCTu, NcNoJIb3yIte ra3OHOKOCNky DaPa paa.
EcnblXOTNTe36eHbTa 6bpa3oBaHnnoIIOoc Hbawem TaHOe, HnyHNO KaHdbpa3 cTpyB erO bpa3hBx HapabJIeHx.

TpaHcnpTIpOBKa n xpaHeHne

• Hadeenho TzaKepnIaTe O6OpyDoBaHne BO BVPem TraHcnpTIpovBKn BO 136eHaHne NOpeKdHnI HeCuaCThBy cLyuAeb.
  XpaHnTe 6OpdyObaHne B3aKpbBaemOM Ha 3aMOK NOMEseHm, He NOCTyNHOM IJIr DeTeH INoCTOPOHHnX.
  XpaHnTe HnCTpyMeHT B cyxOM TeNlOM nOMEueHIN.
• PekOMeHndaUIM NO TpaHCnpTnPOBKe I xpaHeHIO TOIJIbA pINBEdeHb B pa3JeIe "O6paueHMe C TOJIYBOM".

3anyck noctaHOBka

Ipeep3anyckOM

PPEyIpyEHEIpeJeYem
pncTynbKpa6oTecMaHnoi
BnMaTeJbHo npouHTaIte
InhctpyKuIO y6eINTecb,yTO BaM
BceNoHrTHO.

NoJIb3yIreTcB 6OpuyDoBaHnEM JIaJ
3aUnTI bI JIoJeM. Cm. pa3JeI 3aUnTIHOe
6OpuyDoBaHnE.

• Pto3a60bTbTecb, UTO6bI B pa6ooye 3OHe HaxoOnIOcB JIOJeN HINBOTbIX.
• BbIIOJIHJIeEHEIeHBHO6cJIyHINBAHHe.CM.yka3aHnBbPazdeJe"TexHnueckoe 06cJIyHINBAHHe".
• Y6eDInTeScB npaBnIbHoi yCTaHOBKe npoBOda Ha CBeU 3aHHaHHJ.

3anyck

OTKpoTe ToJnBHy KJIanaH.

PpeoTbpatnTe HnpeDnHamepeHHbIy aayck, CnBb Ka6beJI 3aHHaHmco CBeueH aHHaHnA.

Cpok cIyHKbMaHbMoHeT bItb ykopouHn pNCK abapiny uyeJIuHEn,ecnI 06cLyHNBaHne MaHbHb He BblNoJHReTcR npaBbHbM o6pa3oM nEcIn cepBnc H/ nIin peMOHT He 6bln BblNOJIHeHb npoeccnoHaJIbHo. EcIn Bam Tpe6yeTcJ dOnOJIHNTeJIbHa INΦOpMaJrA, 6obatntecb B 6linhaJyU MaTePcKyo no 06cLyHNBaHnIO.

O6paTnte BHMMaHnIe!EcJIN Heo6xOJIMo
HaKNoHtB MaWHy, y6eJNTecb, yTO Bo3yHbI
fNJIbTp HaxoJNTcB aBepXHeM nIoJoxHeHn.

-Повьут ecbToIbkoOpuHaJIbHbIMn 3aIyacTЯM.

TpaФИK TexHnuecKOro 06cIyHnBaHnIa

B rpaФиke 06cIyHnBaHnY yKa3aHo, KaKne qactn MaIHHb Tpe6byOT TexHnueCKOrO 06cIyHnBaHnry, n C KaKIMN INHTepBaJAmN OHO DoJIHXo npOn3BOINtbc. 3TN INHTepBaJIb paccuNTaHb IxCxODN I3 EHeJdHeBHO NcNoJIb3OBaHnRA MaIHHb, n MOryT MeHnTBC B 3aBNCIMoCTn OT qACTOTbl IcNOJIb3OBaHnR.

TasnpoDyT OTROBapHa HnIckBaHnIaTa Ha BaJIiNHTe EO, DnapeKTINB.

IyMOnBn EMcNn B OkJHaTa cpeJa CbIaChO dIpeKtNbTa Ha EBponeckata O6uHocT.EmcnraTa oT MaunHaTa e nocoHea B pa3JeI TexNueckn XapaKTepNCn N Bbpxj IeneHKata.

HnKora He n3noJ3BaIte MaunHaTa Ha 3aKpITo NnIn B npOCTpaHCTBa 6e3 npaBnJIHa BeHTnJIaCnIy. OTPa6oTeHnte Ra3OBe CbIbPnA T b'rIpOJeH OKn, MHOro ONaCeH, OTPoBeH ra3 6e3 Mnpu3Ma.

PuckOTekcnlo3na

Hikora He 3apeHdaTe ropuBo npB KJIoueH DnBraTeJ.

Iopea noBbpxHocT.

O6aCHeHne Ha HnBaTa Ha npeDynpEHHeHne

Te3n npdynpeHdEHHa cSteneHyBaHb Tprn HbA.

IPEdYIPPEXDEHNE!

PPEJYIPREXJEHNE!N3noJI3Ba ce, ako
IMa pIck OT cepNo3HO HapaHЯBaHe
NJIc CMbPT 3a onepaTopa NJIb BpeJa 3a
3a06nKaJIaIaTa cpeJa, aKO
INCTpyKUInTe Bp'koBOdCTBOTO He Ce
CnA3BaT.

3ANOMHETE!

3AIIOMHETE! N3noJl3Ba ce, aKo Ima pIck OT HapaHbAHe Ha OpeaTopa IIN Bpea 3a 3ao6nKaJIa7aTa cpeDa, aKO INCTpyKUInTe Bp'koBOdCTBTO He ce cPna3BaT.

BHIMAHHE!

BHIMAHHE! N3noJ3Ba ce, aKo Ima pnck nobpeiB MaTePnJIte NJI MauNHaTa, aKO INCTpyKUInTE B p'koBOIDTBOTHe Ce cna3BaT.

CbDbpxHaHne

OBRCHEHNE HA YCJIOBHNTE

OBO3HAUEHNIA

06aHHeHa yCIOBHTe 06o3HaueHnA ....... 159

O6aHHeHnBaTaHa npEynpeJeHne 159

IPEDCTABRHE

CbDbpHAnHe 160

YBaHaemn noTpe6nteIIO! 160

KAKBO-KbDE?

KaKBo Ce HAMnpa Bbpxy KocauKaTa? 161

OBOPYDAHE 3A BE3OПАСHОCT HA

MAUHHATA

OchOBHn npHcnn 162

MOHTIPAHE I HACTPOIBAHE

OchOBHn npHHcHnn 163

PbKoxBaTka 163

BicouHa Ha p3aHe 163

KolkekTop 163

BLOKKa 3a MyIuHpaHe 163

3apeHdaHe c MacNo 163

PABOTA C TOPUBOTO

OchOBHn npHcHn 164

TOpBHa Cmec 164

3aepHdaHe c rOpuBO 164

TpaHcnpT n cxbxpaHeHne 164

EKCJIIOATALIJA

JIuHa 3auiTHa eKnnpOBKa 165

OchOBHn npEJa3HmepKn no TeXnKaTa 3a

6e3onacHocT 165

OchOBHn npHHuHn Ha pa6oTa 166

TpaHcnpT n cBxpaHeHne 167

CTapTnpaHe n 167

ПОДДРБЖKA

OchOBHn npHHcnn 168

Texnuecko o6cnyBaHe 168

067a nHcneKuia 168

3anaJIteJIHa cBeeu 169

PeryIipaHe Ha Ka6eJa Ha cBeiHHTeIa ... 169

Bb3dyweH fNITbP 170

CmHa Ha MacJIoTo 170

TognbHa cncTeMa 170

TEXHNUECKX XAPAKTEPNCIKN

TexHHueckn xapaKTepeNCTIKN 171

EO-yBepHne 3a cBoTBeTCTBnE 172

YBaXHaEMnIOTpe6nteJIIO!

Благорим Ви, чу Избрахт пождкт на McCulloch. Тaka ве CTаВATEчсТОИСТор，在Залоча OTДавна, korato McCulloch Corporation 3anoЧа npoIN3BOДСТВОТ Ha DBInaTeПи ВрemeToHa BTOpata CBeTOBnВ BOHЯ.пpe3 1949 r., korato McCulloch рпсдСвCBоЯ nIbPyBN lek Бернен Трюн 3a eДин ChOBek, тоиnpOMeHи 3aBNHarI TOrpCKaTа pa6OТa.

CepnraTbHOBaTOpCKN BepHHN TprNOH npOdbJIHN c TeueHne Ha dcetTHJETNA, a 6u3HeCbT ce pa3aUHPn, pIbPO CbC CaMOJeTHN DVBraTeiN n DBVaTeJI N 3a CbCTe3aTEJIH N KOJI npe3 1950-Te rOdIHN, cJIeD KoETo C MHN BepHHN TprHOH npe3 1960-Te rOdiHN. Po-KbCHO, npe3 1970-Te n 80-Te KbM npOdyKTobata rAma 6xa do6abEHn TpImepn MoTOpHm MeTJI.

Днec, KaToЧаT O rpynata Ha Husqvarna, McCulloch npIobJbHnaBa TpaIaIuNraTa Ha MOnuHi DBiRaTeJI, TEXHmYeCKo HOBAtOPcTBo N CInJeH An3aH, KOtTO BeYe NOBBye Ote NpOLOBIn BEK Ca HauTa 3ana3eHa MapKa. 3a Hac OChOBeH npOpInTe e HaMaJraBaHe Ha pa3xOJa Ha TropNoB, EMNCInTe n HbBOTo Ha WymA, KaKTo I NoD6pRaBaHeTo Ha 6e3onacHocCTTa N JekOtTa 3a pa6Ota.

Hne ce HaIbAme, Ye ige octaHaTe IOBOJIHn OT BcIIMn pnoDyKt McCuLloch, T'b KaT OTo e Cb3daen dBa BN b6bdeBepen NmOoNHe 3a D'JIrO. KaTO cJeBAte CbBETNE 3a n3NoJL3BaVe B TOBa PbKOIOCTBO 3a EKCnIooTaUaN, O6CnyHBaHe n NODpBHKa, HeROBnT HINBOT MoHe da 6bDe yDbJIHne.AKO ce HynDaete OT npOeCNOHaJa Na NOMOu 3a peMOHT INJIn O6CnyHBaHe, MOJIA, IN3NoJL3BaIte Service Locator (OTkpnuBaHe ha cepBN3) B caHTa www.mcculloch.com.

McCulloch HenpcTaHNo ycbBbPweHCTByBa cBOnte npOyKTo n nopadTOn TOBa c3 3ana3Ba npAboTo da npOMHe npMEmPo OOpMHeTo IM, BbHuHnIa IM BVDnDp.6ez ppeBaprTeJHo yBeDomJeHne.

TOBa pBkoBOcTBo MOHe cBIO da 6bJe H3TeRJIeHO OT caIa www.mcculloch.com.

Kakbo ce HAMIPA Bbpxy KocauKaTa?

1 Pbyka 3a cnnpaKaTa Ha dBnraTeJIa
2 JIoCT 3a 3aDbNKBaHe
3ДрьнkaHa cTapTepa
4 KoJekTop
5 P'bKoXbaTka, BInCOnHa Ha p'bKoXbaTkata
6 YnpaBJIeHHe Na BnCoUHNaTa Ha p3aHe
7 MepnteHa npbUka/MacNoHaJIINBEn Uycep
8 Aycnyx
9 3anaJIteJIHa CBeU

10Bb3dyuenHnTbp
11 Kanak cpeu npra3BaHe
12topuBEnKJanaH
13 BoHcBeiHeHne
14 PpeaepnDaHe cTopBO
15 Hox
16 PpyHHHa 7aH6a
17 BoNT Ha pe3eua
18 PbkoBoDCTBO 3a ekcnloatauia

OCHOBHn npHcHn

BTo3n pa3dJeI ca onucaHn pa3JIuHHTe 3aunTHNycTpoiCTBa Ha MaUHHATA, TAKHO To DeIcTBNe, KaKTO nHaINbT 3a N3BbPwBaHe Na ppeJIeI nNoDpIbYkKa 3a da ce rapaHTnpa6e3oanChocTt npn pa6Ota.

IPEJYIPEXJEHNE! Hkora He
H3NoJI3BaIte MaunHaTa C HeN3paBHO
3aUnTHo 6OpUpBaHe. Ako MaunHaTa
Bn He N3DbprHn Ha HKOr O T
N3bpoEHnTe pOboRkn, cJeDa Ba ca ce
CBbPHeTe CbC cepBIma cN 3a
N3BbPbBaHe Ha peMOHT.

IpeoTbpaTe HeKeJeHaO cTapTuHaNe, KaTo N3BaJnte 3anaJIteJIHnKa6eIOT 3anaJIteJIHnTa CBeU.

Kanak cpeu npraBaHe

KanakbT cpeu npra3aHne e c3daeH da HamaJIaBA Bn6paUNTe N da HamaJIIN pNcKa oT npra3aHn.

Поберка наkanaka peхшпту actи

• YBepete Ce, Ye KanakbT Cpeu nporbaHe He e noBpeHnYe HMa BUnIMn DeeKtN, KaTo HAnpIMep NyKHATnHn B MaTePmaJa.

Pbuka 3a cnupaKaTa Ha DnIraTeJr

CnnpaKaTaHaNbBnPaTeJMa c3daJeHa da cnnpaDbnPaTeJa.Korato pBvKaTa 3a CnnpaKaTaHaNbBnPaTeJa6bJeNpChTa,Toi Tpr6Ba Da cnpe.

IpoBepKaHa p'bUkaTa 3a cnnpaUkaTa Ha DnVraTeJIa

IpaTbHaTa3nCneTobayncHTe pTuKaTa 3a CnpaKata.CnpaKata HaDbuRatJe Tp86Ba BnHarn Da bSe HAcToPoBaHaTa Ka,Ye DnuBraTeJrA da Cnpa BpAMKnTe Ha 3 cekyHdn.

Aycnyx

PPEUYPEXDEHNE! HnKora He
H3noJ3BaIte MaunHa 6e3 aycnyx nIi C
NoBpeDeH aycnyx. DeEkeTTHnT Aycnyx
MOHe 3NaUTeJIHO da YBeJIuN HiBOTO
Ha Wyma N OAnchocCTTa TO nOpHap.
DpBHTne npOTnBOJOnOJnHApTO
06OpyDbAHe TaKa, Ye Da Bn e NOD pBka.

3aŋnynteJrHa aycnyxa ce
cropeuBa cIlno npn pa60Ta n CneiD
cnipane.ToBa ce OTHac bIoo TaKa n
do cIyuaTe npn pa60Ta Ha
dBnraTeJHa npa3eH xO.ObpbuaaTe
BHNMaHHe Ha onaChocTta OT NOnap,
OC6EHO KOraTo pa6OTte B 6JIInoCT
do OrHeonacn Cy6tAnuN/INn
ra30Be.

AynxT CBeJaIO MHNMym paBnIeTo Ha 乌MaHaHacOyBa Otpa6oTeHInTe Ra0Be BCTpaHn Ot pa6oTeuHa.

ПоверкаHaaycnyxa

• PeioBHO npOBeRpaIte daJIa aycnyxbTe cJIaN 3dpaBO 3akpenen.

OCHOBHn npNHcHn

3ANOMHETE!IpeoTbpaTeTe HeJeHaO CTapTnpaHe,KATo INBAdnTe 3anaJIteJIHHa Ka6eJOT 3anaJIteJIHaTa Cbeu.

PbKoxBaTka

MOnTnpaHe

TopHa npbHKa

NocTaBeTe TpB6HaTaNoHcTpkyKUHa Ha DpBHKaTa Bn3zIano npOTnBONoJIOxHa NoCOKa Ha DoJIHaTa YacCT Ha DpBHKaTa. 3aTeHHeTe KonyEtata npabNJHo.

HacTpoiKn

BicouHa Ha p'koXbTaKaTa

Pa3xJa6eTe doJHnTe KOnyTa.

• PerjunpaIte BncoounHaTa. 3aterHeTe KonyeTaTnpaBnJHo.

BncouHa Ha p3aHe

N3BECTVE! He 3aabaIte BncoUHnHaTa Ha np3aHe TBbpIe NcKo, Tb KaI OKe KpE3uNTe da nonaDaHT Ha cKIOHOBe C HpaBAHOCTN.

PnDmBnHcTe pTuKaTaHaHa3a, 3a no-ToJaMa BnCOUHa Na p3aHe, HnApe 3a no-MaJka BnCOUHa Ha p3aHe.

KoJIeKTop

• NocTabete cyBaJa 3a oKOceHa TpeBa.

3aKpeneTe Kyknte 3a rOpHaTa YacT Ha Kopnyca.

• Hanojhe Te OTBopa Ha YyBaJa KbM DoJaHaTa
• qact Ha npicTabKa 3a yyBai.

BLOKka 3a MyIuHpaHe

• Повдигнеле педпаителя, за д моHTираTe/ demOHHTiPaTe npicTaBkata 3a MyJUHpaHe.

3akaueTe npyHHaTa 3a paMkaTa.

3apeHdaHe c Maclo

• Pe3epBoapbT 3a MacIIO Ha HOBaTa MaShHa e npa3eH. CunBaJIte MacJIoTo 6abHOb. Bn. INCTpyKUINTE B rIJaBA rOndpBHKa". MToPnoTO MacIO TprBaDa ca cMeHn 3a nbpBN bT cJeI 5 yaca pa6oTa.

OCHOBHn npHcUIN

PNEJYPNPEHJEHNE！Pa6oTaHa HaBIVrAeJI B3aTBOpEHO NINILOWONPOBETpRAHOBMOseHHeMoHE DaIOBeOE NO CMbPTNopaDN3aDyUbaHeNINOTpaBnE C BbTJePoDeHOKNC.

IopnbToIO TnOtnpOdykTnOT
TopnbTO caJIeCHO Bb3nJaMeHIMn I
MOraT Da npChNHT CepNo3Ho
HaparBaHe pN BmUbae NnKoTaTO
Bla3aT B KOtAaTc KOnHaT. IpopaDi
Ta3nI npuHaC b6JIoDaBaIte BHNMaHHe
Korato 60paBITE c TopBO n
HenpeMeHHO npOBepBaIte DaJIi
CbIeScTByBa aJeKBaTHa BeHTInaLcYn

Otra6oTeHnTe raoBe OT dBnrgaTeJra ca
RopeuN B TxA MoTa DA cBbPkaT
NCKpN, KOITOn Da npei3BnKaT noxap. He
CTAPTupaTe HNKORA MaunHaTa B
nomeueHne NJI 6JI30 Do ropnBn
MaTePnaJ!

He NyipeTe N He NpOmeCTBaIe THe NKAKBn HaRopeSeHn PpeDMeTn B6JIIm3oCT Do rOpRIBOTo.

TopnBHa cMec

N3BECTHE!MaHInHaTe o6OpduBaHa cYeTpNIaTcOB dBInaTeJ. YBepeteCe, ye BpeepBoapa 3a MacNo BHINnIMa DoCTaMbHO MacNo.

BeH3nH

ПолзвайтecВисокokауесТBEн6e30ЛobениLOJOBEN6eH3nH.
HaH-NiCKoTo npenOpBcBaHo OKTaHO OuCNo e 90 (RON).Ako BnE NoDaBaTe Ha DnurGaTeJr IropNBO cOKTaHO BOuCNo, no-HnCKO ot 90, MoHe Da Ce NpUyu CyKaHe. ToBa BoOn Do eHa BnCoka TeMnepaTpya Ha DnurGaTeJr, KoeTo MoHe Do IOBeDe Do cepNo3Ha NobpeJa Ha DnurGaTeJr.
AkoImaTeHa paznoIooHeHne ekOIoRnUeH 6eH3nH,T.H. aJIknlaTeH 6eH3nH,CJeBbToi da ce n3NoJ3Ba.

ДВИГАТЕЛНОМACJO

N3BECTVE!PnoBepete HnBOTo Ha MacNoTo, npeNi Da cTAPtupaTe KocAChata. TbpeH NsKO HnBO Ha MacNoTO MoNe Da npuynHn Cepno3Hn IeTu Ha DvBraTeJL. Bk. yka3AnrTa Bpa3JeI rPiOnpBHKa"

• MoTOpHoTo MacIoo TpI6Ba Da ce CMeHn 3a -пьрВи ПБТ След 5 Уса pa6Ota. 3a ИреловКой ТИМacIIO ДИЗЮЛЗВАТ ВИнTe -ТexHIVueCKNTe XapaKTePecNTKи. HИКORA He -ИЗПОЛЗавTe MacIoo ИрДиЗHAЧeHo 3a -ДВByTakTOBи DBINrAteJIи.

3apeHdaHe c rOpnBo

PNEДУПЕХДЕНЕ！Рпд ЗаржданetoC roрьTO pr6ba HнременHo DA ce N3KЛIOUH ДИВагATEJIЯТи DA ce OCTaBn 3a HЯКОЛКO MнHyTN DA n3CTNHe.

BnHaHn 3n0J3BaIe Te Ty6a 3a 6eH3nH, 3a da n36ErHeTe pa3JIbAhe.

OTbOpeTe BHHMATEJHNO KANAKa Ha roPbBnHneepBoap 3a da CeOTcpaHn EBEHTyaJHO CBpBXHaJIaIeAe.

IOnuNcTe OkoJIo KaNaUKaTa Ha TOpuBnI pyeepBoap.

CJIeI3apeHdaHeTo c rOpINBO rPNIHnIbO 3aBnHTeTe KAnaKa HrOpINBnIy pe3epBoap. He6peHNoCTTa MoHe da IObeDe No m36yXBaHe Ha noJap.

Ipei Da cTapTaTe MaunHaTaЯ IpeHeCeTe Hau-MaJko Ha 3M pa3cToHne O'TMaCtOTo Ha 3apeHdaHe C rOpNBO.

Hnkora He cTapTpaIte MaunHaTa:

Ako cTe pa3JIeIIN rOpINBO nIIM MoTOpH OMacJIO Bbpxy MaIINHaTa. N3TpNIte pa3JIaNTo ce rOpINBO nIIM MacJIO nOctaBeTe oCTaTbUcIte OT rOpINBO To da Ce 3napA.T.
AkoCTe n3JIeIINrOpINBOBbpxyce6e cnNII npExnTEcne Cpeo6JeueTe.N3MNIte TEsu cactnHaTJLToCn,KoNTOca6NIIBVKOHTaKT C rOpINuN3IOJ3BaITe canHyN BOda.
AkoMaunHaTa NMaTeuHaRopINBO. IpoBepaBtepeoBHO3aTeOBe0KaNakaaMapkyUHTe 3aRopIBOTo.

TpaHcnporN cBxpaHeHne

CbXpaHЯBaTe N TpaHcnpTupaTte MaunHaTa n TropNBOTo TaKa, Ye Da HrMa OnaCHocT eBHTyaJIeN TeU INI INapeHnJa Da BJra3aT B KOHTaT C NCKpIN IIN OTKpNT IINaMbK, HaNpIMepOT eJIeKTpNcECKnMaSHInI, eJIeKtPOdBVaRgATEJI, eJIeKTpNcECKn/CINIOBn NpeBKJIOuBaTeJI INI HArpeBaTeJI.
- TpA HTO Tp8Ba Da ce cbxpaHraBn I TpaHCnpTnpa B CneIaNHO npEHa3NaHeuN 3a Ta3n UeJI N Oo6Pepn Ty6b.

PpOJbJIINTeJIHo cxbpaHЯBaHe

Ako MaunHaTa 1e ce c'bxpaHraBa 3a no-npOdbJIHHTeJH nepNOc CneBA GropBNHTpe3epBOa np Da 6bIe N3npa3HeN.ObbPheTce KbM 6bEHnOcTahUyTA TcN 3a INHOpMaUNKbDe Da I3Jeete N3JIuBbKa OTO rOpINBO.

Лична 3ацNTha eКИпюВka

Ipn pa60Ta C MaunHaTa Tp86Ba BnHaRn Da NoJI3BaTe JInuHa 3auNTHa EekINIPOBKa OoO6peHa OT CbOTBeHTO BeOMCTBo. JInuHa 3auNTHa EekINIPOBKa He n3KJIOUBA PNCK OT TaPMAH, Ho HAmalraBc nepo3HoCTT Ha TpaBMATA npN 3JIoNOJyKa. IomJoTe CBO JaNCTPN6yTop 3a NOMOUI Pnp N36Opa H naDxOJaEAekINIPOBKa. Heo6xoJIMO e BnHarq Da n3noJ3BaTe:

• Изразытей Тати за уши, ак НИВОТо наши манденида 85 db.
  Kopabn 60Tuyn nJIn o6yBKn, KOnTo He ce XJIb3rAeT.
• IbIIN naHTaHOn O T 3dpab nlaT. He HocTe Kbcn naHTaHOn, caHaJI IN He pa6oTe 6ocN.
• Пи Нжда Тряба Да Се Нcert рьКakBILN,НарпМерп РмTOТан，Оглд Или NOUCTBAHe Na peRseHNTpePncnOco6JIeNHIA.

ОсноBNи пеДпаЗн Мерки поТекиКаТа 3a 6e3опаСоCT

To3n pa3dIe OINcBA OCHOBHInTe npenopbKn 3a 6e3oNaCha pa6Ota C MaINHata. Ta3n INHOpMaLInr He MoJx De 3aMeHN IpoΦecNOHaJIHaT aKBaIIINHkAUNI N ONIT Ha eDINH CNEUINACT.

• IpeNi Da 3anoHHe Ta p6oTa C MaunHaTa npOeTeBHNMaTeJHo pKOBoDcTB0To 3a ekCnIloTauaN ne y6eJeTe, ye ro pa3bnpaTe npaBInHO.
  He 3abpaBnTe,ye onepatopbTe oTrobopeH npH HeaacTHN cLuyan Hn OAnchOCTn, cLuynn ce Ha dpyrX npa Iyn TxAHXo NMyueCTBO.
  MaaHnata Tpr6Ba da ce noIdbpna YnCTa. 3NaUte n CTKepeTpe Tpr6Ba da 6bDaT HAnbHNo YeTtMM.

BnHaRn ce ocJaHЯTe Ha 3dpabn CMNCbJI

HeBnHaHrMoHe Da Ce ppeyugaDNBCaKa Bb3MOHNaCnTyaun, KOrTo MoHe Da Ce c6JIbckaTe. BnHaRn pa6oTeTe C nobuIeHo BNHMaHne N ce ocIaNJHte Ha 3dpaBraN Cn pazym. Ako Ce OKaJeTe CnTyaun, B KOrTo yCbCTBaTe HeyBepeHocT, npeycTaHOBeTe pa6oTaN Ce NoCbETBaIte Cbc CneUmaJIInCT.

CbprheTe Ce BaWnIa DNlIbp, CepBuaeH aReHT NJIc o nTIteH noTpe6nteHa HNCTpyMeHTa 3a p3aHe. I36yBaTaTe pa0Ta, 3a KoTcO CMrTaTe, Ye He cTe doctaTbHNo KBaJInuNpAHH!

PNEUYPENJDEHIE！Ta3n MaunHa
c3daba eJekTpomarHHTHO noJe no
BpeMe Ha pa6oTa. Pnp HkOIN
06CToTeJIcTBa TOBa noJE MoNE da
InTEpΦepuPa cAKTNBH INI NaCIBHN
MeDUNHCKN IMNlaHTAHTN.3a Da
HAMaJIte PNCaOCToCEPN3OHNIO
paTaHNO HapaHbAAHe, NHE pEnOpbUBAme
LIuTaCa T MeDUNHCKN IMNlaHTAHTN Da
ce KOHCyUttp a C JekApra cn I
PON3BOIDNTJa Ha MeDUNHCKN
IMNlaHTAHT, ppei Da 3aNoCHHaT da
pa6oTATc Ta3n MaunHa.

PNEДУПЕХДЕНИE！MaшинаТа моно da ce OKаже о�асен ИСтчмЕТ aKO ce n3noJ3Ba HEnpaВиЛно ИЛь b63гпхнHo, KoTo Mоно Да DoВeDE до серNo3Ho ИЛь фaTaJIHо НарянBaHe HaОрaТоР uЛь dpyrN lNiua.

HnKora He no3BoJbAaTe Ha Deca uNIN dpyrI xopa Da n3noJ3BaT uNIn o6cLyhBaT MaunHaTa, 6e3 da ca o6yehn npedapntEnHo.

MaHInHaTa He 6bMa Da ce n3NoJ3Ba oT
Xopa C noHnKeHn Fn3uYeCKn nn
ymCTBHeN B53MOHNOCTHoXa, KOnTO
He e noXoJaYo Da pa6OToT C MaHInHaTa
npadAn d3paBocJIoBNn pniUHNi, 6e3
Ha6JIIOJeHne OTOBek, OTROBope H3a
TaeXHa 6e3oNaChOCt.

HnKora de onyckaTe dpyrN da
n3noJ3BaT MaHHaTa 6e3 Da cTe ce
y6eJIn, Ye ca pa36paJin
cbIbPnaHneTo B HcTpyKUInTe 3a
ekCnloAtaJn.

Nikorka He n3noJ3BaIe MaunHata aKO CTe yMOpEna, aKO cte yNoTpe6BaJIaIyAkoKoJIoJIuA KO B3MeATe MeiKnAmEtNI, KOnTO Bb3JeCTBaT Ha 3peHnETo BN, pneCeHKATA BN JInJ KoOpDnHaCLrTA Bn.

PNEДУПЕЖДECHWE! Hepa3peшENI N3MeHEnHЯ I/NII npICNOC6JIeHnI MoTaI Da IOBeDAI Do cepNo3HO HapaHbAbeN IINi CmBpTHN CiJyuaH Na OToTpeBnTeJIa NII dpyrN IuHa. PtI INKakBnO bCtOraTeJIcTBa He 6bBa da Ce BHaCrt NIMeHEnH B IpbBOHaJaHaTa KOHcTpKcUHa MaMaaHnata 6e3 pa3peSheHne Ha npONsBOOnTeJIa.

HnKora He npomeHnTe Ta3n MaunHa No HaHH, KOTo HcCbOTBeTCTBa Ha OpINHaJIHaTa KOHcTpKUJa, Hne Jn3NoJ3BaTa KOraTo CE BnJda, Ye e 6bnla npomeHnHa OT HnKoI dpyr.

He p6oTeTe C Hen3npaBHa MaunHa.
N3B'pBwBaIte OnUcaHITe B ToBa
pbKOBODCTBO 3A ecKnloTaCnIa
peOOBHN IpOBepKn, NODpRbKa n
cepBN3. OnpeJeIeHn Opeaunn no
noOpBpKaHaTn cepBN3a Ce
N3B'pBwBaT eINHCTBeHO t
KBaJIuNfNcPArH CneLNaJNCTn.

Ioi3yBaTe cMo opnHaJIHn npncnoc6JeHn.

B30nacHocT Ha pa6oThaTa 06Jnact

KLoHOBe,BeiKn,KaMbHnI npyTnp6Ba Da 6bDat npemaxHaTn OT MopabaTa, npdN da 3anoUcHeTe da KOCNTe.
- PpeMeTn, ydprau peKeEto 06OpyDbaHe, MoaT Da 6bDaT n3xBbPLeHn I da npuHnT BpeHn Ha xopa nIpeMeTn. HabIi3o He 6bHa da NMa BtBuHUn Xopa n HINBOTn.
He pa6oTeTepnILOShKlImMaTnHyucJIOBny. HanpIMep npINIIbTHaMbIgA, cInJeH dIbJd, cnJIeH BcTbp, cInJeH cTyI nT.H. Pa6oTaTa B loTO BpeMe eN3MOpNTeHa NMOhe Da DoBeDe do Bb3HnKBaHe Ha onaChn CnTyalu, HanpIMep Do NoRABaTa HxJIb3rAbv yAcTbLNI.
Ha6IIOaBaiTe OKOJIHATA cpeia,3a Da cTe cnCyprHn，Ye HnIoO HMaJa nonpeuHn Ha pa6oTaTAt Bc C MaunHnTa.
BHMMABaIte 3a KopeHn, KaMbHn, BeKn, rMn, dynKn n T. H. Bucokata TpeBa MoHe da Kpne npenrTCTBn.
KocHeTo no ckIoH MoHe da 6bJe onaCho. He n3NoJ3BaIte KocAqKaTa H a MHOr o CtpbMnH cKIOHOBe. KocaQkaTa He 6bMa da ce n3NoJ3Ba H a CKIOHOBe, no-CTpBmHi oT 15 rpaDyca.
B NaKJIoHeN TepeH CJIeDbA npoxOHaTa n'TeKa Da ce npokapa Hnprko Ha cKJIOHa. 3NaUHTeJHo NO-JLecHO e Da ce DIBINHTe Hnprko Ha cKJIOHa, OTKOJIkoTo Da ce N3KaUBaTe u CJIi3aTe No CKJIOHa.
BHMaBHTe, KOraTo np6JIHnBaTe cKpNTn bIgN IN ppeMTeN, KOITo MoT a Da 6JOKupa T3PHTeHOTo BN NOJIe.

Bezonacnoct npna pa60ta

KocayKaTa e c3daeHa caMo 3a KoCeHe Ha MopaBN. Bcunn npuynoTpe6n ca 3a6paHeHn.
- I3noI3BaaiTe IInuHata 3aunTHa eknInpOBKa. BIn yka3aHnraTa bpa3deI IInuHa 3aunTHa eknInpOBKa.
He cTAPtnpaIte Kocauka,OCBeH aKo pe3eUbT IN BcWcNk Kanalu ca nocTaBEnn npabuInHO.B npOTINbCclyuaep3eUbT MOnge da ce pa3xla6n Ida npedn3Bvka TpaBM.
- YbepeTe ce, ye pe3eUbT HЯMaДа ydApn IpyrN o6ekTn, KaTo HapnIpMep KaMbHn, KopeHn NJIu IdpYrN. ToBa MoHe Da 3aTbNp pe3eua N da ObrHne DByceKUoHHNa BaI Ha DInrAteJIy. Ako eOrbHaTa, Octa MoHe Da npuHn Hnc6BaJlHaC nCIIHN Bv6paUIN, KoETo DA BoDEe DO rOJAM pnck 3aOCbo6OJdaBaHe Ha pe3eua.
Pbukata 3a cnipauchkata HNKORA He 6nBa da 6bJe nepMaheHTHO 3acToOpopeHa,doKaTo MaunHata pa6oTNI.
- ПoctabeTe KocauKaTa Na cStaJIHa, nIocka noBbpxHocTЯ cTapTnpaTe. YbepTe ce, Ye

pe3eTHeMOHeIaBLe3eBKOHTaKTcBC 3emrTaHINdpytnO6ekTN.

BnuHaN6bIeTe 3aMaunHaTa. I03BoJte BCNUKNI KOJIeJa Da octaHAT Ha 3eMraTaNpBJHTe N DBete CN pJIe HA pJIkoXbaTKaTa, KORAto KOCnTE. JpBJHTe pJIcTeN KpaKaTa Cn daJIeO T BpTAAnte ce ocTpneTa.
- He NaKlaHajTe MaunHaTa, KoraTo eJeKTKpoDVBnIaTeJrTaPbOtn.
Oco6eHOBHIMaBaiTe, KOraToIbPnate MaunHaTaKbM Ce6e CnIO BpeMe Ha pa6oTa.
HnKora He BnIgaiTe NnHocTe KocaKaTa,doKaTo DnIgAteJaPa6OtN.AKO ce HanaRa daBnHHeTe KocaKaTa,PiBpO I3KJIooTeDeBnIgAteJn I3KJIooTe KaBeJia 3a3anaJbHaTeOT 3anaJIteJHaTa CbeU.
ДИВИТЕЛЯТ TРЯБА ДА 6БДЕ ИЗКЛЮЧЕН, KОГАТСЕ рпИДВИХВATE пеЗ NOВБPXHOCТ, KОТTO HЯМА ДА 6БДЕ КОсЕHA. HanpIMeP, ПБТЕКИСЧАКЛ, KMБК, peCHN KaMbHи, acФаNTИДР.
- HNKORA He TmuaTe C MaunHata,doKaTo Tpa6oTu. BInaru Tpr6Ba Da BbPbNTe c KocauKhata.
- Икlioчete ДВигаTeЯ,педида прмehнTe BИСоЧинTaHa разанe. НИКORA hel perуларte, дOKaTO ДВигаTeЯТ pa6otn.
Hnkora He ocTabrYe MaunHaTa 6e3 Ha3Op, DOKaTo DnBraTeYI pa60Tu. N3KJIOUeTe DnBraTeYI.YBepTe Ce, ye peHeuOTo O6OpyBaHe e cnpraNo da Ce BbptN.
Ako HjaKaBb CtpaHueH o6eKt 6bJe yIapen IJIc Ce noJIyuaT Bn6paun, BeDHar a CnpTe MaunHaTa. Pa3kaYe HT-Ka6eJa O t 3anaJIteJIHaTa CBeU. PnoBepTe MaunHaTa daJI He e NobpeDeHa. NopBaTe BCraKa nOBpeJa.

OchOBHn npHHuHn Ha pa6oTa

BnHaHpeKeTe cOcTpo ocTpne 3a ONtMaJIHN pe3yJNTaTI.N3TbNeHOTo ocTpne Dba HepaBEcpe3N TpeBaTa CTaba JbIJaNo NOOBpXHOCTTa Ha cpe3a.
- HNKORA He KocTe NoBee oT 1/3 OT IbJIHHaTa Ha TpeBaTa. ToBa ce OTHacr Oco6eHo 3a cyuN nepNoi. IIpbO KoCeTe npr BICoUHa Ha pR3aHe, 3aJaEHa HA BnCoka. CJeD ToBa npOBepeTe pezUIta N HaMaJIeTe do C'botBeTHaTc BnCOUHa. Ako TpeBaTa e MHO rO dIJIra, KaapIte 6aBHO i - aKO e Heo6XoJMo - OKocete DBA nTn.
- PeheTe BceKn IbT B pa3JIuHn NocOKn, 3a da n36ErHeTe JInHn B Mopabata.

TpaHcnporN cBxpaHeHne

• O6e0naceTe 06OpyDbaHeTo no BpeMe Ha TpaHcnpTnpaHe, 3a Da n36eRHeTe NOBpeJa INHUNDEHTN.
  CbxaHraBaIte 6obpyDbaHeTo B 3akNIOuBaOce mCTo, Taka Ye da 6bJe N3BbH DoCTbNa Ha deLa NN HeYtJHMOUSeHINLJa.
  CbXpaHЯBaIeMaIHaHaTaNIO6OpUdBaHToHa cyxO IN3aIHTeHOOTCKpeK MraCTo.
  3a TpaHcnpTnpeH n 3apeHHaNe c rOpNBO Bn. pa3JeJa r3apeHHaNe c rOpNBO".

CTapTnpaHe n N3KJIIOUcBaHe

Ipei n da 3anoyHeTe

PPEIYIPPEHHE! Ppei da 3aOnuHTe pa6oTa c MaunHaTa npOteTe BnMaTeJIHo pKBOIDCTBTO 3aEKnloataUcN y6eTe, ye ro pa3bnpaTe npabInHO.

H3noI3BaayTe LInHnata 3aunHTa ekinIpOBKa.Bin yka3aHnTa B pa3de LnHna 3aunHTa ekinIpOBKa.

B3oHaTa Ha pa6Ota He 6nBa Da mMa BbHnHxopa.
ИЗьршайтЕ BSEКИДНБЕНОТ EXHINHECKO 6OBLYKBAHe. BIV. yKa3aHnTаВ pazdeI rPOndprbHKa".
- YBepeTeCe, Ye Ka6eJIbT 3a 3anaJIbaHeTo e npaBnJIHO NOCTaBEH B 3anaJInteJIHaTa CBeU.

CTapTupaHe

OTbopeTe rOpBnJ KJanaH.

PbKoXBaTkataHa CnIpaUcKaTa Ha DnBraTeJr Tp86Ba Da ce IbpHn CpeSy rOpHoTo ynpaBJeHne npi CTapTnpAhe Ha DnBraTeJr.

3aTaHeTe 3aMauHHaTa.

XBaHHe Tp'bHKaTa Ha cTapTepa N3TeIeTe 6abHo cTapTepHnHa Hyp CJaCHaTpaPbKa Do nOIoHeHne, KOraTo YcETnTe CbnpOTnBa (3b6uHTe Ha cTapTepa 3aCenBaT).N3d'bpnaTe CnHIO hUnpa, DOKaTo DBrVaTeJrT 3anaJI. He 6BnBa HNKoRa Da HABNaBe cTapTepHnHa Hyp OkOJIO p'bKaTa Cn.

3aDnBnBaHe

• HATNCHETe NocTa 3a 3aDINHBAHe KbM pBkoXBaTKaTa, 3a Da cTapTnpaTe 3aDINHBAHETO.

• Празддпьрптмашинота Кьм сс,ocbo6oJTe 3aДиИнБаHTo И рпдВинTeМашинота напгд НлрблзИтелно 10смpa3ctOЯнHe.

N3KJIIOUBaHe

CnpTe DnBirataJe, KaTo OTnYncHe Te npBHKaTa Ha cnPpaKaTa Ha DnBirataJe.

3aTbopete roPUBHnKJanaH.

OCHOBHn npHcHn

IPEJYPENHEHNE! NOpTe6nTeJIaT Tp8BaJa n3BpbuBa cmo pa6oTaT a noNoDpBkKaT a N o6ClyXbaHeTo, OnncanB To3n HapbYnKHa onepatopa. No-KpyInHTe peMoHTN Tp8Ba Da ce n3BbpwBat CepBn3.

ПпдОТБРаTe TE HeнЕЯНо CTарТираНe, KaTO ИЗВадиTe ЗалAJNTeЛУнь KaBJeЛ OТ озалЛТeЛнaТа CBseL.

EkcnloaTaOnOHnTc pOK Ha
MaunHaTo MoNe Da 6bDe HamaJeH, a
pNCKbT OHe NsactnCclyuaYBEnueH,
akoTexNHmecKToO6cLyjBaHa He
MaunHaTa He Ce npOBeJna pPabUNHO n
ako 06cLynBaHeTo n/InIpeMOHTnTe
deHOCnHe Ce n3PbJIiRaBt
npocecnoHaNo. Ako IMata HJda oT
Ooe INOpMaJma, MoJIa, 6bPHeTe ce
KbM Hn-6n3KnCepBn3.

BHMAMHIE!ПинakлайHeHaMaSHnHaTa BnHaRc eYbepaBaiTe,YeBb3DyHnTФЛТbp epa3noJIOxHb3MOHHO HAI-BuCOKO.

-ПолзуваitecamoopuГинн npucnpoc6lenn.

TexHnuecko 06cIyXBaHe

B rpaФИКа 3a TeXnUecko O6cLnyHbAHe MoMeTe da BnIITe KOn YacTn Ha MaunHaTa N3uCKBaT noIpIbKJa H Na KaKBn INTePbaJI. INTePbaJIte ca N3uCJIeHn Ha 6a3aTa Ha eNeIeHbHO nIIOJ3BaVe Ha MaunHaTa NMOHe Da ce pa3JIuCBAvB T 3aBNCIMoCT OT CTeNEHTa Ha ekCnloaTaIyra.

Bendri principal 234
