USER MANUAL Inspiron 13 7373 DELL

Inspiron 13 7000 2-in-1 Setup and Specifications

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2017-07

Rev. A00

Contents

Set up your computer.... 5

Create a USB recovery drive for Windows......8

Reinstall Windows using a USB recovery drive.... 8

Views....10

Front....10

Left....10

Right....11

Base....12

Display....13

Bottom....14

Modes....15

Notebook....15

Tablet....15

Stand....15

Tent....16

Specifications.... 17

System information.... 17

Computer model....17

Dimensions and weight....17

Operating system....17

Memory....18

Ports and connectors....18

Communications....18

Wireless.... 19

Audio....19

Storage....19

Media-card reader....20

Keyboard....20

Camera....21

Touchpad....21

Power adapter....21

Battery....22

Display....23

Video....23

Computer environment....24

Keyboard shortcuts.... 25

Getting help and contacting Dell....27

Self-help resources....27

Contacting Dell....28

Set up your computer

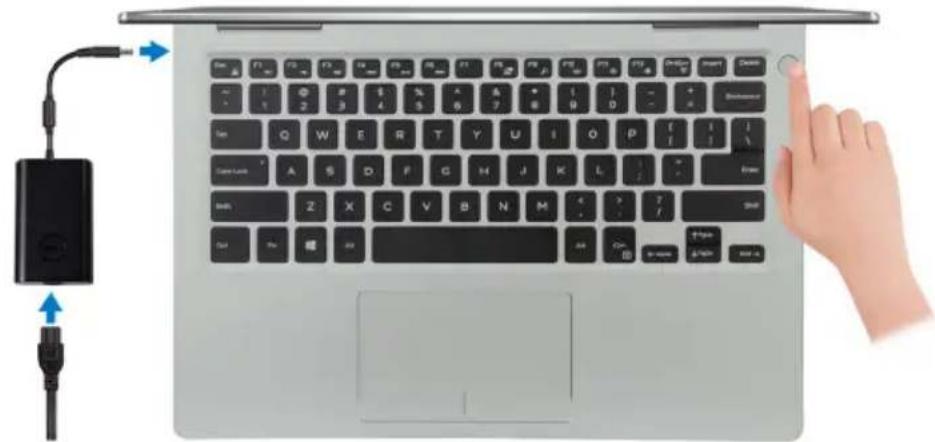

1 Connect the power adapter and press the power button.

Hand pressing on a laptop keyboard with an attached power adapter (no text or symbols visible)

2 Finish operating system setup.

For Windows:

a) Connect to a network.

Let's get connected Pick a network and go online to finish setting up this device. Connections Network Connected Wi-Fi WiFi WiFi WiFi WiFi Stop this trip

NOTE: If you are connecting to a secured wireless network, enter the password for the wireless network access when prompted.

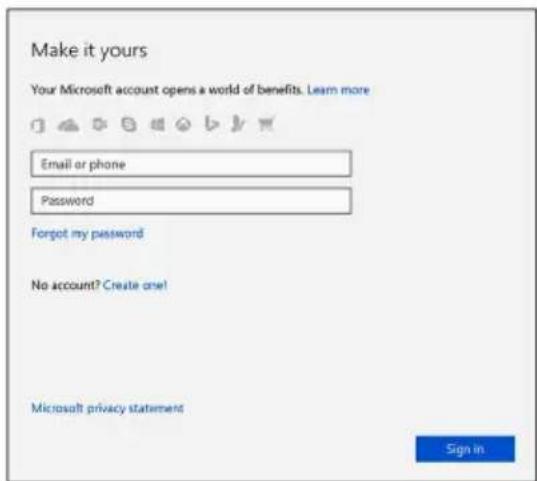

b) Sign in to your Microsoft account or create a new account.

Make it yours Your Microsoft account opens a world of benefits. Learn more Email or phone Password Forgot my password No account? Create one! Microsoft privacy statement Sign in

3 Locate Dell apps in Windows.

Table 1. Locate Dell apps

Register your computer

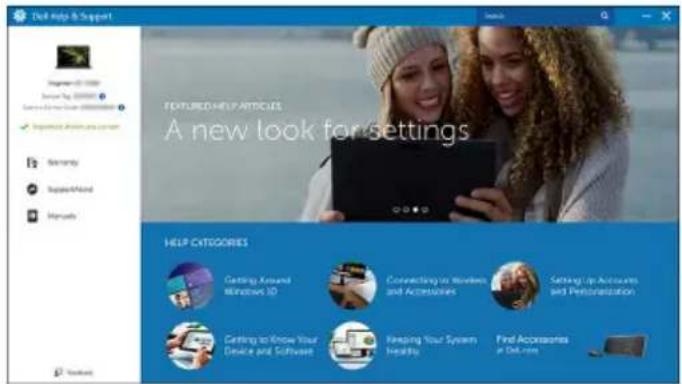

Dell Help & Support

Dell Help & Support September 2018 Search by: 2018 Dell Help & Support Recommended Features Germany Support/About Manuals Help CATEGORIES Getting Around Monosys ID Connecting to Business and Accessories Setting Up Accounts and Personalization Getting to Know Your Device and Software Keeping Your System Healthy Find Accessories in Dell.com

SupportAssist—Check and update your computer

4 Create recovery drive for Windows. It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows. For more information, see Create a USB recovery drive for Windows.

Create a USB recovery drive for Windows

Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive.

NOTE: This process may take up to an hour to complete.

NOTE: The following steps may vary depending on the version of Windows installed. Refer to the Microsoft support site for latest instructions.

1 Connect the USB flash drive to your computer.
2 In Windows search, type Recovery.
3 In the search results, click Create a recovery drive.

The User Account Control window is displayed.

4 Click Yes to continue.

The Recovery Drive window is displayed.

5 Select Back up system files to the recovery drive and click Next.
6 Select the USB flash drive and click Next.

A message appears, indicating that all data in the USB flash drive will be deleted.

7 Click Create.
8 Click Finish.

For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals.

Reinstall Windows using a USB recovery drive

CAUTION: This process formats the hard drive and removes all data on your computer. Ensure that you back up data on your computer before beginning this task.

NOTE: Before reinstalling Windows, ensure your computer has more than 2 GB of memory and more than 32 GB of storage space.

NOTE: This process may take up to an hour to complete and your computer will restart during the recovery process.

1 Connect the USB recovery drive to your computer.
2 Restart your computer.
3 Press F12 after the Dell logo is displayed on the screen to access the boot menu. A Preparing one-time boot menu message appears.

4 After the boot menu loads, select the USB recovery device under UEFI BOOT. The system reboots and a screen to Choose the keyboard layout is displayed.

5 Choose your keyboard layout.

6 In the Choose an option screen, click Troubleshoot.

7 Click Recover from a drive.

8 Choose one of the following options:

- Just remove my files to do a quick format.

- Fully clean the drive to do a complete format.

9 Click Recover to start the recovery process.

Front

Simple illustration of a curved object with a vertical line labeled '1' (no text or symbols beyond the number)

1 Power and battery-status light/hard-drive activity light

Indicates the battery-charge status or the hard-drive activity.

NOTE: Press Fn+H to toggle between the power and battery-status light, and hard-drive activity light.

Hard-drive activity light

Turns on when the computer reads from or writes to the hard drive.

Power and battery-status light

Indicates the power and battery-charge status.

Solid white — Power adapter is connected and the battery has more than 5% charge.

Amber — Computer is running on battery and the battery has less than 5% charge.

Off

• Power adapter is connected and the battery is fully charged.
• Computer is running on battery and the battery has more than 5% charge.
• Computer is in sleep state, hibernation, or turned off.

Left

1 2 3 4 5

1 Power-adapter port

Connect a power adapter to provide power to your computer and charge the battery.

2 USB 3.1 Gen 1 (Type-C) port/DisplayPort

Connect peripherals such as external storage devices, printers, and external displays. Provides data transfer speeds up to 5 Gbps.

NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

3 HDMI port

Connect to a TV or another HDMI-in enabled device. Provides video and audio output.

4 USB 3.1 Gen 1 port with PowerShare

Connect peripherals such as external storage devices and printers.

Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off.

NOTE: If your computer is turned off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. You must enable this feature in the BIOS setup program.

NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device.

5 Headset port

Connect headphones or a headset (headphone and microphone combo).

Right

1 2 3

1 SD-card slot

Reads from and writes to the SD card.

2 USB 3.1 Gen 1 port

Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.

3 Security-cable slot (for Noble locks)

Connect a security cable to prevent unauthorized movement of your computer.

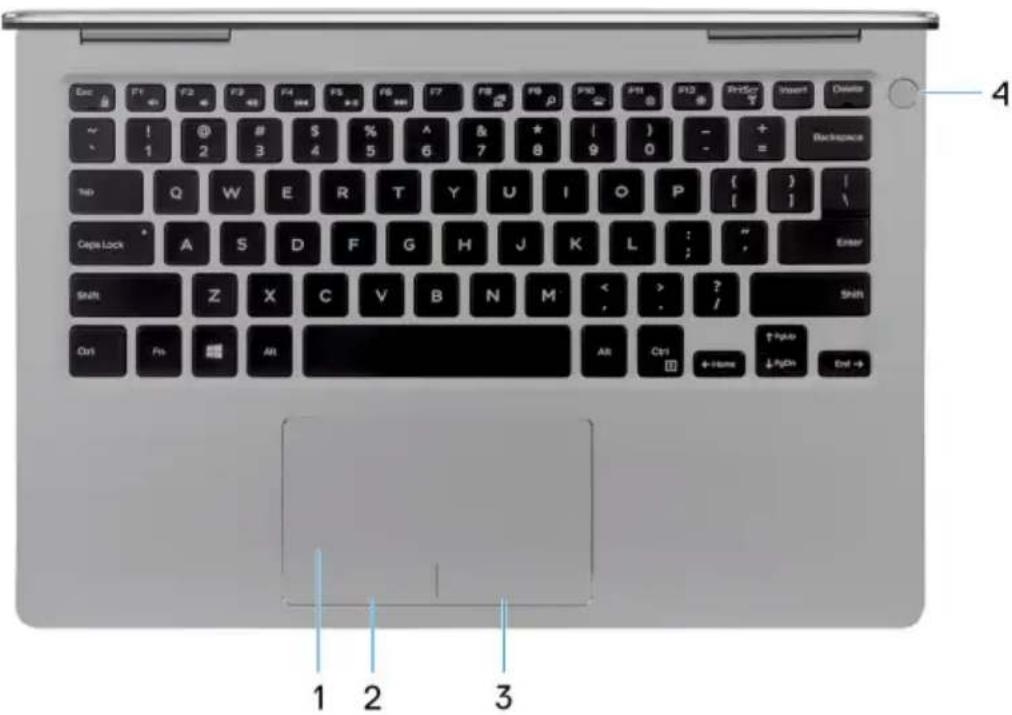

Base

4 1 2 3

1 Touchpad

Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.

2 Left-click area

Press to left-click.

3 Right-click area

Press to right-click.

4 Power button

Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.

Press to put the computer in sleep state if it is turned on.

Press and hold for 4 seconds to force shut-down the computer.

NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/support/manuals.

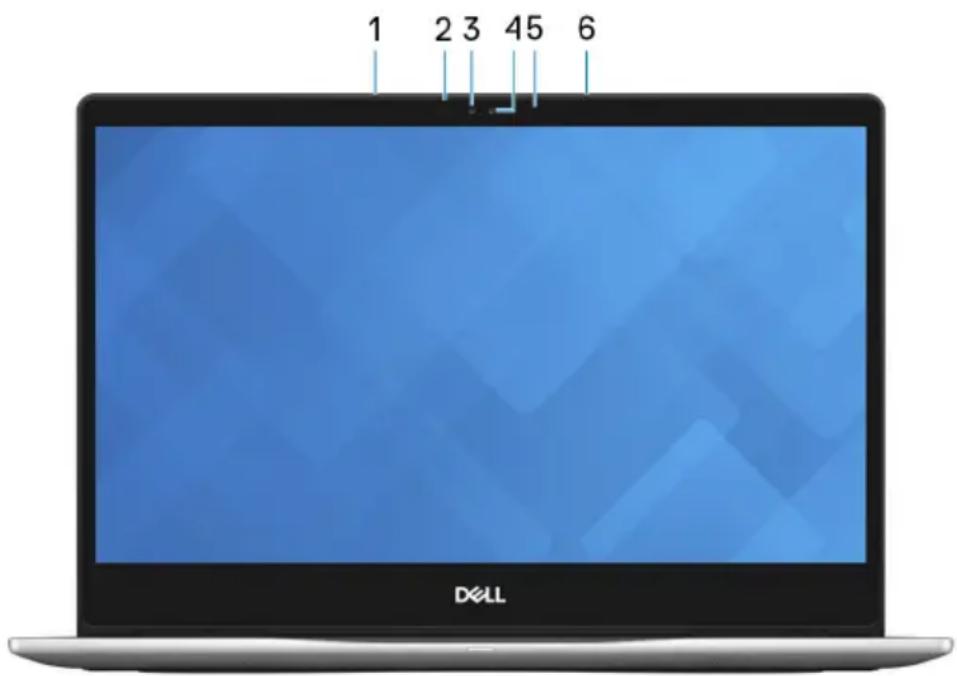

Display

1 2 3 45 6 DELL

1 Left microphone

Provides digital sound input for audio recording and voice calls.

2 Infrared emitter

Emits infrared light, which enables the infrared camera to sense and track motion.

3 Infrared camera

Enhances security when paired with Windows Hello face authentication.

4 Camera

Enables you to video chat, capture photos, and record videos.

5 Camera-status light

Turns on when the camera is in use.

6 Right microphone

Provides digital sound input for audio recording and voice calls.

Bottom

1 3 inspiron 2 2

1 Left speaker

Provides audio output.

2 Service Tag label

The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

3 Right speaker

Provides audio output.

Modes

Notebook

Laptop displaying a scenic mountain landscape with water reflection (no visible text or symbols)

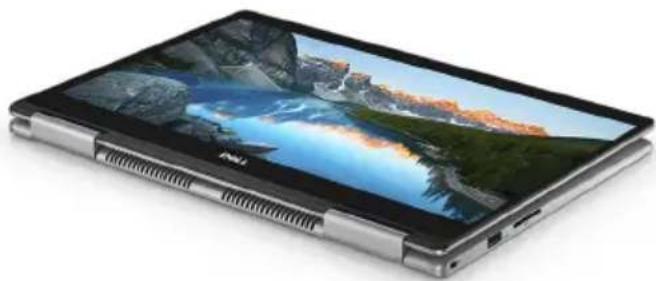

Tablet

Exterior view of a modern laptop with a scenic landscape display (no text or symbols visible)

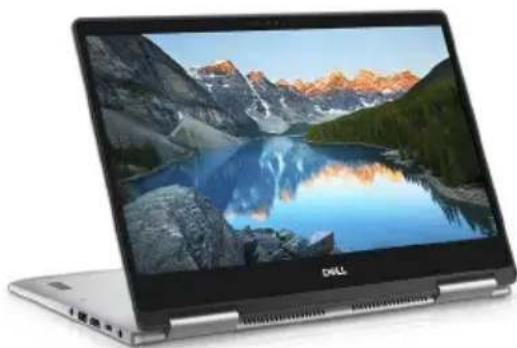

Stand

Laptop displaying a scenic mountain landscape with a lake reflection (no visible text or symbols)

Tent

Exterior view of a modern office building (no signage)

System information

Table 2. System information

Processor 8

^th Generation Intel Core i5/i7

Chipset Integrated in the processor

Computer model

Table 3. Computer model

Computer model

Inspiron 13-7373

Dimensions and weight

Table 4. Dimensions and weight

Height 15.51 mm (0.61 in)

Width 309.66 mm (12.19 in)

Depth 215.70 mm (8.49 in)

Weight (maximum) 1.63 kg (3.59 lb)

NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability.

Operating system

Table 5. Operating system

Operating systems supported

• Windows 10 Home 64-bit
• Windows 10 Professional 64-bit

Memory

Table 6. Memory specifications

Slots Onboard memory

Type Dual-channel DDR4

Speed 2133 MHz and 2400 MHz

Configurations supported

8 GB and 16 GB

Ports and connectors

Table 7. Ports and connectors

External:
USB	One USB 3.1 Gen 1 portOne USB 3.1 Gen 1 port with PowerShareOne USB 3.1 Gen 1 (Type-C) port/DisplayPort
Audio/Video	One HDMI portOne headset (headphone and microphone combo) port

Table 8. Ports and connectors

Internal:
M.2 Card	• One M.2 slot for SSD
	• One M.2 slot for WiFi/Bluetooth

Communications

Table 9. Supported Communications

Wireless

- WiFi 802.11a/b/g/n/ac

Wireless

Table 10. Wireless

Transfer rate Up to 867 Mbps

Frequency Bands 2.4 GHz/5 GHz

Encryption

- 64-bit/128-bit WEP

- AES-CCMP

• TKIP

Audio

Table 11. Audio specifications

Controller Realtek ALC3254-CG with Waves

MaxxAudio Pro

Speakers Two

Speaker output

- Average: 2 W

- Peak: 2.5 W

Microphone Digital-array microphones

Volume controls Media-control shortcut keys

Storage

Table 12. Storagespecifications

Interface

- SATA 6 Gbps

- PCIe Gen 3 x4 up to 32 Gbps

Solid-state drive (SSD) One M.2 drive

Capacity supported Up to 512 GB

Media-card reader

Table 13. Media-card reader specifications

Type One SD-card slot

Card supported

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• Secure Digital Extended Capacity (SDXC)

Keyboard

Table 14. Keyboard specifications

Type Backlit keyboard

Shortcut keys Some keys on your keyboard have two

symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

NOTE: Press Fn+Esc to switch the primary behavior of the function keys (F1-F12) between two modes - multimedia key mode and function key mode.

Keyboard shortcuts

Camera

Table 15. Camera specifications

Resolution

Camera

• Still image: 0.92 megapixel
  • Video: 1280 x 720 (HD) at 30 fps

Infrared camera 640 x 480 (VGA)

Diagonal viewing angle

Camera 88 degrees

Infrared camera 82.9 degrees

Touchpad

Table 16. Touchpad

Resolution

• Horizontal: 1228
- Vertical: 748

Dimensions

• Width: 105 mm (4.14 in)
  • Height: 65 mm (2.56 in)

Power adapter

Table 17. Power adapterspecifications

Type 45W

Input voltage 100 VAC-240 VAC

Input frequency 50 Hz–60 Hz

Input current (maximum) 1.30 A

Output current

2.31 A

(continuous)

Rated output voltage 19.50 VDC

Temperature range (operating)

0^ to 40^ (32°F to 104°F)

Temperature range (storage)

-40^ to 70^ ( -40^ to 158^ )

Battery

Table 18. Battery specifications

Type 3-cell 38 WHr "smart" lithium-ion

Dimension:

Width 256.40 mm (10.09 in)

Depth 5.20 mm (0.20 in)

Height 66.05 mm (2.60 in)

Weight (maximum) 0.18 kg (0.40 lb)

Voltage 11.40 VDC

Charging time when the computer is off 4 hours (approximate)

Operating time Varies depending on operating

conditions and can significantly reduce under certain power-intensive conditions.

Life span (approximate) 300 discharge/charge cycles

Temperature range: Operating 0°C to 35°C (32°F to 95°F)

Temperature range: Storage -40^ to 65^ ( -40^ to 149^ )

Coin-cell battery CR-2032

NOTE: It is recommended that you use a Dell coin-cell battery for your computer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

Display

Table 19. Display specifications

Type 13.3-inch FHD touchscreen

Resolution (maximum) 1920 x 1080

Viewing angle (Left/Right/Down/Up) 80/80/80/80 degrees

Pixel pitch 0.153 mm

Refresh rate 60 HZ

Operating angle 0 degrees (closed) to 360 degrees

Controls Brightness can be controlled using

shortcut keys

Dimension:

Height (including bezel) 165.24 mm (6.51 in)

Width (including bezel) 293.76 mm (11.57 in)

Diagonal (excluding bezel) 337.82 mm (13.30 in)

Video

Table 20. Videospecifications

Type Integrated

Controller Intel UHD Graphics 620

Memory Shared system memory

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 21. Computer environment

Operating Storage
Temperature range 0°C to 35°C (32°F to 95°F)		-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS 1.30 GRMS
Shock (maximum) 110 G	†	160 G‡
Altitude (maximum) -15.2 m to 3048 m (-50 ft to 10,000 ft)		-15.2 m to 10,668 m (-50 ft to 35,000 ft)

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.
± Measured using a 2 ms half-sine pulse when the hard-drive head is in parked position.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Table 22. List of keyboard shortcuts

Keys Description
	Mute audio
	Decrease volume
	Increase volume
	Play previous track/chapter
	Play/Pause
	Play next track/chapter
	Switch to external display
	Search
	Toggle keyboard backlight
	Decrease brightness
	Increase brightness
+	Turn off/on wireless

Keys Description

Fn + B	Pause/Break
Fn + Insert	Sleep
Fn + S	Toggle scroll lock
Fn + H	Toggle between power and battery-status light/hard-drive activity lightNOTE: Hard-drive activity light is supported only on computers shipped with M.2 SATA Solid State Drive.
Fn + R	System request
Fn + Ctrl	Open application menu
Fn + Esc	Toggle Fn-key lock
Fn + ↑PgUp	Page up
Fn + ↓PgDn	Page down
Fn + ←Home	Home
Fn + End →	End

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 23. Self-help resources

Information about Dell products and services www.dell.com

Dell Help & Support app

Get started app

Accessing help In Windows search, type Help and

Support, and press Enter.

Online help for operating system

www.dell.com/support/windows www.dell.com/support/linux

Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on.

1. Go to www.dell.com/support.
2. At the top-right corner, enter Knowledge Base in the search box.

Enter the subject keyword to retrieve the related articles.

Learn and know about the following information about your product:

See Me and My Dell at www.dell.com/support/manuals.

• Product specifications
• Operating system
• Setting up and using your product
• Data backup
• Troubleshooting and diagnostics

To locate the Me and My Dell relevant to your product, identify your product through one of the following:

• Select Detect Product.

• Locate your product through the drop down menu under View Products.

• Operating system
  • Factory and system restore

• BIOS information

- Enter the Service Tag number or Product ID into the search bar.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

NOTE: Availability varies by country and product, and some services may not be available in your country.

NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
