USER MANUAL GFW-UTL-CART52 Gator

ASSEMBLY INSTRUCTIONS

SCAN FOR MORE INFORMATION

BEST PRACTICES:

• Always use caution when moving a load on utility cart.
• When using cart be careful to not pinch fingers.
• Never overload the cart, this may cause cart failure and will void warranty. (Max 500lbs)
  • Always lock casters when loading equipment on uneven surface, and when parked.
  (Use wheel blocks if load is heavy)
• When possible use bungee straps to keep gear affixed to cart platform.
  • Always use caution if using in extended position, have a helper navigate when possible.

GATOR PROMISE:

Gator Frameworks is dedicated to producing the highest quality products and accessories. We back up that commitment with a 3 year Warranty on any manufacturing defects in material and workmanship. This warranty applies to the original owner and requires proof of purchase. Our warranty entitles the original owner repair or replacement of the product, or replacement with a comparable product of similar value and condition at our discretion. This warranty is limited to Gator Frameworks products only and excludes loss of personal property, loss of use, accidental damage, misuse, or normal wear and tear.

RECOMMENDED TOOLS (WHEEL ATTACHMENT)

Adjustable Crepent Wrench Channel Lock Pliers Needle Nose Pliers

UTILITY CART 52

GFW-UTL-CART52

GATOR frameworks 08.26.2020 REV:A

Black and red compact hatchback cart with wheels and side railings, displayed against a white background (no text or symbols on the cart itself)

5112 W. Linebaugh Ave. • Tempo, FL • Phone: (-1) 813.221.4191 • Fax [phone]

Visit GatorCases.com for more service & product information • All rights reserved Gator Co.

ASSEMBLY INSTRUCTIONS

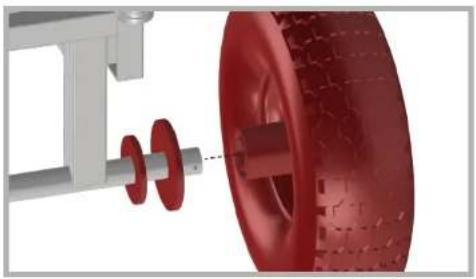

1. Rear Wheel Installation 2. 3.

Mechanical assembly diagram showing a red tire wheel connected to a white frame with a red gear wheel (no text or symbols)

Gently slide small washer, then large washer onto rear axle. Then slide wheel onto the axle.

Close-up of a gray industrial tire with red central hub and textured side (no text or symbols visible)

Next, place another large washer on wheel outside. Finish with inserting cotter pin into hole and bending ends backward at 90 degrees with pliers.

Close-up of a tire with a central screw and a pliers nearby (no text or symbols visible)

Mechanical assembly diagram showing a robotic arm with a red knob and two wrenches (no text or symbols present)

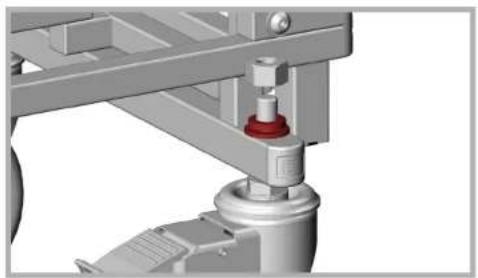

4. Front Swivel Caster 5. 6.

Mechanical assembly showing a red cylindrical component inserted into a gray frame (no text or symbols visible)

Slide top of swivel caster upwards into the front axle hole.

Mechanical assembly diagram showing a robotic arm with a red valve and mechanical components (no text or symbols visible)

Next, place small washer then lock washer onto threads of swivel caster.
Finish by tightening nut onto caster using wrench and channel lock pliers. Tighten firmly until lock washer no longer rotates.

CAUTION

Periodically check cotter pin on rear wheel and tighten nut to insure swivel caster is securely connected to axle.

ASSEMBLY INSTRUCTIONS

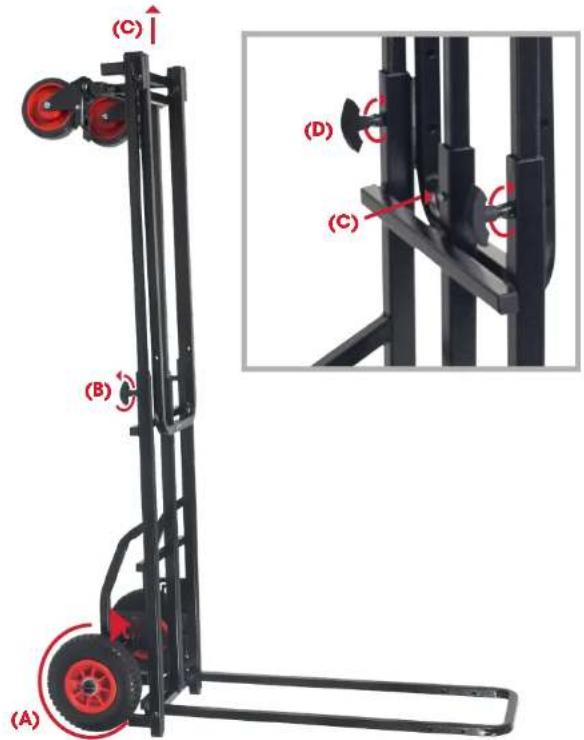

7. Cart Extension

(A) To extend loading frame of cart, tilt cart upwards.
(B) Loosen the crescent knobs counter-clockwise, press in the extension stop button.
(C) Pull upward on the frame until the stop button engages into the hole.
(D) Retighten the crescent knobs clockwise.

(C) (B) (A) (D) (C)

GFW-UTL-CART52

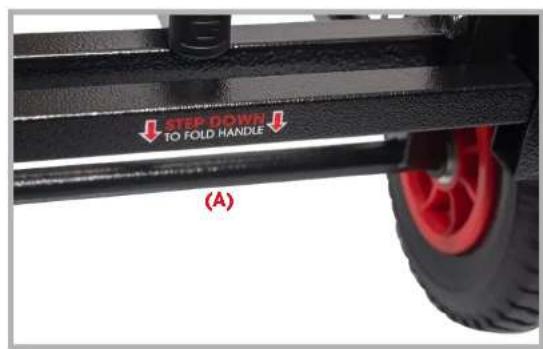

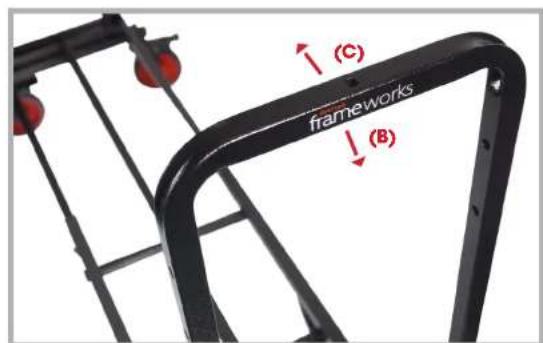

8. To Fold Handles

(A) Firmly step downward onto the bar marked "Step Down"
(B) Grab handle end and pull upwards until the handle locks into position
(C) To fold, "Step Down" on bar and push handle downwards into lock position

STEP DOWN TO FOLD HANDLE (A)

frameworks (C) (B)

ASSEMBLY INSTRUCTIONS

• Utility cart transforms into 8 different configuration options
• Never overload the cart, this may cause cart failure and will void warranty. (Max 500lbs)
• Always lock casters when loading equipment on uneven surface, and when parked. (Use wheel blocks if load is heavy)
• When possible use bungee straps to keep gear affixed to cart platform

8-IN-1

CONFIGURATIONS

GATOR frameworks

08.26.2020 REV:A

Compact Overall:	36 x 18 x 10.75in (915 x 457 x 343mm)
Extendable Length: Min - Max	29.5 - 52in (750 - 1321mm)
Wheel Size: Front & Rear	5in (127mm) & 8in (203mm)
Material:	Tubular Steel with Plastic Wheels & Polyurethane Tires
Finish:	Black Powder-Coated
Weight:	29lbs (13.5kg)
Weight Capacity:	500lbs (225kg)
