USER MANUAL DL Dante Expansion Card MACKIE
The Mackie DL Dante Expansion card connects the DL32R 32-Channel Digital Live Sound mixer to any Dante-enabled audio network.
Dante is the de facto standard in digital audio networking, delivering unmatched audio quality, extremely flexible routing and offers significant cost savings compared to traditional analog cable runs.
With 32x32 channels of Dante I/O, the user can route Dante inputs like microphones and other sources to any channel on the DL32R. It's also perfect for sending any DL32R signal to Dante enabled loudspeaker systems and amplifiers.
The card features dual Dante ports for daisy chaining or system redundancy and a dedicated Wi-Fi control port that eliminates the need for an Ethernet switch in many situations.
The DL Dante Expansion Card includes Dante Virtual Sound Card, which enables multi-tracking recording / playback between Dante and a Mac or PC.
With flawless interoperation with hundreds of Dante-enabled products and a rock solid, glitch-free operation, the DL Dante Expansion Card truly expands the DL32R's functionality and application-flexibility in any professional environment.
32x32 48 kHz digital audio interface connecting the Mackie DL32R to a Dante network using Cat5e
Route any signal to the Dante network from the DL32R using Master Fader control software
Dual Ethercon connectors for Dante daisy-chaining or redundant Dante mode
■ Dedicated Wi-Fi control port eliminates need for Ethernet switch in many applications
■ Automatic device discovery and custom channel naming with easy one click routing using Dante Controller software for Mac and PC
Extremely stable, glitch-free low-latency design
■ Includes Dante Virtual Soundcard for recording and playback of up to 64x64 channels via Mac or PC
■ Use simultaneously with DL32R USB I/O for total routing and recording control
■ Simple two-screw user installation
Like us
Follow us
Watch our dang videos
DANTE SPECIFICATIONS
Number of ports and functionality:
| 2x Ethercon Gigabit Ethernet Dante Ports |
| 1x RJ45 Gigabit Ethernet Wi-Fi Control Port |
| 32 receive / 32 transmit channels, 48 kHz, 24-bit |
| Supports Dante Redundant and Switch modes |
| Configuration via Dante Controller |
Physical Properties (packaged product)
| Height: 2.9 in / 74 mm |
| Width: 5.9 in / 150 mm |
| Depth: 7.3 in / 185 mm |
| Weight: 1.0 lb / 0.5 kg |
Physical Properties (product)
| Height: 1.7 in / 44 mm |
| Width: 5.8 in / 147 mm |
| Depth: 4.8 in / 122 mm |
| Weight: 1.0 lb / 0.5 kg |
Ordering Information
| Dante Expansion Card, US: | P/N 2042901 |
DANTE REAR PANEL
Dante™
Wi-Fi
CONTROL

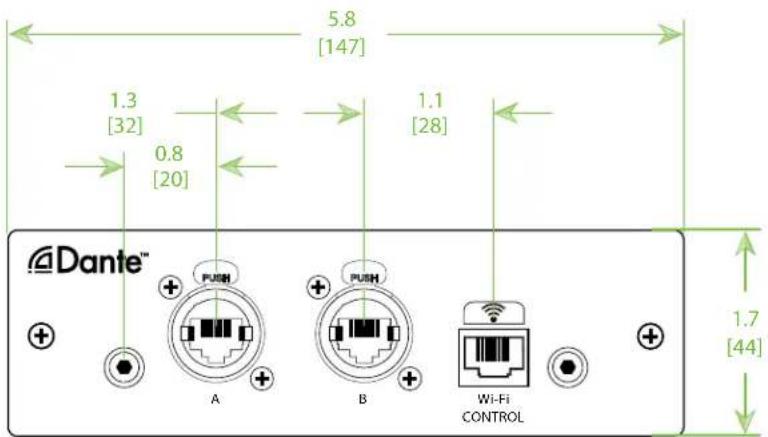

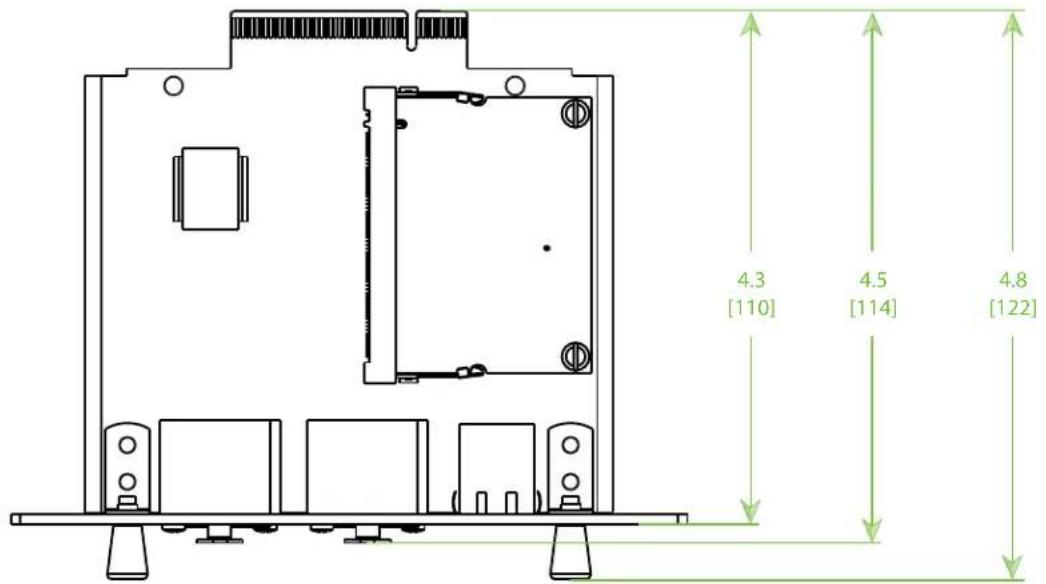

DANTE DIMENSIONS
NOTES:
- WEIGHT APPROX. 1.0 lb [0.5 kg].
- SHIPPING WEIGHT APPROX. 1.0 lb [0.5 kg].
UNLESS OTHERWISE SPECIFIED: ALL DIMENSIONS ARE IN INCHÉS DUAL [MM] DIMENSIONS FOR REF ONLY
LOUD Technologies Inc. is always striving to improve our products by incorporating new and improved materials, components, and manufacturing methods. Therefore, we reserve the right to change these specifications at any time without notice.
Electronic files for this product are available at: www.mackie.com
Specification Sheet Dante_SS.PDF
MACKIE.
www.mackie.com
16220 Wood-Red Road NE
Woodinville, WA 98072 USA
800-898-3211, Fax 425-487-4337, sales@mackie.com
Part No. SWIII6 Rev. A 04/15
