UVC30-CP900-BYOD - Video Conferencing System Yealink - Free user manual and instructions

USER MANUAL UVC30-CP900-BYOD Yealink

1.2m USB Tpye-C Cable

Velcro×2

Tpye-C to Tpye-A Adapter

BYOD Quick Start Guide

We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in poor performance.

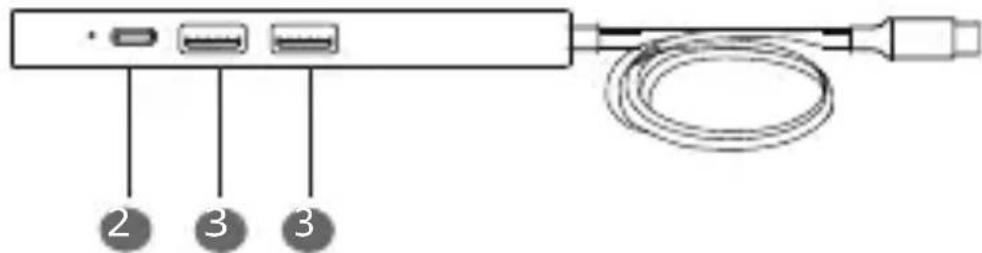

BYOD-BOX Port

Simple diagram of a connector or port with a numbered label (1) at the bottom, no text or symbols present.

HDMI Port

2 3 3

Type-C Port

BYOD-BOX Installation

Attach the BYOD box to the bottom or the top of the table.

Simple diagram with a rectangular block and a small gray rectangle inside, connected by a line to an arrow (no text or symbols)

A:

Simple line drawing of a flat rectangular object with a small arrow pointing to its base (no text or symbols)

B:

Simple line drawing of a rectangular object with a horizontal bar and arrow, no text or symbols present.

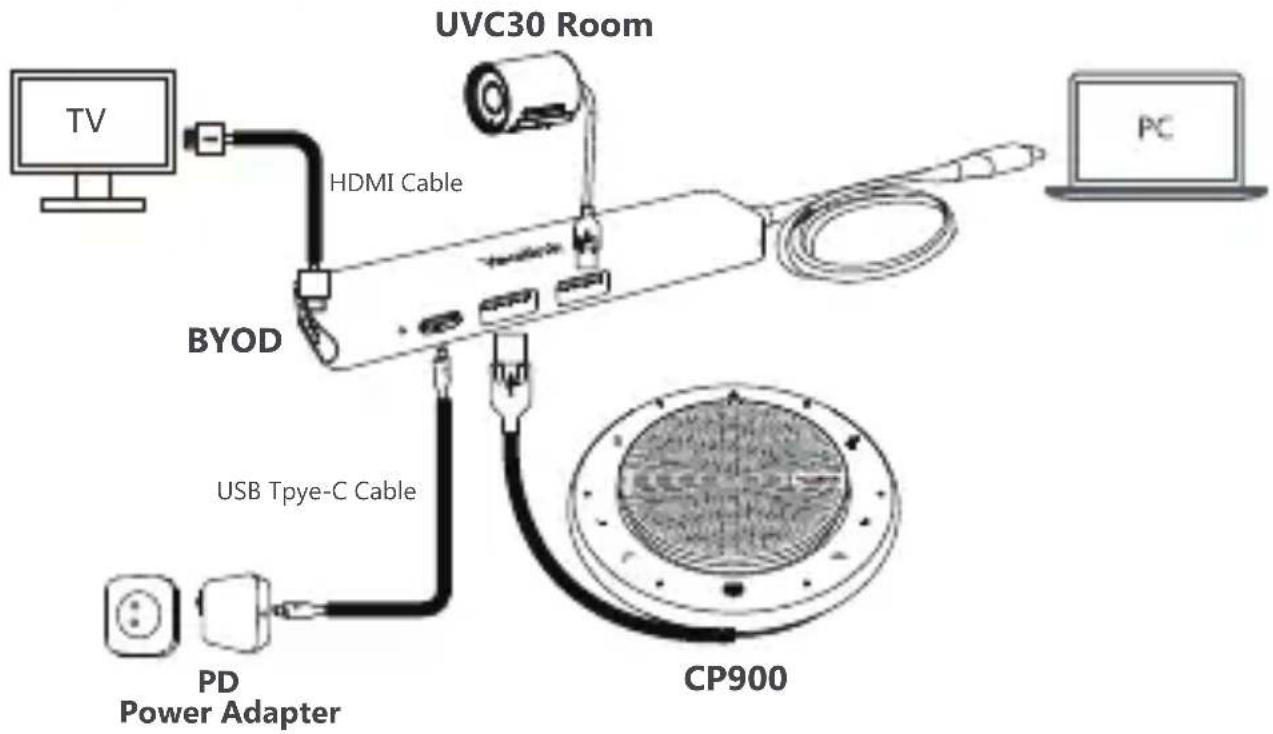

BYOD-BOX Connection

We recommend that you use a stable 1.8m HDMI cable with magnetic ring to connect the TV.

包装清单

Simple line drawing of a rectangular device connected to a coiled cable (no text or symbols)

BYOD盒子

PD 电源适配器

1.2米 USB Tpye-C线

魔术贴×2

Tpye-C转 Tpye-A转换头

BYOD 快速入门指南

HDMI接口

Diagram of an electronic device showing ports and cable connections with numbered labels

Simple diagram of a tool or connector with a rectangular body and a directional arrow (no text or symbols)

A:

Simple line drawing of a flat rectangular object with a small cylindrical object on top (no text or symbols)

B:

Simple line drawing of a rectangular object with a cylindrical rod, placed on a flat base (no text or symbols)

连接BYOD盒子

Operating Ambient Temperatures

- Operating temperature: +32 to 104°F (0 to 40°C)

- Relative humidity: 5% to 90%, noncondensing

Storage temperature: -22 to +160°F (-30 to +70°C)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

Explanation of the symbols

• DC symbol

is the DC voltage symbol.

• WEEE Warning symbol

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Restriction of Hazardous Substances Directive (RoHS)

All adapter devices comply with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use!

General Requirements

• Before you install and use the device, read the safety instructions carefully and observe the situation during operation.
  • During the process of storage, transportation, and operation, please always keep the device dry and clean, avoid collision and crash.
  Please attempt not to dismantle the device by yourself. In case of any discrepancy, please contact the appointed maintenance center for repair.
• Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well.

Environmental Requirements

Place the device at a well-ventilated place. Do not expose the device under direct sunlight.
- Keep the device dry and free of dusts.
- Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
- Keep the device away from any heat source or bare fire, such as a candle or an electric heater.

Operating Requirements

Do not let a child operate the device without guidance.
Do not let a child play with the device or any accessory in case of accidental swallowing.
- Please use the accessories provided or authorized by the manufacturer only.

The power supply of the device shall meet the requirements of the input voltage of the device. Please use the provided surge protection power socket only.

Before plugging or unplugging any cable, make sure that your hands are completely dry.

- Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub, washbowl, kitchen sink, wet basement or near a swimming pool.

During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike.

If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug.
When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply, and unplug the power plug immediately.
- Contact the specified maintenance center for repair.
Do not insert any object into equipment slots that is not part of the product or auxiliary product.
- Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you disconnect all other cables.

Cleaning Requirements

Before cleaning the device, disconnect it from the power supply.
■ Use a piece of soft, dry and anti-static cloth to clean the device.
- Keep the power plug clean and dry.

Troubleshooting

The unit cannot supply power to device other than Yealink device.

There is a bad connection with the plug.

1. Clean the plug with a dry cloth.

2. Connect it to another wall outlet.

The usage environment is out of operating temperature range.

1. Use in the operating temperature range.

The cable between the unit and the Yealink device is connected incorrectly.

1. Connect the cable correctly.

You cannot connect the cable properly.

1. You may have connected a wrong Yealink device.

2. Use the correct power supply.

Some dust, etc., may be in the port.

1. Clean the port.

Contact your dealer or authorized service facility for any further questions.
