USER MANUAL P2000 PANTECH

Thank you for choosing the Pantech Breeze II P2000, our latest mobile phone.

The Pantech Breeze II P2000 has many features designed to enhance your mobile experience. From its EZ to read menus, to its sleek, stylish design, we know you will enjoy the entire Breeze II P2000 experience.

This User Guide contains important and useful information that will maximize your familiarity with all that the Pantech Breeze II P2000 has to offer.

Specifications

Design

Clamshell phone with internal and external display

Displays

• 260K Colors TFT LCD with 2.2" internal display
• 260K Colors TFT LCD with 1.38" external display
• 7 lines for text in basic mode with 16 point font
• Two soft keys and four-way scroll and selection 🔊 keys

Melodies

MIDI, i-Melody, MP3, AMR, WAV, AAC, AAC+, WMA

Camera

Integrated 1.3M CMOS Camera

• Resolution up to 1280 x 1024 (1.3M pixels)
- Mpeg4 Video recording/playing up to 15f/s (QCIF size)
- Self-timer function (5 seconds or 10 seconds)
• Photo album and video album

Dimensions & Weight

Weight: 101 g (with standard battery)

Dimensions: 99 mm x 50 mm x 18.65 mm

Power Management (Performance)

Battery Type	Capacity	Standby Time	Talk Time
Standard Lithium-Ion (Li-ion)	Up to 920mAh	Up to 250 hours	Up to 3 hours

Operating Frequency

• GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS 1900Mhz networks in North America, South America, Europe, Africa, and Asia-Pacific where these networks are supported.

• Automatic band switching.

Specifications ......2

Phone overview 8

Using Shortcuts ....10

Menu overview ......11

Quick & Easy 14

SIM card and battery 17

Turning the phone on/off 20

Essential display indications ....20

Setting the phone mode ......22

Entering text ......23

EZ quick call keys ......25

PC Suite 26

Memory card ......27

Breeze Mode

1. Calls and address book

Making, receiving and ending a call ......32
Using video share 34
Options during a call 36
Checking all calls 38
Speed dialing 40
Using address book 41
Using your headset 43
Service and fixed dialing number .....44

Messaging

Receiving messages 48

Creating and sending text messages .....49

Creating multimedia messages .....49

Managing messaging memory ....54

Email 55

contents

3. Multimedia

Camera 58

Photo album 63

Video album 64

4. Useful Features

Calendar 68

Alarm clock 69

Calculator 69

Tip calculator ....70

Stop watch 70

Voice recognition ....71

5. Connectivity

Bluetooth 74

Using Mobile Web 76

6. Settings

Phone status 78

Sounds & alerts ....78

Display settings 78

Memo 80

Advanced Mode

1. Calls and address book

Making, receiving and ending a call .....82

Using video share 84

Options during a call 86

Call settings 89

Settings for video share 89

Checking all calls 90

Speed dialing 92

Using address book 93

Using your headset 95

Service and fixed dialing number .....96

Caller identification 97

2. Messaging

Receiving messages ....100

Creating and sending text messages .....101

Creating multimedia messages ......102

Message templates ......107

Message settings....107

Managing messaging memory .....110

Email 111

Using instant messenger ....111

3. Multimedia

Camera 114

Photo album 119

Video album 121

Audio album 123

Music player 124

Music player settings 129

Media player 130

Other files 133

Managing memory 133

Playing games 133

AppCenter....134

4. Useful Features

Calendar 136

Alarm clock 137

Calculator 137

Tip calculator 138

Stop watch 138

Notepad and voice memo 139

World time 140

contents

Converter 140

Timer 141

Voice recognition ....141

5. Connectivity

Bluetooth 144

Using Mobile Web 147

Using the web browser .....147

Setting profiles ....149

6. Settings

Language 152

Time and date 152

Voice command settings ....152

Sounds and alerts ....153

Display settings 153

Security 155

Updating software 156

Reset 157

TTY 158

7. Appendix

Alert message 160

Troubleshooting checklist ....161

Safety information 162

Safety precautions 163

About the battery usage ....165

FCC Hearing-Aid Compatibility (HAC)

regulations for wireless devices ....167

FCC Regulatory Compliance ....170

Warranty 173

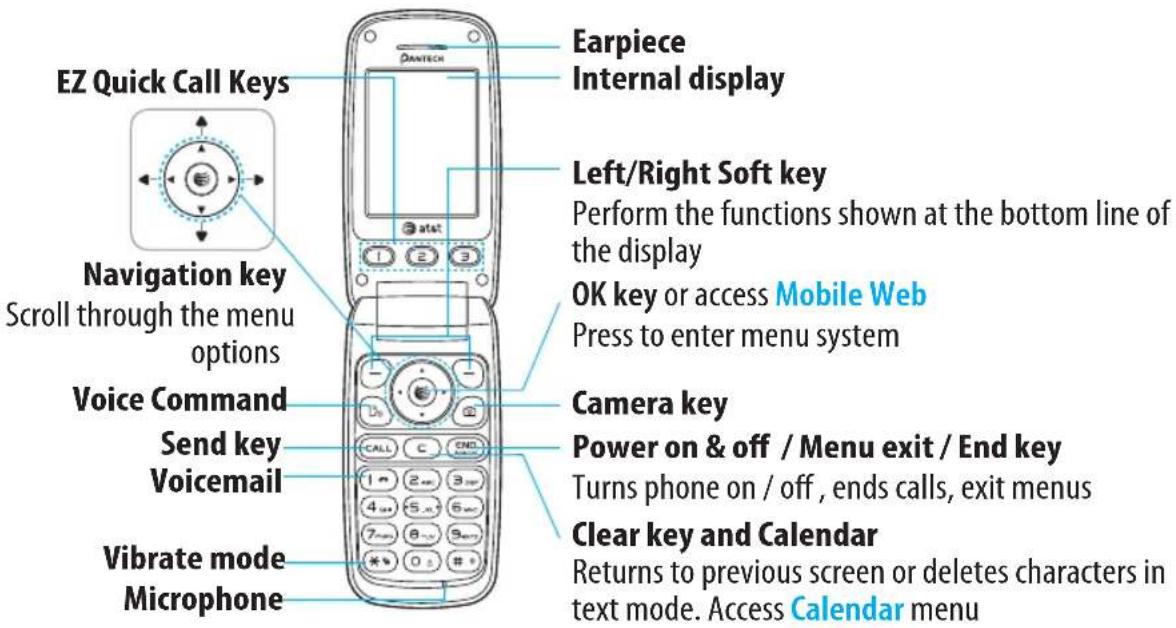

Phone overview

EZ Quick Call Keys Navigation key Scroll through the menu options Voice Command Send key Voicemail Vibrate mode Microphone Earpiece Internal display Left/Right Soft key Perform the functions shown at the bottom line of the display OK key or access Mobile Web Press to enter menu system Camera key Power on & off / Menu exit / End key Turns phone on / off , ends calls, exit menus Clear key and Calendar Returns to previous screen or deletes characters in text mode. Access Calendar menu

Volume up / down

Diagram of a folded paper or plastic sheet with vertical ridges and a measurement scale (no text or symbols)

External Display Camera

atst

LED Indicators Message, Call, Battery

Speaker

Line drawing of a mobile phone casing with a front panel and screen (no text or symbols)

Internal antenna area

Line drawing of a cylindrical object with a rectangular inset showing internal structure (no text or symbols)

16 Pin (Ear Mic. & Charger)

note: Holding the device by the internal antenna area might affect the quality of all calls.

Using Shortcuts

Numbered menu items, such as menus, sub-menus, and options can be quickly accessed by using their shortcut numbers. In Menu mode, Main Menus can be accessed by pressing the number keys (1 to 0) corresponding to their location on the screen.

Example: Accessing the Phone Modemenu.

1. Press Menu.
2. Press the 6_MNO for Settings.
3. Press the 6_MNO for Phone Mode.
4. Press the ▲/▼ scroll key to select the mode.

note: The steps may vary by mode and this manual provides instructions for both Breeze Mode and Advanced Mode respectively.

Menu overview
Breeze mode menu
Address Book

All Contacts

Favorites

Groups

My Settings

Messaging

InboxCreate MessageSent MessagesVoice MailMobile Email

^8 SIM dependent ^9 Network dependent

Camera

Take a Picture Record a Video My Pictures My Videos Online Locker

AT&T Services

Say a Command AT&T Navigator My Cast Weather Mobile Web Games & Apps My Account

Tools

Calendar

Alarm Clock

Calculator

Tip Calculator

Stop Watch

Settings

Phone Status

Sounds & Alerts

Bluetooth

Font Size

Wallpaper

Phone Mode

Advanced mode menu

Address Book	Messaging Conversations	IM Mobile Email	Mobile Web	AppCenter AT&T GPS
All Contacts Favorites	Create Message Mobile Email			AT&T Navigator Shop GPS
Groups My Settings	IM Outbox Drafts Voice Mail Settings Templates Used Space			AT&T FamilyMap Where AllSport GPS

YPmobile My Stuff

Applications

Audio

Games

Online Locker


Video

Tools

Other Files

Used Space

AT&T Music

Music Player

Shop Music

AT&T Radio

Shazam

Music Videos

Make-UR-Tones

Community

Music Apps

Online Locker

Settings

Phone Mode

Profiles

Display

Call

Phone

Network

Connections

Network

Connectivity

Security

AT&T Software Update

Reset

TTY

Phone Information

^5 SIM dependent ^6 Network dependent

Quick & Easy

KeysFunctions
	Perform the functions shown at the bottom line of the display by using these soft keys.
	Scroll through the menu options in Menu mode. In standby mode, Left Scroll: Access Mobile Email menuRight Scroll: Access IM menuUp Scroll: Access Create Message menuDown Scroll: Access Address Book menu
	Select a menu function or store user-input information, such as names. Also use this key for confirmation as the key.Launch the Mobile Web directly if pressed in standby mode.
[ADAS]	Delete characters from the display, or return to previous menu.Open Calendar view if pressed quickly in standby mode.
CALL	Make or receive a call. Show the recent call list in standby mode. Re-dial the last call number if pressed and held in standby mode.
ENDON/OFF	Complete the current call. Turn on/off the phone if pressed and held. Cancel user input and return to standby mode while in Menu mode.
1 oo	Quickly connect to the voice mail server if pressed and held in standby mode.
± 9_WXYZ	Enters numbers, letters or special characters. Go to the dial screen if pressed in standby mode.
※*	Enter or exit from vibrate mode if pressed and held in standby mode. Show the symbol input screen if pressed in text input mode.
±	Enter the + sign prefix for international dialing if pressed and held. Enter the space character in text input mode.
#a○	Change various text input modes if pressed at the text-editing screen.
	Adjust the earpiece volume while making a call.Control the Ringtone volume, vibrate mode and silent all mode in standby.Mute the ringtone of an incoming call.Reject the incoming call if pressed and held when you receive an incoming call.
	Turn camera capture mode on.Work as a camera shutter in capture mode.
	Turn the Voice Commands on.

SIM card and battery

About your SIM card

When you subscribe to your network operator, you receive a SIM (Subscriber Identity Module) card containing your registration information, PIN code, etc. Like a credit card, it should be kept secure and handled carefully. Do not bend, scratch or expose it to moisture. Avoid static electricity.

To avoid corrupting your SIM card's memory, always switch off your phone before removing or inserting your SIM card.

About your battery

Your phone uses a Li-Ion battery. Make sure to use an authorized battery and charger only. For more details, please inquire at your nearest dealer.

note: Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone's autonomy due to the "battery memory effect" inherent in those technologies.

Installing/removing SIM card and battery

1. Remove the battery cover from the unit. To fit the battery cover, put it on the guide rail and push up.

Diagram showing two views of a mobile phone with labeled buttons and directional arrows indicating navigation or movement.

1. Insert the SIM card into the slot. The gold contacts of the SIM card should go against the metal contacts of the phone.

SIM SIM

Put the contacts of the battery into the hole located at the bottom of the unit and then insert and press the upper side of the battery until you hear the "click". Make sure you align the gold contacts at the battery end with contacts on the phone. If the contacts at the battery are not properly aligned, damage could occur to the phone and the battery.

Correct Incorrect

getting started

1. To remove the battery push the bottom of the battery to upwards (1) and remove (2) the battery.

Push the SIM card in the arrow direction as shown.

To charge your battery

1. To charge, open the protective cover on the top right side and connect the charger adapter.

The arrow on the charger has to face the top of the phone.

Correct

Incorrect

1. To remove the adapter connection press the adapter's side buttons (1) and pulling the adapter away (2).

Turning the phone on/off

To turn on

1. Press and hold END ON/OFF.

To turn off

1. Press and hold END ON/OFF.

Essential display indications

	Signal strength. The greater the number of bars, the stronger the signal. When network is in searching mode, is displayed.
	Flight mode is active.
	A call is being made. When you are in no service area, is displayed.

	Call forwarding is active.
	Incoming calls set to ring only (Normal)
	Incoming calls set to Vibrate and Ring.
	Incoming calls set to Vibrate Only.
	Incoming calls set to Silent.
	Received one or more text messages.
	Received one or more multimedia messages.
	Received one or more WAP push messages.
	Received one or more other messages.
	Received one or more voice messages.

getting started

	Inbox is full.
	A message is being sent.
	A message is being received.
	An alarm is set.
	Bluetooth is active.
	Bluetooth hands-free headset is connected.
	Bluetooth A2DP headset is connected.
	Bluetooth hands-free + A2DP headset is connected.
	Data transfer via Bluetooth.
	Headset is connected.
	USB is connected.

	External memory card is inserted.
	An error occurred on the external memory card.
	TTY is active.
	An EDGE signal is available. It is displayed when there is an active EDGE session
	A GPRS signal is available. It is displayed when there is an active GPRS session.
	A 3G signal is available. It is displayed when there is an active 3G session.
	WAP is connected When the security is set is displayed.
	Battery strength. When the battery charge is low, is displayed.
	Available, Away, Invisible Status of AIM
	Online, Away, Busy, Offline Status of MSN
	Available, Busy, Invisible Status of YAHOO
	You have received one or more IM messages

^n Network dependent

Setting the phone mode

Your phone has two customized modes, Breeze and Advanced. The default is set to Breeze mode which provides EZ access to the functions used most frequently.

In the Breeze mode, you can view an abbreviated menu: Address Book, Messaging, Camera, AT&T Services, Tools and Settings. The Advanced Mode allows access to all menu items.

Breeze Mode Advanced Mode

Address Box Messaging Camera AT&T Services Tools Settings Select Back

Address Book Messages Mobile Menu Mobile Menu Application AT&T EPS Profile My Staff AS&T Master Online Library Search Engine

To change the phone mode

1. Press Menu > Settings > Phone Mode.

2. Select Breeze Mode or Advanced Mode.

Assigning the menu

You can set the most commonly used menu in Shortcuts in standby mode.

1. Press Shortcuts in standby mode > select Unassigned.
2. Press Add.
3. Select the menu and sub menu.

Entering text

You can enter text with multi-tap, predictive, numeric or symbol.

getting started

Useful keys

※	Display symbols.
○	Adding a space.
#	Press to toggle from initial caps to all caps,to lower case, or to numeric entries.Press to change the text entry functionsfrom ABC mode to predictive mode, ornumber mode.ABC ModeabcABCABC(lower case /initial caps / all caps)Predictive ModeabAbAB(lower case / initial caps / all caps)Number Mode123

Key characters by language

Each of the following keys will scroll through these sequential options listed by language.

KeyEnglishFrenchSpanish
1	. , - ? ! / ' @ :
2 ABC	abc ç à ä á ã ç
3 DEF	def é è é
4 CH	ghi í
5 XL	jkl
6 MNO	mno ö ñ ó ñ
7 FOS	pqrs β
8 TUV	tuv ù ü ú ü
9 WYZ	wxyz

ABC mode

Press the key labeled with the target letter once for the first letter; press it twice for the second letter, and so on.

1. Press#a to change the mode as multi-tap.
2. Press 2 ABC to 9WXYZ to input text repeatedly. To write the letter "C", press 2 ABC 3 times. To write number 2 press 2 ABC 4 times.

Predictive mode (T9)

The predictive mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word. It will display the most commonly used first. To save a word not listed in phone's dictionary, press Options >Predictive Settings >My Words.

1. Press# to change the mode to

predictive.

1. Press 2 ABC to 9WXYZ to input text. For example, to write 'hello', press 4 0H1 3 DEF 5_JKL 5_JKL 6 MNS.

Number mode

You can input numbers in this mode.

1. Press# to change the mode to 123.
2. Press 1 to 9wxyz and □ to input numbers.

Symbol mode

You can input symbols.

1. Press ✳ to view the symbols.
2. Press▲/▼/◄/► to select a symbol and press Insert.

getting started

EZ quick call keys

Getting in touch with those you call most is now as EZ as 1-2-3.

note: The following direction is an example with using ① key. The usage of ② and ③ key will be same as the following.

To assign a contact to Quick Call

1. Press①.
2. Select Quick Call > press Assign.
3. Select a contact > Select.

To make a call using one touch key

1. Press①.
2. Press Call.

To send a message using one touch key

1. Press①.
2. Press Options > Send Message.

PC Suite

PC suite is a Windows-based PC program that allows you to easily manage personal data and multimedia files by connecting your Phone to a PC. The PC suite application can be downloaded at http://www.pantechusa.com/.

System requirements

• Microsoft Windows 2000 or XP family and Vista 32 bit
• At least 300MB of free disk space

- Interface devices such as USB or Bluetooth for the connection with the phone

PC Suite features

• PC Suite launcher
• Connection Manager
• Contact Manager
  • PC Sync
• Message Manager
• File Manager
  • MMS PC Composer
• Image Editor
• Video Editor
• Internet Access

getting started

Memory card

You can use a microSD card as a memory card. It gives you more space to save pictures, videos, music, etc.

Inserting a memory card

1. Remove the battery cover and the battery from the unit.

1. Unlock the microSD card slot by carefully sliding it up. The metal cover should now easily lift up.

SIM

1. Insert the microSD card into the slot. The gold contacts of the microSD card should go against the metal contacts of the phone.

2. Close the metal cover and slide down to lock the microSD card in place. The icon will be displayed when the phone is turned on.

Diagram showing a device with a labeled component and an arrow pointing to it, likely indicating a process or operation.

SIMI

Using a memory card

You can save, move and delete the files between your phone and external memory card. You can also move and copy the files to computer from your phone.

To copy a file to the memory card

1. Select the file > Options > Copy to External Memory.
2. To copy the file back to the phone, press Options > Copy to Phone.

To move a file to the memory card

1. Select the file > Options > Move to External Memory.
2. To move the file back to the phone, press Options > Move to Phone.

To delete a file from the memory card

1. Select the file from the card > Options > Delete.

In Advanced Mode, you have access to all of the features of Breeze II including the features provided by Breeze Mode.

To move the file from the card to the computer

1. Connect the data cable with mobile and the computer.
2. Press Menu > Settings > Connectivity.
3. Press Select USB Mode.
4. Select Music Player, Mass Storage or

getting started

Ask on Connection.

1. Follow the instructions on your computer screen.

note: Select Music Player when you want to add music to the playlist in your device. When you select Ask on Connection, it will ask you to select either the Music Player or Mass Storage every time you connect your device with your computer.

Resetting a memory card

1. Press Menu > Settings > Reset.
2. Enter the password > External Memory Reset.

note: The default password is '1234'.

Memo

breeEze II

1

Calls and address book

Making, receiving and ending a call

Using video share

Options during a call

Checking all calls

Speed dialing

Using address book

Using your headset

Service and fixed dialing number

Making, receiving and ending a call

Making a call

1. Enter the area code and phone number.
2. Press CALL.

Answering a call

1. Press CALL.

Ending a call

1. Press END

Once the call is completed, a call summary is displayed.

Rejecting a call

Press END & ON/OFF or Ignore.

Making a call using the call list

Your phone logs up to 30 dialed, received and missed call numbers.

1. Press CALL to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, Dialed Calls or Call Ranking by pressing the ◀/▶ key.
3. Select a number.
4. Press CALL to dial the selected number. note: To redial the last number in the Recent Calls list, press CALL.

Making a call during a call

1. Enter the phone number or press Options > View Contacts.

breeze mode - calls and address book

1. Press CALL to dial the second call. The first call is automatically put on hold.

Switching between two calls

1. Press Swap.

Making an international call

1. Press and hold☐ ± key for the international prefix until the '+' character appears.
2. Type the country code, area code, and phone number.
3. Press CALL.

Making an emergency call

1. You can make emergency calls even if your phone does not have a SIM card.

2. Press Emergency Number, or press SOS if your phone does not have a SIM card.

3. Press CALL .

Replying to a missed call

1. Press View to display the list of missed calls.
2. Select a number to call by pressing the ▲/▼ key.
3. Press CALL.

Answering a second call

1. PressCALL. The first call is automatically put on hold.
2. Press END to end the second call. The call on hold is automatically reconnected.

Using video share

You can share live or recorded video while on a call. You can send or receive video.

note: Video Share is not available in all markets. Both parties must be in a 3G service area—a 3G icon must appear by the signal bars prior to a call being placed, and both parties must remain in the 3G coverage area for the duration of the Video Share.

00:01:40 Video Share Ready Namok Kim* 7148696886 Options Mute

Video Sharing 00:00:22 Nasok Kise® REC Options Stop

Making video share call

1. Enter the area code and phone number > CALL.
2. Press Options > Video Share.
3. Select Live or Recorded.

note: To use video share in the Recent Calls, press Options > Video Share.

Turning off the speakerphone

1. Press 🎨 or press Options > Speakerphone Off during video share mode.
2. Press Options > Mute to mute the sound.

breeze mode - calls and address book

Stopping video share

1. Press Stop to end.
2. To end a call press END DOWN/OFF.

Increasing or decreasing the brightness

1. Press Options > Brightness.
2. Adjust the brightness by pressing/▶.

Zooming in and out

1. Press Options > Zoom. It ranges from 1 x to 3 x.

Stopping the recording

1. Press Options > Stop Record.

For details on automatic recording, see page 89.

Stopping or ending video share

1. Press Stop to end the video share.
2. It will ask you whether you will stop video share > Yes to stop.

note: Even if you end video share, the call will not be ended. Press END to end the call. The recorded video is saved in Menu > Camera > My Videos in Breeze Mode while the recorded video is saved in Menu > My Stuff > Video in Advanced Mode.

Receiving video share

1. After receiving video share, it will ask you whether to accept or reject the video share > Yes to accept and No for reject.

2. Press Options > Full Screen to landscape the screen.

Options during a call

Microphone off and on

Switching your phone's microphone off

1. Press Options > Mute [ ]

Switching your phone's microphone back on

1. Press Options > Unmute.

Talking on speaker

1. Press Speaker Phone [←].

Putting a call on hold and returning

Putting a call on hold

1. Press Options > Hold or press CALL.

Returning to a held call

1. Press Options > Unhold or press CALL again.

Multi-party calls

You can talk with more than one person or have a conference call.

Making a multi-party call

1. Call the first participant.

2. Call the second participant. The first call is automatically put on hold.

breeze mode - calls and address book

1. Press Options > Join.

Having a private conversation with one participant

1. Press Options > Split.
2. Press.
3. Select the participant and pre###.

All of the multi-party call participants can now hear each other.

Removing one participant from a multi-party call

1. Press Options > End.
2. Select the participant and pre###.

The call ends with that participant, but you can continue to talk with other

participants.

Searching for a number in address book during a call

1. Press Options > View Contacts > All Contacts.
2. Select a number >CALL.

Searching for a name or group in address book

Enter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input.

Finding a name manually in address book

1. Press the▲/▼ key.

Viewing the details of highlighted entry in address book

1. Press Select.

For details on address book, see page 41.

Reading a message during a call

1. Press Options > View Message.

2. Select a message > Open.

Sending a message during a call

1. Press Options > Send Message.

For details on creating a text message, see page 49.

Mobile Web

1. Press Options > Mobile Web.

Viewing the calendar during a call

1. Press Options > View Calendar.

Making a note during a call

1. Press Options > Notepad.

Voice recording

1. Press Options > Voice Recording.

Checking all calls

You can view information about all Recent Calls simply by pressing CALL. For more options for all, missed, received and dialed calls, select an entry and press Options.

breeze mode - calls and address book

Viewing missed calls

1. Press Shortcuts in standby mode.
2. Press Recent Calls > Missed Calls.

Viewing received calls

1. Press Shortcuts in standby mode.
2. Press Recent Calls > Received Calls.

Viewing dialed calls

1. Press Shortcuts in standby mode.
2. Press Recent Calls > Dialed Calls.

Viewing call rankings

1. Press Shortcuts in standby mode.
2. Press Recent Calls > Call Ranking.

Deleting call logs

1. Press Shortcuts in standby mode.
2. Press Recent Calls > Delete Call Logs.
3. Press All Calls > Yes.
   note: If no logs exist, the message "No Call Exist" appears.

Viewing call time

1. Press Shortcuts in standby mode.
2. Press Recent Calls > Call Time.
3. Last Call, Received Calls, Dialed Calls, and Total Calls are displayed.

Resetting all call times

1. Press Shortcuts in standby mode.

2. Press Recent Calls > Call Time.

3. Press Reset > Yes.

note: The default password is '1234'.

Viewing data transmitted information

1. Press Shortcuts in standby mode.
2. Press Recent Calls > Packet Counter.

- Current Info: You can view transmitted data in the current session, in Kilobytes. Sent, Received and Total information are also available.

- Last Info: You can view Sent, Received, Total and Duration transmitted in previous sessions, in Kilobytes.

• Total Info: You can view all Sent, Received, Total and Duration transmitted data in Kilobytes.

- Clear Logs: The default password is '1234'.

Speed dialing

You can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9.

1 ∞ : Voice mail
☐ ± : Prefix for international call

Setting speed dial

1. Press Menu > Address Book > My Settings.

breeze mode - calls and address book

1. Press Speed Dial and select an empty entry and press Add.
2. Select a contact and press or Select.

Changing speed dial contact

1. Press Menu > Address Book > My Settings.
2. Press Speed Dial and select a number.
3. Press or Change.
4. Select a contact and press or Select.

Removing from speed dial

1. Press Menu > Address Book > My Settings.
2. Press Speed Dial and select a number.
3. Press Remove.

Using address book

You can save names, phone numbers, and information on the SIM or phone. Number of entries can depend on the capacity of the SIM card.

Adding a contact

1. Press Menu > Address Book > Options > Add New Contact.
2. Input the fields.
3. Press or Save.

Viewing the contact list

1. Press▼ or press Menu > Address Book > All Contacts.

Searching for a phone number

1. Press▼ or press Menu > Address Book > All Contacts.
2. Input the first letter or two of the person's name and scroll with ▲/▼.
3. Press Select to view detail information.
4. To update information, press Options > Edit Contact.

Calling from contact list

1. Press▼ or press Menu > Address Book > All Contacts.
2. Select a contact to call.
3. Press CALL.

Sending a contact

1. Press▼ or press Menu > Address Book > All Contacts.
2. Select a contact > Options > Send Contact.
3. You can send the contact using Multimedia Message or Bluetooth.

Deleting a contact

1. Press▼ or press Menu > Address Book > All Contacts.
2. Select a contact > Options > Delete Contact.

Making groups

1. Press▼ or press Menu > Address

breeze mode - calls and address book

Book.

1. Press Groups > New Group.
2. Select contacts and press Select or Deselect > Add.
3. Enter group name and press Save.

Editing groups

1. Press▼ or press Menu > Address Book.
2. Select a group and press Options > Edit Group.
3. Press Add Members, Edit Members or Remove Members.
4. To rename the group name, press Options > Rename Group.

Adding to favorites or groups

1. Press▼ or press Menu > Address Book > All Contacts.
2. Select a contact and press Select > Options > Add to.
3. Press Favorites or Groups.

Using your headset

You can send or receive a call using your headset. When you connect your headset to the jack, the button on the headset works as follows.

note: You must use the headset designed for this device. It is an optional item. Not all headset will have a button.

While in standby mode

1. Press the button once to list recent calls.
2. Press the button twice to redial the last call.

While the phone is closed

1. Press the button once to receive a call.
2. Press the button once to end the call.

Service and fixed dialing number

Calling your service numbers

You can see the service number to reach the service provider.

1. Press▼ or press Menu > Address Book.
2. Press My Settings > Service Numbers.
3. Select a number > pressCALL.

Viewing fixed dialing number list

Fixed dialing number is a service that limits your access to specific numbers in the address book list recorded on the SIM. Input the PIN2 to set up or cancel this service.

1. Press▼ or press Menu > Address Book.
2. Press My Settings > FDN List.

breeze mode - calls and address book

note: PIN2 must be correctly entered within 3 attempts. If you input incorrect code three times in a row, the PIN2 code will be blocked. If the PIN2 code is blocked, please contact your service provider. Your PIN2 code is supplied with the SIM card.

01
02
03
04
05
06
01
02
03
04
05
06
07

Memo

breeEze II

2

Messaging

Receiving messages

Creating and sending text messages

Creating multimedia messages

Managing messaging memory

Email

Receiving messages

Viewing a new message

1. Press View or pres

Reading a message from the inbox

1. Press Menu > Messaging > Inbox.
2. Select a received message > View.

Saving the contact information from a received message

1. Select a received message > View.
2. Press Options > Save.
3. Select New Contact or select Update Contact.

Saving the object in a received multimedia message

1. Open a multimedia message.
2. Select an object.
3. Press Options > Use > Save.

It will be saved in one of the categories in the My Stuff folder.

For details on Photo album, see page 119.

Listening to voice messages

1. Press and hold 1 or press Menu > Messaging > Voice Mail.

It will automatically call the voice mail center.

breeze mode - messaging

Creating and sending text messages

Sending a text message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Send to and select a contact to send the message and press Select.
4. Press Send.
5. To view sent message, press Menu > Messaging > Sent Messages.

Replying to a message

1. Select a message > Options > Reply.

Creating multimedia messages

You can create and send multimedia messages. Capacity is 100Kb, 300Kb or 600Kb. An error message will alert you once the message exceeds the capacity.

Adding a saved picture to the message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Picture > Picture > Camera.
4. Scroll to the saved picture and press Select.
5. To preview the message, press Options

Preview >Current or Whole Message.

1. To edit the text message, pre▲/▼ to select the text box and edit your message.
2. Press Send to and select a contact to send the message and press Select.
3. Press Send.

Adding a new picture to the message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Take New Picture.
4. Focus on the object >.
5. To preview the message, press Options

Preview >Current or Whole

Message. To go back to text editor page, press Stop.

1. To edit the text message, pre▲/▼ to select the text box and edit your message.
2. Press Send to and select a contact to send the message and press Select.
3. Press Send.

For details on taking a picture, see page 60.

Adding a saved video to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.

breeze mode - messaging

1. Press Insert > Video > Video.
2. Scroll to the saved video clip and press Select.
3. To preview the message, press Options > Preview > Current or Whole Message. To go back to text editor page, press Stop.
4. To edit the text message, pre▲/▼ to select the text box and edit your message.
5. Press Send to and select a contact to send the message and press Select.
6. Press Send.

Adding a new video to the message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Record New Video.
4. Focus on the object and press or Options > Record.
5. To stop and save the recording, press Stop.
6. To preview the message, press Options >Preview >Current or Whole Message. To go back to text editor page, press Stop.
7. To edit the text message, pre▲/▼ to select the text box and edit your

message.

1. Press Send to and select a contact to send the message and press Select.
2. Press Send.

For details on recording a video, see page 61.

Adding a recorded voice memo to the message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Sound > Audio > My Voice.

4. Scroll to the saved audio clip and press Select.

5. To preview the message, press Options > Preview > Current or Whole Message.

6. Press Pause to stop listening the voice memo or press Stop to go back to text editor page.
7. To edit the text message, pre▲/▼ to select the text box and edit your message.
8. Press Send to and select a contact to send the message and press Select.
9. Press Send.

breeze mode - messaging

Adding a new voice memo to the message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Record New Sound.
4. Press Record to record the sound.
5. To stop and save the recording, press Stop.
6. To preview the message, press Options >Preview >Current or Whole Message.

7. Press Pause to stop listening the voice memo or press Stop to go back to text editor page.

8. To edit the text message, pre▲/▼ to select the text box and edit your message.

9. Press Send to and select a contact to send the message and press Select.

10. Press Send.

For details on Recording a voice memo, see page 139.

Adding other files to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Other Files > Other Files.

4. Select a file and press Select.

5. To preview the message, press Options >Preview >Current or Whole Message. To go back to text editor page, press Stop.

6. To edit the text message, pre▲/▼ to select the text box and edit your message.
7. Press Send to and select a contact to send the message and press Select.
8. Press Send.

Managing messaging memory

Up to 200 messages can be stored in the phone memory, additional messages will be saved to the SIM card. When the message box is full, the messages full icon will appear. All messages share memory.

IconDescriptions
	Text message is full (SIM and phone messages).

Deleting a message in the inbox

1. Select a message > Options > Delete > Yes.

Deleting multiple messages in the inbox

1. Press Select or Deselect to select or deselect the message.
2. Press Delete > Yes.

breeze mode - messaging

Email

You can receive emails from your service provider.

Receiving an email

1. Press Menu > Messaging > Mobile Email.
2. Select an email >.

01
02
03
04
05
06
01
02
03
04
05
06
07

Memo

breeEze II™

3

Multimedia

Camera

Photo album

Video album

Camera

You can take pictures and record movies using the built-in camera. The photos and video clips can be saved and sent via multimedia messages and Bluetooth.

694 Picture remaining White Balance Options Back Effect Size Brightness Self Timer Video modeCamera mode Zoom White Balance Options Back Effect Size Brightness Self Timer

breeze mode - multimedia

Setting camera settings

1. Press in standby mode or press Menu > Camera > Take a Picture.
2. Press Options to change settings prior to taking a picture.

Camera options

IconNameDescriptions
	White Balance	Auto ( ), Day Light ( ), Tungsten ( ), Fluorescent ( )
	Effect	Normal ( ), Sepia ( ), Negative ( ), B&W ( )
	Self Timer	Off ( ), 5 secs ( ), 10 secs ( )

IconNameDescriptions
	Size	1280x1024( ), 1024x768( ), 640x480( ), 320x240( ), 240x320( )
	Advanced	Picture Quality, Save Location, Shutter Sound, Timer Sound, Default File Name

Video camera options

IconNameDescriptions
	White Balance	Auto (WB), Day Light (LED), Tungsten (LPG), Fluorescent (LED)
	Effect	Normal ( ), Sepia ( ), Negative ( ), B&W ( )
	Self Timer	Off ( ), 5 secs ( ), 10 secs ( )
	Size	176x144(MMS) ( ), 176x144 ( ), 320x240 ( ), Video Share ( )
	Advanced	Video Quality, Sound Recording, Save Location, Timer Sound, Default File Name

Zoom in and out

1. Press▲/▼. It ranges from 1 x to 4 x.

Increasing or decreasing the brightness

1. Press◀/▶. It ranges from -2 to +2.

Taking a picture

1. Press in standby mode or press Menu > Camera > Take a Picture.
2. Focus on the object 🎨 or press Options > Capture.

Changing to video camera mode

1. Press in standby mode or press Menu > Camera > Take a Picture.
2. Press Options while camera mode is activated.
3. Press Video Camera Mode.

breeze mode - multimedia

1. Focus on the object > or press Options > Record.
2. Press Stop to stop recording.

Viewing the taken picture

1. Press in standby mode or press Menu > Camera > Take a Picture.
2. Press Options > Photo Album.
3. Select a picture > View.

After taking pictures

ToPress

Send a multimedia	Options > Send > as message	Multimedia Message
Send using mobile share	Options > Send > via Mobile Share

ToPress

Send using Bluetooth	Options > Send > via Bluetooth
Set as wallpaper	Options > Set as > Wallpaper
Set as Caller ID	Options > Set as > Caller ID
Delete	Options > Delete
Rename	Options > Rename
View photo information	Options > Properties

Recording a video

1. Press Menu > Camera > Record a Video.

2. Focus on the object > or press Options > Record.

3. Press Stop to stop recording.
4. Press Options > Play to play the video clip.
5. Press ⊆ to go back to preview mode.

Changing to camera mode

1. Press Menu > Camera > Record a Video.
2. Press Options while video mode is activated.
3. Press Camera Mode.

For details on taking a picture, see page 60.

Viewing the recorded video clip

1. Press Menu > Camera > Record a Video.
2. Press Options > Video Album.
3. Select the video clip > Play.

After recording video clips

ToPress

Send a multimedia

Options > Send > as message

Multimedia Message

Send using mobile share

Options > Send > via Mobile Share

Send using	Options > Send > via
Bluetooth	Bluetooth

View recorded video clip

Options > Play

ToPress

Delete Options > Delete

Rename Options > Rename

View video clip information Properties

During recording a video clip

ToPress

Receive an incoming call CALL

Pause and record continuously

Pause /

Stop recording Stop

Photo album

The My Pictures menu allows you to

breeze mode - multimedia

view all the pictures you have taken, save selected images to your phone or an external memory card and share the photos with others. JPEG format is supported, and other formats are saved in the Picture folder.

note: To access Picture, press Menu > My Stuff > Picture in Advanced mode.

Viewing the saved pictures

1. Press Menu > Camera > My Pictures.
2. Select a picture.
3. Press View.

Setting as wallpaper in the display

1. Press Menu > Camera > My Pictures.

2. Select a picture.

3. Press Options > Set as > Wallpaper.

Setting as caller identification

1. Press Menu > Camera > My Pictures.
2. Select a picture.
3. Press Options > Set as > Caller ID.

Sending pictures using multimedia message

1. Press Menu > Camera > My Pictures.
2. Select a picture.
3. Press Options > Send > as Multimedia Message.

For details on creating multimedia messages, see page 49.

Deleting multiple pictures

1. Press Menu > Camera > My Pictures.
2. Press Options > Multiple Select.
3. Press Select to select more than one picture.
4. Press Deselect to cancel your selection.
5. Press Options > Delete.

Viewing a file information

1. Press Menu > Camera > My Pictures.
2. Select a picture.
3. Press Options > Properties.

Video album

The My Videos menu allows you to

play, send, save and delete videos. The supported formats are MP4, WMA, 3GP and 3G2.

Playing the saved video clips

1. Press Menu > Camera > My Videos.
2. Select a video clip.
3. Press Play.

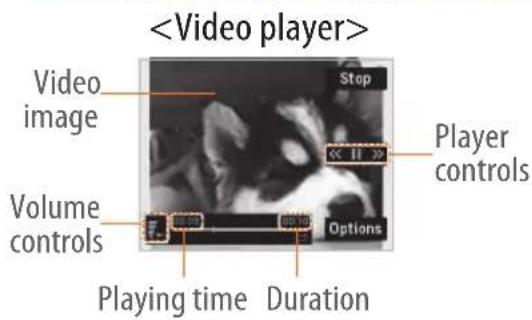

Using video player controls

ToPress

Pause / Play 🎨

Rewind Hold ▲

Fast forward Hold ▼

Control volume Side key up or down or◀/▶

breeze mode - multimedia

Sending a video clip using multimedia message

1. Press Menu > Camera > My Videos.
2. Select a video clip.
3. Press Options > Send > as Multimedia Message.

For details on creating multimedia messages, see page 49.

Sending a video clip via mobile share

1. Press Menu > Camera > My Videos.
2. Select a video clip.
3. Press Options > Send > via Mobile Share.

Sending a video clip via Bluetooth

1. Press Menu > Camera > My Videos.
2. Select a video clip.
3. Press Options > Send > via Bluetooth.

Deleting multiple video clips

1. Press Menu > Camera > My Videos.
2. Press Options > Multiple Select.
3. Press Select to select more than one picture.
4. Press Deselect to cancel your selection.
5. Press Options > Delete.

breeEze II

4

Useful Features

Calendar

Alarm clock

Calculator

Tip calculator

Stop watch

Voice recognition

Calendar

Calendar helps you manage your schedule including your time for calls or special days. You can set a reminder on any given date with this function.

Viewing calendar

1. Press Menu > Tools > Calendar.

note: You can also access Calendar by pressing

in standby mode. View by Month is

default setting for Calendar.

In the monthly view

ToPress

Move to another ◀ for Previous

day ▶ for Next

Move to another ▲ for Previous

week ▼ for Next

View other Side key down for Previous month Side key up for Next

Creating a new event

1. Select a day and press Options > New Event.
2. Select Schedule, Task or Note.
3. Input the event and press Save.

note: You can create events for dates from

01/01/2000 to 12/31/2099.

Alarm clock

Setting an alarm

1. Press Menu > Tools > Alarm Clock.
2. Press Create New for new alarm.
3. Set the Cycle, Time, Alarm Sound, Alert Type, Volume, Snooze and Power Alarm.
4. Press Save.

Editing existing alarms

1. Press Menu > Tools > Alarm Clock.
2. Select an alarm and press Edit or press Options to access following: Create New, Delete and Delete All.

breeze mode - useful Features

Setting a simple alarm

1. Press Menu > Tools > Alarm Clock.
2. Select Simple Alarm and press Edit.
3. Set the alarm schedule and press Save.

Calculator

1. Press Menu > Tools > Calculator.
2. Input the numbers with the numeric keypad and enter the operators with
   ◀/▶/▲/▼/ to calculate.

1. Press * to use the decimal point.
2. Press ☐ to cancel your input.
3. Press Reset to reset.

Tip calculator

1. Press Menu > Tools > Tip Calculator.
2. Enter the values for all the variable fields (Bill(\), Tip(%), Split) and then the corresponding calculation fields (Tip(\), Total(\$), You Pay) are updated automatically.
3. Press * to use the decimal point.
4. Press Reset to reset.

Stop watch

1. Press Menu > Tools > Stop Watch.
2. Press Start to start.
3. Press Stop to stop.
4. Press Continue to restart or press Reset to clear.
5. To change to lap time, press Mode > Lap Time Mode.
6. To split the stopwatch, press Mode > Split Time Mode.

note: In Basic Mode, when you exit the stop watch menu, or become idle, the stop watch will continue running and will be indicated by a clock icon. You can access the stop watch by re-entering the stop watch menu.

Voice recognition

Your phone is equipped with an Advanced Voice Command (AVC) feature. This feature allows you to make calls or use the phone functions by simply using your voice. All you have to do is talk into the phone and then the phone will recognize your voice and complete tasks by itself.

breeze mode - useful Features

1. In standby mode, simply press to access Say a Command.
   Or press Menu > AT&T Services > Say a Command.
2. At the voice prompt, say a command and simply follow the voice prompts. The following list shows available voice commands.
   Call : Voice dials a name or phone number in your address book. If multiple numbers exist, say the name and the number type (i.e. mobile, home, work, or other).

Send Message : Display the Create Message screen with the contact you have spoken.

Contact : Retrieve and display the contact information stored in the address book.

Go To

: Open an application on your phone.

Check : Check the status information of your phone (Status, Voicemail, Messages, Missed Calls, Time, Signal strength, Battery, My Phone Number, and Volume).

breeEze II™ 5 Connectivity Bluetooth Using Mobile Web

5

Connectivity

Bluetooth Using Mobile Web

Bluetooth

Bluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connections can be used to send images, text, business cards, calendar events, or to connect to computers using Bluetooth technology.

Your mobile phone supports:

• Connect to PC to access internet.
• Connect to Hands-Free.
• Connect to electronic devices.

Bluetooth Icon

IconDescriptions
	Bluetooth is active.
	Bluetooth hands-free headset is connected.
	Bluetooth A2DP headset is connected.
	Bluetooth hands-free + A2DP headset is connected.
	Data transfer via Bluetooth.

note: Advance Audio Distribution Profile (A2DP) is a Bluetooth profile (mode) which is designed to transfer a uni-directional 2-channel stereo audio stream to a headset or car audio.

breeze mode - connectivity

Activating Bluetooth

1. Press Menu > Settings > Bluetooth > Activation.
2. Select On or Off.

Adding a device

1. Press Menu > Settings > Bluetooth > My Devices.
2. Select Search for Devices and press Search.
3. The available device will be displayed.
4. Select a device and press Select.
5. Enter password and press.

note: The target device must be in discoverable mode.

Sending files

1. After pairing with the target device, press Options > Send Files.
2. Select a file(s) from Audio, Picture, Video or Other Files.

note: If the target device requests pairing, the file is sent after pairing is completed. Locked files or ones containing original rights may not be transmitted.

Receiving files

The receipt should be approved before receiving a file(s). The received file(s) will be saved in the corresponding folder. For example, if you received contacts information from the

sender, it will be saved in your phone's memory.

1. After pairing with the target device, press Options > Take Files.
2. The available files will be displayed.
3. Select a file and press Options > Copy.

Setting the visibility

1. Press Menu > Settings > Bluetooth > Visibility.
2. Select Show or Hide and press Select.

Naming the phone

1. Press Menu > Settings > Bluetooth > My Bluetooth Info.

2. Select Name field and press Edit.

3. Enter the new name and press Save. note: The device name is what identifies your phone to Bluetooth network.

Using Mobile Web Accessing Mobile Web

1. Press in standby mode or press Menu > AT&T Services > Mobile Web. note: It will access the Mobile Web homepage.

breeze II™

6

Settings

Phone status Sounds and alerts Display settings

Phone status

This menu allows you to view My Phone Number, Signal Strength and Battery Remaining.

1. Press Menu > Settings > Phone Status.

Sounds & alerts

The Sounds & Alerts menu allows you to specify a ringer type, message alert sound, key volume and so on.

1. Press Menu > Settings > Sounds & Alerts.

2. Select Normal, Vibrate and Ring, Vibrate Only, Silent or Flight Mode.

3. Press Edit to specify a selected option.

4. Select an option for each field and press Save. To reset to factory defaults, press Reset.

note: You can specify the options only when Normal or Vibrate and Ring profiles are highlighted.

Display settings

Setting the font size

1. Press Menu > Settings > Font Size.
2. Select Medium, Large or Very Large.
3. Press Select.

breeze mode - settings

Setting the wallpaper

1. Press Menu > Settings > Wallpaper.
2. Press Images or Camera and select a desired image.
3. Press Select.

Memo

80

breeze II

1

Calls and address book with Advanced Mode

Making, receiving and ending a call

Using video share

Options during a call

Call settings

Settings for video share

Checking all calls

Speed dialing

Using address book

Caller identifi cation

Using your headset

Service and fixed dialing number

Advanced Mode offers additional features and functionality associated with making calls and using address book.

Making, receiving and ending a call

Making a call

1. Enter the area code and phone number.
2. Press CALL.

Answering a call

1. Press CALL.

Ending a call

1. Press END ON/OFF.

Once the call is completed, a call summary is displayed.

Rejecting a call

Press END or Ignore.

Making a call using the call list

Your phone logs up to 30 dialed, received and missed call numbers.

1. PressCALL to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, Dialed Calls or Call Ranking by pressing the◀/▶ key.
3. Select a number.
4. Press CALL to dial the selected number.

- advanced mode - calls and address book

note: To redial the last number in the Recent Calls list, press CALL.

Making a call during a call

1. Enter the phone number or press Options > View Contacts.
2. Press CALL to dial the second call. The first call is automatically put on hold.

Switching between two calls

1. Press Swap.

Making an international call

1. Press and hold☐ ± key for the international prefix until the '+' character appears.
2. Type the country code, area code, and

phone number.

1. Press CALL.

Making an emergency call

1. You can make emergency calls even if your phone does not have a SIM card.
2. Press Emergency Number, or press SOS if your phone does not have a SIM card.
3. Press CALL.

Replying to a missed call

1. Press View to display the list of missed calls.
2. Select a number to call by pressing the ▲/▼ key.
3. Press CALL.

Answering a second call

1. PressCALL. The first call is automatically put on hold.
2. Press END to end the second call.

The call on hold is automatically reconnected.

Using video share

You can share live or recorded video while on a call. You can send or receive video.

note: Video Share is not available in all markets. Both parties must be in a 3G service area—a 3G icon must appear by the signal bars prior to a call being placed, and both parties must remain in the 3G coverage area for the duration of the Video Share.

00:01:40 Video Share Ready Namok Kim 7148696886 Options Mute

Video Sharing 00:00:22 Namok Kiss* REC Options × Stop

Making video share call

1. Enter the area code and phone number > CALL.
2. Press Options > Video Share.
3. Select Live or Recorded.

note: To use video share in the Recent Calls, press Options > Video Share.

- advanced mode - calls and address book

Turning off the speakerphone

1. Press 📄 or press Options > Speakerphone Off during video share mode.
2. Press Options > Mute to mute the sound.

Stopping video share

1. Press Stop to end.
2. To end a call press END NOW/Off.

Increasing or decreasing the brightness

1. Press Options > Brightness.
2. Adjust the brightness by pressing/▶.

Zooming in and out

1. Press Options > Zoom. It ranges from

1 x to 3 x.

Stopping the recording

1. Press Options > Stop Record. For details on automatic recording, see page 89.

Stopping or ending video share

1. Press Stop to end the video share.
2. It will ask you whether you will stop video share > Yes to stop.

note: Even if you end video share, the call will not be ended. Press END to end the call. The recorded video is saved in Menu > Camera > My Videos in Breeze Mode while the recorded video is saved in Menu > My Stuff > Video in Advanced Mode.

Receiving video share

1. After receiving video share, it will ask you whether to accept or reject the video share > Yes to accept and No for reject.
2. Press Options > Full Screen to landscape the screen.

Options during a call

Microphone off and on

Switching your phone's microphone off

1. Press Options > Mute [ ]

Switching your phone's microphone back on

1. Press Options > Unmute.

Talking on speaker

1. Press Speaker Phone [×].

Putting a call on hold and returning

Putting a call on hold

1. Press Options > Hold or press CALL.

Returning to a held call

1. Press Options > Unhold or press CALL again.

advanced mode - calls and address book

Multi-party calls

You can talk with more than one person or have a conference call.

Making a multi-party call

1. Call the first participant.
2. Call the second participant. The first call is automatically put on hold.
3. Press Options > Join.

Having a private conversation with one participant

1. Press Options > Split.
2. Press.
3. Select the participant and pres

All of the multi-party call participants can now hear each other.

Removing one participant from a multi-party call

1. Press Options > End.
2. Select the participant and pres
   The call ends with that participant, but you can continue to talk with other participants.

Searching for a number in address book during a call

1. Press Options > View Contacts > All Contacts.
2. Select a number >CALL.

Searching for a name or group in address book

Enter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input.

Finding a name manually in address book

1. Press the▲/▼ key.

Viewing the details of highlighted entry in address book

1. Press Select.

For details on address book, see page 93.

Reading a message during a call

1. Press Options > View Message.
2. Select a message > Open.

Sending a message during a call

1. Press Options > Send Message.

For details on creating a text message, see page 101.

Mobile Web

1. Press Options > Mobile Web.

Viewing the calendar during a call

1. Press Options > View Calendar.

Making a note during a call

1. Press Options > Notepad.

advanced mode - calls and address book

Voice recording

1. Press Options > Voice Recording.

Call settings

Answering with any key press

1. Press Menu > Settings > Call > Answer Mode.
2. Select Press any key.

note: You can answer with any key except END and Ignore.

Setting auto redial

1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.

Settings for video share

Turning the alert on/ off

1. Press Menu > Settings > Call > Video Share.
2. Press Alerts.
3. Select On or Off > Select.

Setting for automatic recording

1. Press Menu > Settings > Call > Video Share.
2. Press Auto Record.
3. Select On or Off > Select.

Setting for service

1. Press Menu > Settings > Call > Video

Share.

1. Press Service.
2. Select On or Off > Select.

Setting for profile

1. Press Menu > Settings > Call > Video Share.
2. Press Profile.
3. Select AT&T IMS or Mobile Web >Select.

note: Mobile Web is not available in all circumstances. If you change from the default AT&T IMS, you may not be able to use video share.

Setting recording location

1. Press Menu > Settings > Call > Video Share.
2. Press Recording Location.
3. Select Phone Memory or External Memory > Select.

Checking all calls

You can view information about all Recent Calls simply by pressing CALL. For more options for all, missed, received and dialed calls, select an entry and press Options.

Viewing missed calls

1. Press Menu > My Stuff > Tools.

advanced mode - calls and address book

1. Press Recent Calls > Missed Calls.

Viewing received calls

1. Press Menu > My Stuff > Tools.
2. Press Recent Calls > Received Calls.

Viewing dialed calls

1. Press Menu > My Stuff > Tools.
2. Press Recent Calls > Dialed Calls.

Viewing call rankings

1. Press Menu > My Stuff > Tools.
2. Press Recent Calls > Call Ranking.

Deleting call logs

1. Press Menu > My Stuff > Tools.

2. Press Recent Calls > Delete Call Logs.

3. Press All Calls > Yes.

note: If no logs exist, the message "No Call Exist" appears.

Viewing call time

1. Press Menu > My Stuff > Tools.
2. Press Recent Calls > Call Time.
3. Last Call, Received Calls, Dialed Calls, and Total Calls are displayed.

Resetting all call times

1. Press Menu > My Stuff > Tools.
2. Press Recent Calls > Call Time.
3. Press Reset > Yes.

note: The default password is '1234'.

Viewing data transmitted information

1. Press Menu > My Stuff > Tools.
2. Press Recent Calls > Packet Counter.

- Current Info: You can view transmitted data in the current session, in Kilobytes. Sent, Received and Total information are also available.

• Last Info: You can view Sent, Received, Total and Duration transmitted in previous sessions, in Kilobytes.
• Total Info: You can view all Sent, Received, Total and Duration transmitted data in Kilobytes.

- Clear Logs: The default password is '1234'.

Speed dialing

You can dial quickly using speed dialing. Up to 8 phone numbers can be programmed using numbers 2 to 9.

1 ∞ : Voice mail
☐ ± : Prefix for international call

Setting speed dial

1. Press Menu > Address Book > My Settings.
2. Press Speed Dial and select an empty entry and press Add.
3. Select a contact and press or Select.

advanced mode - calls and address book

Changing speed dial contact

1. Press Menu > Address Book > My Settings.
2. Press Speed Dial and select a number.
3. Press or Change.
4. Select a contact and press or Select.

Removing from speed dial

1. Press Menu > Address Book > My Settings.
2. Press Speed Dial and select a number.
3. Press Remove.

Using address book

You can save names, phone numbers, and information on the SIM or phone. Number of entries can depend on the capacity of the SIM card.

Adding a contact

1. Press Menu > Address Book > Options > Add New Contact.

2. Input the fields.

3. Press or Save.

Viewing the contact list

1. Press▼ or press Menu > Address Book > All Contacts.

Searching for a phone number

1. Press▼ or press Menu > Address Book > All Contacts.

2. Input the first letter or two of the

person's name and scroll with ▲/▼.

1. Press Select to view detail information.
2. To update information, press Options > Edit Contact.

Calling from contact list

1. Press▼ or press Menu > Address Book > All Contacts.
2. Select a contact to call.
3. Press CALL.

Sending a contact

1. Press▼ or press Menu > Address Book > All Contacts.

2. Select a contact > Options > Send Contact.

3. You can send the contact using Multimedia Message or Bluetooth.

Deleting a contact

1. Press▼ or press Menu > Address Book > All Contacts.
2. Select a contact > Options > Delete Contact.

Making groups

1. Press▼ or press Menu > Address Book.
2. Press Groups > New Group.
3. Select contacts and press Select or Deselect > Add.
4. Enter group name and press Save.

- advanced mode - calls and address book

Editing groups

1. Press▼ or press Menu > Address Book.
2. Select a group and press Options > Edit Group.
3. Press Add Members, Edit Members or Remove Members.
4. To rename the group name, press Options > Rename Group.

Adding to favorites or groups

1. Press▼ or press Menu > Address Book > All Contacts.
2. Select a contact and press Select > Options > Add to.
3. Press Favorites or Groups.

Using your headset

You can send or receive a call using your headset. When you connect your headset to the jack, the button on the headset works as follows.

note: You must use the headset designed for this device. It is an optional item. Not all headset will have a button.

While in standby mode

1. Press the button once to list recent calls.
2. Press the button twice to redial the last call.

While the phone is closed

1. Press the button once to receive a call.

2. Press the button once to end the call.

Service and fixed dialing number

Calling your service numbers

You can see the service number to reach the service provider.

1. Press▼ or press Menu > Address Book.
2. Press My Settings > Service Numbers.
3. Select a number > pressCALL.

Viewing fixed dialing number list

Fixed dialing number is a service that

limits your access to specific numbers in the address book list recorded on the SIM. Input the PIN2 to set up or cancel this service.

1. Press▼ or press Menu > Address Book.
2. Press My Settings > FDN List.

note: PIN2 must be correctly entered within 3 attempts. If you input incorrect code three times in a row, the PIN2 code will be blocked. If the PIN2 code is blocked, please contact your service provider. Your PIN2 code is supplied with the SIM card.

advanced mode - calls and address book

Caller identification

Caller identification

1. Press Menu > Settings > Call >
   Display My Number.
2. Select Network Default, Show or Hide

   Select.

Memo

breeze II

2

Messaging

with Advanced Mode

Receiving messages

Creating and sending text messages

Creating multimedia messages

Message templates

Message settings

Managing messaging memory

Email

Using instant messenger

When your phone is set to Advanced Mode, you can use additional features and functionality associated with messaging.

Receiving messages

Viewing a new message

1. Press View or press 📄.

Reading a message from the inbox

1. Press Menu > Messaging > Conversations.

2. Select a received message > View.

Saving the contact information from a received message

1. Select a received message > View.

2. Press Options > Save.

3. Select New Contact or select Update Contact.

Saving the object in a received multimedia message

1. Open a multimedia message.

2. Select an object.

3. Press Options > Use > Save.

It will be saved in one of the categories in the My Stuff folder.

For details on Photo album, see page 119.

Listening to voice messages

1. Press and hold 1 or press Menu > Messaging > Voice Mail.

It will automatically call the voice mail center.

Launching URL in the message

1. Press Menu > Messaging > Conversations.
2. Select a message which includes an URL.
3. Select the URL and press Options > Use > Launch browser.

Saving connection settings using Configuration message

1. Press Menu > Messaging > Conversations.
2. Select an over the air (OTA) message.

advanced mode - messaging

1. Press Options > Install.

Creating and sending text messages

Sending a text message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. To save the message as a draft, press Options > Save to Drafts.
4. Press Send to and select a contact to send the message and press Select.
5. Press Send.
6. To view sent message, press Menu >

Messaging > Conversations.

note: All successfully sent messages will be saved in Conversations while the messages failed to be sent will be saved in Outbox.

Finding all sent messages

1. Press Menu > Messaging > Conversations.

Replying to a message

1. Select a message > Options > Reply.

Creating multimedia messages

You can create and send multimedia messages. Capacity is 100Kb, 300Kb or 600Kb. An error message will alert you once the message exceeds the capacity.

Adding a saved picture to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Picture > Picture > Camera.
4. Scroll to the saved picture and press Select.
5. To preview the message, press Options >Preview >Current or Whole Message.
6. To edit the text message, pre▲/▼ to select the text box and edit your message.
7. Press Send to and select a contact to

send the message and press Select.

1. Press Send.

Adding a new picture to the message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Take New Picture.
4. Focus on the object >.
5. To preview the message, press Options >Preview >Current or Whole Message. To go back to text editor page, press Stop.
6. To edit the text message, pre▲/▼ to select the text box and edit your message.

advanced mode - messaging

1. Press Send to and select a contact to send the message and press Select.
2. Press Send.

For details on taking a picture, see page 116.

Adding a saved video to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Video > Video.
4. Scroll to the saved video clip and press Select.
5. To preview the message, press Options >Preview >Current or Whole Message. To go back to text editor

page, press Stop.

1. To edit the text message, pre▲/▼ to select the text box and edit your message.
2. Press Send to and select a contact to send the message and press Select.
3. Press Send.

Adding a new video to the message

1. Press▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Record New Video.

4. Focus on the object and press or Options > Record.

5. To stop and save the recording, press Stop.

6. To preview the message, press Options >Preview >Current or Whole Message. To go back to text editor page, press Stop.
7. To edit the text message, pre▲/▼ to select the text box and edit your message.
8. Press Send to and select a contact to send the message and press Select.
9. Press Send.

For details on recording a video, see page 118.

advanced mode - messaging

Adding a recorded voice memo to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Sound > Audio > My Voice.
4. Scroll to the saved audio clip and press Select.
5. To preview the message, press Options >Preview >Current or Whole Message.

6. Press Pause to stop listening the voice memo or press Stop to go back to text editor page.

7. To edit the text message, pre▲/▼ to select the text box and edit your message.

8. Press Send to and select a contact to send the message and press Select.
9. Press Send.

Adding a new voice memo to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Record New Sound.
4. Press Record to record the sound.
5. To stop and save the recording, press

Stop.

1. To preview the message, press Options >Preview >Current or Whole Message.
2. Press Pause to stop listening the voice memo or press Stop to go back to text editor page.
3. To edit the text message, press/▼ to select the text box and edit your message.
4. Press Send to and select a contact to send the message and press Select.
5. Press Send.

For details on Recording a voice memo, see page 139.

Adding other files to the message

1. Press ▲ or press Menu > Messaging > Create Message.
2. Enter a message.
3. Press Insert > Other Files > Other Files.
4. Select a file and press Select.
5. To preview the message, press Options >Preview >Current or Whole Message. To go back to text editor page, press Stop.
6. To edit the text message, pre▲/▼ to select the text box and edit your message.
7. Press Send to and select a contact to

send the message and press Select. 8. Press Send.

Message templates

When you often use the same phrases, you can save the message under message templates.

Adding the message as a template

1. Press Menu > Messaging > Templates.
2. Press Options > Add New.
3. Write the frequently used message > Options > Save.

advanced mode - messaging

Sending a message with template

1. Press Menu > Messaging > Templates.
2. Select a message to send.
3. Press Send to add more messages.
4. Press Send to and select a contact to send message and press Select.
5. Press Send.
   note: You can add a template while entering a message. Write a message > Insert > Templates. Select a template to add.

Message settings

Setting text message

1. Press Menu > Messaging > Settings.

2. Press Text Massage.

3. Enter new Center Address.
4. Select Message Type, Delivery Report and Validity Period and press Select.
5. Select a desired option and press Save.
6. Enter new Email Gateway.
7. Press Save.

note: Message Type, Delivery Report and Validity Period may appear dependent on the SIM cards.

Setting profiles for multimedia message

1. Press Menu > Messaging > Settings.

2. Press Multimedia Message > MMS Profiles.

3. Select a profile and press Select.

Setting sending options for multimedia message

1. Press Menu > Messaging > Settings.
2. Press Multimedia Message > Sending Settings.
3. Select Validity Period, Delivery Time, Priority, Creation Mode and Max Message Size and press Select.
4. Select a desired option and press Select.

Setting receiving options for multimedia message

1. Press Menu > Messaging > Settings.

advanced mode - messaging

1. Press Multimedia Message > Receiving Settings.
2. Select Automatic Download, Allow Delivery Reply and Allow Read Reply and press Select.
3. Select a desired option and press Select.

Setting receiving options for voice message

1. Press Menu > Messaging > Settings.
2. Press Voice Mail.
3. Enter the number of the voice mail center > Save.

note: This number may be pre-configured by the service provider upon activation.

Setting default edit mode

1. Press Menu > Messaging > Settings.
2. Press Default Edit Mode.
3. Select Alphabet or Predictive and press Select.

Setting auto delete old message

When message memory capacity (Max. 200 messages) is full, the oldest message will be deleted automatically.

1. Press Menu > Messaging > Settings.
2. Press Auto Delete Old Message.
3. Select On or Off and press Select.

Managing messaging memory

Up to 200 messages can be stored in the phone memory, additional messages will be saved to the SIM card. When the message box is full, the messages full icon will appear. All messages share memory.

IconDescriptions
	Text message is full (SIM and phone messages).

Moving a message to SIM

1. Press Menu > Messaging > Conversations.
2. Select a message > Options > Move to SIM.

Deleting a message in the inbox

1. Select a message > Options > Delete > Yes.

Deleting multiple messages in the inbox

1. Press Select or Deselect to select or deselect the message.
2. Press Delete > Yes.

Viewing memory space information

1. Press Menu > Messaging > Used Space.
2. Press◀/▶ to view SIM and Phone memory.

advanced mode - messaging

Email

You can receive emails from your service provider.

Receiving an email

1. Press Menu > Messaging > Mobile Email.
2. Select an email >.

Using instant messenger

Use Instant Messenger (IM) to send and receive short, simple messages that are delivered immediately.

Starting an instant messenger

1. Press Menu > IM.

2. Select an IM application > Select.

3. Enter screen name and password > Sign On.

Viewing the conversation log

You can view the log of your conversations in the Instant Messenger Saved History.

Memo

breeze II

3

Multimedia

with Advanced Mode

Camera

Photo album

Video album

Audio album

Music player

Music player settings

Media player

Other fi les

Managing memory

Playing games

AppCenter

In Advanced Mode, you can use the full features of multimedia that Breeze II offers.

Camera

You can take pictures and record movies using the built-in camera. The photos and video clips can be saved and sent via multimedia messages and Bluetooth.

694 Picture remaining White Balance Options Back Effect Size Self Timer Brightness Video modeCamera mode Zoom White Balance Options Back Effect Size Self Timer Brightness

advanced mode - multimedia

Setting camera settings

1. Press in standby mode or press Menu > My Stuff > Tools > Camera.
2. Press Options to change settings prior to taking a picture.

Camera options

IconNameDescriptions
	White Balance	Auto ( ), Day Light ), Tungsten ), Fluorescent ( )
	Effect	Normal ( ), Sepia ( ), Negative ( ), B&W ( )
	Self Timer	Off ( ), 5 secs ( ), 10 secs ( )

IconNameDescriptions
	Size	1280x1024( ), 1024x768( ), 640x480( ), 320x240( ), 240x320( )
	Advanced	Picture Quality, Save Location, Shutter Sound, Timer Sound, Default File Name

Video camera options

IconNameDescriptions
	White Balance	Auto ( ), Day Light ( ), Tungsten ( ), Fluorescent ( )
	Effect	Normal ( ), Sepia ( ), Negative ( ), B&W ( )
	Self Timer	Off ( ), 5 secs ( ), 10 secs ( )
	Size	176x144(MMS) ( ), 176x144 ( ), 320x240 ( ), Video Share ( )
	Advanced	Video Quality, Sound Recording, Save Location, Timer Sound, Default File Name

Zoom in and out

1. Press ▲/▼. It ranges from 1 x to 4 x.

Increasing or decreasing the brightness

1. Press◀/▶. It ranges from -2 to +2.

Taking a picture

1. Press in standby mode or press Menu > My Stuff > Tools > Camera.
2. Focus on the object 🎨 or press Options > Capture.

note: Your photo will be saved automatically in My Stuff > Picture > Camera.

Changing to video camera mode

1. Press in standby mode or press Menu > My Stuff > Tools > Camera.
2. Press Options while camera mode is

advanced mode - multimedia

activated.

1. Press Video Camera Mode.
2. Focus on the object > or press Options > Record.
3. Press Stop to stop recording.

note: Your video will be saved automatically in My Stuff > Video.

Viewing the taken picture

1. Press in standby mode or press Menu > My Stuff > Tools > Camera.
2. Press Options > Photo Album.
3. Select a picture > View.

After taking pictures

ToPress
Send a multimedia message	Options > Send > as Multimedia Message
Send using mobile share	Options > Send > via Mobile Share
Send using Bluetooth	Options > Send > via Bluetooth
Set as wallpaper	Options > Set as > Wallpaper
Set as Caller ID	Options > Set as > Caller ID
Delete	Options > Delete
Rename	Options > Rename

ToPress

View photo

information

Options > Properties

Recording a video

1. Press Menu > My Stuff > Tools > Video Camera.
2. Focus on the object > or press Options > Record.
3. Press Stop to stop recording.
4. Press Options > Play to play the video clip.
5. Press ⊆ to go back to preview mode.

Changing to camera mode

1. Press Menu > My Stuff > Tools >

Video Camera.

1. Press Options while video mode is activated.
2. Press Camera Mode.
   For details on taking a picture, see page 116.

Viewing the recorded video clip

1. Press Menu > My Stuff > Tools > Video Camera.
2. Press Options > Video Album.
3. Select the video clip > Play.

After recording video clips

ToPress

Send a multimedia Options > Send > as message Multimedia Message

advanced mode - multimedia

ToPress

Send using mobile share	Options > Send > via Mobile Share
Send using Bluetooth	Options > Send > via Bluetooth
View recorded video clip	Options > Play
Delete	Options > Delete
Rename	Options > Rename
View video clip information	Properties

During recording a video clip

ToPress

Receive an incoming callCALL

ToPress

Pause and record continuously	Pause /
Stop recording	Stop

Photo album

The Picture menu allows you to shop graphic using the WAP browser. You can download desired images and graphics and save them to your phone. You can also view all the pictures you have taken, save selected images to your phone or an external memory card and share the photos with others. JPEG format is supported, and other formats are saved in

the Picture folder.

note: To access Picture, press Menu > My Stuff > Picture.

Viewing the saved pictures

1. Press Menu > My Stuff > Picture > Camera.
2. Select a picture.
3. Press View.

Setting as wallpaper in the display

1. Press Menu > My Stuff > Picture > Camera.
2. Select a picture.
3. Press Options > Set as > Wallpaper.

Setting as caller identification

1. Press Menu > My Stuff > Picture > Camera.
2. Select a picture.
3. Press Options > Set as > Caller ID.

Sending pictures using multimedia message

1. Press Menu > My Stuff > Picture > Camera.
2. Select a picture.
3. Press Options > Send > as Multimedia Message.

For details on creating multimedia messages, see page 102.

advanced mode - multimedia

Deleting multiple pictures

1. Press Menu > My Stuff > Picture > Camera.
2. Press Options > Multiple Select.
3. Press Select to select more than one picture.
4. Press Deselect to cancel your selection.
5. Press Options > Delete.

Viewing a file information

1. Press Menu > My Stuff > Pictures > Camera.
2. Select a picture.
3. Press Options > Properties.

Video album

The Video menu allows you to shop video clips using the WAP browser. You can download desired video clips and play with the built-in video player. You can also send, save and delete videos. The supported formats are MP4, WMA, 3GP and 3G2.

Playing the saved video clips

1. Press Menu > My Stuff > Video.
2. Select a video clip.
3. Press Play.

Using video player controls

ToPress

Pause / Play 🎨

Rewind Hold ▲

Fast forward Hold ▼

Control volume Side key up or down or◀/▶

Sending a video clip using multimedia message

1. Press Menu > My Stuff > Video.
2. Select a video clip.
3. Press Options > Send > as Multimedia Message.

For details on creating multimedia messages, see page 102.

Sending a video clip via mobile share

1. Press Menu > My Stuff > Video.
2. Select a video clip.
3. Press Options > Send > via Mobile Share.

Sending a video clip via Bluetooth

1. Press Menu > My Stuff > Video.
2. Select a video clip.
3. Press Options > Send > via Bluetooth.

Deleting multiple video clips

1. Press Menu > My Stuff > Video.
2. Press Options > Multiple Select.

3. Press Select to select more than one picture.

4. Press Deselect to cancel your selection.

5. Press Options > Delete.

Audio album

The Audio menu allows you to shop tones and answer tones using the WAP browser. You can download desired audio files and play with the built-in audio player. You can also send, save and delete audio files. The supported file formats are MIDI, i-Melody, MP3, AMR, WAV, AAC, AAC+, WMA.

Listening to the recorded sound

1. Press Menu > My Stuff > Audio > My Voice.

advanced mode - multimedia

1. Select a recorded sound.
2. Press Play.

Using audio player controls

ToPress

Pause / Play

Stop Options > Stop

Rewind Hold

Fast forward Hold ▶

Control volume Side key up or down on▲/▼

Setting as a ring tone

1. Press Menu > My Stuff > Audio.
2. Select a sound.
3. Press Options > Set as Ring Tone.

note: The maximum ringtone file size is 300KB.

Moving or copying multiple sound to external memory

1. Press Menu > My Stuff > Audio.
2. Press Options > Multiple Select.
3. Press Select to select more than one picture.
4. Press Deselect to cancel your selection.
5. Press Options > Copy to External Memory or Move to External Memory. The selected sound will be copied or moved to Audio folder in external memory card.

Sending sound file using multimedia message

1. Press Menu > My Stuff > Audio.
2. Select a sound file.
3. Press Options > Send > as Multimedia Message.

Music player

The Music Player is an application that can play MP3 and audio files. The supported file formats are MIDI, i-Melody, MP3, AMR, WAV, AAC, AAC+, WMA.

IconDescriptions
	Music is playing.
	Music is paused.
	Music is stopped.

note: microSD card must be inserted to transfer music to your phone.

Adding music from Windows Media Player™

1. Connect the USB cable to the device and the computer.
2. Select Music Player > Select.
3. Open the Sync tab in Windows Media Player™ in your computer.
4. Select the music from the list and drag and drop to your phone.

advanced mode - multimedia

note: Windows Media Player™ 10, 11 and Windows XP version is required.

Playing music

1. Press Menu > AT&T Music > Music Player.
2. Select a category (All Music, Playlists, Albums, Artists, Genres) and press Select.
3. Select All > Play to play all songs in the All Music.
4. Press Options > Stop to stop playing.

note: Music will pause when you receive an incoming call and Music will resume when the call ends.

IconDescriptions
	Volume level 7
	PausePlay
	Rewind with long pressFast Forward with long press
	Previous track with short pressNext track with short press
	Repeat all tracksRepeat single trackRepeat off
	Shuffle On: the current list of songs are randomly shuffled for playbackShuffle Off: songs are played in order and not shuffled

Making a playlist

1. Press Menu > AT&T Music > Music Player.
2. Press Playlists > New Playlist.
3. Input Playlist Name and press Save.
4. Select All Music, Albums, Artists or Genres.
5. Select a music file(s) and press Select to add to the playlist.
6. Press Done.

Using a playlist

1. To add tracks to a playlist, press Menu > AT&T Music > Music Player > Playlists.

advanced mode - multimedia

1. Select a playlist to add music and press Options > Add Tracks.
2. Select All Music, Albums, Artists or Genres.
3. Select a music file(s) and press Select > Done.
4. To remove tracks from the playlist, press Options > Remove Tracks > select a music file(s) and press Select > Remove.
5. To rename the playlist, press Options > Rename Playlist > input new Playlist Name and press Save.
6. To delete the playlist, press Options > Delete > Yes.

Listening music with Bluetooth headset

1. While music is playing in the standby mode, press Menu > AT&T Music > Music Player.

2. Press Now Playing > Options > Transfer to B/T Headset.

Viewing a music file information

1. While music is playing in the player mode, press Options > Properties.

2. Use▲/▼ to view Track Number, Title, Artist, Album, Genre, Duration, Filename, File Size, Location, Format, Bit Rate, Created, License and Sharing.

Setting as ring tone

1. Press Menu > AT&T Music > Music Player.
2. Select a category (All Music, Playlists, Albums, Artists, Genres) and press Select.
3. Select a file.
4. Press Options > Set as Ring Tone.

note: You cannot set the music file while it is playing. If a music file is larger than 300Kb, the file will be deactivated for setting ring tone.

Deleting music

1. Press Menu > AT&T Music > Music Player.
2. Select a category (All Music, Playlists,

Albums, Artists, Genres) and press Select.

1. Select a file.
2. Press Options > Delete.

note: If the music file is playing, you cannot delete it.

Shopping music

1. Press Menu > AT&T Music.
2. Press Shop Music.
3. To return to the previous page, press (c).

Listening the radio

1. Press Menu > AT&T Music.
2. Press AT&T Radio.

advanced mode - multimedia

Using music identification

1. Press Menu > AT&T Music.
2. Press Shazam.
3. Hold the phone close to music. Your phone will analyze the music and display the artist, title and album.
   note: For the cost plan, contact your nearest service provider.

Watching the music video

1. Press Menu > AT&T Music.
2. Press Music Videos.

Viewing Billboard information

1. Press Menu > AT&T Music.
2. Press Make - UR - Tones.

Launching to community

1. Press Menu > AT&T Music.
2. Press Community.

Launching more applications

1. Press Menu > AT&T Music.
2. Press Music Apps.

Music player settings

Shuffling music

1. Press Menu > AT&T Music > Music Player.
2. Press Settings > Shuffle.
3. Select Shuffle On or Shuffle Off and press Select.

Repeating music

1. Press Menu > AT&T Music > Music Player.
2. Press Settings > Repeat.
3. Select Repeat All Tracks, Repeat Single Track or Repeat Off and press Select.

Setting equalizer

1. Press Menu > AT&T Music > Music Player.
2. Press Settings > Equalizer.
3. Select a category and press Select.

Auto Full Screen

1. Press Menu > AT&T Music > Music

Player.

1. Press Settings > Auto Full Screen.
2. Select On or Off and press Select.

Removing

1. Press Menu > AT&T Music > Music Player.
2. Press Settings > Remove.
3. Select License Data File or All Music Contents.
4. Press Select > Yes.

Media player

You can play video clips with the media player.

note: Do not use this feature illegally. Sound and video can be protected by copyright. It is illegal to copy such sound / video tracks for the purpose of selling or distribution. Pantech does not in any way support the unauthorized use of content on your phone media player.

• Advanced mode - multimedia

IconDescriptions
	Volume level 7
	PausePlay
	Rewind with long pressFast Forward with long press
	Previous track with short press
	Next track with short press
	Repeat on
	Repeat off

Playing the video clip

1. Press Menu > My Stuff > Tools > Media Player > Video.
2. Select a file and press Play.
3. Before playing a video clip, press Options to access following: Send, Rename, Multiple Select, Delete, Delete All, Copy to External Memory, Move to External Memory, Properties

or View by Grid.

Playing the audio file

1. Press Menu > My Stuff > Tools > Media Player > Audio.
2. Select a file or select a folder then a file.
3. Press Play.

For details on audio player contols, see page 123.

Setting Mobile Video

1. Press Menu > My Stuff > Tools > Media Player > MV Settings.
2. Select a profile or press Options > Create.

advanced mode - multimedia

Other files

You can manage unsupported file formats that are saved on your phone. It also lists files received via Bluetooth from other devices.

Viewing the list of the files

1. Press Menu > My Stuff > Other Files.

Managing memory

Viewing memory status

1. Press Menu > My Stuff > Used Space.
2. Press◀/▶ to view Phone or External memory information.

Playing games

You can download games to play with. It is easy to download and you can preview them beforehand. You will only be able to view games that are available on your mobile.

Shop games

1. Press Menu > My Stuff > Games > Shop Games.
2. Play the demo and press BUY to download the complete game.

AppCenter

AppCenter

1. Press Menu > AppCenter.

Shopping Applications

1. Press Menu > My Stuff > Applications > Shop Applications.

Shopping Tones

1. Press Menu > My Stuff > Audio > Shop Tones.

2. Press Menu > My Stuff > Audio > Answer Tones > Shop Answer Tones.

Shopping Games

1. Press Menu > My Stuff > Games >

Shop Games.

Shopping Wallpapers

1. Press Menu > My Stuff > Picture > Shop Wallpapers.

Shopping Videos

1. Press Menu > My Stuff > Video > Shop Videos.

Shopping Music

1. Press Menu > AT&T Music > Shop Music.

breeze II

4

Useful Features

with Advanced Mode

Calendar

Alarm clock

Calculator

Tip calculator

Stop watch

Notepad and voice memo

World time

Converter

Timer

Voice recognition

In Advanced Mode, you can utilize all useful features that Breeze II provides.

Calendar

Calendar helps you manage your schedule including your time for calls or special days. You can set a reminder on any given date with this function.

Viewing calendar

1. Press Menu > My Stuff > Tools > Calendar.

note: You can also access Calendar by pressing ☐ in standby mode. View by Month is default setting for Calendar.

In the monthly view

ToPress

Move to another ◀ for Previous day ▶ for Next

Move to another ▲ for Previous week ▼ for Next

View other Side key down for Previous month Side key up for Next

Creating a new event

1. Select a day and press Options > New Event.
2. Select Schedule, Task or Note.
3. Input the event and press Save. note: You can create events for dates from 01/01/2000 to 12/31/2099.

Alarm clock

Setting an alarm

1. Press Menu > My Stuff > Tools > Alarm Clock.
2. Press Create New for new alarm.
3. Set the Cycle, Time, Alarm Sound, Alert Type, Volume, Snooze and Power Alarm.
4. Press Save.

Editing existing alarms

1. Press Menu > My Stuff > Tools > Alarm Clock.
2. Select an alarm and press Edit or press Options to access following:

advanced mode - useful Features

Create New, Delete and Delete All.

Setting a simple alarm

1. Press Menu > My Stuff > Tools > Alarm Clock.
2. Select Simple Alarm and press Edit.
3. Set the alarm schedule and press Save.

Calculator

1. Press Menu > My Stuff > Tools > Calculator.
2. Input the numbers with the numeric keypad and enter the operators with

1. Press ^* to use the decimal point.
2. Press ⊆ to cancel your input.
3. Press Reset to reset.

Tip calculator

1. Press Menu > My Stuff > Tools > Tip Calculator.
2. Enter the values for all the variable fields (Bill(\), Tip(%), Split) and then the corresponding calculation fields (Tip(\), Total(\$), You Pay) are updated automatically.
3. Press * to use the decimal point.
4. Press Reset to reset.

Stop watch

1. Press Menu > My Stuff > Tools > Stop Watch.
2. Press Start to start.
3. Press Stop to stop.
4. Press Continue to restart or press Reset to clear.
5. To change to lap time, press Mode > Lap Time Mode.
6. To split the stopwatch, press Mode > Split Time Mode.

note: In Basic Mode, when you exit the stop watch menu, or become idle, the stop watch will continue running and will be indicated by a clock icon. You can access the stop watch by

re-entering the stop watch menu.

Notepad and voice memo

Using a notepad

1. Press Menu > My Stuff > Tools > Notepad.
2. Press Create New.
3. Enter new memo and press Save.
4. To edit a saved memo, select the memo and press Edit.
5. To place a note on wallpaper, select a note and press Options > Place on Wallpaper.
6. If you want remove the note from wallpaper, select the note and press

Options > Remove from Wallpaper.

Recording a voice memo

1. Press Menu > My Stuff > Tools > Voice Memo.
2. Press New Record.
3. Press Record.
4. Press Stop to stop recording. It is saved in My Voice automatically.
5. Press Play to listen the voice memo.

Listening the recorded sound

1. Press Menu > My Stuff.
2. Press Audio > My Voice or press Tools > Voice Memo.

3. Select a recorded memo and press Play.

ToPress
Play / Pause
Stop Stop
Rewind
Fast forward
Control volume	Side key up or down or ▲/▼

World time

1. Press Menu > My Stuff > Tools > World Time.
2. Select a city and press Select.
3. Press◀/▶ to select a

different city and press Save.

note: If you want to set dual time in idle screen, press Menu > Settings > Display > Home Screen > Clock Type > Internal Clocks > Clock Type5.

Converter

1. Press Menu > My Stuff > Tools > Converter.
2. Press◀/▶ to select Length, Area, Volume, Weight or Temperature.
3. Select a current unit and enter the value.
4. The result will be displayed in all other unit.

advanced mode - useful Features

Timer

1. Press Menu > My Stuff > Tools > Timer.
2. Press Set and input the hours, minutes and seconds.
3. Press > Start.
4. Press Restart to restart.

note: In Basic Mode, when you exit the timer menu, or become idle, the timer will continue running and will be indicated by a timer icon. You can access the timer by re-entering the timer menu.

Voice recognition

Your phone is equipped with an Advanced Voice Command (AVC) feature. This feature allows you to make calls or use the phone functions by simply using your voice. All you have to do is talk into the phone and then the phone will recognize your voice and complete tasks by itself.

1. In standby mode, simply press to access Say a Command. Or press Menu > My Stuff > Tools > Say a Command.
2. At the voice prompt, say a command and simply follow the voice prompts. The following list shows available voice commands.
   Call : Voice dials a name

or phone number in your address book. If multiple numbers exist, say the name and the number type (i.e. mobile, home, work, or other).

Send Message : Display the Create Message screen with the contact you have spoken.

Contact : Retrieve and display the contact information stored in the address book.

Go To

: Open an application on your phone.

Check : Check the status information of your phone (Status, Voicemail, Messages, Missed Calls, Time,

Signal strength, Battery, My Phone Number, and Volume).

breeze II

5

Connectivity with Advanced Mode

Bluetooth Using Mobile Web Using the web browser Setting profi les

When your phone is set to Advanced Mode, you can use functionality associated with connectivity and set the connection profiles.

Bluetooth

Bluetooth technology enables free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). Bluetooth connections can be used to send images, text, business cards, calendar events, or to connect to computers using Bluetooth technology.

Your mobile phone supports:

- Connect to PC to access internet.

• Connect to Hands-Free.
• Connect to electronic devices.

Bluetooth Icon

IconDescriptions
Drawout	Bluetooth is active.
Drawout1	Bluetooth hands-free headset is connected.
Drawout	Bluetooth A2DP headset is connected.
Drawout4	Bluetooth hands-free + A2DP headset is connected.
Drawout	Data transfer via Bluetooth.

note: Advance Audio Distribution Profile (A2DP) is a Bluetooth profile (mode) which

is designed to transfer a uni-directional

2-channel stereo audio stream to a headset or car audio.

Activating Bluetooth

1. Press Menu > Settings > Connectivity > Bluetooth > Activation.

2. Select On or Off.

Adding a device

1. Press Menu > Settings > Connectivity > Bluetooth > My Devices.

2. Select Search for Devices and press Search.

advanced mode - connectivity

1. The available device will be displayed.

2. Select a device and press Select.

3. Enter password and press.

note: The target device must be in discoverable mode.

Sending files

1. After pairing with the target device, press Options > Send Files.

2. Select a file(s) from Audio, Picture, Video or Other Files.

note: If the target device requests pairing, the file is sent after pairing is completed. Locked files or ones containing original rights may not be transmitted.

Receiving files

The receipt should be approved before receiving a file(s).

The received file(s) will be saved in the corresponding folder. For example, if you received contacts information from the sender, it will be saved in your phone's memory.

1. After pairing with the target device, press Options > Take Files.
2. The available files will be displayed.
3. Select a file and press Options > Copy.

Setting the visibility

1. Press Menu > Settings > Connectivity > Bluetooth > Visibility.
2. Select Show or Hide and press Select.

Naming the phone

1. Press Menu > Settings > Connectivity > Bluetooth > My Bluetooth Info.
2. Select Name field and press Edit.
3. Enter the new name and press Save.

note: The device name is what identifies your phone to Bluetooth network.

Using Mobile Web

Accessing Mobile Web

1. Press 📄 in standby mode or press Menu > Mobile Web.

note: It will access the Mobile Web homepage.

Using the web browser

Accessing browser

1. Press Menu > My Stuff > Applications > Browser > Home.

note: It will access your service provider's homepage.

Using bookmarks

1. Press Menu > My Stuff > Applications

advanced mode - connectivity

Browser > Bookmarks.

Adding bookmarks

1. Press Menu > My Stuff > Applications > Browser > Bookmarks.
2. Press New.
3. Enter a name for new bookmark in Title field and web address in URL field.
4. Press Save.

Entering web address

1. Press Menu > My Stuff > Applications > Browser > Enter Address.
2. Enter the URL and press > Go.

Viewing history

1. Press Menu > My Stuff > Applications > Browser > History.

Setting advanced options

1. Press Menu > My Stuff > Applications > Browser > Manage > Options.
2. Select Rendering Mode, Full Screen, Thumbnail, Cache, Cookies or Security Warning and press Select.
3. Select an option and press Select.

Managing private data

1. Press Menu > My Stuff > Applications > Browser > Manage > Private Data.

2. To clear the cache, press Clear Cache > Yes.

3. To clear the cookies, press Clear Cookies > Yes.
4. To clear the history, press Clear History > Yes.

Viewing certificates

1. Press Menu > My Stuff > Applications > Browser > Manage > Security > Certificates.

Viewing download status

1. Press Menu > My Stuff > Applications > Browser > Manage > Download Manager.

Setting profiles

You can view a current connection profile or create new profiles by customizing Profile Name, Home URL, Connection Type, Proxy Address and Proxy Port.

Adding profiles

1. Press Menu > My Stuff > Applications > Browser > Manage > Profiles.
2. Press Options > Create.
3. Enter values or select an option for each field and press Save.

advanced mode - connectivity

Editing profiles

1. Press Menu > My Stuff > Applications > Browser > Manage > Profiles.
2. Select a profile and press Options > Edit.
3. Edit the parameters and press Save. note: The default profile is not editable.

Viewing profiles

1. Press Menu > My Stuff > Applications > Browser > Manage > Profiles.
2. Select a profile and press Options > View.

Deleting profiles

1. Press Menu > My Stuff > Applications > Browser > Manage > Profiles.
2. Select a profile and press Options > Delete > Yes.

note: The default profile cannot be deleted.

breeze II

6

Settings

with Advanced Mode

Language

Time and date

Voice command settings

Sounds and alerts

Display settings

Security

Updating software

Reset

TTY

In Advanced Mode, you can change and customize sounds settings, call handling, display settings, security settings, and other settings associated with your phone.

Language

1. Press Menu > Settings > Phone > Language.
2. Select Screen Text or Predictive and press Select.
3. Select a language and press Select.

Time and date

1. Press Menu > Settings > Phone > Time & Date.

2. Select Auto Update, Time, Time Format, Date or Date Format > Select.

3. Select an option and press Select.

Voice command settings

1. Press Menu > Settings > Phone > Voice Command Settings.
2. Select Confirmation, Adaptation, Audio Modes, Speakerphone or About and press Select.
3. Select an option and press Select.
4. To improve the recognition accuracy, select Adaptation and adapt your voice by following voice prompts.

advanced mode - settings

Sounds and alerts

The Profiles menu allows you to specify a ringer type, message alert sound, key volume and so on.

1. Press Menu > Settings > Profiles.
2. Select Normal, Vibrate and Ring, Vibrate Only, Silent or Flight Mode.
3. Press Edit to specify a selected option.
4. Select an option for each field and press Save. To reset to factory defaults, press Reset.

note: You can specify the options only when Normal or Vibrate and Ring profiles are highlighted.

Display settings

Setting the wallpaper

1. Press Menu > Settings > Display > Home Screen > Wallpaper.
2. Press Picture and select a desired image.
3. Press Select.

Setting the home screen

1. Press Menu > Settings > Display > Home Screen.
2. Press Clock Type, Text or One Touch Keys.
3. Select an option or adjust values and press Select.

Setting the menu type

1. Press Menu > Settings > Display > Menu Type.
2. Select Grid or List and press Save.

Setting the color theme

1. Press Menu > Settings > Display > Color Theme.
2. Select Designers or Onyx and press Save.

Setting font style

1. Press Menu > Settings > Display > Font Style.
2. Select a desired font style and press Select.

Setting the font size

1. Press Menu > Settings > Display > Font Size.
2. Select Small, Medium or Large.
3. Press Select.

Setting the brightness

1. Press Menu > Settings > Display > Brightness.
2. Adjust brightness level of LCD and press Save.

note: Modifying brightness may affect your battery life.

Setting the backlight timer

1. Press Menu > Settings > Display >

advanced mode - settings

Backlight Timer.

1. Press LCD and/or Keypad.
2. Select desired time and press Select.

note: Modifying backlight timer may affect your battery life.

Security

Locking the phone

1. Press Menu > Settings > Security > Phone Lock.
2. Press Phone Lock and select ON.
3. Press Select.

note: The default password is '1234'. To change the password, press Menu > Settings > Security > Phone Lock > Change Password.

Locking the PIN

The Personal Identification Number (PIN) is the security code that protects the phone or SIM against unauthorized use.

1. Press Menu > Settings > Security > PIN > PIN Lock.
2. Select Yes and enter PIN code.
3. Press.

note: To change the PIN code, press Menu > Settings > Security > PIN > Change PIN.

Changing PIN 2

1. Press Menu > Settings > Security > Change PIN2.
2. Enter PIN2 code and pres

Setting fixed dialing number

1. Press Menu > Settings > Security > FDN.
2. Select On and press Select.
3. Enter PIN2 code and pres

For details on fixed dialing, see page 96.

Changing hidden key

The hidden key is a security code for USIM Contacts. You can lock the person's information in the USIM Contacts with the hidden key.

1. Press Menu > Settings > Security > Change Hidden Key.

note: The default password is dependent on the SIM cards (either depends on the SIM card or determined by the SIM card).

Updating software

You can update your software without visiting your nearest dealer.

To update the software

1. Press Menu > Settings > AT&T Software Update.
2. Press Check for Update > Yes.

note: After downloading the software, the device will ask you whether to update the software now or later. If you choose to update the software now, it will restart the handset. If you postpone updating the software, you

advanced mode - settings

can select between 30 mins, 1 hour or 4 hours in the Options. After selecting the updating time, you will be sent back to standby mode. If you go to Software Update while you are in postponing, press Continue Update.

To view the version of software

1. Press Menu > Settings > Phone Information.
2. Scroll down to Software Version.

Reset

Resetting the phone

1. Press Menu > Settings > Reset.
2. Enter password and press > Master

Reset > Yes.

note: It will reset your phone to its default settings. The default password is '1234'.

Clearing the phone

1. Press Menu > Settings > Reset.
2. Enter password and presence > Master Clear > Yes.

note: It will reset your phone to its default setting and delete all personal data. The default password is '1234'.

Resetting the external memory

1. Press Menu > Settings > Reset.
2. Enter password and press > External Memory Reset > Yes.

TTY

The teletypewriter (TTY) is a telecommunications device that allows people who are deaf or hard of hearing, or who have speech or language disabilities, to communicate via a telephone.

Setting teletypewriter

1. Press Menu > Settings > TTY.
2. Select Disable, TTY Full, TTY Talk or TTY Hear.

- Disable: TTY mode is disabled.

- TTY Full: Users who cannot talk and hear, can send and receive text messages.

• TTY Talk: Users who can talk but cannot hear, can receive text messages and reply with voice messages.
• TTY Hear: Users who can hear but cannot talk, can send text messages and receive voice messages.

breeEze II

7

Appendix

Alert message

Troubleshooting checklist

Safety information

Safety precautions

About the battery usage

FCC Hearing-Aid Compatibility (HAC) regulations for

wireless devices

FCC regulatory compliance

Warranty

Alert message

If you experience any problem while using your mobile phone, please refer to the following checklist. If the problem still persists, contact your dealer or nearest carrier.

When the "Insert SIM Card" message appears:

Make sure the SIM card is correctly installed. Check to see if the SIM card is working properly. If it does not work, try to clean the contact points of the card with a dry cloth. If it is out of order, take it to your service provider.

When the "Messages full" message appears: The received or saved messages are full in your phone memory. You need to delete the message.

When the "Phone and SIM messages is full. Delete Messages" message appears:

The received or saved messages are full in your phone and SIM card memory. You need to delete the message.

When the "Password" message appears in Phone locked state:

Enter the phone password. The default password is "1234". If you cannot remember the password, contact the nearest carrier.

When the "Enter PIN1" message appears: Input PIN1. If you cannot remember it, contact your service provider. You can still receive calls even if your mobile phone becomes locked after entering the incorrect PIN1 on three consecutive attempts.

appendix

When the "No Service" or "Network Search" appears:

If you cannot make/receive a call when you are indoors or undergrounds where the signal strength is poor, move toward a window or go out to an open area. If you still cannot make a connection, contact your service provider.

Troubleshooting checklist

When audio quality is poor:

End a call and try again.

When the other party cannot hear you speaking:

Your phone may be set to MUTE. Disable the MUTE function. Or your hand may be covering the microphone located below the key. When battery lifetime is shorter than usual: This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted.

When your mobile phone does not turn on: Make sure your battery is charged. Check to see if your phone works while recharging the battery.

When you are unable to send a message: Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service.

When you are unable to make a call: Your phone may be set to "Fixed Dialing

Number (FDN)" mode. Cancel the "FDN" mode.

When you are unable to charge the battery:

This may be the result of one of the following three cases.

1. Your charger may be out of order. Contact your nearest dealer.
2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment.
3. Your battery may have not been connected to the charger properly. Check the connector.

When you are unable to input data into your Address Book:

Your Address Book memory may be full. Try deleting some entries from your Address Book. When you are unable to select a certain function:

You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider.

Safety information

The following list shows how to maintain your mobile phone, together with precautions to take.

• Keep your mobile phone and its accessories out of the reach of children and pets.
• Maintain your mobile phone in dry conditions and keep it within normal operating temperatures. Temperatures higher than 55^ (131°F) or lower than -20^

appendix

(-4°F) may damage your phone.

• Do not try to dry your phone in a microwave oven. If not, sparks can occur and cause an explosion or fire.
• Do not use or store your mobile phone in dusty, dirty areas.
• Do not attempt to disassemble your mobile phone.
• Do not drop or cause severe impact to your mobile phone.
• Do not use chemical products, cleaning solvents or detergents to clean your mobile phone.
• If your mobile phone does not work properly, contact your dealer immediately.
• Use only authorized batteries, battery chargers and accessories. Any malfunction or

damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty.

- Ensure that the battery and battery charger do not come in contact with conductive objects.

Safety precautions

Using a mobile phone while driving may be prohibited.

Please check local laws and regulations with regard to the prohibition of mobile phone use while driving, and comply with them.

Use of your phone while you are driving may disturb your concentration and so cause an accident. Always switch your phone off to drive safely.

You should use your phone in an emergency, either use a hands free device built into your car or pull over in a safe place first.

Switch off in restricted areas

Always switch your phone off in areas where mobile phone use is restricted.

Switch off in explosive or dangerous areas

Always switch your phone off in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and obey any instructions or signals. Do not remove your mobile phone's battery in such areas.

Switch off in aircraft

Always switch your phone off or select Flight

Mode on (press Menu > Settings > Profiles > Flight Mode in Advanced Mode. In Breeze Mode, press Menu > Settings > Sounds & Alerts > Flight Mode) when you are in an aircraft. The electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft.

Switch off in hospitals and near medical equipment

Always switch your phone off in hospitals, and obey the regulations or rules of the hospital. Switch your phone off when using medical equipment for private purposes, if possible. Always consult with the medical equipment's manufacturer or an expert regarding phone use near the medical equipment.

appendix

Installing a hands free device in your vehicle

Install vehicle hands free devices away from the steering wheel and airbag expansion area, otherwise injury may result.

▲ Mobile phones and other electronic devices

Mobile phones emit electromagnetic waves that may affect nearby electronic devices. When it is switched on, do not place your phone close to delicate electronic equipment.

About the battery usage

Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone's autonomy due to the "battery memory effect" inherent in those technologies.

• Do not use a damaged battery or charger.
• Do not disassemble or open crush, bend or deform, puncture or shred.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.
• Do not put your battery into contact with conductive objects.

• Dispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode.

• Do not use an unauthorized charger. Only use the battery for the device for which it is specified.

• Only use the battery with a charging device that has been qualified with the device per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
• Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
• Replace the battery only with another battery that has been qualified with the device per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard.

– Promptly dispose of used batteries in accordance with local regulations.
- Battery usage by children should be supervised.
- Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
- Use your battery for the specified purpose only.
- The closer you are to your network's base station, the longer your phone usage time because less battery power is consumed for the connection.
– The battery recharging time varies depending on the remaining battery

appendix

capacity and the battery and charger type you use.

— Battery life inevitably shortens over time.
- Use an authorized battery and charger only.
— Since overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger, once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures.
- To prevent injury or burns, ensure that no metal objects come into contact with the + and - terminals of the battery.

FCC Hearing-Aid Compatibility (HAC) regulations for wireless devices

On July 10, 2003, the U.S. Federal

Communications Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids.

The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing,

humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

• M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
• T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. T4 is the better/higher of the two ratings.

Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise.

The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.

In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This is synonymous for T ratings. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.

The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

To ensure that the Hearing Aid Compatibility rating for your phone is maintained, secondary transmitters such as Bluetooth and WLAN components must be disabled during a call. See page 75 for instructions to disable these components.

appendix

FCC Regulatory Compliance

FCC Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.

In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements (NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable.

Statement according to FCC part 15.105

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

appendix

reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Statement according to FCC part 15.21

Modifications not expressly approved by this company could void the user's authority to operate the equipment.

RF exposure FCC

For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure

guidelines and should be avoided.

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Health and Safety Information FCC

This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.

* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.

** This device contains 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.

appendix

Warranty

Protect Your Warranty

Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit.

"Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling, misuse, neglect or accident".

Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Pantech product. Be careful. Some of these products may not be compatible to use with your Pantech product and may damage the unit or cause it to malfunction.

If service is required on your unit and it is determined that a non-Pantech accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by reason of a non-compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Pantech product.

12 Month Limited Warranty

Pantech Wireless, Inc. (the Company) warrants to the original retail purchaser of this Pantech handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be

proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s).

The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This Warranty does not apply to:

(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect,

unauthorized alteration, misuse, improper installation or repair or improper storage;

(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced.

(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;

(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;

(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;

(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse,

theft or improper usage of any electrical source.

The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.

To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company by calling the number listed below or to the place of purchase for repair or replacement processing. To locate Pantech Authorized Service Center, call: [phone] or email [e-mail].

Please have the following information available when you send the phone in for repair:

• A valid original Proof of Purchase
• Return address
  — Daytime phone number or fax number
• Model #
• IMEI # (Look for the 15 digit IMEI # behind the battery of the device.)
• Complete description of the problem
• Transportation prepaid

Other Warranty Program

You may have other warranty program with

appendix

your purchase, such as warranty exchange. If so, please refer to equipment package or the original point of sale.

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above

appendix

limitation or exclusions may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

For technical support in the U.S. & Canada, call [phone].

Or email: [e-mail].

Or visit the web site: www.pantechusa.com

For all other inquiry, write to:

PANTECH WIRELESS, INC.

5607 Glenridge Dr. Suite 500 Atlanta, GA 30342

Memo

Memo

179179

Memo

Memo

181181

Memo
