USER MANUAL EFLU2600IC E-flite

Illustration of a vintage military aircraft with visible insignia and tail rotor (no text or symbols)

Instruction Manual Bedienungsanleitung Manuel d'utilisation Manuale di Istruzioni

AS3X®

E-flite®

ADVANCING ELECTRIC FLIGHT

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the act before operating. Failure to operate the product correctly can result in damage to the product,onal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

Safety Precautions and Warnings

• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach of children.
• Always avoid water exposure to all equipment not specifically designed and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.
  • Always keep aircraft in sight and under control.
  • Always use fully charged batteries.

• Always keep the transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
  • Always keep moving parts clean.
  • Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.

Thank you for purchasing the E-fl ite® UMX™ F4U Corsair, featuring trim schemes from two of the most prolific pilots to fly the prized Corsair, Gregory “Pappy” Boyington and Ira “Ike” Kepford. Now featuring AS3X® technology, the Ultra Micro F4U Corsair provides the smooth, locked-in flight performance that makes this bent-wing warbird feel like a much larger model. True to its roots, the ultra micro F4U Corsair is capable of basic aerobatics yet is suitable for small flying areas thanks to its size. Before you take the first flight, please take time to read through this manual. It has important preflight information that will help ensure your first flight and every one after is a success.

Please be sure to read through this manual carefully so that you are equipped to successfully enjoy all the benefits of this outstanding ultra micro model has to offer.

Table of Contents

Preflight Checklist	4
AS3X Stabilization Delivers
Breakthrough Performance	4
Charging Warnings	4
Battery Charging	5
Transmitter Batteries Installation	6
Transmitter and Receiver Binding	6
Digital Trims	7
Dual Rate Function	7
Transmitter Control	7
Flight Battery Installation and ESC Arming	8

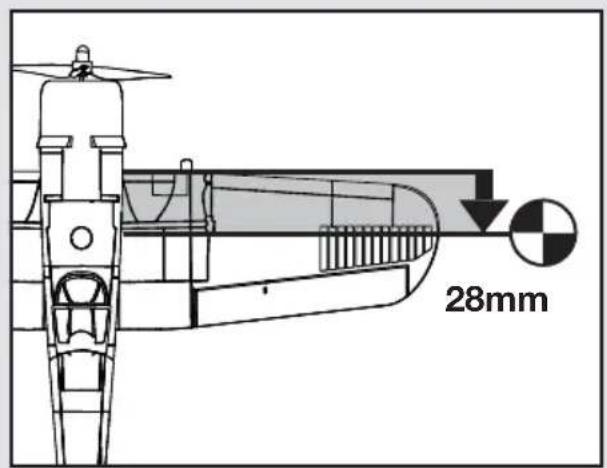

Center of Gravity (CG) Adjustment	8

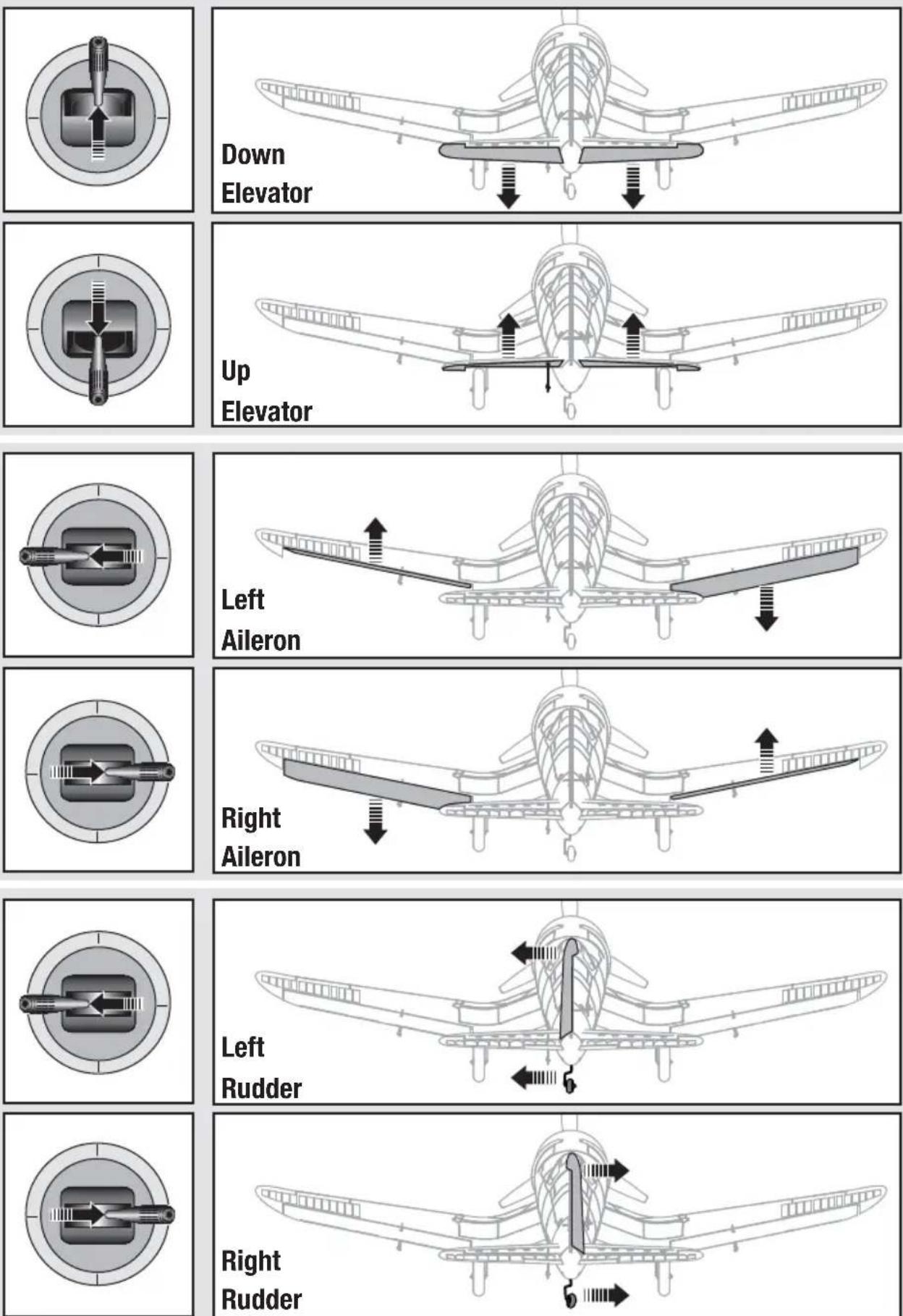

Control Direction Test	9
Control Centering	10

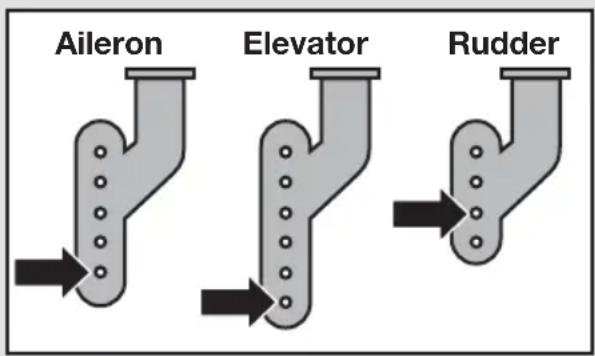

Control Horn Settings	10

Dual Rates	10
Flying Tips and Repairs	11
Low Voltage Cutoff (LVC)	11

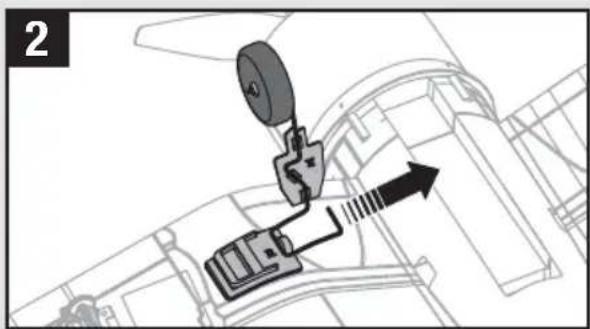

Landing Gear Removal	12
Post Flight Checklist	12
Power Components Service	13
Troubleshooting Guide	14
Limited Warranty	15
Warranty and Service Information	17
Compliance Information for the European Union	17
Replacement Parts	67
Optional Parts and Accessories	68
Decal Application	69

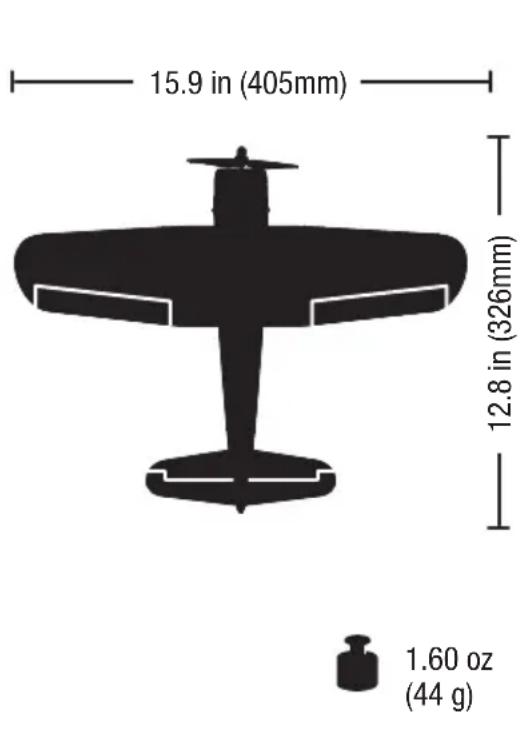

Specifications

RTF READY-TO-FLY	BNF
Installed Installed 8.5mmol/Led Motor
Installed Installed		DSM2®/DSMX® AS3X Receiver/ESC
Installed Installed		(2) Servo SPMSA2030LO (Ailerons)(2) Servo SPMSA2030L ( On the Receiver/ESC board)
Included Included		150mAh 3.7V 25C Li-Po battery
Included Included		1S 3.7V Li-Po Battery Charger
Included Needed to Complete		DSM2/DSMX4-Channel Transmitter

Preflight Checklist

√
	1. Charge fl ight battery.
	2. Install fl ight battery in aircraft (once it has been fully charged).
	3. Bind aircraft to transmitter. (BNF only)
	4. Make sure linkages move freely.
	5. Perform Control Direction Test with transmitter.

√
	6. Set dual rates and expos.
	7. Adjust center of gravity.
	8. Perform a radio system Range Check.
	9. Find a safe and open area.
	10. Plan fl ight for fl ying fi eld conditions.

AS3X Stabilization Delivers Breakthrough Performance

Horizon Hobby has always made RC sport, scale and unique aircraft with the kind of performance experts appreciate. Now the exclusive Artificial Stability – 3 aXis (AS3X) system helps take performance expectations in ultra micro aircraft a quantum leap higher.

Based on the successful use of MEMS sensor technology within the AS3X Stabilization System essential to Blade® ultra micro flybarless helicopters, the specifically tuned AS3X System for airplanes helps invisibly correct for turbulence, torque and tip stalls when encountered.

Furthermore, the outstanding control agility delivers an ultra smooth, locked-in feel that obeys your every command with performance that's natural feeling. It's so gratifying, in fact, that it's as though you're the RC pilot of an expertly tuned, giant-scale model.

AS3X will change the way you'll want to fly now and in the future. To see what we mean, go to www.E-fliteRC.com/AS3X.

Charging Warnings

The Battery Charger (EFLC1000) included with your aircraft has been designed to safely charge the Li-Po battery.

CAUTION: All instructions and warnings must be followed exactly. Mishandling of Li-Po batteries can result in a fire, personal injury and/or property damage.

• By handling, charging or using the included Li-Po battery, you assume all risks associated with lithium batteries.
• If at any time the battery begins to balloon or swell, discontinue use immediately. If charging or discharging, discontinue and disconnect. Continuing to use, charge or discharge a battery that is ballooning or swelling can result in fire.
• Always store the battery at room temperature in a dry area for best results.
• Always transport or temporarily store the battery in a temperature range of 40–120°F (5–49°C). Do not store the battery or model in a car or direct sunlight. If stored in a hot car, the battery can be damaged or even catch fire.

• Always charge batteries away from fl ammable materials.
  • Always inspect the battery before charging.

• Always disconnect the battery after charging, and let the charger cool between charges.

• Always constantly monitor the temperature of the battery pack while charging.
• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE LI-PO BATTERIES. Failure to charge the battery with a compatible charger may cause a fi re resulting in personal injury and/or property damage.
• Never discharge Li-Po cells to below 3V under load.
• Never cover warning labels with hook and loop strips.
• Never leave charging batteries unattended.
• Never charge batteries outside recommended levels.
• Never charge damaged batteries.
• Never attempt to dismantle or alter the charger.
• Never allow minors to charge battery packs.
• Never charge batteries in extremely hot or cold places (recommended between 40–120° F or (5–49° C) or place in direct sunlight.

Battery Charging

Your aircraft comes with a 1S 3.7V DC Li-Po battery charger and 1S 3.7V 150mAh 25C Li-Po battery. Refer to the charging warnings. It is recommended to charge the battery pack while you are inspecting the aircraft. The flight battery will be required to confirm proper aircraft operation in future steps.

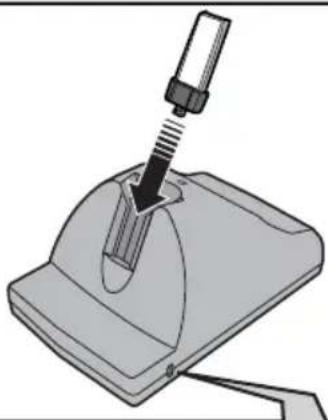

Remove the cover on the bottom of the charger and install four of the included AA batteries, noting proper polarity. Replace the cover after the AA batteries are installed. Only use alkaline AA batteries.

Battery Charging Process

Notice: Charge only batteries that are cool to the touch and are not damaged. Look at the battery to make sure it is not damaged e.g., swollen, bent, broken or punctured.

1. Slide the battery into the slot on the charger and press it into the charge jack/connector located at the bottom of the slot. The end cap of the battery is specifically designed to allow the battery to fit into the slot one way (usually with the label on the battery facing outward) to prevent reverse polarity connection. However, check for proper alignment and polarity.
2. Always disconnect the flight battery from the charger immediately upon completion of charging.

CAUTION: Only use a charger specifi cally need to charge a Li-Po battery. Failure to do so result in fi re, causing injury or property ge.

CAUTION: Never exceed the recommended e rate.

LED Indications

When you make the connection successfully, the LED on the charger turns solid red, indicating charging has begun.

Charging a fully discharged (not over-discharged) 150mAh battery takes approximately 30–40 minutes. As the battery nears full charge, the LED begins to blink. The intervals between blinks will increase as the battery comes closer to full charge.

When the LED blinks approximately every 20 seconds, the battery is ready to be removed. However, the battery can be left charging until the LED completely goes out for a maximum charge.

Diagram showing three electronic components with arrows indicating direction of movement or force, likely illustrating a physical or electrical setup.

Illustration of a soldering iron being inserted into a base (no text or symbols)

Purchase the optional AC to 6V DC 1.5 amp Power Supply (EFLC1005) to charge your battery pack without AA batteries.

CAUTION: Only use an E-fl ite® 6V power y (EFLC1005) with this charger. DO NOT 12V power supply or property damage injury could occur.

CHARGING (Solid Red) ....

READY (Blinking 20 sec. intervals) ......

MAX CHARGE (off) ....

If the LED stays on when the flight battery is removed, the AA batteries in the charger are low.

CAUTION: Once charging is complete, diately remove the battery. Never leave a y connected to the charger.

RTF

Transmitter Batteries Installation

READY-TO-FLY

Your E-fl ite® 4-channel DSM2®/DSMX® RTF transmitter comes pre-bound to the aircraft.

Remove the cover, install four of the included batteries (noting proper polarity) and reinstall the cover.

Diagram illustrating camera component assembly steps with numbered labels and directional arrows indicating movement.

BNF

Transmitter and Receiver Binding

BIND-N-FLY\*

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. You need to 'bind' your chosen Spektrum™ DSM® technology equipped aircraft transmitter to the receiver for proper operation.

For a list of compatible DSM2/DSMX transmitters, please visit www.bindnfl y.com.

CAUTION: When using a Futaba® transmitter with a Spektrum DSM module, you must reverse the e channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions.

Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.

√ Binding Procedure Reference Table

	1. Refer to your transmitter's unique instructions for binding to a receiver.
	2. Make sure the fl ight battery is disconnected from the aircraft.
	3. Ensure the transmitter is powered OFF.
	4. Connect the fl ight battery to the aircraft. The receiver LED will begin to fl ash (typically after 5 seconds).
	5. Make sure the transmitter controls are at neutral and the throttle is in the low position.
	6. Put your transmitter into bind mode.(If you are using the transmitter that is supplied with the RTF version, push the left control stick vertically into the case (until it clicks) while powering ON the transmitter).
	7. After 5 to 10 seconds, the receiver status LED will become solid, indicating that the receiver is bound to the transmitter. If the LED does not turn solid, refer to the Troubleshooting Guide at the end of the manual.

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a droplet being inserted into a container with a pointed tip, surrounded by circular wells and a base (no text or symbols)

For subsequent flights, power ON the transmitter for 5 seconds before connecting the flight battery.

RTF

Transmitter Control

READY-TO-FLY

Mode 2

Throttle/Rudder Rudder Trim Aileron Trim Throttle Trim Elevator Trim Elevator/ Aileron

Mode 1

Elevator/Rudder Rudder Trim Aileron Trim Elevator Trim Throttle Trim Throttle/ Aileron

Digital Trims

The E-flite® 4-channel DSM2/DSMX transmitter features digital trim buttons on all controls to make fine adjustments. The digital trims are used to fi ne-tune the model's fl ight path when in fl ight.

Before the first flight, center the control surfaces mechanically (see Control Centering).

When pressed down, trim buttons make a sound that increases or decreases in pitch at each pressing. The middle or neutral trim position is heard as a middle tone in the pitch range of the sounds. The end of the control range is sounded by a series of beeps.

Dual Rate Function

This transmitter's dual rate feature lets you change between high and low control rates for the aileron, elevator and rudder.

• When powered ON, this transmitter is automatically set to high-rate mode.
• Change rate modes by pushing the right-hand control stick vertically into the case (until it clicks) while the transmitter is powered ON.
• High-rate mode is shown by the transmitter's LED glowing solid red. In high-rate mode, the controls can reach their maximum values. This mode is typically preferred by experienced pilots for maximum control authority.
• Low-rate mode is shown by the transmitter's LED blinking continuously. In low-rate mode, the controls are reduced to approximately 70% of their maximum values. This mode is typically preferred by (and best for) beginner pilots or others interested in smoother and more easily controlled flight.

Flight Battery Installation and ESC Arming

Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl light battery requires the following steps.

AS3X

The AS3X® system will not activate until the throttle stick or trim is increased for the first time. Once active, the control surfaces may move rapidly and noisily on the aircraft. This is normal. AS3X technology will remain active until the battery is disconnected.

It is normal for linear servos to make noise. Noise is not an indication of a faulty servo.

CAUTION: Always keep hands away the propeller. When armed, the motor will be propeller in response to any throttle ment.

CAUTION: Always disconnect the Li-Po rty from the aircraft receiver when not g to avoid over-discharging the battery. ries discharged to a voltage lower than west approved voltage may become ged, resulting in loss of performance and tial fi re when batteries are charged.

1

Lower throttle and throttle trim to lowest settings.

Power ON the transmitter, then wait 5 seconds.

Cross-sectional diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

2

Connect the battery to the ESC, noting proper polarity.

Keep the plane immobile and away from wind for 5 seconds. Continuous LED

1-2-3-4-5 Sec.

3

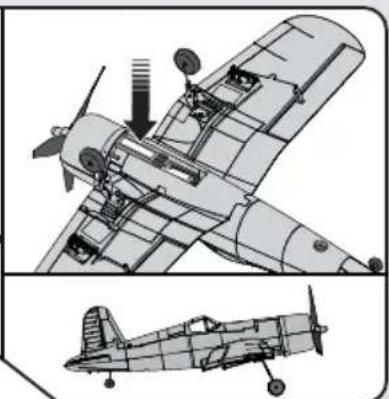

Secure the battery to the hook and loop strip on the battery holder.

Refer to the Center of Gravity Adjustment instructions for the battery's position.

FLY...

Technical line drawing of an early propeller aircraft showing internal components and structural details (no text or labels)

Center of Gravity (CG) Adjustment

The CG location is 28mm back from the leading edge at the wing root.

This CG location has been determined with the included 1S 150mAh 3.7V Li-Po battery installed in the battery cavity.

Balance the model on the edge of a metal ruler to find the Center of Gravity. Place the ruler on the underside of the airframe.

28mm

Control Direction Test

Bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure aircraft control surfaces move correctly. Always keep throttle at the low position during testing.

Control Centering

Before the first flights, or in the event of an accident, make sure the flight control surfaces are centered. Adjust the linkages mechanically if the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos.

1. Make sure the control surfaces are neutral when the transmitter controls and trims are centered. The transmitter sub-trim must always be set to zero.
2. When needed, use a pair of pliers to carefully bend the metal linkage (see illustration).
3. Make the U-shape narrower to make the connector shorter. Make the U-shape wider to make the linkage longer.

Diagram of a tool interacting with a mechanical component, showing a handle and base (no text or symbols)

Centering Controls After First Flights

For best performance with AS3X, it is important that excessive trim is not used. If the aircraft requires excessive transmitter trim (4 or more clicks of trim per channel), return the transmitter trim to zero and adjust the linkages mechanically so that the control surfaces are in the flight trimmed position.

Control Horn Settings

The table to the right shows the factory settings for the control horns. Fly the aircraft at factory settings before making changes.

After fl ying, you may choose to adjust the linkage positions for the desired control response.

CAUTION: When these are incorrectly subjected for the pilot's skill level, unexpected shift response to controls can result. This can be damage to the aircraft and personal injury.

Aileron Elevator Rudder

Dual Rates

To obtain the best fl ight performance, we recommend using a DSM2/DSMX radio capable of adjustable Dual Rates. The suggested settings shown here are the recommended starting settings. Adjust according to the individual preferences after the initial fl ight.

NOTICE: Do not set your transmitter travel adjust over 100%. If the TRAVEL ADJUST is set over 100%, it will not result in more control movement, it will overdrive the servo and cause damage.

It is normal for linear servos to make signifi cant noise. The noise is not an indication of a faulty servo.

	Dual Rate
	High Low
Aileron 100%	70%
Elevator 100%	70%
Rudder 100%	70%

Tip: For the first flight, fly the model in low rate.

Flying Tips and Repairs

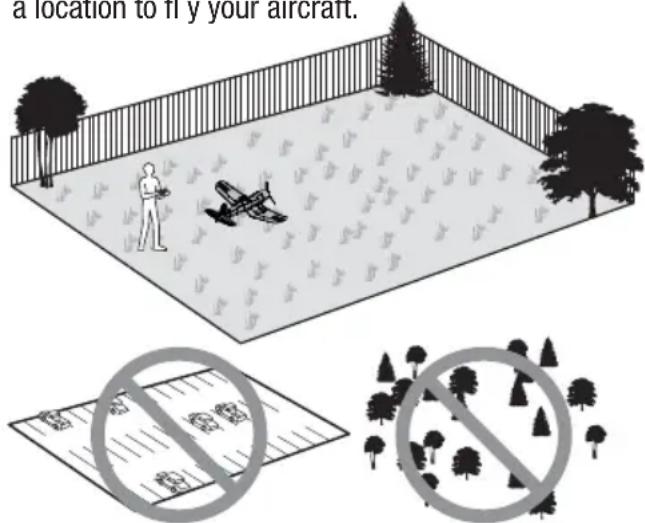

We recommend fl ying your aircraft outside in calm conditions. Always avoid fl ying near houses, trees, wires and buildings. You should also be careful to avoid fl ying in areas where there are many people, such as busy parks, schoolyards or soccer fi elds. Consult local laws and ordinances before choosing a location to fl y your aircraft.

a location to fly your aircraft.

Takeoff

Place the aircraft in position for takeoff (facing into the wind if fl ying outdoors). Set dual rates to low position and gradually increase the throttle to 34 to full and steer with the rudder. Pull back gently on the elevator and climb to check trim. Once the trim is adjusted, begin exploring the fl ight envelope of the aircraft.

Landing

Land into the wind. This is very important for this model. Fly the aircraft to approximately 6 inches (15cm) or less above the runway, using a small amount of throttle for the entire descent. Keep the throttle on until the aircraft is ready to fl are. During fl are, keep the wings level and the airplane pointed into the wind. Gently lower the throttle while pulling back on the elevator to bring the aircraft down on all three wheels.

Low Voltage Cutoff (LVC)

When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft's ESC protects the flight battery from over-discharge using Low Voltage Cutoff (LVC). Once the battery discharges to 3V per cell, the LVC will reduce the power to the motor in order to leave adequate power to the receiver and servos to land the airplane.

When the motor power pulses, land the aircraft immediately and replace or recharge the flight battery.

Failure to lower the throttle stick and trim to the lowest possible positions during a crash could result in damage to the ESC in the receiver unit, which may require replacement.

This aircraft is equipped with Over Current Protection (OCP). This feature protects the ESC from overheating. OCP stops the motor when the transmitter throttle is set too high and the propeller cannot turn. The OCP will only activate when the throttle stick is positioned just above 1/2 throttle. After the ESC stops the motor, fully lower the throttle to re-arm the ESC.

NOTICE: Crash damage is not covered under the warranty.

Repairs

Repair the aircraft using foam-compatible CA (cyanoacrylate adhesive) or clear tape. Only use foam-compatible CA, as other types of glue can damage the foam. When parts are not repairable, see the Replacement Parts List for ordering by item number.

For a listing of all replacement and optional parts, refer to the list at the end of this manual.

NOTICE: Use of foam-compatible CA accelerant on your aircraft can damage paint. DO NOT handle the aircraft until the accelerant fully dries.

NOTICE: When you are fi nished fl ying, never leave the aircraft in direct sunlight or in a hot, enclosed area such as a car. Doing so can damage the foam.

Always disconnect and remove the Li-Po battery from the aircraft after each flight. Charge your Li-Po battery to about half capacity before storage. Make sure the battery charge does not fall below 3V per cell. Failure to unplug a connected battery will result in trickle discharge.

For your first lights, set your transmitter timer or a stopwatch to 4 minutes. Adjust your timer for longer or shorter lights once you have flown the model.

NOTICE: Repeated fl ying to LVC will damage the battery.

NOTICE: Always decrease throttle at propeller strike.

Illustration of a mechanical device with a jagged base and wheels, no text or symbols present

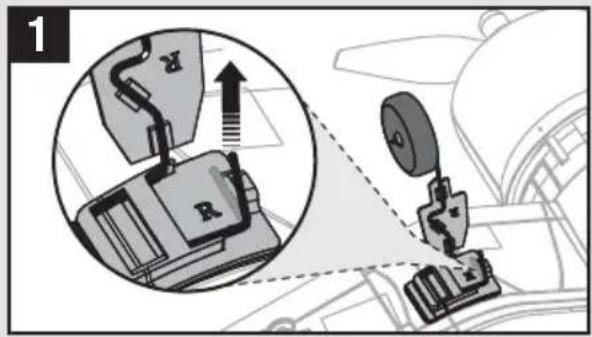

Landing Gear Removal

To remove the factory-installed landing gear:

1. Lift the end of the landing gear wire above the stop.
2. Gently pull the landing gear toward the center of the wing and away from the clips.

Install in reverse order, making sure the end of the landing gear wire is inside the stop and the vertical strut is toward the front of each wing.

1

Mechanical assembly diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Post Flight Checklist

√
	1. Disconnect the fl ight battery from the ESC (Required for safety and battery life).
	2. Power OFF the transmitter.
	3. Remove the fl ight battery from the aircraft.
	4. Recharge the fl ight battery.

√
	5. Store the flight battery apart from the aircraft and monitor the battery charge.
	6. Make note of the flight conditions and flight plan results, planning for future flights.

Power Components Service

CAUTION: DO NOT handle propeller parts while the flight battery is connected. Personal injury could result.

Disassembly

1. Disconnect the battery from the ESC/receiver.

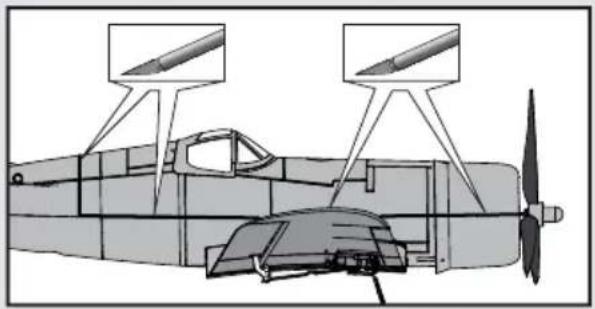

2. Carefully cut the tape and decals on the side of the fuselage and behind the canopy to remove the top of the fuselage.

IMPORTANT: Removing tape or decals can remove paint from the fuselage.

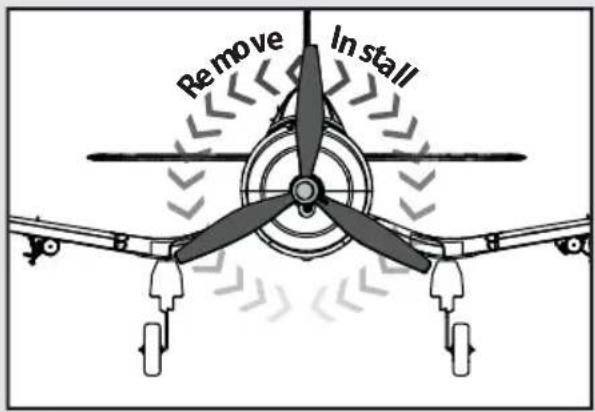

1. Hold the prop shaft using needle-nose pliers or hemostats.
2. Turn the propeller counterclockwise (facing the front of the model) to remove. Turn the propeller clockwise to install.
3. Carefully remove a damaged spinner and glue from the propeller.
4. Hold the nut on the end of the prop shaft using needle-nose pliers or hemostats.

5. Turn the gear on the shaft clockwise (facing the front of the model) to remove the nut.

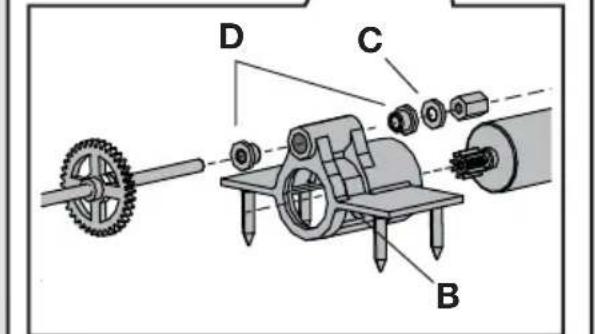

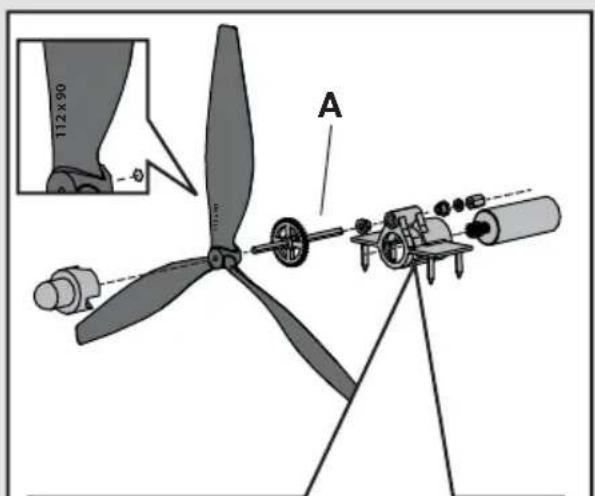

6. Gently pull the shaft (A) from the gearbox (B) and make sure the washer (C) and two bushings (D) are not lost.

7. Disconnect the motor from the ESC/receiver.

8. Gently push the motor out of the gearbox and remove the motor through the top of the fuselage behind the ESC/receiver.

NOTICE: DO NOT remove the gearbox from the aircraft. Damage to the aircraft will result.

Assembly

Assemble the aircraft using the instructions above in reverse order.

• Correctly align the prop shaft gear with the pinion gear on the motor.
• Connect the motor to the ESC/receiver so that the powered motor turns the propeller counterclockwise (facing the front of the model).
• Make sure the propeller size numbers (112 x 90) face away from the motor (see illustration).
• Attach the spinner to the propeller using foam-compatible CA (Cyanoacrylate adhesive).
• Assemble the fuselage using clear tape.

Side profile illustration of a vintage propeller aircraft with visible propellers and fan blades (no text or symbols)

Remove Install

112 x 90 A

Technical diagram of a mechanical assembly with labeled components A, B, C, and D

Troubleshooting Guide

AS3X

Problem Possible Cause Solution
Control surfaces not at neutral position when transmitter controls are at neutral	Control surfaces may not have been mechanically centered from factory	Center control surfaces mechanically by adjusting the U-bends on control linkages
	Aircraft was moved after the fl ight battery was connected and before sensors initialized	Disconnect and reconnect the fl ight battery while keeping the aircraft still for 5 seconds
Model flies inconsistently from fl ight to fl ight	Aircraft was not kept immobile for 5 seconds after battery was plugged in	Keep the aircraft immobile for 5 seconds after plugging in the battery
	Trims are moved too far from neutral position	Neutralize trims and mechanically adjust linkages to center control surfaces
Controls oscillate in fl ight, (model rapidly jumps or moves)	Propeller is unbalanced, causing excessive vibration	Remove propeller and rebalance or replace it if damaged
	Nut on prop shaft is too loose, causing excessive vibration	Tighten the prop shaft nut 1/2 turn

Problem Possible Cause Solution
Aircraft will not respond to throttle but responds to other controls	Throttle stick and/or throttle trim too high Reset	controls with throttle stick and throttle trim at lowest setting
	Throttle channel is reversed Reverse throttle ch	channel on transmitter
	Motor disconnected from receiver Open fuselage	age and make sure motor is connected to the receiver
Extra propeller noise or extra vibration	Damaged propeller, spinner or motor Replace	damaged parts
	Prop is out of balance Remove and balance propeller, or replace with a balanced propeller
Reduced fl ight time or aircraft underpowered	Flight battery charge is low Completely recharge	fl ight battery
	Propeller installed backwards Install propeller	with numbers facing forward
	Flight battery damaged Replace fl ight battery	and follow fl ight battery instructions
	Flight conditions may be too cold	Make sure battery is warm before use
	Battery capacity too low for fl ight conditions	Replace battery or use a larger capacity battery
LED on receiver fl ashes and aircraft will not bind to transmitter (during binding)	Transmitter too near aircraft during binding process	Power off transmitter, move transmitter a larger distance from aircraft, disconnect and reconnect fl ight battery to aircraft and follow binding instructions
	Bind switch or button not held long enough during bind process	Power off transmitter and repeat bind process. Hold transmitter bind button or switch until receiver is bound
	Aircraft or transmitter is too close to large metal object, wireless source or another transmitter	Move aircraft and transmitter to another location and attempt binding again

Troubleshooting Guide (Continued)

Problem Possible Cause Solution
LED on receiver fl ashes rapidly and aircraft will not respond to transmit-ter (after binding)	Less than a 5-second wait between fi rst powering on transmitter and connecting fl ight battery to aircraft	Leaving transmitter on, disconnect and reconnect fl ight battery to aircraft
	Aircraft bound to different model memory (ModelMatchTM radios only)	Select correct model memory on transmitter and disconnect and reconnect fl ight battery to aircraft
	Flight battery/transmitter battery charge is too low	Replace/recharge batteries
	Transmitter may have been bound to a different model (or with a different DSM Protocol)	Select the right transmitter or bind to the new one
	Aircraft or transmitter is too close to large metal object, wireless source or another transmitter	Move aircraft and transmitter to another location and attempt linking again
Control surface does not move	Control surface, control horn, linkage or servo damage	Replace or repair damaged parts and adjust controls
	Wire damaged or connections loose Do a check of wires and connections, con-nect or replace as needed
	Flight battery charge is low Fully recharge fl ight battery
	Control linkage does not move freely Make sure control linkage moves freely
Controls reversed Transmitter settings reversed Adjust controls on transmitter appropriately
Motor loses power Damage to motor or power components Do a check of motor and power components for damage (replace as needed)
Motor power quickly decreases and in-creases then motor loses power	Battery power is down to the point of receiver/ESC Low Voltage Cutoff (LVC)	Recharge fl ight battery or replace battery that is no longer performing
Motor/ESC is not armed after landing	Over Current Protection (OCP) stops the motor when the transmitter throttle is set high and the propeller cannot turn	Fully lower throttle and throttle trim to arm ESC
Servo locks or freezes at full travel	Travel adjust value is set above 100%, overdriving the servo	Set Travel adjust to 100% or less and/or set sub-trims to Zero and adjust linkages mechanically

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC (“Horizon”) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion

of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, fi nal assembly, modifi cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides

tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support offi ce.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notifi cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notifi cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of 12 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website http://www.horizonhobby.com/content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold non-compliant Product for a period of 60 days from notification, after which it will be discarded.

FCC Information

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

Country of Purchase Horizon Hobby Phone Number/Email Address Address

United States of America	Horizon Service Center (Repairs and Repair Requests)	servicecenter.horizonhobby.com/RequestForm/	4105 Fieldstone RdChampaign, Illinois, 61822 USA
	Horizon Product Support (Product Technical Assistance)	www.quickbase.com/db/bghj7ey8c?a=GenNewRecord888-959-2305
	Sales	[e-mail]888-959-2305
United Kingdom	Service/Parts/Sales: Horizon Hobby Limited	[e-mail] U+44 (0) 1279 641 097	units 1–4 , Ployters Rd, Staple Tye Harlow, Essex, CM18 7NS, United Kingdom
Germany	Horizon Technischer Service Sales: Horizon Hobby GmbH	[e-mail][phone]	Christian-Junge-Straße 125337 Elmshorn, Germany
France	Service/Parts/Sales: Horizon Hobby SAS	[e-mail][phone]	11 Rue Georges Charpak77127 Lieusaint, France
China	Service/Parts/Sales: Horizon Hobby – China	[e-mail] Room [phone]	Room 506, No. 97 Changshou Rd.Shanghai, China 200060

ICC Information

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Compliance Information for the European Union

Declaration of Conformity

(in accordance with ISO/IEC 17050-1)

No. HH2014041701

Product(s): EFL Ultra Micro F4U Corsair with AS3X BNF Item Number(s): EFLU2680

Equipment class: 1

The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC Directive 2004/108/EC and LVD Directive 2006/95/EC

EN 301 489-1 V1.9.2: 2012

EN 301 489-17 V2.1.1: 2009

EN60950-1:2006+A11:2009+A1:2010+A12:2011

EN55022:2010 + AC:2011

EN55024:2010

Signed for and on behalf of:

Horizon Hobby, LLC

Champaign, IL USA

April 17, 2014

Robert Peak

Chief Financial Officer

Horizon Hobby, LLC

(in accordance with ISO/IEC 17050-1)

No. HH2014041702

Product(s): EFL Ultra Micro F4U Corsair with AS3X RTF Item Number(s): EFLU2600, EFLU2600M1

Equipment class: 1

The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC Directive 2004/108/EC and LVD Directive 2006/95/EC

EN 300-328 V1.7.1: 2006

EN 301 489-1 V1.9.2: 2012

EN 301 489-17 V2.1.1: 2009

EN60950-1:2006+A11:2009+A1:2010+A12:2011

EN55022:2010 + AC:2011

EN55024:2010

Signed for and on behalf of:

Horizon Hobby, LLC

Champaign, IL USA

April 17, 2014

Robert Peak

Chief Financial Officer

Horizon Hobby, LLC

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city offi ce, your household waste disposal service or where you purchased the product.

Technical line drawings of three vintage propeller aircraft, showing top, front, and side views with no text or symbols.

Decal Application – Dekoraufkleber – application des décalcomanies – Applicazione decalcomanie –

Ira Kepford
Optional 1
Opzione 1

© 2014 Horizon Hobby, LLC.

E-fl ite, AS3X, Blade, Celectra, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, the Bind-N-Fly logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc.

Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.

Patents pending.

www.e-fl iterc.com
