USER MANUAL Display Cart Anthro
Take your video conferencing display or digital signage set-up on the go with this strong adjustable-height cart. Supports displays up to 70 lbs. and moves them easily on large 5" locking casters. Add a locking cabinet for secure storage!
PRODUCT SPECIFICATIONS
Legs: Legs are made of extruded aluminum with integrated cable management.
Casters: Comes with 5" heavy-duty single-wheel rubber casters.
Warranty: Lifetime Warranty against manufacturing defects.


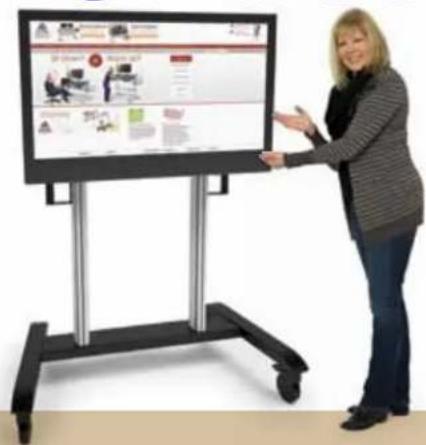

Woman standing beside a large digital display showing a website interface with navigation and user interaction.Make the most of your large display by rolling it where you need it.
DISPLAY CART
Shown with optional Cabinet.
• Take large displays on the go! Available with or without locking cabinet.
- Position display at any height on the 56-1/2" high cart. Monitor Mount is centered on the display.
- Supports any style of display; compatible with VESA standards 200x100, 200x200, 200x300, 300x300, 400x300, 400x400, 600x400, 800x200, and 800x400.
- Tilt display from 5^ up to 15^ down for the best angle.
- Cable management routes cords and cables through the cart legs so they're protected and out of the way.
- Tooled connections keep the display securely attached to the cart. For added security, add a padlock!
- Welded steel base and large 5" casters make the cart stable and easy to move from place to place.
- Large 13.75" long handles, one left and one right, attach at any height and come with padded grips.
- Optional ventilated cabinet measures 24"w x 20.5"d x 20"h and comes with a keyed lock, base shelf, and upper shelf. Cabinet installs at any height on the legs.
- The monitor mount supports displays up to 70 lbs. The cart supports up to 400 lbs. overall.
• Lifetime Warranty against manufacturing defects.
- Cart with cabinet ships in 2 boxes; cart without cabinet ships in 2 boxes.
• Available in Silver Metallic (SM) metal with Black (BK) laminate.
PRODUCT Height Width Depth Weight Part # Price
| Cart | 57" | 47.25" | 29.25" | 80 lbs. / 30 lbs. | DC02SM/BK5 | $1129 |
DISPLAY CART ACCESSORIES
CAMERA MOUNT
- Add storage for your camera with this all-metal mount. Installs above or below the display.
• Lifetime Warranty against manufacturing defects.
• Available in Black (BK) metal.
| PRODUCT | Weight | Part # | Price |
| Camera Mount | 5 lbs. | DCCMBK | $54.95 |
CABINET
- This locking, ventilated cabinet installs at any height along the legs to hold your equipment. Cabinet is metal with wood side panels.
- Comes with door with keyed lock and two keys, base shelf, upper shelf, side panels and back panel. Holds 200 lbs.
- Cabinet measures 24" wide at the front and back; legs are inset so available width inside the cabinet at the legs is 15".
• Available in Black with Silver Metallic door.
| PRODUCT | Height | Width | Depth | Weight | Part # | Price |
| Cabinet | 20" | 24" | 20.5" | 104 | DCCBSM/BK | $699 |
SHELF
- Add storage space to your Display Cart with this shelf. Use it to store keyboard and mouse, telephone, or other equipment.
• Installs at any height along the legs. Add as many as space allows!
• Lifetime Warranty against manufacturing defects.
• Available in Silver Metallic (SM) metal with Black (BK) laminate.
| PRODUCT | Width | Depth | Weight | Part # | Price |
| Shelf | 24.5" | 22.5" | 26 lbs. | DCSHSM/BK | $199.95 |
