USER MANUAL Q0CDC36 Q-See
CONNECTORS AND CONTROLS

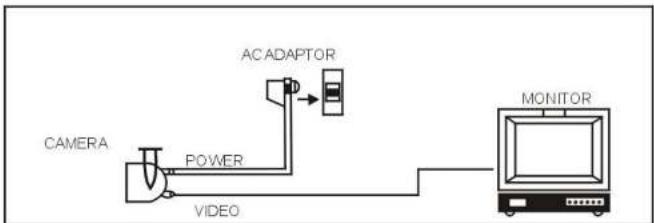

- one monitor system with one camera.


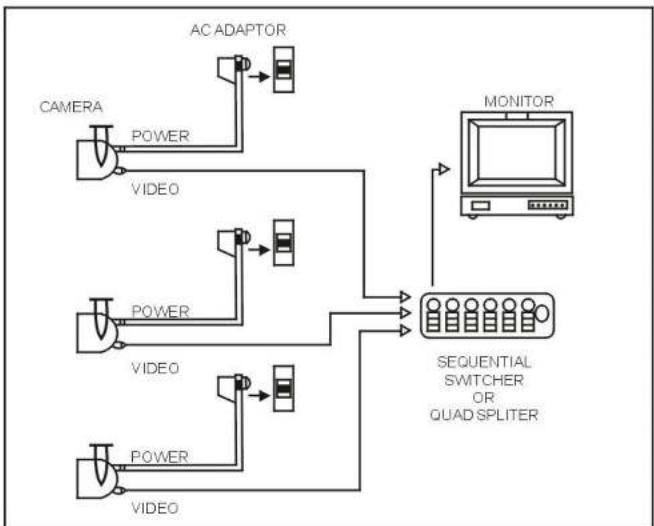

- One monitor system with two or more cameras.
2
CONNECTORS AND CONTROLS
- one monitor system with one camera.
- One monitor system with two or more cameras.
2
SPECIFICATIONS
| MODEL | QOCDC | QOCDC36 |
| Image Sensor | 1/4" Color CCD |
| TV System | NTSC/PAL |
| Horizontal resolution | 420 TV Lines |
| Sync system | Internal synchronization |
| Usable illumination | O LuxAt night (Led on) |
| S/N Ratio | ≥48dB (AGC Off) |
| γ characteristic | 0.45 |
| Video output | 1 Vp-p75 ohm |
| Electronic shutter time | Auto, NTSC: 1/60~1/100,000SecPAL: 1/50~1/100,000SEC |
| Scanning system | NTSC: 525 Lines, 60Field/SecPAL:625 Lines, 50 Field/Sec |
| Operation temp | -10°C~+50°C RH 95% Max |
| Storage temp | -20°C~+60°C RH 95% Max |
| Lens | 6.0mm | 3.6mm |
| Power supply | DC 12V / 400mA |
| Dimension | 58mm×60mm×66mm |
| Weight | 180g |
IR Series
| Input Voltage | DC 12V,400mA(±10%) |
| Distance | 10 meter |
| H.V.Angle | 40° |
| Power Consumption | 2.0 Watts |
| Power on | CDS Auto Control |
| LED | 12 Unit Infrared LED |
| Window | 50mm Heat-Resisting Glass |
| IR Status | Under 10 Lux by CDS |
| Construction | Aluminum |
| Operation Temp | -20°C~+60°C |
3
SPECIFICATIONS
| MODEL | QOCDC | QOCDC36 |
| Image Sensor | 1/4" Color CCD |
| TV System | NTSC/PAL |
| Horizontal resolution | 420 TV Lines |
| Sync system | Internal synchronization |
| Usable illumination | O LuxAt night (Led on) |
| S/N Ratio | ≥48dB (AGC Off) |
| γ characteristic | 0.45 |
| Video output | 1 Vp-p75 ohm |
| Electronic shutter time | Auto, NTSC: 1/60~1/100,000SecPAL: 1/50~1/100,000SEC |
| Scanning system | NTSC: 525 Lines, 60Field/SecPAL:625 Lines, 50 Field/Sec |
| Operation temp | -10°C~+50°C RH 95% Max |
| Storage temp | -20°C~+60°C RH 95% Max |
| Lens | 6.0mm | 3.6mm |
| Power supply | DC 12V / 400mA |
| Dimension | 58mm×60mm×66mm |
| Weight | 180g |
IR Series
| Input Voltage | DC 12V,400mA( ± 10%) |
| Distance | 10 meter |
| H.V.Angle | 40° |
| Power Consumption | 2.0 Watts |
| Power on | CDS Auto Control |
| LED | 12 Unit Infrared LED |
| Window | 50mm Heat-Resisting Glass |
| IR Status | Under 10 Lux by CDS |
| Construction | Aluminum |
| Operation Temp | -20°C~+60°C |
3
