USER MANUAL H-CMD2000 HYUNDAI

HYLINDOJ streaming device displaying a woman in dynamic pose, with cable and remote control nearby (no readable text or symbols)

Two glossy spheres with reflections, no text or symbols present

2 DIN MULTIMEDIA

DVD RECEIVER WITH

MOTORIZED 7" TFT DISPLAY

2 DIN МУЛЬТИМЕДИЙНЫЙ

DVD-РЕСИВЕР

С 7" МОТОРИЗОВАННЫМ

TFT-ДИСПЛЕЕМ

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 4

Utilization of the product 4

Important safeguards 4

Installation/Connection 5

Installation.... 5

General notes 5

Mounting 5

Parking wire connection 7

Reverse driving cable connection ..... 7

Steering wheel controll cable 7

Connection 8

Connection diagram 8

Using the ISO Connector 8

Operation 10

Control elements 10

Front panel 10

Inner panel 10

Remote controller 11

Changing the battery 11

Passive TV antenna 12

General operations 13

Touch screen 13

Turn on/off the power 13

Mute 13

Adjust the volume 13

Playing source selection 13

Panel tilt 13

TFT dimming 13

Steering wheel control 13

System setup 13

AUX in jack 14

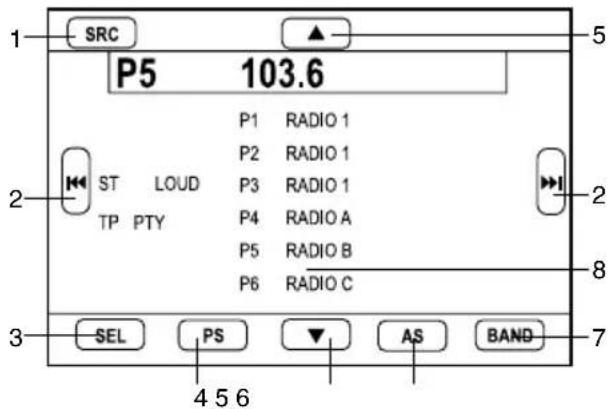

Radio operations 14

Radio menu 14

Band select 14

Automatical/Manual search 14

How to save and recall stations 15

RDS basis 15

AF (Alternative Frequencies) function ... 15

TA (Traffic Alarm) function 15

TA seek/TA alarm 15

TA VOL 15

Retune mode 15

REG mode 15

EON (Enhanced other networks) ..... 15

TV tuner operations 16

TV mode select 16

TV mode select 16

Automatic tuning 16

Manual tuning 16

Adjust the preset at TV setting menu ... 16

Change TV channel 16

Change TV video format 16

Disc/USB/SD/MMC operations 16

Insert a disc 16

Eject the disc 16

Using the touch screen controls 16

Disc playback 17

Stop playback temporarily 17

Stop playback entirely 17

Select a track 17

Fast forward/backward 17

Intro 17

Random track playback 17

Repeat 17

Repeat A - B 17

PBC - Playback Control 17

GOTO 18

Program 18

Audio select 18

Subtitle select 18

Title select 18

View angle select 18

Zoom 18

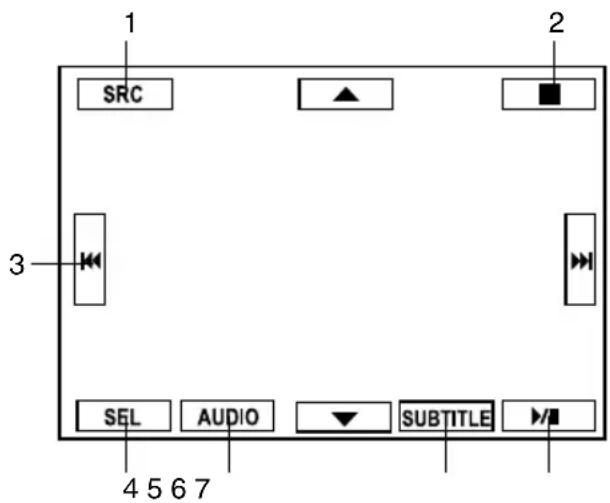

DVD playback menu 18

Video CD playback menu 19

CD playback menu 19

MP3/MP4/Photo Menu 19

USB/Memory card operation 19

DVD setup 20

System 20

Language 20

Audio 21

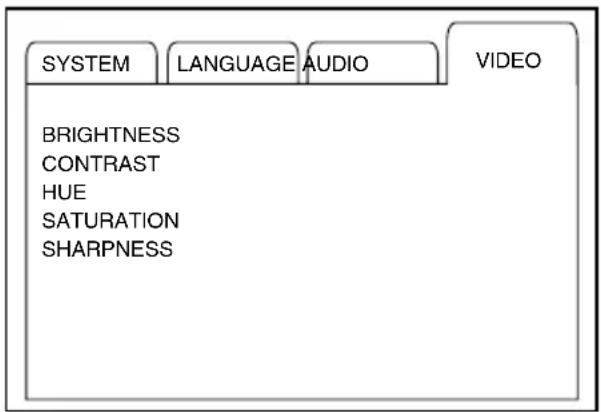

Video 21

General information 22

Handling compact discs 22

Cleaning discs 22

Cleaning the unit body 22

Accessories 22

Troubleshooting guide 23

Specification 24

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

- Using the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen

and other components of the unit and can result in an outage.

- Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

- The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.

- When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

- Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

- Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.

- Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.

• Always keep the volume low enough so that you can hear sounds from outside the vehicle.

- Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 35^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Mounting

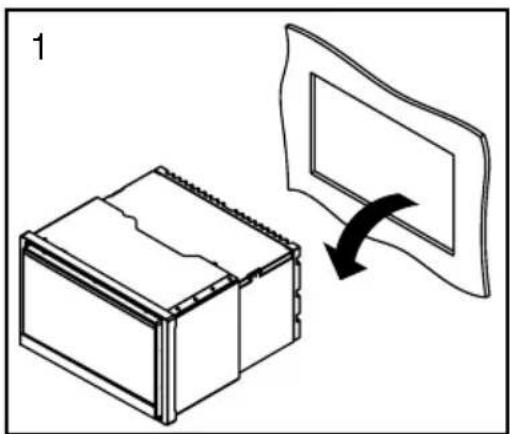

1. Remove the old audio system from the car.

Diagram showing a device with a folded panel and a curved screen, no text or symbols present

1. After unscrewing the four car radio attachment screws, insert the mounting sleeve into the dashboard. Fix it firmly in place by folding down the metal tabs.

Technical line drawing of two mechanical components with mounting holes and a close-up view showing internal structure (no text or symbols)

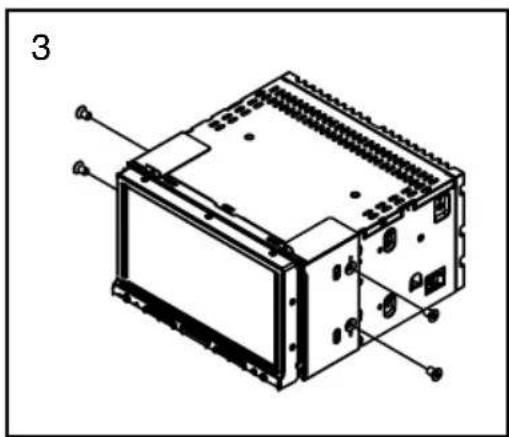

1. If this has not already been done, attach the brackets (2x) to the car radio. In order to do this, use the supplied flat head screws (M5x6 mm).

Technical line drawing of an electronic device chassis with mounting holes and internal components (no text or symbols)

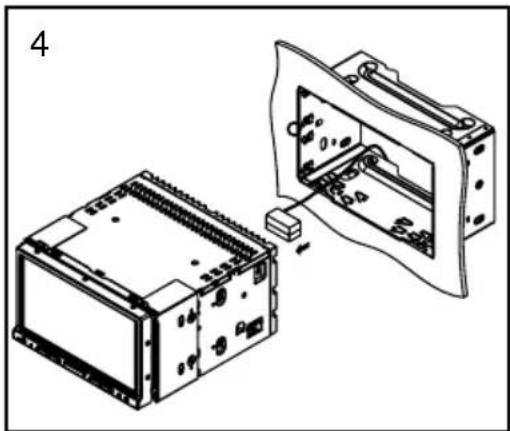

1. Perform the required electrical connections:

Technical line drawing showing two views of an electronic device housing with internal components (no text or symbols)

- If necessary, connect the hand brake wire to your hand brake contact in order to activate the video display when playing a DVD (when the car is parked).

- Connect the wire that activates the reversing camera to the reversing sensor or to a reversing light. If necessary, connect your reversing camera to the car radio's reversing camera input using a video cable (not supplied).

1. Then check that everything works before installing the main unit in the mounting sleeve.

Technical line drawing of a device assembly with internal components and directional arrows (no text or symbols)

If necessary, use the mounting screws and bolt rubber to complete installation of the unit.

1. Install the car radio in the dashboard using the supplied flat head screws (M2.6x5mm).

Turn on the unit and slide down the panel, then attach the outer trim frame. If you are not sure how to install this unit correctly, contact a qualified technician.

Technical line drawing of an electronic device with two open compartments and internal components (no text or symbols)

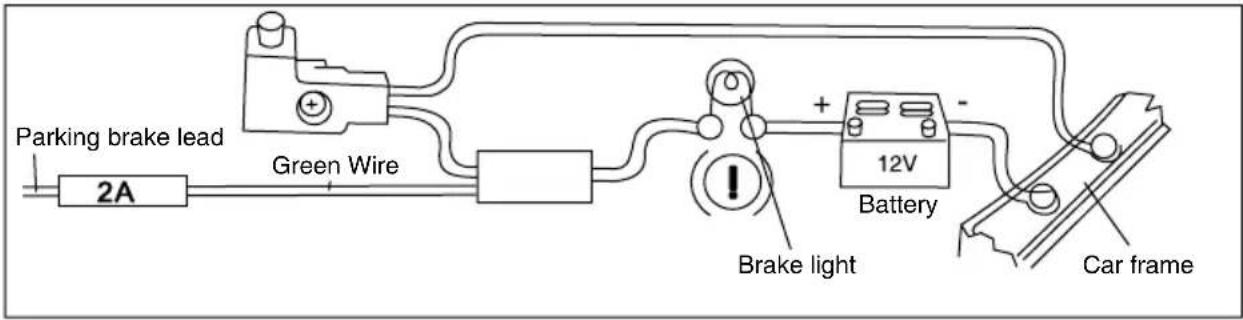

Parking wire connection

Parking brake lead 2A Green Wire + - 12V Battery Brake light Car frame

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status, system setup and input video sources. When the car is moving ahead, if the video disc is played, the screen shows "WARNING!! Engage Parking Brake to View Video", and blank screen. The above warning screen will prevent the driver from watching images.

Reverse driving cable connection

If the rear view video camera is connected, the unit automatically switches to CAMERA source during reverse driving. The unit returns to the original work mode after the reverse driving is done.

Steering wheel control cable connection

SWC Key A Key B GND Key A (to steering wheel control cable) Key B (standby) GND

Connection

Connection diagram

TV Antenna IN Radio Antenna IN ISO Connector FUSE 15A B 1 3 5 7 2 4 6 8 A 1 3 5 7 2 4 6 8 SWC (Steering Wheel Control) AUX 1 IN-R (Red) AUX 1 IN-L (White) FRONT AUDIO OUT-R (Red) FRONT AUDIO OUT-L (White) REAR AUDIO OUT-R (Red) REAR AUDIO OUT-L (White) SUBWOOFER (Brown) USB PORT VIDEO IN (Yellow) CAMERA IN (Yellow) VIDEO OUT 2 (Yellow) VIDEO OUT 1 (Yellow) PARKING (Green) (-) CAMERA (Pink) (+)

Using the ISO Connector

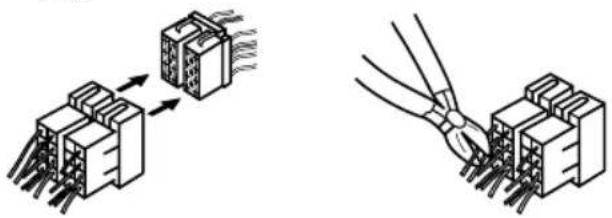

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

1.2.

Two technical diagrams showing a connector assembly process with arrows indicating direction (no text or symbols present)

1. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

Location	Function
	Connector A Connector B
1 - Rear right (+) - Purple
2 - Rear right (-) - Purple/Black
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Antenna/Amplifier control - Blue Front left (+) - White
6 - Front left (-) - White/Black
7 Ignition/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black

Power antenna wire is intended for

power supply of the antenna and for remote control of an additional amplifier.

Control elements

Front panel

1. IR sensor
2. MUTE button
3. SRC button
4. DIM button
5. POWER button
6. VOL+/VOL- buttons
7. OPEN/CLOSE button
8. RESET button (hole)
9. TFT display

Not indicated:

A/V iput jack (right side)

HYUNDAI 11-CMD2000 MULTIMEDIA STATION 4 x SEW 0 0 BRC DN VOL- VOL+ AV IN 1 2 3 4 5 6 7 8 9

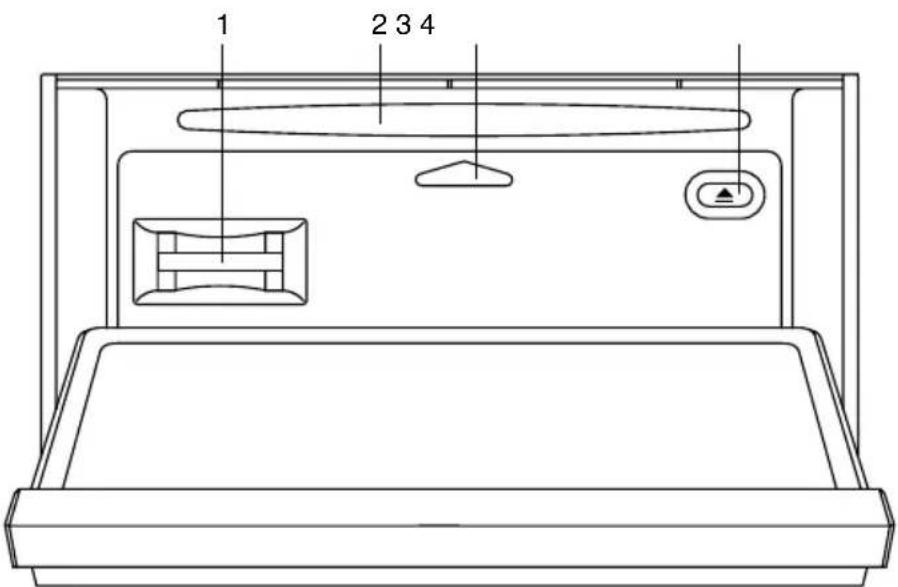

Inner panel

1. Memory card slot
2. Disc slot
3. Panel status indicator
4. EJECT button

1 2 3 4

Pressing RESET hole will erase most of

your settings.

Panel status indicator lights up when you slide the panel down.

Remote controller (RC)

1 2 3 4 5 6 7 8 9 10 11 12 13 SPEED AVG MODE POWER 14 15 16 17 18 19 20 21 22 23 24 25 26 AUDIO 27 HYUNDAI

1. SRC button
2. EJECT button
3. MENU button
4. TITLE button
5. GOTO button
6. BAND button
7. SEL button
8. SETUP button
9. TILT UP/DOWN buttons
10. ZOOM button
11. OK button/Cursor (▼/▼) buttons
12. button
13. Number buttons
14. MODE button
15. POWER button
16. ANGLE button

17. SUBTITLE button

18. REPT A-B button

19. REPT button
20. OSD button
21. RDM button
22. ▶/▶buttons
23. PROG button
24. VOL+/- buttons
25. ▶ button
26. MUTE button
27. AUDIO button

Changing the battery

When the range of the operation of the card RC becomes short or no functions while operating, replace the battery with a new lithium battery. Make sure the battery polarity replacement is correct.

1. Open the back cover of the RC.
2. Insert the button-type battery with the stamped (+) mark facing upward.
3. Close the back cover.

- Store the battery where children

cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.
• The RC can operate within a distance of 3\~5 m and the angle range of 30^ to the IR sensor.

Passive TV antenna for inside mounting for multimedia DVD receiver H-CMD2000

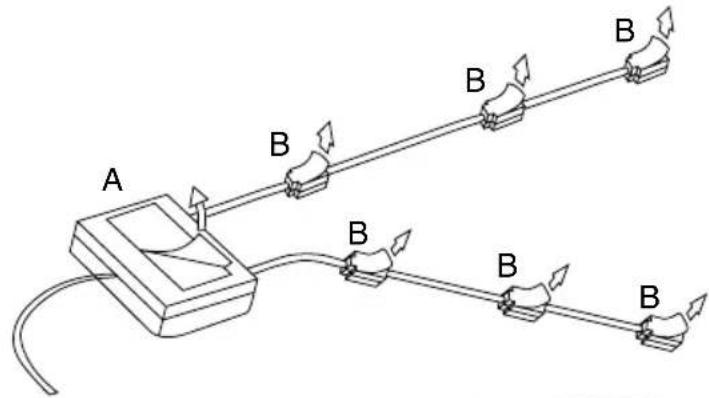

Installation

It is recommended that the antenna should be mounted by professionals.

The antenna should be mounted on the rear window of the vehicle. Optimal mounting distance between the brim of the window and the antenna is 5 cm. Before mounting, find a place inside the vehicle ensuring good signal reception.

Remove fat from the surface you want to fix the antenna on. Tear off the protective stickers from (A) and (B) elements.

Rear glass 3.5 mm H-CMD2000

Fix the antenna to the window surface. Connect the antenna jack to the corresponding input of the DVD-receiver.

Specifications

TV frequency range VHF: 48.5 – 223 MHz

UHF: 470 – 870 MHz

Gain 3 dB

Output impedance 75 Ohm

Operating temperature -40 ^ C \~ +85 ^ C

Storage temperature -40 ^ C \~ +90 ^ C

General operations

Touch screen

Due to the touch screen, you can fulfill most functions not only by pressing buttons but also by touching the options you desired.

Turn on/off the power

Press POWER button to turn on the unit. The unit goes back to the last status after power on. When on, press POWER button to turn off the unit.

Mute

Press to cut the sound. Pressing again or adjusting volume will release muting. MUTE appears on the TFT during muting.

Adjust the volume

Press VOL+/- buttons to increase or decrease the volume level. The adjustable range of volume is 0 to 39.

Playing source selection

Method 1: Press SRC button on the panel or the RC to cycle through the available sources.

Method 2: Open the 'SOURCE MENU' by touching the top left corner of the TFT or by pressing MODE button on the RC, and then touch the option you need or select the option by moving the cursor and then confirm.

- When some devices are not ready, they cannot be selected.

- You should stop switching when the playing source you desired has been selected and wait for some seconds, the unit enters the playing mode you have selected.

Panel tilt

Press TILT UP/DOWN buttons on the RC to adjust the tilt angle of the front panel. Press and hold OPEN/CLOSE button on the panel to access to touchable menu for panel control. Touch the corresponding item to open/close the panel, to adjust its tilt angle or to eject the disc.

TFT dimming

Press DIM button on the front panel to dim the screen. Press the button again to resume image.

Steering wheel control

Source menu => SETTING menu => SWC Setting menu

1. At SWC menu, use A cursor buttons to select a function, then press and hold a button on the steering wheel (if your steering wheel supports the function) until the item on the screen is lighted. Now the function is saved in the button.
2. Repeat step 1 to set functions of other steering wheel buttons.
3. Exit the setting menu and you can operate the player by the buttons on the steering wheel.
4. If you want to change the setting, enter the SWC setting menu, select a function on the screen, press and hold a button on the steering wheel more than 2 seconds, then the function is saved into the button on steering wheel. At the same time, all other steering wheel settings are clear, you must reset them.

System setup

Sound Effect and TFT Setup

Touch SEL on the TFT, or press SEL button on the RC to enter SELECT menu. In the menu you can adjust audio/video settings by directly touching them or by pressing cursor buttons on the RC:

• Audio: EQ sound effect (Flat - Pop - Rock - Clas. - OFF)/BASS/TREBLE/BALANCE/FADER.
  • Video: BRIGHTNESS/CONTRAST/COLOR/DIM.

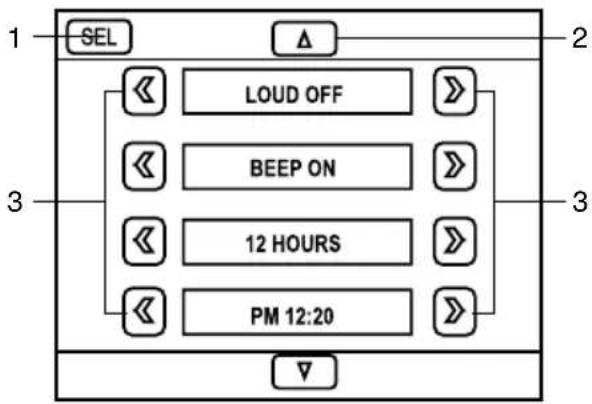

SETUP Menu

Source menu => Setting menu => Setup menu

Touch the up/down icon to access next/previous parameter list. Touch the adjust icon on left or right to adjust the parameter or select the option.

1 SEL Δ 2 3 LOUD OFF BEEP ON 12 HOURS PM 12:20

1. Display Source Menu
2. List up/down icon

3. Adjust icon

4. LOUD ON/OFF: Set loudness function on/off.

5. BEEP ON/OFF: Set button beep sound on/off.
   • 12/24 HOURS: Set 12 hours or 24 hours mode.
6. ⏻/AM/PM: Set hours (left cursor) and minutes (right cursor).
7. VOL LAST/ADJUST: Turn-on volume level is the volume level of latest power off. Choose VOL ADJUST, then set the turn-on volume level by the next option.
8. A VOL: Adjust volume level when VOL ADJUST mode is active.
9. MIRROR ON/OFF: Turn mirror mode on or off. While enter MIRROR IMAGE ON mode, the video of camera is mirror image.
10. PARKING ON/OFF: When the car is moving ahead, if the video disc is played, the screen appear "WARNING !! Engage Parking Brake to View Video", and blank screen. You can set this function on or off.
11. SUBW ON/OFF: Turn the subwoofer on/off. You can select 80/120/160 Hz low pass filter.
12. SUB VOL: Adjust subwoofer volume when SUB ON mode is active.

AUX in jack

AUX-in jack is intended for connecting an external audio or video equipment to amplify the sound. If connection is made correctly, the audio signal from the external source will be translated through the acoustics of the head unit. This enables to adjust the volume and quality of the sounding. For example, you can connect an MP3-player to listen to tracks using the car acoustic system.

Radio operation

Radio Menu

SRC P5 103.6 ST LOUD P1 RADIO 1 TP PTY P2 RADIO 1 P3 RADIO 1 P4 RADIO A P5 RADIO B P6 RADIO C SEL PS AS BAND 4 5 6

Touch to access desired function:

1. Display source menu.
2. Touch to tune automatically. Press more than 2 seconds to tune manually.
3. Display select menu.
4. Hold it to scan preset stations.
5. Select previous/next preset station.
6. Auto search and store stations.
7. Band switch: FM1-FM2-FM3-FM-MW1-MW2.
8. Touch to select preset station 1-6.

Band select

In Radio mode, to select the needed radio band press BAND button on the RC repeatedly. You can store 6 stations in each subband (FM1-FM2-FM3-FM-MW1-MW2).

Automatical/Manual search

After selecting a band, press or Button on the RC to start automatic search of a station with strong signal. Press and hold

◀ or ▶ button on the RC to enable manual frequency adjustment.

How to save and call stations

After the needed station is found, press and hold a number button (1-6) on the RC to save the station under corresponding number. To call a saved station, press corresponding number button on the RC. To go to previous or next saved station, press ▲ buttons on the RC.

RDS basics

RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available.

AF (Alternative Frequencies) function

When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength.

Source menu => SETTING menu => RDS Setting menu => AF ON/OFF.

AF indicator on LCD will flash until RDS information is received. If RDS service is not available in your area, turn off the AF mode.

TA mode

Some RDS FM stations periodically provide traffic information.

TP (Traffic Program Identification) Broadcasting of traffic information.

TA (Traffic Announcements Identification) Radio announcements on traffic conditions.

Source menu => SETTING menu => RDS Setting menu => TA ON/OFF.

When TA mode is turned on, the TA indicator will blink. When traffic announcement is received, the TA indicator will display. The unit will temporarily switch to the tuner mode (regardless of the current mode) and begin broadcasting the announcement at TA volume level. After the traffic announcement is over, it will return to the previous mode and volume level. When TA is turned on, SEEK, SCAN, AMS function can only be received or saved when traffic program identification (TP) code is received.

TA Seek/TA Alarm

Source menu => SETTING menu => RDS Setting menu => TA SEEK/ALARM.

If the TA (Traffic Announcements) is turned on and there is no traffic program identification code received in the specified time, no TA/TP will display and either TA ALARM or TA SEEK will be activated.

TA ALARM mode: Alarm is turned on.

TA SEEK mode: TA SEEK is automatically activated.

TA VOL

Source menu => SETTING menu => RDS Setting menu => TA VOL. Set the default volume of traffic announcements.

RETUNE mode

Source menu => SETTING menu => RDS Setting menu => RETUNE L/S.

RETUNE-S or RETUNE-L is time length selection of TA SEEK retune interval. RETUNE-S: Short, TA SEEK retune interval is 45 seconds. RETUNE-L: Long, TA SEEK retune interval is 180 seconds.

RETUNE mode functions for TA during TA SEEK mode only.

REG mode

Source menu => SETTING menu => RDS Setting menu => REG ON/OFF.

REG ON: AF function will implement the regional code (of the PI) and only stations in the current region can be tuned automatically.

REG OFF: AF function will ignore the regional code (of the PI) and stations in the other regions can also be tuned automatically.

EON (Enhanced Other Networks)

When EON data is received, the EON indicator lights and the TA and AF functions

are enhanced.

TA: Traffic information can be received from the current station or stations in other network.

AF: The frequency list of preset RDS stations is updated by EON data. EON enables the radio to make fuller use of RDS information. It constantly updates the AF list of preset stations, including the one that currently tuned into. If you preset a station around the area at your home, you will later be able to receive the same station at an alternative frequency, or any other station serving the same program, EON also keeps track of locally available TP stations for quick reception.

TV tuner operation

TV mode select

Press SRC button repeatedly or select TV at touchable source menu to switch to TV mode.

Automatic tuning

Press 🔊 Buttons on the RC or press the left/right middle area of screen, the automatic tuning will start.

Manual tuning

Press and hold 🔊 Buttons on the RC or press the left/right middle area of screen more than 2 seconds to tune upward or downward step by step.

Adjust the preset at TV setting menu

Select AMS START in the TV setting menu to search available TV channels and store 18 channels with the strongest signal automatically.

Search in the whole frequency band will take a very long time, so the unit will search in the ranges as follows VHF-L, VHF-H, UHF.

Change TV channel

Touch the top/down middle area of screen to select the previous/next stored TV channel. Press number buttons on the RC to select a Tv channel saved under corresponding number.

Change TV video format

TV mode => SOURCE menu => SETTING menu => TV setting.

Choose TV Video format.

Disc/USB/SD/MMC card operations

Insert a disc

Press OPEN/CLOSE button on the panel to slide down the panel. Insert a disc into the slot, and the unit will change to disc mode automatically.

• Please confirm whether there is a disc in the unit before you insert another one.
• The unit will exit current playing source and enter DVD mode when a disc is inserted.
• Some recorded discs cannot be played back because of different recording status. Discs without being closed could not be played back.

Eject the disc

Method 1: Press OPEN/CLOSE button on the panel to slide down the panel. Press EJECT button to eject the disc.

Method 2: Press OPEN/CLOSE button on the panel more than 2 seconds to enter panel menu, and touch EJECT on the TFT to eject the disc.

Method 3: Press EJECT button on the RC to eject the disc.

• After ejecting the disc, the unit reverts to SD card mode automatically if you have inserted an SD card, or the unit reverts to radio mode.
- You can eject a disc when the unit powered off. The unit remains off after the disc ejected.
- If the disc is not removed from the unit within 10 seconds, the disc will be reloaded to prevent accidental damage.

Using the touch screen controls

The touch key areas for CD/VCD/DVD playback are outlined below:

A B

A - Turn to main source menu

B - Display on screen control menu

Disc playback

• When disc inserted, display shows READ. For MP3 or disc with mixed files, reading time may exceed 1 minute.
• ERROR will be displayed if error found in disc operation.
• Depending on the format of the disc being played, a corresponding icon will appear on the display. Press ▶ button to play.

Stop playback temporarily

During playback, press ▶ button to pause playback. The sound will be muted. Press the button again to continue playback.

Stop playback entirely

• During DVD, VCD, CD, MP3 playback press ■ button on the RC once to stop playback, and the relevant location on the disc is saved. Press ▶ button to resume the playback from the saved disc location.
• Press ■ button twice to stop playback. Press ▶ button to start playback from the beginning of the DVD or the first track of VCD/CD.

Select a track

• Press 🎨 buttons to skip to the next or previous track.
• Use number buttons on the RC to select the desired track number.

Fast forward/backward

- Press and hold 🎨 Buttons for more than 2 seconds repeatedly to select the speed of fast backward or forward track during playback.

• During fast forward or backward operation, press ▶ button briefly for normal playback.
• During fast forward or backward operation, the volume will be muted.

Intro (for CD/VCD only)

You can play the beginning of every track for 15 seconds in sequence. During playback, press INT button once. INT ON/OFF will be displayed. Press the button again to normally play the current track.

Random track playback (for CD/VCD/MP3 Only)

You can play all the tracks in random order. During playback, press RDM button once or more. RDM icon will be displayed. Press the button again to select normal playback.

Repeat

During playback, press REPT button once or more. RPT icon will be displayed.

• For VCD/CD: RPT ONE => RPT ALL => RPT OFF
• For DVD: RPT CHAPTER => RPT TITLE => RPT OFF
• For File disc: RPT ONE => RPT DIR => RPT ALL => RPT OFF

If you do not enable the repeat function, when the entire disc or title playback has finished, the system will stop. If no other control, after 5 minutes the unit will turn into standby mode.

Repeat A - B

• Press REPT A-B button to select starting point Display shows REPEAT A.
• Press REPT A-B button again to select ending point. Display shows REPEAT A-B, and the selected passage starts to replay.
• Press REPT A-B button again to exit. The display shows A-B CANCELLED.

PBC - Playback Control (for VCD only)

- If you insert a VCD with PBC, playback

starts from the beginning of the 1st track automatically.

- Press PBC button to show menu, use 🎨 buttons or digit button to select desired track. Press ■ button to return to menu. Press PBC button again to exit the menu.

GOTO

You can go to desired track/chapter or time point directly. Press GOTO button on the RC, track or DVD Title/Chapter and time will display on top of the screen; current item is highlighted. Use cursor buttons to select desired item. Use digit buttons to select number. Press ENTER button to confirm.

Program

• Press PROG button to enter program list. Use cursor buttons and digit buttons to enter numbers. For DVD and File disc, select title and chapter numbers; for VCD and CD, select track numbers.
• Press ▶ button to play, or move the cursor to select "PLAY" and press ENTER button to play.
• If you want to delete the list, move the cursor to "CLEAR", press ENTER button to delete all the list set before.
• Press PROG button again to exit program play.

Audio select

For DVD, press AUDIO button to select audio language to listen to if the DVD has multiple audio languages. For VCD, press AUDIO button to select audio channel to listen (L => R => Stereo).

Subtitle select

Press SUB.T button to select the subtitle language to show if the DVD has multiple language subtitles.

Title select

Press TITLE button to display title or chapter list, use cursor buttons or digit buttons to

select, press ENTER button to play.

View angle select

Press ANGLE button to select different angle to view if the DVD has multiple-angle views.

Zoom

Press ZOOM button repeatedly, the picture will be zoomed accordingly: X2 => X3 => X4 => X1/2 => X1/3 => X1/4 => OFF.

DVD playback menu

While playback touch the center of the screen to display the playback menu:

1 SRC 2 3 SEL AUDIO SUBTITLE 4 5 6 7

Touch an icon to perform function:

1. Display source menu
2. Stop
3. Track skip/seek (DVD menu left/right)
4. Display Select Menu
5. Audio select
6. Subtitle select
7. Play/Pause/Enter

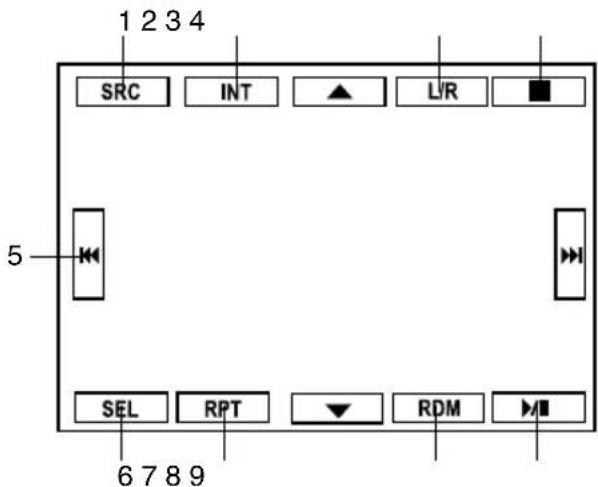

Video CD playback menu

While playback touch the center of the screen to display the playback menu:

1 2 3 4 SRC INT L/R 5 SEL RPT RDM 6 7 8 9

Touch an icon to perform function:

1. Display source menu
2. Track intro play
3. Audio channel select
4. Stop
5. Track skip/seek
6. Display select menu
7. Repeat play
8. Random play
9. Play/Pause

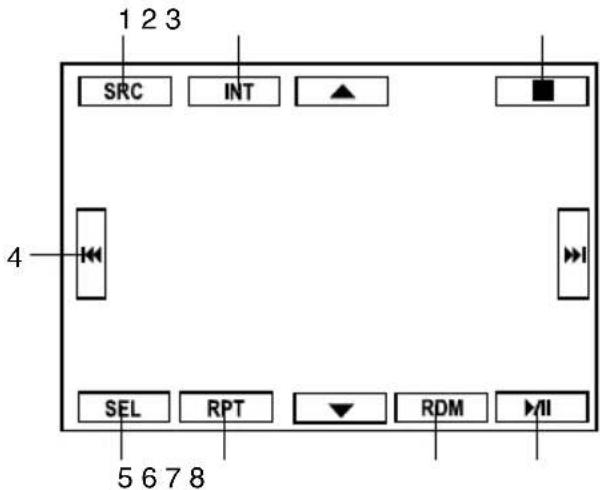

CD playback menu

While playback touch the center of the screen to display the playback menu:

1 2 3 SRC INT ▲ ■ 4 SEL RPT RDM I/II 5 6 7 8

Touch an icon to perform function:

1. Display source menu
2. Track intro play
3. Stop
4. Track skip/seek
5. Display select menu
6. Repeat play
7. Random play
8. Play/Pause

MP3/MP4/Photo Menu

1 2 3 4 SRC ↑ ▲ OSD ■ [Music] Lonely.Mp3 Hero.MP3 Longnights.MP3 Lonely.MP3 Yellow.MP3 Yesterday.MP3 Big big world.MP3 SEL RPT RDM ▶/II 10 2 11 12

Touch to access desired function.

1. Back to upper folder
2. Track up/down
3. Display playback info
4. Stop
5. Display source menu
6. Track and ID3 display
7. Track skip/seek
8. MP4/MP3/Photo select
9. Display select menu
10. Repeat play
11. Random play
12. Play/Pause
13. Track/Folder select

USB/Memory card operation

Using SD/MMC Card

To open the panel, press OPEN/CLOSE button on the panel. Insert an SD/MMC card into the corresponding slot, the unit will load the files automatically. To remove the card, you should first select another source, in order to

avoid damaging the card, then slide down the panel, press the card slightly, and take off the card after it popped out.

The panel cannot close if the card is not fully inserted or not removed after popping up.

Using USB device

Connect your USB device to the USB cable (USB extension cable is needed, not included). When connecting a USB device, the unit will read the files automatically. To remove the USB device, you should first select another source, in order to avoid damaging the USB device.

USB format supports 1.1 version.

Capacity: up to 8 Gb.

For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 2 Gb.

DVD setup

Press SETUP button to display setup menu on the screen. Use A cursor buttons to select menu pages: System - Language - Audio - Video.

The on-screen menu pictures are given in this Manual only for reference and may differ from actual image in your unit.

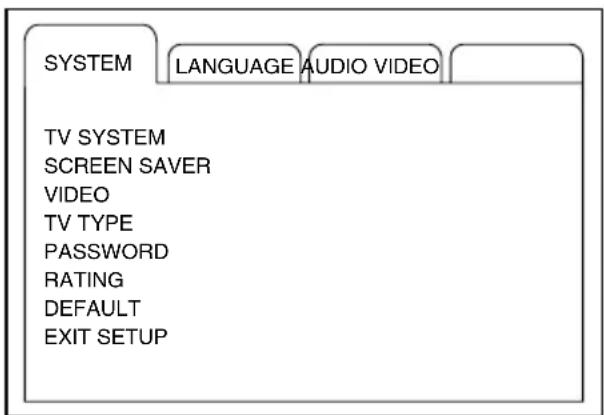

System

SYSTEM LANGUAGE AUDIO VIDEO TV SYSTEM SCREEN SAVER VIDEO TV TYPE PASSWORD RATING DEFAULT EXIT SETUP

• TV System: NTSC/PAL/AUTO. Select the

output video format in the setting menu.

- Screen Saver: ON/OFF. The screen saver appears if disc stop last more than 3 minutes. Original setting: ON.

• Video Output Mode: S-VIDEO.

- TV type: Select TV type to watch wide screen movies.

4:3 Pan Scan: For 4:3 TV, left and right edges will be cut.

4:3 Letter Box: For 4:3 TV, black bars will appear on top and bottom.

16:9: For 16:9 wide screen TV.

- Password:

Press number buttons "0000" on the RC, then press ENTER button to confirm. Enter the desired 4-digit password, and then press ENTER button to confirm. Record the password and keep it in a safe place for future reference.

If you forget the password, please enter 0000 to reset a new password.

- Rating:

The control level is for parents to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level can not be played.

Original setting: 8.

The rating can be selected only under the password unlocked status, and the limits can be worked only under the password locked status.

- Load Default: RESTORE. If this item is selected, the unit will return to original setting.

Language

SYSTEM LANGUAGE AUDIO VIDEO OSD LANGUAGE AUDIO LANG SUBTITLE LANG MENU LANG EXIT SETUP

- OSD Language

Select a language to display system menu.

- Audio Language

Select a dialogue language when playing DVDs. If the DVD disc has the audio file in the selected language, the dialogues you listened to will be in the selected language. If the DVD disc does not contain the audio file in the selected language, the dialogues you listened to will be in the default language.

You can also change the language by pressing AUDIO button on the RC.

- Subtitle Language

Select a language to display DVD subtitles. If the DVD disc has the subtitle file in the selected language, the subtitle will be displayed in the selected language. If the DVD disc does not contain the subtitle file in the selected language, the subtitle will be displayed in the default language.

You can change the language by pressing SUBTITLE button on the RC.

- Menu Language

Select a language to display DVD menu. If the DVD disc has the selected language, the DVD MENU/TITLE will be displayed in the selected language. If the DVD disc does not contain the selected language, the DVD MENU/TITLE will be displayed in the default language.

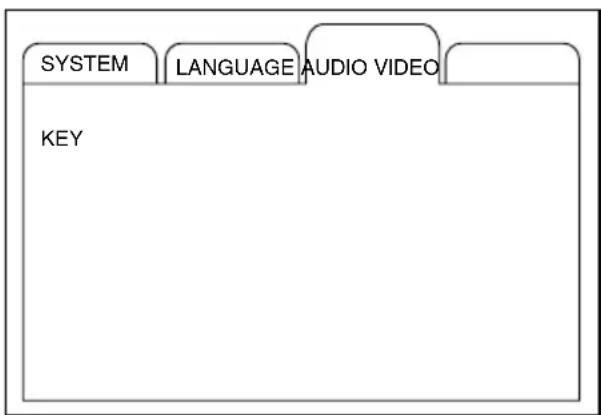

Audio

SYSTEM LANGUAGE AUDIO VIDEO KEY

- Key: Setup the tonality with ▲cursor buttons.

Video

SYSTEM LANGUAGE AUDIO VIDEO BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS

In this page you can set Brightness, Contrast, Hue, Saturation and Sharpness of the video image. Press ▲/▼cursor buttons to adjust the selected parameter.

Handling compact discs

Handling compact discs

• Do not insert anything other than a CD into the CD loading slot.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player.
• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
  • Store discs in their cases when not in use.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature (such as leaving the discs in your car during summertime) can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use shaped discs.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Illustration of a hand holding a medical device with a crossed-out arrow indicating force or pressure (no text or symbols)

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Accessories

1. Receiver 1 pc
2. Remote controller 1 pc
3. Passive TV antenna (option) ..... 1 pc
4. SWC cable 1 pc
5. ISO connector 2 pcs
6. Cleaning napkin 1 pc
7. Mounting parts: Screw M5x6 4 pcs
   Mounting sleeve 1 pc
   Outer trim ring 1 pc
   Mounting bolt (50 mm) 1 pc
   Rubber cushion 1 pc
8. Consumer information 1 pc
9. Warranty card 1 pc
10. Instruction manual 1 pc

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause Solution
No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
No sound Volume is in minimum. Adjust volume to a desired level.
Bad sound quality	The installation angle is more than 35 degrees.	Adjust the installation angle to less than 35 degrees.
	The disc is extremely dirty or defective.	Clean the compact disc/try to play a new one.
Disc cannot be loaded or ejected	The unit already contains a disc.	Remove the disc in the player then put a new one.
	Moisture condensation. Leave the unit idle for an hour, then retry.
Disc cannot be read	The disc is inserted upside down.	Insert the compact disc with the label side facing upward.
	Compact disc is extremely dirty or defective.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off until the ambient temperature returns to normal.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak.	Select stations manually.

Specifications

General

Power supply 12 V DC

Fuse 15 A

Maximum power output 50 W x 4 channels

Mounting angle 0 to +/-35

Dimensions 182 x 111 x 160 mm

Net/Gross weight 3.12 kg/4.19 kg

Working temperature range -20 ^ C - +60 ^ C

Display

Display Motorized 7" touch screen TFT

Aspect ratio 16:9

Resolution 480 x 234

Brightness 400 cd/m ^2

Contrast 300:1

View angle V: 110 ^0/H : 130 ^0

FM stereo radio

Frequency range 65.0 - 74.0/87.5 - 108.0 MHz

Usable sensitivity 8 dBu

Presettable stations 24

AM radio

Frequency range 522 kHz - 1620 kHz

Presettable stations 12

Disc player

Formats supported DVD/SVCD/DVCD/VCD/DivX/XviD/CDDA/MP3/WMA/HDCD/Picture-CD/JPEG/MPEG4

Media supported DVD/ DVD±R/±RW/CD/CD-R/CD-RW/USB/SD/MMC

ESP 40 sec. ESP for Audio-CD, 120 sec ESP for MP3

Russian ID3-tag support +

Video system PAL/SECAM/NTSC

Sound processor 24 Bit

Frequency response 20 to 20 KHz

S/N Ratio (A-vtd)/Separation >80 dB/>60 dB

Terminals

Line output 4 channel RCA line-out (4 V)

AV input 1 pc

Video output 2 pcs

AUX input 1 pc

1 channel Subwoofer pre-out 1 pc

Rear view camera input 1 pc

Specifications are subject to change without notice. Dimensions are approximate.

Diagram showing a device with a curved arrow indicating rotation or change, no text or symbols present

Technical line drawing of two mechanical components with internal parts and a separate inset showing a bracket detail (no text or symbols)

Technical line drawing of an electronic device chassis with mounting holes and internal components (no text or symbols)

Technical line drawing showing two views of an electronic device housing with internal components (no text or symbols)

Technical line drawing of a device assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of an electronic device with open and closed compartments, showing internal components and directional arrows (no text or symbols)

Diagram of two connected electrical connectors with arrows indicating internal connections (no text or symbols)

Diagram of a hand inserting pins into an electrical connector (no text or symbols)

1 SRC 2 3 SEL AUDIO SUBTITLE 4 5 6 7

1 2 3 4 SRC INT ▲ L/R ■ 5 SEL RPT RDM 6 7 8 9

1 2 3 SRC INT ▲ ■ 4 SEL RPT RDM ▶II 5 6 7 8

Illustration of a hand holding a CD or DVD disc (no text or symbols visible)

Illustration of a hand pressing a circular button (no text or symbols)

Чистка дисков

Illustration of two hands performing a medical or therapeutic procedure with directional arrows (no text or symbols)
