GT 1232BT - Megaphone Karma - Free user manual and instructions

Product Type	Megaphone
Brand	Karma
Model	GT 1232BT
Power Source	6 x AA batteries (not included)
Output Power	10 W
Range	Up to 300 meters
Dimensions (H x W x D)	220 x 150 x 250 mm
Weight (without batteries)	500 g
Material	ABS plastic
Color	Black
Microphone Type	Built-in dynamic microphone
Siren Function	Yes (switchable)
Volume Control	Rotary knob
Operating Temperature	-10°C to 50°C
Water Resistance	IPX2 (splash proof)
Cleaning	Wipe with a soft, dry cloth
Storage	Store in a cool, dry place
Battery Life	Approx. 15 hours of continuous use
Accessories Included	Wrist strap, user manual
Repairability	Battery compartment accessible; other parts not user-serviceable

Frequently Asked Questions - GT 1232BT Karma

How do I install the batteries in the Karma GT 1232BT megaphone?

Open the battery compartment located at the bottom of the handle. Insert 6 AA batteries following the polarity markings (+/-). Close the compartment securely.

What is the maximum range of this megaphone?

The Karma GT 1232BT has a maximum range of up to 300 meters under optimal conditions (no obstructions, low background noise).

How do I activate the siren function?

Slide the siren switch on the side of the megaphone to the 'ON' position. The siren will sound until you switch it back off. Ensure the volume is adjusted as needed.

Can I record a message with this megaphone?

No, the Karma GT 1232BT does not feature a recording function. It amplifies your voice in real time or plays the siren.

Is the megaphone waterproof?

The megaphone has an IPX2 rating, meaning it is splash-proof but not waterproof. Avoid exposure to heavy rain or submersion in water.

How do I clean the megaphone?

Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Ensure the battery compartment remains dry.

What type of batteries does the GT 1232BT require?

It uses 6 AA alkaline batteries. Rechargeable AA batteries can also be used, but their voltage may affect performance slightly.

Why is there no sound coming from the megaphone?

Check that the batteries are installed correctly and have sufficient charge. Ensure the volume knob is turned up. Verify that the microphone is not blocked.

Can I purchase spare parts for this megaphone?

Spare parts are not sold separately. The only user-replaceable part is the batteries. For other issues, contact Karma customer support.

What is the warranty period for the Karma GT 1232BT?

Karma offers a 12-month warranty from the date of purchase against manufacturing defects. Retain your receipt for warranty service.

USER MANUAL GT 1232BT Karma

Thank you for choosing KARMA brand

The KARMA product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time. The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety. We suggest to read this manual carefully before starting to use the device in order to take advantage of its full potential. We also invite you to visit our website www.karmaitaliana.it where you will find the whole range of KARMA products, along with useful information and updates.

Cautions and warnings

• Read carefully the instructions contained in this manual and follow them strictly.
• Keep this manual for future reference and include it if you give the product to another user.
• Don't open or take apart the device and don't make changes to it.
• Don't expose the product to high temperatures (above 40°) or excessive humidity.
• Do not allow flammable liquid, water or objects to enter the product.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center.
  Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.

Lithium battery safety warnings

The product is powered by a rechargeable lithium battery. Do not remove, open or modify the battery. To avoid the risk of fire or explosion, do not short-circuit the charging terminal, do not expose the battery to flames, heat, humidity and avoid shocks. Do not maintain the product on charge when not in use. In the event of battery leaking, do not use the device and do not allow the liquid to come into contact with the skin or eyes. In case of contact, wash the affected area with copious water and consult a doctor if necessary.

The product is covered by warranty according to current national and European regulations. For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
• Damages caused by negligence or wrong use of the device are not covered by warranty.
• The warranty is no longer effective if the item is modified or disassembled by not authorized people.
• This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the private area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

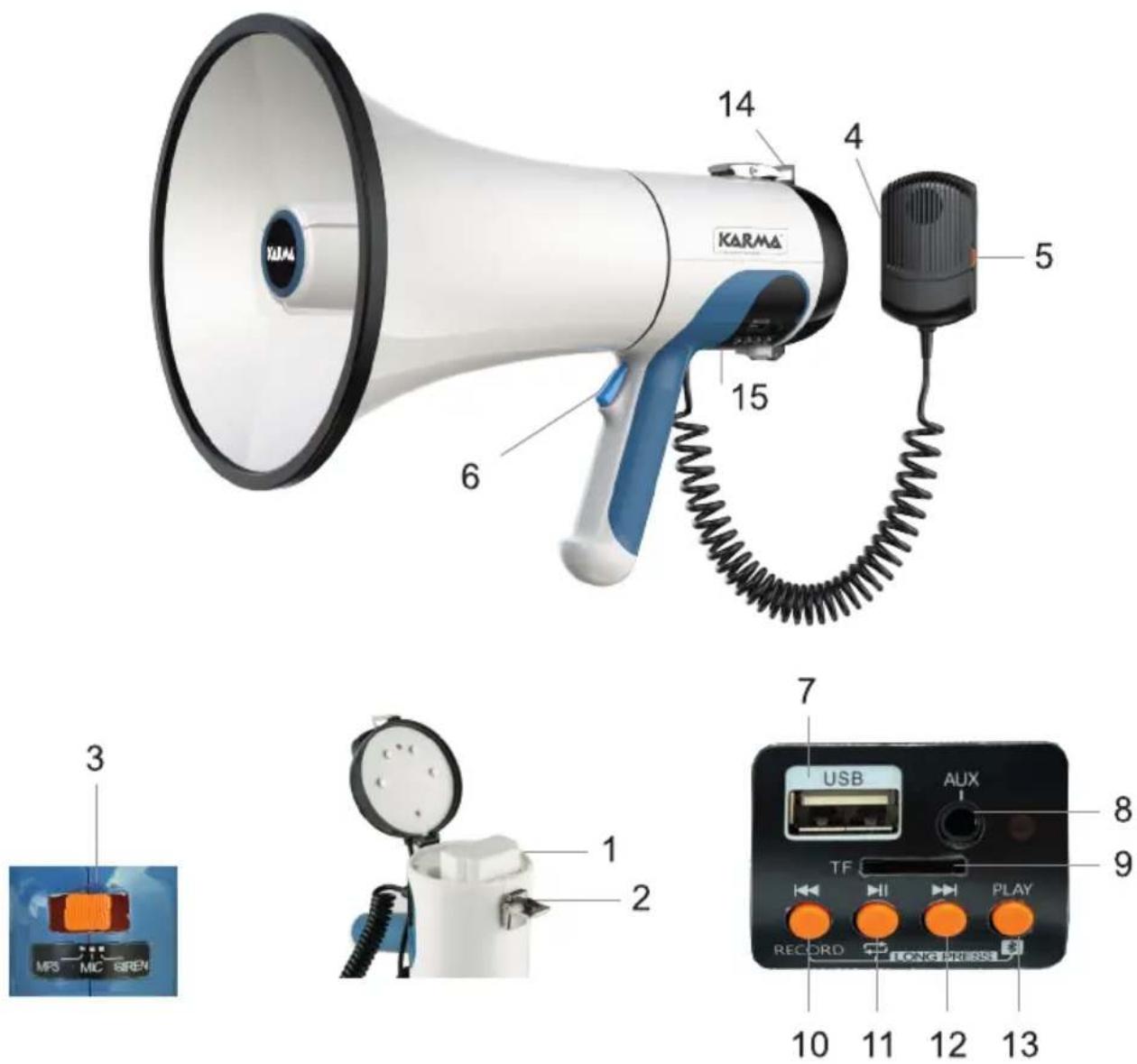

Operating instructions

• Before using the megaphone make sure that the battery (1) is fully charged. Connect it to a USB socket via Type-C cable and wait for the led indicating recharge is completed.
• To power the megaphone with the rechargeable battery, lift the lock (2), open the cover and remove the adapter, which is necessary only if you mean to use the C batteries (not included). Once removed the adapter insert the rechargeable battery with the contacts facing downwards. Close the cover and lock the clip (2). Keep the removed adapter in a safe place as it might be useful in the future.
• By means of the switch (3) it is possible to choose the operating mode. After selecting "siren" press and hold the button (6) to generate an alarm sound. Select "Mic" and keep the button (6) pressed to amplify your voice. Select "Mp3" to activate the multimedia module. Use the rotating control (5) on the right side of the microphone, to adjust the volume. The microphone can be detached from the megaphone and features a talk switch (4) on the left side. By moving the switch downwards you can lock it, so that you can talk with no need of holding the button.
• The multimedia module allows to play MP3 audio from USB sticks (port 7), from micro SD cards (port 9) or via bluetooth, which can be activated by pressing and holding the button (13). Use the buttons 10-13 to play tracks from USB and micro SD. If you want to record a message to be looped press and hold the button (10), then speak into the microphone. To stop recording press the "play" button (13). The message will be played. To stop the repetition press again the "play" (13) button.
• It is possible to amplify an external audio signal on the megaphone, by connecting the source to the 3.5mm socket (8)
• The packaging includes a shoulder strap, which can be secured on the specific loops (14), for easy carriage and use with detached microphone.

Possible problems and solutions

• If the megaphone doesn't work, make sure first of all that the battery is charged and that it is properly positioned. In case of use with type "C" batteries check that the polarities are correct.
  • Check that the volume level is not too low.
• When you are not using the megaphone we suggest to place it in vertical position. The rubber protection around the horn preserves the fixture from scratches or damages.
• If the megaphone still doesn't work properly, contact our technical service center for further explanations. Remember to check if any updated manual or firmware is available on our website.

DICHIARAZIONE DI CONFORMITA' UE / EU COMPLIANCE DECLARATION

Hereby, KARMA ITALIANA SRL declares that the equipment type bluetooth megaphone, mod. GT 1232BT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available on our website.

www.karmaitaliana.it

Simboli e normative

Symbols and directives

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl.

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

This device is powered by batteries subject to European Directive 2013/56/EU, which cannot be disposed of with normal domestic waste. Find out about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for environment and health. The built-in battery, to be disposed of at the end of the useful life of the product, cannot be removed by the user. We strongly advise you to take your product to an official collection point to have a professional remove of the rechargeable battery.

CARATTERISTICHE TECNICHE / TECHNICAL SPECIFICATIONS

Potenza max / Max power	40 W
Diametro tromba / Horn diameter	21 cm
Alimentazione / Power supply	Batteria ricaricabile Li-Ion / Li-Ion rechargeable battery (11,1V -2200mAh) Presa esterna DC = 12V / DC = 12V external plug8 batterie "C" (non incluse) / 8 x C batteries (not included)
Raggio d'azione / Operating range	Fino a 1000m (in condizioni ottimali) / Up to 1000 m (in ideal conditions)
Autonomia / Autonomy	Da 2 a 6 ore / From 2 to 6 hours
Funzioni speciali / Special functions	Siren, REC, bluetooth (2.4 Ghz), Aux IN, Mp3 (USB/TF card)
Materiale / Material	ABS
Dimensioni / Dimensions	380 x 210 x 210 mm
Peso / Weight	1,4 Kg

The manufacturer, in order to improve its products, reserves the right to modify the characteristics whether technical or aesthetic, at any time and without notice.
