Product Type	Dynamic Handheld Microphone
Polar Pattern	Cardioid
Frequency Response	50 Hz – 15 kHz
Impedance	600 Ω (balanced)
Sensitivity	-54 dBV/Pa ± 3 dB
Connector	XLR 3-pin
Wiring	Pin 2 hot (+), Pin 3 cold (-), Pin 1 ground
Power Requirement	None (passive)
Dimensions	180 mm length, 50 mm diameter
Weight	280 g
Housing Material	Zinc alloy die-cast with mesh grille
Finish	Matte black
On/Off Switch	Yes
Primary Function	Vocal reproduction for live sound and PA systems
Care and Cleaning	Wipe with a dry soft cloth; avoid moisture and solvents
Safety Precautions	Do not drop; keep away from extreme heat and humidity
Spare Parts Availability	Replacement mesh grille and foam insert
General Information	Brand: Citronic, Model: UBM-62, Category: Microphone

Frequently Asked Questions - UBM-62 Citronic

What type of microphone is the Citronic UBM-62?

The Citronic UBM-62 is a dynamic handheld microphone with a cardioid polar pattern, suitable for vocal applications.

Does the UBM-62 require phantom power?

No, the UBM-62 is a passive dynamic microphone and does not require phantom power. It works with standard XLR inputs.

What connector does the UBM-62 use?

It uses a standard 3-pin XLR connector. Pin 2 is hot (+), pin 3 cold (-), and pin 1 is ground.

How do I clean the Citronic UBM-62?

Wipe the exterior with a dry, soft cloth. Avoid using liquids or solvents. The grille can be unscrewed and cleaned separately if needed.

What is the frequency response of the UBM-62?

The frequency response is 50 Hz to 15 kHz, which covers the typical vocal range.

Is the UBM-62 suitable for recording or live sound?

It is designed primarily for live sound and PA systems, but can also be used for basic recording applications.

Can I replace the grille or foam of the UBM-62?

Yes, the grille is replaceable. Spare parts such as mesh grilles and foam inserts are available from Citronic dealers.

How heavy is the UBM-62?

The microphone weighs approximately 280 grams, making it comfortable for handheld use.

Does the UBM-62 have an on/off switch?

Yes, there is a slide switch on the microphone body to mute or turn off the audio signal.

What cable do I need for the UBM-62?

You need a standard XLR male to XLR female microphone cable for connection to a mixer or audio interface.

USER MANUAL UBM-62 Citronic

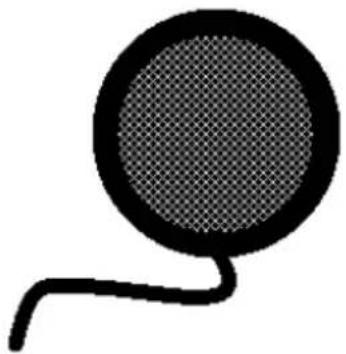

The UBM-62 is a miniature digital boundary microphone with back-electret capsule, which is designed to be placed on or mounted to a flat surface for multi-directional sound pickup.

The disc-shaped housing has a hard-wired USB lead, terminated with a type-A connector for data and power connection, which should be connected to an available USB port on the PC or Mac computer.

The computer will recognise the UBM-62 as a "USB PnP Sound Device" in the sound or audio settings.

Simple black-and-white diagram of a circle with a curved line extending from its bottom (no text or symbols)

Operation

Selecting the UBM-62 ("USB PnP Sound Device") as the input device within the recording or streaming software will set the microphone as the input source.

The UBM-62 can be disconnected and re-connected to USB as a hot-swappable device. Disconnect from USB after use to preserve the computer battery or power supply.

Specifications

Capsule	Electret condenser
Polar pattern	Cardioid
Connection	USB A (power and digital audio)
Lead length	1.8m
Frequency response	20Hz - 20kHz
Sampling format	16-bit
Sample rate	44.1 / 48kHz
S/N ratio	78dB
Sensitivity	-52dB
Dimensions	19 x 62mm∅ (microphone only)
Weight	118g (microphone only)

Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted. Copyright© 2022. AVSL Group Ltd.

Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ

AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
