USER MANUAL GIGG 6234150 X GRUNDIG

Safe Appliance LP Gas Safety Association

PERMIT NUMBER 1037-53/1-RSA-12-A

http://southafrica.grundig.com

PART No: 069689

Modern gas stove with four panes and a blue-lit burner, no visible text or symbols on the main body.

FOR A GOOD REASON

GRUNDIG

Please read this user manual first!

Dear Customer,

Thank you for purchasing this Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols used in this manual

Important safety information. Warning for hazardous situations with regard to life and property.

Caution; Warning for supply voltage.

Caution; Warning for fire hazard.

Useful information. Important information or useful hints about usage.

Table of contents

1 General information		3
Overview	3
Technical specifications		4
Package contents	4
Injector table	4

2 Important safety instructions 5

General safety	5
Safety for children	7
Safety when working with gas	7
If you smell gas	8
Intended use	9

3 Installation 11

Before installation	11
Room ventilation	12
Important information for the installer		12
Important information for the user		13
Electrical connection	14
Gas connection	14
Leakage control	15
Final check	16
Gas conversion	16
Package information	15
Future transportation	15
Disposing of the old product		15

4 Preparation	17
Tips for energy saving		17
Initial use	17
First cleaning of the appliance		17

5 How to use the hob	18
General information about cooking		18
Using the hobs	18

6 Maintenance and care	20
Cleaning the hob	20

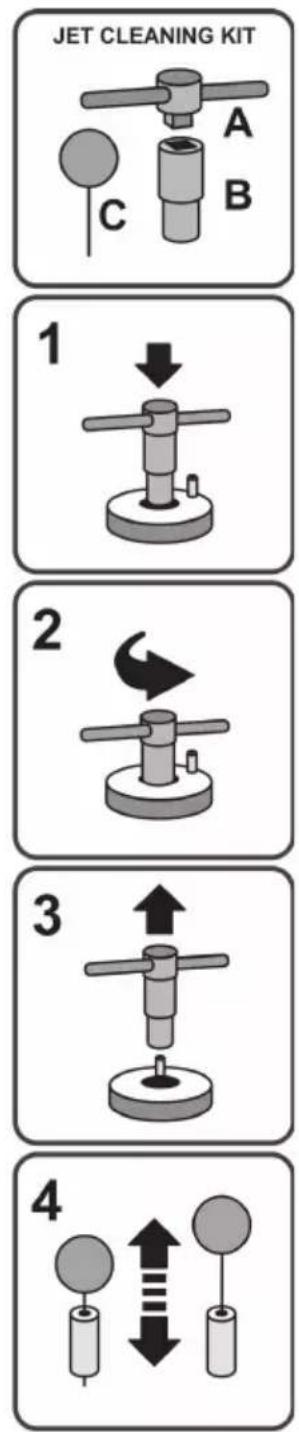

Gas jet cleaning procedure	21

7 Troubleshooting

22

8 Grundig customer help line

23

9 Warranty

24

Abstract geometric symbol resembling a stylized Y or V shape, no text or symbols present

PART NO: 3815010100

Customer Care Line (after sales service)

086 147 8634

Overview 5 4 1 GRUNDG 7 3 6 2 1 1 Control panel 2 Tempered glass 3 Pan support 4 Wok burner 5 Normal burner 6 Auxiliary burner 7 Normal burner

1 Normal burner Rear left 2 Wok burner Front left 3 Auxiliary burner Front right 4 Normal burner Rear right

	Important: Read these instructions for use carefully so as to familiarize yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference.
	The manufacturer strives for continuous improvement. For this reason, technical specifications, text and illustrations in this manual are subject to change without notice.
	Figures in this manual are schematic and may not match your appliance exactly.
Technical specifications
Voltage / frequency 220-240 V ~ 50 Hz
Cable type / section H05RR-FG 3 x 0,75 mm	^2
Cable length max. 2 m
Gas type Liquid Petroleum Gas (LPG) / pressure G30/2.8-3.0 kPa
Total gas consumption 8.3 kW
Converting the gas type Natural Gas (NG) / pressure G20/2.0 kPa
External dimensions (height / width / depth) 99 mm/580 mm/510 mm
Installation dimensions (width / depth) 560 mm/480-490 mm

Burners
Rear left	Normal burner
Power 2000 W
Front left	Wok burner
Power 3300 W
Front right	Auxiliary burner
Power 1000 W
Rear right	Normal burner
Power 2000 W

Technical specifications may be changed without prior notice to improve the quality of the appliance.

Figures in this manual are schematic and may not exactly match your appliance.

Values stated on the appliance labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. Depending on operational and environmental conditions of the appliance, these values may vary.

Package contents

Accessories supplied can vary depending on the appliance model. Not every accessory described in the user manual may exist on your appliance.

Wok adaptor

Used for hosting a wok pan with a round bottom.

User manual

Injector table

Position hob zone	2000 W Rear left	3300 W Front left	1000 W Front right	2000 W Rear right
Gas type / Gas pressure
G 20/2.0 kPa (NG)	103 140 72 103
G 30/2.8-3.0 kPa (LPG)	72 96 50 72

This section contains safety instructions that will help you avoid risk of injury and damage. All warranties will become void if you do not follow these instructions.

General safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

• Connect the appliance to an earthed outlet/line protected by a fuse of suitable capacity. Have the earth installation made by a qualified electrician. Our company shall not be liable for any problems arising due to the appliance not being earthed in accordance with the local regulations.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

• Do not operate the appliance if it is defective or has any visible damage.
• Do not carry out any repairs or modifications on the appliance. However, some issues may remedied that do not require any repairs or modifications. See Troubleshooting.
• Never wash down the appliance with water! There is the risk of electric shock!
• Never use the appliance when your judgment or coordination is impaired by the use of alcohol and/or drugs.
• The appliance must be disconnected from the mains during installation, maintenance, cleaning and repair procedures.

• Be careful when using alcoholic drinks in your dishes. Alcohol evaporates at high temperatures and may cause a fire since it can ignite when it comes into contact with hot surfaces.

• Do not use the appliance for heating closed tins and glass jars. The pressure that would build up in the tin/jar may cause it to burst.

• Do not place any flammable materials close to the appliance as the sides may become hot during use.
• Keep all ventilation slots clear of obstructions.
• The appliance may be hot when it is in use. Never touch the hot burners, inner sections of the oven, heaters etc.
• Make sure that the function knobs are switched off after every use.
• When using Gas, ensure that the room is well ventilated.
• Ventilation is vital for the efficient performance of all appliances and for the safety of the occupants of the room in which the appliance is installed.
  • Always keep children and infirm persons away from the appliance when it is in use.
• Only use the appliance for preparing food.

- Use a deep pan, large enough to cover the appropriate burner.

• Always dry food thoroughly before placing it in hot oil or fat. Frozen food in particular will spit and splatter if added too quickly.

- Never fill the pan more than one third full of fat or oil.

- Never heat fat or fry with a lid on the pan.

- Do not fry too much food at once. This lowers the temperature of the oil or fat and results in fatty foods.

- Do not leave hot fat or oil unattended. If overheating occurs, these could catch fire.

- Do not use or store inflammable products (alcohol, petrol, benzene etc.) near the hob as these pose a fire risk.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- Sealing washers should be correctly located and tested in accordance with the manufacturer's instructions.

Safety for children

• Electrical and/or gas appliances are dangerous to children. Keep children away from the appliance when it is operating and do not allow them to play with the appliance.
• Accessible parts of the hob will become hot whilst the appliance is in use. Children should be kept away until the appliance has cooled down.
• Do not place any items above the appliance that children may reach for.
• The packaging materials will be dangerous for children. Keep the packaging materials away from children. Please ensure that the packaging material is disposed of in a responsible manner.

Safety when working with gas

- Any work carried out on gas equipment and systems may only be done by authorised qualified persons who are registered LPG Gas installers.

• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
• This appliance shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation; See “Before installation”.
• CAUTION: The use of gas cooking appliances results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example increasing the level of the mechanical ventilation where present.

DANGER. Risk of explosion and poisoning!

Put out all naked flames and do not smoke, strike matches or do anything that could cause ignition. Do not operate any electric switches (e.g. light switch, TV, Computer, cooker or door bell). Do not use a telephone or mobile phone.

- Gas appliances and systems must be regularly checked for proper functioning. The regulator, hose and its clamp must be checked regularly and replaced within the periods recommended by its manufacturer or when necessary.

• Clean the gas burners regularly. The flames should be blue and burn evenly.
• Good combustion is required in gas appliances. In case of incomplete combustion, carbon monoxide (CO) might develop. Carbon monoxide is a colourless, odourless and very toxic gas, which has a lethal effect even in very small doses.

- Request information about gas emergency telephone numbers and safety measures from your local gas provider in case of a gas smell.

In the event of a pan fire

• Switch off the Gas supply.
• Smother the flames with a blanket or damp cloth.
• Burns and injuries are usually caused by picking up the burning pan and rushing outside with it.

- Do NOT use water to extinguish an oil or fat fire.

If you smell gas

- Turn off all valves on gas appliances and gas meter at the main control valve, unless it's in a confined space or cellar.

• Extinguish all naked flames.
• Do not operate any electrical appliances.
• Ventilate the area. Open doors and windows.
• Check for leaks. Check all tubes and connections for tightness.
• If odour persists contact the Grundig help line for assistance.
• If you still smell gas leave the property.
• Warn the neighbors.
• Call the fire-brigade. Use a telephone outside the house.
• If you have door or gates that are secured by an electric lock, or entry phone, please open these manually.
• Do not re-enter the property until you are told it is safe to do so.

Action to be taken in the event of a burn back

- In the event of a burn back (where the flame burns back into the jet) immediately turn off the control to the affected burner.

• Wait a few minutes and relight the burner in the normal manner.
• If the burn back occurs again, turn off the control knob to the affected burner, and consult the Grundig help line for assistance.

Ventilation

- Room ventilation is vital for the efficient performance of the appliance and for the safety of the occupants in the room in which the appliance is installed.

Intended use

CAUTION

• This appliance is designed for cooking purposes only, and is intended for indoor domestic household and static home use only.
• This appliance should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

• In addition this appliance is not suitable for use on any type of boat (offshore, inland waterway, canal boat or houseboat), caravans or motor homes.

• This appliance should not be used for warming plates under the grill, drying towels, dish cloths etc. by hanging them on the oven door handles. This product should also not be used for room heating purposes.

• Incorrect installation environments will void the guarantee.
• This appliance should not be used for room heating purposes.
• The manufacturer shall not be liable for any damage caused by improper use or handling.

Safety when working with electricity

• Defective electric equipment is one of the major causes of house fires.
- Any work on electrical equipment and systems should only be carried out by authorized and qualified persons.

SAVE THESE INSTRUCTIONS

- In case of any damage, switch off the appliance and disconnect it from the mains. To do this, turn off the fuse at home. - Ensure that the fuse rating is compatible with the appliance.

IMPORTANT:

If the gas type of the appliance is changed, then the sticker that is currently on the underside of the appliance that reads “Factory adjusted for LPG gas” must be replaced by the sticker “Adjusted for natural gas”. The new sticker can be found in the gas jet kit supplied with the appliance.

IMPORTANT:

If the gas type of the appliance is changed, then the rating plate that shows the gas type of the unit must also be changed.

Danger of fire: Do not store items on the cooking surface.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

Installation is the buyer's responsibility. The manufacturer accepts no liability for this service. Any action that the manufacturer has to take as a result of an erroneous installation will not be covered by the warranty.

The necessary installation, including gas and electrical connections, must be carried out by qualified personnel in accordance with current and local regulations. An installation by an unqualified person may constitute a hazard.

Installations carried out by unauthorized persons will void the warranty.

The manufacturer shall not be held responsible for injury to persons or damages arising from procedures carried out by unauthorized persons or due to non compliance with these provisions.

	ion of location and electrical and gas installation for the appliance falls under the customer's responsibility.
	DANGERThe appliance must be installed in accordance with all local gas and/or electrical regulations.
	DANGERPrior to installation, visually check if the appliance has any defects on it. If so, do not have it installed.Damaged appliances are a safety risk.

Before installation

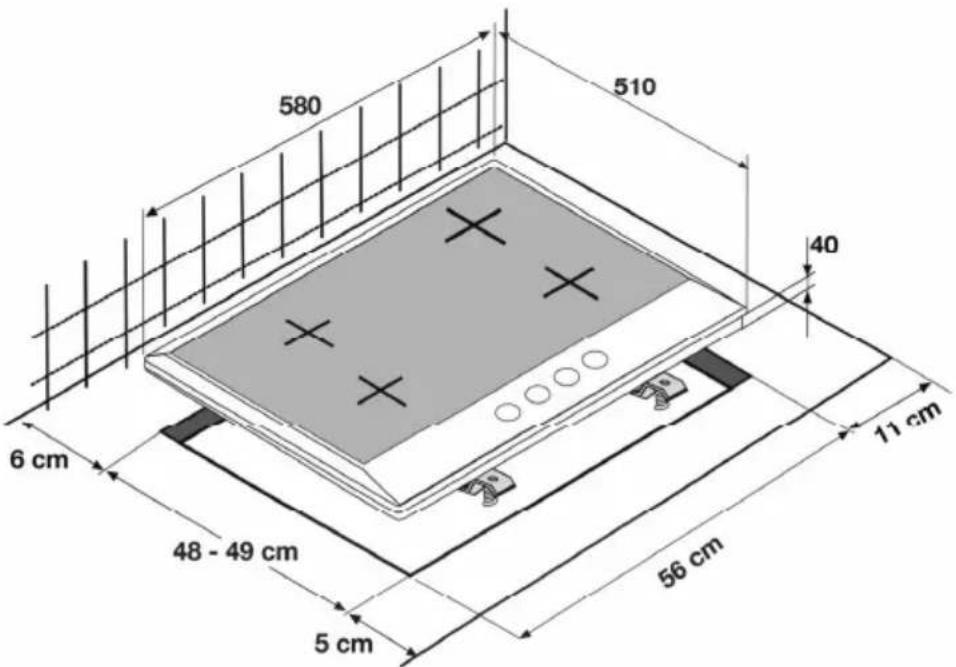

This appliance is designed for installation in a domestic worktop. A safety distance must be left between the appliance and the kitchen walls and furniture. See figure overleaf (values in mm).

• This appliance can also be used in a free standing position. Allow a minimum distance of 750 mm above the hob surface.
• (*) If a cooker hood is to be installed above the appliance, refer to the cooker hood manufacturers instructions regarding installation height (min 650 mm)
• Remove packaging materials and transport locks.
• Surfaces, synthetic laminates and adhesives used must be heat resistant (100 °C minimum).
• The worktop must be aligned and fixed horizontally.
• Cut the aperture for the hob in the worktop as per installation dimensions.

This appliance uses LPG (Liquid petroleum or bottle gas)

This appliance requires an operating pressure of 2.8-3.0 kPa. A suitable LPG regulator that complies with the requirements of SANS 1237 must be used.

The manufacturer and the seller do not accept responsibility for any damage due to incorrect installation or gas connection.

• Gas bottles should be located outdoors in a suitable ventilated lock-up.
• The connecting hose should not exceed 125 cm in length.
• An appliance without a flame failure device may only be used with a free standing cylinder placed adjacent to but not closer than 300 mm to the appliance.

580 510 40 6 cm 11 cm 48 - 49 cm 56 cm 5 cm

Room ventilation

All rooms require a window that can be opened, or equivalent, and some rooms will require a permanent vent in addition.

Air for combustion is drawn from the room and the exhaust gases are emitted directly into the room, therefore good room ventilation is essential for the safe operation of your appliance. If there is no window or door available for room ventilation, extra ventilation must be installed.

The appliance may be located in a kitchen, kitchen/diner or a bed-sitting room, but not in a room containing a bath or shower. The appliance must not be installed in a bed-sitting room of less than 20m^3 .

Do not install this appliance in a room below ground level unless it is open to ground level on at least one side.

Room size	Ventilation opening
Smaller than 5 m3 min. 100 cm2
5 m3 to 10 m3 min. 50 cm	2
Greater than 10 m3 not required
In the cellar or basement min. 65 cm2

Important information for the installer

This appliance may only be installed by a registered LPG Gas installer registered with the Liquefied Petroleum Gas Association of Southern Africa.

The appliance must be installed in accordance with the requirements of SANS 10087-1 or SANS 827 and any fire department regulations and/or local bylaws applicable to the area. If in doubt check with the relevant authority before undertaking the installation.

Upon completion of the installation you are required to fully explain and demonstrate to the user the operational details and safety practices applicable to the appliance and the installation including:

a) The position of the isolation or shut-off valve in the gas supply line to the appliance.
b) The requirements for safe operation of the appliance

Note. This appliance is supplied ex-factory with jets and air settings for use with LPG gas only.

Safety compliance with local requirements.

Installer's details are to be filled in on page 23 of this book

Temporary installation

Flexible hose connection from the gas appliance to the cylinder can be made.

Ensure that pipe clamps are tightened correctly and are of good quality.

- Flexible hose - Not supplied.

Any hose that is used to connect the stove to the gas system shall comply with SANS 1156-2 or BS 3212.

• Gas cylinder - Not supplied.

For best results we recommend that gas cylinders with a minimum capacity of 19kg be used.

• Regulator - Not supplied.

A 2.8-3.0 kPa LPG gas regulator which complies with SANS 1237 must be used.

Permanent installation

Important information for the user

This appliance may only be installed by a registered LP Gas installer. All registered installers are issued with a card carrying their registration number.

Ask to be shown this card before allowing the installation to commence and make a note of the installer QCC number on page 23 of this book.

Upon completion of the installation, the installer is required to explain the operational details of the appliance together with the safety instructions. You will be asked to sign acceptance of the installation and be provided with a completion certificate. You should only sign for acceptance when the installation is completed to your satisfaction.

Failure to comply with the above will render the warranty invalid.

Note:

Your invoice is required in the event of you wishing to make a warranty claim.

Electrical connection

Connect the appliance to a grounded outlet/line protected by a fuse of suitable capacity as stated in the "Technical specifications" table. Have the grounding installation made by a qualified electrician while using the product with or without a transformer.

The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons.

	DANGER Risk of electric shock, short circuit or fire by unprofessional installation!The appliance may be connected to the mains supply only by an authorized qualified person and the appliance is only guaranteed after correct installation.
	DANGER Risk of electric shock, short circuit or fire by damage of the mains lead!The mains lead must not be clamped, bent or trapped or come into contact with hot parts of the appliance. If the mains lead is damaged, it must be replaced by a qualified electrician.

• Connection must comply with national regulations.
• The mains supply data must correspond to the data specified on the type label of the appliance. Type label is at the rear housing of the appliance.
• Power cable of your product must comply with the values in "Technical specifications" table.

	DANGER Risk of electric shock!
	Before starting any work on the electrical installation, please disconnect the appliance from the mains supply.
	The power cable plug must be within easy reach after installation (do not route it above the hob).

Plug the power cable into the socket.

Gas connection

DANGER Risk of explosion or poisoning by unprofessional installation.

The appliance may be connected to the gas distribution system only by a registered LPG installer.

DANGER Risk of explosion!

Before starting any work on the gas installation, please shut off the gas supply.

- Gas adjustment conditions and values are stated on labels (or on type label).

ance is adjusted for LPG gas.

Connecting the gas hose

• Have your appliance connected so that it will be close to the gas connection. Ensure that there is no gas leakage.
• Gas bottles should be located outdoors in a suitable ventilated lock-up.
• The connecting hose to be used must not be longer than 125 cm in length.
• Install the clamp to the hose. Soak one end of the hose (15 mm inner diameter) into hot water for one minute to soften it. Then, slip the softened end of the hose completely onto the sharp hose tip of your appliance.
• Secure the hose by tightening the hose clamp
• Repeat the same procedure for the other end of the hose by securing the other end of the hose to the regulator on the gas bottle to complete the gas cylinder connection.
• Always check for gas leaks after installation and whenever a new or refilled gas bottle is used for the first time.

DANGER Risk of explosion and suffocation!

LPG bottles must not be stored in the house.

Technical diagram showing a mechanical assembly with labeled parts, including a component being inserted into a housing and then assembled.

1 LPG hose tip

2 Plastic hose

Leakage control at the connection point

• Ensure that the control knobs on the hob are in the OFF position.
• Open the valve on the Gas bottle.
• Using a small paint brush, apply some soapy water to all the connections.
• If there is a leak, bubbles will appear.
• If this happens, close the valve on the gas bottle.
• Check and tighten the connections immediately.
• Repeat the procedure to ensure that there are no further leaks.

Never use a naked flame to check for gas leaks

Installing the appliance

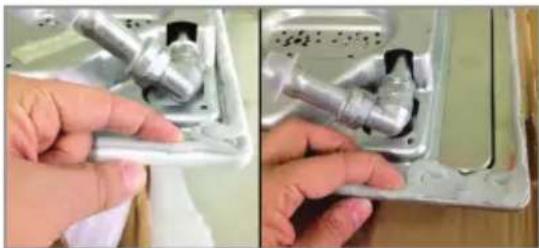

1. Remove burners, burner caps and grills on the hob from the appliance.
2. Turning the hob upside down, place it on a flat surface.
3. In order to avoid foreign substances and liquids penetrating between the hob and the counter, please apply the putty supplied in the package on the contours of the lower housing of the hob, making sure that the putty does not overlap.
4. Apply the putty by bending it around the corners as in the figure.

Close-up of hands installing a metal pipe fitting on a kitchen sink (no text or symbols visible)

the putty is filled on the base cover contours.

1. Turning the hob again, align and place it on the counter.
2. Secure your hob to the counter by using the clamp and the screws supplied.
   (wooden spacers may be required).

1 2 3 4 5 *

* min. 20 & max. 40 mm
1 Hob
2 Screw
3 Installation clamp
4 Counter
5 Putty

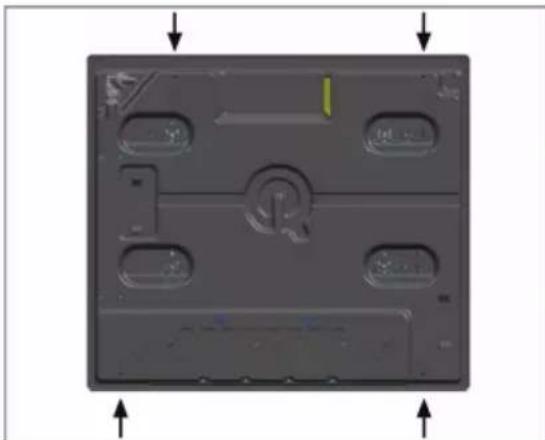

Rear view (connection holes)

Top-down view of a black plastic electronic device casing with multiple ports and mounting holes (no text or symbols visible)

Place the burner plates, burner plate caps and grills back to their seating after installation.

connections to different holes is not a good practice in terms of safety since it can damage the gas and electrical system.

Final check

1. Open gas supply.
2. Check gas installations for secure fitting and tightness.
3. Ignite burners and check appearance of the flame.

es should be blue and burn smoothly. If the flames appear yellowish, check that the burner cap is seated correctly or clean the burner. Switch off the gas and let burner cool before touching it.

Gas conversion

DANGER Risk of explosion or poisoning by unprofessional installation. Gas conversion must only be carried out by a registered installer.

DANGER Risk of explosion! Before starting any work on the gas installation, shut off the gas supply.

In order to have the appliance's gas type changed, all the injectors must be changed and the flame adjustment for all valves must be set at the reduced flow rate position.

Changing the injectors

1. Take off burner cap and burner body.
2. Unscrew injectors by turning them counterclockwise.
3. Fit new injectors.
4. Check all connections for secure fitting and tightness.

1 2 3 4

1 Flame failure device (model dependent)
2 Spark plug
3 Injector
4 Burner

Unless there is an abnormal condition, do not attempt to remove the gas burner taps. You must call an authorised service agent if it is necessary to change the taps.

New injectors have their position marked on their packing or refer to the Injector table.

Reduced gas flow rate setting for taps

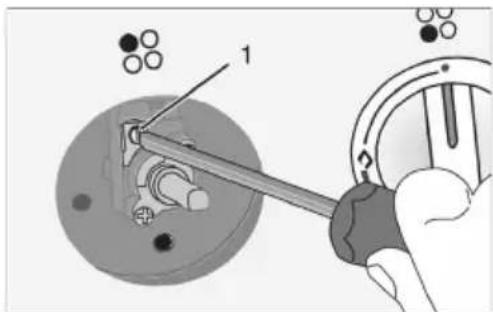

1. Ignite the burner that is to be adjusted and turn the knob to the reduced position.
2. Remove the knob from the gas tap.
3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw. For LPG (Butane - Propane) turn the screw clockwise. For natural gas, you should turn the screw counter-clockwise once. The normal length of a straight flame in the reduced position should be 6-7 mm
4. If the flame is higher than the desired position, turn the screw clockwise. If it is smaller turn anticlockwise.
5. For the last control, bring the burner to both the high-flame and reduced positions and check whether the flame is on or off.

Depending on the type of gas tap used in your appliance the adjustment screw position may vary.

Technical diagram showing a mechanical assembly with labeled component '1' and a hand operating a tool.

1 Flow rate adjustment screw

type of the appliance is changed, then the rating plate that shows the gas type of the unit must also be changed.

IMPORTANT:

If the gas type of the appliance is changed, then the sticker that is currently on the underside of the appliance that reads “Factory adjusted for LPG gas” must be replaced by the sticker “Adjusted for natural gas”. The new sticker can be found in the gas jet kit supplied with the appliance.

Natural gas installation

• There must be a rigid or semi rigid pipe, (i.e. steel or copper) at the outlet of the installation for the natural gas connection of your product and the tip of this pipe must be closed with a blind plug. Service Representative will remove the blind plug during connection and connect your product by means of a straight connection device (coupling).
• There must be a flex pipe at the outlet of the installation for the natural gas connection of your product and the tip of this pipe must be closed with a blind plug. Service Representative will remove the blind plug during connection and connect your product by means of a straight connection device (coupling).
• Make sure that the natural gas valve is readily accessible.
• If you need to use your product later with a different type of gas, you must consult the Authorised Service Agent for the related conversion procedure.

Package information

Packaging materials are dangerous to children. Keep packaging materials in a safe place out of reach of children.

Packaging materials of the appliance are manufactured from recyclable materials.

Do not dispose of the packaging materials together with domestic or other wastes. Dispose of them in a responsible manner.

Future Transportation

Keep the appliances original carton and transport the appliance in it. Follow the instructions on the carton. If you do not have the original carton, pack the appliance in bubble wrap or thick cardboard and tape it securely.

Secure the caps and pan supports with adhesive tape.

general appearance of your appliance for any damages that might have occurred during transportation.

Disposing of the old product

Dispose of the old appliance in an environmentally friendly manner.

Refer to your local dealer or solid waste collection centre in your area to learn how to dispose of your appliance.

Before disposing of the appliance, cut off the power cable plug and make the door lock (if any) unusable to avoid dangerous conditions to children.

4 Preparation

Tips for energy saving

The following information will help you to use your appliance in an ecological way, and to save energy:

• Defrost frozen dishes before cooking them.
• Use pots/pans with cover for cooking. If there is no cover, energy consumption may increase up to 4 times.
• Select the burner which is most suitable for the bottom size of the pot to be used. Always select the correct pot size for your dishes. Larger pots require more energy.

Initial use

First cleaning of the appliance

se may get damaged by some detergents or cleaning materials. Do not use aggressive detergents, cleaning powder/cream or any sharp objects.

1. Remove all packaging materials.
2. Wipe the surfaces of the appliance with a damp cloth or sponge and dry with a cloth.

General information about cooking

DANGER Risk of fire by overheated oil! When you heat oil, do not leave it unattended. Never try to extinguish a fire with water! When oil has caught fire, immediately cover the pot or pan with a lid. Switch off the hob if safe to do so and phone the fire service.

• Before frying foods, always dry them well and gently place into the hot oil. Ensure complete thawing of frozen foods before frying.
• Do not cover the pot or pan you use when heating oil.
• Place the pans and saucepans in a manner so that their handles are not over the hob to prevent heating of the handles. Do not place unbalanced and easily tilting cooking vessels on the hob.
• Do not place empty pots and saucepans on cooking zones that are switched on. They might get damaged.
• Operating a cooking zone without a pot, pan or saucepan on it will cause damage to the appliance. Turn off the cooking zones after cooking is complete.
• As the surface of the appliance can be hot, do not place plastic and aluminum vessels on it.
• Such vessels should not be used to keep foods in either.
• Use flat bottomed saucepans or cooking vessels.
• Put only the appropriate amount of food in saucepans and pans. Doing so will assist in you not having to do any unnecessary cleaning as this will help prevent the dishes from overflowing.
• Do not put covers of saucepans or pans on the cooking zones.
• Place saucepans so that they are centered on the cooking zone. When moving the saucepan onto another cooking zone, lift and place it onto the cooking zone you want instead of sliding it.

Gas cooking

- The size of the cooking vessel and the flame must be suited to each other. Adjust the gas flames so that they do not extend past the bottom of the cooking vessel and ensure that the cooking vessel is centered on the saucepan carrier.

Illustration of two cooking pots on a stove with a checkmark and a 'X' symbol (no text or labels)

Using the hobs

1 2 3 4

1 Normal burner 14-20 cm
2 Wok burner 22-30 cm
3 Auxiliary burner 12-18 cm
4 Normal burner 14-20 cm (Advised diameters of pots to be used on related burners).

The large flame symbol indicates the highest cooking power and the small flame symbol indicates the lowest cooking power. In the turned off position (top), gas is not supplied to the burners.

Igniting the gas burners

1. Keep the burner knob pressed in.
2. Turn the knob counter clockwise to the large flame symbol.
   The gas is ignited with the spark created.
3. Adjust the knob to the desired cooking power.

Turning off the gas burners

Turn the keep warm zone knob to off (upper) position.

Maximum setting Minimum setting Off: Fully closed

Gas shut off safety system (in models with thermic component)

3D rendering of a circular mechanical component with a labeled dimension '1' (no text or symbols on the object itself)

1. Gas shut off safety

As a counter measure against blow out due to fluid overflows at burners or should the flame extinguish for whatever reason, the flow of gas to the burner will automatically be terminated.

• Push the knob inwards and turn it counter clockwise to ignite.
• After the gas ignites, keep the knob pressed for 3-5 seconds more to engage the safety system.
• If the gas does not ignite after you press and release the knob, repeat the same procedure by keeping the knob pressed in for 15 seconds.

DANGER

Risk of deflagration incase of unburned gas!

Do not press the knob for longer than 15 seconds if there was no ignition. Wait for one minute and then repeat the ignition process.

Wok burner

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Wok burners help you to cook faster. Wok, which is particularly used in Asian kitchens, is a kind of deep and flat fry-pan made of sheet metal. These are used to cook minced vegetables and meat n a short time using a strong flame.

Since meals are cooked using a strong flame and in a very short time, and as such fry-pans conduct heat rapidly and evenly, the nutritional value of the food is preserved and vegetables remain crispy.

The wok burner can be used for regular saucepans too.

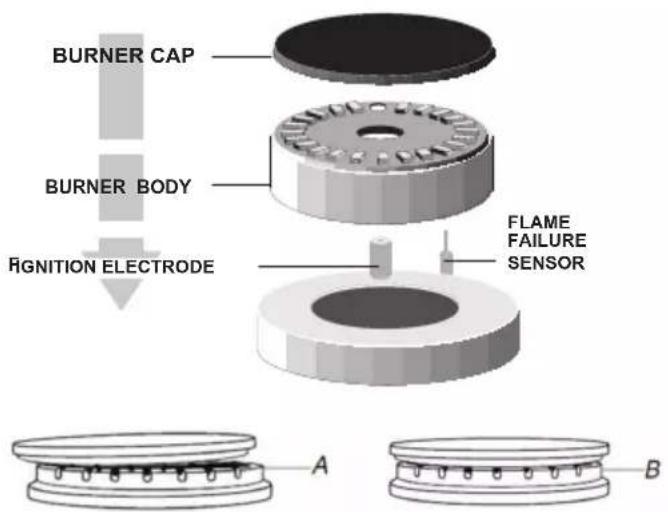

Fitting the burner caps

• Carefully align the hole in the burner body with the flame failure sensor.
  • Gently lower the burner body into position.
• Centralise and level the burner cap onto the burner body. (The burner cap must be positioned so that it rests centrally on the burner body). Ensure that it is correctly seated. Refit the pot stands.

BURNER CAP BURNER BODY FIGNITION ELECTRODE FLAME FAILURE SENSOR A B

Incorrect Correct

General information

The service life of the appliance will extend and problems will decrease if the appliance is cleaned at regular intervals.

• Cleaning of the valves must only be carried out by a qualified Grundig technician. i.e. Burner not functioning correctly.
• The condition of the gas hose and valve must be inspected for leaks every time the gas bottle is refilled.

	DANGER Risk of electric shock!Switch off the electricity before cleaning the appliance to avoid an electric shock.
	DANGER Hot surfaces may cause burns! Allow the appliance to cool down before you clean it.

• Clean the appliance thoroughly after each use. In this way it will be easier to remove cooking residues and prevent these from burning during next use.
• No special cleaning agents are required for cleaning the appliance. Use warm water with washing liquid, a soft cloth or sponge to clean the product and wipe it with a dry cloth.
• Always ensure any excess liquid is thoroughly wiped off after cleaning and any spillage is immediately wiped dry.
• Do not use cleaning agents that contain acid or chloride to clean the stainless or inox surfaces and the handle. Use a soft cloth with a liquid detergent (not abrasive) to wipe those parts clean, paying attention to sweep in one direction.

	The surface may get damaged by some detergents or cleaning materials. Do not use aggressive detergents, cleaning powder/cream or any sharp objects.
	Do not use steam cleaners or a water jet for cleaning.

Cleaning the hob

Gas hobs

1. Remove and clean the saucepan carriers and burner caps.

2. Clean the hob.

3. Install the burner caps and make sure that they are seated correctly.
4. When installing the upper grills, pay attention to place the saucepan carriers so that the burners are centered.

Glass ceramic surfaces

Wipe the glass ceramic surface using a piece of cloth dampened with cold water in a manner as not to leave any cleaning agent on it. Dry with a soft and dry cloth. Residues may cause damage on the glass ceramic surface when using the hob for the next time. Dried residues on the glass ceramic surface should under no circumstances be scraped with hook blades, steel wool or similar tools. Remove calcium stains (yellow stains) by a small amount of lime remover such as vinegar or lemon juice. You can also use suitable commercially available products. If the surface is heavily soiled, apply the cleaning agent on a sponge and wait until it is absorbed well. Then, clean the surface of the hob with a damp cloth.

Sugar-based foods such as thick cream and syrup must be cleaned promptly without waiting the surface to cool down. Otherwise, glass ceramic surface may be damaged permanently.

Slight color fading may occur on coatings or other surfaces in time. This will not affect the operation of the product. Color fading and stains on the glass ceramic surface is a normal condition, and not a defect.

Cleaning the control panel

Clean the control panel and knobs with a damp cloth and wipe them dry.

Do not remove the control buttons/knobs to clean the control panel. Control panel may get damaged!

1 2

1 Knob
2 Sealing element

Gas Jet Cleaning Procedure

• Every six months the gas jets on your hob should be cleaned to ensure continued efficient and safe operation.
• This may be done using a Gas Jet Cleaning Kit which may be purchased from your nearest Defy Service Centre.
• The kit comprises of a sliding T-bar (A) a socket (B) and a 'Classic pin' (C).

• Fit the T-bar to the socket and remove the pot stands, burner caps and burner bodies.

• Insert the socket into the central tube of the burner so that it locates over the brass gas jet at the bottom of the tube.

• Gently loosen the brass gas jet by turning the socket in an anti-clockwise direction.
• Carefully lift the socket and loosened brass gas jet from the central burner tube.
• Insert the Classic pin into central hole of the jet and slide it up and down until the jet is free of accumulated dirt.
• Re-assemble in reverse order.
• Clean all the burner jets in the manner described above.

Problem solving guide—before calling for technical support

There is no gas:
Main gas valve is closed. Open gas valve.
Gas pipe is bent. Ensure the gas pipe has been properly fitted.
There is no ignition spark:
No current. Check fuses in the fuse box.
Burners are not burning properly or not at all:
Burners are dirty. Clean burner components.
Burners are wet. Dry the burner components.
Burner cap is not fitted correctly. Mount the burner cap correctly.
Gas valve is closed. Open gas valve.
Gas cylinder is empty (when using LPG). Replace gas cylinder.
The burners will not light:
The gas pipe is twisted, bent or kinked. Ensure the gas pipe has been properly fitted.
The burners are dirty or wet. Clean / dry the burner components.
The gas cylinder is empty. Replace gas cylinder.
The burner caps are not fitted correctly. Fit burner caps correctly.
The gas pressure regulator is closed. Check to see if the regulator is open.
The lighting procedure has not been followed correctly.	Follow the correct lighting procedure.
The flame is yellowPots and pans are stained:
The burners are dirty or wet. Clean / dry the burner components.
The gas is running out. Replace gas cylinder.
The burner caps are not fitted properly. Fit burner caps properly.
The gas pipe is twisted, bent or kinked. Ensure the gas pipe has been properly fitted.
Smell of leaking gas:
Are all the control knobs in the off position?	Check to see the knobs are in the off position.
The gas pipe is fitted incorrectly. Ensure the gas pipe has been properly fitted.
The hose clamps require tightening or replacing.	Have hose clamps tightened or replaced.
The regulator is faulty and needs to be replaced.	Have regulator checked and replaced.

If the problem cannot be remedied after following the troubleshooting problem solving guide, please consult with an authorised service agent or the dealer where you purchased the appliance. Never attempt to repair a defective appliance yourself.

8 Grundig Customer help-line

If you have followed the instructions and still have a problem, contact the Grundig customer help line. They will be able to advise you on any aspect of the product or send a qualified technician to repair it.

Note: Before requesting service please check the trouble-shooting guide in the Operating Instructions as a charge may be levied where no fault is found even though your product may still be under guarantee.

Please contact the Grundig Customer help-line for service or any other queries on:

0861 478634

Installers Details

Installer's details to be recorded below

INSTALLER'S NAME AND COMPANY......

INSTALLER'S REGISTRATION NUMBER......

HAVE YOU RECEIVED A WRITTEN COMPLETION CERTIFICATE?......

HAS THE INSTALLER EXPLAINED THE OPERATIONAL DETAILS OF YOUR STOVE TO YOU?

This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers and suppliers of Grundig products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.

The Company warrants to the original purchaser that for a period of FIVE YEARS from date of purchase the appliance is free from defect under normal domestic use, both in workmanship and material, subject to the following conditions.

1. Repair or replacement of any part of this appliance, found by the Company to be defective, shall be at the election of the Company. The Company reserves the right to effect such service through any of its Service Divisions or Authorised Service Dealers. The cost of such service shall be borne by the Company in full, provided that the appliance is located no further than 50km from a Company Service Centre or an Authorised Service Dealer. Where the appliance is located beyond the 50km radius, the purchaser shall be liable for the standard travelling charges, as determined by the Company.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an express condition of these warranties that the purchaser takes due care and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to incorrect voltages and subjection to commercial use shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any repairs to the appliance are effected by any persons not duly authorised by the Company, or if substitute parts not approved by the Company are used in the appliance, or if the serial number of the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable for any consequential loss or damage of any kind caused by or due to the failure or malfunction of the appliance.
5. The Company shall not be responsible for transportation or other costs other than those incurred within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact the Grundig customer help line listed on the previous page for service or any other queries.
7. Where service is requested under warranty and no fault or defect can be found by the Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the purchaser liable for service costs.

KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.
