Product Type	Canister Vacuum Cleaner
Brand	Fakir
Model	Premium 1107
Motor Power	1100 W
Suction Power	350 air watts
Dust Bag Capacity	3.5 L
Filtration System	HEPA 13 exhaust filter
Noise Level	72 dB(A)
Weight	6.3 kg
Dimensions (L x W x H)	44 x 28 x 32 cm
Cable Length	8 m
Operating Radius	12 m
Power Cord Type	Automatic cord rewinder
Floor Type	Carpet and hard floor
Included Accessories	Crevice tool, upholstery nozzle, dusting brush, turbo brush
Bag Type	Disposable dust bags (type FK-1107)
Maintenance	Replace bag when full; clean exhaust filter every 3 months
Safety Features	Thermal overload protection; automatic shut-off on overheating
Repairability	Spare parts available: motor, filters, bags, hose, accessories
Warranty	2 years

Frequently Asked Questions - Premium 1107 FAKIR

How often should I replace the dust bag?

Replace the dust bag when the indicator shows full, or at least every 6 weeks. Use only Fakir type FK-1107 bags for best performance.

Can I use the vacuum on hardwood floors?

Yes, it has a floor selector that adjusts suction for hard floors. Use the smooth floor nozzle to avoid scratches.

How do I clean the HEPA filter?

Switch off and unplug. Remove the exhaust filter cover, take out the filter, and tap it gently. Do not wash. Replace every 6 months.

What should I do if the suction power drops?

First, check if the dust bag is full or the filter is clogged. Also inspect the hose for blockages. Empty or replace bag, clean filter.

Is the vacuum suitable for pet hair?

Yes, it includes a turbo brush that effectively removes pet hair from carpets and upholstery. Regular maintenance of the brush is recommended.

How long is the power cord?

The power cord is 8 meters long, with an additional 4 meters from the hose, giving a total operating radius of 12 meters.

What does the thermal overload protection do?

If the motor overheats due to blockage or prolonged use, the vacuum automatically shuts off. Let it cool for 30 minutes before restarting.

Can I wash the dust bag?

No, the dust bags are disposable and cannot be washed. Reusing them may damage the motor and reduce filtration efficiency.

How do I replace the turbo brush?

Unclip the turbo brush from the wand. Remove the old brush by sliding it out. Insert a new one (order part number TB-1107) until it clicks.

Where can I find spare parts?

Spare parts are available through Fakir authorized service centers or online. Check the user manual for part numbers and ordering information.

USER MANUAL Premium 1107 FAKIR

Operating Instructions

Combivacs

Two gray vacuum cleaner units, one labeled 'nilco', displayed side by side (no visible text or symbols on the devices themselves)

Table of contents General 24

Safety 26

Overview ....30

Assembly 32

Operation 36

After use ....36

Disposal 39

Troubleshooting....40

Ordering filters and accessories....42

Warranty – only valid for the German market......43

Four grayscale electric vacuum cleaner units labeled 'nilco' displayed side by side, no visible text or symbols on the device itself.

Technische Daten

Four grayscale electric vacuum cleaner units labeled 'nilco' displayed side by side, no visible text or symbols on the devices themselves.

Modell

Artikel-Nr..

17-30

2312001

17-36

2313001

17-46

2314001

1107

2304001

Lieferumfang

Fugendüse • • • •

Polsterdüse • • • •

Abluftfilter ● ● ● --

HEPA-Filter -- -- -- ●

Micro-Abluftfilter -- -- -- ●

Simple line drawing of an open box with a black upward arrow on the lid (no text or symbols)

Montieren

Close-up of a black electronic device with a cylindrical port and labeled component 'A' (no readable text or symbols beyond labels)

Close-up of a mechanical component with a labeled section B, showing internal structure and a magnified inset (no text or symbols)

Close-up of a mechanical component with a magnified inset showing a textured surface detail (no text or symbols visible)

Close-up of mechanical components with arrows indicating features, no visible text or symbols

Close-up of a black pipe fitting with a black arrow pointing to it, no text or symbols present

Close-up of a hand holding a mechanical component with an arrow indicating upward motion (no text or symbols visible)

Close-up of a mechanical device with visible internal components and a metallic connector (no text or symbols)

Close-up of a mechanical component with a white arrow pointing to a textured surface (no visible text or symbols)

Close-up of a black vacuum cleaner's air purifier with control buttons and a white arrow pointing to the button (no text or symbols visible)

Close-up of a mechanical device with wheels and a highlighted component (no visible text or symbols)

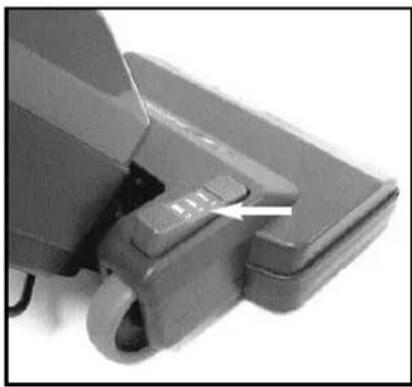

HINWEIS!

Combi 17-30 = 205 Wh

Combi 17-36 = 174 Wh

Combi 17-46 = 156 Wh

Close-up of a mechanical device with a handle and lever mechanism (no visible text or symbols)

Close-up of a black vacuum cleaner's base with attached hose and control buttons (no visible text or symbols)

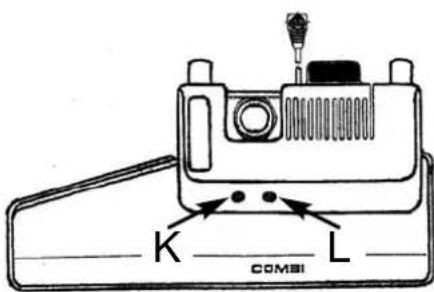

K L COMBI

K M COMBI

Three-panel black-and-white photo showing a device with a handle, internal components, and a close-up of its internal structure (no text or symbols visible)

Close-up of a mechanical component with a white arrow pointing to a textured surface (no visible text or symbols)

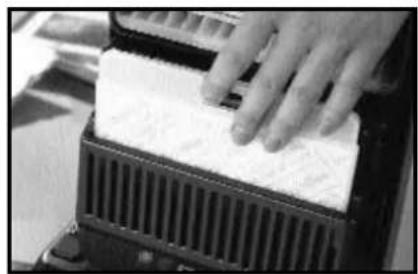

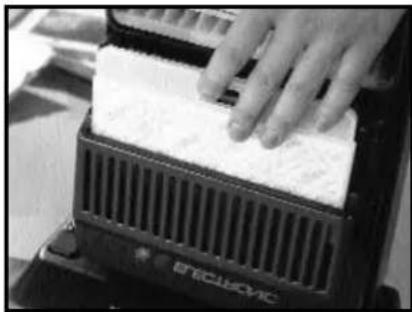

Close-up of a hand pressing down on a white foam block inside a black perforated container (no text or symbols visible)

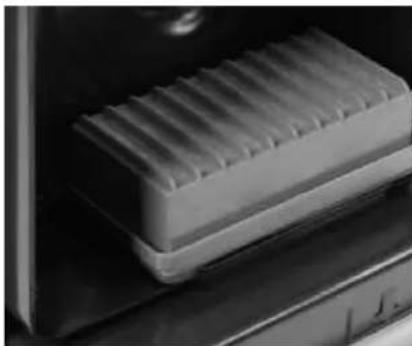

Close-up of a white rectangular object with horizontal grooves, possibly a container or mold, placed inside an oven (no visible text or symbols)

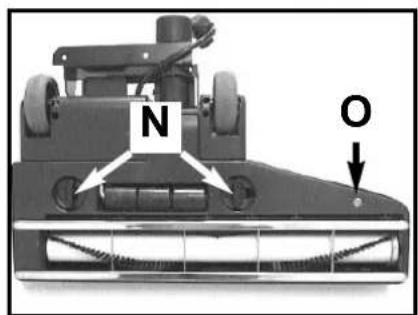

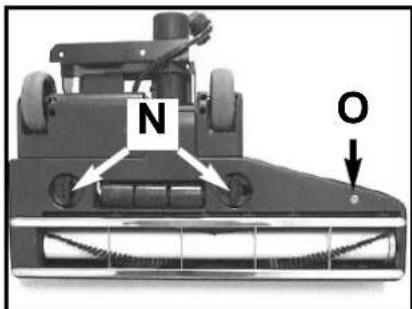

Close-up of a mechanical device with labeled component 'N' and internal components (no readable text or symbols beyond the label)

N O

Close-up of mechanical components with a magnified inset showing a detail (no visible text or symbols)

Symbol of a waste bin with crossed x-bracing and a circular weight, no text or labels present.

Table of contents....24

Information about the operating instructions .....25

Liability 25

Notices in the operating instructions....25

Safety 26

CE Declaration of Conformity 26

Intended use ....26

Unauthorized use....26

Children....26

Electric current 28

In case of danger 28

In case of defects....29

Dispatch 29

Overview 30

Technical data ....30

Scope of delivery 31

Special accessories ....31

Assembly 32

Unpacking 32

Mounting: canister – electric suction brush .....32

Guiding tube - model 1107....33

Guiding tube – model 17-30, 17-36, 17-46......33

Suction hose – suction tube ....33

Suction tube – canister ....33

Suction hose ....34

Power cord....34

Power-on/off....34

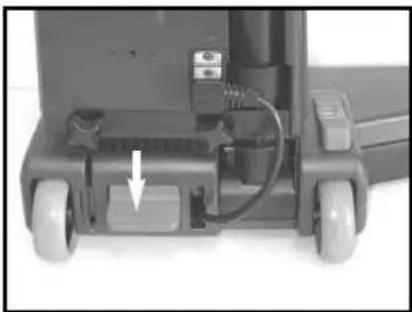

Tilting the guiding tube....34

Operation 36

Micro pile adjustment....35

Filter replacement indicator ....35

Electronic brush and suction power control......35-36

After use ....36

Opening the canister (dust compartment) .....36

Lid closing stop 36

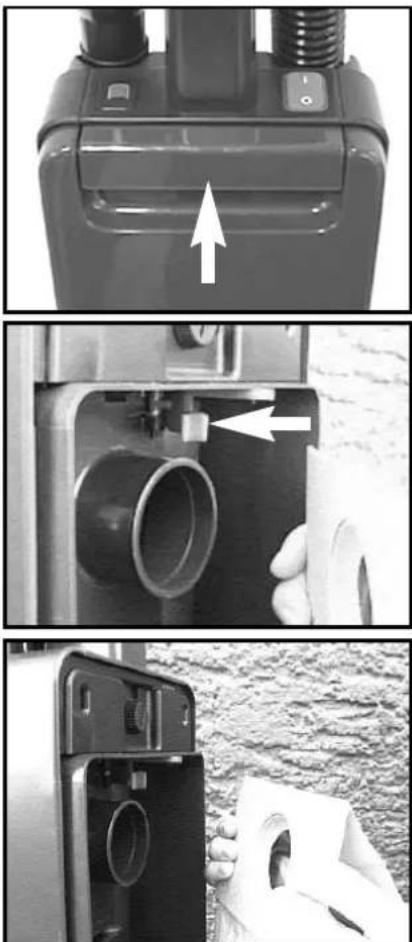

Replacing the dust bag 36

Motor protection filter 37

(Micro) exhaust filter 37

HEPA-Filter-model 1107 37

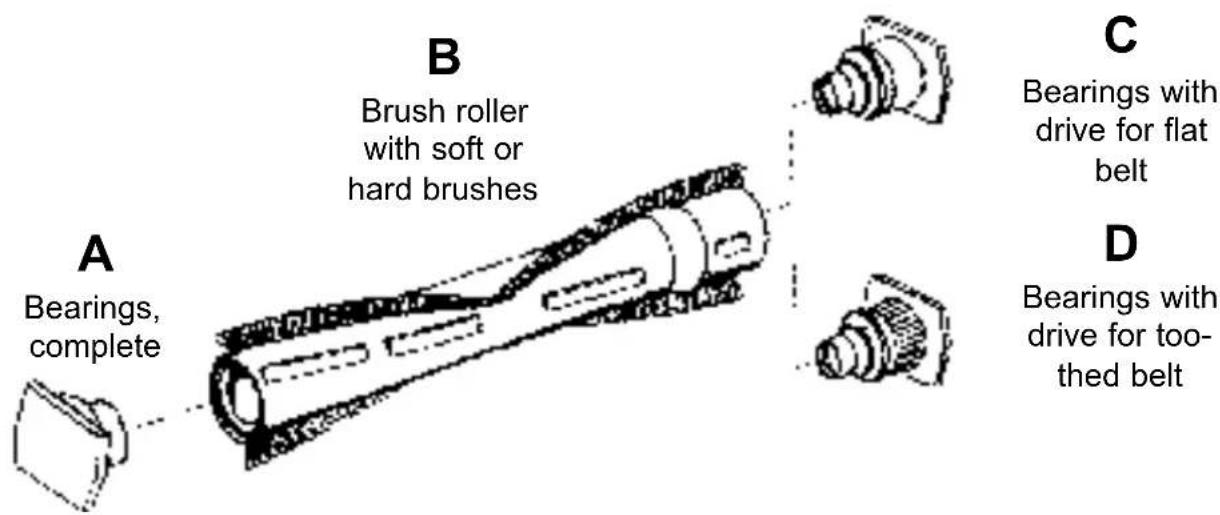

Cleaning and replacing brush roller and drive belt.37-38

Disposal 39

Troubleshooting... 40

Ordering filters and accessories....42

Warranty – only valid for the German market......43

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the Combivac.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place and, if appropriate, pass the instructions on to the next owner of the Combivac.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfils the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”.

The appliance bears the CE mark on the rating plate.

Intended use

The Combivac Premium 1107 is intended only for household use. It may be used only for dry cleaning of hard floors and textile floor coverings, carpets, upholstered furniture, mattresses, furniture, heating radiators and curtains.

It is not suitable for commercial use.

The Combivacs 17-30, 17-36 and 17-46 are suitable for commercial dry cleaning of hard floors and textile floor coverings, carpets, upholstered furniture, mattresses, furniture, heating radiators and curtains.

Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury.

- This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.

Children

- Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

- Keep packaging films away from children - danger of suffocation!

WARNING!

Danger of injury from vacuuming!

• Never vacuum articles of clothing, hair, eyes, fingers or other parts of the body.
• Nozzles and tube ends must never be brought close to the eyes or ears.
• Never use the appliance to vacuum human beings or animals. The manufacturer is not responsible for any damages caused by unauthorized use or improper operation.
• Danger of injury! Never reach into the rotating brush roller when working with the turbo suction brush.

Warning of health hazard!

- Never vacuum hazardous materials, such as toner used in laser printers or copiers.

Danger of fire and explosion!

• Never vacuum hot ashes or burning objects, such as cigarettes or matches.
• Never use the appliance in the vicinity of explosive or flammable materials.
• Never vacuum any solvents, explosive gases or liquids.

ATTENTION!

• Risk of short circuits! Never vacuum water and other liquids, such as damp carpet cleaning solutions.
• Destruction of filters! Never vacuum sharp or pointed objects, such as glass splinters, nails, etc. Materials that harden when dry, such as plaster or cement, can also destroy the filter.
• Damage to appliance from rain and dirt! Never use or store the appliance outdoors.
• Danger from overheating! Always keep the openings in the appliance free.

Electric current

ATTENTION!

WARNING: Danger of electric shock!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).
• Do not use any damaged extension cords.

In case of danger

In case of danger or accident, unplug the appliance immediately.

In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our service department, check to see if you can eliminate the problem yourself. Refer to the chapter "Troubleshooting".

If you were not able to eliminate the problem yourself, please contact an authorized Fakir service center or a trained technician in your country

(within Germany our)

Service-Hotline

01805 325474

14 Cent / minute

from the wire-line network of the Deutsche Telekom

Before calling, have the article no. and appliance/model name at hand. This information can be found on the rating plate of the appliance.

- Repairs and maintenance may by performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

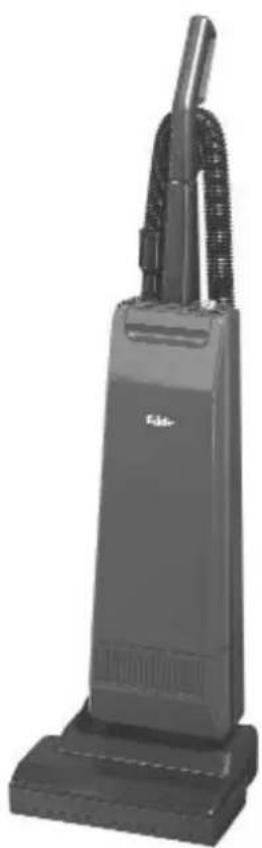

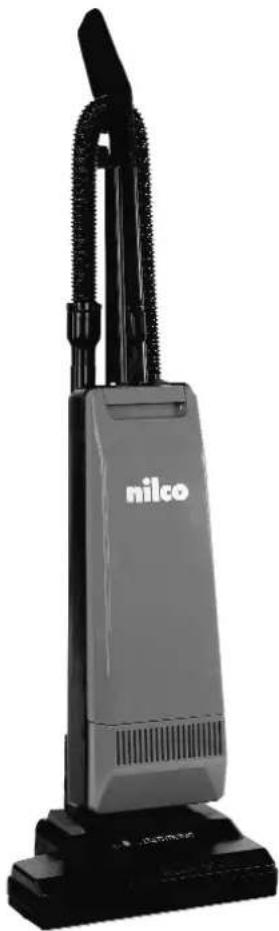

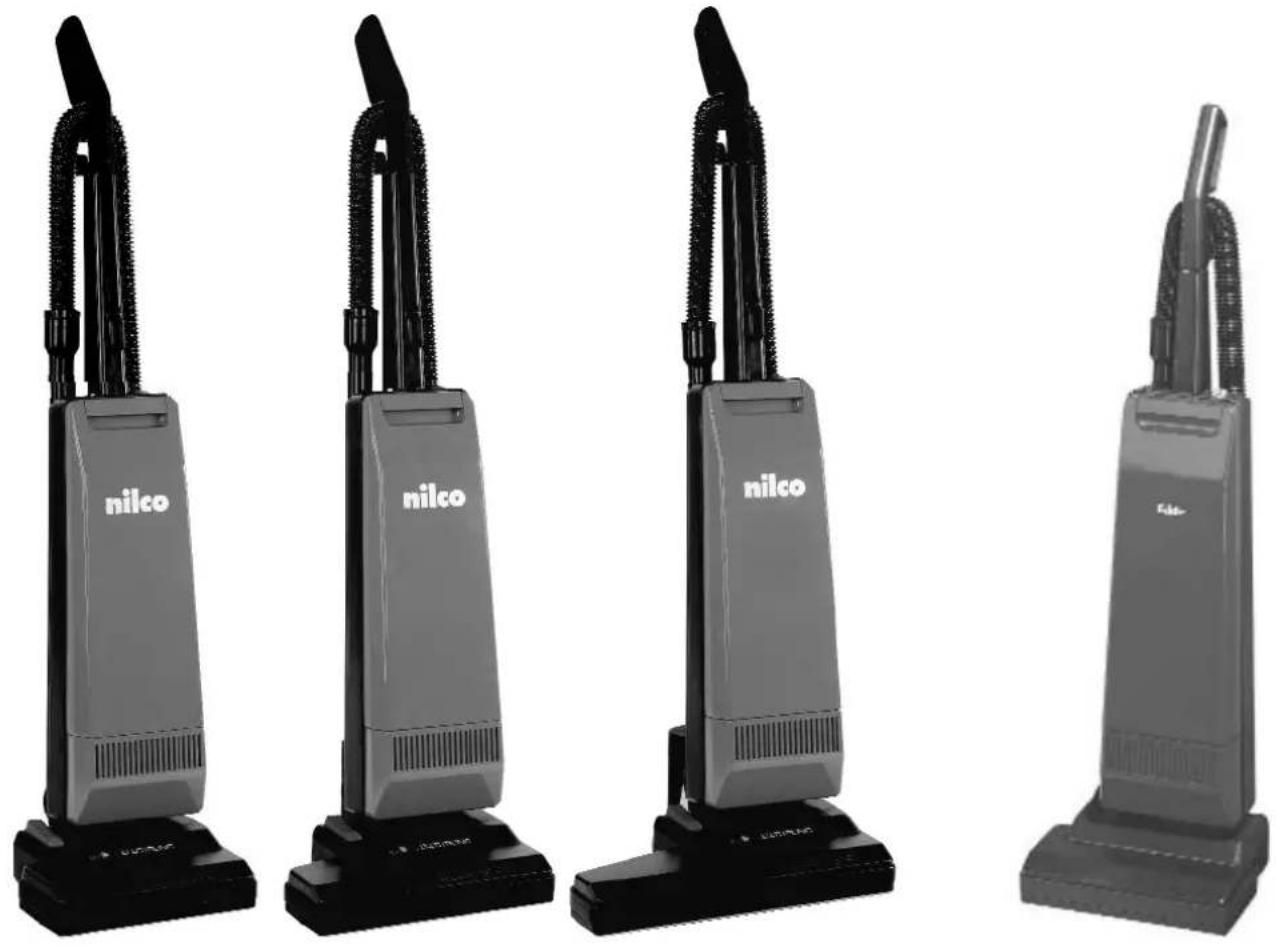

Combi 17-36 Combi 17-46 Premium 1107Combi 17-30

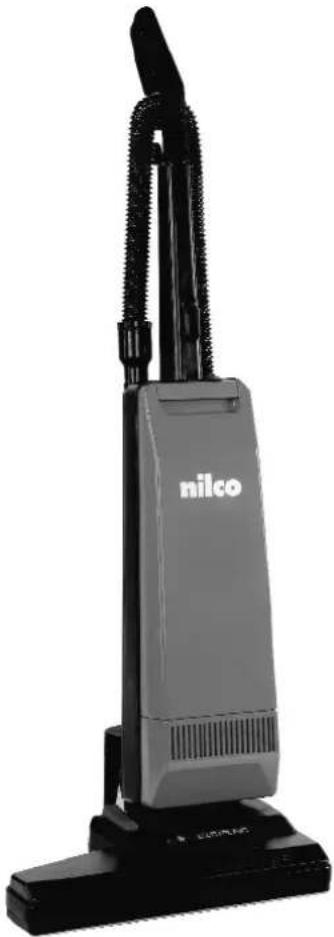

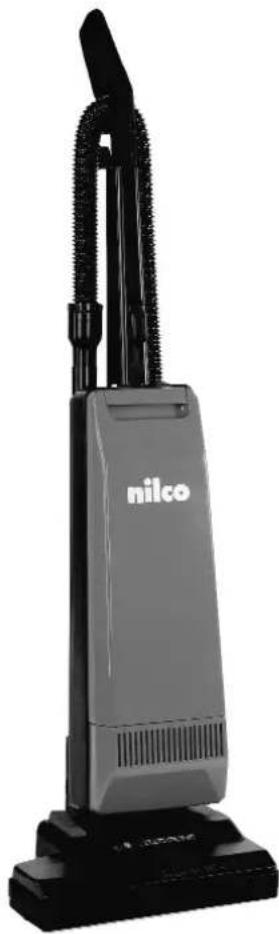

Four grayscale electric vacuum cleaner units labeled 'nilco' displayed side by side, no visible text or symbols on the device itself.

Technical data

Model	17-30	17-36	17-46	1107
Article no.	2312001	2313001	2314001	2304001

Mains connection 230 V / 50 Hz • • • •

Power input total 1200 W 1200 W 1200 W 1300 W

Power input, brush motor 100 W 200 W 200 W 100 W

Air flow rate max. 30 l/s 30 l/s 30 l/s 30 l/s

Vacuum max. 22 kPa 22 kPa 22 kPa 22 kPa

Range ca. 14 m 14 m 14 m 14 m

Working width 30 cm 36 cm 46 cm 30 cm

Electr. brush and suction power control • • • •

Additional blocking indicator -- ● ● --

Filter replacement indicator • • • •

Dust compartment cover • • • •

Dust bag volume 61 61 61 61

Noise level max. 67 dB(A) 67 dB(A) 67 dB(A) 67 dB(A)

Weight ca. 8 kg 8 kg 9 kg 8 kg

Combi 17-36 Combi 17-46 Premium 1107Combi 17-30

Four grayscale electric vacuum cleaner units labeled 'nilco' displayed side by side, no visible text or symbols on the devices themselves.

Model

Article no.

17-30

2312001

17-36

2313001

17-46

2314001

1107

2304001

Scope of delivery

Crevice nozzle • • • •

Upholstery nozzle • • • •

Exhaust air filter ● ● ● --

HEPA filter -- -- -- ●

Micro-exhaust air filter -- -- -- ●

Motor protection filter • • • •

Suction hose, highly flexible • • • •

Micro-exhaust air filter no. 23 40 252 ● ● ● --

HEPA filter no. 23 38 060

● ● ● --

Unpacking

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Mounting

Unpack the appliance and check the contents for completeness.

(see page 28 "Scope of delivery")

Sort the packaging material and recycle accordingly.

If you detect damage from transport, contact your retail dealer immediately.

WARNING!

Never use a defective appliance.

WARNING!

Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

Canister – electric suction brush

Close-up of a black electronic device with a cylindrical port and labeled component 'A' (no readable text or symbols beyond labels)

Press the pivot bracket [A] forward until it locks into position.

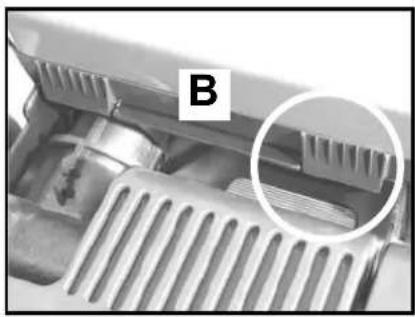

Close-up of a mechanical component with a labeled section B, showing internal structure and a magnified inset (no text or symbols)

Close-up of a mechanical component with a magnified inset showing a textured surface detail (no text or symbols visible)

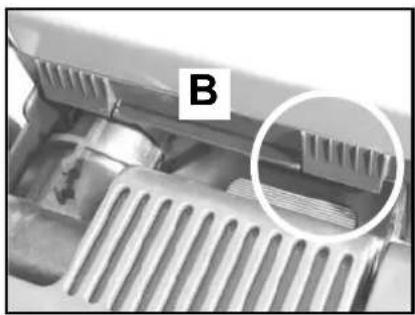

Place the canister [B] on the pivot bracket. Slide it back until the slots at the bottom of the canister fit around the front edge of the pivot bracket bow.

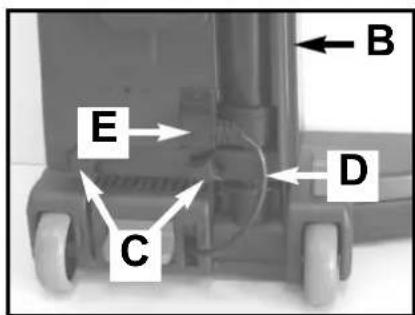

E C D B

Fasten the canister with the two knurled screws, which are included [C].

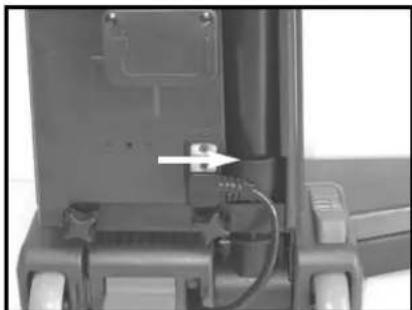

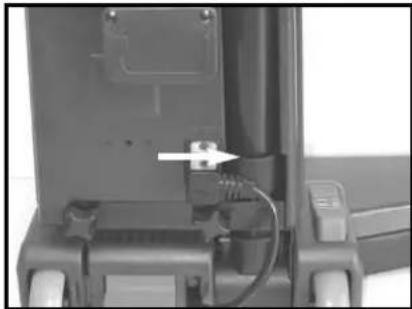

Plug the electric connecting cable [D] of the suction brush into the socket on the canister [E].

Close-up of a mechanical component with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical component with a central button and threaded shaft, showing no visible text or symbols.

Close-up of a black flexible hose with a black arrow pointing to its end (no text or symbols visible)

Close-up of a hand pressing a mechanical component with an upward arrow (no text or symbols visible)

Close-up of a mechanical device with a mounted component and cable (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a feature (no visible text or symbols)

Guiding tube - model 1107

- Fasten guiding tube (with nozzle holding device and crevice nozzle) to the canister using the enclosed knurled screw incl. toothed lock washer.

Guiding tube - model 17-30, 17-36, 17-46

- Fasten guiding tube (with nozzle holding device and crevice nozzle) to the canister with the enclosed hexagon socket screw incl. toothed lock washer, using an Allen wrench.

Suction hose – suction tube

- Insert the handle of the suction hose into the larger end of the suction tube.

- Insert the other end of the suction hose into the back of the canister from below.

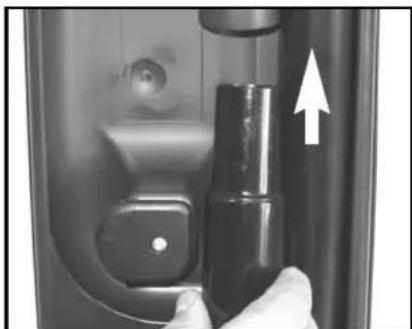

Suction tube – canister

- First insert the suction tube in the back of the canister and ...

- ... then press from above until it locks into place.

F G H

Suction hose

- Insert suction hose over the hook [F] on the handle assembly.

Power cord

- Wrap the power cord around the lower [H] and upper [G] holders.

On Model 1107, the upper power cord holder [G] can be tilted.

Close-up of a black vacuum cleaner's air purifier with attached control buttons and a white arrow indicator (no text or symbols visible)

Power-on/off

Switch position I = ON

Switch position 0 = OFF

Tilting the guiding tube

Press the pedal to tilt the guiding tube. The brush motor will not start until the On/Off switch is set to position I.

Close-up of a mechanical device with wheels and a highlighted component (no visible text or symbols)

NOTICE!

The brush motor shuts off when the guiding tube is in vertical position and when the suction tube is removed. When re-inserting the suction tube, it must lock firmly into place, since otherwise the brush motor will remain shut off.

Power consumption

Premium 1107 = 187 Wh

Combi 17-30 = 205 Wh

Combi 17-36 = 174 Wh

Combi 17-46 = 156 Wh

Close-up of a mechanical component with a handle and lever mechanism (no visible text or symbols)

Close-up of a black vacuum cleaner's handle and control panel with a white arrow pointing to a button (no visible text or symbols)

Micro pile adjustment

Three micro pile adjustments enable individual adaptation to extreme carpeting surfaces and hard floors.

Pos. 1 = normal carpeting

Pos. 2 = looped pile

Pos. 3 = deep-pile carpets

Filter replacement indicator

The filter replacement indicator analyzes the air permeability of the filter system.

Filter empty = no indicator reaction

Filter full = indicator shows RED

Paper filter (dust bag) has to be replaced.

If the filter replacement indicator still shows RED after the dust bag (paper filter) has been replaced, then the (micro) air exhaust and/or motor protection filter or the accessories are blocked.

In this case, the filters have to be replaced or the blockage in the accessories has to be removed.

In this case, switch off the appliance, remove the blockage and/or replace the filters.

K L COMBI

Electronic brush and suction power control

Model 17-30, Premium 1107

After switching on the appliance and tilting the guiding tube, the GREEN power-on indicator [K] lights up.

An overload indicator is switched together with the electronic brush and suction power control and lights up RED when the brush motor is overloaded. In this case, first select the correct micro pile adjustment or clean the drive area – see page 34/35.

K M COMBI

Electronic brush and suction power control Model 17-30, 17-46

After switching on the appliance and tilting the guiding tube, the GREEN power-on indicator [K] lights up. In case of extreme overloading of the brush motor (e.g. if the roller is blocked), the electronic overload device is triggered: Overload indicator [M] lights up RED and GREEN goes out. In this case, first switch off and unplug the appliance. Eliminate blockage and after waiting about one minute, switch on the appliance again

NOTICE!

If the filter and/or suction paths are permanently blocked, the automatic overload switch on the suction motor will automatically switch off to prevent overheating. After a cool-down period of about 20 minutes, you can switch the appliance on again.

Three-panel black-and-white photo showing a device with an arrow pointing to a component, then being handled and cleaned (no text or symbols visible)

Opening the canister (dust compartment)

To replace the filter or dust bag, push up the latch to open the front of the canister (dust compartment).

Lid closing stop

The lid closing stop prevents the lid from closing and also prevents operation of the appliance without a dust bag or when the dust bag is inserted incorrectly.

Replacing the dust bag

Open dust compartment and remove full dust bag. Place new dust bag on the orifice in the canister and push back as far as it will go.

Two-panel image showing a textured container with granular material and a hand pressing a white cloth on a device (no visible text or symbols)

Close-up of a white rectangular object with horizontal ridges, possibly a container or mold (no visible text or symbols)

Cleaning and replacing brush roller and drive belt

N

N O

Motor protection filter: 17-30, 17-36, 17-46

After replacing the dust bag 5 times or if very dirty, the motor protection filter must be cleaned or washed out, then dried completely before being re-inserted.

(Micro) exhaust filter

After replacing the dust bag 5 times or if very dirty, the filter must be replaced.

Remove the filter cassette from the guiding device by pulling it upwards. Replace the filter, close the cassette and insert into the guide as far as it will go.

Changing the HEPA filter: Premium 1107

Change the HEPA filter after approx. 6 months or in case it is extremely dirty.

WARNING!

Switch off and unplug the appliance before beginning cleaning or maintenance. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

To keep the electronic suction brush working efficiently, you should remove hair, fibres and threads, etc. at regular intervals from the brush roller and, if necessary, from the drive belt.

• To remove the bottom plate, turn the levers [N] until they are horizontal.
  On Model 17-46, also remove the screw [O].
• Hold the brush roller firmly on both ends, lift together with the bearings and withdraw it laterally from the drive belt.
• Remove hair, fibres, threads, etc. which have wound around the brush roller, using a knife or scissors. Thoroughly clean the brushes of the roller and the drive belt (brush off and or vacuum clean).

Cleaning and replacing brush roller and drive belt

Close-up of a mechanical device with a white cylindrical component and a labeled arrow pointing to it (no readable text or symbols)

P

- After cleaning, put on the drive belt and insert the brush roller and bearings so that they fit accurately. When inserting the bearing holders, make sure that both show the same marking [P]:

1 cam = new brush roller 8 notches = half-worn brush roller

- Place bottom plate on housing and secure, making sure that the levers lock into the front edge of the housing.

Flat belt: Premium 1107, Combi 17-30 Toothed belt: Combi 17-36, 17-46

For details on brush rollers and brush bearings see page 37.

Disposal

Symbol of a trash bin crossed with a diagonal line, indicating no waste or plastic waste (no text or labels)

When the appliance has reached the end of its service life, in particular when malfunctions start occurring render the appliance unserviceable by pulling the mains plug out of the socket and cutting off the mains lead.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse. Take the appliance to a central recycling facility.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

You can dispose used dust bags and filters in the household

waste system.

Troubleshooting...

Dear customer,

Our products undergo stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting our service department, check to see if you can eliminate the problem yourself.

WARNING!

Switch off and unplug the appliance before beginning troubleshooting. This will prevent the appliance from accidentally being switched on.

If you were not able to eliminate the problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

NOTICE!

Before calling, have the article no. and appliance/model name at hand. This information can be found on the rating plate of the appliance.

(within Germany our)

Service-Hotline

01805 325474

14 Cent / minute

from the wire-line network of the Deutsche Telekom

Fault	Possible	cause
Appliance does not work.	Plug is not inserted or the appliance is not switched on.	Insert de plug into a mains socket and switch on the appliance.
	Power outlet does not carry any power.	Test the appliance at another socket which you are sure carries current.
	Power cord is damaged. Have the power cord replaced by an authorised Fakir service centre.
Appliance suddenly stops vacuuming.	Overheat protection has tripped (possibly due to clogged suction channels, dirty filters, etc.)	Switch off and unplug the appliance. Eliminate the cause of overheating (e.g. clogged suction channels, dirty filters, etc.). Wait 45 minutes and let the appliance cool down. Then switch on the appliance again.
Vacuum cleaning is unsatisfactory.	Dust bag is full. Change dust bag.
	Filter is dirty or clogged. Clean or change the corresponding filter.
	Nozzle, suction tube or suction hose are clogged up.	Eliminate clogging. If necessary, use a wooden stick (e.g. a broomstick) to do this.
	Suction regulator is open. Close suction regulator.
	The power setting does not suit the flooring.	Set the power to the setting suggested for the flooring.
	The attached nozzle does not fit the flooring.	Attach the correct nozzle.
	The “carpet/hard floor” switch is in the wrong position for the particular type of floor.	Set the “carpet/hard floor” switch to the correct position for the type of floor.
Brush does not work. Connecting cable [D] is loose or not connected. Suction tube is loose.		Connect cable [D] correctly - see page 32. Insert suction tube correctly, see page 33.
Appliance runs unusually loud. Sucked-in particles have become jammed.		Remove particles. If necessary, use a long wooden stick (e.g. a broomstick).

Exhaust filter No. 23 04 273

Crevice nozzle Fakir No. 23 04 851

Crevice nozzle nilco No. 24 12 851

Heating element brush No. 24 12 815

HEPA filter No. 23 38 060

Motor protection filter No. 23 05 273

Micro exhaust filte (1107) No. 23 40 252 / exhaust filter No. 23 04 273

Furniture brush No. 24 12 852

Dust bags (5 paper filters + motor protection and micro exhaust filter) No. 23 10 805

Upholstery nozzle No. 24 12 870

Suction tube No. 23 04 841

Suction hose, extendable to ca. 2 m No. 23 09 360

A Bearings, complete B Brush roller with soft or hard brushes C Bearings with drive for flat belt D Bearings with drive for too- thed belt

Model A	B C D A+B+	C A+B+D
1107	23 04 140	23 88 120	23 04 130	—	23 38 170	—
17-30	23 04 140	23 88 120	23 04 130	—	23 38 170	—
Drive belt (flat belt) 33 05 073 —
17-36	23 04 140	33 05 120soft brushes	—	23 18 130	—	33 16 740
	23 04 140	33 16 120—hard brushes	23 18 130	33 16 170
	23 04 140	33 16 120—very hard brushes	23 18 130	23 13 170
17-46	23 04 140	33 14 120soft brushes	—	23 18 130	—	33 17 740
	23 04 140	33 17 120—hard brushes	23 18 130	33 17 170
Drive belt (toothed belt) — 33 14 061

Valid in the Federal Republic of Germany.

We provide a warranty for the appliance subject to the following conditions:

1. The Customer's main place of residence is in Germany and the appliance was bought from a dealer located in Germany.
2. We undertake to repair the appliance free of charge, including free shipping, if it becomes defective due to a material or assembly error within 24 months (within 12 months if used commercially or used for self-employed professional purposes) and if notification of the defect is given within the warranty period.
   A pre-condition of our warranty is that the appliance always treated properly. The warranty terms start on the date of purchase.
3. Parts subject to natural wear (e.g. drive belts, chargeable batteries, brushes, filters) do not fall under the terms of the warranty.
4. The warranty will lapse if the appliance is modified or repaired by persons we have not authorised. Also, no third party spare parts or accessories may be used.
5. The main focus of the warranty is on performing repairs or exchanging defective parts. Repairs on site can only be demanded for large stationary appliances. When making a warranty claim, the invoice or purchase receipt from the dealer stating the date of purchase must be presented.
6. If the repair fails and the damage or defect cannot be rectified even after a second attempt, the appliance will be replaced with one of the same value. If neither repair nor replacement is possible, the customer is entitled to return the appliance and demand reimbursement of the purchase price. In the event that the appliance is exchanged or the purchase price reimbursed, a usage fee may be raised for the period that the appliance was in use.
7. Warranty work does not extend the warranty period or mark the start of a new warranty period. The warranty term for installed spare parts ends at the same time as the warranty period for the whole appliance.
8. The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty.

Valid from 1st April 2008

E

Generalidades

Contenido

Exterior view of a gray Hilco vacuum cleaner with black armrests and base (no visible text or symbols)

Combi 17-36

Exterior view of a gray Hilco vacuum cleaner (no visible text or symbols on body)

Combi 17-46

Exterior view of a gray utility vacuum cleaner (no visible text or symbols on body)

Premium 1107

Exterior view of a black vacuum cleaner (no visible text or symbols)

Datos técnicos

Modelo

No. de artículo

17-30

17-36

17-46

1107

2312001

2313001

2314001

2304001

Conexión a la red 230 V / 50 Hz • • • •

Consumo de potencia total 1200 W 1200 W 1200 W 1300 W

Consumo de potencia del motor del cepillo 100 W 200 W 200 W 100 W

Exterior view of a gray Hilco vacuum cleaner with black armrests and base mount (no visible text or symbols on body)

Combi 17-36

Exterior view of a gray utility vacuum cleaner (no visible text or symbols on body)

Combi 17-46

Exterior view of a gray utility vacuum cleaner (no visible text or symbols on body)

Premium 1107

Black vacuum cleaner with coiled cable, no visible text or symbols

Modelo

No. de artículo

17-30

2312001

17-36

2313001

17-46

2314001

1107

2304001

Simple line drawing of an open box with a black upward arrow indicating upward motion (no text or symbols)

Close-up of a black electronic device with a cylindrical port and labeled component 'A' (no readable text or symbols beyond label)

Close-up of a mechanical component with a labeled section B, showing internal structure and a magnified inset (no text or symbols)

Close-up of a mechanical component with a magnified inset showing a textured surface detail (no text or symbols visible)

Close-up of a mechanical component with a white arrow pointing to a central hole (no visible text or symbols)

Close-up of a mechanical component with a highlighted square and arrow pointing to a small circular feature (no text or symbols visible)

Close-up of a black flexible hose with a black arrow pointing to its end (no text or symbols visible)

Close-up of a hand pressing a mechanical component with an arrow indicating upward motion (no text or symbols visible)

Close-up of a mechanical device with visible internal components and wiring (no text or symbols)

Close-up of a building facade with textured surfaces and a white arrow pointing to a detail (no visible text or symbols)

Close-up of a black vacuum cleaner's air purifier with control buttons and a white arrow pointing to the handle (no text or symbols visible)

Apagar y encender

Close-up of a mechanical device with wheels and a power switch, no visible text or symbols

¡NOTA!

Combi 17-30 = 205 Wh

Combi 17-36 = 174 Wh

Combi 17-46 = 156 Wh

Close-up of a black handheld device with a scroll wheel and control buttons, showing a close-up view of its internal components (no text or symbols visible)

Ajuste de velo

K L COMBI

K M COMBI

Three-panel black-and-white photo showing a vacuum cleaner's internal structure, hand holding a tool, and close-up of its open case (no text or symbols visible)

Close-up of a textured surface with a white arrow pointing to a small object, no visible text or symbols.

Close-up of a hand pressing down on a white foam board inside a black industrial vent (no visible text or symbols)

Close-up of a white plastic object with ribbed texture inside a dark container (no visible text or symbols)

Close-up of a battery rear panel with a labeled 'N' and arrows pointing to internal components (no text or symbols beyond the label)

N O

Filtro protector del motor

Close-up of a mechanical device with a labeled component 'P' pointing to a textured surface (no readable text or symbols beyond label)

P
