Product Type	Toy
Brand	Nordic Play
Model	805-687
Dimensions (approx.)	20 x 15 x 10 cm
Weight (approx.)	0.5 kg
Power Source	2 x AA batteries (not included)
Age Recommendation	3 years and up
Material	ABS plastic, non-toxic
Color	Multi-color
Functions	Lights, sounds, moving parts
Safety Certifications	CE, EN71
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Spare Parts Availability	Available from manufacturer or authorized dealers
Warranty	1 year limited warranty

Frequently Asked Questions - 805-687 Nordic Play

What batteries does the toy require?

The toy requires 2 x AA batteries (not included). Use alkaline batteries for best performance.

What is the recommended age for this toy?

The toy is recommended for children aged 3 years and up due to small parts.

How do I clean the toy?

Clean the toy with a damp cloth. Do not immerse in water or use harsh chemicals.

The toy does not turn on. What should I check?

First, ensure the batteries are installed correctly and are fresh. If the problem persists, check the battery contacts for corrosion.

Is the toy safe for my child?

Yes, the toy meets CE and EN71 safety standards. It has been tested for harmful substances and sharp edges.

Can I get replacement parts?

Yes, spare parts are available from Nordic Play or authorized dealers. Contact customer service for details.

What is the warranty period?

The toy comes with a 1-year limited warranty against manufacturing defects.

How do I dispose of the toy?

Dispose of the toy according to local regulations for electronic waste. Remove batteries before disposal.

The sounds are too loud. Can I adjust the volume?

This model does not have a volume control. You can cover the speaker with tape to reduce sound.

Is the toy suitable for outdoor use?

The toy is intended for indoor use only. Exposure to moisture or extreme temperatures may damage it.

USER MANUAL 805-687 Nordic Play

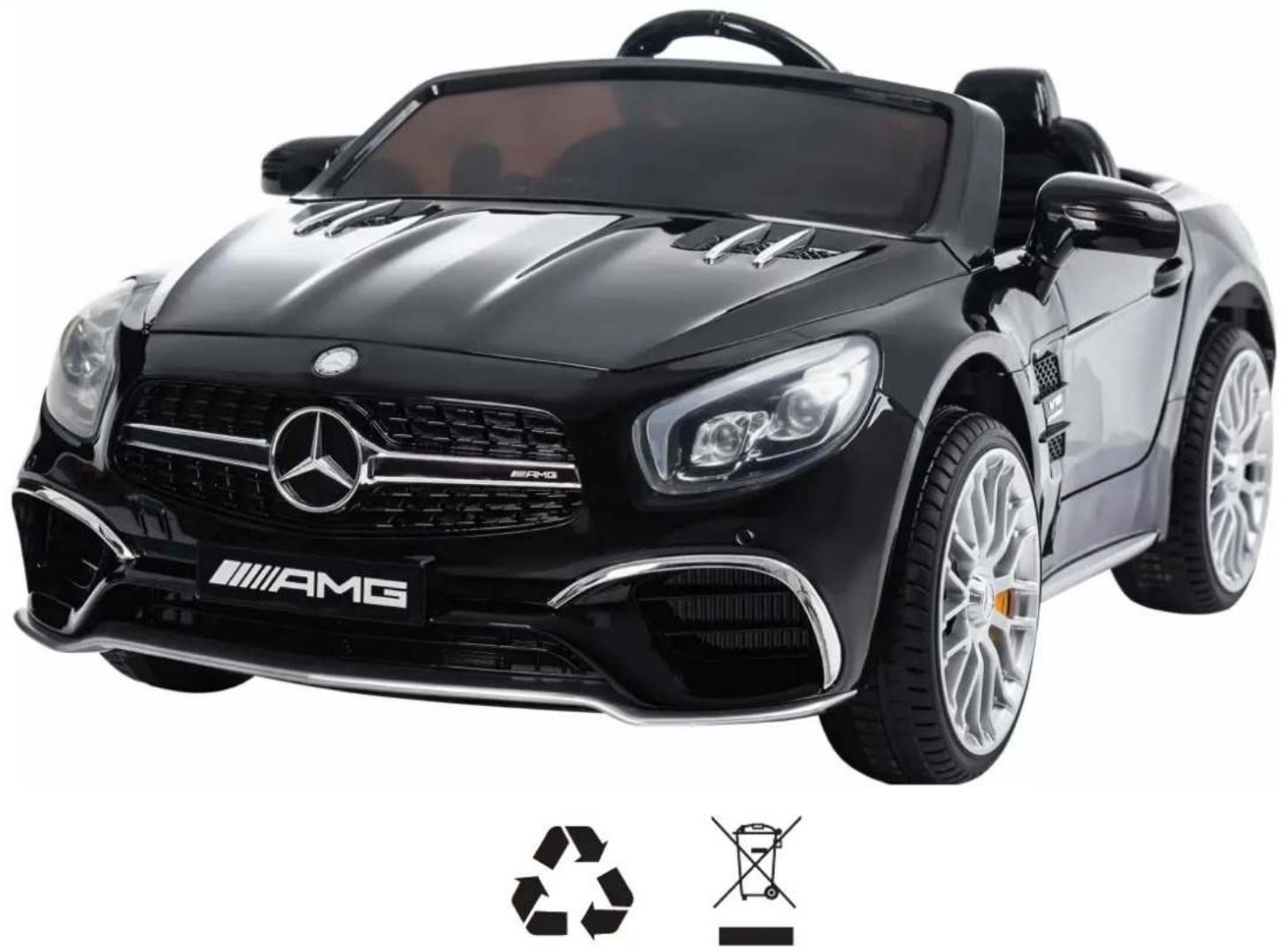

Black Mercedes-Benz light convertible car with visible branding and alloy wheels (no text or symbols on body)

Size H: 49,5 x L: 120 x D: 71,6 cm

Art. no. 805-687

EAN 5705858702810

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in PRC

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 25 - 35 kg. Please check for your specific model.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle's circuit.
• Do not drive in water or other fluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery's lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use. Charge the battery every three months to extend the battery's lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If damages are discovered, the vehicle may not be used until these are fixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If there are damages, the charger may not be used until the damage is fixed.
• Vehicle with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
• The vehicle may only be used with the recommended charger.
  • The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
• Declaration of conformity: This product is in accordance with EU directive 2014/53 / EU.

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
• Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
• Children may not touch or open the battery holder.
  • Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.

General safety rules for NORDIC PLAY products

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.

• Change damaged parts immediately.

• Insert 220V/12V charger cable's connector to the vehicle.

• Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
• Detach after 8-12 hours

IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped, otherwise it will damage the gear box and motor.

Forward: 1. Press the "Forward/backward switch" to the "Forward" position.

1. Press the "Foot pedal", the vehicle drives forward.

Stop: 1. The vehicle will brake automatically, when foot is lifted from the "foot-pedal".

Back Up: 1. Press the "Forward/backward switch" to the "Backward" position.

1. Press the "Foot pedal", the vehicle will back up.

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire to the red terminal of the battery and finally then connect black wire to black battery terminal. Never connect wires into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and tighten the screw.

Battery replacement and fuse

The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The vehicle must then be switched off for at least 5 minutes, after which the fuse will restore itself. If the product does not work, the fuse may therefore be the problem. To avoid this, read the following points:

• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.

As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere from 1 - 3 years. If the battery needs a replacement, follow these steps:

1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the battery.
8. Slide the seat into place. Tighten the screw.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.
		Thermal fuse has tripped Let the vehicle cool down for 5 minutes.Do not overload the vehicle.
		Battery connector or wires are looseCheck that the battery connectors and wires are firmly connected.
		Battery is dead Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
		Electrical system is damagedContact your distributor please.
		Motor is damagedContact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
			Vehicle is overloadReduce weight on vehicle.Maximum user weight is 25 kgs.
			Vehicle is being used in unsuitable conditionsUse the vehicle on flat, even surfaces.
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	“Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal con nection and the vehicle needs repair.Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Always completely stop the vehicle before shifting.
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damagedContact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Maintenance

• Check all screws periodically and tighten as needed.
• Check the vehicle's plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not drive in rain, snow, sand and gravel as this may damage the product.

- Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.

If the product is not to be used for an extended period, recharge the battery and then disconnect all cables

“Mercedes-Benz”, and the design of the enclosed product are subject to intellectual property protection owned by Daimler AG. They are used by Pinghu City Xiao Ming Xing Children's Products CO.,LTD under license.

Specifikationer

Alder: 3+ Years

Batteri: 12v7AH X 1

Ladetid: 8\~12 timer

Oplader: Output: DC12V700mA

Max vægt: 30 kg

Bil størrelse: 120*71,6*49,5 cm

3D rendered image of a screwdriver with metal ferrule (no text or symbols)

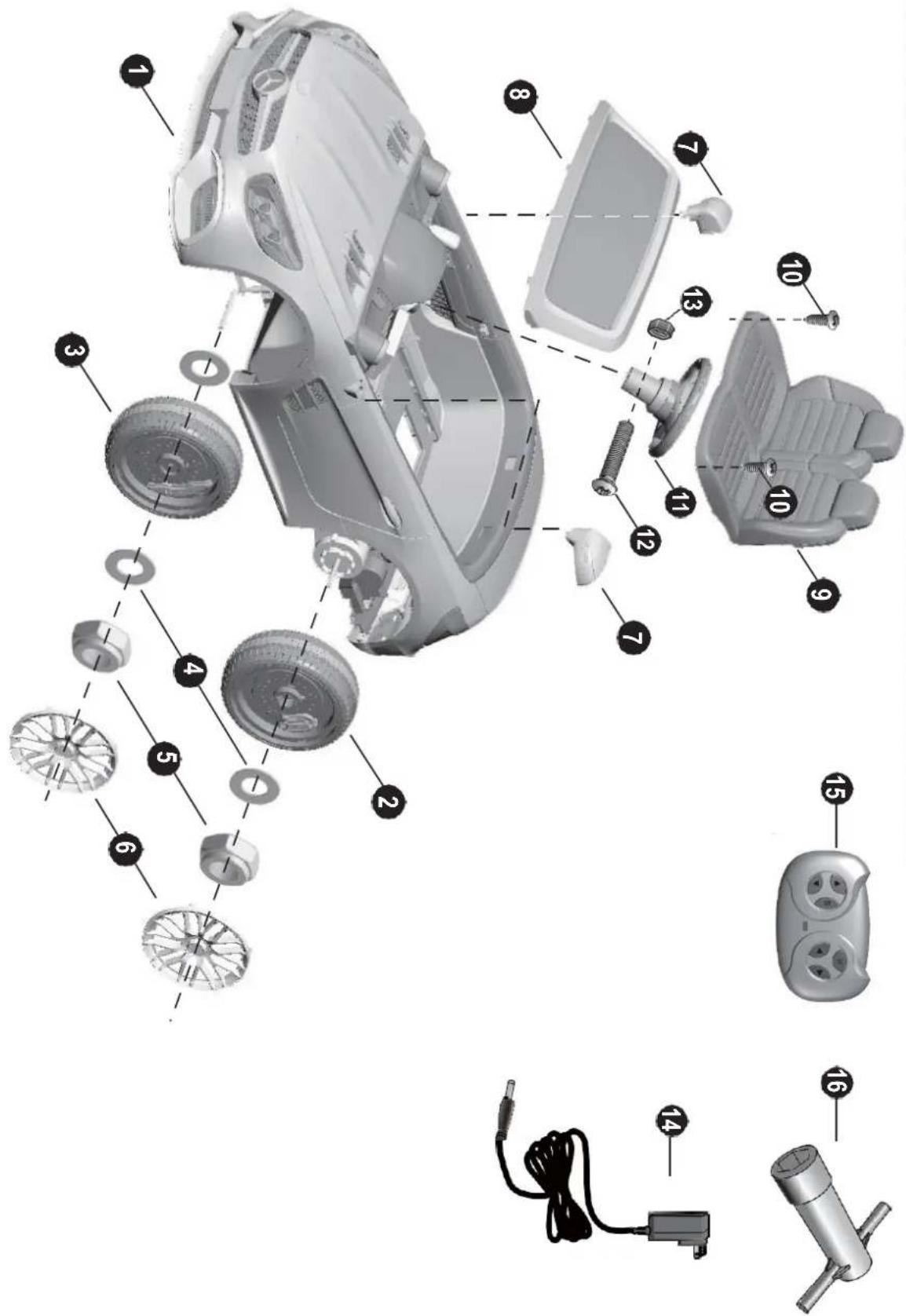

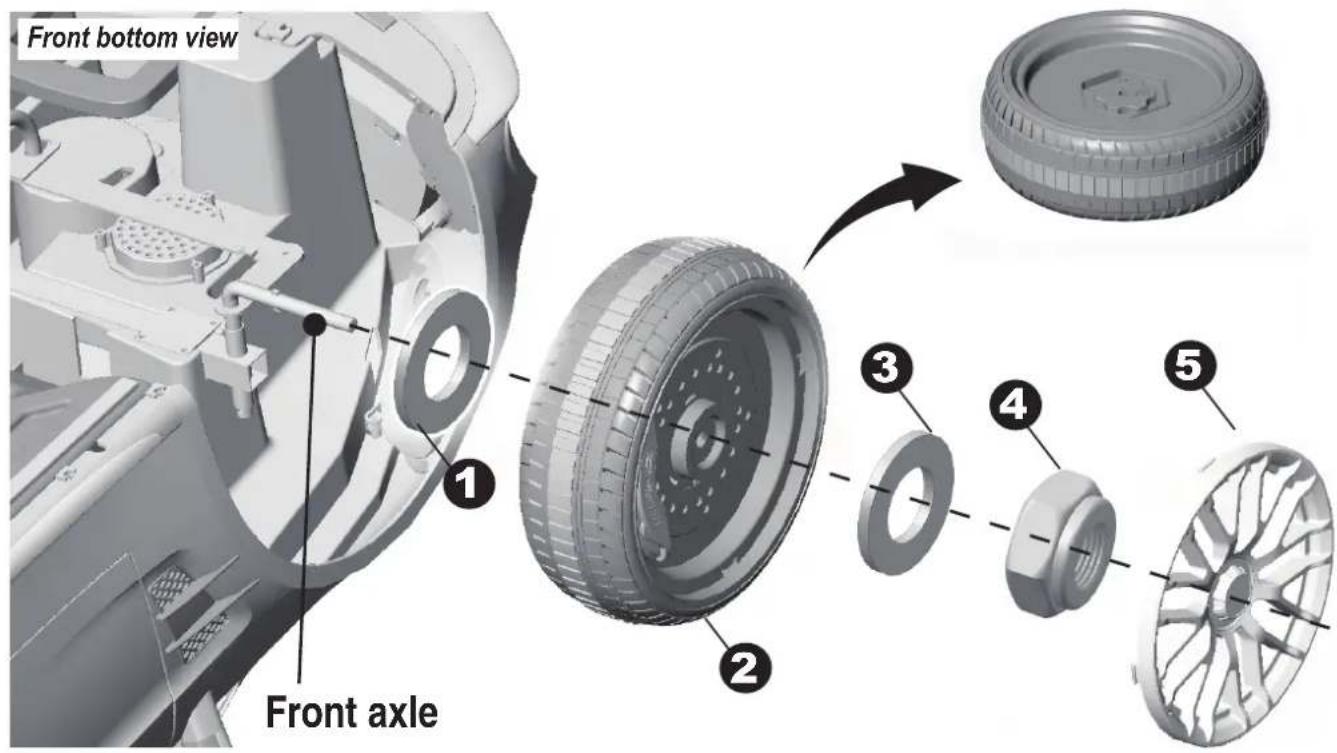

Exploded view diagram of a car's internal components with numbered labels for identification

Diagram showing a car interior with labeled parts including plug, wrench, and connector, alongside an inset diagram illustrating cable connection.

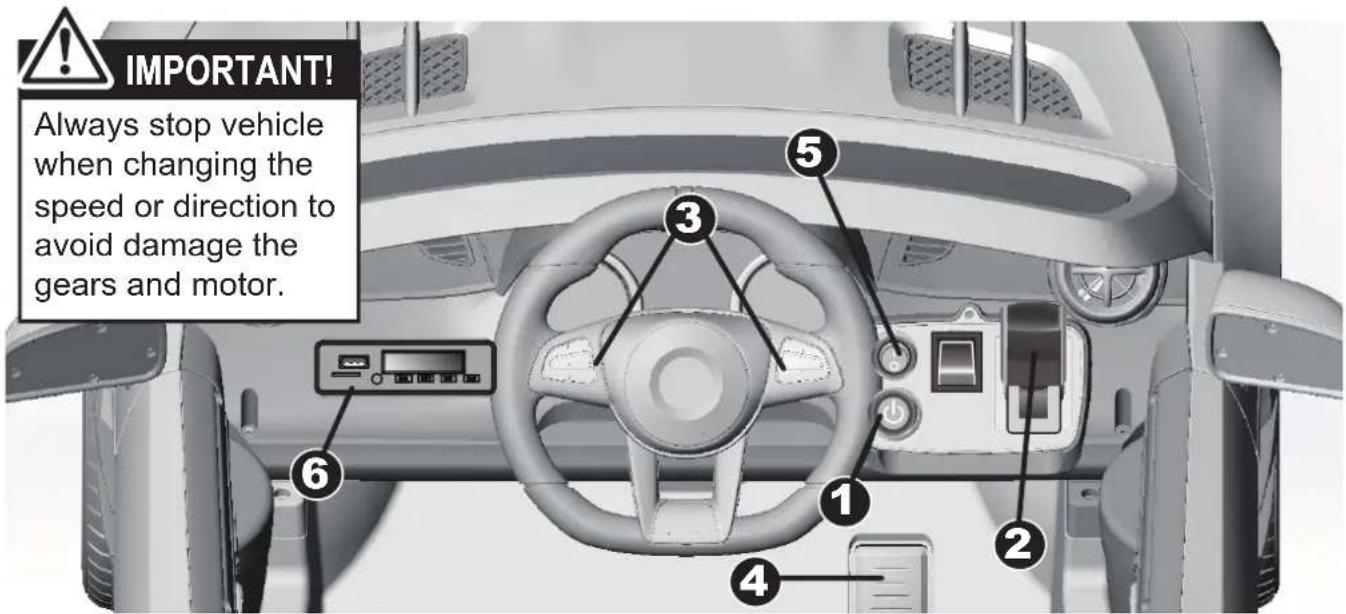

3D model of a car interior showing steering wheel, dashboard, and dashboard (no text or symbols)

7

E

Tilslut strøm

Rød strom terminal Rød motor terminal

Diagram showing car interior components with numbered parts and screw installation instructions

Close-up of a mechanical component with numbered callouts indicating parts of the body (no text or symbols present)

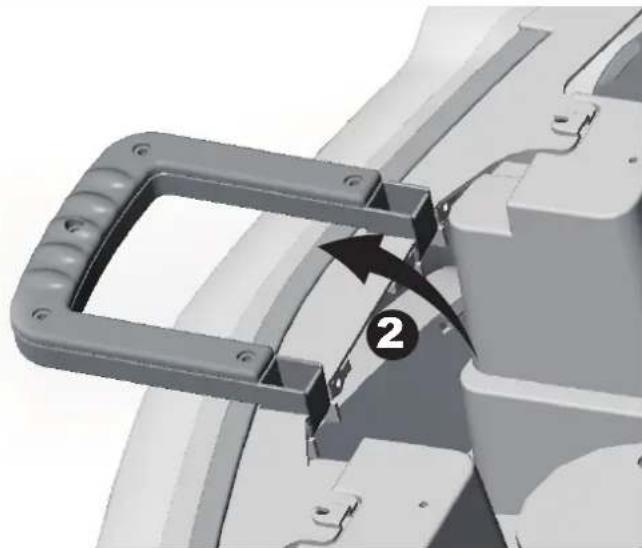

Mechanical component with a handle and part, showing a highlighted section (no text or symbols visible)

Side view of a silver convertible car with visible wheel and dashboard, connected by a crane to the side (no text or symbols on the car itself)

Close-up of a hand holding a white cable or wire with a magnified inset showing a small mechanical component (no text or symbols visible)

Red AMG sports car back view, showing front wheel and rear grille (no text or symbols on body)

Bortskafning af batteri

Red Mercedes-Benz convertible car with sleek design and 'AMG' branding, displayed on a reflective floor (no visible text or symbols beyond branding)

"Mercedes-Benz", and the design of the enclosed product are subject to intellectual property protection owned by Daimler AG. They are used by Pinghu City Xiao Ming Xing Children's Products CO.,LTD under license.

Specifikationer

Ålder: 3+ år

Batteri: 12v7AH X 1

3D rendered image of a screwdriver with metal handle and threaded shaft (no text or symbols)

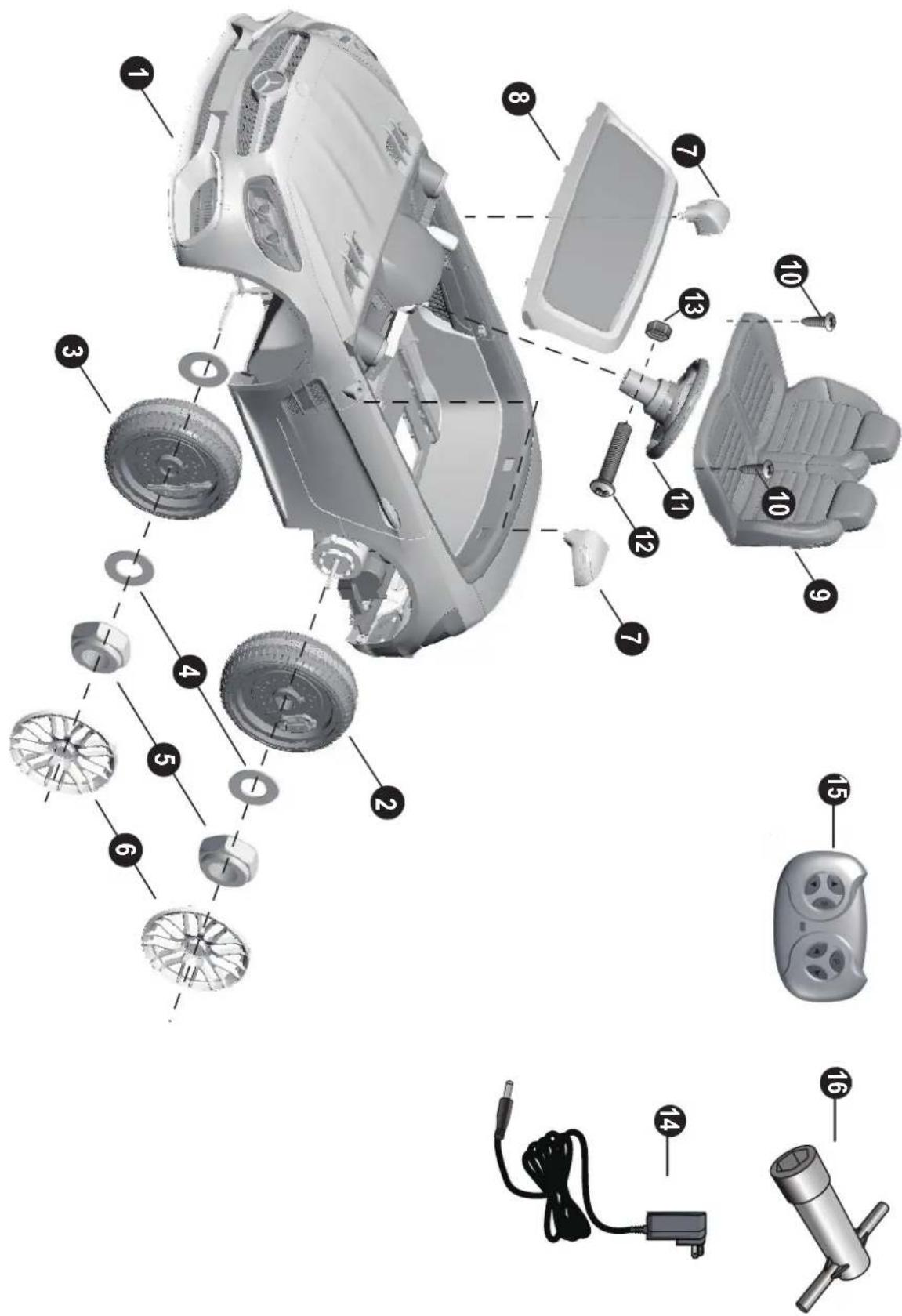

Exploded view diagram of a car's internal components with numbered labels for identification

Diagram showing a mechanical assembly with numbered parts and a magnified view of a component being inserted into a device.

Interior view of a car dashboard with steering wheel and steering wheel (no text or symbols visible)

E

Anslut ström

Röd strömkontakt Röd motorkontakt

Diagram showing car interior components with numbered parts and a close-up view of the vehicle's front panel.

A B C D E F G H

A. USB-port: Stöder endast MP3-format.

B. TF-kortport (MicroSD): Stöder endast MP3-format.

Close-up of a mechanical component with numbered callouts indicating parts of the body (no text or symbols present)

Mechanical component with a handle and part highlighted, showing no visible text or symbols

3D model of a racing car with visible dynamics, shown in perspective view (no text or symbols)

Close-up of a car interior showing a hand holding a white object, with a magnified inset highlighting a small mechanical component (no text or symbols visible)

Red AMG sports car front view showing license plate and grille (no text or symbols on body)

Licensed Battery-Powered Ride-on

Styles and colo(u)rs may vary

Red Mercedes-Benz convertible car with sleek design and 'AMG' logo, displayed on a tiled floor (no visible text or symbols beyond branding)

• Suitable age for 3+ Years
• Maximum user weight: 30kg
- Adult assembly required

OWNER'S MANUAL

with Assembly Instructions

Read and understand this entire manual before using!

Please keep this manual for future reference as it contains important information.

Before first time use, charge the battery for at least 8-12 hours.

On the purchase of your new Ride-On.

“Mercedes-Benz”, and the design of the enclosed product are subject to intellectual property protection owned by Daimler AG. They are used by Pinghu City Xiao Ming Xing Children's Products CO.,LTD under license.

Specification

Suitable age: 3+ Years

Battery: 6V7AH x1 or

12v7AH X 1

Charge time: 8\~12 hours

Charge: Input: depend on local voltage

Output: 1WD DC6V700mA

2WD DC12V700mA

Load capacity: Under 30kg

Size of car: 120*71.6*49.5 CM

Speed: 3\~5 km/h

BATTERY INFORMATION

• Non-rechargeable batteries are not to be recharged.
• If removable rechargeable batteries are used, the are only to be charged under adult supervision.
• Remove rechargeable batteries from the product before charging.
• Do not mix old and new batteries. Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment, anode to anode, cathode to cathode.
• Remove batteries during long periods of non-use. Always remove exhausted batteries from the product. Battery leakage and corrosion can damage this product. Dispose of batteries safely.
• Never short circuit the battery terminals.

Parts List

B

NO.	PART NAME	Q'TY (PCS)		REMARK
		1WD	2WD
1	Vehicle body	1
2	Driving wheel	1	2
3	Normal wheel	3	2
4	Φ10 washer	7	6
5	Lock nut	4
6	Wheel cover	4
7	View mirror	2
8	Windshield	1
9	Seat	1
10	Φ4x12 screw	2		For attach the adjustable seat
11	Steering wheel	1
12	M5X45 machine screw	1
13	Φ5 nut	1
14	Charger	1
15	Remote controller	1
16	Spanner	2

- Assembly tools required:

Screwdriver (not included)

3D rendered image of a screwdriver with metal ferrule (no text or symbols)

Exploded view diagram of a car's internal components with numbered labels for identification

NOTE: Some parts shown are assembled on both sides of vehicle

PREVENT INJURIES AND DEATHS:

• NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle.
• This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
  • Always wear shoes, always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user weight is 30 kgs.
  • This toy has no brake.

WARNING:

• CHOKING HAZARD! Not suitable for children under 37 months.
  • ADULT ASSEMBLY REQUIRED.

Rules for Safe Riding

• Keep Children within Safe Riding Areas:
• Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving.
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before using, guarantee the security.

E

1WD

Attach the Rear Wheels

HINT: If your vehicle is Two Wheels Driving Type, see the next page please. Rear bottom view

Rear bottom view ① Rear axle ② ③ ④

Turn over the vehicle body.

1. Slide the driving wheel onto the rear axle from Left Side. And keep the driving wheel match with the gear box.
2. Slide the ∅10 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner.
4. Fit the wheel cover to the wheel.

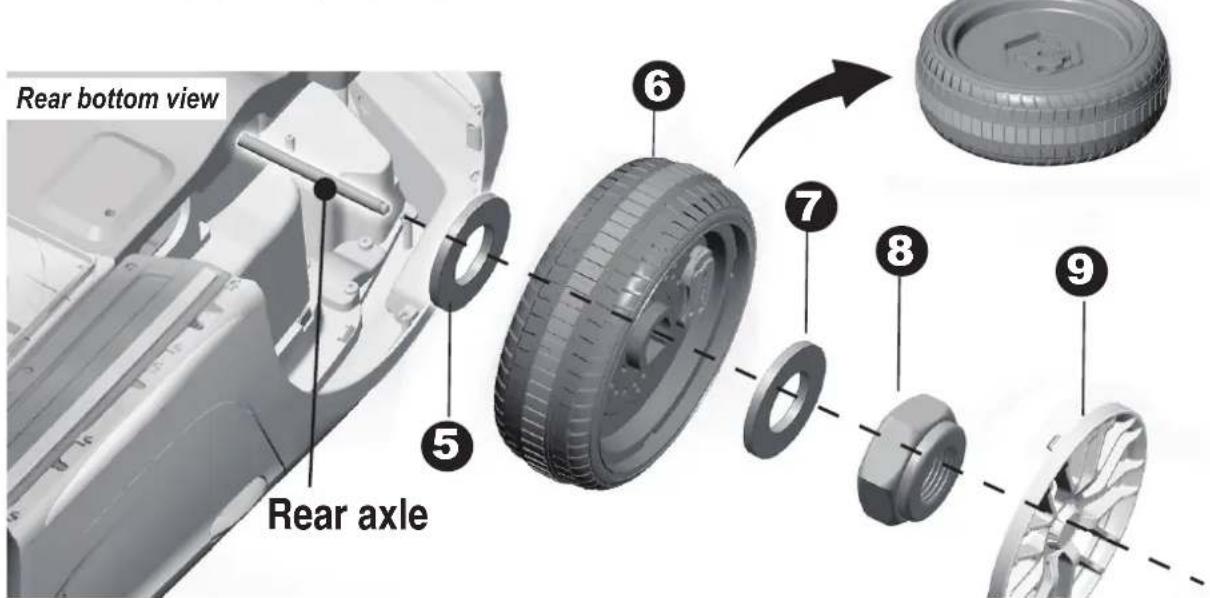

Rear bottom view Rear axle 6 7 8 9

1. Slide a ∅10 washer onto the rear axle from other side.
2. Slide a normal wheel onto the rear axle.
3. Slide the other ∅10 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with spanner.
5. Fit the wheel cover to the wheel.

Rear bottom view 1 2 3 4 Rear axle

Turn over the vehicle body.

1. Slide the driving wheel onto the rear axle from Left Side. And keep the driving wheel match with the gear box.
2. Slide the ∅10 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner.
   Repeat for the other driving wheel.
4. Fit the wheel cover to the wheel.

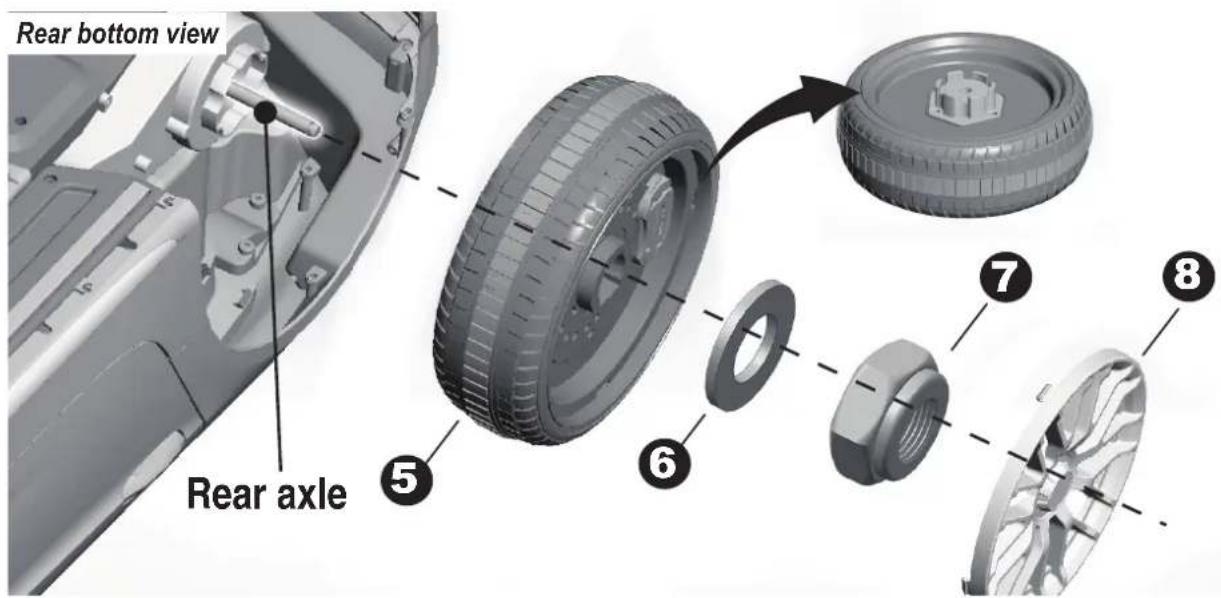

Rear bottom view Rear axle 5 6 7 8

5\~8. Repeat the above procedure to assemble the other driving wheel.

E

Attach the Front Wheels

Front bottom view 1 2 3 4 5 Front axle

1. Slide the ∅10 washer onto the front axle.
2. Slide the Front wheel onto the front axle.
3. Slide the ∅10 washer onto the front axle.
4. Tighten a lock nut to the end of the front axle with a spanner.
5. Fit the wheel cover to the wheel.
   Repeat for ther other rear wheel.

Attach the Steering Wheel, Mlrrors & Windshield

E

Diagram showing a car interior with labeled parts including plug, screw, and connector, alongside an inset diagram of connected components.

1. Plug the sound unit connector in the steering wheel into the connector in the vehicle body.
2. Fit the steering wheel to the end of the steering column.
3. Line up the holes in the steering wheel with the hole in the steering column, insert the M5x45 machine screw.
4. Fasten a nut on the opposite end of the screw with a screwdriver.
5. Fit the tabs on the mirror into the slots on the side vehicle. Repeat for the other mirror.
6. Fit the tabs on the windshiled into the holes on the vehicle body, and push until you hear it click into place.

click into place. ⑤

7

E

Connect the Power Supply

Red power connector Red vehicle connector

1. Open the rear trunk lid.
2. Plug the Red power connector on the battery into the blue connector on the vehicle.

Attach the Normal Seat

E

HINT: If you want to use the Adjustable Seat, see the next page please!

page producer ① ②

1. Fit the seat to the vehicle body.
2. Tighten two ∅4x12 flat head screws to secure the seat to the vehicle.

E

Attach the Adjustable Seat

Button for adjust the seat

1,2. Aligned the slide strip under the seat with the slide way on the top of seat base, and press the button located the front of seat base and push the seat to the innermost postion.

NOTE: The seat is adjustable and has three positions. You can move the seat back as your child grows.

WARNING: When you adjust the seat, ensure the seat "snaps" into place, or may cause accidents.

Use Your New Vehicle

F

IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor.

1. Power Switch: Turns the vehicle on and off.

2. Forward/Reverse switch: Changes the direction that vehicle moves from forward to reverse.

3. Sounds buttons: Press for sounds playing.

4. Foot pedal: ● To move the car, press the pedal down.

- To brake or slow down, release pressure from the pedal.

1. Lights switch: Turns the lights on and off.

2. Mp3 player:

A B H C D E F G Ily support Mp3 format. Color support Mp3 format.

A. USB slot: Only support Mp3 format.

B. TF card slot: Only support Mp3 format.

C. Auxiliary input: Allow the audio from your portable music player or phone to be played through the vehicle speakers.

D. Previous / Increase volume: Long press for increasing the volume.

E. Play / Pause: Playing and pausing the music.

F. Next / decrease volume: Long press for decreasing the volume.

G. Change the audio input: This button worked while you inserted two audio input devices.

H. Display screen: It displays the power level of the battery when the vehicle is stop.

1WD : When the numerical value less than 5, recharge the battery please.

2WD : When the numerical value less than 10, recharge the battery please.

Forward button Reverse button Speed select button Speed indicator Brake button Left button Right button

ASSEMBLY

Lift the battery compartment door on the back of the controller and insert two AAA(LR03) batteries.

NOTE: This product did not include the AAA(LR03) batteries. Follow the battery information on page 1.

1. Connection button

Long press the forward and reverse buttons for 3 seconds, and the speed indicator flashes. Then power on the vehicle, the speed indicator goes to long bright, means the connection successful. If the speed indicator no response, means the connection failed. Replace the batteries and retry.

2. Brake button

Press the button to stop the vehicle, press it again to release the brake.

3. Speed select button

The switch operates the vehicle to move in low, normal or high speed.

HINT: The vehicle is designed to operate in low speed only in reverse.

NOTE:

• Leave the remote controller idling for about 10 seconds, it will shut down automatically.
• Repeat step 1 when you replace the batteries of the remote controller.

Use the Pull Handle & Remove the battery

H

Close-up of a mechanical component with numbered callouts indicating parts of a device (no text or symbols present)

Mechanical component with a handle and part, showing a highlighted section (no text or symbols visible)

Side view of a silver convertible car with visible wheel and dashboard, connected by a crane to the side (no text or symbols on the car itself)

HOW TO USE THE PULL HANDLE

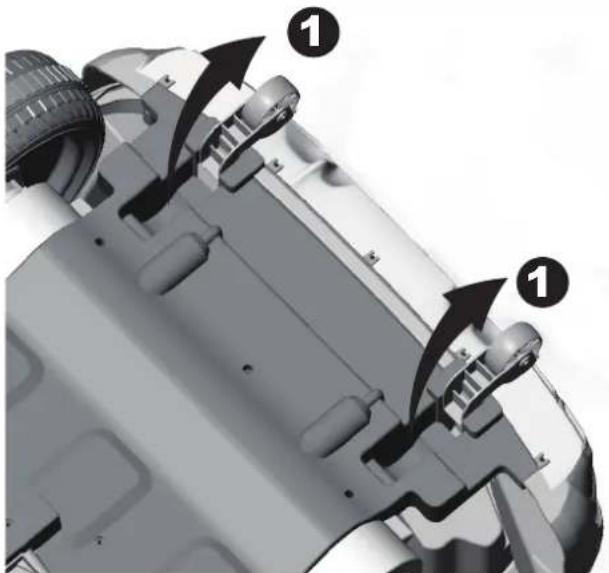

1. Rotate the support wheels out.
2. Rotate the Pull handle out.

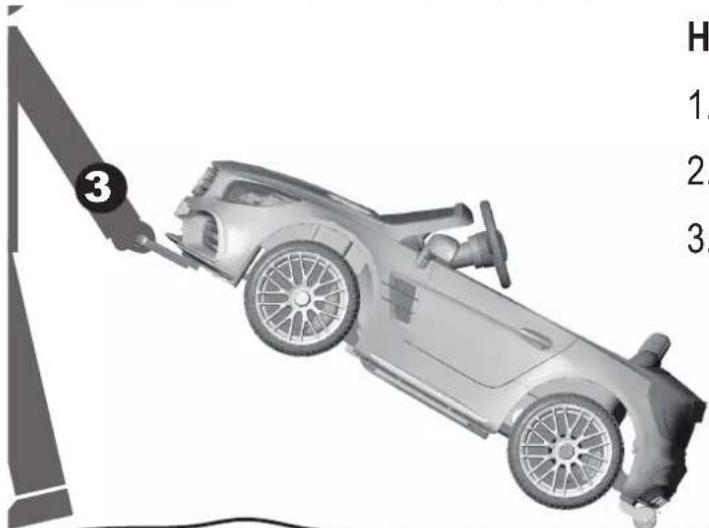

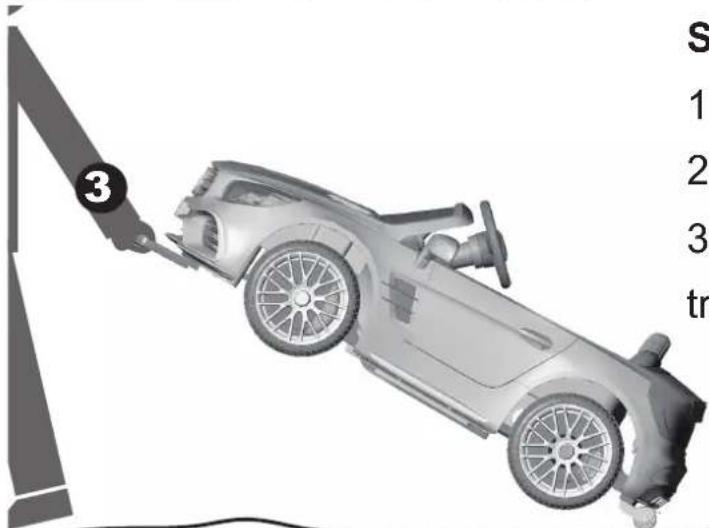

3. You can move the vehicle by pulling.

How to remove the 1. Open the rear trun 2. Unplug the Red c Red connector or 3. Position the ba 4. Take the b ① ③

How to remove the battery from the vehicle

1. Open the rear trunk lid.
2. Unplug the Red connector on the vehicle and the Red connector on the battery.
3. Position the battery lock switch to unlock.
4. Take the battery out from the vehicle.

i

Charging

Close-up of a hand holding a white cable or wire with a magnified inset showing a small mechanical component (no text or symbols visible)

• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than 10 hours to avoid overheating the charger.

• When the vehicle begins to run slowly, recharge the battery.

• Plug the charger port into the input socket. (the socket is below the seat)

• Plug the charger port into the charger socket on the battery.

WARNING!

• ONLY an ADULT can charge and recharge the battery!
• This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery!

J

Maintaining

• It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge, cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle in rainy or snowy weather. Water will damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage the moving parts, motors or the electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the battery connection.

Troubleshooting Guide
K

Problem Possible Cause Solution
Vehicle does not run	Battery low on power	Recharge battery.
	Thermal fuse has tripped	Reset fuse, see
	Battery connector or wires are loose	Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor contact your distributor please.
	Battery is dead	Replace battery, contact your distributor please.
	Electrical system is damaged	Contact your distributor please.
	Motor is damaged	Contact your distributor please.
Vehicle does not run very long	Battery is under charged	Check that the battery connectors are firmly plugged into each other when recharging
	Battery is old	Replace battery, contact your distributor please.
Vehicle runs sluggishly	Battery low on power	Recharge battery, contact your distributor please.
	Battery is old	Replace battery, contact your distributor please.
	Vehicle is overload	Reduce weight on vehicle. Maximum user weight is 30 kgs.
	Vehicle is being used in harsh conditions	Avoid using vehicle in harsh conditions ,see
Vehicle needs a push to go forward	Poor contact of wires or Connectors	Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor, contact your distributor please.
	“Dead Spot” on motor	A dead spot means the electric power is not being delivered to the terminal connection and the vehicle needs repair. Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Completely stop the vehicle and shift, see
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damaged	Contact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

NORDIC PLaY Speed

Black Mercedes-Benz convertible car with 'AMG' branding and recycling symbol below (no text or symbols on the car itself)

Disposal Of Battery

• Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound manner.
• Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
• Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.

Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.
