USER MANUAL 805-753 Nordic Play

Red Audi 2014 convertible sports car with sleek design and black seat, no visible text or symbols on the vehicle itself.

Size 104 x 60 x 47 cm

Art. no. 805-753

EAN 5705858707075

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in china / produceret i Kina

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 25 - 35 kg. Please check for your specific model.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle's circuit.
• Do not drive in water or other fluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery's lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use. Charge the battery every three months to extend the battery's lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If damages are discovered, the vehicle may not be used until these are fixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If there are damages, the charger may not be used until the damage is fixed.
• Vehicle with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
• The vehicle may only be used with the recommended charger.
  • The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
• Declaration of conformity: This product is in accordance with EU directive 2014/53 / EU.

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
• Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
• Children may not touch or open the battery holder.
  • Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.

General safety rules for NORDIC PLAY products

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.

• Change damaged parts immediately.

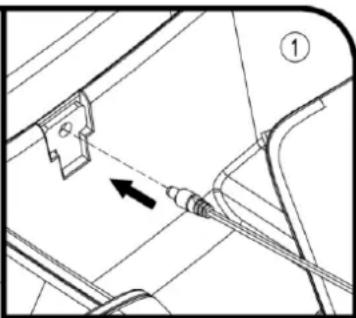

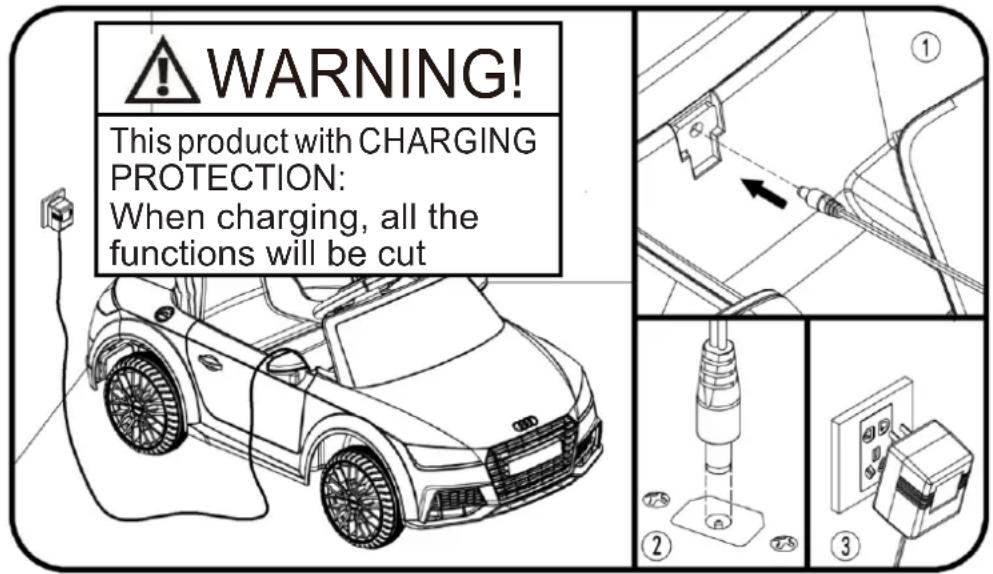

• Insert 220V/12V charger cable's connector to the vehicle.

• Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
• Detach after 8-12 hours

IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped, otherwise it will damage the gear box and motor.

Forward: 1. Press the "Forward/backward switch" to the "Forward" position.

1. Press the "Foot pedal", the vehicle drives forward.

Stop: 1. The vehicle will brake automatically, when foot is lifted from the "foot-pedal".

Back Up: 1. Press the "Forward/backward switch" to the "Backward" position.

1. Press the "Foot pedal", the vehicle will back up.

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire to the red terminal of the battery and finally then connect black wire to black battery terminal. Never connect wires into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and tighten the screw.

Battery replacement and fuse

The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The vehicle must then be switched off for at least 5 minutes, after which the fuse will restore itself. If the product does not work, the fuse may therefore be the problem. To avoid this, read the following points:

• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.

As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere from 1 - 3 years. If the battery needs a replacement, follow these steps:

1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the battery.
8. Slide the seat into place. Tighten the screw.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.

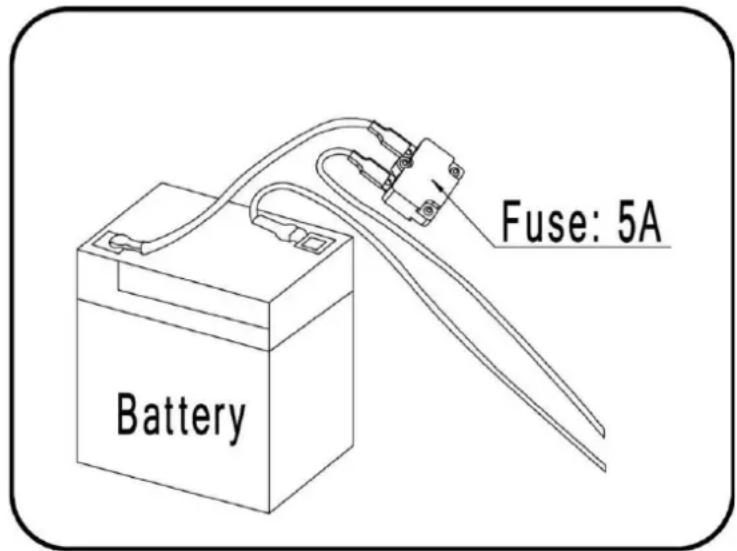

		Thermal fuse has tripped Let the vehicle cool down for 5 minutes.Do not overload the vehicle.
		Battery connector or wires are looseCheck that the battery connectors and wires are firmly connected.
		Battery is dead Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
		Electrical system is damagedContact your distributor please.
		Motor is damagedContact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
			Vehicle is overloadReduce weight on vehicle.Maximum user weight is 25 kgs.
			Vehicle is being used in unsuitable conditionsUse the vehicle on flat, even surfaces.
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	“Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal con nection and the vehicle needs repair.Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Always completely stop the vehicle before shifting.
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damagedContact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Maintenance

• Check all screws periodically and tighten as needed.
• Check the vehicle's plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.
• Do not drive in rain, snow, sand and gravel as this may damage the product.
  If the product is not to be used for an extended period, recharge the battery and then disconnect all cables

Suitable for 3+ years

• Suitable for 3^+ years
  • Maximum user weight: 30kg
• Adult assembly required

OWNER'S MANUAL

Read and understand this entire manual before using!

Please keep this manual for future reference as it contains important information.

Before first time use, charge the battery for at least 8-12 hours, no more than 20 hours.

Officially Licensed by AUDI AG

Audi TT S Roadster Ride On

Trademarks, design patents and copyrights are used with the approval of the owner AUDI AG.

1. About Your New Vehicle
2. Parts List
3. Parts Diagram
4. Assembly Steps
5. How To Operation Your Vehicle
6. Charging The Vehicle
7. Troubleshooting Guide
8. Maintaining Your Vehicle
9. Disposal Of Battery

About Your New Vehicle

Thank you for purchasing our products, we wants your child to enjoy this product for years to come. Keep these points in mind as you read this guide:

Suitable age:	3+ years	Battery:	DC 6V 4.5 AH *1
Load Capacity:	Under 30Kg	Size of car:	1040*600*470mm
Speed:	2.5-3Km/h	Carton size:	1050*550*305mm
Material:	PP	Optimum Temperature:	Below 40°C Avoid to use under burning sun
Charger:	Input: Shown on the charger	Charging time:	8-12 hours,at most 20 hours
	Output: DC 6V	Fuse:	F 5A, Self-resetting
	Current: DC 0.5A	Operating life:	12 months to 18 months

WARNING!

FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.

• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for adult assembly only. Keep small children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.

Parts List

PART NO	PART NAME	PICTURE	Qty (pcs)	REMARKS	PART NO	PART NAME	PICTURE	Qty (pcs)	REMARKS
1	Vehicle body		1		2	Windshield		1
3	Seat		1		4	Gear box		1	Placed in vehicle body
5	Driving wheel		1		6	Wheel		3
7	Steering wheel		1		8	Steering shaft		1
9	M10 washer		7	Placed in the rear and front axle	10	M8 Nut		4	Placed in the rear and front axle

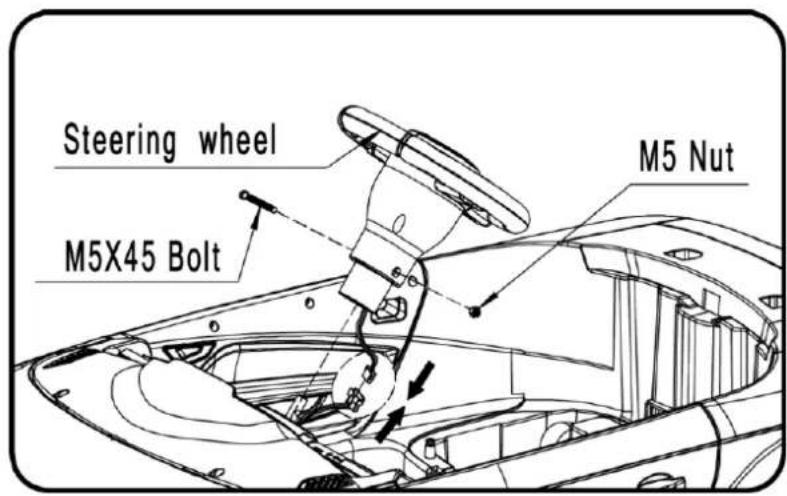

11	M5X45 bolt		1	Placed on the steering wheel	12	M5 Nut		1	Placed on the steering wheel
Assembly package
PART NO	PART NAME	PICTURE	Q·ty (pcs)	REMARKS	PART NO	PART NAME	PICTURE	Q·ty (pcs)	REMARKS

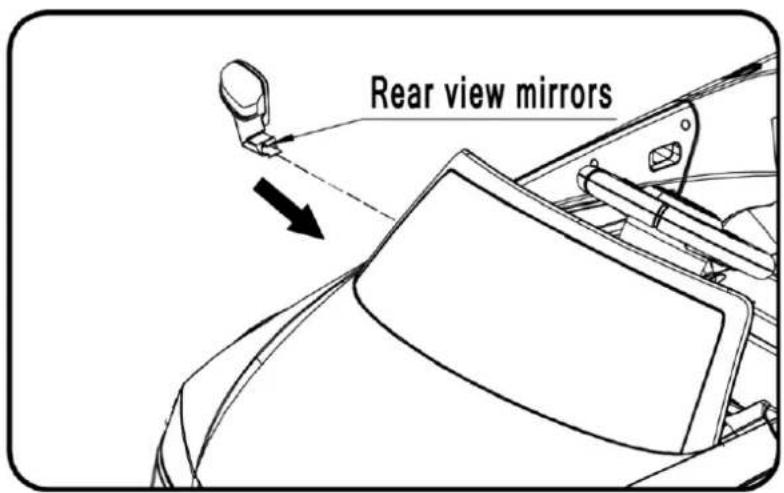

13	Rear view mirror		1 pair	Left & right	14	Wheel hub		4
15	Backrest		1		16	M4X16 screw		2
17	Instruction manual		1		18	Charger		1
19	Remote control		1	Not included AAA1.5V battery

Parts Diagram

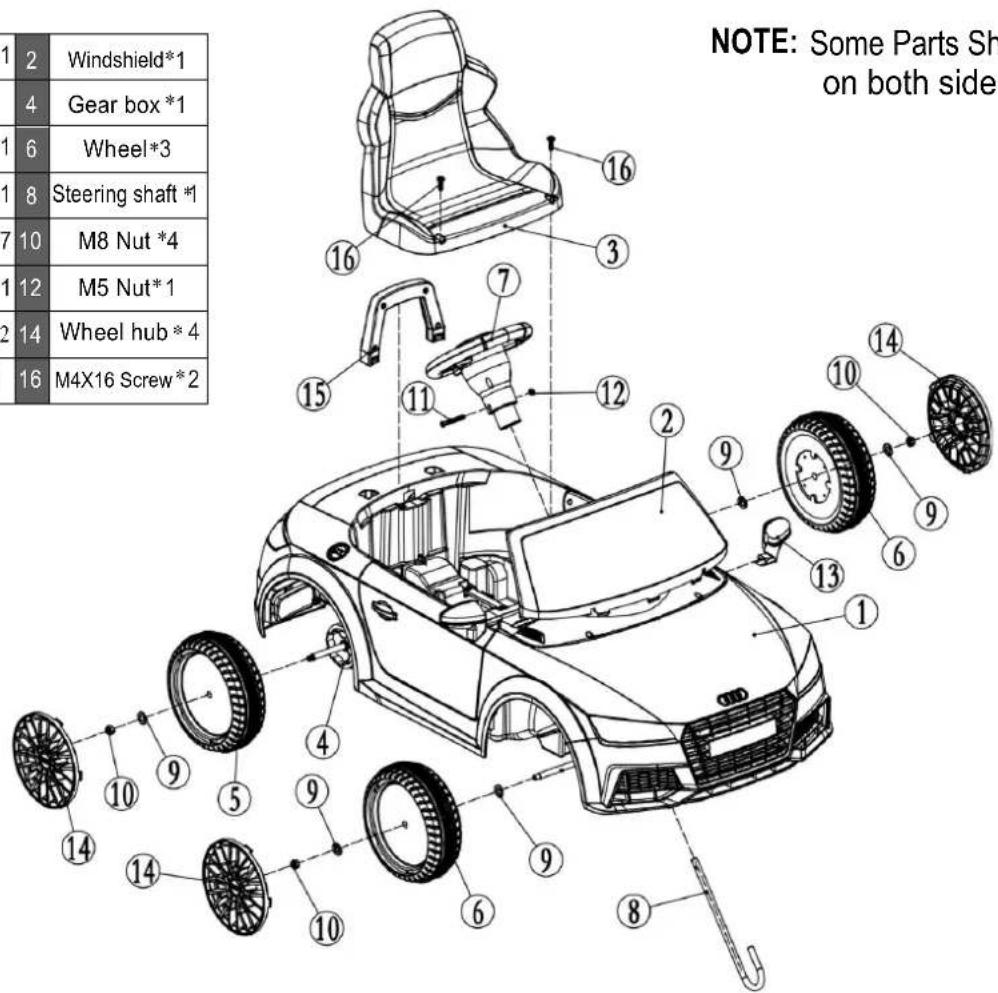

1	Vehicle body *1	2	Windshield*1
3	Seat*1	4	Gear box *1
5	Driving wheel*1	6	Wheel*3
7	Steering wheel*1	8	Steering shaft *1
9	M10 Washer *7	10	M8 Nut *4
11	M5x45 bolt *1	12	M5 Nut* 1
13	Rear view mirror*2	14	Wheel hub * 4
15	Backrest* 1	16	M4X16 Screw *2

NOTE: Some Parts Shown are assembled on both sides of vehicle

NOTE: Some Parts Sh on both side: 1 2 Windshield*1 4 Gear box *1 1 6 Wheel *3 1 8 Steering shaft *1 7 10 M8 Nut *4 1 12 M5 Nut*1 2 14 Wheel hub *4 16 M4X16 Screw*2

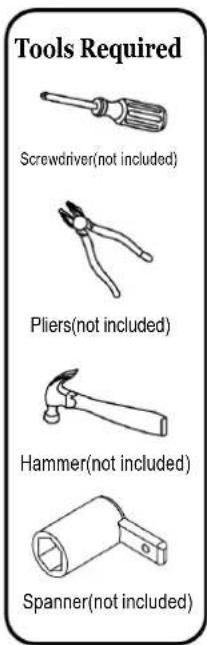

Tools Required Screwdriver(not included) Pliers(not included) Hammer(not included) Spanner(not included)

Assembly Steps

Your new vehicle requires adult assembly. Please set aside at least 40 minutes for assembly. Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, or help in assembly of the vehicle.
☐ Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
Assembly tool for need: screwdriver(not included), pliers(not included), hammer(not included), Spanner(not included).

1. Install the back wheel.

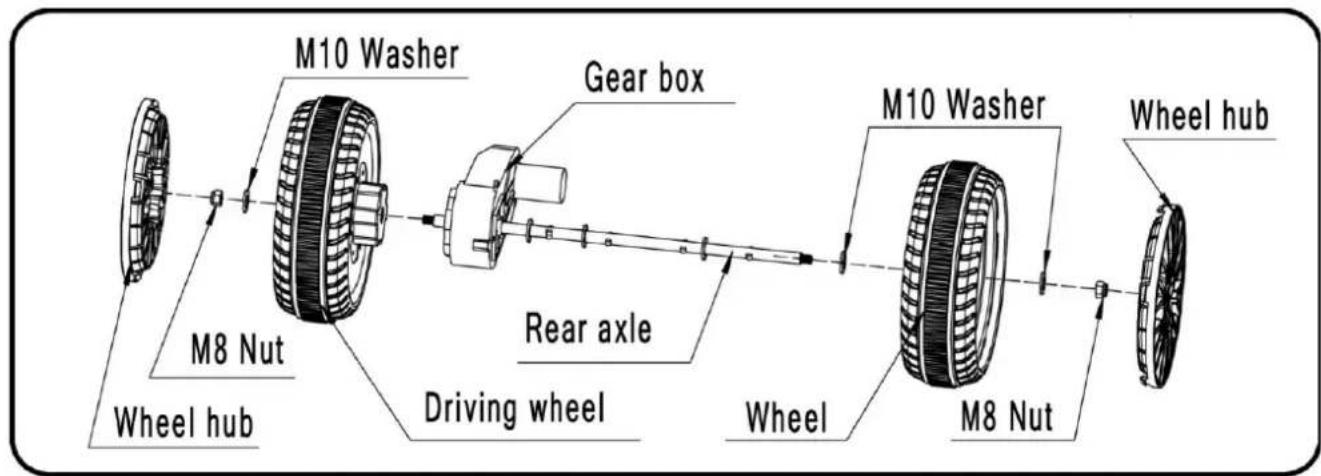

M10 Washer Gear box M8 Nut Wheel hub Rear axle Driving wheel Wheel M10 Washer Wheel hub M8 Nut

Turn over the car body, disconnect the rear axle parts.
☐ Put the driving wheel through the back axle and fix it with washer, nut and the wheel hub in turn.
Put the washer, wheel and another washer through the back axle on the other side in turn, then fix them with nut and wheel hub.

2. Install the front wheel.

M8 Nut M10 Washer Wheel hub Wheel Front axle Wheel

Remove the nut and washer on the front axle;
As showed in the picture, fix the washer, wheel, washer and nut onto the axle in proper order.
Fasten the nut with spanner.
Fix the wheel hub.
☐ Fix another wheel on the other side.

3. Install the steering shaft.

Steering shaft

Turn the vehicle on its side.
Insert the straight end of steering shaft through the hole in the vehicle body and out through the hole in the dashboard.
☐ Insert the bent end into the hole in the front axle.(PIC1)

4. Install the steering wheel.

Steering wheel M5X45 Bolt M5 Nut

As showed in the picture, remove the nut and bolt from the steering wheel, connect the steering wheel and gauge board middle connector.
As showed in the picture, install the steering wheel, and fasten with nut and bolt.

5. Connect the power supply.

Power connector

Plug the power connector into the terminal on battery as shown.

6. Install the seat.

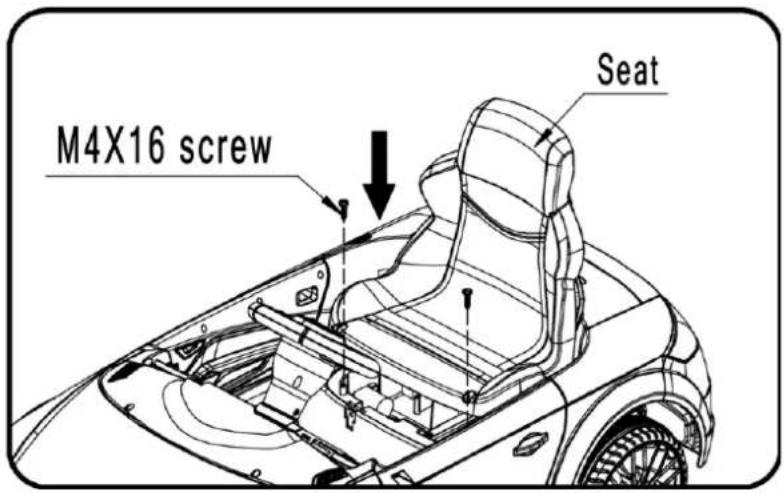

M4X16 screw Seat

As showed in the picture, install the seat to the corresponding place, and fasten with the screws.

7. Install the windshield.

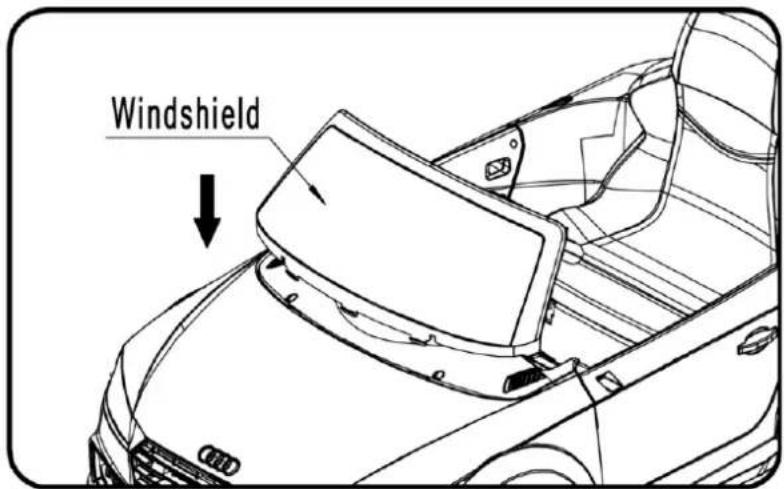

Windshield

As showed in the picture, press the windshield downward to fix it.

8. Install the rear view mirror.

Rear view mirrors

As showed in the picture, push the two rear view mirrors according to the direction of the arrow and make sure to fit in position.

9. Install the backrest .

Backrest

As showed in the picture, press the backrest downward to fix it.

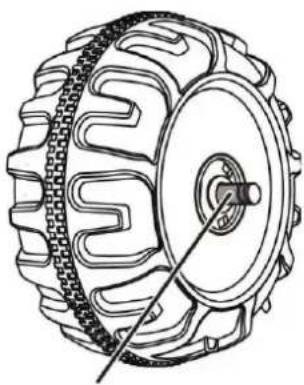

Technical line drawing of a tire and wheel assembly (no text or symbols)

GAP

IMPORTANT SUPPLEMENTTO INSTRUCTION MANUAL

After assembling any wheel to the axles, please check the gap between the screw thread and the collapsible (refer to below picture), if the gap is too big, please add two or three washers inside the wheel. But after tightening the nut outside the wheel, please turn the wheel by your fingerto check if the wheel can run smoothly, this is very important, because if the wheel can run smoothly, it is ok, but if the nut press the wheel and the wheel can't run smoothly, the motor will be broken easily! Then you need to decrease one or two washers to make sure the wheel can run smoothly!

⚠ WARNING!

PREVENT INJURIES AND DEATHS:

• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle.
• Never use in roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
• Always wear shoes.
  • Always sit on the seat.
• Suitable for age 3^+ years; Maximum user weight is 30kgs.
• Not to be used in traffic.

Must confirm before using that following work which is already finished:

- Important! Before using the vehicle for first time, the battery needs to be charged for 8 to 12 hours, no more than 20 hours. Only an adult can charge or recharge the battery.

- Finishing the complete car to assemble according to the steps that the manual described. The plug-in package of storage battery has already been inserted well, the power has already been put through.

- All places to need the screw guarantee the screw has already been locked.

Rules for Safe Riding

READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE SURE THEY UNDERSTAND THEM!

• This toy is no break. Always wear a helmet and protective clothing when riding.
• Direct Adult Supervision Required.
• Keep Children within Safe Riding Areas.
• Never driving in roadway, near motor vehicles, on lawn space, on near steep inclines or steps, swimming pools or other bodies of water.
• Use the toy only on flat surfaces. such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the vehicle only in the daytime or a well-lit area.
• It is not recommended to drive the vehicle on wet surfaces or on lopes of greater than 15 degrees.
• Do not use this vehicle outdoors when it is raining or snowing.
• Make sure you come to a complete stop before changing directions from forward to back.
• Please follow the correct weight and age limits allowed to drive this vehicle.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• In order to avoid accidents, please ensure the vehicle is safe before riding.
• Do not let any child touch the wheels or be near them when the car is moving.
• This vehicle has adjustable play seat belts. please instruct children how to tie the safety belt before using, guarantee the security.

Use Operation(Ensure the power switch has been turned on)

Sound System & Battery Indicator Music Button General Power Switch Forward&Reverses Switch Pedal Switch

IMPORTANT!

Always stop vehicle when changing the speed or direction to avoid damage the gear box and motor.

(1) Turn on the general power switch first, the sound can be played.
(2) Forward

Press the "Forward and Reverse switch" to the "Forward" position.

Press the pedal.

The vehicle drives forward.

(3) Stop

Remove foot from the accelerator pedal to stop the car.

(4) Reverse

Press the "Forward and Reverse switch" to the "Reverse" position.

Press the pedal.

The vehicle drives backward.

(5) Turn on the general power switch, Then you can enjoy music by push any music button.

(6) How to use the remote controller:

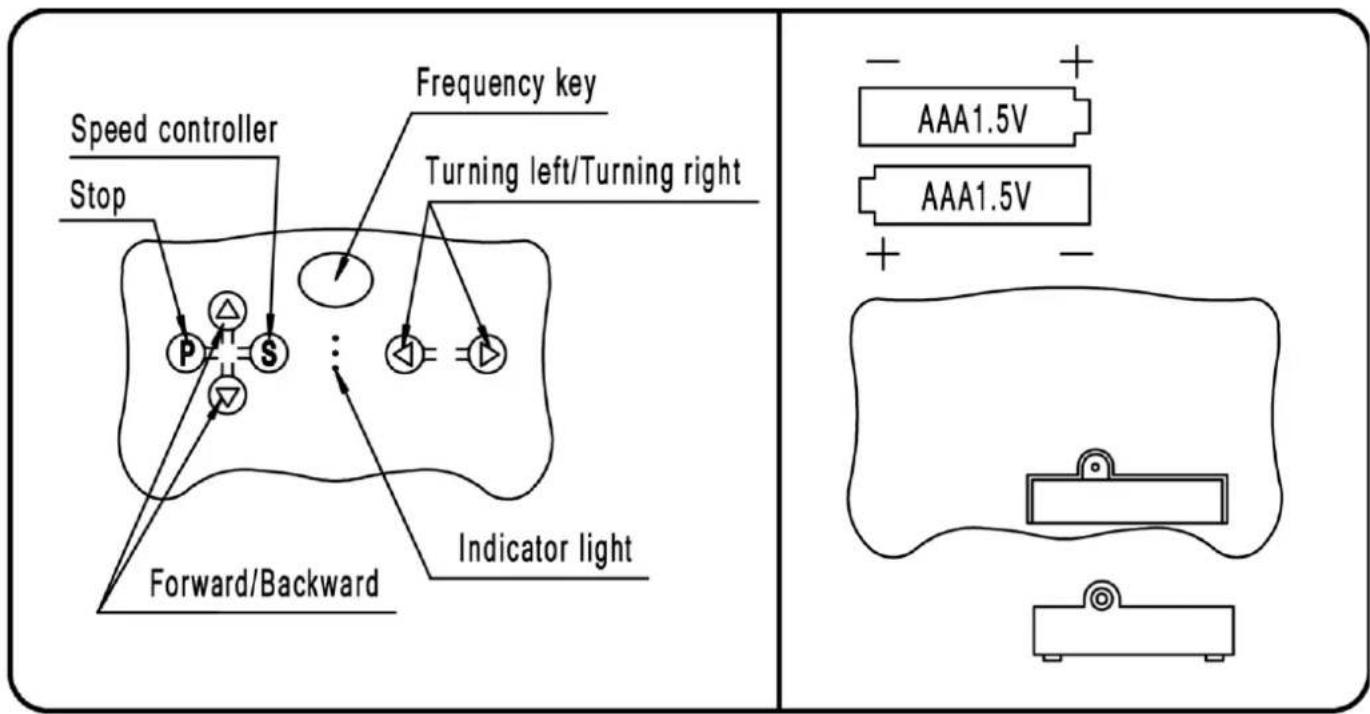

Speed controller Stop Frequency key Turning left/Turning right Forward/Backward Indicator light AAA1.5V AAA1.5V

1. Powering off.
2. Remove the battery cover of remote controller, insert two AAA 1.5V batteries(See above photo) and the light of remote controller will keep on. Replace the battery cover.
3. Press the "Frequency key" for 2 to 4 seconds, the indicator light of remote controller will blink.
4. Turn on the general power switch.
5. Matching the code. (Pair code automatically, no need to operate any buttons.)
6. Once the code is matched, there's no need to match it again.
   If new batteries are changed, act as instruction from 1 to 4 to match the code again.
7. Push the left joy stick to the front, the vehicle goes forward, push the left joy stick to the back, the vehicle goes backward.
8. Push the right joy stick to the left, the vehicle turn left, push the right joy stick to the right, the vehicle turn Right.
9. Press the "stop" button, the vehicle drives stop.
10. Click "Speed controller", you can control the speed.

(7) How to use the Sound System & Battery Indicator

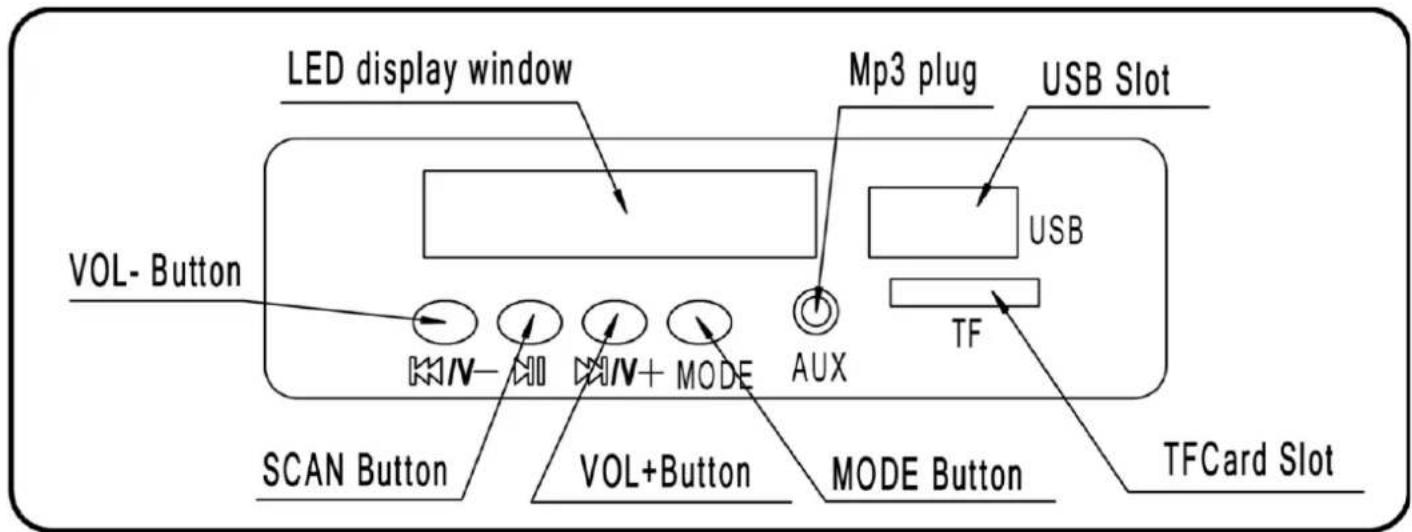

LED display window Mp3 plug USB Slot VOL- Button USB TF SCAN Button VOL+Button MODE Button MODE Button TFCard Slot

1. Mp3 plug is available, but need external player (not included). USB Slot is available, but need USB drive (not included).

TF Card Slot is available, but need TF Card (not included).

1. Mode selection

Press "MODE Button":

① LED display window shows "USB", which indicates that the player is working in the U disk.
② LED display window shows "TF", which indicates that the player is working in the TFcard.
③ LED display window shows "voltage digital", means player can work in the memory state. Or press "MODE Button", the player will change to work in MP3 connection device state.
④ LED display window shows "FM", You can use the radio function.

1. You can adjust volume by long-Pressing "VOL-Button" or "VOL+Button". Click "VOL-Button" or "VOL+Button", you can switch musics and radio.

2. Click "SCAN Button", you can control the music play and pause.

HowToOperate Your Vehicle

Circuit diagram

Motor for R/C Motor WELL YE-6V Battery Battery 6V 5A Light x3 Power Switch Light IC chip light x3 Power Switch Forward&Reverse Switch Pedal Switch Charging Socket Steering wheel buttons USB SD Horn Mp3 RP Volume controller

Charging Your Vehicle

ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!

□ non-rechargeable batteries are not to be recharged;
☐ different type of batteries or new and used batteries are not to be mixed;
□ batteries are to be inserted with the correct polarity;
☐ exhausted batteries are to be removed from the toy;
☐ the supply terminals are not to be short-circuited.
☐ rechargeable batteries are only to be charged under adult supervision;
☐ rechargeable batteries are to be removed from the toy before being charged;
☐ The transformers or battery charger used with the toy are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used until that damage had been repaired.

WARNING!

• PREVENT FIRE AND ELECTRIC SHOCK:

• Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger my cause a fire or explosion.
• Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
• NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or explosion or my permanently damage the system.
• Do not allow direct contact between battery terminals. Fire or explosion can occur.
• Do not allow any type of liquid on the battery or its components.

⚠ WARNING!

• PREVENT FIRE AND ELECTRIC SHOCK:

• Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge the battery in a well-ventilated area ONLY.
• NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a fire. Pick up the battery by the case ONLY.
• Charge the battery in a dry area ONLY.

- Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

- Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.

- Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock. Only adults may handle or charge the battery. NEVER allow child to handle or charge the battery. Battery is heavy and contains lead acid (electrolyte).

- Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.

- Before charging the battery, check for wear or damage to the battery, charger, its supply cord and the connectors. DO NOT charge the battery if any damage to parts has occurred.

- Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly.

- Do not charge battery upside down.

• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips over.

- A recommendation for adult supervision of young children.

- The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.

• The charging input socket is BELOW THE SEAT.
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 8-12 hours. Do not recharge the battery for more than 20 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
  • After each use or once a month minimum recharge time as 8 to 12 hours, no more than 20 hours.

WARNING! This product with CHARGING PROTECTION: When charging, all the functions will be cut

1. Find The charging input socket below the seat;
2. Plug the charger port into the input socket;
3. Plug the charger plug into a wall outlet. The battery will begin charging.

Technical diagram showing a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with base and mounting holes (no text or symbols)

Illustration of a wall socket connected to a power outlet (no text or symbols)

■ PROBLEM: The vehicle does not run

PROBLEM CAUSE: The battery may low on power.

After each use, or once a month minimum, charge the battery for 8-12 hours. Do not leave the battery on the charger for more than 20 hours.

POSSIBLE CAUSE: Thermal fuse has tripped.

The vehicle is equipped with a self-resetting fuse. When the vehicle is overloaded or operated incorrectly; the self-resetting fuse will be cut off for 5-20 seconds before becoming operational again. The self-resetting fuse is under the seat (Refer to the picture.)

Fuse: 5A Battery

To avoid the fuse cut off the power, follow these guidelines:

DO NOT overload the vehicle, Maximum weight allowed :30kg

DO NOT tow anything behind the vehicle.

DO NOT drive up steep slopes.

DO NOT drive into fixed objects, which may cause the wheels to spin, causing the motor to overheat.

DO NOT drive in very hot weather, components may overheat.

DO NOT tamper with the electric system, Doing so may create a short circuit, causing the fuse to trip.

POSSIBLE CAUSE: Wheel nuts are loose.

If the nuts are not tight, the wheels will not engage the forward gears. Tighten the nut with the nut wrench.

POSSIBLE CAUSE: Battery connector or wires are loose.

Make Sure the battery connectors are firmly plugged in to each other.

POSSIBLE CAUSE: Battery is dead.

Have you properly maintained the battery according to the directions? Is the battery old? Your battery may need to be replaced.

POSSIBLE CAUSE: Electric system is damaged.

Water may have corroded the system, or loose dirt, gravel or sand might have jammed the switch.

POSSIBLE CAUSE: Motor is damaged.

The motor needs professional repair.

■ PROBLEM: The battery will not recharge.

POSSIBLE CAUSE: Battery connector or adapter connector is loose.

Make sure the battery connector and adapter connector are firmly plugged together.

POSSIBLE CAUSE: Charger is not plugged in.

Make sure the charger is plugged into the wall outlet and the power flow to the outlet is on.

POSSIBLE CAUSE: Charger is not working.

Is the charger warm while charging? If not, the charger may be broken and may need to be replaced.

Officially Licensed by AUDI AG

Audi TT S Roadster Ride On

Trademarks, design patents and copyrights are used with the approval of the owner AUDI AG.

Indholdsfortegnelse

M10 Washer Gear box M8 Nut Wheel hub Rear axle Driving wheel Wheel M10 Washer Wheel hub M8 Nut

M8 Nut M10 Washer Wheel hub Wheel Front axle Wheel

① Steering shaft

Turn the vehicle on its side.
☐ Insert the straight end of steering shaft through the hole in the vehicle body and out through the hole in the dashboard.
☐ Insert the bent end into the hole in the front axle.(PIC1)

4. Installer rat .

Steering wheel M5X45 Bolt M5 Nut

Power connector

M4X16 screw Seat

Rear view mirrors

Technical line drawing of a tire and wheel assembly (no text or symbols)

GAP

Sound System & Battery Indicator Music Button General Power Switch Forward&Reverses Switch Pedal Switch

Vigtigt!

Officially Licensed by AUDI AG

Audi TT S Roadster Ride On

Trademarks, design patents and copyrights are used with the approval of the owner AUDI AG.

M10 Washer Gear box M8 Nut Wheel hub Rear axle Driving wheel Wheel M10 Washer Wheel hub M8 Nut

M8 Nut M10 Washer Wheel hub Wheel Front axle Wheel

① Steering shaft

Power connector

- Anslut strömkabeln till batteriterminalen som anvisat.

M4X16 screw Seat

Rear view mirrors

Technical line drawing of a tire with mesh texture and central hub (no text or symbols)

GAP

Sound System & Battery Indicator Music Button General Power Switch Forward&Reverses Switch Pedal Switch

Viktigt!

Red Audi 2001 convertible sports car with black seat and silver alloy wheels (no visible text or symbols)
