USER MANUAL 805-777 Nordic Play

White and silver Li Auto brand motorcycle with black racing wheel, no visible text or symbols on body

Size 105 x 65 x 52 cm

Art. no. 805-777

EAN 5705858711713

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in China / produceret i Kina

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 25 - 35 kg. Please check for your specific model.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle's circuit.
• Do not drive in water or other fluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery's lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use. Charge the battery every three months to extend the battery's lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If damages are discovered, the vehicle may not be used until these are fixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If there are damages, the charger may not be used until the damage is fixed.
• Vehicle with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
• The vehicle may only be used with the recommended charger.
  • The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
• Declaration of conformity: This product is in accordance with EU directive 2014/53 / EU.

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
• Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
• Children may not touch or open the battery holder.
  • Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.

General safety rules for NORDIC PLAY products

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.

• Change damaged parts immediately.

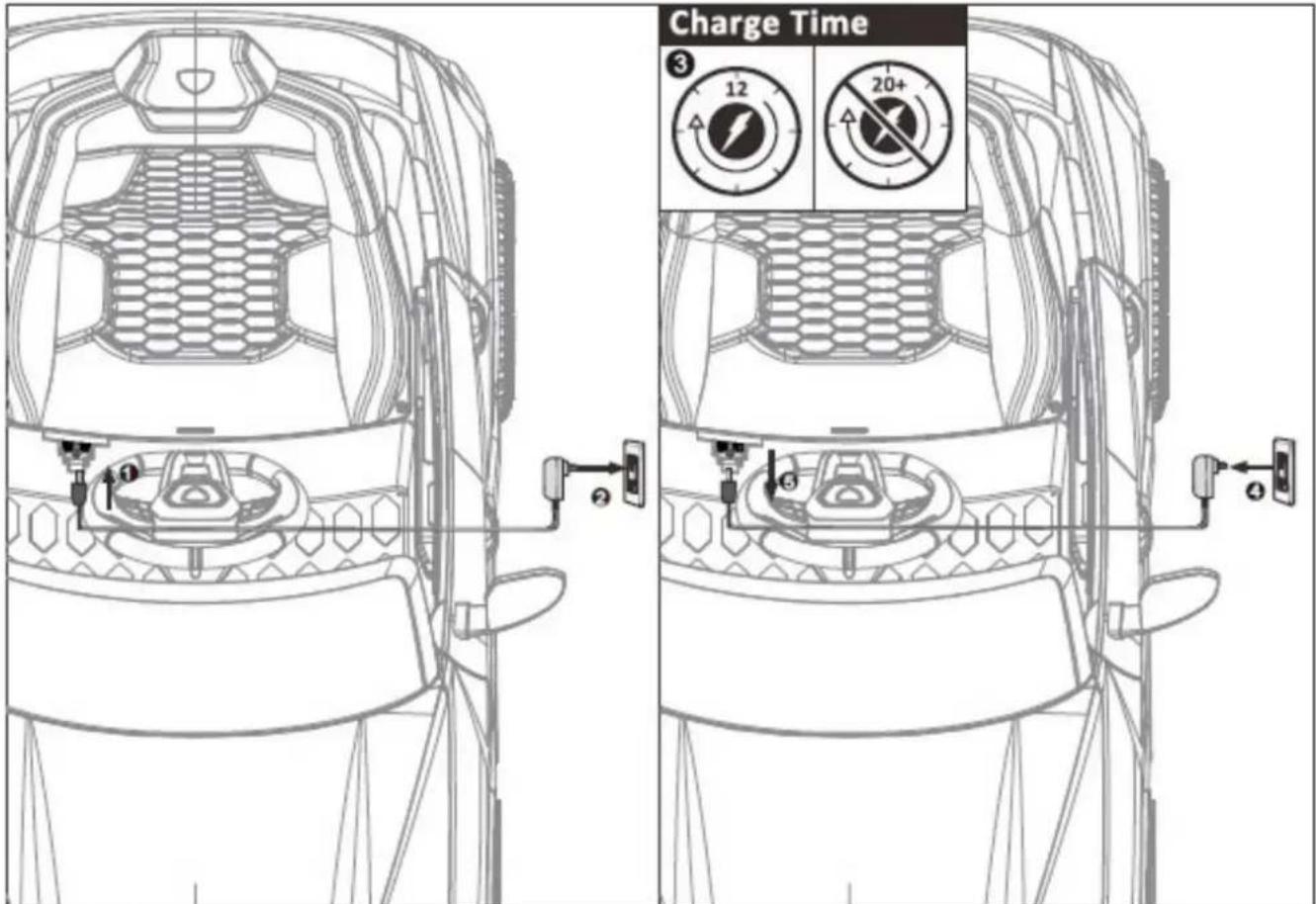

• Insert 220V/12V charger cable's connector to the vehicle.

• Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
• Detach after 8-12 hours

IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped, otherwise it will damage the gear box and motor.

Forward: 1. Press the "Forward/backward switch" to the "Forward" position.

1. Press the "Foot pedal", the vehicle drives forward.

Stop: 1. The vehicle will brake automatically, when foot is lifted from the "foot-pedal".

Back Up: 1. Press the "Forward/backward switch" to the "Backward" position.

1. Press the "Foot pedal", the vehicle will back up.

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire to the red terminal of the battery and finally then connect black wire to black battery terminal. Never connect wires into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and tighten the screw.

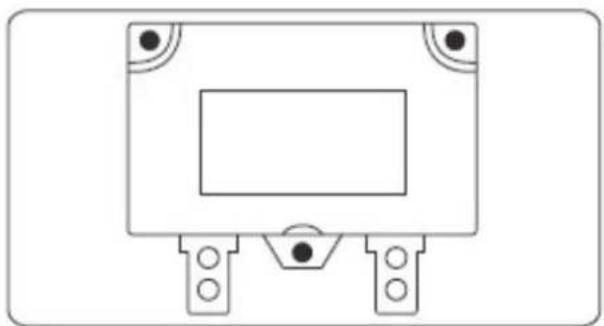

Battery replacement and fuse

The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The vehicle must then be switched off for at least 5 minutes, after which the fuse will restore itself. If the product does not work, the fuse may therefore be the problem. To avoid this, read the following points:

• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.

As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere from 1 - 3 years. If the battery needs a replacement, follow these steps:

1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the battery.
8. Slide the seat into place. Tighten the screw.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.
		Thermal fuse has tripped Let the vehicle cool down for 5 minutes.Do not overload the vehicle.
		Battery connector or wires are looseCheck that the battery connectors and wires are firmly connected.
		Battery is dead Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
		Electrical system is damagedContact your distributor please.
		Motor is damagedContact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
			Vehicle is overloadReduce weight on vehicle.Maximum user weight is 25 kgs.
			Vehicle is being used in unsuitable conditionsUse the vehicle on flat, even surfaces.
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	“Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal con nection and the vehicle needs repair.Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Always completely stop the vehicle before shifting.
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damagedContact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Maintenance

• Check all screws periodically and tighten as needed.
• Check the vehicle's plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.
• Do not drive in rain, snow, sand and gravel as this may damage the product.
  If the product is not to be used for an extended period, recharge the battery and then disconnect all cables

Installation and Operating Instructions

Line drawing of a luxury sports car with visible license plate and front grille (no text or symbols)

Suitable age: 37 -	96 months Battery:		12V 4.5AH (6-FM-4.5 (AH) *1
Load Capacity: 28	kg Size of car: 105 x 65 x	52 cm
Speed: 2 - 4 km/h	Carton size: 110 x 56 x	33 cm
Material:	PP (polypropylene) and iron	Optimum temperature:	60° degrees
Input: 110V	- 240V Charging time:	8 - 12 hours
Charger: Output	DC 12V 500 MA/ Fuse:	Motor 3A
		Operating life: 2 -	300 charges

Components list

NO QTY PICTURE NO QTY PICTURE
1	1	A (Steering wheel)	2	1	B (Instruction book)
3 1 set		C (Rear view mirror)	4	2	D (Quincunx gear)
5	1	E (Remote control)	6	1	F (Wind deflector)
7	4	G (Wheel)	8	4	H (Wheel cover)
9	1	I (Seat)	10	1	Q (Motor R)
11 1		Y (Motor L)	12	2	X (Self-tapping screw)
13	2	L (M8 spanner)	14	1	T (Charger)

Installations steps

Front ② ① ④ ③ ③ ④ ① ② L ④ ④ ④

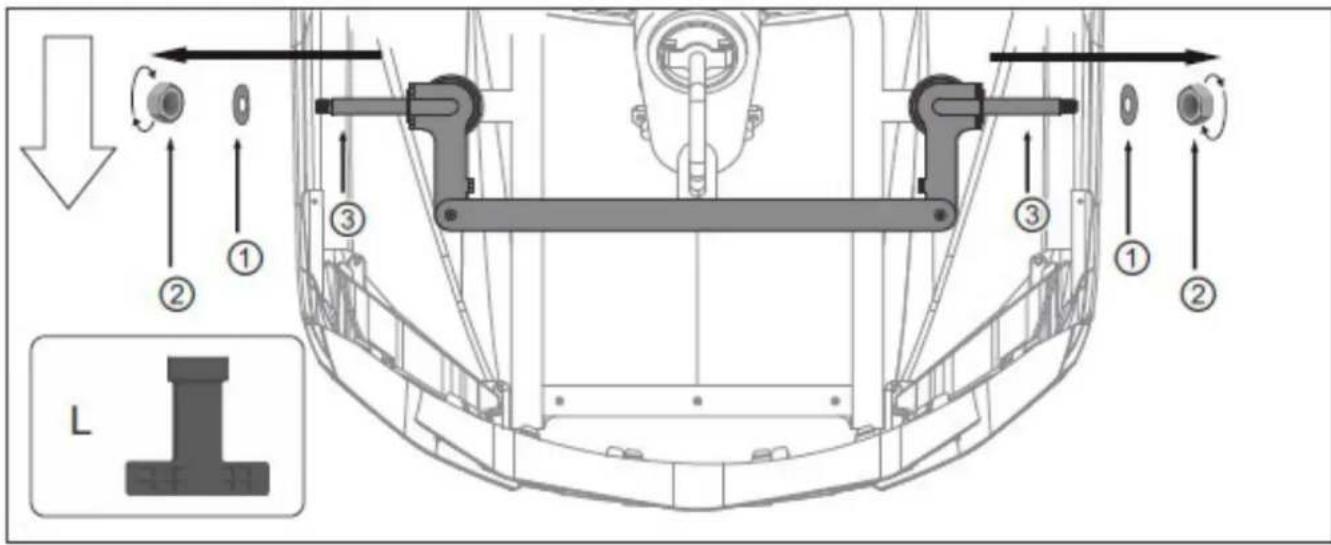

Step 1: Loosen the screw, gasket from axle

Use the L (M8 spanner) to loosen the 2 (M8 screw) 1 (M8 gasket) and 4 (Circular paper tube) from the 3 (axle) in a counterclockwise direction. (kindly reminder: please throw the 4 in a recyclable trash can).

D Y ③ ② ① R Q D Front

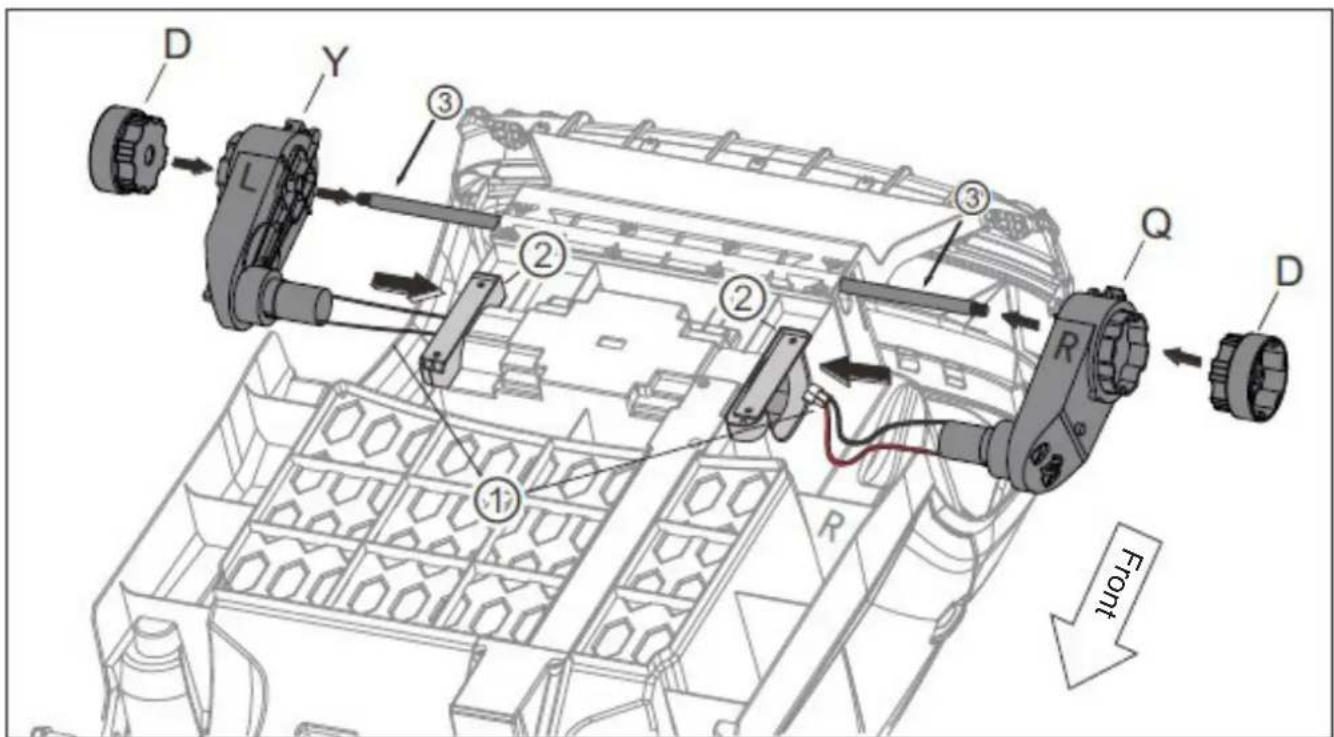

Step 2: Install the motor

Insert the 1 (motor terminal) into 2, then install the Q (motor R) and Y(motor L) to 3 (axle), also should insert the motor part into 2, finally install the D (quincunx gear) to motor as per shows (pay attention, align the R/L motor with the car R/L correctly).

Installations steps

Technical diagram of a vehicle suspension system with numbered components and directional arrows indicating motion or movement.

Step 3: Loosen the screw, gasket from front axle

Use the L (M8 spanner) to loosen the 2 (M8 screw) 1 (M8 gasket) from the 3 (front axle) in a counterclockwise direction.

H ② ① G ③ ③ G ① ② H ⑥ ⑤ G ④ ④ G ⑤ ⑥ H Front L

Installations steps

Step 4: Install the wheel

1. Install the G (wheel) onto the 3 (axle), put the 1 (M8 gasket), then use the L (M8 spanner) to tighten the 2 (M8 screw) in clockwise direction. Finally install the H (wheel cover) on correct position (align and press the buckle of the wheel cap with the grooves of the wheel to fix it)
2. The front wheel is also installed in this way.

A M S ① ③

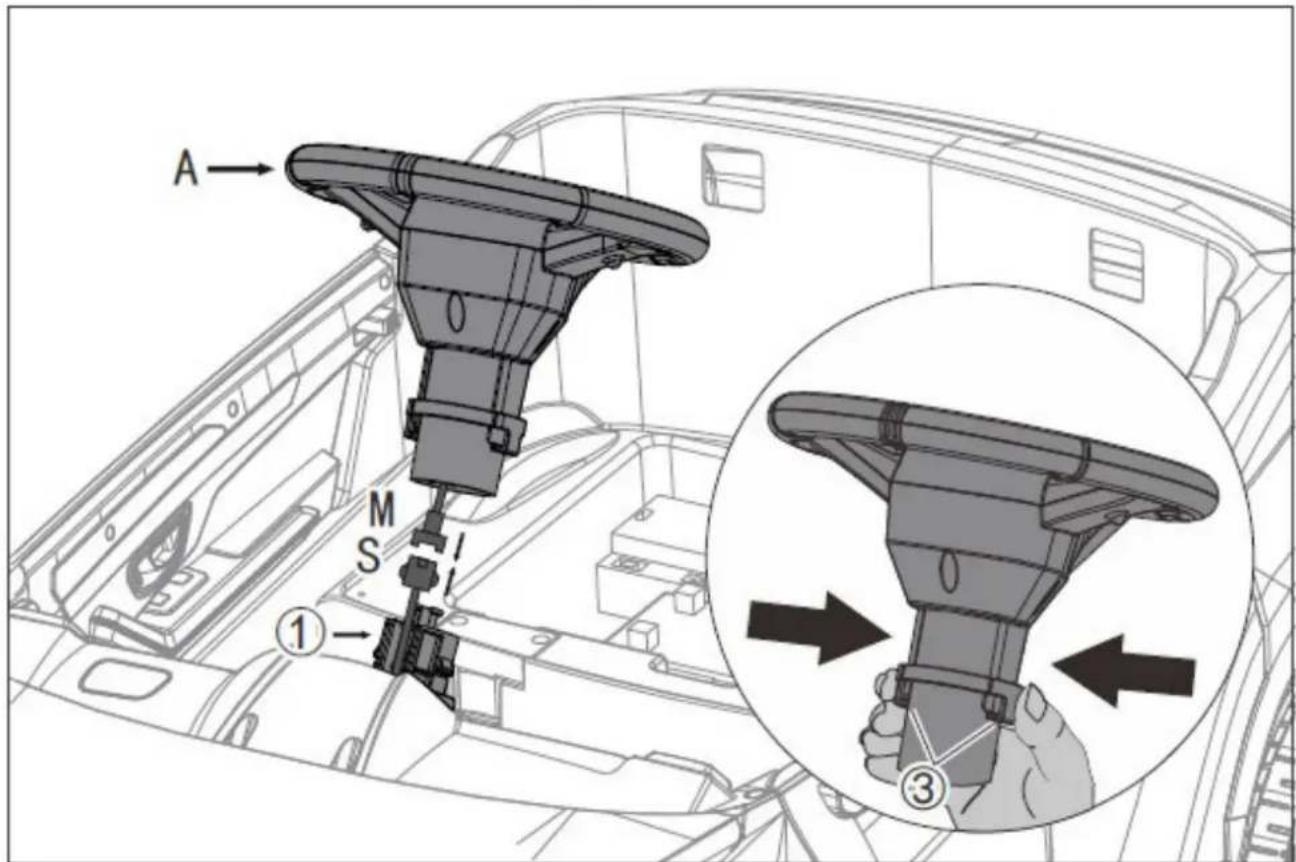

Step 5: Install the steering wheel

Connect S, M terminal firstly, then align the correct position and press A (steering wheel) on 1 (steering yoke) as shown in figure. P.S if need to take off the steering wheel, please tighten 3, then pull out the steering wheel, and disconnect the terminal S,M.

F LAB1

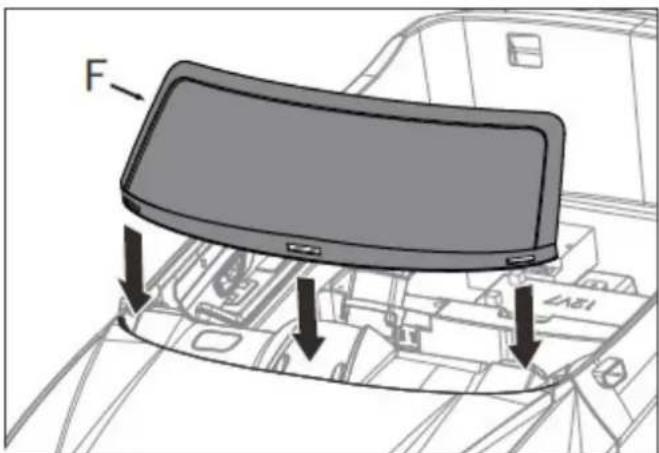

Step 6: Install the wind deflector

Place F (wind deflector) onto the corresponding 3 clasp at car body as shown in figure.

Installations steps

Diagram of an electrical wiring harness with labeled components including connectors, switches, and power connections

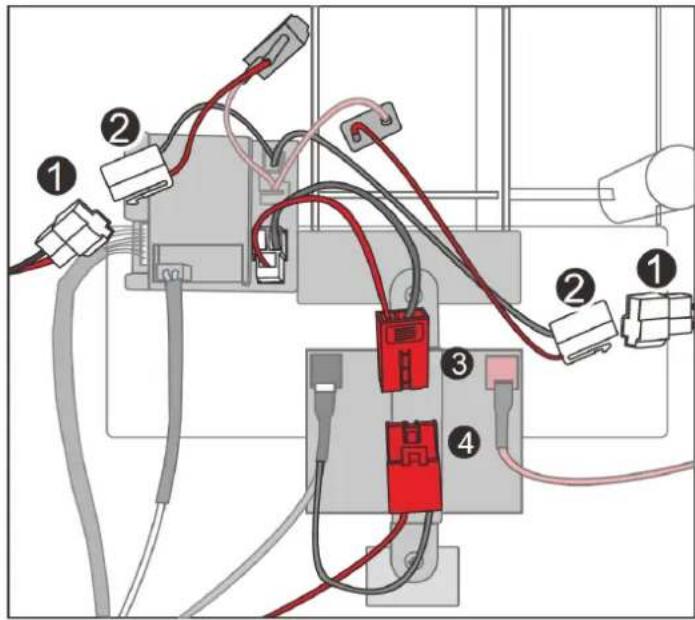

Step 7: Connect the power

First connect the terminal 1 and 2, then connect the power port 3 and 4.

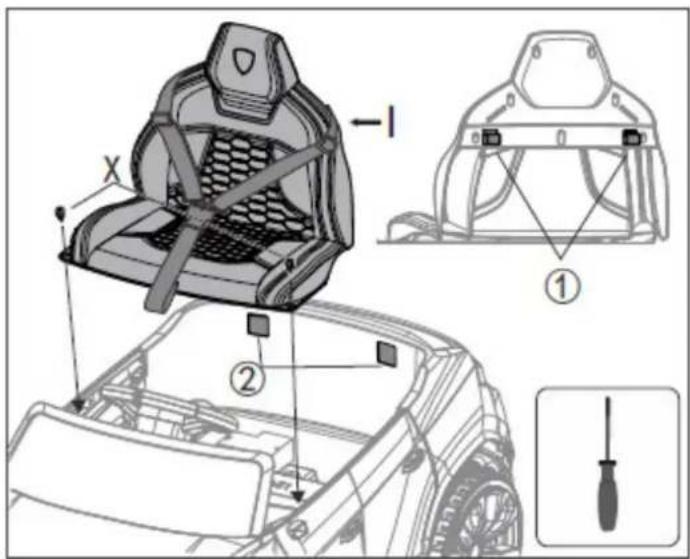

Technical diagram showing car seat assembly with labeled components and tool icons

Step 8: Install the seat

Put the I (seat) onto the right place, fix the two hooks (at the back of the seat) into the corresponding groove on car body. then fix the I (seat) with 2 pcs X (self- tapping screw) as shown in figure.

C2 C1

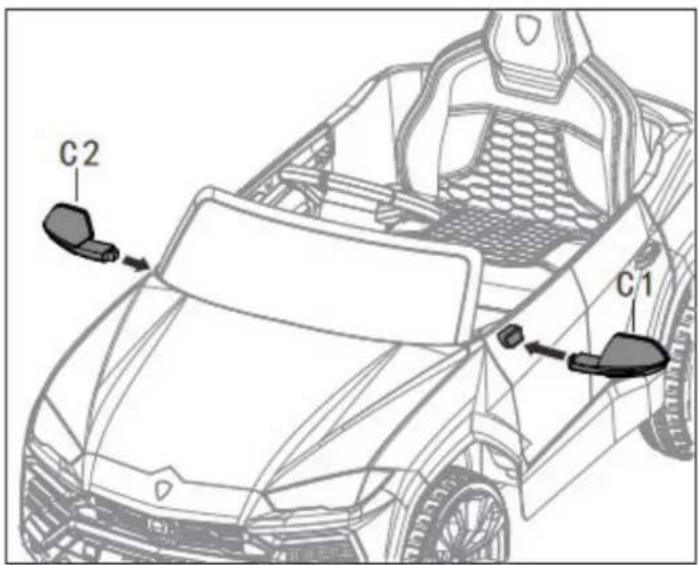

Step 9: Install the rear mirror

Install the C1 (rear view mirror L), C1 (rear view mirror R) to the car in correct placement as show in figure.

Direction for use

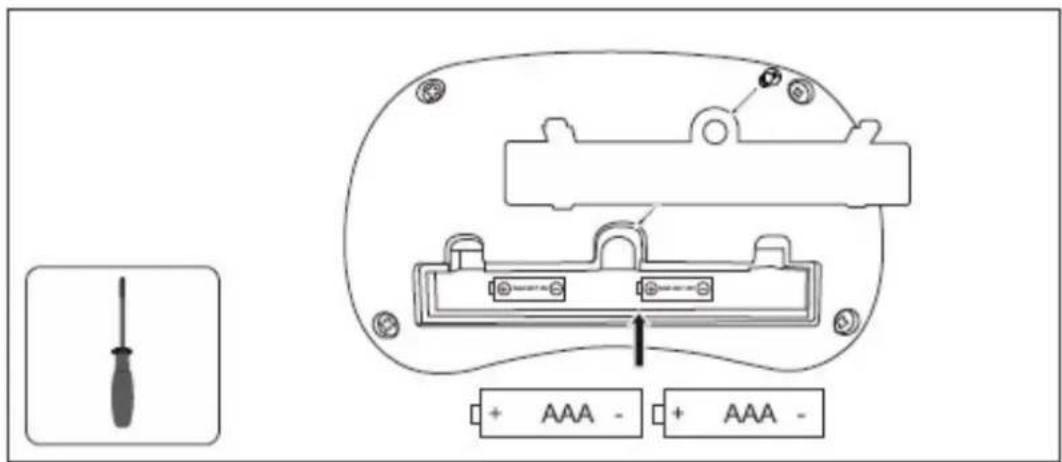

1. The installation and replacement of the batteries.

Diagram of a battery pack with screwdriver and two battery cells labeled 'AAA' connected to pins, alongside an inset image of a screwdriver.

1. Matching the frequency of car and remote control.

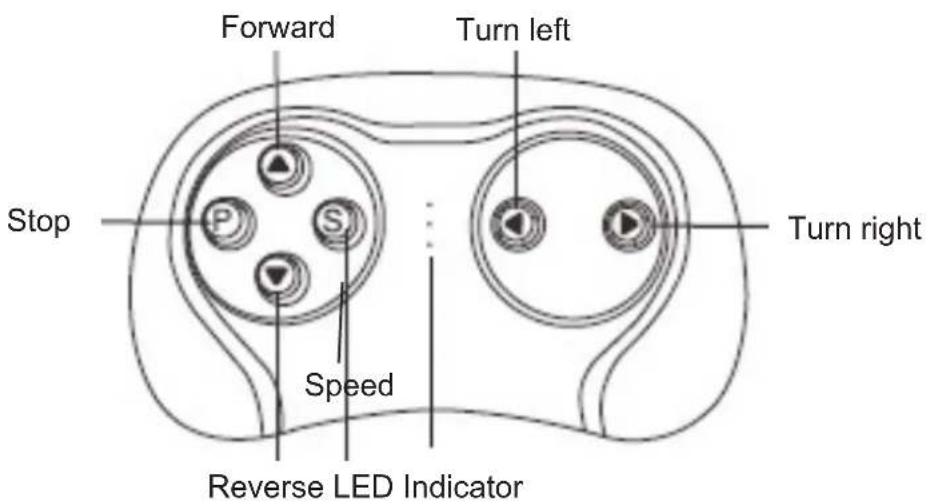

Forward Turn left Stop P S Speed Reverse LED Indicator Turn right

The remote control operation always prior to the toot pedals operation. (The foot pedal won't work while operating remote control)

1. Turn off the Power Switch on the car.
2. Remove the battery cover on the Remote Control and put in 2 AAA battery, the three LED indicators will flash.
3. Turn on the Power Switch on the car, when the LED indicators stop flashing and 2 of them are on, matching successes.
4. Once the matching is made, there is no need to match code again only if the battery is replaced.
5. The Remote Control will enter a sleep mode if not used for a long time and the LED indicators will be off. Press any buttons to wake up the Remote Control, and it can be used normally.

Direction for use

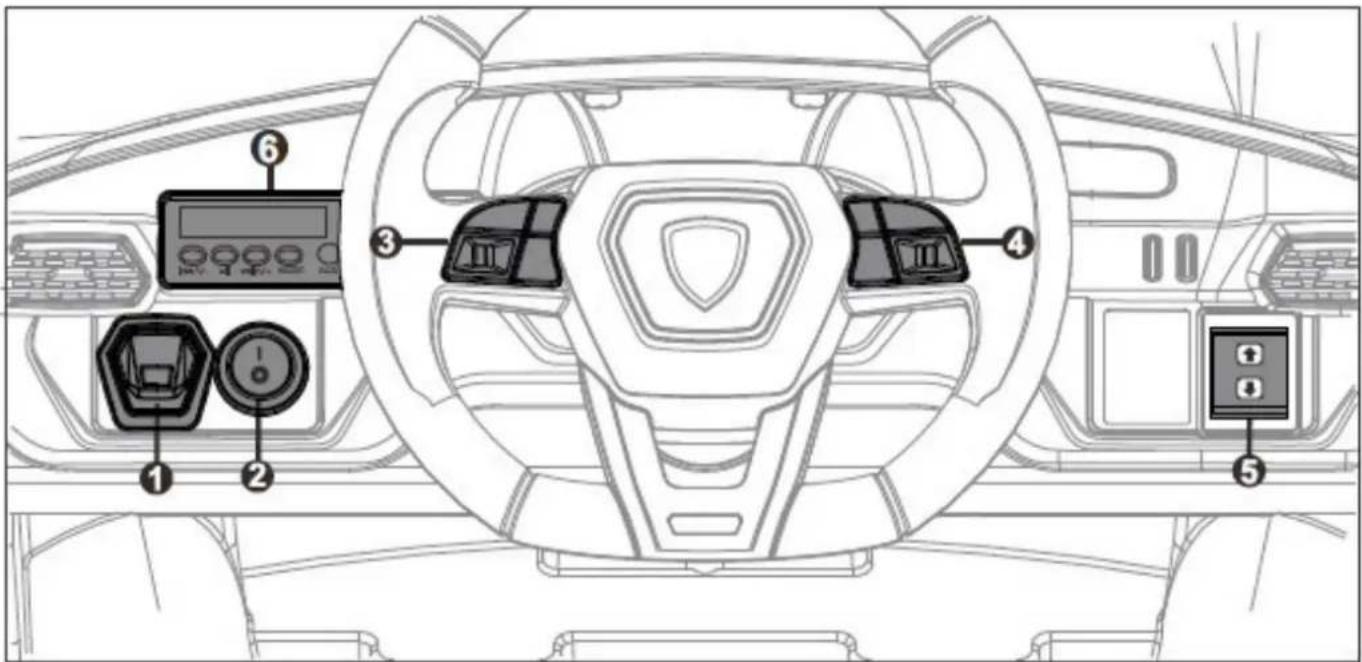

3. Instruction of each switch and function button.

Diagram of car interior with labeled dashboard and control panel, showing numbered components for vehicle status or function.

1. Power switch: Turn on or turn off the power.
2. Light switch: I is turn on, O is turn off.
3. Music button: press the button to play music. long press the music button can increase the volume.
4. Horn button: press the button to play the horn. long press the horn button can reduce the volume.
5. Forward/backward switch: press the button for controlling the Vehicle to move forward, backward.
6. Mp3 multifunctional player

4. Operation guide for Manual control (forward, backward):

After the driver is seated, press the power switch, the car will send out a starting sound (2-5 seconds). Put the Forward/Backward switch into the position of "forward" (Press forward), step on the foot switch the car will move forward, loosen the pedal and the car will stop. Put the Forward/ Backward switch into the position of "Backward", step on the foot switch and the car will move backward, loosen the pedal and the car will stop.

Direction for use

1. Instruction for MP3 multifunction player.

A B USB C D E F G V-/- V+/+ MODE AUX

A. Voltage display screen: The value on the display be used to determine whether the battery needs to be charged.

B. USB connector: Insert USB will play the music inside. Only MP3 mode is supported.

C. Last channel/volume down: short press to play the last channel, long press to lower the volume.

D. Long press this botton will search radio station. Short press this botton is pause.

E. Next channel / volume up: short press to play the next channel, long press to increase the volume.

F. Mode switch button: Music mode and radio mode.

G. AUX connector: Connect with other removable device to play audio file valid in MP3 mode.

I. FM function: Press the MODE key to enter the FM mode, long press on ▶II to search the channel (it needs around 1 minute), after that it will automatically lock the radio channel, and it has the memory function, the channel info will not loose even when you turn of the power. ( Please repeat this operating steps if you want to research the channel). Short press on ▶II is pause, ▶▶▶ I/V+ will play next channel, I◀◀ /V- will play last channel, and the music key on steering wheel can also switching the radio channel.

Door switch High/low speed switch Charging Jack

6. The illustration of high/low speed.

The hi/lo speed swith into the position of "low speed", step on the foot switch the car will move forward slowly, loosen the pedal the car will stop. Put the hi/lo speed switch into the position of "high speed", step on the foot switch and the car will move forward fast, loosen the pedal the car will stop.

7. Instructions of the recoverable fuse.

Resettable fuse: when the current exceeds a certain ratting, the recoverable fuse will automatically cut off the power supply for 5-10 seconds, the the current will be resupplied.

Pure technical diagram of a rectangular electronic component with mounting holes and a central rectangular slot (no text or symbols)

8. Charging instructions

WARNING

Please plug wall charger directly into a wall outlet. Do not use anextension cord.

Charge Time ③ 12 20+

When the battery power is low, please charge immediately. The charging port is under the seat. (Note: Toys can not be operated in the charging state. Toys should be charged by adult).

Line drawing of a concept car with sleek design and front headlights (no text or symbols)

Aldersgruppe: 37 -	96 måneder Batteri:		12V 4.5AH (6-FM-4.5 (AH) *1
Maks. belastning 28	kg Størrelse bil: 105 x 65	x 52 cm
Hastighed: 2 - 4 km/h Størrelse karton: 110		x 65 x 33 cm
Materiale:	PP (polypropylene) og jern	Maks. temperatur:	60° grader
Input: 110V Lader: Output:	- 240V Ladetid: 8 - 12 timer
	DC 12V 500 MA/ Sikring	Motor 3A
		Levetid: 2 - 300	opladninger

D Y ③ ② ① R Q D Front

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

H ② ① G ③ ③ G ① ② H H ⑥ ⑤ G ④ ④ G ⑤ ⑥ H L Front

Montering

A M S ① ③

Trin 5: Montering af rat

Diagram of an electrical connector assembly with labeled components and wiring connections

Technical diagram showing car seat assembly with labeled parts and tool icons

Diagram of an electronic device with labeled components and a screwdriver icon, showing internal wiring and battery status indicators.

Diagram of car interior with labeled dashboard and control panel, showing numbered components for vehicle status or function.

Pure technical diagram of a rectangular component with mounting holes and central rectangle (no text or symbols)

8. Opladning.

ADVARSEL

Line drawing of a concept car with sleek design and front headlights, no text or symbols present

Åldersgrupp: 37 -	96 månader Batteri:		12V 4.5AH (6-FM-4.5 (AH) *1
Maxbelastning: 28	kg Storlek bil: 105 x 65 x 52 cm
Hastighet: 2 - 4 km/h Storlek kartong: 110 x 56 x 33 cm
Material:	PP (polypropylene)och järn	Maxtemperatur: 60° grader
Input: 110V	- 240V Laddtid: 8 - 12 timmar
Laddare: Output:	DC 12V 500 MA/ Säkring: Bil 3A
		Livslängd: 2 - 300 laddninger

D Y ③ ② ① ③ Q R D Front

Technical diagram of a vehicle suspension system with numbered components and directional arrows indicating motion or movement.

H ② ① G ③ ③ G ① ② H H ⑥ ⑤ G ④ ④ G ⑤ ⑥ H L Front

Montering

A M S ① ③

Diagram of an electrical wiring harness with labeled components including connectors, switches, and connectors numbered 1 to 4.

Technical diagram showing car interior components with labeled parts and exploded views, including a screwdriver tool.

Diagram of an electronic device with labeled components and a screwdriver icon, showing internal wiring and battery status indicators.

Diagram of car interior with labeled dashboard and control panel, showing numbered components for navigation or system control.

Pure technical diagram of a rectangular electronic component with mounting holes and a central rectangular slot (no text or symbols)

8. Laddning

WARNING

Line drawing of a concept car with sleek design and front headlights, no text or symbols present

D Y ③ ② ① ② ③ Q R D Eloasa

Technical diagram of a ship's deck structure with numbered components and directional arrows indicating motion or assembly.

H ② ① G ③ G ① ② H H ⑥ ⑤ G ④ ④ G ⑤ ⑥ H Etuosa L

Asennus vaiheittain

A M S ① ③

Diagram of an electrical wiring harness with labeled components including connectors, switches, and connectors numbered 1 to 4.

Technical diagram showing car seat assembly with labeled parts and exploded view, including screwdriver and coordinate axes.

Diagram of an electronic device with labeled components and a screwdriver icon, showing internal wiring and battery status indicators.

Diagram of a car dashboard with labeled control panels and buttons, showing numbered components for vehicle function.

Pure technical diagram of a rectangular electronic component with mounting holes and a central rectangular slot (no text or symbols)

8. Latausohjeet

VAROITUS

Technical diagram showing front and side views of a vehicle's seat assembly with labeled controls and directional indicators.

Front view of a white and black URU5 electric vehicle with headlights on, no visible text or symbols on the body.
