| Produkttyp | Multifunktionslaserdrucker (Schwarzweiß) |
| Modell | MFC-L2880DW |
| Marke | Brother |
| Abmessungen (B x T x H) | Ca. 410 x 420 x 340 mm |
| Gewicht | Ca. 11,5 kg |
| Stromversorgung | 220-240 V AC, 50/60 Hz |
| Leistungsaufnahme (Drucken) | Ca. 600 W |
| Leistungsaufnahme (Bereitschaft) | Ca. 5 W |
| Drucktechnologie | Laser, Schwarzweiß |
| Druckgeschwindigkeit | Bis zu 32 Seiten/Minute (A4) |
| Druckauflösung | Bis zu 1200 x 1200 dpi |
| Papierfachkapazität | 250 Blatt |
| Multifunktionen | Drucken, Scannen, Kopieren, Fax |
| Konnektivität | Wi-Fi, Ethernet, USB 2.0, Wi-Fi Direct |
| Display | 2,7-Zoll-Farb-Touchscreen |
| Toner | TN-2480 (ca. 1.200 Seiten) |
| Trommel | DR-2480 (ca. 12.000 Seiten) |
| Netzwerkmanagement | Brother Web Connect, AirPrint, Mopria |
| Sicherheit | Netzwerkkennwort, sicherer Druck, Zugriffskontrolle |
| Reparierbarkeit | Toner und Trommel separat austauschbar; Ersatzteile erhältlich |
| Wartung | Reinigung der Trommel und Koronadrähte; Austausch von Verbrauchsmaterialien |
Häufig gestellte Fragen - MFC-L2880DW BROTHER
Benutzerfragen zu MFC-L2880DW BROTHER
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Drucker kostenlos im PDF-Format! Finden Sie Ihr Handbuch MFC-L2880DW - BROTHER und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. MFC-L2880DW von der Marke BROTHER.
BEDIENUNGSANLEITUNG MFC-L2880DW BROTHER
D02UV1001-00 OCE/ASA/GLF/TWN Version 0
EN
Quick Setup Guide
brother
HL-L2464DW / DCP-L2605DW / DCP-L2600D / DCP-L2625DW / DCP-L2640DW / DCP-L2680DW / HL-L2480DW / MFC-L2800DW / MFC-L2805DW / MFC-L2806DW / MFC-L2820DW / MFC-L2861DW / MFC-L2885DW / MFC-L2886DW / MFC-L2880DW / MFC-L2880DWXL / MFC-L2920DW
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct installation procedure. Not all models are available in all countries.
The latest manuals are available at the Brother support website: support.brother.com/manuals
Unpack the machine and check the components
Remove the protective tape or film covering the machine and the supplies.
Toner Cartridge and Drum Unit Assembly
Quick Setup Guide
AC Power Cord
Product Safety Guide
NOTE:
- The components included in the box may differ depending on your country.
- The available connection interfaces vary depending on the model. If you use a wired connection, you must purchase the correct cable for the interface you want to use.
- USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than 2 metres long.
• Network cable (for wired network models only)
Use a straight-through Category 5 (or greater) twisted-pair cable.
- The screens and images in this Quick Setup Guide show the MFC-L2885DW.
- Save all packing materials and the box in case you must ship your machine.
1 Remove the packing materials and install the toner cartridge and drum unit assembly
Remove the orange part.


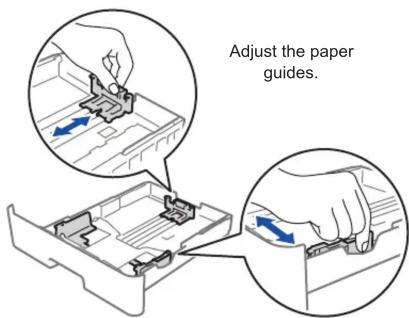

Illustration of a printer with a blue arrow indicating the press or operation (no text or symbols present)2 Load paper in the paper tray
Do not exceed this mark.


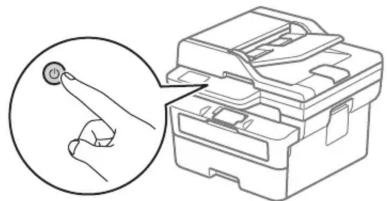

Diagram showing a printer inserting into a tray with a blue arrow indicating the motion (no text or symbols present)3 Connect the power cord and turn the machine on
After turning the machine on, you may be required to set your country or language (depending on your machine).
If required, follow the on-screen instructions.
5 Select your language (if needed)
■ For LCD models:
- Press Menu.
- Press ▲ or ▼ to display [Initial Setup], and then press OK.
- Press ▲ or ▼ to display [Local Language], and then press OK.
- Press ▲ or ▼ to select your language, and then press OK.
- Press Stop/Exit.
■ For touchscreen models:
- On the machine's touchscreen, press ⚫[Settings] > [All Settings] > [Initial Setup] > [Local Language].
- Select your language.
- Press
6

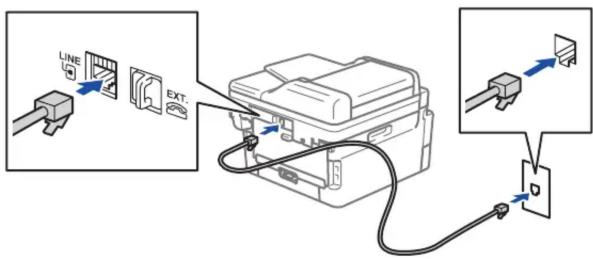

Connect the telephone line cord (For MFC models only)
If you do not plan to use the fax feature on this machine, go to step .7
7 Connect your computer or mobile device to your machine
Follow these steps to complete the setup using one of the connection types available on your machine.

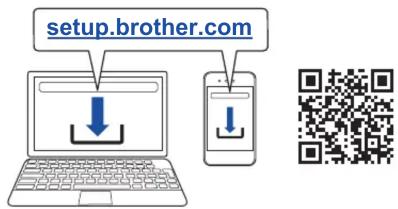

Visit setup.brother.com to download and install Brother software.
Follow the on-screen instructions and prompts.
Setup Finished
You can now print and scan using your machine.
Important Notice for Network Security: The default password to manage this machine's settings is located on the back of the machine and marked "Pwd". We recommend immediately changing the default password to protect your machine from unauthorised access.
NOTE:
For Windows only, CD installation is also available (for some countries).
Can't Connect? Check the following:
Wireless network
Wired network
USB connection
Restart your wireless access point or router. If this is not possible, go to the next step.
Disconnect the cable.
Restart your machine and computer, and then go to 7
▶
If still unsuccessful, go to .8
If still unsuccessful, visit support.brother.com for FAQs and Troubleshooting.
8 Manual wireless setup (Wireless models)
If the wireless setup is unsuccessful, set up the connection manually.
Find your SSID (Network Name) and Network Key (Password) on your wireless access point or router and write them in the table provided below.
| SSID (Network Name) | |
| Network Key (Password) |
If you cannot find this information, ask your network administrator or wireless access point or router manufacturer.
■ For LCD models: Press Menu, and then select [Network] > [WLAN(Wi-Fi)] > [Find Network]. Follow the LCD instructions.
■ For touchscreen models: Press > [Find Wi-Fi Network]. Follow the touchscreen instructions.
Select the SSID (Network Name) for your access point or router and enter the Network Key (Password).
- For LCD DCP models: Press and hold (or press repeatedly) ▲ or ▼ to select one of the following characters: 0123456789abcdefghijklmnopqrstuvwxyz ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ (space)!"#\$%&')*+,-./;;<=>?@[]^_'{}\~
(space)!"#\$%&'()*+,-./:;<=>?@[]\^_'{}\~
When the wireless setup is successful, the touchscreen/LCD displays [Connected].
If the setup is unsuccessful, restart your Brother machine and your wireless access point or router, and repeat 8. If still unsuccessful, visit support.brother.com.
Go to to install software.
