| Produkttyp | Mini-Komponentensystem (Lautsprecher und Subwoofer) |
| Marke und Modell | SHARP CD-BHS1050 |
| Abmessungen (Hauptgerät) | 260 mm × 332 mm × 345 mm |
| Gewicht (Hauptgerät) | 4,6 kg |
| Stromversorgung | AC 120 V ~ 60 Hz |
| Leistungsaufnahme | 95 W |
| Ausgangsleistung (RMS) | Gesamt 200 W (100 W pro Kanal bei 6 Ohm, 1 kHz, 10 % THD) |
| Subwoofer-Leistung (RMS) | 150 W bei 4 Ohm, 70 Hz, 10 % THD |
| Lautsprecher | Front: 2-Wege, 5 cm Hochtöner, 13 cm Tieftöner, 6 Ohm; Subwoofer: 16 cm Tieftöner, 4 Ohm |
| Bluetooth | Version 2.1+EDR, Profile A2DP und AVRCP, Reichweite ca. 10 m |
| CD-Player | 5-Disc Multi-Player, kompatibel mit CD, CD-R/RW, MP3/WMA |
| Kassettendeck | Wiedergabe, Normalband (kein CrO2/Metall) |
| USB | MP3/WMA, FAT16/32, max. 65025 Dateien, 999 Ordner |
| Tuner | FM (87,5 – 108 MHz) und AM (530 – 1710 kHz), 40 Senderspeicher |
| Reinigung | Gehäuse mit weichem Tuch und verdünnter Seifenlösung; CD-Linse mit handelsüblichem Reiniger |
| Sicherheitshinweise | Netzstecker bei Gewitter ziehen; keine Flüssigkeiten in das Gerät gelangen lassen; nur trockenes Tuch verwenden |
| Reparatur und Wartung | Nur durch qualifiziertes Servicepersonal; keine eigenmächtigen Eingriffe |
| Garantie (USA) | 1 Jahr Teile und Arbeit (ab Kaufdatum) |
| Zubehör im Lieferumfang | Fernbedienung, AM-Rahmenantenne, FM-Antenne (keine Batterien) |
| Besonderheiten | NFC-Kopplung, automatische Abschaltung nach 15 min Inaktivität, ECO-Modus |
Häufig gestellte Fragen - CD-BHS1050 SHARP
Benutzerfragen zu CD-BHS1050 SHARP
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Lautsprecher kostenlos im PDF-Format! Finden Sie Ihr Handbuch CD-BHS1050 - SHARP und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. CD-BHS1050 von der Marke SHARP.
BEDIENUNGSANLEITUNG CD-BHS1050 SHARP
MODEL
CD-BHS1050
MINI COMPONENT SYSTEM
OPERATION MANUAL
CD-BHS1050 Mini Component System consisting of CD-BHS1050 (main unit), CP-S1050 (front speaker) and CP-SW1050 (subwoofer)
Bluetooth®
MP3
● This audio system supports devices with Android 4.1, Jelly Bean and higher.
- For device with a lower Android version, refer the operation manual of the device for recommended app (application).
Accessories
Please confirm that only the following accessories are included.
Remote control x 1 (RRMCGA397AWSA)
AM loop antenna x 1 (QANTLA016AW01)
FM antenna x 1 (92LFANT1535A)
Special Note
Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
For users in U.S.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol, an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
This product is classified as a CLASS 1 LASER PRODUCT Caution - Use of any controls, adjustments or procedures other than those specified herein may result in h radiation exposure.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not approved by the party responsible for compliance could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement
This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. It must not be co-located or operating in conjunction with any other antenna or transmitter. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
This equipment should be installed and operated mum distance of 20 cm between the radiator and person's body.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected grounding system of the building, as close to the cable entry as practical.
FOR YOUR RECORDS
within
For your assistance in reporting this unit in case of loss or theft, please record below the model number and serial number which are located on the rear of the unit. Please retain this information.
Model number ....
Serial number ....
Date of purchase ....
Place of purchase ....
The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by SHARP is under licc Other trademarks and trade names are those of their respective owners.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in countries.
IMPORTANT SAFETY INSTRUCTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the
frequency instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life product, please read the following precautions carefully before use.
does 1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufac-with- auremini-
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
IMPORTANT SAFETY INSTRUCTIONS (continued)
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Required when the apparatus has been damaged in any way such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not mally, or has been dropped.
Additional Safety Information
15) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For product intended to operate from battery power, or other sources, refer to the operating instructions.
16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch voltage points or short-out parts that could result in a fire or electric shock.
To prevent fire or shock hazard, do not expose this appliance to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
18) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel the following conditions:
a. When the AC cord or plug is damaged,
b. If liquid has been spilled, or objects have fallen into the product,
c. If the product has been exposed to rain or water,
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,
e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a distinct change in performance this indicates a need for service.
19) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same character the original part. Unauthorized substitutions may result in electric shock, or other hazards.
20) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
21) Wall or ceiling mounting - When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
22) Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
23) Protective Attachment Plug - The product is equipped with an attachment plug having overload protection. This is feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.
24) Stand - Do not place the product on an unstable tripod or table. Placing the product on an unstable b
Servicingausis the product to fall, resulting in serious personal injuri way, as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to
operafelownthe manufacturer's instructions. Use only the mou hardware recommended by the manufacturer.
Precautions
General
- Please ensure that the equipment is positioned well ventilated area and ensure that there is 4" (10 cm) of free space along the sides, top and back of the equipment.
- Do not place subwoofer system on the same surface as the main unit to prevent sound interruption during playback.
●The unit will start the tape initialization when plugged in to the AC outlet. During this process, initializing sound will be heard and the unit cannot be turned on. V until the process is finished.
●Use the unit on a firm, level surface free from vibration. - Place the speakers at least 12" (30 cm) away any CRT TV to avoid color variations across screen. If the variations persist, move the speaker further away from the TV. LCD TV is not prone to such variation.
- Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity and statistics as electronic/electrical equipment (home computers, fire, facsimiles, etc.) which generate electrical noise.
●Do not place anything on top of the unit.
- Do not expose the unit to moisture, to temp higher than 140^ (60°C) or to extremely low temperatures.
- If your system does not work properly, disconnect the AC power cord from the AC outlet. Plug the AC power cord back in, and then turn on your system.
●In case of an electrical storm, unplug the unit for safety.
●Hold the AC power plug by the head when removing it from the AC outlet, as pulling the cord can damage internal wires.
●The AC power plug is used as a disconnect device and shall always remain readily operable.
- Do not remove the outer cover, as this may result in electric shock. Refer internal service to your local SHARP service facility.
● This unit should only be used within the range of 41^ F - 95^ F ( 5^ C - 35^ C).
Precautions (continued)
Warning:
The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.
Volume control
The sound level at a given volume setting speaker efficiency, location and various other factors. It is advisable to avoid exposure to high volume levels, which occurs while turning the unit on with the setting up high, or while continually listening volumes. Excessive sound pressure from earphones and headphones can cause hearing loss.
deper
volume
at h
For U.S. customer only
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when ship in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO.
Model Specific Section
Your Product Model Number & Description:
Warranty Period for this Product:
Additional Item(s) Excluded from Warranty Coverage (if any):
Where to Obtain Service:
What to do to Obtain Service:
CD-BHS1050
Mini Component System
(Be sure to have this information available when you need service for your Product.)
One (1) year parts and labor from the date of purchase.
Non-functional accessories, supplies, and consumable items.
At a Sharp Authorized Servicer located in the United States. To find a location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.
Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP
SHARP ELECTRONICS CORPORATION
1 Sharp Plaza, Suite 1, Mahwah, NJ 07495-1123

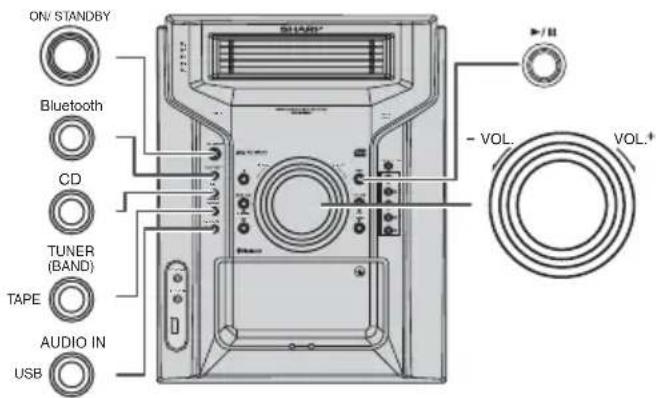

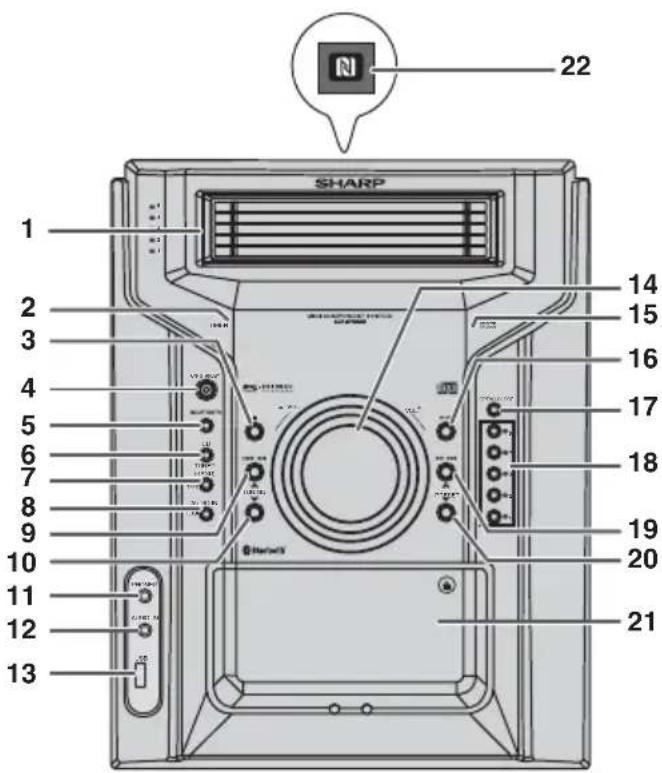

Front Panel
- Disc Trays
- Timer Indicator
- CD / USB, Tape Stop Button
- On/Standby Button
- Bluetooth Button
- CD Button
- Tuner (Band) / Tape Button
- Audio In / USB Button
- Track Down or Fast Reverse, Tape Rewind, Tuning Up Button
- Tuning Down Button
- Headphone Jack
- Audio In Jack
- USB Terminal
- Volume Control
- Remote Sensor
- Play or Pause Button
- Disc Tray Open / Close Button
- Disc Number Select Buttons
- Track Up or Fast Forward, Tape Fast Forward, Preset Up Button
- Preset Down Button
- Cassette Compartment

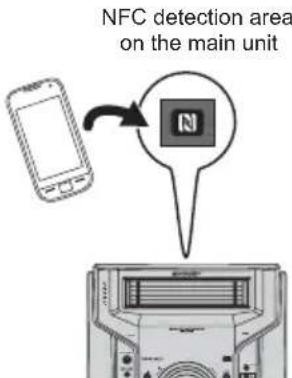

- NFC detection area

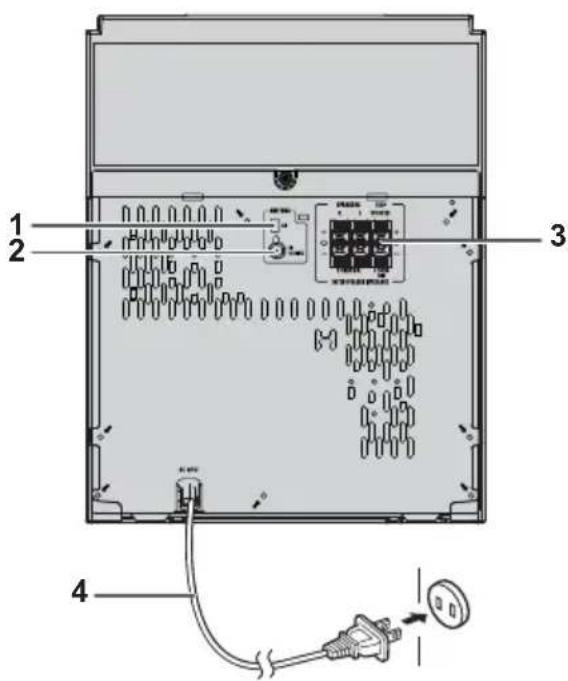

■Rear Panel
- FM 75 Ohms Antenna Jack
- AM Loop Antenna Terminal
- Speaker and Subwoofer Terminals
- AC Power Cord
Controls and indicators (continued)
■Speaker System
- Tweeter
- Woofer
- Bass Reflex Duct
- Speaker Wire
Subwoofer
- Woofer
- Bass Reflex Duct
- Speaker Wire

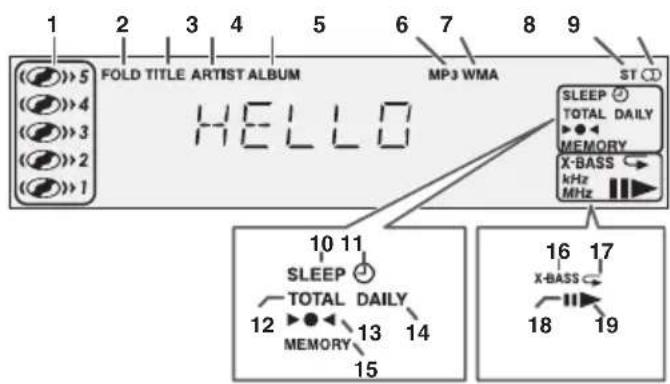

■Display
- Disc Number Indicators
- Folder Indicator
- Title Indicator
- Artist Indicator
- Album Indicator
- MP3 Indicator
- WMA Indicator
- FM Stereo Mode Indicator
- FM Stereo Receiving Indicator
- Sleep Indicator
- Timer Play Indicator
- Total Indicator
- Tuning FM/Bluetooth pairing indicator
- Daily Timer Indicator
- Memory Indicator
- Extra Bass Indicator
- Repeat Play Indicator
- Pause Indicator
- Play Indicator

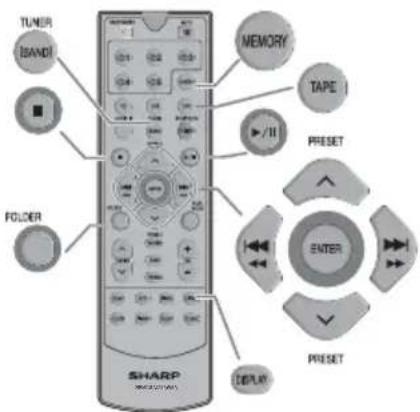

■Remote Control
- Remote Control Transmitter
- On / Standby Button
- Disc Number Select Buttons
- USB Button
- CD Button
- Audio In Button
- Preset Up Button
- CD/USB/Tape Stop Button
- Disc Track Down or Fast Reverse, Tape Rewind Button
- Folder Button
- Preset Down Button
- Tuning Up Button
- Tuning Down Button
- Treble Button
- Demo Button
- Eco Button
- Clock Button
- Timer Button
- Mute Button
- Memory Button
- Tape Button
- Bluetooth/Pairing Button
- Tuner [Band] Button
- Play/Pause Button
- Enter Button
- Disc Track Up or Fast Forward, Tape Fast Forward Button
- Play Mode Button
- X-Bass Button
- Volume Up Button
- Volume Down Button
- Bass Button
- Display Button
- Dimmer Button
- Clear Button
- Sleep Button
System connection
Make sure to unplug the AC power cord before making any connections.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
■Speaker connection
- speaker terminal red wire
- speaker terminal black wire
●If you use other speakers with an than that specified, the unit may be damaged. Front speakers: 6 ohms, Subwoofer: 4 ohms.
●Do not mistake the right and the left right speaker is the one on the right face the unit.
● Never mistake the FRONT SPEAKERS and the SUB-WOOFER terminals. The unit or the speakers may be damaged.
●Do not let the bare speaker wires touch each other.
●Do not allow any objects to fall into or to be placed in the bass reflex ducts.
●Do not stand or sit on speakers. You may be injured.
Incorrect
■Antenna connection
Supplied FM antenna:
Connect to the FM 75 ohms jack and position reception is best.
External FM antenna:
edance anv external FM antenna (75 ohms coaxial cable) for better reception. Disconnect the supplied FM antenna wire before use.
chang supplied to M loop antenna:
side Connect to the AM terminal and position it where reception is best. Place it on a shelf, etc., or attach it to a stand or a wall with screws (not supplied).
Installing the AM loop antenna
< Attaching to the wall >< Assembling >
Screws (not supplied)
Note:
Keep the antenna away from the unit or AC power cord to avoid noise pickup.
System connection (continued)
■Demonstration mode
● The first time the unit is plugged in, it will enter the demonstration mode. You will see words scroll.
●To cancel the demonstration mode, press the DEMO button (remote control) once. The unit will Bluetooth standby mode.
● To cancel the Bluetooth standby mode, press the ECO button (remote control). The unit will enter power consumption mode.
● To return to the demonstration or Bluetooth standby mode, press the DEMO button again.
● During demonstration or Bluetooth standby mode, NFC function is activated once your device the NFC detection area.
■AC power connection
After all connections have been made correctly, plug the AC power cord into the AC outlet.
Note:
Unplug the AC power cord from the AC outlet if the unit will not be in use for a prolonged period of time.
the low
Remote control
■Battery installation
Use 2 "AAA" size batteries (UM/SUM-4, R3, similar). Batteries are not included.
1 Open the battery cover.
2 Insert the batteries according to the terminal indicated in the battery compartment.
When inserting or removing the batteries, toward the (−) battery terminals.
3 Close the cover.
●Replace all old batteries with new ones at the same time.
●Do not mix old and new batteries.
- Remove the batteries if the unit will not be used for a long period of time. This will prevent potential damage due to battery leakage.
●Do not use rechargeable batteries (nickel-cadmium battery, etc.).
●Installing the batteries incorrectly may cause the unit to malfunction.
●Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
Note:
Notes concerning use:
- Replace the batteries if the operating distance is reduced or if the operation becomes erratic. Purchase 2 "AAA" size batteries. (UM/SUM-4, R3, HP-16 or similar)
●Periodically clean the transmitter on the remote control and the sensor on the unit with a soft cloth.
●Exposing the sensor on the unit to strong light may interfere with operation. Change the lighting or the direction of the unit if this occurs. - Keep the remote control away from moisture, heat, shock, and vibrations.
■Test of the remote control
Check the remote control after checking all the connections. HP-16 or Point the remote control directly at the remote sensor on the unit. The remote control can be used within the range shown below:
Exposing the infrared remote control to direct sunlight may cause the remote control to be inoperable.
General control
■ To turn the power on
The first time the unit is plugged in, the unit will enter the demonstration mode.
| Function Main unit | Remote control | Operation | |
| Power on/off |  |  | Press to turn the power on or to go to standby mode. |
| Demo /Bluetooth Standby | —— |  | Press to enter demonstration or Bluetooth standby mode. |
| Eco mode | —— |  | Press to enter low power consumption mode. |
Note:
During demonstration or Bluetooth standby mode, N function is activated once your device touches detection area.
■ Display brightness control
To dim the display brightness, press the DIMMER button on the remote control.
DIMMER 1 (Display is dim). DIMMER 2 (Display gets dimmer). DIMMER OFF (Display is bright).
Volume auto fade-in
If you turn off and on the main unit with the volume set to 27 or higher, the volume starts at 16 and fades in to the last set level.
Volume control
Turn the volume knob toward VOL. +/- (on main unit) or press VOL +/- (on remote control) to increase or decrease the volume.
■ Muting
To mute the volume, press the MUTE (※) button (remote control).
Press again to restore the volume.
■ Bass control (X-BASS)
When the power is first turned on, the unit will enter the extra bass mode which emphasizes the bass frequencies, and "X-BASS" will appear. To cancel the extra bass mode, press the X-BASS button.
■ Bass control
1 Press the BASS button to select "BASS".
2 Within 3 seconds, press the VOL (+ or -) button to adjust the bass.
Treble control
1 Press the TREBLE button to select "TREBLE".
2 Within 3 seconds, press the VOL (+ or -) button to adjust the treble.
■ Auto power on function
When you press any of the following buttons, the unit turns on.
- Bluetooth, CD, USB, AUDIO IN, TUNER (BAND), TAPE button (main unit/remote control): Selected function is activated.
- // button (main unit): The unit turns on and playback of the last function will start (Bluetooth, CD, AUDIO IN, TUNER, TAPE).
■ Auto power off function
The main unit will enter the standby mode after 15 minutes of inactivity during:
NFAUDIO IN: No detection of input signal or very low sound as theibility.F.C
CD / USB / TAPE: In the stop mode.
Bluetooth: In the pause or stop mode and no signal from a source device.
Bluetooth one touch connection via NFC
■About NFC technology
Near Field Communication (NFC) is a set of standards for devices (smartphones/tablets) to establish radio communication with each other by touching/tapping them together or bringing them into close proximity.
Using NFC in this product simplifies the pairing method of Bluetooth connectivity.
Notes for Android Device.
●This audio system supports NFC-enabled device with Android 4.1, Jelly Bean and higher.
●For device with a lower Android version operation manual of the device for recommended app (application).
Unlike other wireless technology, NFC requires no discovery or pairing.
Simply tap the source device to the NFC detection area to instantly enjoy seamless connectivity between your smart device and the audio system.
■NFC detection area
NFC detection area location may vary depending on the device (smartphone/tablet). Refer operation manual of the device for detail.
refer the
■NFC connection for audio playback
Check that:
●Your device (smartphone/tablet) has an NFC function.
●NFC function on your device is enabled.
●Screen lock function of the device is off.
●This unit is not in low power consumption (ECO) mode.
●Your device must be within 10 meters from the unit.
1 Touch your device to the NFC detection area on the main unit.
2 A pop-up window asking whether to proceed with Bluetooth connection appears on the device. Select
●The 'connected' message appears when the connection is complete.
3 Press play (on remote control or source device).
●Sound will be heard from the speakers of this unit via audio streaming.
●Your device must be within 10 meters from the unit.
| Various Bluetooth operation buttons (remote control only) | |
 | Press the button to play or pause. |
 | Press the button to track up.Press and hold to fast forward. |
 | Press the button to track down.Press and hold to fast reverse. |
Notes:
● To disconnect, simply touch your device to the NFC detection area on the main unit again.
● This product switches to Bluetooth function automatically when NFC tagging is done by your device.
- If your device does not support NFC, or if you wish to listen to audio via Bluetooth connectivity without NFC; refer "Pairing with other Bluetooth source devices" on the next page.
- Some Bluetooth devices will connect to this product automatically when the device or its Bluetooth mode was turned on. In such case, it will also change the function selection of this product. If you do not want it to connect automatically, please disable Bluetooth on your device.
- It takes about 6-8 seconds for a Bluetooth enabled device (eg. smartphone) to establish Bluetooth connection with this unit via NFC or manual connection.
- If "Empty tag" or similar message appears on your device, touch the device again to the NFC detection area on the main unit.
Listening to Bluetooth enabled devices
Bluetooth
Bluetooth wireless technology is a short-range technology that enables wireless communication between various types of digital devices, such as mobile phone or computer. It operates within a range of about 32 feet (10 meters) without the hassle of having to use cables to connect these devices.
This unit supports the following:
Communication System: Bluetooth Specification v 2.1 Bluetooth + Enhanced Data Rate (EDR). Support Profile : A2DP (Advanced Audio Distribution Profile) and AVRCP (Audio/Video Remote Control Profile)
Notes when using unit with a mobile phone
●This unit cannot be used to talk over the telephone even when there is a Bluetooth connection made to a mobile phone.
●Please refer to the operating manual supplied with the mobile phone for details on operation of you phone while transmitting the sound using a connection.
■ Pairing Bluetooth devices
Blued both devices need to be initially paired first before they can exchange data. Once paired, it is not necessary to pair them again unless:
●pairing is made with more than 99 devices.
Pairing can only be made one device at unit can be paired to a maximum of 99 devices. If subsequent device is paired, the oldest device paired, will
versionbe deleted and replaced with the new one.
- this unit is reset. All pairing information is deleted when unit is reset.
●pairing information is deleted while repairing, etc.
Indicators:
| Indicator Condition Bluetooth status | ||
| Lights up | Connected | |
| r mobile Bluetooth No indication Unconnected | ||
Bluetooth
However, the indicator status is not displayed during Bluetooth standby mode.
■ Pairing with other Bluetooth source devices
1 Press the ON/STANDBY button to turn the power on.
2 Press the BLUETOOTH button on the main unit or BLUETOOTH (PAIRING) on the remote control to select Bluetooth function. "BLUETOOTH" appears on the display.
3 Perform pairing procedure on the source device to detect this unit. "CD-BHS1050 SHARP" will appear in the detected devices list (if available) in the source device. (Refer the source device operating manual for details).
● Place the devices to be paired within 3 feet (1 meter) of each other when pairing.
●Some source devices are unable to display lists of detected devices. To pair this unit with the source device, refer to the source device operating manual for details.
4 Select "CD-BHS1050 SHARP" from the source list. If Passcode* is required, enter "0000".
* Passcode may be called PIN Code, Passkey number or Password.
5 Pairing indicator light up once the unit is successfully paired with the source device. (Pairing information is now memorized in the unit.) Some audio source devices may connect with the unit automatically after pairing is completed, otherwise follow the instructions in the source device operating manual to start connection.
6 Press play (on remote control or source device) to start Bluetooth streaming playback.
Notes:
Listening to Bluetooth enabled devices (continued)
Notes:
- If a device such as microwave oven, wireless LAN card, Bluetooth device or any other device that uses the same 2.4 GHz frequency near the system some sound may be heard.
- The transmission distance of the wireless signal between the device and the main unit is about 32 feet (10 m), but may vary depending on your operating environment. If a steel concrete or metallic wall is between the device and the main unit, the system may not operate at all, because the wireless signal cannot penetrate metal.
- If this unit or the source device is turned off before Bluetooth connection is completed, pairing will not be completed and the pairing information will not be memorized. Repeat step 1 onward to start pairing again.
- To pair with other devices, repeat steps 1 - 4 for each device. This unit can be paired to a maximum of 99 devices. If subsequent device is paired, the oldest device paired, will be deleted and replaced with the new one.
- Once a device is ousted or deleted from the pairing list, the pairing information for the device is also deleted. To listen to the sound from the device again, it needs to Perform steps 1 - 4 to pair the device again.
- CD-BHS1050 supports Bluetooth profile AVRCP 1.4. If your device supports the same profile (refer to device turer's specification), CD-BHS1050 is able to control the volume of the device.
Note:
Some music applications do not support this feature, hence there will be no volume synchronisation between vice and the unit even if your Bluetooth device supports such profile.
■Listening to the sound
Check that:
interruption
● The source device Bluetooth functionality is ON.
●Pairing of this unit and the source device is completed.
●Unit is in connected mode.
1 Press the ON/STANDBY button to turn the power on.
2 Press the BLUETOOTH button on the main unit or BLUETOOTH (PAIRING) button on the remote control to select Bluetooth function.
3 Start the Bluetooth connection from the Bluetooth audio source device.
4 Press play (on remote control or source device).
Notes:
- For various Bluetooth operations, refer "NFC connection for audio playback" on page 10.
- If the source device has an extra bass function or repaired, equalizer function, set them to off. If these functions are on, sound may be distorted.
Notes:
- Make the Bluetooth connection again if the source device is not turned on, or its Bluetooth functionality is off or is in sleep mode.
● The volume of this unit may not be controlled as intended depending on the device.
■ To disconnect the Bluetooth device
Perform any of the followings.
- Disconnect the Bluetooth connection on the audio source device.
Refer the operating manual supplied with the device. - Turn off the Bluetooth audio source device.
- Turn off this unit.
- Press and hold the BLUETOOTH (PAIRING) button on the remote control.
■Auto power on
During Bluetooth standby mode, the unit will automatically power on when the Bluetooth connection has been set up between the main unit and your device.
Note:
This function is not applicable during low power consumption (ECO) mode.
Listening on Android™ devices
■Introduction : Open Accessory
Open Accessory support allows external USB has (an Android USB accessory) to interact with an Android-powered device in a special accessory mode. Android-powered device is in accessory mode, then ected accessory acts as the USB host (powers the bus and enumerates devices) and the Android-powered device acts in the USB accessory role. Android USB accessories are specifically designed to attach to Android-p devices and adhere to the Open Accessory Protocol, that allows them to detect Android-powered devices that support accessory mode.
■Android device connection (USB)
1 Insert the connector to the Android device.
2 Connect the Android device to the unit via USB connector.
■Android device playback
hardwaPress the ON/STANDBY button to turn the power on.
2 Press the AUDIO IN (USB) button repeatedly on the when an main unit or USB button on the remote control to select cont USB function.
3 Connect the device to the unit. "USB MEDIA" will be displayed.
4 Press play (on remote control or source device).
Notes:
- If the source device has an extra bass or function, set them to off. If these functions a sound may be distorted.
●Incoming calls will pause the playback/application.
●Once the calls are answered, the conversation can only be heard through the built-in speaker of the device. Turn on the device speaker or disconnect the device to start conversation.
■To disconnect the Android device
1 Pause the playback or quit the application (app).
2 Disconnect the device from the USB terminal.
■Various functions
| Function | Remote control | Operation |
| Track up/down |  | Press in the playback or stop mode.If you press the button in the stop mode, press the ➤ ➣ button to start the desired track. |
| Fast forward/ reverse | Press and hold down in the playback mode.Release the button to resume playback. |
Notes:
- If non-compatible device is detected "NO SUPPORT" will be displayed.
● Controls (play/pause/track up/track down/fast forward / fast reverse) will function based on actual application (app) controls used on Android devices. - Stop button (■) is invalid during Android device playback.
Android is a trademark of Google Inc.
■Disc playback
1 Press the ON/STANDBY button to turn the power on.
2 Press the CD button.
3 Press the Ⓐ1 button and within 5 seconds, press the OPEN/CLOSE button to open the disc tray 1.
4 Place the disc on the disc tray 1, label side up.
5 Press OPEN/CLOSE button to close the disc tray 1.
6 You can place discs on the trays 2 - 5 by following steps 3 - 5.
7 Press the ▶ button to start playback.
To stop playback completely:
●Press the ■ button twice.
Caution:
●Do not place two discs in one-disc-tray.
- Do not play discs of special shapes (heart, etc). It may cause malfunctions.
●Do not push the disc tray while it is moving.
- If the power fails wait until the power is restored.
- If TV or radio interference occurs during CD operation, move the unit away from the TV or radio.
●Be sure to place 8 cm (3") disc in the disc tray.
- Due to the structure of the disc information, it takes longer to read an MP3/WMA disc than a (approximately 20 to 90 seconds).
Notes for CD or MP3/WMA discs:
●Rewritable multi-session discs with unfinished writing, can still be played.
■To resume playback after stopping (resume play)
You can resume playback from the point playback is stopped.
1 While a disc is playing, press the ■button once. The system stores the point you stopped.
2 To resume play, press the ▶A button. Playback resumes from the point you stopped.
To cancel the resume playback:
Press the ■ button twice.
Note:
Depending on the disc, playback may resume from slightly before the stopped position.
■Various disc functions
| Function | Main unit | Remote control | Operation |
| Pause |  |  | Press in the playback mode. Press the ▶/|| button to resume playback from the paused point. |
| Track up/ Track down |  |  | Press in the playback or stop mode. If you press the button in the stop mode, press the ▶/|| button to start the desired track. |
| Fast forward/ Fast reverse |  | Press and hold down in the playback mode. Release the button to resume playback. |
■To specify a disc to play
You can play a disc by specifying the disc number.
1 Press one of the Ⓐ1 - Ⓐ5 buttons to select the desired disc.
2 Within 5 seconds, press the ▶/|| button.
● After the last track on the last disc is played, the unit stops automatically.
Note:
If actionray with no disc is selected, playback will not start and the disc indicator will disappear.
■Repeat play
Repeat play can play all 5 discs, all tracks on disc, single track on a chosen disc, or a programmed semiddle continuously.
To repeat one track:
Press the PLAY MODE button repeatedly until "I-REPEAT" normal CD appears.
To repeat one disc:
Press the PLAY MODE button repeatedly until "DISC REPEAT" appears.
To repeat all tracks on up to 5 discs:
Press the PLAY MODE button repeatedly until "ALL REPEAT" appears.
To repeat desired tracks:
Perform steps 1 - 5 in "Programmed play" section on page 15 and then press the PLAY MODE button repeatedly until "ALL REPEAT" appears.
To repeat one folder:
While in folder mode in MP3/WMA, press the PLAY MODE button repeatedly until "REPEAT FOL" appears.
To cancel repeat play:
Press the PLAY MODE button repeatedly until "NORMAL" appears.
■Random play
The tracks on the disc(s) can be played in random order automatically.
To random play all tracks on up to 5 discs:
Press the PLAY MODE button repeatedly until "RANDOM" appears.
To cancel random play:
Press the PLAY MODE button repeatedly until "NORMAL" appears.
Notes:
- If you press the ▶▶ ▶▶ button during random play, you can move to the next track by the random operation. On the other hand, the ◀◀ ◀◀ button does not allow you to move to the previous track. The beginning of the being played will be located.
- In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
- In folder mode on, only tracks in selected folder will be played randomly.
Caution:
After performing repeat or random play, be sure to press the ■ button. Otherwise, the disc(s) will play continuously.
■Programmed play (CD)
You can choose up to 32 selections for order you like.
1 While in the stop mode press the MEMORY button to enter the programming save mode.
2 Press ◀◀◀◀ or ▶▶▶▶ button to select the desired track.
3 Press the MEMORY button to save the track number.
4 Repeat steps 2 - 3 for other tracks. Up to 32 tracks can be programmed.
5 Press the ▶/button to start playback.
To check the programmed track, during stop mode, press the MEMORY button repeatedly. The desired programmed tracks can be cleared by pressing the CLEAR button Press the PRESET (√ or ∧) button to select desired playback folder. (Folder mode on) FOLDER
■Programmed play (MP3/WMA)
1 While in the stop mode, press the MEMORY button to enter the programing save mode.
2 Press the PRESET (∨ or ∧) button on the remote control to select the desired folder.
Then press the ◀◀◀◀ or ▶▶▶▶ button on the remote control to select the desired tracks.
3 Press the MEMORY button to save the folder track number.
4 Repeat steps 2 - 3 for other folder/tracks. tracks can be programmed.
5 Press the ▶/button to start playback.
To cancel the programmed play mode:
During programmed stop mode, pres■the button. display will show "MEM CLEAR" and all the programmed contents will be cleared.
Adding tracks to the program:
If a program has been previously stored, the "MEMORY" indicator will be displayed. During stop mode, MEMORY button once. Within 10 seconds, press and hold the MEMORY button again. Then follow steps 2 - 3 to add tracks.
Notes:
- When a disc is ejected, the program is automatically canceled.
- If you press the ON/STANDBY button to enter the standby mode or change the function from CD to another, the programmed selections will be cleared.
● During the program operation, random play is not possible.
■Procedure to playback MP3/WMA disc with folder mode on
To play back CD-R/RW.
1 In CD function, load an MP3/WMA disc. Press the FOLDER button and disc info will be displayed.
mode. 2. Press the PRESET (√ or ∧) button to select desired sired ing playback folder. (Folder mode on)
3 Select desired file to be played back by pressing the ◀◀◀◀ or ▶button.
4 Press the ▶/□ button. Playback will start and file name will be displayed.
der •andTitle, Artist and Album name are displayed if they are recorded on the disc.
Up to 32 In case of playback with the folder mode on, press the PRESET (√ or ∧) button, and the folder can be selected even though it is in playback/pause mode. It will continue playback/pause mode in the 1st track of the selected folder.
● Display content can be changed by pressing the DISPLAY button.
Note:
If "NO SUPPORT" is displayed, it means "Copyright protected WMA file" or "Not supported playback file" is selected.
Listening to USB mass storage device/MP3 player
Note:
This product is not compatible with MTP and AAC file from USB mass storage device or MP3 player.
■To play back USB/MP3 player with folder mode on / off
1 Press the AUDIO IN (USB) button (main unit) repeatedly to select USB function. Connect the USB memory device that has MP3/WMA format files on the unit. When the USB memory is connected to the main unit, the device information will be displayed.
To playback with folder mode on, follow step 2 below.
To playback with folder mode off, skip to step 3 below.
2 Press the FOLDER button, and press the PRESET (√ or ∧) button to select desired playback folder. To start playback, go to step 4. To change the playback folder, press the PRESET (√ or ∧) button to select another folder.
3 Select desired file to be played back by pressing the ◀◀◀◀ or ▶button.
4 Press the ▶ // button. Playback will start and name will be displayed.
●Title, Artist and Album name are displayed if they are recorded in the USB memory device.
●Display content can be changed by pressing the DISPLAY button.
Note:
To pause playback:
Press the ▶/■ button.
■To remove USB memory device
1 Press the ■ button to stop playback.
2 Disconnect USB memory device from the USB terminal.
Notes:
●SHARP will not be held liable for the loss of data USB memory device is connected to the audio system.
●Files compressed in MP3 and/or WMA format can be played back when connected to the USB terminal.
●This USB memory's format supports FAT 16 or FAT 32.
●SHARP cannot guarantee that all USB memory devices will work on this audio system.
●USB cable is not recommended for use in this audio system to connect to USB memory device. Use of the USB cable will affect the performance of this audio system.
●This USB memory cannot be operated via USB hub.
●The USB terminal in this unit is not intended for a PC connection but is used for music streaming with a USB memory device.
●External HDD-storage cannot be played back via USB terminal.
- If the data inside the USB memory is large, it may take longer time for the data to be read.
This product can play WMA and MP3 files. It will automatically detect the file type being played. If unplayable file is played on this product, "NO SUPPORT" is indicated and the file will be automatically skipped. This will take a few seconds. Normal indications appear on the display due to the unspecified file, turn off the unit and then turn it on again.
●This product relates to USB mass storage devices and MP3 players. It may however face some irregularities due to various unforeseen reasons from some devices. Should this happen, turn off the unit and then turn it on again.
●The USB port is only intended for direct connection to a USB memory device without any cable.
● MP3 player will not be charging in other than USB function. However, charging ability depends on type of MP3 player used.
Advanced USB playback
The following functions are the same as CD operations:
Page
Various disc functions ....14
Repeat play 14
Random play 14
Programmed play (MP3/WMA) 15 the file
Notes:
- If USB memory device is not connected, "NO MEDIA" will be shown on the display.
●Fast forward/reverse is invalid when playing back a variable bitrate file.
Notes:
●This unit only supports "MPEG-1 Audio Layer-3" format. (Sampling Frequency is 32, 44.1, 48kHz)
●Playback order for MP3 files may differ depending writing software used during file download.
●Bitrate which is supported by MP3 is 32\~320 kbps, WMA is 64\~160 kbps.
●For MP3/WMA files, please put ".MP3" ".WMA" exten the Files cannot be played back if there is no MP3/WMA extension.
●Playlists are not supported on this unit.
●This unit can display Folder Name or File Name up to 32 characters.
●Maximum total number of MP3/WMA files is 65025.
●Total number of folders read is 999 including folder with non player files. However, the display shows only folder with MP3 files.
●The display playback time may not be displayed correctly when playing back a variable bitrate file.
●The ID3TAG information supported are TITLE, ARTIST and ALBUM only. Title name, artist name and album name can be displayed by pressing the DISPLAY button during file playback or pause mode.
●WMA meta tag also supports title, artist and album name which are recorded in WMA files. Copyright protected WMA files cannot be played back.
Listening to the radio
Tuning
1 Press the ON/STANDBY button to turn the power on.
2 Press the TUNER (BAND) (TAPE) button repeatedly on the main unit or TUNER (BAND) button repeatedly on the remote control to select the desired frequency band (FM or AM).
3 Press the TUNING (√ or ∧) button to tune in to the desired station.
Manual tuning:
Press the TUNING (√ or ∧) button as many times as required to tune in to the desired station.
Auto tuning:
When the TUNING (∨ or ∧) button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.
Notes:
- When radio interference occurs, auto scan tuning may stop automatically at that point.
● Auto scan tuning will skip weak signal stations. - To stop the auto tuning, press the TUNING (√ or ∧) button again.
To receive an FM stereo transmission:
- Press the TUNER (BAND) button to display the "ST" indicator.
● “∞” will appear when an FM broadcast is in stereo. - If the FM reception is weak, press the TUNER (BAND) button to extinguish the "ST" indicator. The reception changes to monaural, and the sound becomes clearer.
■ Memorizing a station
You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)
1 Perform steps 1 - 3 in "Tuning".
2 Press the MEMORY button to enter the preset tuning saving mode.
3 Within 30 seconds, press the PRESET (√ or ∧) button to select the preset channel number. Store the stations in memory, in order, starting with preset channel 1.
4 Within 30 seconds, press the MEMORY button to store that station in memory. If the "MEMORY" and preset number indicators disappear before the station is memorized, repeat the operation from step 2.
5 Repeat steps 1 - 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorized for that preset channel number will be erased.
Note:
The backup function protects the memorized stations for a few hours should there be a power failure or the AC power cord become disconnected.
■ To recall a memorized station
Press the PRESET (√ or ∧) button for less than 0.5 seconds to select the desired station.
■ To scan the preset stations
The stations saved in the memory can be scanned automatically. (Preset memory scan)
1 Press the PRESET (√ or ∧) button for more than 0.5 seconds. The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.
2 Press the PRESET (√ or ∧) button again when the desired station is located.
■ To erase entire preset memory (In TUNER function)
Press and hold CLEAR button until 'TUNER CLEAR' appears.
TUNER CLEAR
Listening to a cassette tape
Before playback:
●For playback, use normal or low-noise tapes for the best sound. (Metal or CrO_2 tapes are not recommended.)
●Do not use C-120 tapes or poor-quality tapes, as they may cause malfunctions.
●Before loading a tape into the cassette compartment tighten the slack with a pen or a pencil.
■Tape playback
1 Press the ON/STANDBY button to turn the power on.
2 Open the cassette compartment by pushing the area marked “▲”.
3 Load a cassette into the TAPE compartment with the side to be played toward you.
4 Press the TUNER (BAND) TAPE button repeatedly on the main unit to select TAPE.
5 Press the ▶ button to start playback.
■Various tape functions
| Function | Main unit | Remote control | Operation |
| Stop |  |  | Press in the playback, fast forward or fast rewind mode. |
| Fast forward/rewind |  |  | Press in the playback or stop mode. |
Caution:
●Before remove the cassette or changing from one tape operation to another, press the ■ button.
- If a power failure occurs during tape of tape head will remain engaged with the tape and the cassette door will not open. In this case, wait until the power is restored.
■Cleaning the tape-handling parts
● Dirty heads, capstans or pinch rollers can cause poor sound and tape jams. Clean these parts with a cotton swab moistened with commercial head/pinch cleaner or isopropyl alcohol.
●When cleaning the heads, pinch rollers, the unit which contains high voltages.
Ⓐ Playback head
⑧ Capstan
© Pinch roller
- After long use, the deck's heads and capstans may become magnetized, causing poor sound. Demagnetize these parts once every 30 hours of playing/recording time by using a commercial tape head demagnetizer. Read the demagnetizer's instructions carefully before use.
Setting the clock (Remote control only)
In this example, the clock is set for the 12-hour display.
1 Press the ON/STANDBY button to turn the power on.
2 Press the CLOCK button.
3 Within 10 seconds, press the ENTER button. To adjust the day, press ◀the◀ or ▶▶▶▶ button and then press the ENTER button.
4 Press the ◀◀ ◀◀ or ▶▶ ▶▶ button to select 24-hour or 12-hour display and then press the ENTER button.
→“AM 12:00” → The 12-hour display will appear. ↓ “AM 0:00” → The 12-hour display will appear. ↓ “0:00” → The 24-hour display will appear. (0:00 - 23:59)
5 To adjust the hour, press the ◀◀◀◀ or ▶▶▶▶▶ button and then press the ENTER button. Press the ◀◀◀◀ or ▶▶▶▶▶ button once to advance the time by 1 hour. Hold it down to advance continuously.
To adjust the minutes, press the ◀◀ ◀◀ or ▶▶ ▶▶ button and then press the ENTER button. Press the ◀◀ ◀◀ or ▶▶ ▶▶ button once to advance the time by 1 minute. Hold it down to advance the time by 5 minutes interval.
To confirm the time display:
Press the CLOCK button. The time display will appear for about 5 seconds.
Note:
When power supply is restored after unit is plugged in again or after a power failure, reset the clock.
To readjust the clock:
Perform "Setting the clock" from step 1.
To change the 24-hour or 12-hour display: unplug
1 Clear all the programmed contents. [Refer to "Factory reset, clearing all memory" on page 22 for details.]
2 Perform "Setting the clock" from step 1 onward.
Timer and sleep operation (Remote control only) (continued)
Timer playback:
The unit turns on and plays the desired TUNER, USB, AUDIO IN, TAPE) at a preset time.
This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.
Once timer ("💡" indicator):
Once timer play works for one time only at a preset time.
Daily timer ("DAILY" indicator):
Daily timer play works at the same preset time every day that we set. For example, set the timer as a wake-up call every morning.

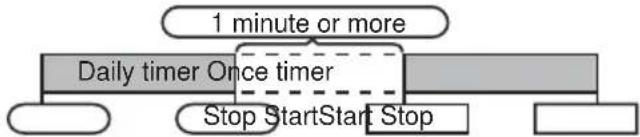

Using the once timer and daily timer in combination:
For example, use the once timer to listen program, and use the daily timer to wake up.
1 Set the daily and once timer (page 19).
Timer playback
Before setting timer:
- Check that the clock is set to the correct time. If it is not set, you cannot use the timer function.
- For timer playback: Plug in USB, load disc or tape to be played.
1 Press the ON/STANDBY button to turn the power on.
2 Press the TIMER button.
3 Within 10 seconds, press the ◀◀ ◀◀ or ▶▶ ▶▶ button to select "ONCE" or "DAILY", and press button.
4 Within 10 seconds, press the ◀◀◀◀ or ▶▶▶▶ button to select "TIMER SET", and press the ENTER button.
5 To select the timer playback source (CD, TUNER, USB, AUDIO IN, TAPE), press the ◀◀◀◀ or ▶▶▶▶▶ button. Press the ENTER button.
When you select the tuner, select a station by pressing the ◀◀◀◀ or ▶▶▶▶ button, and then press the ENTER button. If a station has not been programmed, "NO PRESET" will be displayed and timer setting will be canceled.
6 To adjust the day, press the ◀◀ ◀◀ or ▶▶ ▶▶ button and then press the ENTER button.
7 Press the ◀◀ ◀◀ or ▶▶ ▶▶ button to adjust the hour, and then press the ENTER button.
8 To adjust the minutes, press the ◀◀◀◀ or ▶▶▶▶ button and then press the ENTER button.
9 Set the time to finish as in steps 7 and 8 above.
10 Adjust the volume using the VOLUME control, and then press the ENTER button.
11 Press the ON/STANDBY button to enter the power standby mode. "TIMER" indicator lights up.
12 When the preset time is reached, playback will start. The source volume will increase gradually until it reaches the preset volume. The timer indicator will blink during timer playback.
13 When the timer end time is reached, the system will enter the power standby mode automatically.
Once timer:
The timer will be canceled.
Daily timer:
The timer operates at the same time every sel day. Cancel the daily timer when it is not in use.
Notes:
- When performing timer playback using another unit to a connected to the USB terminal or AUDIO IN jack, select "USB" or "AUDIO IN" in step 5. This unit will turn on or enter the power standby mode automatically. However, the connected unit will not turn on or off.
- To stop the timer playback, follow step "Cancelling the timer setting" of this page.
Checking the timer setting:
1 Turn the power on. Press the TIMER button.
2 Within 10 seconds, press the ◀◀ ◀◀ or ▶▶ ▶▶ button to select "ONCE" or "DAILY", and press the button.
3 Within 10 seconds, press the ◀◀ ◀◀ or ▶▶ ▶▶ button to select "TIMER CALL", and press the ENTER button.
Cancelling the timer setting:
1 Turn the power on. Press the TIMER button.
2 Within 10 seconds, press the ◀◀◀◀ or ▶▶▶▶ button to select "ONCE" or "DAILY", and press the ENTER button.
3 Within 10 seconds, press the ◀◀ ◀◀ or ▶▶ ▶▶ button to select "TIMER OFF", and press the ENTER button. Timer will be canceled (the setting will not be canceled). ENTER
Reusing the memorized timer setting:
The timer setting will be memorized once it is entered. To reuse the same setting, perform the following operations.
1 Turn the power on. Press the TIMER button.
2 Within 10 seconds, press the ◀◀ ◀◀ or ▶▶ ▶▶ button to select "ONCE" or "DAILY", and press the button.
3 Within 10 seconds, press the ◀◀ ◀◀ or ▶▶ ▶▶ button to select "TIMER ON", and press the ENTER button.
4 Press the ON/STANDBY button to enter the power standby mode.
Timer and sleep operation (Remote control only) (continued)
Sleep operation
The radio, disc, USB and Audio In can all automatically.
1 Play back the desired sound source.
2 Press the SLEEP button.
3 Within 5 seconds, press the SLEEP button repeatedly to select the time.
$$ \begin{array}{c}\text {"SLEEP 90"} \rightarrow \text {"SLEEP 80"} \dots \rightarrow \text {"SLEEP 10"}\\rightarrow \text {"SLEEP OFF"}\end{array} $$
4 "SLEEP" indicator will appear.
5 The unit will enter the power standby mode automatically after the preset time has elapsed. volume will be turned down 1 minute before the sleep operation finishes.
To confirm the remaining sleep time:
1 While "SLEEP" is indicated, press the SLEEP button.
To cancel the sleep operation:
1 Press the ON/STANDBY button while "SLEEP" is indicated.
2 To cancel the sleep operation without setting the unit to the standby mode, proceed as follows.
1 Press the ON/STANDBY button while "SLEEP" is indicated. 2 To cancel the sleep operation without setting the unit to the standby mode, proceed as follows.
1 While "SLEEP" is indicated, press the SLEEP button.
2 Within 5 seconds, press the SLEEP button repeatedly until "SLEEP OFF" appears.
■ To use timer and sleep operation together
Sleep and timer playback:
For example, you can fall asleep listening to the radio and wake up to CD in the next morning.
1 Set the sleep time (see above, steps 1 - 5).
2 While the sleep timer is set, set the timer playback (steps 2 - 10, page 19).
Enhancing your system
The connection cord is not included. Purchase a commercially available cord as shown below.
Portable audio
■ Listening to the playback sounds of portable audio player, etc.
1 Connect a portable audio player etc. to the front AUDIO IN jack.
2 Press the ON/STANDBY button to turn the power on.
3 Press the AUDIO IN/USB button repeatedly to select AUDIO IN.
4 Play the connected equipment.
If volume level of the connected device is to sound distortion may occur. Should this happen, lower the volume of the connected device.
If volume level is too low, increase the volume of the connected device.
Note:
To prevent noise interference, place the unit away the television.
Headphones
●Before plugging in or unplugging the headphone reduce the volume.
- Be sure your headphones have a 1/8" (3.5 m diameter plug and impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.
●Plugging in the headphones disconnects the speakers automatically. Adjust the volume using the VOLUM control.
Troubleshooting chart
Many potential problems can be resolved by without calling a service technician. If something is wrong with this product, check the following before calling your authorized SHARP dealer or service center.
General
Symptom Possible cause
| ●The clock is not set to the correct time. | ●Did a power failure occur? Reset the clock. (Refer page 18) |
| ●When a button is pressed, the unit does not respond. | ●Set the unit to the power standby mode and then turn it back on. ●If the unit still malfunctions, reset it. (Refer page 22) |
| ● No sound is heard. | ● Is the volume level set to “0”? ●Are the headphones connected? ●Are the speaker wires disconnected? |
■CD player
Symptom Possible cause
| ●Playback does not start. ●Playback stops in the middle or is not performed properly. | ●Is the disc loaded upside down? ●Does the disc satisfy the standards? ●Is the disc distorted or scratched? |
| ●Playback sounds are skipped, or stopped in the middle of a track. | ●Is the unit located near excessive vibrations? ●Is the disc very dirty? ●Has condensation formed inside the unit? |
| ●“ER-CD21” appears on the display. | ●Is the disc tray stopped with force? Set the unit to the power standby mode and then turn it back on. |
Cassette deck
Symptom Possible cause
| ●Sound skipping. ●Cannot hear treble. ●Sound fluctuation. | ●Is there any slack? ●Is the tape stretched? ●Are the capstans, pinch rollers, or heads dirty? |
| ●Cannot remove the tape. | ●If a power failure occurs during playback, the heads remain engaged with the tape. Do not open the compartment with great force. |
■Remote control
Symptom Possible cause
| ●The remote control does not operate. | ●Is the AC power cord of the unit plugged in? ●Is the battery polarity correct? ●Is the battery dead? ●Is the distance or angle incorrect? ●Does the remote control sensor receive strong light? |
the
owner Tuner
| Symptom Possible cause | |
| ●The radio makes unusual noises continuously. | ●Is the unit placed near the TV or computer?●Is the FM antenna or AM loop antenna placed properly?Move the antenna away from the AC power cord if it is located nearby. |
Bluetooth
Symptom Possible cause
| ● No sound is heard. | ● The unit is too far from the Bluetooth audio source device. ●The unit is not paired with the Bluetooth audio source device. |
| ●Bluetooth sound is interrupted or distorted. | ●The unit is too near to a device that generates electromagnetic radiation. ●There is an obstacle between the unit and the Bluetooth audio source device. |
NFC
Symptom Possible cause
| ●NFC-enabled device cannot connect to Bluetooth when tapping on N-Mark. | ●The unit is in Eco mode. ●NFC mode is disabled on your device. ●Your device is in sleep mode. |
■Open Accessory
Symptom Possible cause
| ●No sound is produced. | ●The device is not playing. ●The device is not properly connected to the unit. ●The AC power cord of the un is not plugged in. |
| ●Device is not charging. | ●The device is not making full contact with the USB terminal. |
USB
Symptom Possible cause
| ●Device cannot be detected.●Playback does not start. | ●There is no MP3/WMA file inside the device.●The device is not properly connected.●A MTP device is connected.●The device contains AAC file only.●A copyright-protected WMA or false MP3 file is being played back. |
| ●Wrong time display.●Wrong file name display. | ●A Variable Bitrate files are being played back.●The File Name was written in other than English characters. |
Troubleshooting chart (continued)
■If problem occurs
When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the standby mode and turn the power on again.
2 If the unit is not restored in the previous unplug and plug in the unit again, and then power on.
Note:
If neither operation above restores the unit, clear memory by resetting it.
■Factory reset, clearing all memory
1 Press the ON/STANDBY button to turn the power on.
2 Press AUDIO IN (USB) button (main unit) repeatedly or AUDIO IN button (remote control) to enter Audio In mode.
3 Press button (main unit) once.
4 Press and hold ■button (main unit) until "RESET" appears.
5 Unplug and plug in the main unit again.
RESET
Caution:
This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD program.
Condensation
Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, tape heads, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc (or cassette) in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.
■Before transporting the unit
Remove the USB memory device and disc from the unit. Then, set the unit to the power standby mode. Carrying the unit with USB memory device left connected or discs left inside might damage the unit.
Maintenance
■Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.
Caution:
●Do not use chemicals for cleaning (gasoline, paint thinner, etc.). It may damage the cabinet.
- Do not apply oil to the inside of the unit. It may cause malfunctions.
operation,
turn ■Cleaning the CD pickup lens
In order to ensure proper operation of the CD player, preventative maintenance (cleaning of the laser pickup lens) should be performed periodically. Lens cleaners commercially available. Contact your local CD software dealer for options.
Specifications
As part of our policy of continuous improvement, reserves the right to make design and specification for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these individual units.
General
| Power source AC 120 V | ~ 60 Hz |
| Power consumption 95 W | |
| Dimensions Width: 10 - 1/4" (260 mm)Height: 13 - 1/16" (332 mm)Depth: 13 - 8/16" (345 mm) | |
| Weight 10.1 lbs. (4.6 kg) | |
Amplifier
| Output power RMS: | Total 200 W (100 W per channel into 6 ohms at 1 kHz, 10% Total harmonic distortion.)FTC: 75 W minimum RMS per channel into 6 ohms from 50 Hz to 20 kHz, 10% Total harmonic distortion.Subwoofer:RMS: 150 W into 4 ohms at 70 Hz, 10% T.H.D.FTC: 130 W minimum RMS into 4 ohms from 50 Hz to 20 kHz, 10% T.H.D. |
| Output terminals Front Speakers: 6 ohmsSubwoofer speaker: 4 ohmsHeadphones: 16 - 50 ohms(recommended: 32 ohms) | |
| Input terminals | Audio In (audio signal):500 mV/47 k ohms |
■Bluetooth interface
| Bluetooth Frequency band | 2.400GHz - 2.480GHz |
| Compatible Bluetooth Profile | A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile)Bluetooth 2.1 +EDR |
Tuner
| Frequency range | FM: 87.5 - 108.0 MHzAM: 530 - 1,710 kHz |
| Preset | 40 (FM and AM station) |
■CD player
| Type | 5-disc multi-play compact disc player |
| Signal readout | Non-contact, 3-beam semiconductor laser pickup |
| D/A converter Multi bit D/A converter | |
| Frequency response | 20 - 20,000 Hz |
| Dynamic range | 90 dB (1 kHz) |
SHARP
changes
assette deck
| Frequency response | 50 - 14,000 Hz (normal tape) |
| Signal/noise ratio | 50 dB ( playback) |
| Wow and flutter | 0.3% (WRMS) |
| Tape speed 4.76 cm/sec. (1 - 7/8" ips) | |
| Heads | Playback |
USB (MP3/WMA)
| USB host interface | Complies with USB 1.1 (Full Speed)/2.0 Mass Storage Class.Support Bulk only and CBI protocol. |
| Support file | MPEG 1 Layer 3WMA (Non DRM) |
| Bitrate support | MP3 (32 ~ 320 kbps)WMA (64 ~ 160 kbps) |
| Other | Maximum total number of MP3/WMA files is 65025.Maximum total number of folders is 999 INCLUSIVE of root directory.The ID3TAG information supported are TITLE, ARTIST and ALBUM only.Supports ID3TAG version 1 and version 2. |
| File system support | Support USB devices with FAT 16/FAT 32. |
■Speaker
| Front Speaker | |
| Type | 2-way type speaker system2" (5 cm) tweeter5 - 1/8" (13 cm) woofer |
| Maximum input power | 200 W |
| Rated input power | 100 W |
| Impedance | 6 ohms |
| Dimensions | Width: 8 - 11/16" (220 mm)Height: 13 - 1/16" (332 mm)Depth: 8 - 3/4" (222 mm) |
| Weight | 6.6 lbs. (3.0 kg) |
| Subwoofer | |
| Type | Subwoofer system6 - 5/16" (16 cm) woofer |
| Maximum input power | 300 W |
| Rated input power | 150 W |
| Impedance | 4 ohms |
| Dimensions | Width: 9 - 1/16" (230 mm)Height: 13 - 1/16" (332 mm)Depth: 12 - 11/16" (322.5 mm) |
| Weight | 10.6 lbs. (4.8 kg) |
- CD-BHS1050
- MINI COMPONENT SYSTEM
- OPERATION MANUAL
- Accessories
- Special Note
- CAUTION
- NOTE
- FCC Radiation Exposure Statement
- Note to CATV system installer:
- FOR YOUR RECORDS
- IMPORTANT SAFETY INSTRUCTIONS
- IMPORTANT SAFETY INSTRUCTIONS (continued)
- Additional Safety Information
- Precautions
- General
- Precautions (continued)
- Warning:
- Volume control
- For U.S. customer only
- CONSUMER LIMITED WARRANTY
- Model Specific Section
- Warranty Period for this Product:
- Front Panel
- ■Rear Panel
- Controls and indicators (continued)
- ■Speaker System
- Subwoofer
- ■Display
- ■Remote Control
- System connection
- CAUTION:
- ■Speaker connection
- ■Antenna connection
- Supplied FM antenna:
- External FM antenna:
- chang supplied to M loop antenna:
- Note:
- System connection (continued)
- ■Demonstration mode
- ■AC power connection
- Remote control
- ■Battery installation
- Notes concerning use:
- ■Test of the remote control
- General control
- ■ To turn the power on
- ■ Display brightness control
- Volume auto fade-in
- ■ Muting
- ■ Bass control (X-BASS)
- ■ Bass control
- Treble control
- ■ Auto power on function
- ■ Auto power off function
- Bluetooth one touch connection via NFC
- ■About NFC technology
- Notes for Android Device.
- ■NFC detection area
- ■NFC connection for audio playback
- Check that:
- Notes:
- Listening to Bluetooth enabled devices
- Bluetooth
- This unit supports the following:
- Notes when using unit with a mobile phone
- ■ Pairing Bluetooth devices
- ■ Pairing with other Bluetooth source devices
- Listening to Bluetooth enabled devices (continued)
- ■Listening to the sound
- ■ To disconnect the Bluetooth device
- ■Auto power on
- Listening on Android™ devices
- ■Introduction : Open Accessory
- ■Android device connection (USB)
- ■Android device playback
- ■To disconnect the Android device
- ■Various functions
- ■Disc playback
- To stop playback completely:
- Notes for CD or MP3/WMA discs:
- ■To resume playback after stopping (resume play)
- To cancel the resume playback:
- ■To specify a disc to play
- Within 5 seconds, press the ▶/|| button.
- ■Repeat play
- To repeat one track:
- To repeat one disc:
- To repeat all tracks on up to 5 discs:
- To repeat desired tracks:
- To repeat one folder:
- To cancel repeat play:
- ■Random play
- To random play all tracks on up to 5 discs:
- To cancel random play:
- ■Programmed play (CD)
- ■Programmed play (MP3/WMA)
- To cancel the programmed play mode:
- Adding tracks to the program:
- ■Procedure to playback MP3/WMA disc with folder mode on
- Listening to USB mass storage device/MP3 player
- ■To play back USB/MP3 player with folder mode on / off
- ■To remove USB memory device
- Advanced USB playback
- Listening to the radio
- Tuning
- Manual tuning:
- Auto tuning:
- To receive an FM stereo transmission:
- ■ Memorizing a station
- ■ To recall a memorized station
- ■ To scan the preset stations
- ■ To erase entire preset memory (In TUNER function)
- Listening to a cassette tape
- Before playback:
- ■Tape playback
- ■Various tape functions
- ■Cleaning the tape-handling parts
- Setting the clock (Remote control only)
- To confirm the time display:
- Timer and sleep operation (Remote control only) (continued)
- Timer playback:
- This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.
- Daily timer ("DAILY" indicator):
- Using the once timer and daily timer in combination:
- Set the daily and once timer (page 19).
- Timer playback
- Before setting timer:
- Daily timer:
- Checking the timer setting:
- Cancelling the timer setting:
- Reusing the memorized timer setting:
- Sleep operation
- To confirm the remaining sleep time:
- To cancel the sleep operation:
- ■ To use timer and sleep operation together
- Sleep and timer playback:
- Enhancing your system
- Portable audio
- ■ Listening to the playback sounds of portable audio player, etc.
- Headphones
- Troubleshooting chart
- ■CD player
- Cassette deck
- owner Tuner
- NFC
- ■Open Accessory
- USB
- Troubleshooting chart (continued)
- ■If problem occurs
- If such a problem occurs, do the following:
- ■Factory reset, clearing all memory
- Condensation
- ■Before transporting the unit
- Maintenance
- ■Cleaning the cabinet
- turn ■Cleaning the CD pickup lens
- Specifications
Marke : SHARP
Modell : CD-BHS1050
Kategorie : Lautsprecher
