BEDIENUNGSANLEITUNG TP2R GODOX

GODOX TP2R - 1


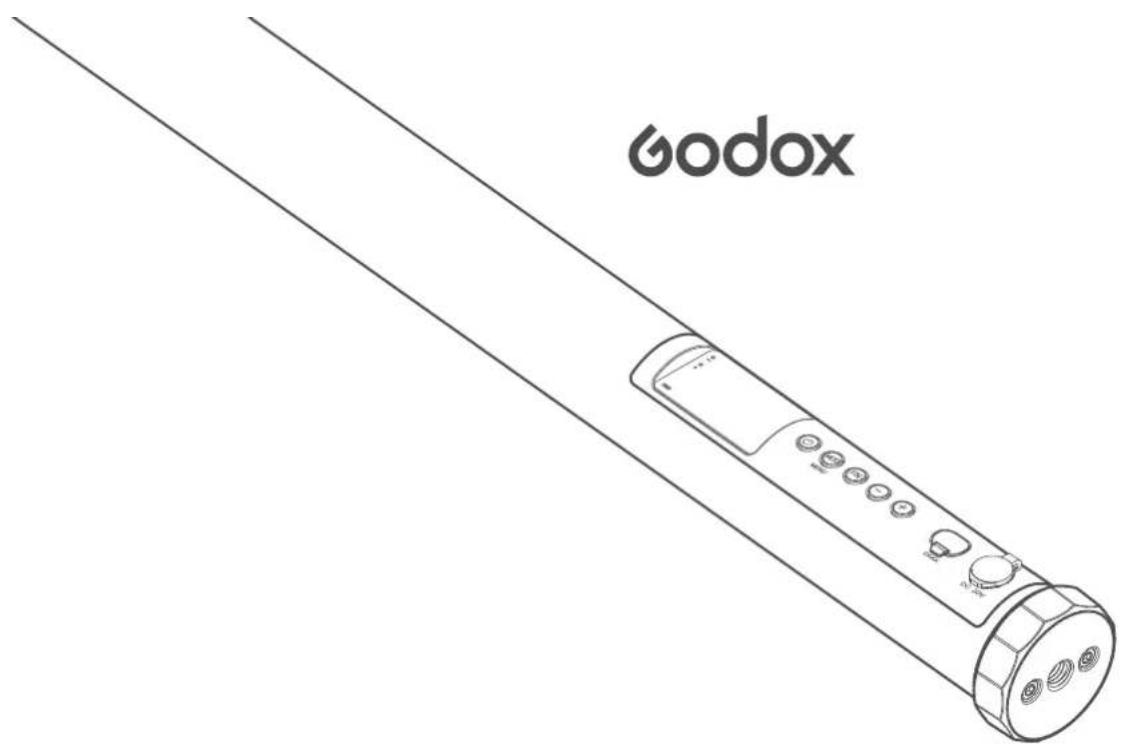

Line drawing of a handheld device with a curved handle and control panel, labeled 'Godox' in the top right corner (no other text or symbols)

TP2R

TP2RDMX实用表

DMX Practical Table

DMX实用表如有变更，故不另行通知。可登录申万官网 https://www.godox.com.cn 变更最新DMX实用表。

The DMX practical table may subject to change without notice. Please check the latest electrical version on our official website https://www.godox.com,

目录/Catalogue

2 CCT 8Bit
2 HSI 8bit
2 RGBW 8bit
2 RGBWW 8bit
2 xy8bit
3 CCT&HSI 8bit
3 CCT&RGBW 8bit
3 CCT&xy 8bit
4 GEL 8bit
4 CCT 16Bit
4 HSI 16bit
5 RGBW 16bit
5 RGBWW 16bit
5 xy 16bit
6 CCT&HSI 16bit
6 CCT&RGBW 16bit
7 CCT&xy 16bit
7 GEL 16bit

99 FX 8Bit

103 FX 16Bit

108 Ultimate 8 Bit

113 Ultimate 16 Bit

120 计算公式 /Calculation formula

CCT 8bit

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素1/Pixel 1
2	色度/CCT	0~255	2000K~10000K
3	显红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~244	1~50
		245~255	全+绿/Full plus green

HSI 8bit

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素1/Pixel 1
2	色相/Hue	0~255	0~360°
3	低精度/Saturation	0~255	0%~100%

RGBW 8bit

每个像素5个通道/5 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素1/Pixel 1
2	红光亮度/Intensity red	0~255	0~255
3	曝光亮度/Intensity green	0~255	0~255
4	蓝光亮度/Intensity blue	0~255	0~255
5	白光亮度/Intensity white	0~255	0~255

RGBWW 8bit

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-255	0%~100%	像素1/Pixel1
2	红光强度/Intensity red	0-255	0-255
3	暗光强度/Intensity green	0-255	0-255
4	蓝光强度/Intensity blue	0-255	0-255
5	白光强度/Intensity white	0-255	0-255
6	淡白光强度/Intensity warm white	0-255	0-255

xy 8bit

每个像素 3 个通道 /3 channels per pixel
通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 ~ 255	0% ~ 100%	像素 1 /Pixel 1
2	x 立机 /x-coordinate	0 ~ 255	0.0 ~ 0.8
3	y 立机 /y-coordinate	0 ~ 255	0.0 ~ 0.8

CCT&HSI 8bit

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素11.根据具体灯具是否具有晶虹/爆炸正功能进行匹配2.CCT到+SiI量化过程,0%=CC;100%+HSIPixel1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CC to HSL 0%=CCCT,100%+HSIL
2	色谱/CCCT	0~255	2000K~10000K
3	品红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		145~244	1~50
		245~255	全-绿/Full plus green
4	交叉淡入流出/Crosslade	0~255	0%~100%
5	色相/A hue	0~255	0~360°
6	饱和度/Saturation	0~255	0%~100

CCT&RGBW 8bit

每个像素8个通道/8 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	真度/Dimmer	0-255	0% - 100%	像素11. 根据具体灯具是否具有同灯/绿桥(正功)能进行话框2.CCT 初RGBW 增化过程,0%+CCT,100%+RGBWPixel 11. Adapt according to whether the luminaire has a magenta/green adjust function,2. Disolve from CCT to RGBW,0%+CCT,100%+RGBW.
2	热温/CCT	0-255	2000K-10000K
3	显红/绿/Magenta/Green	0-10	中性/无光数/Neutral/No effect
		11-20	全+绿/Full minus green
		21-119	-50~1
		120~145	中性/无光数/Neutral/No effect
		146~244	1-50
		245~255	全+绿/full plus green
4	交叉换入频出/Crossfade	0-255	0% - 100%
5	红光强度/Intensity red	0-255	0-255
6	绿光强度/Intensity green	0-255	0-255
7	蓝光强度/Intensity blue	0-255	0-255
8	白光强度/Intensity white	0-255	0-255

CCT &xy 8bit

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	00%~100%	像素:11 指标具体灯具是否具有品灯/模矫正功能进行选配2CCT 线 x/y 坐标模式催化过程,0%=CCT,100%-x/y 坐标模式
2	色温/CCT	0~255	2000K~10000K
3	品红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/√减 minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1~50
		245~255	全+绿/√减 plus green

通道 /Channel	功能/ function	DMX 值 /DMX Value	参数 /Parameter	备注 /None
5	交叉嵌入项式 /Crossfade	0 - 255	0% - 100%	Pixel 1Adapt according to whether the luminaire has a magenta/green adjust function.
6	x 坐标 /x-coordinate	0 - 255	0.0 - 0.8
6	y 坐标 /y-coordinate	0 - 255	0.0 - 0.8	2. Dissolve from CC to x/y coordinate, 0% = CCT, 100% = x/y coordinate.

GEL 8bit

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DHX 值 /DMX Value	参数/Parameter	备注/Note
1	亮度 /Dimmer	0~255	0%~100%	像素 11 个数值对应一数色号
2	色谱/CCT	0~127	3200K
2	色谱/CCT	128~255	5400K
3	色片类型/GEL type	0~127	R-GEL	Pixel 1One value corresponds to one color numeric.
3	色片类型/GEL type	128~255	L-GEL
4	色片号/GEL No	0~255
5	保理/Save	0~255
6	保理/Save	0~255

CCT 16bit

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0%-100%	像素1根据具体灯具是否具有后灯/循环功能进行搭配
2
3	色温/°C/T	0-65535	2000K-10000K
4
5	蓝红/绿/Magenta/Green	0-4587	中性/无光效/Neutral/No effect	Pixel 1Adapt according to whether the Luminaire has a magenta/green adjust function.
		4588-09830	全-绿/Full minus green
		9831-30145	-50~-1
6		30146-39978	中性/无光效/Neutral/No effect
		39977-60292	1~50
		60293-65535	全+绿/Full plus green

HSI 16bit

每个像素6个通道/6 channels per pixel
通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素 1 /Pixel 1
2
3	色标 /Line	0 - 65535	0^° - 360^°
4
5	等距度 /Saturation	0 - 65535	0% - 100%
6

RGBW 16bit

每个像素10个通道/10 channels per pixel
通道/Channel	功能/Function	DHX值/DMH Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0%-100%	像素1/Pixel 1
2
3	红光强度/Intensity red	0-65535	0-255
4
5	曝光强度/Intensity green	0-65535	0-255
6
7	激光强度/Intensity blue	0-65535	0-255
8
9	白光强度/Intensity white	0-65535	0-255
10

RGBWW 16bit

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~65535	0%~100%	像素 1/Pixel 1
2
3	红光强度/Intensity red	0~65535	0~255
4
5	吸光强度/Intensity green	0~65535	0~255
6
7	蓝光强度/Intensity blue	0~65535	0~255
8
9	冷白光强度 Intensity cool white	0~65535	0~255
10
11	暖色光强度 /Intensity warm white	0~65535	0~255
12

xy 16bit

每个像素6个通道/6 channels per pixel
通道 Channel	功能 /Function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素 1 /Pixel 1
2
3	x 坐标 /x-coordinate	0 - 65535	0.0 - 0.8
4
5	y 坐标 /y-coordinate	0 - 65535	0.0 - 0.8
6

CCT&HSI 16bit

选项 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素 11. 电视具体灯具是否具有彩红/绿砖正功能进行适配2.CCT 到 HSI 催化过程,0%+CCI;100%+HSIPixel 1. Adapt according to whether the luminaire has a magenta/green adjustment function,2. Disolve from CDT to HSI,0%+CCT,100%+HSL
2
3	色温 /CCT	0 - 65535	2000K ~ 10000K
4
5	自红 /绿 /Magenta/Green	0 - 4587	中性 /无光数 /Neutral/No effect
		4588-09830	全 - 绿 /Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性 /无光数 /Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全 + 绿 /Full plus green
7	交叉嵌入弹出 /Crossfade	0 - 65535	0% - 100%
8
9	色相 /Hue	0 - 65535	0° ~ 360°
10
11	饱和度 /Saturation	0 - 65535	0% - 100%
12

CCT&RGBW 16bit

每个像素 16 个通道 /16 channels per pixel
通道/Channel	功能/Function	DMX 值 /DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素 11. 标准具体灯具是否具有层红/绿结正功能进行温度 /2.CCT 到 RGBW量化过程,0%=CCT;100%=RGBWPixel 11. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to RGBW,0%-CCT,100%-RGBW.
2
3	色温/CC1	0 - 65535	2000K - 10000K
4
5	后红/绿/Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-09830	全 - 绿 /Full minus green
		9831-30145	-50 ~ -1
6		30146-39978	中性/无光数/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全 + 绿 /Full plus green
7	交叉深入突出/Crossfade	0 - 65535	0% - 100%
8
9	红光强度/Intensity red	0 - 65535	0 - 255
10
11	绿光强度/Intensity green	0 - 65535	0 - 255
12
13	蓝光强度/Intensity blue	0 - 65535	0 - 255
14
15	白光强度/Intensity white	0 - 65535	0 - 255
16

CCT&xy 16bit

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmel	0 - 65535	0% - 100%	像素↑1. 框想具体灯具是否具有彩红/绿
2
3	色温/CCT	0 - 65535	2000K - 10000K	端正功能进行选型2.CCT到x/y坐标模式变化过性0%=CCCT;100%=x/y坐标模式
4
5	品红/绿/Magenta/Green	0 - 4587	中性/无比效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
		30146-39976	中性/无比效/Neutral/No effect
		39977-60292	1 - 50
6		60293-65535	全-绿/Full plus green
7	交叉嵌入突出/Crossfade	0 - 65535	0% - 100%
8
9	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
10
11	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
12

GEL 16bit

每个像素 7 个通道 / 7 channels per pixel
通道/Channel	功能/Function	DMX 值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素 11 个数值对应一数色号PixelOne value corresponds to one color numerics.
2	亮度/Dimmer	0 - 65535	0% - 100%
3	色温/CCT	0 - 127	3200K
3	色温/CCT	128 - 255	5600K
4	色片类型/GEL type	0 - 127	R-GEL
4	色片类型/GEL type	128 - 255	L-GEL
5	色号/Numeric	0 - 255
6	保留/Save	0 - 255
7	保留/Save	0 - 255

CCT 8bit (像素 = 2/Pixel = 2)

每个像素3个选项/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-255	0%-100%	像素(1)/Pixel(1)
2	色谱/CCT	0-255	2000K-10000K
3	晶粒/绿/Magenta/Green	0-10	中性/无光效/Neutral/No effect
		11-20	全-绿/Full minus green
		21-119	-50=-1
		120-145	中性/无光效/Neutral/No effect
		146-244	1-50
		245-255	全+绿/Full plus green
4	亮度/Dimmer	0-255	0%-100%	像素(2)/Pixel(2)
5	色温/CCI	0-255	2000K-10000K
6	品红/绿/Magenta/Green	0-10	中性/无光效/Neutral/No effect
		11-20	全-绿/Full minus green
		21-119	-50=-1
		120-145	中性/无光效/Neutral/No effect
		146-244	1-50
		245-255	全+绿/Full plus green

HSI 8bit (像素 = 2/Pixel = 2)

每个像素3个通道/3 channels per pixel
通道 Channel	功能 / function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 / Dimmer	0 - 255	0% - 100%	像素(1) / Pixel (1)
2	色相 / Hue	0 - 255	0^° - 360^°
3	饱和度 /Saturation	0 - 255	0% - 100%
4	亮度 / Dimmer	0 - 255	0% - 100%	像素(2) / Pixel (2)
5	色相 / Hue	0 - 255	0^° - 360^°
6	饱和度 / Saturation	0 - 255	0% - 100%

RGBW 8bit (像素 = 2/Pixel = 2)

每个像素5个通道/15 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Climmer	0~255	0%~100%	像素(1)/Pixel(1)
2	红光强度/Intensity red	0~255	0~255
3	绿光强度/Intensity green	0~255	0~255
4	蓝光强度/Intensity blue	0~255	0~255
5	白光强度/Intensity white	0~255	0~255
6	亮度/Climmer	0~255	0%~100%	像素(2)/Pixel(2)
7	红光强度/Intensity red	0~255	0~255
8	绿光强度/Intensity green	0~255	0~255
9	蓝光强度/Intensity blue	0~255	0~255
10	白光强度/Intensity white	0~255	0~255

RGBWW 8bit (像素 = 2/Pixel = 2)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel(1)
2	灯光强度/Intensity red	0~255	0~255
3	绿光强度/Intensity green	0~255	0~255
4	蓝光强度/Intensity blue	0~255	0~255
5	冷白光强度/Intensity cool white	0~255	0~255
6	漂白光强度/Intensity warm white	0~255	0~255
7	亮度/Dimmer	0~255	0%~100%	像素(2)/Pixel(2)
8	红光强度/Intensity red	0~255	0~255
9	绿光强度/Intensity green	0~255	0~255
10	蓝光强度/Intensity blue	0~255	0~255
11	冷白光强度/Intensity cool white	0~255	0~255
12	漂白光强度/Intensity warm white	0~255	0~255

xy 8bit (像素 = 2/Pixel = 2)

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 255	0% - 100%	像素(1)/Pixel(1)
2	x坐标/x-coordinate	0 - 255	0.0 - 0.8
3	y坐标/y-coordinate	0 - 255	0.0 - 0.8
4	亮度/Dimmer	0 - 255	0% - 100%	像素(2)/Pixel(2)
5	x坐标/x-coordinate	0 - 255	0.0 - 0.8
6	y坐标/y-coordinate	0 - 255	0.0 - 0.8

CCT&HSI 8bit (像素 = 2/Pixel = 2)

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 值 /DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0% ~ 100%	像素(1)1. 根据具体灯具是否具有品红/绿矫正功能进行话配2CCT 到 HSI量化过程,0%~CCT,100%~HSIPIled (1)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSI0%~CCT,100%~HSI
2	色银/CCT	0~255	2000K ~ 10000K
3	品红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/无退 minus green
		21~119	-50 ~ -1
		120~145	中性/无光数/Neutral/No effect
		146~244	1~50
		245~255	全-绿/Fullplus green
4	交叉进入退出/Crossfade	0~255	0% ~ 100%
5	色相/Hue	0~255	0°~360°
6	饱和度/Saturation	0~255	0% ~ 100%

通透/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
7	亮度/Dimmer	0-255	0%~100%	像素(2)1. 根据具体灯具各具有色杠/线锁定功能进行装配2.CCT 到 HSI 量化定程,0%~CCT;100%~HSIPlex(2)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to HSI0%~CCT, 100%~HSI
8	色温/CC	0-255	2000K~10000K
9	品红/绿/Magenta/Green	0-10	中性/无光效/Neutral/No effect
		11-20	全+绿/Full minus green
		21-119	-50~-1
		120-145	中性/无光效/Neutral/No effect
		146-244	1~50
		245-255	全+绿/Full plus green
10	交叉嵌入淡击/Crossfade	0-255	0%~100%
11	色相/Hue	0-255	0°~360°
12	饱和度/Saturation	0-255	0%~100%

CCT &RGBW 8bit (像素 = 2/Pixel = 2)

每个像素个个词语/8 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)1.根据具体灯具是否具有色灯/绿端正功能进行适配2.CCT到RGBW,变化过程,0%+CCT;100%-RGBW
2	色温/CCT	0~255	2000K~10000K
3	蓝红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1~50
		245~255	全-绿/Full plus green
4	交叉亮入弹出/Crossfade	0~255	0%~100%	Pixel(1)1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to RGBW,0%+CCT;100%-RGBW.
5	红光强度/Intensity red	0~255	0~255
6	绿光强度/Intensity green	0~255	0~255
7	蓝光强度/Intensity blue	0~255	0~255
8	白光强度/Intensity white	0~255	0~255
9	亮度/Dimmer	0~255	0%~100%	像素(2)1.根据具体灯具是否具有色灯/绿端正功能进行适配2.CCT到RGBW,变化过程,0%+CCT;100%-RGBW.
10	色温/CCT	0~255	2000K~10000K
11	红灯/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1~ 50
		245~255	全-绿/Full plus green
12	交叉涉入弹出/Crossfade	0~255	0%~100%	Pixel(2)1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to RGBW,0%+CCT;100%-RGBW.
13	红光强度/Intensity red	0~255	0~255
14	绿光强度/Intensity green	0~255	0~255
15	蓝光强度/Intensity blue	0~255	0~255
16	白光强度/Intensity white	0~255	0~255

CCT &xy 8bit (像素 = 2/Pixel = 2)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-255	0%~100%	像素(1)1. 根据具体灯具是否具有晶红/绿矫正功能进行搭配;2.CCT到x/y坐标模式量化过程;0%<CCT,100%<x/y坐标模式Pixel(1);1. Adapt according to whether the kmin/mare has a magenta/green adjust function;2. Steake from CCT to x/y coordinate,0%<CCT,100%<x/y coordinate,
2	色温/CCT	0-255	2000K ~ 10000K
3	品红/绿/Magenta/Green	0-10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~244	1~50
		245~255	全-绿/Full plus green
4	交叉嵌入演出/Crossfade	0-255	0%~100%
5	x坐标/x-coordinate	0-255	0.0~0.8
6	y坐标/y-coordinate	0-255	0.0~0.8
7	亮度/Dimmer	0-255	0%~100%	像素(2)1. 根据具体灯具是否具有品红/绿矫正功能进行搭配;2.CCT到x/y坐标模式量化过程;0%<CCT,100%<x/y坐标模式Pixel(2);1. Adapt according to whether the kmin/mare has a magenta/green adjust function;2. Disactive from CCT to x/y coordinate,0%<CCT,100%<x/y coordinate,
8	色温/CCT	0-255	2000K ~ 10000K
9	品红/绿/Magenta/Green	0-10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~214	1~50
		245~255	全-绿/Full plus green
10	交叉嵌入洪波/Crossfade	0-255	0%~100%
11	x坐标/x-coordinate	0-255	0.0~0.8
12	y坐标/y-coordinate	0-255	0.0~0.8

GEL 8bit (像素 = 2/Pixel = 2)

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 255	0% - 100%	像素(1)/Pixel (1)
2	色温/CCT	0 - 127	3200K
2	色温/CCT	128 - 255	5400K
3	色片类型/GEL type	0 - 127	R-GEL
3	色片类型/GEL type	128 - 255	L-GEL
4	色片号/GEL No.	0 - 255	1个数值对应—取色号/One value corresponds to one color numeric
5	保留/Save	0 - 255
6	保留/Save	0 - 255

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
7	亮度/Dimmer	0 - 255	0% - 100%	像素(2)/Pixel(2)
8	色阶/CCT	0 - 127	3200K
8	色阶/CCT	128 - 255	5600K
9	色片类型/GEL type	0 - 127	R-GEL
9	色片类型/GEL type	128 - 255	L-GEL
10	色片号/GEL No.	0 - 255	1个数值对应一款色号/One value corresponds to one color numeric
11	保留/Save	0 - 255
12	保留/Save	0 - 255

CCT 16bit (像素 = 2/Pixel = 2)

每个像素 6个通道/6 channels per pixel
通道 Channel	功能 /Function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65635	0% - 100%	像素(1)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有红灯/绿锁工功能进行适配Pixel(1)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function.
2
3	亮度 /CCT	0 - 65635	2000K - 10000K
4
5	亮度 /绿 /Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全+绿/Full plus green
7	亮度 /Dimmer	0 - 45635	0% - 100%	像素(2)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有红灯/绿锁工功能进行适配Pixel(2)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function.
8
9	亮度 /CCT	0 - 65635	2000K - 10000K
10
11	亮度 /绿 /Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
12		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全+绿/Full plus green

HSI 16bit (像素 = 2/Pixel = 2)

每个像素 6 个通道 /6 channels per pixel
通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel (1)
2
3	色相 /Hue	0 - 65535	0° - 360°
4
5	饱和度/Saturation	0 - 65535	0% - 100%
6
7	亮度 /Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel (2)
8
9	色相 /Hue	0 - 65535	0° - 360°
10
11	饱和度/Saturation	0 - 6553	0% - 100%
12

RGBW 16bit (像素 = 2/Pixel = 2)

通道/Channel	功能/Function	DMX值/DMXValue	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel (1)
2
3	红光强度/Intensity red	0 - 65535	0 - 255
4
5	绿光强度/Intensity green	0 - 65535	0 - 255
6
7	蓝光强度/Intensity blue	0 - 65535	0 - 255
8
9	白光强度/Intensity white	0 - 65535	0 - 255
10
11	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel (2)
12
13	红光强度/Intensity red	0 - 65535	0 - 255
14
15	绿光强度/Intensity green	0 - 65535	0 - 255
16
17	蓝光强度/Intensity blue	0 - 65535	0 - 255
18
19	白光强度/Intensity white	0 - 65535	0 - 255
20

RGBWW 16bit (像素 = 2/Pixel = 2)

通道/Channel	功能/Function	DMX值/DMX value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0%~100%	像素(1)/Pixel(1)
2
3	红光强度/Intensity red	0 - 65535	0 - 255
4
5	绿光强度/Intensity green	0 - 65535	0 - 255
6
7	蓝光强度/Intensity blue	0 - 65535	0 - 255
8
9	冷白光强度/Intensity cool white	0 - 65535	0 - 255
10
11	硬白光强度/Intensity warm white	0 - 65535	0 - 255
12
13	亮度/Glomer	0 - 65535	0%~100%	像素(2)/Pixel(2)
14
15	红光强度/Intensity red	0 - 65535	0 - 255
16
17	微光强度/Intensity green	0 - 65535	0 - 255
18
19	蓝光强度/Intensity blue	0 - 65535	0 - 255
20
21	冷白光强度/Intensity cool white	0 - 65535	0 - 255
22
23	缓白光强度/Intensity warm white	0 - 65535	0 - 255
24

xy 16bit (像素=2/Pixel=2)

通道 Channel	功能 /Function	DIMX 值 /DIMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素 [1] ,Pixel [1]
2
3	x 坐标 /x-coordinate	0 - 65535	0.0 - 0.8
4
5	y 坐标 /y-coordinate	0 - 65535	0.0 - 0.8
6
7	亮度 /Dimmer	0 - 65535	0% - 100%	像素 (2) ,Pixel (2)
8
9	x 坐标 /x-coordinate	0 - 65535	0.0 - 0.8
10
11	y 坐标 /y-coordinate	0 - 65535	0.0 - 0.8
12

CCT&HSI 16bit (像素 = 2/Pixel = 2)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0%-100%	像素(1)1. 根据具体灯具是否具有星红/绿热正功能进行适配2.CCT到HSI变化过程,0%-CCT,100%-HSIPixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HS(0%-CCT,100%-HSI)
2
3	色温/CC1	0-65535	2000K-10000K
4
5	显红/绿/Magenta/Green	0-4587	中性/无光效/Neutral/No effect
		4588-29830	全-绿/Full minus green
		9831-30145	-50=-1
6		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1-50
		60293-65535	全+绿/Full plus green
7	交叉滴入演出/Crossfade	0-65535	0%-100%
8
9	色相/Hue	0-65535	0°-360°
10
11	饱和度/Saturation	0-65535	0%-100%
12
13	亮度/Dimmer	0-65535	0%-100%	像素(2)1. 根据具体灯具是否具有星红/绿热正功能进行适配2.CCT到HSI变化过程,0%-CCT,100%-HSIPixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HS(0%-CCT,100%-HSI)
14
15	色温/CC1	0-65535	2000K-10000K
16
17	品红/绿/Magenta/Green	0-4587	中性/无光效/Neutral/No effect
		4588-29830	全-绿/Full minus green
		9831-30145	-50=-1
18		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1-50
		60293-65535	全+绿/Full plus green
19	交叉滴入演出/Crossfade	0-65535	0%-100%
20
21	色相/Hue	0-65535	0°-360°
22
23	饱和度/Saturation	0-65535	0%-100%
24

CCT&RGBW 16bit (像素 = 2/Pixel = 2)

每个像素/6个通道/16 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)1. 核能具体灯具色度范围进行适配2. 核能具体灯具是否具有亮红/绿绿正功能进行适配3.CCT 形 RGBW 催化过程,0%=CCT,100%-RGBWPixel(1)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to RGBW,0%=CCT,100%-RGBW,
2
3	色型/CCI	0 - 65535	2000K - 10000K
4
5	后红/绿/Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full-minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全+绿/Full-plus green
7	变艾族人演出/Crossfade	0 - 65535	0% - 100%
8
9	红光强度/Intensity red	0 - 65535	0 - 255
10
11	绿光强度/Intensity green	0 - 65535	0 - 255
12
13	蓝光强度/Intensity blue	0 - 65535	0 - 255
14
15	白光强度/Intensity white	0 - 65535	0 - 255
16
17	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)1. 核能具体灯具色度范围进行适配2. 核能具体灯具是否具有亮红/绿绿正功能进行适配3.CCT 形 RGBW 催化过程,0%=CCT,100%-RGBWPixel(2)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to RGBW,0%=CCT,100%-RGBW,
18
19	色温/CCI	0 - 65535	2000K - 10000K
20
21	后红/绿/Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full-minus green
		9831-30145	-50 ~ -1
22
		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全+绿/Full plus green
23	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
24
25	红光强度/Intensity red	0 - 65535	0 - 255
26
27	绿光强度/Intensity green	0 - 65535	0 - 255
28
29	蓝光强度/Intensity blue	0 - 65535	0 - 255
30
31	白光强度/Intensity white	0 - 65535	0 - 255
32

CCT&xy 16bit (像素 = 2/Pixel = 2)

每个像素12个通道/12 channel per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1) 1. 根据具体灯具色温范围进行适配 2. 根据具体灯具是否具有层红/绿灰正功能进行适配 3.CCT到x/y坐标模式量化过程,0%=CCT;100%=y坐标模式Pixel(1) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, 0%=CCT, 100%=x/y coordinate.
2
3	色温/CCT	0 - 65535	2000K - 10000K
4
5	品灯/绿/Magenta/Green	0 - 4587	中性/无光效/NeutralNo effect
		4588-29830	全-绿/Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光效/NeutralNo effect
		39977-60292	1 ~ 50
		60293-65535	全-绿/Full plus green
7	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
8
9	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
10
11	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
12
13	亮度/Dimmer	0 - 65535	0% - 100%	像素(2) 1. 根据具体灯具色温范围进行适配 2. 根据具体灯具是否具有层红/绿灰正功能进行适配 3.CCT到x/y坐标模式量化过程,0%=CCT;100%=y坐标模式Pixel(2) 1. Adapt according to CCT range of the luminaire. 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate,0%=CCT, 100%=x/y coordinate.
14
15	色温/CCT	0 - 65535	2000K - 10000K
16
17	品灯/绿/Magenta/Green	0 - 4587	中性/无光效/NeutralNo effect
		4588-29830	全-绿/Full minus green
		9831-30145	-50 ~ -1
18		30146-39976	中性/无光效/NeutralNo effect
		39977-60292	1 ~ 50
		60293-65535	全-绿/Full plus green
19	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
20
21	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
22
23	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
24

GEL 16bit (像素 = 2/Pixel = 2)

每个像素7个通道/2 channels per pixel
通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1)1个数值对应一款信号
2	亮度 /Dimmer	0 - 65535	0% - 100%
3	色温 /CCT	0 - 127	3200K
3	色温 /CCT	128 - 255	5600K
4	色片类型 /GEL type	0 - 127	R-GEL	Pixel (1)One value corresponds to one color numeric
4	色片类型 /GEL type	128 - 255	L-GEL
5	色号 /Numeric	0 - 255
6	保留 /Save	0 - 255
7	保留 /Save	0 - 255
8	亮度 /Dimmer	0 - 65535	0% - 100%	像素(7)1个数值对应一款信号
9	亮度 /Dimmer	0 - 65535	0% - 100%	像素(7)1个数值对应一款信号
10	色温 /CCT	0 - 127	3200K	Pixel (2)One value corresponds to one color numeric
10	色温 /CCT	128 - 255	5600K
11	色片类型 /GEL type	0 - 127	R-GEL
11	色片类型 /GEL type	128 - 255	L-GEL
12	色号 /Numeric	0 - 255
13	保留 /Save	0 - 255
14	保留 /Save	0 - 255

CCT 8bit (像素 = 4/Pixel = 4)

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMXValue	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel(1)
2	色温/°CCT	0~255	2000K~10000K
3	蓝红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1~50
		245~255	全+绿/Full plus green
4	亮度/Dimmer	0~255	0%~100%
5	色温/°CCT	0~255	2000K~10000K	像素(2)/Pixel(2)
6	显红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1 ~ 50
		245~255	全-绿/Full plus green
7-9	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
10	亮度/Dimmer	0-255	0%~100%	像素(4)/Pixel(4)
11	色温/CCCT	0-255	2000K~10000K
12	品红/绿/Magenta/Green	0-10	中性/无光效/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光效/Neutral/No effect
		146~244	1~50
		245~255	全-绿/Full plus green

HSI 8bit (像素 = 4/Pixel = 4)

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel(1)
2	色相/Hue	0~255	0°~360°
3	饱和度/Saturation	0~255	0%~100%
4	亮度/Dimmer	0~255	0%~100%	像素(2)/Pixel(2)
5	色相/Hue	0~255	0°~360°
6	饱和度/Saturation	0~255	0%~100%
7~9	对应的DMX值和参数,参考像素(1)或像素(2). Please refer to Pixel(2) or Pixel(2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
10	亮度/Dimmer	0~255	0%~100%	像素(4)/Pixel(4)
11	色相/Hue	0~255	0°~360°
12	饱和度/Saturation	0~255	0%~100%

RGBW 8bit (像素 = 4/Pixel = 4)

每个像素5个通道/5 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	简注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel (1)
2	红光强度/Intensity red	0~255	0~255
3	绿光强度/Intensity green	0~255	0~255
4	微光强度/Intensity blue	0~255	0~255
5	白光强度/Intensity white	0~255	0~255
6	亮度/Dimmer	0~255	0%~100%	像素(2)/Pixel (2)
7	红光强度/Intensity red	0~255	0~255
8	绿光强度/Intensity green	0~255	0~255
9	微光强度/Intensity blue	0~255	0~255
10	白光强度/Intensity white	0~255	0~255
11-16	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel (3)
16	亮度/Dimmer	0~255	0%~100%	像素(4)/Pixel (4)
17	红光强度/Intensity red	0~255	0~255
18	绿光强度/Intensity green	0~255	0~255
19	蓝光强度/Intensity blue	0~255	0~255
20	白光强度/Intensity white	0~255	0~255

RGBWW 8bit (像素 = 4/Pixel = 4)

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel(1)
2	红光强度/Intensity red	0~255	0~255
3	绿光强度/Intensity green	0~255	0~255
4	蓝光强度/Intensity blue	0~255	0~255
5	冷白光强度/Intensity cool white	0~255	0~255
6	银白光强度/Intensity warm white	0~255	0~255
7	亮度/Dimmer	0~255	0%~100%	像素(2)/Pixel(2)
8	红光强度/Intensity red	0~255	0~255
9	绿光强度/Intensity green	0~255	0~255
10	蓝光强度/Intensity blue	0~255	0~255
11	冷白光强度/Intensity cool white	0~255	0~255
12	银白光强度/Intensity warm white	0~255	0~255
13-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
19	亮度/Dimmer	0~255	0%~100%	像素(4)/Pixel(4)
20	红光强度/Intensity red	0~255	0~255
21	绿光强度/Intensity green	0~255	0~255
22	蓝光强度/Intensity blue	0~255	0~255
23	冷白光强度/Intensity cool white	0~255	0~255
24	银白光强度/Intensity warm white	0~255	0~255

xy 8bit (像素=4/Pixel=4)

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 255	0% - 100%	像素(1)/Pixel(1)
2	x坐标/x-coordinate	0 - 255	0.0 - 0.8
3	y坐标/y-coordinate	0 - 255	0.0 - 0.8
4	亮度/Dimmer	0 - 255	0% - 100%	像素(2)/Pixel(2)
5	x坐标/x-coordinate	0 - 255	0.0 - 0.8
6	y坐标/y-coordinate	0 - 255	0.0 - 0.8
7-9	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
10	亮度/Dimmer	0 - 255	0% - 100%	像素(4)/Pixel(4)
11	x坐标/x-coordinate	0 - 255	0.0 - 0.8
12	y坐标/y-coordinate	0 - 255	0.0 - 0.8

CCT&HSI 8bit (像素=4/Pixel=4)

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)1.根据具体灯具是否具有出红/绿矫正功能进行匹配2.CCT到HSI量化应答,0%~CCT,100%~HSI
2	色组/CCT	0~255	2000K~10000K
3	品红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~244	1~50
		245~255	全-绿/Fullplus green
4	交叉调入淡击/Crossfade	0~255	0%~100%	Pixel(1).Adapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to HSI,0%~CCT,100%~HSI.
5	色相/Hue	0~255	0°~360°
6	饱和度/Saturation	0~255	0%~100%
7	亮度/Dimmer	0~255	0%~100%	像素(2).根据具体灯具是否具有出红/绿矫正功能进行匹配2.CCT到HSI量化应答,0%~CCT,100%~HSI
8	色度/CCT	0~255	2000K~10000K
9	品红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~254	1~50
		245~255	全-绿/Fullplus green
10	交叉调入淡击/Crossfade	0~255	0%~100%	Pixel(2).Adapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to HSI,0%~CCT,100%~HSI.
11	色相/Hue	0~255	0°~360°
12	饱和度/Saturation	0~255	0%~100%
13-18	对应的 DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(3).根据具体灯具是否具有出红/绿矫正功能进行匹配2.CCT到HSI量化应答,0%~CCT,100%~HSIPixel(3).Adapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to HSI,0%~CCT,100%~HSI.

通道/Channel	功能/Function	DMX值/DMXValue	参数/Parameter	备注/Note
19	亮度/Dimmer	0-255	0%~100%	像素(4)1.根据具体灯具是否具有色红/棕矫正功能进行适配2.CCT到HSI量化过程,0%+CCT:100%+HSIPixel(4)1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Cissolve from CCT to HS1 0%+CCT:100%+HSI
20	色温/CCT	0-255	2000K~10000K
21	蓝红/绿/Magenta/Green	0-10	中性/无光效/NeutralNo effect
		11-20	全-绿/Full minus green
		21-119	-50~-1
		120-145	中性/无光效/NeutralNo effect
		146-244	1-50
		245-255	全+绿/Full plus green
22	交叉嵌入读出/Crosslade	0-255	0%~100%
23	色相/Blue	0-255	0°~360°
24	饱和度/Saturation	0-255	0%~100%

CCT&RGBW 8bit (像素 = 4/Pixel = 4)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)1. 样据具体灯具是否具有红蓝/绿锁正功能进行匹配2.CCT到RGBW量化过程,0%~CCT;100%~RGBWPixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%~CCT;100%~RGBW.
2	色温/°CCT	0~255	2000K~10000K
3	品红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全・绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1~50
		245~255	全・绿/Full plus green
4	交叉换入亮击/Crossfade	0~255	0%~100%
5	红光强度/Intensity red	0~255	0~255
6	绿光强度/Intensity green	0~255	0~255
7	蓝光强度/Intensity blue	0~255	0~255
8	白光强度/Intensity white	0~255	0~255
9	亮度/Dimmer	0~255	0%~100%	像素(2)1. 电刻具体灯具是否具有红蓝/绿锁上功能进行匹配2.CCT到RGBW量化过程,0%~CCT;100%~RGBWPixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%~CCT;100%~RGBW.
10	色温/°CCT	0~255	2000K~10000K
11	湿红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全・绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1 ~50
		245~255	全・绿/Full plus green
12	交叉换入亮击/Crossfade	0~255	0%~100%
13	红光强度/Intensity red	0~255	0~255
14	绿光强度/Intensity green	0~255	0~255
15	蓝光强度/Intensity blue	0~255	0~255
16	白光强度/Intensity white	0~255	0~255
17-24	对应的DMX值和参数,参考像素(1)细像素(2) Please refer to Pixel (1) or Pixel 23 for the corresponding DMX value and parameter			像素(3): 1. 根据具体灯具是否具有品红/绿矫正功能进行适配 2.CCT到RGBW 量化过程:0%=CCT, 100%=RGBW Pixel (3): 1. Adapt according to whether the kliminaire has a magenta/green adjust function; 2. Dissolve from CCT to RGBW, 0%=CCT, 100%=RGBW.
25	亮度/Olimmer	0 - 255	0% - 100%	像素(4): 1. 根据具体灯具是否具有品红/绿矫正功能进行适配 2. CCT到RGBW 量化过程:0%=CCT, 100%=RGBW Pixel (4): 1. Adapt according to whether the kliminaire has a magenta/green adjust function. 2. Dissolve from CCT to RGBW, 0%=CCT, 100%=RGBW.
26	色相/CCT	0 - 255	2000K - 10000K
27	品红/绿/Magenta/Green	0 - 10	中性/无光数/Neutral/No effect
		11 - 20	金-绿/Full minus green
		21 - 119	+50 - +1
		120 - 146	中性/无光数/Neutral/No effect
		146 - 244	1 - 50
		245 - 255	金-绿/Full plus green
28	交叉嵌入顶出/Crossfade	0 - 255	0% - 100%
29	红光强度/Intensity red	0 - 255	0 - 255
30	绿光强度/Intensity green	0 - 255	0 - 255
31	蓝光强度/Intensity blue	0 - 255	0 - 255
32	白光强度/Intensity white	0 - 255	0 - 255

CCT &xy 8bit (像素 = 4/Pixel = 4)

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)根据具体灯具是否具有品红/绿纤功能进行适配CCCT到x/y坐标模式变化过程,则CCT:100%-x/y坐标模式值(1).Adapt according to whether the luminaire has a magenta/green adjust function, 2 Dissolve from
2	色谱/CCT	0~255	2000K~10000K
3	总红/绿/Magenta/Green	0~10	中色/无光数/Neutral/No effect
		11~20	全-绿/Pull minus green
		21~119	-50~-1
		120~145	中色/无光数/Neutral/No effect
		146~244	1~50
		245~255	全+绿/Fullplus green
4	交叉洲入流出/Crossfade	0~255	0%~100%
5	x坐标/x-coordinate	0~255	0.0~0.8
6	y坐标/y-coordinate	0~255	0.0~0.8	CCT to x/y coordinate,0%-CCT,100%-x/y coordinate

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
7	亮度/Dimmer	0~255	0%~100%	像素(2)1. 根据具体灯具是否具有层红/绿桥上功能进行匹配CCCT到x/y坐标模式量化过程,0%-CCT,100%-x/y坐标模式Pixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate, 0%-CCT,100%-x/y coordinate.
8	色温/°CCT	0~255	2000K~10000K
9	压红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1~50
		245~255	全+绿/Full plus green
10	交叉嵌入弹出/Crossfade	0~255	0%~100%
11	x坐标/x-coordinate	0~255	0.0~0.8
12	y坐标/y-coordinate	0~255	0.0~0.8
13-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(3)1. 标准具体灯具是否具有层红/绿桥上功能进行匹配2.CCT到RGBW 增长过程,0%-CCT,100%-RGBW Pixel(3)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%-CCT,100%-RGBW.
19	亮度/Dimmer	0~255	0%~100%	像素(4)1. 标准具体灯具是否具有层红/绿桥正功能进行匹配2.CCT到x/y坐标模式量化过程,0%-CCT,100%-x/y坐标模式Pixel(4)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate,0%-CCT,100%-x/y coordinate.
20	色温/°CCT	0~255	2000K~10000K
21	压红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244
		245~255	全+绿/Full plus green
22	交叉嵌入弹出/Crossfade	0~255	0%~100%
23	x坐标/x-coordinate	0~255	0.0~0.8
24	y坐标/y-coordinate	0~255	0.0~0.8

GEL 8bit (像素 = 4/Pixel = 4)

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 255	0% - 100%	像素(1)/Pixel (1)
2	色层/CCT	0 - 127	3200K
2	色层/CCT	128 - 255	5600K
3	色片类型/GEL type	0 - 127	R-GEL
3	色片类型/GEL type	128 - 255	L-CEL
4	色片号/GEL No.	0 - 255	1 个数值对应一款色号/One value corresponds to one color numeric
5	保留/Save	0 - 255
6	保留/Save	0 - 255
7	亮度/Dimmer	0 - 255	0% - 100%	像素(2)/Pixel (2)
8	色层/CCT	0 - 127	3200K
8	色层/CCT	128 - 255	5600K
9	色片类型/GEL type	0 - 127	R-GEL
9	色片类型/GEL type	128 - 255	L-CEL
10	色片号/GEL No.	0 - 255	1 个数值对应一款色号/One value corresponds to one color numeric
11	保留/Save	0 - 255
12	保留/Save	0 - 255
13-18	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel(") or Pixel (2) for the corresponding DMX value and parameter			像素(3)/Pixel (3)
19	亮度/Dimmer	0 - 255	0% - 100%	像素(4)/Pixel (4)
20	色层/CCT	0 - 127	3200K
20	色层/CCT	128 - 255	5600K
21	色片类型/GEL type	0 - 127	R-GEL
21	色片类型/GEL type	128 - 255	L-GEL
22	色片号/GEL No	0 - 255	1 个数值对应一款色号/One value corresponds to one color numeric
23	保留/Save	0 - 255
24	保留/Save	0 - 255

CCT 16bit (像素=4/Pixel=4)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1) 1. 标验具体灯具色温表面进行适配 2. 标验具体灯具是否具有色红/绿阶正功能进行适配 Pixel(1) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function.
2
3	色温/CCT	0 - 65535	2000K - 10000K
4
5	蓝红/绿/Magenta/Green	0 - 4587	中性/无光效/NeutralNo effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光效/NeutralNo effect
		39977-60292	1 ~ 50
		60293-65535	全-绿/Full plus green
7	亮度/Dimmer	0 - 65535	0% - 100%	像素(2) 1. 标验具体灯具色温表面进行适配 2. 标验具体灯具是否具有色红/绿阶正功能进行适配 Pixel(2) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function.
8
9	色温/CCT	0 - 65535	2000K - 10000K
10
11	高红/绿/Magenta/Green	0 - 4587	中性/无光效/NeutralNo effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
12		30146-39976	中性/无光效/NeutralNo effect
		39977-60292	1 ~ 50
		60293-65535	全-绿/Full plus green
13-18	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
19	亮度/Dimmer	0 - 65535	0% - 100%	像素(4) 1. 标验具体灯具色温表面进行适配 2. 标验具体灯具是否具有色红/绿阶正功能进行适配 Pixel(4) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function.
20
21	色温/CCT	0 - 65535	2000K - 10000K
22
23	高红/绿/Magenta/Green	0 - 4587	中性/无光效/NeutralNo effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
24		30146-39976	中性/无光效/NeutralNo effect
		39977-60292	1 ~ 50
		60293-65535	全-绿/Full plus green

HSI 16bit (像素 = 4/Pixel = 4)

每个像素 3 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel (1)
2
3	色相/Hue	0 - 65535	0^° - 360^°
4
5	饱和度/Saturation	0 - 65535	0% - 100%
6
7	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel (2)
8
9	色相/Hue	0 - 65535	0^° - 360^°
10
11	饱和度/Saturation	0 - 65535	0% - 100%
12
13-18	对应的 DMX 倍和参数, 参考像素(1)或像素(2) Please refer to Pixel(*) or Pixel (2) for the corresponding DMX value and parameter			像素(3)/Pixel (3)
19	亮度/Dimmer	0 - 65535	0% - 100%	像素(4)/Pixel (4)
20
21	色相/Hue	0 - 65535	0^° - 360^°
22
23	饱和度/Saturation	0 - 65535	0% - 100%
24

RGBW 16bit (像素 = 4/Pixel = 4)

每个像素 10 个通道 /10 channels per pixel
通道/Channel	功能/Function	DMX 镜/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel (1)
2
3	红光强度/Intensity red	0 - 65535	0 - 255
4
5	绿光强度/Intensity green	0 - 65535	0 - 255
6
7	蓝光强度/Intensity blue	0 - 65535	0 - 255
8
9	日光强度/Intensity white	0 - 65535	0 - 255
10

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
11	亮度/Dimmer	0-65535	0%~100%	像素(2)/Pixel(2)
12
13	红光强度/Intensity red	0-65535	0~255
14
15	绿光强度/Intensity green	0-65535	0~255
16
17	蓝光强度/Intensity blue	0-65535	0~255
18
19	白光强度/Intensity white	0-65535	0~255
20
21-30	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
31	亮度/Dimmer	0-65535	0%~100%	像素(4)/Pixel(4)
32
33	红光强度/Intensity red	0-65535	0~255
34
35	绿光强度/Intensity green	0-65535	0~255
36
37	蓝光强度/Intensity blue	0-65535	0~255
38
39	白光强度/Intensity white	0-65535	0~255
40

RGBWW 16bit (像素 = 4/Pixel = 4)

每个像素12个通道/12 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Olmmeter	0-65535	0%~100%	像素(1)/Pixel(1)
2
3	红光强度/Intensity red	0-65535	0-255
4
5	绿光强度/Intensity green	0-65535	0-255
6
7	蓝光强度/Intensity blue	0-65535	0-255
8
9	冷白光强度/Intensity cool white	0-65535	0-255
10
11	硬白光强度/Intensity warm white	0-65535	0-255
12
通话/Channel	功能/ function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
13	亮度/Gimmer	0 - 65535	0% - 100%	像素(2)/Pixel (2)
14
15	红光强度/Intensity red	0 - 65535	0 - 255
16
17	绿光强度/Intensity green	0 - 65535	0 - 255
18
19	显光强度/Intensity blue	0 - 65535	0 - 255
20
21	冷白光强度/Intensity cool white	0 - 65535	0 - 255
22
23	漂白光强度/Intensity warm white	0 - 65535	0 - 255
24
25-36	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(3)/Pixel (3)
37	亮度/Gimmer	0 - 65535	0% - 100%	像素(4)/Pixel (4)
38
39	红光强度/Intensity red	0 - 65535	0 - 255
40
41	绿光强度/Intensity green	0 - 65535	0 - 255
42
43	蓝光强度/Intensity blue	0 - 65535	0 - 255
44
45	冷白光强度/Intensity cool white	0 - 65535	0 - 255
46
47	漂白光亮度/Intensity warm white	0 - 65535	0 - 255
48

xy 16bit (像素 = 4/Pixel = 4)

每个像素 6 个通道 /6 channels per pixel
通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素 (1) /Pixel (1)
2
3	x 坐标 /x-coordinate	0 - 65535	0.0 - 0.8
4
5	y 坐标 /y-coordinate	0 - 65535	0.0 - 0.8
6
7	亮度 /Dimmer	0 - 65535	0% - 100%	像素 (2) /Pixel (2)
8
9	x 坐标 /x-coordinate	0 - 65535	0.0 - 0.8
10
11	y 坐标 /y-coordinate	0 - 65535	0.0 - 0.8
12
13-18	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素 (3) /Pixel (3)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
19	亮度/Dimmer	0-65535	0%~100%	像素(4)/Pixel(6)
20
21	x坐标λ=coordinate	0-65535	0.0~0.8
22
23	y坐标λ=coordinate	0-65535	0.0~0.8
24

CCT&HSI 16bit (像素 = 4/Pixel = 4)

每个像素12个通道/12 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)1. 检到具体灯具是否具有品红/横桥正功能进行适配2.CCT 到 HSI 替化过程,0%=CCT,100%=HSIPixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to HSI (0%=CCT,100%=HSI)
2
3	色温/CCT	0 - 65535	2000K - 10000K
4
5	品红/绿/Magenta/Green	0 - 6587	中性/无光数/Neutral/No effect
		4588-9830	全・绿/Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全・绿/Full plus green
7	交叉嵌入突出/Cross'ade	0 - 65535	0% - 100%
8
9	色相/nue	0 - 65535	0° - 360°
10
11	饱和度/Saturation	0 - 65535	0% - 100%
12
13	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)1. 根据具体灯具是否具有品红/横桥正功能进行适配2.CCT 到 HSI 替化过程,0%=CCT,100%=HSIPixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to HSI (0%=CCT,100%=HSI)
14
15	色温/CCT	0 - 65535	2000K - 10000K
16
17	品红/绿/Magenta/Green	0 - 6587	中性/无光数/Neutral/No effect
		4588-9830	全・绿/Full minus green
		9831-30145	-50 ~ -1
18		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全・绿/Full plus green
19	交叉嵌入突出/Cross'ade	0 - 65535	0% - 100%
20
21	色相/nue	0 - 65535	0° - 360°
22
23	饱和度/Saturation	0 - 65535	0% - 100%
24
通道/Channel	功能/Function	DMX值 /DMX Value	参数/Parameter	备注/Note
25-36	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3) 1. 指据具体灯具是否具有品红/绿矫正功能进行选配 2.CCT到HSI量化过程,0%=CCT,100%-HSI Pixel(3) 1. Adapt according to whether the luminaire has a magenta/green adjust function, 2. Dissolve from CCT to HSL, 0%=CCT, 100%-HSI.
37	亮度/Dimmer	0 - 65535	0% - 100%	像素(4) 1. 指据具体灯具是否具有品红/绿色正功能进行选配 2. CCT到HSI量化过程,0%=CCT,100%-HSI
38
39	色谱/CCT	0 - 65535	2000K - 10000K
40
41	晶红/绿/Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-9830	全-绿/full minus green
		9831-30145	-50 - -1
42		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
43	交叉嵌入淡出/Crossfade	0 - 65535	0% - 100%	Pixel(4) 1. Adapt according to whether the luminaire has a magenta/green adjust function, 2. Dissolve from CCT to HSL, 0%=CCT,100%-HSI.
44
45	色相/Blue	0 - 65535	0' - 360°
46
47	饱和度/Saturation	0 - 65535	0% - 100%
48

CCT&RGBW 16bit (像素 = 4/Pixel = 4)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)1. 根据具体灯具色谱范围进行适配
2
3	色显/CCT	0 - 65535	2000K - 10000K	2. 根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT到RGBW量化过程,0%=CCT,100%-RGBW
4
5	蓝红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect	Pixel(1)1. Adapt according to CCT range of the luminaire.2. Adapt according to whether the luminaire has a magenta/green Adjust function.3. Dissolve from CCT to RGBW, 0%=CCT, 100%-RGBW.
		4588-09830	全-模/Full minus green
		9831-30145	-50 = -1
6		30°46-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-模/Full plus green
7	交叉读入弹出/Crossfade	0 - 65535	0% - 100%
8
9	红光强度/Intensity red	0 - 65535	0 - 255
10
11	横光强度/Intensity green	0 - 65535	0 - 255
12
13	圆光强度/Intensity blue	0 - 65535	0 - 255
14
15	白光强度/Intensity white	0 - 65535	0 - 255
16
17	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)1. 根据具体灯具色谱范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT到RGBW量化过程,0%=CCT,100%-RGBW
18
19	色显/CCT	0 - 65535	2000K - 10000K
20
21	蓝红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect	Pixel(2)1. Adapt according to CCT range of the luminaire.2. Adapt according to whether the luminaire has a magenta/green adjust function.3. Dissolve from CCT to RGBW, 0%=CCT, 100%-RGBW.
		4588-09830	全-模/Full minus green
		9831-30145	-50 = -1
22		30°46-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-模/Full plus green
23	交叉读入弹出/Crossfade	0 - 65535	0% - 100%
24
25	红光强度/Intensity red	0 - 65535	0 - 255
26
27	横光强度/Intensity green	0 - 65535	0 - 255
28
29	圆光强度/Intensity blue	0 - 65535	0 - 255
30
31	白光强度/Intensity white	0 - 65535	0 - 255
32
通道 Channel	功能 /Function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
33-48	对应的 DMX 低和参数,参考像素(1)或像素(2).Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3):1. 根据具体灯具色显范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT 到 RGBW 曼化过程,0%-CCT,100%-RGBWPixel (3):1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to RGBW,0%-CCT,100%-RGBW,
49	亮度 /D/mm	0 - 65535	0% - 100%	像素(4):1. 根据具体灯具色显范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT 到 RGBW 曼化过程,0%-CCT,100%-RGBWPixel (4):1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to RGBW,0%-CCT,100%-RGBW,
50
51	色显 /CCT	0 - 65535	2000K - 10000K
52
53	杂红 /绿 /Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-09830	全+绿/Full minus green
		9831-30145	-50 - -1
54		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全+绿/不混 plus green
55	交叉淡入淡出 /Crossfade	0 - 65535	0% - 100%
56
57	红光强度 /Intensity red	0 - 65535	0 - 255
58
59	绿光亮度 /Intensity green	0 - 65535	0 - 255
60
61	蓝光强度 /Intensity blue	0 - 65535	0 - 255
62
63	白光强度 /Intensity white	0 - 65535	0 - 255
64

CCT&XY 16bit (像素=4/Pixel=4)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0% - 100%	像素(1) 1. 根据具体灯亮色温范围进行适配 2. 根据具体灯具是否具有层红/绿矫正功能进行适配 3.CCT到x/y坐标模式变化过程, 0%=CCT:100%=x/y 坐标模式 Pixel(1) 1. Adapt according to CCT range of the luminaire. 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, 0%=CCT, 100%=x/y coordinate.
2
3	色阶/CCT	0-65535	2000K-10000K
4
5	显红/绿/Magenta/Green	0-4587	中性/无光效/Neutral/No effect
		4588-9830	全-绿/Full minus green
		9831-30145	-50 - -1
6		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
7	交叉淡入淡出/Crossfade	0-65535	0% - 100%
8
9	x坐标/x-coordinate	0-65535	0.0 - 0.8
10
11	y坐标/y-coordinate	0-65535	0.0 - 0.8
12
13	亮度/Dimmer	0-65535	0% - 100%	像素(2) 1. 根据具体灯亮色温范围进行适配 2. 根据具体灯具是否具有层红/绿矫正功能进行适配 3.CCT到x/y坐标模式变化过程, 0%=CCT:100%=x/y 坐标模式 Pixel(2) 1. Adapt according to CCT range of the luminaire. 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, 0%=CCT, 100%=x/y coordinate.
14
15	色阶/CCT	0-65535	2000K-10000K
16
17	显红/绿/Magenta/Green	0-4587	中性/无光效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 - -1
18		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
19	交叉淡入淡出/Crossfade	0-65535	0% - 100%
20
21	x坐标/x-coordinate	0-65535	0.0 - 0.8
22
23	y坐标/y-coordinate	0-65535	0.0 - 0.8
24
25-36	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(3) 1. 根据具体灯具色层范围进行调配 2. 根据具体灯具是否具有品红/绿矫正功能进行调配 3.CCT到x/y坐标模式量化过程 0%-CCT:100%-x/y坐标模式 Pixel(3) 1. Adapt according to CCT range of the luminaire. 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, 0%-CCT:100%-x/y coordinate,
37	亮度/D/mmer	0 - 65535	0% - 100%	像素(4) 1. 根据具体灯具色层范围进行调配 2. 根据具体灯具是否具有品红/绿矫正功能进行调配 3.CCT到x/y坐标模式量化过程, 0%-CCT:100%-x/y坐标模式 Pixel(4) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, 0%-CCT:100%-x/y coordinate,
38
39	色彩/CCT	0 - 65535	2000K - 10000K
40
41	杂红/绿/Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
42		30146-39976	中性/无光数/Neutral/No effect
		39977-62292	1 - 50
		60293-65535	全+绿/不透明plus green
43	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
44
45	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
46
47	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
48

GEL 16bit (像素 = 4/Pixel = 4)

每个像素 7个通道 / channels per pixel
通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1)1个数值对应一款色号
2	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1)1个数值对应一款色号
3	色温 /CCT	0 - 127	3200K	Pixel (1)One value corresponds to one color numeric
3	色温 /CCT	128 - 255	5600K
4	色片类型 /GEL type	0 - 127	R-CEL
4	色片类型 /GEL type	128 - 255	L-CEL
5	色号 /Numeric	0 - 255
6	保留 /Save	0 - 255
7	保留 /Save	0 - 255
8	亮度 /Dimmer	0 - 65535	0% - 100%	像素(2)1个数值对应一款色号
9	亮度 /Dimmer	0 - 65535	0% - 100%	像素(2)1个数值对应一款色号
10	色温 /CCT	0 - 127	3200K	Pixel (2)One value corresponds to one color numeric
10	色温 /CCT	128 - 255	5600K
11	色片类型 /GEL type	0 - 127	R-CEL
11	色片类型 /GEL type	128 - 255	L-CEL
12	色号 /Numeric	0 - 255
13	保留 /Save	0 - 255
14	保留 /Save	0 - 255
15-21	对应流 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(3)/Pixel (3)
22	亮度 /Dimmer	0 - 65535	0% - 100%	像素(4)1个数值对应一款色号
23	亮度 /Dimmer	0 - 65535	0% - 100%	像素(4)1个数值对应一款色号
24	色温 /CCT	0 - 127	3200K	Pixel (4)One value corresponds to one color numeric
24	色温 /CCT	128 - 255	5600K
25	色片类型 /GEL type	0 - 127	R-CEL
25	色片类型 /GEL type	128 - 255	L-CEL
26	色号 /Numeric	0 - 255
27	保留 /Save	0 - 255
28	保留 /Save	0 - 255

CCT 8bit (像素 = 8/Pixel = 8)

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 255	0% - 100%	像素(1)/Pixel (1)
2	色谱/CCT	0 - 255	2000K ~ 10000K
3	品红/绿/Magenta/Green	0 - 10	中性/无光数/Neutral/No effect
		11 - 20	全-绿/Full minus green
		21 - 119	-50 ~ -1
		120 - 145	中性/无光数/Neutral/No effect
		146 - 244	1 - 50
		245 - 255	全+绿/Full plus green
4	亮度/Dimmer	0 - 255	0% - 100%	像素(2)/Pixel (2)
5	色谱/CCT	0 - 255	2000K ~ 10000K
6	品红/绿/Magenta/Green	0 - 10	中性/无光数/Neutral/No effect
		11 - 20	全-绿/Full minus green
		21 - 119	-50 ~ -1
		120 - 145	中性/无光数/Neutral/No effect
		146 - 244	1 - 50
		245 - 255	全+绿/Full plus green
7-9	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(3)/Pixel (3)
10~12	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(4)/Pixel (4)
13~15	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(5)/Pixel (5)
16~18	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(6)/Pixel (6)
19-21	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(7)/Pixel (7)
22	亮度/Dimmer	0 - 255	0% - 100%	像素(8)/Pixel (8)
23	色谱/CCT	0 - 255	2000K ~ 10000K
24	品红/绿/Magenta/Green	0 - 10	中性/无光数/Neutral/No effect
		11 - 20	全-绿/Full minus green
		21 - 119	-50 ~ -1
		120 - 145	中性/无光数/Neutral/No effect
		146 - 244	1 - 50
		245 - 255	全+绿/Full plus green

HSI 8bit (像素 = 8/Pixel = 8)

每个像素3个通道/3 channels per pixel
通道 Channel	功能 /Function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 255	0% - 100%	像素(1)/Pixel(1)
2	色相 /Hue	0 - 255	0°-360°
3	饱和度/Saturation	0 - 255	0% - 100%
4	亮度 /Dimmer	0 - 255	0% - 100%	像素(2)/Pixel(2)
5	色相 /Hue	0 - 255	0°-360°
6	饱和度/Saturation	0 - 255	0% - 100%
7-9	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
10-12	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
13-15	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
16-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
19-21	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
22	亮度 /Dimmer	0 - 255	0% - 100%	像素(8)/Pixel(8)
23	色相 /Hue	0 - 255	0°-360°
24	饱和度/Saturation	0 - 255	0% - 100%

RGBW 8bit (像素 = 8/Pixel = 8)

每个像素5个通道/5 channels per pixel
通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 255	0% - 100%	像素(1)/Pixel(1)
2	红光强度 /Intensity red	0 - 255	0 - 255
3	曝光强度 /Intensity green	0 - 255	0 - 255
4	混光强度 /Intensity blue	0 - 255	0 - 255
5	白光强度 /Intensity white	0 - 255	0 - 255
6	亮度 /Dimmer	0 - 255	0% - 100%	像素(2)/Pixel(2)
7	红光强度 /Intensity red	0 - 255	0 - 255
8	曝光强度 /Intensity green	0 - 255	0 - 255
9	混光强度 /Intensity blue	0 - 255	0 - 255
10	白光强度 /Intensity white	0 - 255	0 - 255
11-15	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
16-20	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
21-25	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
26-30	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
通道 Channel	功能 / function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
31-35	对应的DMX倍和参数、参考像素(1)或像素(2) Please refer to Pixel(") or Pixel(") for the corresponding DMX value and parameter			像素(7)/Pixel(7)
36	亮度/Dimmer	0~255	0%~100%	像素(8)/Pixel(8)
37	灯光强度/Intensity red	0~255	0~255
38	绿光强度/Intensity green	0~255	0~255
39	蓝光强度/Intensity blue	0~255	0~255
40	白光强度/Intensity white	0~255	0~255

RGBWW 8bit (像素 = 8/Pixel = 8)

每个像素 6 个通道 /6 channels per pixel
通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 255	0% - 100%	像素(1)/Pixel(1)
2	红光强度 /Intensity red	0 - 255	0 - 255
3	绿光强度 /Intensity green	0 - 255	0 - 255
4	滤光强度 /Intensity blue	0 - 255	0 - 255
5	冷白光强度 /Intensity cool white	0 - 255	0 - 255
6	暖白光强度 /Intensity warm white	0 - 255	0 - 255
7	亮度 /Dimmer	0 - 255	0% - 100%	像素(2)/Pixel(2)
8	红光强度 /Intensity red	0 - 255	0 - 255
9	绿光强度 /Intensity green	0 - 255	0 - 255
10	蓝光强度 /Intensity blue	0 - 255	0 - 255
11	冷白光强度 /Intensity cool white	0 - 255	0 - 255
12	缓白光强度 /Intensity warm white	0 - 255	0 - 255
13-18	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
19-24	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
25-30	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
31-36	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
37-42	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
43	亮度 /Dimmer	0 - 255	0% - 100%	像素(8)/Pixel(8)
44	红光强度 /Intensity red	0 - 255	0 - 255
45	绿光强度 /Intensity green	0 - 255	0 - 255
46	蓝光强度 /Intensity blue	0 - 255	0 - 255

通道 Channel	功能 /function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
47	净白光强度 /Intensity cool white	0~255	0~255	像素(6)/Pixel(8)
48	蛋白光亮度 /Intensity warm white	0~255	0~255	像素(6)/Pixel(8)

xy 8bit (像素 = 8/Pixel = 8)

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel(1)
2	x坐标/x-coordinate	0~255	0.0~0.8
3	y坐标/y-coordinate	0~255	0.0~0.8
4	亮度/Dimmer	0~255	0%~100%	像素(2)/Pixel(2)
5	x坐标/x-coordinate	0~255	0.0~0.8
6	y坐标/y-coordinate	0~255	0.0~0.8
7-9	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
10-12	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(4)/Pixel(4)
13-15	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(5)/Pixel(5)
16-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(6)/Pixel(6)
19-21	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(7)/Pixel(7)
22	亮度/Dimmer	0~255	0%~100%	像素(8)/Pixel(8)
23	x坐标/x-coordinate	0~255	0.0~0.8
24	y坐标/y-coordinate	0~255	0.0~0.8

CCT&HSI 8bit (像素 = 8/Pixel = 8)

每个像素 6 个通道 /6 channels per pixel
通道 Channel	功能/Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0~255	0%~100%	像素(1)1. 按照具体灯具是否具有品红/绿矫正功能进行搭配2.CCT 到 HSI量化进程,0%~CCT,100%~HSL
2	色温 /CCT	0~255	2000K ~ 10000K
3	油灯 /银 /Magenta/Green	0~10	中性/无光效 /NeutralNo effect
		11~20	全 - 绿 /Full minus green
		21~119	-50~-1
		120~145	中性/无光效 /NeutralNo effect
		146~244	1~50
		245~255	全 - 绿 /Full plus green
4	交叉淡入突出 /Crossfade	0~255	0%~100%	Pixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to HSI,0%~CCT,100%~HSL
5	色彩/Blue	0~255	0°~360°
6	饱和度 /Saturation	0~255	0%~100%
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
7	亮度/Dimmer	0-255	0%~100%	像素(2)1.根据具体灯具是否具有品红/绿矫正功能进行搭配2.CCT到HSI變化过程,0%=CCT,100%-HSIPixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL 0%=CCT,100%-HSI,
8	色温/CCCT	0-255	2000K-10000K
9	品红/橡/Magenta/Green	0-10	中性/无光效(Neutral/No effect)
		11-20	全-绿/Full minus green
		21-119	-50--1
		120-145	中性/无光效(Neutral/No effect)
		146-244	1-50
		245-255	全-绿/Full plus green
10	交叉嵌入淡出/Crossfade	0-255	0%~100%
11	色相/Hue	0-255	0°~360°
12	饱和度/Saturation	0-255	0%~100%
13-18	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(3)1.根据具体灯具是否具有品红/绿矫正功能进行搭配2.CCT到HSI變化过程,0%=CCT,100%-HSIPixel(3)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL 0%=CCT,100%-HSI,
19-24	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(4)1.根据具体灯具是否具有品红/绿矫正功能进行搭配2.CCT到HSI變化过程,0%=CCT,100%-HSIPixel(4)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL 0%=CCT,100%-HSI,
25-30	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(5)1.根据具体灯具是否具有品红/绿矫正功能进行搭配2.CCT到HSI變化过程,0%=CCT,100%-HSIPixel(5)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL 0%=CCT,100%-HSI,

通道/Channel	功率/Function	DMX值/DMX Value	参数/Parameter	备注/Note
31-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)1. 根据具体灯杆是否具有品钉/线性正功能进行搭配2.CCT到HSI量化过程,0%-CCT,100%-HSIPixel(6)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL 0%-CCT,100%-HSI.
37-42	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)1. 根据具体灯杆是否具有品钉/线性正功能进行搭配2.CCT到HSI量化过程,0%-CCT,100%-HSIPixel(7)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL 0%-CCT,100%-HSI.
43	亮度/Dimmer	0~255	0%~100%	像素(6)1. 根据具体灯具是否具有品钉/线性正功能进行搭配2.CCT到HSI量化过程,0%-CCT,100%-HSIPixel(8)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL 0%-CCT,100%-HSI.
44	色湿/CCCT	0~255	2000K~10000K
45	品红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~244	1~50
		245~255	全+绿/Full plus green
46	交叉嵌入类由/Crossfade	0~255	0%~100%
47	色相/Hue	0~255	0°~360°
48	饱和度/Saturation	0~255	0%~100%

CCT &RGBW 8bit (像素 = 8/Pixel = 8)

每个像素8个通道/8 channels per pixel
通道 Channel	功能 /Function	DMX值 /DMX Value	参数 /Parameter	备注 /None
1	亮度 /Dimmer	0 - 255	0% - 100%	像素(1)1. 根据具体灯具是否具有品红/绿矫正功能进行适配2.CCT到RGBW量化过程,0%=CCT;100%=RGBWPixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%=CCT,100%=RGBW
2	色温 /CCI	0 - 255	2000K - 10000K
3	晶红 /绿 /Magenta/Green	0 - 10	中性/无光数/Neutral/No effect
		11 - 20	全-绿 /Full minus green
		21 - 119	-50 - -1
		120 - 145	中性/无光数/Neutral/No effect
		146 - 244	1 - 50
		245 - 255	全+绿 /Full plus green
4	交叉淡入淡出 /Crossfade	0 - 255	0% - 100%
5	红光强度 /Intensity red	0 - 255	0 - 255
6	绿光强度 /Intensity green	0 - 255	0 - 255
7	蓝光强度 /Intensity blue	0 - 255	0 - 255
8	白光强度 /Intensity white	0 - 255	0 - 255
9	亮度 /Dimmer	0 - 255	0% - 100%	像素(2)1. 根据具体灯具是否具有品红/绿矫正功能进行适配2.CCT到RGBW量化过程,0%=CCT;100%=RGBWPixel(3)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%=CCT,100%=RGBW
10	色温 /CCI	0 - 255	2000K - 10000K
11	晶红 /绿 /Magenta/Green	0 - 10	中性/无光数/Neutral/No effect
		11 - 20	全-绿 /Full minus green
		21 - 119	-50 - -1
		120 - 145	中性/无光数/Neutral/No effect

		146 - 244	1 - 50
		245 - 255	全+绿 /Full plus green
12	交叉淡入淡出 /Crossfade	0 - 255	0% - 100%
13	红光强度 /Intensity red	0 - 255	0 - 255
14	绿光强度 /Intensity green	0 - 255	0 - 255
15	蓝光强度 /Intensity blue	0 - 255	0 - 255
16	白光强度 /Intensity white	0 - 255	0 - 255
17-24	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameters			像素(3)1. 检较具体灯具是否具有品红/绿矫正功能进行适配2.CCT到RGBW量化过程,0%=CCT;100%=RGBWPixel(3)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%=CCT,100%=RGBW

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
25~32	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(2).根据具体灯具是否具有星灯/绿映正功能进行搭配.2.CCT到RGBW量化过程,0%=CCT,100%-RGBWPixel(4).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to RGBW,0%=CCT,100%-RGBW.
33~40	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(5).根据具体灯具是否具有星灯/绿映正功能进行搭配.2.CCT到RGBW量化过程,0%=CCT,100%-RGBWPixel(5).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to RGBW,0%=CCT,100%-RGBW.
47~48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(6).根据具体灯具是否具有星灯/绿映正功能进行搭配.2.CCT到RGBW量化过程,0%=CCT,100%-RGBWPixel(6).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to RGBW,0%=CCT,100%-RGBW.
49~56	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(7).根据具体灯具是否具有星灯/绿映正功能进行搭配.2.CCT到RGBW量化过程,0%=CCT,100%-RGBWPixel(7).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to RGBW,0%=CCT,100%-RGBW.
57	亮度/Dimmer	0-255	0% - 100%	像素(8)1. 模板具体灯具是否具有品红/绿环正功能进行搭配2. CCT到RGBW静化过程,0%~CCT,100%~RGBW
58	色温/CCT	0-255	2000K ~ 10000K
59	品红/绿/Magenta/Green	0-10	中性/无光数/Neutral No effect
		11-20	全-绿/Full minus green
		21-119	-50~-1
		120-145	中性/无光数/Neutral No effect
		146-244	1-50
		245-255	全-绿/Full plus green
60	交叉荧入突出/Crossfade	0-255	0% - 100%
61	红光强度/Intensity red	0-255	0-255
62	纵光强度/Intensity green	0-255	0-255
63	蓝光强度/Intensity blue	0-255	0-255
64	自光亮度/Intensity white	0-255	0-255

CCT & XY 8bit (像素 = 8 / Pixel = 8)

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 值 /DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 255	0% - 100%	像素(1)1. 标据具体灯具是否具有品红/绿桥正功能进行适配2.CCT 则 x/y 帧标模式量化过程3.0%CCT: 100%=x/y坐标模式Pixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate, 0%=CCT: 100%=x/y coordinate.
2	色度/CCT	0 - 255	2000K - 10000K
3	品红/棕/Magenta/Green	0 - 10	中性/无光数/NeutralNo effect
		11 - 20	全-绿/Full minus green
		21 - 119	-50 ~ -1
		120 - 145	中性/无光数/NeutralNo effect
		146 - 244	1 - 50
		245 - 255	全-绿/Full plus green
4	交叉淡入黄出/Crossfade	0 - 255	0% - 100%
5	x坐标/x-coordinate	0 - 255	0.0 - 0.8
6	y坐标/y-coordinate	0 - 255	0.0 - 0.8
7	亮度/Dimmer	0 - 255	0% - 100%	像素(2)1. 比宽具体灯具是否有品红/绿桥正功能进行适配2.CCT 则 x/y 帧标模式量化过程3.0%CCT: 100%=x/y坐标模式Pixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate, 0%=CCT: 100%=x/y coordinate.
8	色度/CCT	0 - 255	2000K - 10000K
9	品红/棕/Magenta/Green	0 - 10	中性/无光数/NeutralNo effect
		11 - 20	全-绿/Full minus green
		21 - 119	-50 ~ -1
		120 - 145	中性/无光数/NeutralNo effect
		145 - 244	1 - 50
		245 - 255	全-绿/Full plus green
10	交叉淡入黄出/Crossfade	0 - 255	0% - 100%
11	x坐标/x-coordinate	0 - 255	0.0 - 0.8
12	y坐标/y-coordinate	0 - 255	0.0 - 0.8

通道/Channel	功能/Function	DMX值/DMXValue	参数/Parameter	备注/Note
13-16	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(3):根据具体灯具是否具有直径/缓冲器功能进行匹配2.CCT到x/y坐标模式变化过程,0%=CCT.100%=x/y坐标模式Pixel(3):Adapt according to whether the luminaire has a magenta/green adjust function.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate
19-24	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(4):根据具体灯具是否具有直径/缓冲器功能进行匹配2.CCT到x/y坐标模式变化过程,0%=CCT.100%=x/y坐标模式Pixel(4):Adapt according to whether the luminaire has a magenta/green adjust function.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate
25-30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(5):根据具体灯具是否具有直径/缓冲器功能进行匹配2.CCT到x/y坐标模式变化过程,0%=CCT.100%=x/y坐标模式Pixel(5):Adapt according to whether the luminaire has a magenta/green adjust function.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate
31-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(6):根据具体灯具是否具有直径/缓冲器功能进行匹配2.CCT到x/y坐标模式变化过程,0%=CCT.100%=x/y坐标模式Pixel(6):Adapt according to whether the luminaire has a magenta/green adjust function.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate
37-42	对应为DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(7).根据具体灯具是否具有压/保护上功能进行匹配2CCT到x/y坐标模式变化过程,0%=CCT,100%=x/y坐标模式Pixel(7).Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate.
43	亮度/Dimmer	0~255	0%~100%	像素(8).根据具体灯具是否具有压/保护上功能进行匹配2CCT到x/y坐标模式变化过程,0%=CCT,100%=x/y坐标模式Pixel(8).Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate.
44	色温/CCF	0~255	2000K~10000K
45	品红/核/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全+绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~244	1~50
		245~255	全+绿/Full plus green
46	交叉嵌入器出/Crossfade	0~255	0%~100%
47	x坐标/x-coordinate	0~255	0.0~0.8
48	y坐标/y-coordinate	0~255	0.0~0.8

GEL 8 bit (像素 = 8/Pixel = 8)

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 255	0% - 100%	像素(1)/Pixel(1)
2	色阶/CCI	0 - 127	3200K
2	色阶/CCI	128 - 255	5600K
3	色片类型/DEL type	0 - 127	R-DEL
3	色片类型/DEL type	128 - 255	L-DEL
4	色片号/GEI No.	0 - 255	1个数值对应一数字号/One value corresponds to one color numeric
5	保留/Save	0 - 255	0% - 100%
6	保留/Save	0 - 255	3200K

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
7	亮度/Dimmer	0-255	L-GEL	像素(2)/Pixel(2)
8	色温/CCI	0-127	3200K
8	色温/CCI	128-255	5600K
9	色片类型/GEL type	0-127	R-GEL
9	色片类型/GEL type	128-255	L-GEL
10	色片号/IGEL No.	0-255	1个数值对应一款色号/One value corresponds to one color numeric
11	保留/Save	0-255
12	保留/Save	0-255
13-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
19-24	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
25-30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
31-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
37-42	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
42	亮度/Dimmer	0-255	0%~100%	像素(8)/Pixel(8)
44	色温/CCI	0-127	3200K
44	色温/CCI	128-255	5600K
45	色片类型/GEL type	0-127	R-GEL
45	色片类型/GEL type	128-255	L-GEL
46	色片号/IGEL No.	0-255	1个数值对应一款色号/One value corresponds to one color numeric
47	保留/Save	0-255
48	保留/Save	0-255

CCT 16bit (像素 = 8/Pixel = 8)

每个像素6个通道/s channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0%-100%	像素(1)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel(1)1. Adapt according to CCT range of the Luminare.2. Adapt according to whether the Luminare has a magenta/green adjust function.
2
3	色阶/CCT	0-65535	2000K-10000K
4
5	品红/绿/Magenta/Green	0-4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50~+1
6		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1-50
		60293-65535	全+绿/Full plus green
7	亮度/Dimmer	0-65535	0%-100%	像素(2)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel(2)1. Adapt according to CCT range of the Luminare.2. Adapt according to whether the Luminare has a magenta/green adjust function.
8
9	色阶/CCT	0-65535	2000K-10000K
10
11	品红/绿/Magenta/Green	0-4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50~+1
		30146-39976	中性/无光数/Neutral/No effect
12		39977-60292	1-50
		60293-65535	全+绿/Full plus green
13-18	对应的DMX值和参数、参考像素(1)适像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel(3)1. Adapt according to CCT range of the Luminare.2. Adapt according to whether the Luminare has a magenta/green adjust function.
19-24	对应的DMX值和参数、参考像素(1)适像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel(4)1. Adapt according to CCT range of the Luminare.2. Adapt according to whether the Luminare has a magenta/green adjust function.

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
25-30	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel (5)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function.
31-36	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel (6)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function.
37+42	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel (7)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function.
43	亮度/Dimmer	0 - 65535	0% - 100%	像素(8)1. 根据具体灯具色温范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配Pixel (8)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function.
44	色温/OCT	0 - 65535	2000K - 10000K
45
46
47	品红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 = -1
48		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全+绿/Full plus green

HSI 16bit (像素 = 8/Pixel = 8)

每个像素 6 个通道 /s channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel (1)
2
3	色相/Hue	0 - 65535	0° - 360°
4
5	饱和度/Saturation	0 - 65535	0% - 100%
6
7	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel (2)
8
9	色相/Hue	0 - 65535	0° - 360°
10
11	饱和度/Saturation	0 - 65535	0% - 100%
12
13-18	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(3)/Pixel (3)
19-24	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(4)/Pixel (4)
25-30	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(5)/Pixel (5)
31-36	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(6)/Pixel (6)
37-42	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(7)/Pixel (7)
43	亮度/Dimmer	0 - 65535	0% - 100%	像素(8)/Pixel (8)
44
45	色相/Hue	0 - 65535	0° - 360°
46
47	饱和度/Saturation	0 - 65535	0% - 100%
48

RGBW 16bit (像素 = 8/Pixel = 8)

每个像素 10 个通道 /10 channels per pixel
通道/Channel	功能/Function	DMX 值 /DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~65535	0%~100%	像素(1)/Pixel(?)
2
3	红光强度/Intensity red	0~65535	0~255
4
5	绿光亮度/Intensity green	0~65535	0~255
6
7	蓝光强度/Intensity blue	0~65535	0~255
8
9	白光强度/Intensity white	0~65535	0~255
10

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
11	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel(2)
12
13	红光强度/Intensity red	0 - 65535	0 - 255
14
15	绿光强度/Intensity green	0 - 65535	0 - 255
16
17	蓝光强度/Intensity blue	0 - 65535	0 - 255
18
19	白光强度/Intensity white	0 - 65535	0 - 255
22
21-30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
31-40	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(4)/Pixel(4)
41-50	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(5)/Pixel(5)
51-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(6)/Pixel(6)
61-70	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(7)/Pixel(7)
71	亮度/Dimmer	0 - 65535	0% - 100%	像素(8)/Pixel(8)
72
73	红光强度/Intensity red	0 - 65535	0 - 255
74
75	绿光强度/Intensity green	0 - 65535	0 - 255
76
77	蓝光强度/Intensity blue	0 - 65535	0 - 255
78
79	白光强度/Intensity white	0 - 65535	0 - 255
80

RGBWW 16bit (像素 = 8/Pixel = 8)

每个像素12个通道/12 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0%-100%	像素(1)/Pixel(1)
2
3	灯光强度/Intensity red	0-65535	0-255
4
5	绿光强度/Intensity green	0-65535	0-255
6
7	蓝光强度/Intensity blue	0-65535	0-255
8
9	冷白光强度/Intensity cool white	0-65535	0-255
10
11	黑白光强度/Intensity warm white	0-65535	0-255
12
13	亮度/Dimmer	0-65535	0%-100%	像素(2)/Pixel(2)
14
15	灯光强度/Intensity red	0-65535	0-255
16
17	绿光强度/Intensity green	0-65535	0-255
18
19	蓝光强度/Intensity blue	0-65535	0-255
20
21	冷白光强度/Intensity cool white	0-65535	0-255
22
23	黑白光强度/Intensity warm white	0-65535	0-255
24
25-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
37-48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
49-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
61-72	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
73-84	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
85	亮度/Dimmer	0 - 65535	0% - 100%	像素(组)/Pixel(组)
86
87	红光强度/Intensity red	0 - 65535	0 - 255
88
89	绿光强度/Intensity green	0 - 65535	0 - 255
90
91	顶光强度/Intensity blue	0 - 65535	0 - 255
92
93	冷白光强度/Intensity cool white	0 - 65535	0 - 255
94
95	横白光强度/Intensity warm white	0 - 65535	0 - 255
96

xy 16bit (像素 = 8/Pixel = 8)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel(1)
2
3	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
4
5	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
6
7	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel(2)
8
9	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
10
11	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
12
13-18	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
19-24	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
25-30	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
31-36	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
37-42	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
43	亮度/Dimmer	0 - 65535	0% - 100%	像素(8)/Pixel(8)
44
45	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
46
47	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
48

CCT&HSI 16bit (像素 = 8/Pixel = 8)

通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注/Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1):1. 检据具体灯具是否具有品红/绿矫正功能进行适配2.CCT到HSI量化过程,0%~CCT,100%~+SIPixel(1):1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL,0%~CCT,100%~+HSI.
2
3	色温 /CCT	0 - 65535	2000K - 10000K
4
5	品红/绿/Magenta/Green	0 - 4587	中性/无光数/NeutralNo effect
		4588-9630	全-绿/Full minus green
		9831-30145	-50--1
6		30146-39978	中性/无光数/NeutralNo effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
7	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
8
9	色相/Hue	0 - 65535	0° - 360°
10
11	饱和度/Saturation	0 - 65535	0% - 100%
12
13	亮度/Dimmer	0 - 65535	0% - 100%	像素(2):1. 检据具体灯具是否具有品红/绿矫正功能进行适配2.CCT到HSI量化过程,0%~CCT,100%~+SIPixel(2):1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL,0%~CCT,100%~+HSI.
14
15	色温 /CCT	0 - 65535	2000K - 10000K
16
17	品红/绿/Magenta/Green	0 - 4587	中性/无光数/NeutralNo effect
		4588-9630	全-绿/Full minus green
		9831-30145	-50--1
18		30146-39978	中性/无光数/NeutralNo effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
19	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
20
21	色相/Hue	0 - 65535	0° - 360°
22
23	饱和度/Saturation	0 - 65535	0% - 100%
24
25-36	对应的DMX信号参数、参考像素(1)边缘素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(3):1. 检据具体灯具是否具有品红/绿矫正功能进行适配2.CCT到HSI量化过程,0%~CCT,100%~+SIPixel(3):1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSL,0%~CCT,100%~+HSI.

通道/Channel	功能/Function	DMX值/DMXValue	参数/Parameter	备注/Note
37-48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(4).根据具体灯具是否具有是红/绿阶注功能进行装配2.CCT到HSI变化过程,0%=CCT;100%=HSIPixel(4).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to HSI,0%=CCT,100%=HSI.
49-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(5).根据具体灯具是否具有是红/绿阶注功能进行装配2.CCT到HSI变化过程,0%=CCT;100%=HSIPixel(5).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to HSI,0%=CCT,100%=HSI.
61-72	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(6).根据具体灯具是否具有是红/绿阶正功能进行装配2.CCT到HSI变化过程,0%=CCT;100%=HSIPixel(6).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to HSI,0%=CCT,100%=HSI.
73-84	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(7).根据具体灯具是否具有是红/绿阶正功能进行装配2.CCT到HSI变化过程,0%=CCT;100%=HSIPixel(7).1.Adapt according to whether the luminaire has a magenta/green adjust function.2.Dissolve from CCT to HSI,0%=CCT,100%=HSI.
85	亮度/Dimmer	0-65535	0% - 100%	像素(8)1. 根据具体灯具是否具有前灯/线防正功能进行功耗2.CCT时HST费化过程,0%~CCT,100%+HSPixel(8)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to HSI,0%~CCT,100%+HSL.
86
87	色温/OCT	0-65535	2000K-10000K
88
89	压红/模/Magenta/Green	0-4587	中性/无光数/NeutralNo effect
		4588-9830	全-模/PU minus green
		9831-30145	-50~-1
90		30146-39976	中性/无光数/NeutralNo effect
		39977-60292	1-50
		60293-65535	全-模/Full plus green
91	交叉束入夹出/Crossfade	0-65535	0% - 100%
92
93	色相/Hue	0-65535	0°~360°
94
95	饱和度/Saturation	0-65535	0% - 100%
96

CCT&RGBW 16bit (像素 = 8/Pixel = 8)

通道/Channel	功能/Function	DMX值 /DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1):根据具体灯具色谱范围进行适配2. 根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT到RGBW变化过程,0%=CCT,100%=RGBWPixel()1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to RGBW,0%=CCT,100%=RGBW,
2
3	色温/CCT	0 - 65535	2000K - 10000K
4
5	品红/绿/Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50--1
6		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全+绿/Full plus green
7	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
8
9	红光强度/Intensity red	0 - 65535	0 - 255
10
11	绿光强度/Intensity green	0 - 65535	0 - 255
12
13	蓝光强度/Intensity blue	0 - 65535	0 - 255
14
15	白光强度/Intensity white	0 - 65535	0 - 255
16

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
17	亮度/Dimmer	0-65535	0% - 100%	像素(2)1. 根据具体灯黑色透明黑素进行匹配2. 根据具体灯是否具有品红/绿砖正功能进行匹配3.CCT到RGBW量的CCT程,0% - CCT,100%-RGBWPixel(2)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to RGBW,0% - CCT,100%-HGBW.
18
19	色温/CCT	0-65535	2000K - 10000K
20
21	蓝红/绿/Magenta/Green	0-4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50--1
22		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1-50
		60293-65535	全-绿/Full plus green
23	交叉换入条目/Crossfade	0-65535	0% - 100%
24
25	红光强度/Intensity red	0-65535	0-255
26
27	绿光强度/Intensity green	0-65535	0-255
28
29	常光强度/Intensity blue	0-65535	0-255
30
31	白光强度/Intensity white	0-65535	0-255
32
33~48	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(3)1. 根据具体灯黑色透明黑素进行匹配2. 根据具体灯是否具有品红/绿砖正功能进行匹配3.CCT到RGBW量化过程,0% - CCT;100%-HGBWPixel(3)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to RGBW,0% - CCT,100%-RGBW.
49-64	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)1.根据具体灯具色阶应能进行适配2.根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT到RGBW叠化过程,0%~CCT,100%-RGBWPixel(4)1.Adapt according to CCT range of the luminaire,2.Adapt according to whether the luminaire has a magenta/green adjust function,3.Dissolve from CCT to RGBW,0%~CCT,100%-RGBW.
65-80	对应否DMX值和参数、参考像素(1)成像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)1.根据具体灯具色阶范围进行适配2.根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT到RGBW叠化过程,0%~CCT,100%-RGBWPixel(5)1.Adapt according to CCT range of the luminaire,2.Adapt according to whether the luminaire has a magenta/green adjust function,3.Dissolve from CCT to RGBW,0%~CCT,100%-RGBW.
81-96	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)1.根据具体灯具色阶范围进行适配2.根据具体灯具是否具有品红/绿矫正功能进行适配3.CCT到RGBW叠化过程,0%~CCT,100%-RGBWPixel(6)1.Adapt according to CCT range of the luminaire,2.Adapt according to whether the luminaire has a magenta/green adjust function,3.Dissolve from CCT to RGBW,0%~CCT,100%-RGBW.

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/note
97-112	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(7): 1 根据具体灯具色温范围进行适配 2 根据具体灯具是否具有品红/绿矫正功能进行适配 3.CCT到RGBW叠化处理,0%-CCT,100%-RGBWPixel(7) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to RGBW, 0%-CCT, 100%-RGBW
113	亮度/Dimmer	0 - 65535	0% - 100%	像素(8): 1 根据具体灯具色温范围进行适配 2 根据具体灯具是否具有品红/绿矫正功能进行适配 3.CCT到RGBW叠化过程,0%-CCT,100%-RGBWPixel(8) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to RGBW, 0%-CCT, 100%-RGBW
114
115	色温/CCT	0 - 65535	2000K - 10000K
116
117	显红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	+50 = -1
118		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全+导/Full plus green
119	交叉换入器出/Crossfade	0 - 65535	0% - 100%
120
121	红光强度/Intensity red	0 - 65535	0 - 255
122
123	极光强度/Intensity green	0 - 65535	0 - 255
124
125	蓝光强度/Intensity blue	0 - 65535	0 - 255
126
127	白光强度/Intensity white	0 - 65535	0 - 255
128

CCT&xy 16bit (像素=8/Pixel=8)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0% - 100%	像素(1) 1.根据具体灯光色温范围进行适配 2.根据具体灯具是否具有品红/绿矫正功能进行适配 3.CCT到x/y坐标模式量化校对,0%=CCT:100%=x/y单相模式Pixel(1) 1. Adapt according to CCT range of the luminaire. 2. Adapt according to whether the luminaire has a magenta/green adjust function. 3. Dissolve from CCT to x/y coordinate. 0%=CCT:100%=x/y coordinate.
2
3	色阶/CCT	0-65535	2000K-10000K
4
5	层红/绿/Magenta/Green	0-4587	中性/无光数/Neutral/No effect
		4588-9830	全-绿/Full minus green
		9831-30145	-50 - -1
6		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
7	交叉淡入淡出/Crossfade	0-65535	0% - 100%
8
9	x坐标/x-coordinate	0-65535	0.0 - 0.8
10
11	y坐标/y-coordinate	0-65535	0.0 - 0.8
12
13	亮度/Dimmer	0-65535	0% - 100%	像素(2) 1.根据具体灯光色温范围进行适配 2.根据具体灯具是否具有品红/绿矫正功能进行适配 3.CCT到x/y坐标模式量化校对,0%=CCT:100%=x/y坐标模式Pixel(2) 1. Adapt according to CCT range of the luminaire. 2. Adapt according to whether the luminaire has a magenta/green adjust function. 3. Dissolve from CCT to x/y coordinate. 0%=CCT:100%=x/y coordinate.
14
15	色阶/CCT	0-65535	2000K-10000K
16
17	层红/绿/Magenta/Green	0-4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 - -1
18		30146-39976	中性/无光数/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
19	交叉淡入淡出/Crossfade	0-65535	0% - 100%
20
21	x坐标/x-coordinate	0-65535	0.0 - 0.8
22
23	y坐标/y-coordinate	0-65535	0.0 - 0.8
24

通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
25-36	对应的 DMX 值和参数、参考像素 (1) 或像素 (2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (3)1. 根据具体灯亮色温范围进行语配2. 根据具体灯具是否具有色红/绿矫正功能运行语配3.BCCT 到 x/y坐标模式变化过程,D%=CCT:100%-x/y坐标模式Pixel (3)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to x/y coordinate, D%=CCT:100%-x/y coordinate.
37-48	对应的 DMX 值和参数、参考像素 (1) 或像素 (2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (4)1. 根据具体灯亮色温范围进行语配2. 根据具体灯具是否具有色红/绿矫正功能运行语配3.BCCT 到 x/y坐标模式变化过程,D%=CCT:100%-x/y坐标模式Pixel (4)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to x/y coordinate, D%=CCT:100%-x/y coordinate.
通道 Channel	功能 /Function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
49~60	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5):1. 根据具体灯具色温差进行适配;2. 根据具体灯具是否具有显红/绿矫正功能进行适配;3.CCT 到 x/y 坐标模式量化过程,0%-CCT;100%-x/y坐标模式Pixel(6):1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolve from CCT to x/y coordinate,0%-CCT;100%-x/y coordinate,
61~72	对应的 DMX 值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6):1. 根据具体灯具色温差进行适配;2. 根据具体灯具是否具有显红/绿矫正功能进行适配;3.CCT 到 x/y 坐标模式量化过程,0%-CCT;100%-x/y坐标模式Pixel(6):1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the luminaire has a magenta/green adjust function,3. Dissolv from CCT to x/y coordinate,0%-CCT;100%-x/y coordinate,

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
73-84	对应的DMX值和参数,参考像素(1)成像素(2) Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(7) 1. 根材具体灯具色强范围进行适配 2. 根据具体灯具是否具有品红/绿的正功能进行适配 3. CCT到x/y坐标模式叠化过程 D%<CCT 100%-x/y坐标模式 Pixel(7) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, D%<CCT 100%-x/y coordinate.
85	亮度/Olmmeter	0 - 65535	0% - 100%	像素(8) 1. 根材具体灯具色强范围进行适配 2. 根据具体灯具是否具有品红/绿的正功能进行适配 3. CCT到x/y坐标模式叠化过程 D%<CCT 100%-x/y坐标模式 Pixel(8) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, D%<CCT 100%-x/y coordinate.
86
87	色温/OCT	0 - 65535	2000K - 10000K
88
89	显红/像/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-星/Full minus green
		9831-30145	+50 ~ +1
90		30146-39976	中性/无光效/Neutral/No effect
		39977-40292	1 - 50
		40293-45535	全-绿/Full plus green
91	交叉淡入淡出/Crossfade	0 - 65535	0% - 100%
92
93	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
94
95	y坐标/y-coor	0 - 65535	0.0 - 0.8
96

GEL 16bit (像素 = 8/Pixel = 8)

每个像素7个通道/7 channels per pixel
通道 Channel	功能 /Function	DMX值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1)1个数值对应一款色号Pixel(1)One value corresponds to one color numeric
2	亮度 /Dimmer	0 - 65535	0% - 100%
3	色温 /CCT	0 - 127	3200K
	色温 /CCT	128 - 255	5600K
4	色片类型 /GEL type	0 - 127	R-GEL
4	色片类型 /GEL type	128 - 255	L-GEL
5	色号 /Numeric	0 - 255
6	保留 /Save	0 - 255
7	保留 /Save	0 - 255
8	亮度 /Dimmer	0 - 65535	0% - 100%	像素(2)1个数值对应一款色号Pixel(2)One value corresponds to one color numeric
9	亮度 /Dimmer	0 - 65535	0% - 100%
10	色温 /CC1	0 - 127	3200K
10	色温 /CC1	128 - 255	5600K
11	色片类型 /GCL type	0 - 127	R-GEL
11	色片类型 /GCL type	128 - 255	L-GEL
12	色号 /Numeric	0 - 255
13	保留 /Save	0 - 255
14	保留 /Save	0 - 255
15-21	对应若 DMX 倍和参数,参考像素(1)应像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
22-28	对应若 DMX 倍和参数,参考像素(1)应像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
29-35	对应若 DMX 倍和参数,参考像素(1)应像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
36-42	对应若 DMX 倍和参数,参考像素(1)应像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
43-49	对应若 DMX 倍和参数,参考像素(1)应像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
50	亮度 /Dimmer	0 - 65535	0% - 100%	像素(8)1个数值对应一款色号Pixel(8)One value corresponds to one color numeric
51	亮度 /Dimmer	0 - 65535	0% - 100%
52	色温 /CCT	0 - 127	3200K
52	色温 /CCT	128 - 255	5600K
53	色片类型 /GEL type	0 - 127	R-GEL
53	色片类型 /GEL type	128 - 255	L-GEL
54	色号 /Numeric	0 - 255
55	保留 /Save	0 - 255
56	保留 /Save	0 - 255

CCT 8bit (像素 = 16/Pixel = 16)

每个像素3个通道/3 channels per pixel
通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	完整 /Dimmer	0 - 255	0% - 100%	像素(1)/Pixel (1)
2	色温 /ICC	0 - 255	2000K - 10000K
3	品红 /绿 /Magenta/Green	0 - 10	中性 /无光数 /NeutralNo effect
		11 - 20	全 - 绿 /Full minus green
		21 - 119	-50 - -1
		120 - 145	中性 /无光数 /NeutralNo effect
		146 - 244	1 - 50
		245 - 255	全 - 绿 /Full plus green
4	亮度 /Dimmer	0 - 255	0% - 100%	像素(2)/Pixel (2)
5	色温 /ICC	0 - 255	2000K - 10000K
6	品红 /绿 /Magenta/Green	0 - 10	中性 /无光数 /NeutralNo effect
		11 - 20	全 - 绿 /Full minus green
		21 - 119	-50 - -1
		120 - 145	中性 /无光数 /NeutralNo effect
		146 - 244	1 - 50
		245 - 255	全 - 绿 /Full plus green
7-9	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (3)/Pixel (3)
10-12	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (4)/Pixel (4)
13-15	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (5)/Pixel (5)
16-18	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (6)/Pixel (6)
19-21	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (7)/Pixel (7)
22-24	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (8)/Pixel (8)
25-27	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (9)/Pixel (9)
28-30	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (10)/Pixel (10)
31-33	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (11)/Pixel (11)
34-36	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (12)/Pixel (12)
37-39	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (13)/Pixel (13)
40-42	对应的 DMX 值和参数, 参考像素 (1) 或像素 (2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (14)/Pixel (14)
通道 Channel	功能/Function	DMX值/DMX Value	参数 /Parameter	备注 /Note
43-45	对应的 DMX 位和参数,参考像素(1)或像素(2).Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
46	亮度/Dimmer	0~255	0%~100%	像素(16)/Pixel(16)
47	色温/JCT	0~255	2000K~10000K
48	晶虹/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
		11~20	全-绿/Fullminus green
		21~119	-50~-1
		120~145	中性/无光数/NeutralNo effect
		146~244	1~50
		245~255	全+绿/Fullplus green

HSI 8bit (像素 = 16/Pixel = 16)

每个像素3个通道/3 channels per pixel
通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 255	0% - 100%	像素(1)/Pixel (1)
2	色相 /Hue	0 - 255	0°-360°
3	饱和度 /Saturation	0 - 255	0% - 100%
4	亮度 /Dimmer	0 - 255	0% - 100%	像素(2)/Pixel (2)
5	色相 /Hue	0 - 255	0°-360°
6	饱和度 /Saturation	0 - 255	0% - 100%
7-9	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel (3)
10-12	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel (4)
13-15	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel (5)
16-18	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel (6)
19-21	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel (7)
22-24	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel (8)
25-27	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel (9)
28-30	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel (10)
31-33	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel (11)
34-36	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel (12)
37-39	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel (13)
40-62	对应的 DMX 值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel (14)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Noise
43-45	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(15)/Pixel(15)
46	角度/Dimmer	0~255	0%~100%	像素(16)/Pixel(16)
47	色相/Blue	0~255	0°~360°
48	饱和度/Saturation	0~255	0%~100%

RGBW 8bit (像素 = 16/Pixel = 16)

每个像素5个通道/5 channels per pixel
通道 Channel	功能/Function	DMX值/DMX Value	参数 /Parameter	备注 /Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel (1)
2	红光强度/Intensity red	0~255	0~255
3	脉光粘度/Intensity green	0~255	0~255
4	蓝光亮度/Intensity blue	0~255	0~255
5	白光强度/Intensity white	0~255	0~255
6	亮度/Dimmer	0~255	0%~100%	像素(2)/Pixel (2)
7	红光强度/Intensity red	0~255	0~255
8	脉光粘度/Intensity green	0~255	0~255
9	蓝光亮度/Intensity blue	0~255	0~255
10	白光强度/Intensity white	0~255	0~255
11-15	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel (3)
16-20	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel (4)
21-25	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel (5)
26-30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel (6)
31-35	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel (7)
36-40	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel (8)
41-45	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel (9)
46-50	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel (10)
51-55	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel (11)
56-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel (12)
61-65	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel (13)
66-70	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel (14)
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
71-75	对应的DMX值和参数,参考像素(1)或像素(2). Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(15)/Pixel(15)
76	亮度/Dimmer	0-255	0%~100%	像素(16)/Pixel(16)
77	灯光强度/Intensity red	0-255	0-255
78	曝光强度/Intensity green	0-255	0-255
79	蓝光强度/Intensity blue	0-255	0-255
80	白光强度/Intensity white	0-255	0-255

RGBWW 8bit (像素 = 16/Pixel = 16)

每个像素6个通道/6 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Notes
1	亮度/Dimmer	0~255	0%~100%	像素(1)/Pixel(1)
2	红光强度/Intensity red	0~255	0~255
3	绿光强度/Intensity green	0~255	0~255
4	蓝光强度/Intensity blue	0~255	0~255
5	冷白光强度/Intensity cool white	0~255	0~255
6	暖白光强度/Intensity warm white	0~255	0~255
7	亮度/Dimmer	0~255	0%~100%	像素(2)/Pixel(2)
8	红光强度/Intensity red	0~255	0~255
9	绿光强度/Intensity green	0~255	0~255
10	蓝光强度/Intensity blue	0~255	0~255
11	冷白光强度/Intensity cool white	0~255	0~255
12	暖白光强度/Intensity warm white	0~255	0~255
13-18	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
19-24	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
25-30	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
31-36	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
37-42	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
43-48	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
49-54	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
55-60	对应的DMX值和参数,参考像素(1)成像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)

通道 Channel	功能 /function	DMX 信 /DMX Value	参数 /Parameter	备注 /Note
61-66	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel("1) or Pixel (2) for the corresponding DMX value and parameter			像素('1');Pixel (11)
67-72	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel("1) or Pixel (2) for the corresponding DMX value and parameter.			像素('2');Pixel (12)
73-78	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel("1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel (15)
79-84	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel("1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel (16)
85-90	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel("1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel (16)
91	亮度 /Dimmer	0~255	0%~100%	像素(16)/Pixel (16)
92	红光强度 /Intensity red	0~255	0~255
93	绿光强度 /Intensity green	0~255	0~255
94	温光强度 /Intensity blue	0~255	0~255
95	冷白光强度 /Intensity cool white	0~255	0~255
96	蛋白质强度 /Intensity warm white	0~255	0~255

xy 8bit (像素=16/Pixel=16)

每个像素3个通道/3 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数//parameter	备注//Note
1	亮度/Dimmer	0-255	0%-100%	像素(1)/Pixel(1)
2	x坐标/x-coordinate	0-255	0.0-0.8
3	y坐标/y-coordinate	0-255	0.0-0.8
4	亮度/Dimmer	0-255	0%-100%	像素(2)/Pixel(2)
5	x坐标/x-coordinate	0-255	0.0-0.8
6	y坐标/y-coordinate	0-255	0.0-0.8
7-9	对应的DMX值和参数,参考像素(1)或像素(7)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
10-12	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
13-15	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
16-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
19-21	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
22-24	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
25-27	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
28-30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
通道 Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注 /Note
31-33	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
34-36	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
37-39	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
40-42	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
43-45	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
46	亮度/Dimmer	0~255	0%~100%	像素(16)/Pixel(16)
47	x坐标/y-coordinate	0~255	0.0~0.8
48	y坐标/y-coordinate	0~255	0.0~0.8

CCT&HSI 8 bit (像素 = 16/Pixel = 16)

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 振/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-255	0%~100%	像素(1)1. 根据具体灯具是否具有品红/绿结功能进行适配2.CCT 到 HSI 增化过程,0%<CCT,100%=HSIPixel(1):1. Adapt according to whether the luminaire has a magenta/green adjust function,0. Dissolve from CCT to HSI,0%<CCT,100%=HSI
2	色温/°CCT	0-255	2000K - 10000K
3	品红/绿/Magenta/Green	0-10	中性/无光效/Neutral/No effect
		11-20	全-绿/Full minus green
		21-119	-50--1
		120-145	中性/无光效/Neutral/No effect
		146-244	1-50
		245-255	全+绿/Full plus green
4	交叉淡入淡出/Crossfade	0-255	0%~100%
5	色相/Hue	0-255	0°~360°
6	饱和度/Saturation	0-255	0%~100%
7	亮度/Dimmer	0-255	0%~100%	像素(2)1. 根据具体灯具是否具有品红/绿结功能进行适配2.CCT 到 HSI 增化过程,0%<CCT,100%=HSIPixel(2):1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HSI,0%<CCT,100%=HSI
8	色温/°CCT	0-255	2000K - 10000K
9	品红/绿/Magenta/Green	0-10	中性/无光效/Neutral/No effect
		11-20	全-绿/Full minus green
		21-119	-50--1
		120-145	中性/无光效/Neutral/No effect
		146-254	1-50
		245-255	全+绿/Full plus green
10	交叉淡入淡出/Crossfade	0-255	0%~100%
11	色相/Hue	0-255	0°~360°
12	饱和度/Saturation	0-255	0%~100%
13-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel (3)
19-24	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel (4)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
25-30	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
31-36	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
37-42	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
43-48	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
49-54	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
55-60	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
61-66	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
67-72	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
73-78	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
79-84	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
85-90	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
91	亮度/Dimmer	0~255	0%~100%	像素(16) 1. 每米具体灯具是否具有色红/绿砖主动功能进行匹配 2.CCT到HSI量化过程,0%=CCT;100%=HSI Pixel(16) 1. Adapt according to whether the luminaire has a magenta/green adjust function. 2. Dissolve from OCT to HSL,0%=OCT;100%=HSL
92	色温/CC	0~255	2000K~10000K
93	品红/绿/Magenta/Green	0~10	中性/无光效/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光效/Neutral/No effect
		146~244	1~50
		245~255	全-绿/Full plus green
94	交叉深入测试/Crossfade	0~255	0%~100%
95	色相/Hue	0~255	0°~360°
96	饱和度/Saturation	0~255	0%~100%

CCT &RGBW 8bit (像素 = 16/Pixel = 16)

每个像素8个通道/8 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)1. 根据具体灯具是否具有后灯、绿桥正功能进行适配2. CCT到RGBW量化过程,0%~CCT,100%-RGBW
2	色谱/CCT	0~255	2000K~10000K
3	层红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~244	1~50	Pixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW, 0%~CCT, 100%-RGBW
		245~255	全+绿/Full plus green
4	交叉淡入淡出/Crosslade	0~255	0%~100%
5	红光强度/Intensity red	0~255	0~255
6	绿光强度/Intensity green	0~255	0~255
7	蓝光强度/Antonsity blue	0~255	0~255
8	白光强度/Intensity white	0~255	0~255
9	亮度/Dimmer	0~255	0%~100%	像素(2)1. 根据具体灯具是否具有后灯、绿桥正功能进行适配2. CCT到RGBW量化过程,0%~CCT,100%-RGBW
10	色谱/CCT	0~255	2000K~10000K
11	品红/绿/Magenta/Green	0~10	中性/无光数/Neutral/No effect
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光数/Neutral/No effect
		146~244		Pixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW, 0%~CCT, 100%-RGBW
		245~255	全+绿/Full plus green
12	交叉淡入淡出/Crosslade	0~255	0%~100%
13	红光强度/Intensity red	0~255	0~255
14	绿光强度/Intensity green	0~255	0~255
15	蓝光强度/Intensity blue	0~255	0~255
16	白光强度/Intensity white	0~255	0~255
17-24	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)1. 根据具体灯具是否具有后灯、绿桥正功能进行适配2. CCT到RGBW量化过程,0%~CCT,100%-RGBWPixel(3)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW, 0%~CCT, 100%-RGBW

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
25-32	对应的DMX值和参数,参考像素(1):或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(4).根据具体灯具是否具有品杠/绿锁正功能进行装配;2.CCT到RGBW量化过程,0%=CCT,100%=RGBWPixel(4).Adapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to RGBW,0%=CCT,100%=RGBW.
33-40	对应的DMX值和参数,参考像素(1):或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(5).根据具体灯具是否具有品杠/绿锁正功能进行装配;2.CCT到RGBW量化过程,0%=CCT,100%=RGBWPixel(5).Adapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to RGBW,0%=CCT,100%=RGBW.
41-48	对应的DMX值和参数,参考像素(1):或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(6).根据具体灯具是否具有品杠/绿锁正功能进行装配;2.CCT到RGBW量化过程,0%=CCT,100%=RGBWPixel(6).Adapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to RGBW,0%=CCT,100%=RGBW.
49-56	对应的DMX值和参数,参考像素(1):或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(7).根据具体灯具是否具有品杠/绿锁正功能进行装配;2.CCT到RGBW量化过程,0%=CCT,100%=RGBWPixel(7).Adapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to RGBW,0%=CCT,100%=RGBW.
57-64	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(6)1. 根据具体灯具是否具有品红/绿矫正功能进行适配2. CCT到RGBW叠化过程,0%+CCT;100%=RGBWPixel(8)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW, 0%=CCT;100%=RGBW.
65-72	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(V)1. 根据具体灯具是否具有品红/绿矫正功能进行适配2. CCT到RGBW叠化过程,0%+CCT;100%=RGBWPixel(3)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW, 0%=CCT;100%=RGBW.
73-80	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(10)1. 根据具体灯具是否具有品红/绿矫正功能进行适配2. CCT到RGBW叠化过程,0%+CCT;100%=RGBWPixel(10)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW, 0%=CCT;100%=RGBW.
81-88	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(11)1. 根据具体灯具是否具有品红/绿矫正功能进行适配2. CCT到RGBW叠化过程,0%+CCT;100%=RGBWPixel(11)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW, 0%=CCT;100%=RGBW.

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Notes
89-96	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(12)1. 根据具体灯具是否具有品红/绿唇正功能进行适配2. CCT到RGBW量化过程,0%-CCT;100%-RGBWPixel(12)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%-CCT;100%-RGBW.
97-104	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(13)1. 根据具体灯具是否具有品红/绿唇正功能进行适配2. CCT到RGBW量化过程,0%-CCT;100%-RGBWPixel(13)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%-CCT;100%-RGBW.
105-112	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(14)1. 根据具体灯具是否具有品红/绿唇正功能进行适配2. CCT到RGBW量化过程,0%-CCT;100%-RGBWPixel(14)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%-CCT;100%-RGBW.
113-120	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(15)1. 根据具体灯具是否具有品红/绿唇正功能进行适配2. CCT到RGBW量化过程,0%-CCT;100%-RGBWPixel(15)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to RGBW,0%-CCT;100%-RGBW.
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
121	亮度/Dimmer	0-255	0%~100%	像素(16)1. 根据具体灯具是否具有晶片/绿 bonding功能进行装配2.CCT到RGBW变化过程,0%~CCT,100%~RGBWPixel(16)1. Adapt according to whether the luminaire has a magnitude/green adjust function.2. Discrete from CCT to RGBW, 0%~CCT, 100%~RGBW.
122	色谱/CCT	0-255	2000K~10000K
123	品红/绿/Magenta/Green	0-10	中性/无光度/Neutral/No effect
		11-20	全=绿/无八 minus green
		21-119	-50~-1
		120~145	中性/无光度/Neutral/No effect
		146-244	1-50
		245-255	全=绿/无八 plus green
124	交叉淡入淡出/Crossfade	0-255	0%~100%
125	红光强度/Intensity red	0-255	0-255
126	绿光强度/Intensity green	0-255	0-255
127	蓝光强度/Intensity blue	0-255	0-255
128	白光强度/Intensity white	0-255	0-255

CCT &xy 8bit (像素 = 16/Pixel = 16)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0~255	0%~100%	像素(1)
2	低温/CCT	0~255	2000K~10000K	1.根据具体灯具是否具有品红/微矫正功能进行搭配
3	显红/绿/Magenta/Green	0~10	中性/无光度/Neutral/No effect	2.CCT到x/y坐标模式简化过程,0%=CCT;100%=x/y坐标模式Pixel(1)
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光度/Neutral/No effect
		146~244	1~50
		245~255	全+绿/Full plus green
4	交叉嵌入突出/Crossfade	0~255	0%~100%	1.Acapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate,
5	x坐标/x-coordinate	0~255	0.0~0.8
6	y坐标/y-coordinate	0~255	0.0~0.8
7	亮度/Dimmer	0~255	0%~100%	像素(2)
8	色彩/CCT	0~255	2000K~10000K	1.根据具体灯具是否具有品红/微矫正功能进行搭配
9	显红/绿/Magenta/Green	0~10	中性/无光度/Neutral/No effect	2.CCT彩x/y坐标模式量化过程,0%=CCT;100%=x/y坐标模式Pixel(2)
		11~20	全-绿/Full minus green
		21~119	-50~-1
		120~145	中性/无光度/Neutral/No effect
		146~244	1~50
		245~255	全+绿/Full plus green
		10	交叉嵌入突出/Crossfade	0~255
11	x坐标/x-coordinate	0~255	0.0~0.8	1.Acapt according to whether the luminaire has a magenta/green adjust function,2.Dissolve from CCT to x/y coordinate,0%=CCT,100%=x/y coordinate,
12	y坐标/y-coordinate	0~255	0.0~0.8

通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
13-16	对应的 DMX 值和参数,参考像素 (1) 或像素 (2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (3)1. 根据具体灯具是否具有星红/绿桥正功能进行适配2.CCT 到 x/y 坐标模式量化过程,0%-CCT100%-x/y 坐标模式Pixel (3)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
19-24	对应的 DMX 值和参数,参考像素 (1) 或像素 (2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (4)1. 根据具体灯具是否具有星红/绿桥正功能进行适配2.CCT 到 x/y 坐标模式量化过程,0%-CCT,100%-x/y 坐标模式Pixel (4)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
25-30	对应的 DMX 值和参数,参考像素 (1) 或像素 (2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素 (5)1. 根据具体灯具是否具有星红/绿桥正功能进行适配2.CCT 到 x/y 坐标模式量化过程,0%-CCT,100%-x/y 坐标模式Pixel (5)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
31-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)1. 根据具体灯具是否具有品红/绿桥正功能进行适配2.CCT到x/y坐标模式量化过程,0%-CCT:100%-x/y坐标模式Pixel(0)1. Adapt according to whether the luminaire has a magenta/green adjust function;2. Dissolve from CCT to x/y coordinate,0%-CCT:100%-x/y coordinate.
37-42	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)1. 根据具体灯具是否具有品红/绿桥正功能进行适配2.CCT到x/y坐标模式量化过程,0%-CCT:100%-x/y坐标模式Pixel(7)1. Adapt according to whether the luminaire has a magenta/green adjust function;2. Dissolve from CCT to x/y coordinate,0%-CCT:100%-x/y coordinate.
43-48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)1. 根据具体灯具是否具有品红/绿桥正功能进行适配2.CCT到x/y坐标模式量化过程,0%-CCT:100%-x/y坐标模式Pixel(8)1. Adapt according to whether the luminaire has a magenta/green adjust function;2. Dissolve from CCT to x/y coordinate,0%-CCT:100%-x/y coordinate.

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
49~54	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)1. 根据具体灯具是否具有品红/绿球正功能进行适配2.CCT到x/y坐标模式变化过程,0%-CCT:100%-x/y坐标模式Pixel (9)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
55~60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)1. 根据具体灯具是否具有品红/绿球正功能进行适配2.CCT到x/y坐标模式变化过程,0%-CCT:100%-x/y坐标模式Pixel (10)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
61~66	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)1. 根据具体灯具是否具有品红/绿球正功能进行适配2.CCT到x/y坐标模式变化过程,0%-CCT:100%-x/y坐标模式Pixel (11)1. Adapt according to whether the luminaire has a magenta/green adjust function.2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
67-72	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12).1. 根据具体灯具是否具有色红/绿矫正功能进行适配2.CCT到x/y坐标模式变化过程,0%-CCT100%-x/y坐标模式Pixel(12).1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
73-78	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13).1. 根据具体灯具是否具有色红/绿矫正功能进行适配2.CCT到x/y坐标模式变化过程,0%-CCT;100%-x/y坐标模式Pixel(13).1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.
79-84	对应的DMX值和参数、参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14).1. 根据具体灯具是否具有色红/绿矫正功能进行适配2.CCT到x/y坐标模式变化过程,0%-CCT;100%-x/y坐标模式Pixel(14).1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to x/y coordinate,0%-CCT, 100%-x/y coordinate.

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
85-90	对应的DMX值和参数,参考像素(1)成像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter			像素(15) 1. 根据具体灯显示是否具有色杠/绿锁正功能进行匹配 2.CCT到x/y坐标模式量化过程, 0%-CC1: 100%-x/y坐标模式Pixel(15) 1. Adapt according to whether the luminaire has a magenta/green adjust function. 2. Dissolve from CCT to x/y coordinate, 0%-CCT, 100%-x/y coordinate.
91	亮度/Dimmer	0 - 255	0%~100%	像素(16) 1. 根据具体灯显示是否具有色杠/绿锁正功能进行匹配 2.CCT到x/y坐标模式量化过程, 0%-CC1: 100%-x/y坐标模式Pixel(16) 1. Adapt according to whether the luminaire has a magenta/green adjust function.
92	色温/CCT	0 - 255	2000K ~ 10000K
93	蓝红/绿/Magenta/Green	0 - 10	中性/无光效/Neutral/no effect
		11 - 20	全-绿/Full minus green
		21 - 119	-50 - 1
		120 - 145	中性/无光效/Neutral/no effect
		146 - 244	1 - 50
		245 - 255	全+绿/Full plus green
94	交叉嵌入原式/Crossface	0 - 255	0%~100%
95	x坐标/x-coordinate	0 - 255	0.0 - 0.8
96	y坐标/y-coordinate	0 - 255	0.0 - 0.8

GEL 8bit (像素 = 16/Pixel = 16)

每个像素 5 个通道 /6 channels per pixel
通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Climmer	0~255	0%~100%	像素(1)/Pixel(1)
2	色温 /OCT	0~127	3200K
2	色温 /OCT	128~255	S400K
3	色片类型 /GEL type	0~127	R-GEL
3	色片类型 /GEL type	128~255	L-GEL
4	色片号 /GEL No.	0~255	1 个数值对应一款色号 /One value corresponds toone color numeric
5	保置 /Save	0~255
6	保置 /Save	0~255
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
7	亮度/Dimmer	0-255	0%~100%	像素(2)/Pixel(2)
8	色温/CCT	0-127	3200K
8	色温/CCT	128-255	5600K
9	色片类型/GEL type	0-127	R-GEL
9	色片类型/GEL type	128-255	L-GEL
10	色片号/GEL No.	0-255	1个数值对应一款色号/One value corresponds to one color numeric
11	保留/Save	0-255
12	保留/Save	0-255
13-18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
19-24	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
25-30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
31-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
37-42	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
43-48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
49-54	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
55-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
61-66	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
67-72	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
73-78	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
79-84	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
85-90	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
91	亮度/Dimmer	0-255	0%~100%	像素(16)/Pixel(16)
92	色温/CCT	0-127	3200K
92	色温/CCT	128-255	5600K
93	色片类型/GEL type	0-127	R-GEL
93	色片类型/GEL type	128-255	L-GZL
94	色片号/GEL No.	0-255	1个数值对应一款色号/One value corresponds to one color numeric

通道/Channel	功能/Function	DMX值/DMXValue	参数/Parameter	备注/Note
95	保留/Save	0-255
96	保留/Save	0-255

CCT 16bit (像素=16/Pixel=16)

每个像素 6 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 值/DMX Value	参数/Parameter	备注/Note
1	亮度/Olimmer	0 - 65535	0% - 100%	像素(1)1. 根胶具体灯具色度范围进行匹配2. 根胶具体灯具是否具有远红/绿矫正功能进行匹配Pixel (1)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the Luminaire has a magenta/green adjust function.
2
3	色斑/CCT	0 - 65535	2000K-10000K
4
5	晶红/橙/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-模/Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全-模/Full plus green
7	亮度/Olimmer	0 - 65535	0% - 100%	像素(2)1. 根胶具体灯具色度范围进行匹配2. 根胶具体灯具是否具有远红/绿矫正功能进行匹配Pixel (2)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the Luminaire has a magenta/green adjust function.
8
9	色斑/CCT	0 - 65535	2000K-10000K
10
11	晶红/橙/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-模/Full minus green
		9831-30145	-50 ~ -1
12		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全-模/Full plus green
13~18	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel (3)
19~24	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel (4)
25~30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel (5)
31~36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel (6)
37~42	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel (7)
43~48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel (8)
49~54	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel (9)
55~60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel (10)
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
61-66	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
67-72	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
73-78	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
79-84	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
85-90	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
91	亮度/Dimmer	0 - 65535	0% - 100%	像素(16) 1. 指数具体灯具色谱范围进行适配 2. 指数具体灯具是否具有品红/绿动正功性进行适配 Pixel(16) 1. Adapt according to CCT range of the luminaire, 2. Adapt according to whether the luminaire has a magenta/green adjust function.
92
93	色温/CCT	0 - 65535	2000K - 10000K
94
95	晶红/绿/Magenta/Green	0 - 4587	中性/无光数/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
96		30146-39978	中性/无光数/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全+绿/Full plus green

HSI 16bit (像素 = 16/Pixel = 16)

通道 Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel (1)
2
3	色相 /Hue	0 - 65535	0^° - 360^°
4
5	饱和度/Saturation	0 - 65535	0% - 100%
6
7	亮度 /Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel (2)
8
9	色相 /Hue	0 - 65535	0^° - 360^°
10
11	饱和度/Saturation	0 - 65535	0% - 100%
12
13-18	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel (3)
19-24	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel (4)
25-30	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel (5)
31-36	对应的 DMX 值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel (6)

通道/Channel	功能/Function	DMX值/DMXValue	参数/Parameter	备注/Note
37-42	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
43-48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
49-54	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
55-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
61-66	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
67-72	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
73-78	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
79-84	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
85-90	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
91	亮度/Dimmer	0~65535	0%~100%	像素(16)/Pixel(16)
92
93	色相/True	0~65535	0°~360°
94
95	饱和度/Saturation	0~65535	0%~100%
96

RGBW 16bit (像素=16/Pixel=16)

每个像素 10 个通道 /10 channels per pixel
通道 /Channel	功能 /Function	DMX 值 /DMX Value	参数 /Parameter	备注 /Note
1	亮度 /Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel (1)
2
3	红光强度 /Intensity red	0 - 65535	0 - 255
4
5	绿光强度 /Intensity green	0 - 65535	0 - 255
6
7	蓝光强度 /Intensity blue	0 - 65535	0 - 255
8
9	白光强度 /Intensity white	0 - 65535	0 - 255
10
11	亮度 /Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel (2)
12
13	红光强度 /Intensity red	0 - 65535	0 - 255
14
15	绿光强度 /Intensity green	0 - 65535	0 - 255
16
选项/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
17	自光强度/Intensity blue	0-65535	0-255
18
19	自光亮度/Intensity white	0-65535	0-255
20
21-30	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
31-40	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
41-50	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
51-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
61-70	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
71-80	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
81-90	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
91-100	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
101-110	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
111-120	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
121-130	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
131-140	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
141-150	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
151	亮度/Dimmer	0-65535	0%-100%	像素(16)/Pixel(16)
152
153	红光强度/Intensity red	0-65535	0-255
154
155	绿光强度/Intensity green	0-65535	0-255
156
157	蓝光亮度/Intensity blue	0-65535	0-255
158
159	白光亮度/Intensity white	0-65535	0-255
160

RGBWW 16bit (像素 = 16/Pixel = 16)

每个像素/12个通道/12 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel(1)
2
3	红光强度/Intensity red	0 - 65535	0 - 255
4
5	绿光强度/Intensity green	0 - 65535	0 - 255
6
7	蓝光强度/Intensity blue	0 - 65535	0 - 255
8
9	冷白光强度/Intensity cool white	0 - 65535	0 - 255
10
11	暖白光强度/Intensity warm white	0 - 65535	0 - 255
12
13	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel(2)
14
15	红光强度/Intensity red	0 - 65535	0 - 255
16
17	绿光强度/Intensity green	0 - 65535	0 - 255
18
19	蓝光强度/Intensity blue	0 - 65535	0 - 255
20
21	冷白光强度/Intensity cool white	0 - 65535	0 - 255
22
23	暖白光强度/Intensity warm white	0 - 65535	0 - 255
24
25-36	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
37-46	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
49-60	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
61-72	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
73-84	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
85-96	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
97-108	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
109-120	对应向DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
121-132	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
133-144	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
145-156	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(15)
157-168	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(16)
169-180	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
181	亮度/Dimmer	0~65535	0%~100%	像素(16)/Pixel(16)
182
183	红光强度/Intensity red	0~65535	0~255
184
185	绿光强度/Intensity green	0~65535	0~255
186
187	蓝光强度/Intensity blue	0~65535	0~255
188
189	净白光强度/ Intensity cool white	0~65535	0~255
190
191	紫白光强度/ Intensity warm white	0~65535	0~255
192

xy 16bit (像素=16/Pixel=16)

每个像素 5 个通道 /6 channels per pixel
通道/Channel	功能/Function	DMX 值/DMX Value	参数/Parameter	图注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)/Pixel(1)
2
3	x 坐标/x-coordinate	0 - 65535	0.0 - 0.8
4
5	y 坐标/y-coordinate	0 - 65535	0.0 - 0.8
6
7	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)/Pixel(2)
8
9	x 坐标/x-coordinate	0 - 65535	0.0 - 0.8
10
11	y 坐标/y-coordinate	0 - 65535	0.0 - 0.8
12
13-18	对应的 DMX 信和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
19-24	对应的 DMX 信和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
25-30	对应的 DMX 信和参数、参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Nose
31-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
37-42	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
43-48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
49-54	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
55-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
61-66	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
67-72	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
73-78	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
79-84	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
85-90	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
91	亮度/Dimmer	0 - 65535	0% - 100%	像素(16)/Pixel(16)
92
93	x坐标/x-coordinate	0 - 65535	0.0 - 0.8
94
95	y坐标/y-coordinate	0 - 65535	0.0 - 0.8
96

CCT&HSI 16bit (像素 = 16/Pixel = 16)

每个像素 12个通道 /12 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)1.根据具体灯具是否具有品红/绿矫正功能进行适配2.CCT到HSI催化过程,0%=CCT,100%=HSIPixel(1)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HS1,0%=CCT,100%=HSI,
2
3	色温/CCT	0 - 65535	2000K-10000K
4
5	品红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-9830	全-绿/Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全+绿/Full plus green
7	交叉淡入淡击/Crossfade	0 - 65535	0% - 100%
8
9	色相/Hue	0 - 65535	0°~360°
10
11	饱和度/Saturation	0 - 65535	0% - 100%
12
13	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)1.根据具体灯具是否具有品红/绿矫正功能进行适配2.CCT到HSI催化过程,0%=CCT,100%=HSIPixel(2)1. Adapt according to whether the luminaire has a magenta/green adjust function,2. Dissolve from CCT to HS1,0%=CCT,100%=HSI,
14
15	色温/CCT	0 - 65535	2000K-10000K
16
17	品红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-9830	全-绿/Full minus green
		9831-30145	-50 ~ -1
18		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 ~ 50
		60293-65535	全+绿/Full plus green
19	交叉淡入淡击/Crossfade	0 - 65535	0% - 100%
20
21	色相/Hue	0 - 65535	0°~360°
22
23	饱和度/Saturation	0 - 65535	0% - 100%
24
25~36	对应的DMX饱和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
37~48	对应的DMX饱和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
49~60	对应的DMX饱和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
61~72	对应的DMX饱和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)

通道 Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
73-84	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
85-95	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
97-108	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
109-120	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
121-132	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
133-144	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
145-156	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
157-168	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
169-180	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
181	亮度/Dimmer	0 - 65535	0% - 100%	像素(16) 1.根据具体灯具是否具有晶红/玻璃正功能进行适配 2CC1到HSI 变化过程,0%~CCT, 100%~HSI Pixel(16) 1. Adapt according to whether the luminaire has a magenta/green adjust function, 2. Observe from CCI to HSI,0%~CCT, 100%~HSI.
182
183	色盲/CCF	0 - 65535	2000K - 10000K
184
185	品红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-9830	全-绿/Full minus green
186		9831-30145	-50 - -1
		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全+绿/Full plus green
187	交叉深入深出/Crossfade	0 - 65535	0% - 100%
188
189	色相/Hue	0 - 65535	0° - 360°
190
191	饱和度/Saturation	0 - 65535	0% - 100%
192

CCT&RGBW 16bit (像素=16/Pixel=16)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)1. 根据具体灯具色温范围进行搭配2. 根据具体灯具是否具有品红/绿校正功能进行搭配3.CCT到RGBW变化过程,0%=CCT,100%=RGBWPixel(1)
2
3	色温/CCT	0 - 65535	2000K - 10000K
4
5	品红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
6		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
7	交叉深入浅击/Crossfade	0 - 65535	0% - 100%	Luminaire has a magenta/green adjust function,0.Dissolve from CCT to RGBW,0%-CCT,100%-RGBW
8
9	灯光强度/Intensity red	0 - 65535	0 - 255
10
11	曝光强度/Intensity green	0 - 65535	0 - 255
12
13	激光亮度/Intensity blue	0 - 65535	0 - 255
14
15	白光亮度/Intensity white	0 - 65535	0 - 255
16
17	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)1. 根据具体灯具色温范围进行搭配2. 根据具体灯具是否具有品红/绿校正功能进行搭配3.CCT到RGBW变化过程,0%=CCT,100%-RGBWPixel(2)
18
19	色温/CCT	0 - 65535	2000K - 10000K
20
21	品红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
22		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
23	交叉深入浅击/Crossfade	0 - 65535	0% - 100%	Luminaire has a magenta/green adjust function,3.Dissolve from CCT to RGBW,0%-CCT,100%-RGBW
24
25	灯光强度/Intensity red	0 - 65535	0 - 255
26
27	曝光强度/Intensity green	0 - 65535	0 - 255
28
29	激光亮度/Intensity blue	0 - 65535	0 - 255
30
31	白光亮度/Intensity white	0 - 65535	0 - 255
32

通道/Channel	习题/Function	DMX值/DMX Value	参数/Parameter	备注/Note
33-48	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel(3)
49-64	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel(4)
65-80	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel(5)
81-96	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(6)/Pixel(6)
97-112	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel(7)
113-128	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(8)/Pixel(8)
129-144	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(9)/Pixel(9)
145-160	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(10)/Pixel(10)
161-176	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(11)/Pixel(11)
177-192	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(12)/Pixel(12)
193-208	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(13)/Pixel(13)
209-224	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(14)/Pixel(14)
225-240	对应的DMX值和参数,参考像素(1)或像素(2) Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(15)
241	亮度/Dimmer	0~65535	0%~100%	像素(16) 1.根据具体灯具色层而进行适配 2.根据具体灯具是否具有显红/绿标定功能进行适配 3.CCT到RGBW 静态过程:0%~CCT;100%-RGBW Pixel(16) 1.Adapt according to CCT range of the luminaire. 2.Adapt according to whether the luminaire has a magenta/green adjust function, 3.Ossolve from CCT to RGBW, 0%~CCT; 100%-RGBW.
242
243	色温/CCT	0~65535	2000K~10000K
244
245	品红/绿/Magenta/Green	0~4587	中性/无光效/Neutral/No effect
		4588-09830	全-级/Full minus green
		9831-30145	-50~-1
246		30146-39976	中性/无光效/Neutral/No effect
		39977-60292	1~50
		60293-65535	全+级/Full plus green
247	交叉调入演出/Crossfade	0~65535	0%~100%
248
249	红光强度/Intensity red	0~65535	0~255
250
251	绿光强度/Intensity green	0~65535	0~255
252
253	蓝光强度/Intensity blue	0~65535	0~255
254

CCT&xy 16bit (像素 = 16/Pixel = 16)

每个像素12个通道/12 channels per pixel
通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0-65535	0%-100%	像素(1)1. 柱果具体灯具色温热泵进行适配2. 根据具体灯具是否具有品杠/绿矫正功能进行适配3.CCT到x/y坐标模式变化过程,0%-CCT:100%-x/y坐标模式Pixel(1)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the Luminaire has a magenta/green adjust function,3. Dissolve from CCT to x/y coordinate,0%-CCT:100%-x/y coordinate,
2
3	色温/CCT	0-65535	2000K-10000K
4
5	品杠/绿/Magenta/Green	0-4587	中性/无光数/NeutralNo effect
		4588-9830	全-绿/Full minus green
		9831-30145	-50-1
6		30146-39976	中性/无光数/NeutralNo effect
		39977-60292	1-50
		60293-65535	全+绿/Full plus green
7	交叉嵌入突出/Crosslade	0-65535	0%-100%
8
9	x坐标/x-coordinate	0-65535	0.0-0.8
10
11	y坐标/y-coordinate	0-65535	0.0-0.8
12
13	亮度/Dimmer	0-65535	0%-100%	像素(2)1. 柱果具体灯具色温热泵进行适配2. 根据具体灯具是否具有品杠/绿矫正功能进行适配3.CCT到x/y坐标模式变化过程,0%-CCT:100%-x/y坐标模式Pixel(2)1. Adapt according to CCT range of the luminaire,2. Adapt according to whether the Luminaire has a magenta/green adjust function,3. Dissolve from CCT to x/y coordinate,0%-CCT:100%-x/y coordinate,
14
15	色温/CCT	0-65535	2000K-10000K
16
17	品杠/绿/Magenta/Green	0-4587	中性/无光数/NeutralNo effect
		4588-99830	全-绿/Full minus green
		9831-30145	-50-1
18		30146-39976	中性/无光数/NeutralNo effect
		39977-60292	1-50
		60293-65535	全+绿/Full plus green
19	交叉嵌入突出/Crosslade	0-65535	0%-100%
20
21	x坐标/x-coordinate	0-65535	0.0-0.8
22
23	y坐标/y-coordinate	0-65535	0.0-0.8
24
25-36	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(3)/Pixel (5)
37-48	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(4)/Pixel (6)
49-60	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(5)/Pixel (5)
61-72	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameters.			像素(6)/Pixel (6)
73-84	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(7)/Pixel (7)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
85-96	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(8)/Pixel(8)
97-108	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(9)/Pixel(9)
109-120	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(10)/Pixel(10)
121-132	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(11)/Pixel(11)
133-144	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(12)/Pixel(12)
145-156	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(13)/Pixel(13)
157-168	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(14)/Pixel(14)
169-180	对应的DMX值和参数、参考像素(1)或像素(2) Please refer to Pixel(1) or Pixel (2) for the corresponding DMX value and parameter			像素(15)/Pixel(15)
181	亮度/Dimmer	0 - 65535	0% - 100%	像素(16) 1. 根据具体灯盒表面进行搭配 2. 根据具体灯盒是否具有出厂/解除功能进行搭配 3.CCT 及 x/y 坐标模式简化过程, 0%=CCT,100%=x/y坐标模式 Pixel(16) 1. Adapt according to CCT range of the kliminaire. 2. Adapt according to whether the kliminaire has a magenta/green adjust function, 3. Dissolve from CCT to x/y coordinate, 0%=CCT, 100%=x/y coordinate.
182
183	色温/CCT	0 - 65535	2000K - 1000K
184
185	蓝红/绿/Magenta/Green	0 - 4587	中性/无光效/NeutralNo effect
		4588-09830	全-绿/Full minus green
		9831-30145	-50 ~ -1
186		30146-39976	中性/无光效/NeutralNo effect
		39977-60292	1 - 50
		60293-65535	全-绿/Full plus green
187	交叉淡入弹出/Crossfade	0 - 65535	0% - 100%
188
189	x坐标A-coordinate	0 - 65535	0.0 - 0.8
190
191	y坐标A-coordinate	0 - 65535	0.0 - 0.8
192

GEL 16bit (像素 = 16/Pixel = 16)

每个像素 7个通道 /7 channels per pixel
通道/Channel	功能/Function	DMX 值/DMX Value	参数/Parameter	备注/Note
1	亮度/Dimmer	0 - 65535	0% - 100%	像素(1)1个数值对应—颜色号Pixel(1)One value corresponds to one color numeric
2	亮度/Dimmer	0 - 65535	0% - 100%
3	色温/CCT	0 - 127	3200K
3	色温/CCT	128 - 255	5600K
4	色片类型/GEL type	0 - 127	R-GEL
4	色片类型/GEL type	128 - 255	L-GEL
5	色号/Numeric	0 - 255
6	保留/Save	0 - 255
7	保留/Save	0 - 255
8	亮度/Dimmer	0 - 65535	0% - 100%	像素(2)1个数值对应—颜色号Pixel(2)One value corresponds to one color numeric
9	亮度/Dimmer	0 - 65535	0% - 100%
10	色温/CCT	0 - 127	3200K
10	色温/CCT	128 - 255	5600K
11	色片类型/GEL type	0 - 127	R-GEL
11	色片类型/GEL type	128 - 255	L-CEL
12	色号/Numeric	0 - 255
13	保留/Save	0 - 255
14	保留/Save	0 - 255
15-21	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(3)/Pixel(3)
22-28	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(4)/Pixel(4)
29-35	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(5)/Pixel(5)
36-42	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(6)/Pixel(6)
43-49	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(7)/Pixel(7)
50-56	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(8)/Pixel(8)
57-63	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(9)/Pixel(9)
64-70	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(10)/Pixel(10)
71-77	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(11)/Pixel(11)
78-84	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(12)/Pixel(12)
85-91	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(13)/Pixel(13)
92-98	对应的 DMX 信和参数,参考像素(1)或像素(2)Please refer to Pixel(1) or Pixel(2) for the corresponding DMX value and parameter			像素(14)/Pixel(14)

通道/Channel	功能/Function	DMX值/DMX Value	参数/Parameter	备注/Note
99-105	对应的DMX值和参数,参考像素(1)或像素(2)Please refer to Pixel (1) or Pixel (2) for the corresponding DMX value and parameter.			像素(15)/Pixel(16)
106	亮度/Dimmer	0 - 65535	0% - 100%	像素(16)1个数值对应一般符号
107	亮度/Dimmer	0 - 65535	0% - 100%	像素(16)1个数值对应一般符号
108	色谱/JCT	0 - 127	3200K	Pixel(16)One value corresponds to one color numeric
108	色谱/JCT	128 - 255	5600K
109	色片类型/GEL type	0 - 127	R-GEL
109	色片类型/GEL type	128 - 255	L-GEL
110	色谱/Numeric	0 - 255
111	保留/Save	0 - 255
112	保留/Save	0 - 255

FX 8bit

通道/Channel	功能/Function	参数名/Parameter	D0X 数值/D0X Value	实际参数/Practical parameter
1	FX模式/FX mode	亮度/Dimmer	0-255	0%-100%
2	FX无效/Effect	光效类型/Effect type	0-9	闪光灯/Flash
			10-19	雷闪电/Lightning
			20-29	多云/Cloudy
			30-39	环灯泡/Broken bulb
			40-49	电视机/TV
			50-59	爆疗/Explosion
			60-69	焊接/Welding
			70-79	SOS
			80-89	螺栓/Candle
			90-99	火/Fire
			100-109	火花/Firework
			110-119	警车/Coo car
			120-129	彩光循环/RGB cycle
			130-139	派对/Party
			140-149	彩光陷入/RGB fade
			150-159	彩光流动/RGB flow
			160-169	彩光滤波/RGB chase
			170-255	预留/Preset
3	闪光灯参数/Parameter of flash	触发/Trigger	0-127	自动/Auto
3		触发/Trigger	128-255	手动/Manual
4		速度/Speed	0-255	触发:自动1~100/Trigger auto 1~100
			0-127	触发:手动-关/Trigger, manual-off
			128-255	触发:手动-开/Trigger manual-on
5		模式/Mode	0-127	闪光灯/Camera flash
5		模式/Mode	128-255	锁光灯/Flash bulb
6		颜色/Color	0-127	CCT
6		颜色/Color	128-255	HSI
7		色谱/CCT	0-255	2000K-10000K
7		色相/Hz		HUE 0-360
8		品红/绿/Magenta/Green	0-10	中性/无光数/Neutral/No effect
			11-20	全-绿/Full minus green
			21-119	-50--1
			120-145	中性/无光数/Neutral/No effect
			146-244	1-50
			245-255	全-绿/Full plus green
		饱和度/Saturation	0-255	0-100
3	雷闪电参数/Parameter of Lightning	触发/Trigger	0-127	自动/Auto
3		触发/Trigger	128-255	手动/Manual
4		频率/frequency	0-255	触发:自动+随机+20次/分/Trigger auto/Rnd-200/min
			0-127	触发:手动=关/Trigger manual-off
			128-255	触发:手动-开/Trigger manual-on

通道/Channel	功能/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
5		闪级次数/Flash times	0-255	随机-10次/Rnd-10
6		色温/CCCT	0-255	2000K-10000K
3	多云参数/Parameter of cloudy	速度/Speed	0-255	跳机-100/Rnd-100
4	多云参数/Parameter of cloudy	亮度比宽/DMI ratio	0-255	30-90%
3	环灯亮参数/Parameter of broken bulb	速度/Speed	0-255	1-100
4		颜色/Color	0-127	CCT
4		颜色/Color	128-255	HSI
5		色温/CCCT或/or 色相/Hue	0-255	2000K-10000K
5		色温/CCCT或/or 色相/Hue	0-255	HUE: 0-360
6		品红/绿/Magenta/Green线/Or饱和度/Saturation	0-10	中性/无光效/Neutral/No effect
			11-20	全-绿/Full minus green
			21-119	-50~-1
			120-145	中性/无光效/Neutral/No effect
			146-244	1-50
			245-255	全+绿/Full plus green
			0-255	SAT: 0-100
3	电视机参数/Parameter of TV	速度/Speed	0-255	1-100
4		颜色/Color	0-127	CCT
4		颜色/Color	128-255	HSI
3	爆炸参数/Parameter of explosion	触发/Trigger	0-127	自动/Auto
3		触发/Trigger	128-255	手动/Manual
4		速度/Speed	0-255	触发:自动-1/100/Trigger auto-1/100
			0-127	触发:手动-关/Trigger manual-off
			128-255	触发:手动-开/Trigger manual-on
5		余焊/Embers	0-255	1-100
6		颜色/Color	0-127	CCT
6		颜色/Color	128-255	HSI
7		色温/CCCT绿色组/For Hue	0-255	2000K-10000K
7		色温/CCCT绿色组/For Hue	0-255	HUE: 0-360
8		品红/绿/Magenta/Green	11-20	全-绿/Full minus green
			21-119	-50~-1
			120-145	中性/无光效/Neutral/No effect
			146-244	1-50
			245-255	全+绿/Full plus green
	成色和度/or Saturation		0-255	SAT: 0-100
3	焊接参数/Parameter of welding	速度/Speed	0-255	1-100
4		颜色/Color	0-127	CCT
4		颜色/Color	128-255	HS
5		色温/CCCT或/or 面相/Hue	0-255	2000K-10000K
5		色温/CCCT或/or 面相/Hue	0-255	HUE: 0-360
6		品红/绿/Magenta/Green	0-10	中性/无光效/Neutral/No effect
6	焊接参数/Parameter of welding	品红/绿/Magenta/Green	11-20	全-绿/Full minus green
			21-119	-50 ~ -1
			120~145	中性/无光效/NeutralNo effect
		或/or	146~244	1~50
		或/or	245~255	全+绿/Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
3	SOS参数	颜色/Color	0-127	CCT
3		颜色/Color	128-255	HIS
4		色温/CCT或色相for hue	0-255	2000K~10000KHUE: 0-360
5		品红/绿/Magenta/Green	0~10	中性/无光效/NeutralNo effect
			11~20	全-绿/Full minus green
			21~119	-50 ~ -1
		或/or	120~145	中性/无光效/NeutralNo effect
			146~244	1~50
			245~255	全+绿/Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
3	钳丝参数/Parameter of candle	速度/Speed	0-255	1-100
3	火参数/Parameter of fire	速度/Speed	0-255	1-100
3	朝花参数/Parameter of fireworks	速度/Speed	0-255	1-100
4	朝花参数/Parameter of fireworks	余环/Embers	0-255	1-100
3	警车参数/Parameter of cop car	颜色/Color	0-255	1个数值对应一种颜色模式:红蓝、红蓝、蓝白、蓝黄、黄、红蓝白、红蓝黄One value corresponds to one color mode: R+B、R、B、B+W、B+Y、Y、R+B+W、R+B+Y
4	警车参数/Parameter of cop car	模式/Mode	0-255	模式/Mode: 1-5
3	彩光循环参数/Parameter of RGB cycle	速度/Speed	0-255	1-100
4	彩光循环参数/Parameter of RGB cycle	饱和度/Saturation	0-255	1-100
3	派对参数/Parameter of party彩光渐入参数/Parameter of RGB base	速度/Speed	0-255	1-100
4		饱和度/Saturation	0-255	1-100
3		速度/Speed	0-255	1-100
4		方向/Direction	0-255
5		保留/Save	0-255
6		蓝色长度/Color length	0-255	大小/Size: 1-8
7		蓝色数量/Color number	0-255	数量/NO. 1-5
8		颜色/Color	0-9	黑色/Black
			10-127	CCT
			128-255	HIS
9		色温/CCT或色相/Hz	0-255	2500K~10000KHUE: 0-360

通道/Channel	功能/Function	参数名/Parameter	DMX 数值 /DMX Value	实际参数/Practical parameter
10	荧光深入参数/ Parameter of RGB fade	品红/绿/Magenta/Green	0~10	中性/无光效/Neutral/No effect
			11~20	全-绿/Full minus green
			21~119	-50~-1
		或for	120~145	中性/无光效/Neutral/No effect
			146~244	1~50
			245~255	全+绿/Full plus green
		饱和度/Saturation	0~255	SAT: 0~100
11		颜色/Color	0~127	CCT
12		线for	128~255	HSI
13		色相/Hue		HUE: 0~360
		品红/绿/Magenta/Green	0~10	中性/无光效/Neutral/No effect
			11~20	全-绿/Full minus green
			21~119	-50~-1
		线for	120~145	中性/无光效/Neutral/No effect
			146~244	1~50
			245~255	全+绿/Full plus green
		饱和度/Saturation	0~255	SAT: 0~100
14~25		参考颜色/Refer to color 1		参考颜色/Refer to color 1
3	荧光流动参数/ Parameter of RGB flow	速度/Speed	0~255	1~100
4		方向/Direction	0~255
5		保留/Save	0~255
6		保留/Save	0~255
7		颜色数量/Color number	0~255	数量/NO: 2~8
		颜色/Color	0~127	CCT
8		或for	128~255	HB5
9		色谱/CCT或for 色脂/Hue	0~255	2000K - 10000K
9		色谱/CCT或for 色脂/Hue	0~255	HUE: 0~360
10		品红/绿/Magenta/Green	0~10	中性/无光效/Neutral/No effect
			11~20	全-绿/Full minus green
			21~119	-50~-1
		线for	120~145	中性/无光效/Neutral/No effect
			145~244	1~50
			245~255	全+绿/Full plus green
		饱和度/Saturation	0~255	SAT: 0~100
11~31		参考颜色/Refer to color 1		参考颜色/Refer to color 1
3	荧光流速参数/ Parameter of RGB chase	速度/Speed	0~255	1~100
4		方向/D/section	0~255
5		模式/Mode	0~255
6		颜色长度/Color length	0-255	大小/Sex: 1-8
7		颜色数量/Color number	0-255	数量/NO: 2-8
8		颜色/Color	0-127	CCT
8		颜色/Color	128-255	HSI
9		色温/CCT或/or色相/Hue	0-255	2000K - 10000K
9		色温/CCT或/or色相/Hue	0-255	HUE: 0-360
10		品红/绿/Magenta/Green	0-10	中性/无光数/Neutral/No effect
			11-20	全-绿/Full minus green
			21-119	-50 ~ -1
			120-145	中性/无光数/Neutral/No effect
		减/or	146-244	1-50
		减/or	245-255	全+绿/Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
11~31		参考颜色/Refer to color 1		参考颜色/Refer to color 1

FX 16bit

通道/Channel	功能/Function	参数名/Parameter	DMK数值/DMKValue	实际参数/Practical parameter
1	FX光效/Effect	亮度/Dimmer	0~65535	0%~100%
2		亮度/Dimmer	0~65535	0%~100%
3		光效类型/Effect type	0~9	闪光灯/flash
			10~19	雷闪电/Lightning
			20~29	多云/Cloudy
			30~39	坏灯泡/Broken bulb
			40~49	电视机/TV
			50~59	爆炸/Explosion
			60~69	焊接/Welding
			70~79	SOS
			80~89	结线/Candle
			90~99	火/Fire
			100~109	熄花/Firework
			110~119	雷车/Cop car
			120~129	彩光循环/RGB cycle
			130~139	面对/Party
			140~149	彩光源入/RGB fade
			150~159	彩光流动/RGB flow
			160~169	彩光通道/RGB chase
			170~255	地面/Preset
4	闪光灯参数/Parameter of flash	触发/Trigger	0~127	自动/Auto
4		触发/Trigger	126~255	手动/Manual
5		速度/Speed	0~255	触发:自动1~100/Trigger auto 1~100
5		速度/Speed	0~127	触发:手动-关/Trigger manual-off

通道/Channel	功能/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
5	闪光灯参数/Parameter of flash	速度/Speed	128-255	触发:手动=开/Trigger:manualhon
6		模式/Mode	0-127	闪光灯/Camera flash
6		模式/Mode	128-255	锁光灯/Flash bulo
7		颜色/Color	0-127	CCT
7		颜色/Color	128-255	HSI
8-9		色温/CCT或/or色相/Hue	0-255	2000K - 10000K
8-9		色温/CCT或/or色相/Hue	0-255	HUE:0-360
10-11		定红/绿/Magenta/Green成/or饱和度/Saturation	0 - 10	中性/无光效/Neutral/No effect.
			11 - 20	全-绿/Full minus green
			21 - 119	-50 ~ -1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全+绿/Full plus green
			0-255	0-100
4	雷闪电参数/Parameter oflightning	触发/Trigger	0-127	自动/Auto
4		触发/Trigger	128-255	手动/Manual
5		频率/Frequency	0-255	触发:自动+随机+20次/分/Trigger,auto=Find-20c/min
			0-127	触发:手动=关/Trigger:manual-off
			128-255	触发:手动=开/Trigger:manual-run
6		闪烁次数/Flash times	0-255	随机+10次/Find-10
7-8		色温/CCT	0-255	2000K - 10000K
4	多云参数/Parameter of cloudy	速度/Speed	0-255	随机-100/Find-100
5	多云参数/Parameter of cloudy	完整比例/DBM ratio	0-255	30-90%
4	坏灯泡参数/Parameter ofbroken bulb	速度/Speed	0-255	1-100
5		颜色/Color	0-127	CCT
5		颜色/Color	128-255	HSI
6-7		色温/CCT或/or色相/Hue	0-255	2000K - 10000K
6-7		色温/CCT或/or色相/Hue	0-255	HUE:0-360
8-9		杂红/绿/Magenta/Green成/or饱和度/or Saturation	0 - 10	中性/无光效/Neutral/No effect.
			11 - 20	全-绿/Full minus green
			21 - 119	-50 ~ -1
			120 - 145	中性/无光效/Neutral/No effect.
			146 - 244	1 - 50
			245 - 255	全+绿/Full plus green
			0-255	SAT:0-100
4	电视机参数/Parameter of TV	速度/Speed	0-255	1-100
5		颜色/Color	0-127	CCT
5		颜色/Color	128-255	HSI
4	爆炸参数/Parameter ofexplosion	触发/Trigger	0-127	自动/Auto
4		触发/Trigger	128-255	手动/Manual
5		速度/Speed	0-255	触发:自动1-100/Trigger:auto 1-100
5		速度/Speed	0-127	触发:手动=关/Trigger:manual-off
5	爆炸参数/Parameter of explosion	速度/Speed	128-255	触发:手动=开/Tigger:manualtion
6		余好/Enbers	0-255	1-100
7		颜色/Color	0-127	CCT
7		颜色/Color	128-255	HSI
8-9		色温/CCT或/or色相/Hue	0-255	2000K - 10000KHUE: 0-360
10-11		显红/绿/Magenta/Green或/or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全-绿/Full minus green
			21 - 119	-50 - -1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全-绿/Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
4	焊接参数/Parameter of welding	速度/Speed	0-255	1-100
5		蓝色/Color	0-127	CCT
5		蓝色/Color	128-255	HS
6-7		色温/CCT或/or色相/Hue	0-255	2000K - 10000KHUE: 0-360
8-9		品红/绿/Magenta/Green或/or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全-绿/Full minus green
			21 - 119	-50 - -1
			120 - 145	中性/无光效/Neutral/No effect
			245 - 255	全-绿/Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
4	SOS参数/Parameter of SOS	颜色/Color	0-127	CCT
4		颜色/Color	128-255	HS
5-6		色温/CCT或/or色相/Hue	0-255	2000K - 10000KHUE: 0-360
7-8		显红/绿/Magenta/Green或/or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全-绿/Full minus green
			21 - 119	-50 - -1
			120 - 145	中性/无光效/Neutral/No effect
	4	饱和度/Saturation	0-255	SAT: 0-100
4	植物参数/Parameter of candle	速度/Speed	0-255	1-100
4	火参数/Parameter of fire	速度/Speed	0-255	1-100

通道/Channel	位置/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
4	缩写参数/Parameter of firework	速度/Speed	0-255	1-100
5	缩写参数/Parameter of firework	余剪/Embers	0-255	1-100
4	警车参数/Parameter of cop car	颜色/Color	0-255	1个数值对应一种颜色模式:红蓝、红蓝、蓝白、蓝黄、黄、红蓝白、红蓝黄One value corresponds to one color mode: R+B、R、B、B+W、B+Y、Y、R+B+W、R+B+Y
5	警车参数/Parameter of cop car	模式/Mode	0-255	模式/Mode: 1-5
4	彩光泡沫参数/Parameter of RGB cycle	速度/Speed	0-255	1-100
5	彩光泡沫参数/Parameter of RGB cycle	饱和度/Saturation	0-255	1-100
4	顶对参数/Parameter of party	速度/Speed	0-255	1-100
5	顶对参数/Parameter of party	饱和度/Saturation	0-255	1-100
4	彩光深入参数/Parameter of RGB fade	速度/Speed	0-255	1-100
5		方向/Direction	0-255
6		保留/Save	0-255
7		颜色长度/Color length	0-255	大小/Size: 1-8
8		颜色数量/Color number	0-255	数量/No: 1-5
9		颜色/Color	0-9	黑色/Black
			10-127	CCT
			128-255	HIS
10-11		色温/CCT或/or 铜相/Hue	0-255	2000K - 10000K
10-11		色温/CCT或/or 铜相/Hue	0-255	HUE 0-360
12-13		品红/绿/Magenta/Green或/or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 绿 / Full minus green
			21 - 119	50 - 1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全 + 绿 / Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
14		颜色/Color	0-127	CCT
14		颜色/Color	128-255	HSI
15-16		色温/CCT或/or 色相/Hue	0-255	2000K - 10000K
15-16		色温/CCT或/or 色相/Hue	0-255	HUE 0-360
17-18		品红/绿/Magenta/Green或/or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 绿 / Full minus green
			21 - 119	50 - 1
			120 - 145	中性/无光致/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全 + 绿 / Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
19-36		参考颜色/Refer to color 1		参考颜色/1/Refer to color 1
通道/Channel	功能/Function	参数名/Parameter	DMX 数值 /DMX Value	实际参数 /Practical parameter
4	彩光流动参数/ Parameter of RGB flow	速度/Speed	0-255	1-100
5		方向/Direction	0-255
6		保留/Save	0-255
7		保留/Save	0-255
8		颜色数量/ Color number	0-255	数量/NO: 2-8
9		颜色/Color	0-127	2000K - 10000K
9		颜色/Color	128-255	HSI
10-11		自温/ACCT 或 /or 色相/Hue	0-255	2000K - 10000K
10-11		自温/ACCT 或 /or 色相/Hue	0-255	HUE: 0-360
12-13		晶虹/绿/Magenta/Green 或 /or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 绿 /Full minus green
			21 - 119	-50 - -1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全 + 绿 /Full plus green
		饱和度/Saturation	0-255	SAT: 0-100
14-48		参考颜色/1/ Refer to color 1		参考颜色/1/Refer to color 1
4	彩光流速参数/ Parameter of RGB chase	速度/Speed	0-255	1-100
5		方向/Direction	0-255
6		模式/Mode	0-255
7		颜色长度/ Color length	0-255	大小/Size: 1-8
8		颜色数量/ Color number	0-255	数量/NO: 2-8
9		颜色/Color	0-127	CCT
9		颜色/Color	128-255	HSI
10-11		色调/ACCT 或 /or 色相/Hue	0-255	2000K - 10000K
10-11		色调/ACCT 或 /or 色相/Hue	0-255	HUE: 0-360
12-13		混红/绿/Magenta/Green 或 /or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 绿 /Full minus green
			21 - 119	-50 - -1
			120 - 145	中性/无光效/Neutral/No effect
				1 - 50
			146 - 244	全 + 绿 /Full plus green
			245 - 255	SAT: 0-100
		饱和度/Saturation
14-48		参考颜色/1/ Refer to color 1		参考颜色/1/Refer to color 1

Ultimate 8 Bit

通道/Channel	功能/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
1	Ultimate 8 Bit	亮度/Dimmer	0 - 255	0% - 100%
2	模式/Mode	模式类型/Mode type	0 - 9	CCT
			10 - 19	HSI
			20 - 29	预留/Preset
			30 - 39	RGBWW
			40 - 49	RGBW
			50 - 59	色片/GEL
			60 - 69	X/Y坐标模式/X/Y coordinate mode
			70 - 79	FX 光效/Effect
			80 - 255	预留/Preset
3	CCT 参数 / Parameter of CCT	色温/CCT	0 - 255	2000K - 10000K
4		显红/绿/Magenta/Green	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全-绿/Full minus green
			21 - 119	-50 - -1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全+绿/Full plus green
3	HDI 参数 / Parameter of HSI	色相/HueBlue	0 - 255	0° - 360°
4	HDI 参数 / Parameter of HSI	饱和度/Saturation	0 - 255	0% - 100%
3	RGBW 参数 / Parameter of RGBW	红色强度/Intensity red	0 - 255	0 - 255
4		绿色强度/Intensity green	0 - 255	0 - 255
5		蓝色强度/Intensity blue	0 - 255	0 - 255
6		白色强度/Intensity White	0 - 255	0 - 255
3	RGBWW 参数 / Parameter of RGBWW	红色亮度/Intensity red	0 - 255	0 - 255
4		绿色亮度/Intensity green	0 - 255	0 - 255
5		蓝色亮度/Intensity blue	0 - 255	0 - 255
6		冷白亮度/Intensity cool White	0 - 255	0 - 255
7		暖白亮度/Intensity warm White	0 - 255	0 - 255
3	GEL 色片参数 / Parameter of GEL	色温/CCT	0 - 127	3200K
3		色温/CCT	128 - 255	5600K
4		色片品牌/GEL brand	0 - 127	Rosco
4		色片品牌/GEL brand	128 - 255	LEE
5		色号/Numeric	0 - 255
6		保留/Save	0 - 255
7		保留/Save	0 - 255
通道/Channel	功能/Function	参数名/Parameter	DMX数据/DMX Value	实际参数/Practical parameter
3	x,y坐标/x,y coordinate	x坐标/x-coordinate	0 - 255	0.0 - 0.8
4	x,y坐标/x,y coordinate	y坐标/y-coordinate	0 - 255	0.0 - 0.8
3	FX光效/Effect	光效类型/Effect type	0 - 9	闪光灯/Flash
			10 - 19	雷闪有/Lightning
			20 - 29	多云/Cloudy
			30 - 39	环灯泡/Broken bulb
			40 - 49	电视机/TV
			50 - 59	爆炸/Explosion
			60 - 69	探视/Welding
			70 - 79	SOS
			80 - 89	螺丝/Candle
			90 - 99	火/Fire
			100 - 109	磁盘/Firework
			110 - 119	客车/Cop car
			120 - 129	勒光循环/RGB cycle
			130 - 139	雷达/Party
			140 - 149	彩光罩入/RGB fade
			150 - 159	勒光流动/RGB flow
			160 - 169	彩光流速/RGB chase
			170 - 255	预留/Preset
4	闪光灯参数/Parameter of flash	触发/Trigger	0-127	自动/Auto
4		触发/Trigger	128-255	手动/Manual
5		速度/Speed	0-255	触发:自动-1-100/Trigger auto-1-100
			0-127	触发:手动-关/Trigger manual-off
			128-255	触发:手动-开/Trigger manual-on
6		模式/Mode	0-127	闪光灯/Camera flash
6		模式/Mode	128-255	镀光灯/Flash bulb
7		颜色/Color	0-127	CCT
7		颜色/Color	128-255	HSI
8		色温/CCT或/or色相/Hue	0-255	2000K - 10000K
8		色温/CCT或/or色相/Hue	0-255	HUE: 0-360
9		后灯/模/Magenta/Green或/or饱和度/Saturation	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全-操/Full minus green
			21 - 119	-50 - -1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全+模/Full plus green
			0-255	0-100
4	雷闪电参数/Parameter of Lightning	触发/Trigger	0-127	自动/Auto
4		触发/Trigger	128-255	手动/Manual
5		频率/Frequency	0-255	触发:自动=随机-20次/分/Trigger auto=9nd-20c/min
			0-127	触发:手动=关/Trigger manual-off
			128-255	触发:手动-开/Trigger manual-on

通道/Channel	功能/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
6		闪烁次数/Flash times	0-255	随机-10次/Rnd-10
7		色温/CCT	0-255	2000K-10000K
4	多云参数/Parameter of cloudy	温度/Speed	0-255	随机-100/Rnd-100
5	多云参数/Parameter of cloudy	亮度比例/DM ratio	0-255	30-90%
4	坏灯泡参数/Parameter of broken bulb	湿度/Speed	0-255	1-100
5		颜色/Color	0-127	CCT
5		颜色/Color	128-255	HSI
6		色温/CCT或Air色相/Hue	0-255	2000K-10000K
6		色温/CCT或Air色相/Hue	0-255	HUE:0-360
7		品红/绿/Magenta/Green或Air	0-10	中性/无光数/Neutral/No effect
			11-20	全+绿/Full minus green
			21-119	-50=-1
			120-145	中性/无光数/Neutral/No effect
			146-244	1-50
			245-255	全+绿/Full plus green
		饱和度/Saturation	0-255	SAT:0-100
4	电视机参数/Parameter of TV	温度/Speed	0-255	1-100
5		颜色/Color	0-127	CCT
5		颜色/Color	128-255	HSI
4	爆炸参数/Parameter of explosion	触发/Trigger	0-127	自动/Auto
4		触发/Trigger	128-255	手动/Manual
5		油度/Speed	0-255	触发:自动1-100/Trigger auto 1-100
			0-127	触发:手动-关/Trigger manual-off
			128-255	触发:手动=开/Trigger manual-on
6		余焊/Embers	0-255	1-100
7		颜色/Color	0-127	CCT
7		颜色/Color	128-255	HSI
8		色温/CCT或Air色相/Hue	0-255	2000K-10000K
8		色温/CCT或Air色相/Hue	0-255	HUE:0-360
9		品红/绿/Magenta/Green或Air	0-10	中性/无光数/Neutral/No effect
			11-20	全-绿/Full minus green
			21-119	-50=-1
			120-145	中性/无光数/Neutral/No effect
			146-244	1-50
			245-255	全+绿/Full plus green
		饱和度/Saturation	0.255	SAT:0-100
4	焊接参数/Parameter of welding	波度/Speed	0-255	1-100
5		颜色/Color	0-127	CCT
5		颜色/Color	128-255	HSI
6		色温/CCT或Air色相/Hue	0-255	2000K-10000K
6		色温/CCT或Air色相/Hue	0-255	HUE:0-360
4	SOS 参数	颜色/Color	0~127	CCT
4		颜色/Color	128-255	HIS
5		色温/CCT或/or 色相/Hue	0~255	2000K - 10000K
5		色温/CCT或/or 色相/Hue	0~255	HUE: 0~360
6		品红/绿/Magenta/Green或/or	0~10	中性/无光数/NeutralNo effect.
			11~20	全-绿/Full minus green
			21~119	-50 ~ -1
			120~145	中性/无光数/NeutralNo effect.
			146~244	1~50
			245~255	全+绿/Full plus green
		饱和度/Saturation	0~255	SAT: 0~100
4	湿性参数/Parameter of candle	速度/Speed	0~255	1~100
4	火参数/Parameter of fire	速度/Speed	0~255	1~100
4	熔花参数/Parameter of firework	速度/Speed	0~255	1~100
5	熔花参数/Parameter of firework	余声/Inbors	0~255	1~100
4	客车参数/Parameter of cup car	颜色/Color	0~255	1个数值对应一种颜色模式: 红蓝、红、蓝、黑白、蓝黄、红蓝白、红蓝黄One value corresponds to one color mode: R+B, R, B, B+W, B+Y, Y, R+B+W, R+B+Y
5	客车参数/Parameter of cup car	模式/Mode	0~255	模式/Mode: 1~5
4	彩光循环参数/Parameter of RGB cycle	速度/Speed	0~255	1~100
5	彩光循环参数/Parameter of RGB cycle	饱和度/Saturation	0~255	1~100
4	流对参数/Parameter of party	速度/Speed	0~255	1~100
5	流对参数/Parameter of party	饱和度/Saturation	0~255	1~100
4	彩光渐入参数/Parameter of RGB fade	速度/Speed	0~255	1~100
5		方向/Direction	0~255
6		保质/Save	0~255
7		颜色长度/Color length	0~255	大小/Size: 1~8
8		颜色数量/Color number	0~255	数量/NO: 1~5
9		颜色/Color	0~9	黑色/Black
			10~127	CCT
			128-255	HIS
10		色谱/CCT或/or 色相/Hue	0~255	2000K - 10000K
10		色谱/CCT或/or 色相/Hue	0~255	HLE: 0~360°
11		品红/绿/Magenta/Green	0~10	中性/无光数/NeutralNo effect
			11~20	全-绿/Full minus green
			21~119	-50 ~ -1
			120~145	中性/无光数/NeutralNo effect
			146~244	1~50
			245~255	全+绿/Full plus green

通道/Channel	功能/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
11	阳光深入参数/ Parameter of RGB fade	颜色和度/ or Saturation	0-255	SAT: 0-100
12		颜色/Color	0-127	CCT
13		颜色/Color	128-255	HSI
14		色型/CCT 或 /or 色粗 /Hue	0-255	2000K - 10000K HUE: 0-360
		品红/绿/Magenta/Green 或 /or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 绿 /Full minus green
			21 - 119	- 50 - 1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全 + 绿 /Full plus green
			0-255	SAT: 0-100
15~26		拟和度/Saturation
15~26		参考颜色 1/ Refer to color 1		参考颜色 1/Refer to color 1
4	阳光流动参数/ Parameter of RGB flow	速度 /Speed	0-255	1-100
5		方向/Olection	0-255
6		保留/Save	0-255
7		保留/Save	0-255
8		颜色数量/ Color number	0-255	数量 /NO : 2-8
9		颜色/Color	0-127	CCT
9		颜色/Color	128-255	HIS
10		色型/CCT 或 /or 色粗 /Hue	0-255	2000K - 10000K HUE: 0-360
11		品红/绿/Magenta/Green 或 /or	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 绿 /Full minus green
			21 - 119	- 50 - 1
			120 - 145	中性/无天数/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全 + 绿 /Full plus green
			0-255	SAT: 0-100
12~32		颜色和度/Saturation
12~32		参考颜色 1/ Refer to color 1		参考颜色 1/Refer to color 1
4	阳光迅速参数/ Parameter of RGB chase	速度 /Speed	0-255	1-100
5		方向/Olection	0-255
6		模式/Mode	0-255
7		颜色长度/ Color length	0-255	大小/Size: 1-8
		颜色长度/ Color length	0-255	大小/Size: 1-8
8		颜色数量/ Color number	0-255	数量 /NO : 2-8
9	彩光后逐参数/ Parameter of RGB chase	颜色/Color	00-127	CCT
9		颜色/Color	128-255	HSI
10		色温/CCT或/for 色相/Air Hue	0~255	2000K - 10000K
10		色温/CCT或/for 色相/Air Hue	0~255	HUE: 0-360
11		品红/绿/Magenta/Green或/for	0 ~ 10	中性/无光效/Neutral/No effect
			11 ~ 20	全 - 绿 / Full minus green
			21 ~ 119	- 50 - 1
			120 ~ 145	中性/无光效/Neutral/No effect
			146 ~ 244	1 ~ 50
			245 ~ 255	全 + 绿 / Full plus green
		饱和度/Saturation	0~255	SAT: 0-100
12~32		参考颜色/Refer to color 1		参考颜色 1/Refer to color 1

Ultimate 16Bit

通道/Channel	功能/Function	参数名/Parameter	DMX 数值/DMX Value	实际参数//Practical parameter
1	Ultimate 16Bit	亮度/Dimmer	0 - 65535	0% - 100%
2
3	模式/Mode	模式选择/Mode type	0 - 9	CCT
			10 - 19	HDI
			20 - 29	预留/Preset
			30 - 39	RGBWW
			40 - 49	RGBW
			50 - 59	色片/GEL
			60 - 69	X/Y坐标模式/X/Y coordinate mode
			70 - 79	FX光效/Effect
			80 - 255
4	CCT 模式参数/Parameter ofCCT mode	色谱/ACCT	0 - 65535	2000K - 10000K
5
6		品红/绿/Magenta/Green	0 - 4587	中性/无光效/Neutral/No effect
			4588-29830	全-绿/Full minus green
			9831-30145	-50 - -1
7			30146-39976	中性/无光效/Neutral/No effect
			39977-60292	1 - 50
			60293-65535	全-绿/Full plus green
4	HSI 模式参数/Parameter ofHSI mode	色相/Hue	0 - 65535	0^° - 360^°
5
6		饱和度/Saturation	0 - 65535	0% - 100%
7
4	RGBW 参数/Parameter of RGBW	红光强度/Intensity red	0 - 65535	0 - 255
5
6		绿光强度/Intensity green	0 - 65535	0 - 255
7

通道/Channel	功能/Function	参数名/Parameter	DMX 数值/DMX Value	实际参数/Practical parameter
8	RGBW 参数 / Parameter of RGBW	激光强度/Intensity blue	0 - 65535	0 - 255
9		激光强度/Intensity blue	0 - 65535	0 - 255
10		白光强度/Intensity white	0 - 65535	0 - 255
11		白光强度/Intensity white	0 - 65535	0 - 255
4	RGBWW 参数 / Parameter of RGBWW	红光强度/Intensity red	0 - 65535	0 - 255
5		绿光强度/Intensity green	0 - 65535	0 - 255
6
7
8		蓝光强度/Intensity blue	0 - 65535	0 - 255
9		蓝光强度/Intensity blue	0 - 65535	0 - 255
10		冷白光强度/Intensity cool white	0 - 65535	0 - 255
11		冷白光强度/Intensity cool white	0 - 65535	0 - 255
12		横白光强度/Intensity warm white	0 - 65535	0 - 255
13		横白光强度/Intensity warm white	0 - 65535	0 - 255
4	GEL 色片模式参数 / Parameter of GEL mode	色斑/ACCT	0 - 127	3200K
4		色斑/ACCT	128 - 255	5600K
5		色片类型/GEL type	0 - 127	R-GEL
5		色片类型/GEL type	128 - 256	L-GEL
6		色号/Numeric	0 - 255
7		保留/Save	0 - 255
8		保留/Save	0 - 255
4	x,y 坐标模式参数 / Parameters of x,y coordinate	x坐标/n-coordinate	0 - 65535	0.0 - 0.8
5		x坐标/n-coordinate	0 - 65535	0.0 - 0.8
6		y坐标/y-coordinate	0 - 65535	0.0 - 0.8
7		y坐标/y-coordinate	0 - 65535	0.0 - 0.8
4	FX 光效/Effect	光效类型/Effect type	0 - 9	闪光灯/Flash
			10 - 19	雷风电/Lightning
			20 - 29	多云/Cloudy
			30 - 39	环灯泡/Broken bulb
			40 - 49	电机机/TV
			50 - 59	爆炸/Explosion
			60 - 69	焊接/Welding
			70 - 79	SOS
			80 - 89	螺栓/Candle
			90 - 99	火/Fire
			100 - 109	烟花/Firework
			110 - 119	鸳鸯/Cop car
			120 - 129	彩光循环/RGB cycle
			130 - 139	反对/Party
			140 - 149	彩光串入/RGB fade
			150 - 159	彩光流动/RGB flow
			160 - 169	彩光通道/RGB chase
			170 - 255	预留/Proset
通道/Channel	功能/Function	参数名/Parameter	DMX 数值/DMOX Value	实际参数/Practical parameter
5	闪光灯参数/Parameter of flash	触发/Trigger	0-127	自动/Auto
5		触发/Trigger	128-255	手动/Manual
6		速度/Speed	0-255	触发:自动 1-100/Trigger; auto 1-100
			0-127	触发:手动 - 关/Trigger; manual-off
			128-255	触发:手动 - 开/Trigger manual-on
7		模式/Mode	0-127	闪光灯 /Camera flash
7		模式/Mode	128-255	镀光灯 /Flash bulb
8		颜色/Color	0-127	CCT
8		颜色/Color	128-255	HDI
9-10		色温/CCCT或/or 色相/Hue	0-255	2000K - 10000K
9-10		色温/CCCT或/or 色相/Hue	0-255	HUE: 0-360
11-12		屈杠/牌/Magenta/Green或 Air	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 模/Full minus green
			21 - 119	-50 ~ -1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全 - 编/Fullplus green
		饱和度/Saturation	0-255	0-100
5	雷闪电参数/Parameter of lightning	触发/Trigger	0-127	自动/Auto
5		触发/Trigger	128-255	手动/Manual
6		频率/Frequency	0-255	触发:自动 + 随机 -20次 /分 /Trigger; auto=Rnd-20c/min
			0-127	触发:手动 - 关/Trigger; manual-off
			128-255	触发:手动 - 开/Trigger manual-on
7		闪烁次数/Flash times	0-255	随机 -10次/Rnd-10
8-9		色温/CCCT	0-255	2000K - 10000K
5	多云参数/Parameter of cloudy	速度/Speed	0-255	随机 -100/Rnd-100
5	多云参数/Parameter of cloudy	完成比例/OPM ratio	0-255	30-90%
5	坏灯泡参数/Parameter ofbroken bulb	速度/Speed	0-255	1-100
6		颜色/Color	0-127	CCT
6		颜色/Color	128-255	HDI
7-8		色温/CCCT或/or 色相/Hue	0-255	2000K - 10000K
7-8		色温/CCCT或/or 色相/Hue	0-255	HUE: 0-360
9-10		品红/绿/Magenta/Green或 Air	0 - 10	中性/无光效/Neutral/No effect
			11 - 20	全 - 绿/Full minus green
			21 - 119	-50 ~ -1
			120 - 145	中性/无光效/Neutral/No effect
			146 - 244	1 - 50
			245 - 255	全 - 编/Fullplus green
		饱和量/Saturation	0-255	SAT: 0-100
5	电视机参数/Parameter of TV	速度/Speed	0-255	1-100
6		颜色/Color	0-127	CCT
6		颜色/Color	128-255	HDI

通道/Channel	功能/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
5	操作参数/Parameter of explosion	触发/Trigger	0-127	自动/Auto
5		触发/Trigger	128-255	手动/Manual
6		速度/Speed	0-255	触发:自动-1~100/Trigger auto 1~100
			0-127	触发:手动-关/Trigger manual-off
			128-255	触发:手动-开/Trigger manual-on
7		余剪/Embers	0-255	1-100
8		颜色/Color	0-127	CCT
8		颜色/Color	128-255	HSI
9-10		色温/CCT或/ar 色相/Hue	0-255	2000K-10000K
9-10		色温/CCT或/ar 色相/Hue	0-255	HUE 0-340
11-12		品红/绿/Magenta/Green或 Air	0-10	中性/无光效/Neutral/No effect
			11-20	全+绿/Full minus green
			21-119	-50=-1
			120-145	中性/无光效/Neutral/No effect
			146-244	1-50
			245-255	全+绿/Full plus green
		成饱和度/or Saturation	0-255	SAT 0-100
5	焊接参数/Parameter of welding	浓度/Speed	0-255	1-100
6		颜色/Color	0-127	CCT
6		颜色/Color	128-255	HS
7-8		色温/CCT或/ar 色相/Hue	0-255	2000K-10000K
7-8		色温/CCT或/ar 色相/Hue	0-255	HUE 0-340
9-10		品红/绿/Magenta/Green或 Air	0-10	中性/无光效/Neutral/No effect
			11-20	全-绿/Full minus green
			21-119	-50=-1
			120-145	中性/无光效/Neutral/No effect
			146-244	1-50
			245-255	全+绿/Full plus green
		成饱和度/or Saturation	C-255	SAT 0-100
5	SOS参数	颜色/Color	0-127	CCT
5		颜色/Color	128-255	HS
6-7		色温/CCT或/or 色相/Hue	0-255	2000K-10000K
6-7		色温/CCT或/or 色相/Hue	0-255	HUE 0-340
8-9		品红/绿/Magenta/Green或 Air	0-10	中性/无光效/Neutral/No effect
			11-20	全-绿/Full minus green
			21-119	-50=-1
			120-145	中性/无光效/Neutral/No effect
			145-244	1-50
			245-255	全+绿/Full plus green
		成饱和度/Saturation	0-255	SAT 0-100
通道/Channel	功能/Function	参数名/Parameter	DMX 数值/DMOX Value	实际参数/Practical parameter
5	划线参数/Parameter of candle	速度/Speed	0~255	1-100
5	火参数/Parameter of fire	速度/Speed	0~255	1-100
5	熔花参数/Parameter of firework	速度/Speed	0~255	1-100
6	熔花参数/Parameter of firework	余焊/Embers	0~255	1-100
5	警车参数/Parameter of cop car	彩色/Color	0~255	1个数值对应一种颜色模式:红蓝、红、蓝、黑白、淡黄、黄、红黑白、红清爽One value corresponds to one color mode: R+B, R, B, B+W, B+Y, Y, R+B-W, R+B+Y
6		彩色/Color	0~255
6		模式/Mode	0~255	模式/Mode: 1~5
5	彩光循环参数/Parameter of RGB cycle	速度/Speed	0~255	1-100
6	彩光循环参数/Parameter of RGB cycle	饱和度/Saturation	0~255	1-100
5	测对参数/Parameter of party	速度/Speed	0~255	1-100
6	测对参数/Parameter of party	饱和度/Saturation	0~255	1-100
5	彩光插入参数/Parameter of RGB fade	速度/Speed	0~255	1-100
6		方向/Direction	0~255
7		保留/Save	0~255
8		颜色长度/Color length	0~255	大小/Size: 1~8
9		颜色数量/Color number	0~255	数量/NO: 1~5
10		蓝色/Color	0~9	黑色/Black
			10~127	CCT
			128~255	HS
11-12		色温/°CCT或/for 色粗/Hue	0~255	2000K - 10000K
11-12		色温/°CCT或/for 色粗/Hue	0~255	HUE: 0~360
13-14		呈红/绿/Magenta/Green或/or	0 ~ 10	中性/无光效/Neutral/No effect
			11 ~ 20	全 - 绿 / Full minus green
			21 ~ 119	-50 ~ -1
			120 ~ 145	中性/无光效/Neutral/No effect
			146 ~ 244	1 ~ 50
			245 ~ 255	全 + 绿 / Full plus green
		饱和度/Saturation	0~255	SAT: 0~100
15		蓝色/Color	0~127	CCT
15		蓝色/Color	128~255	HSI
16-17		色温/°CCT或/for 色粗/Hue	0~255	2000K - 10000K
16-17		色温/°CCT或/for 色粗/Hue	0~255	HUE: 0~360
18-19		呈红/绿/Magenta/Green	0 ~ 10	中性/无光效/Neutral/No effect
			11 ~ 20	全 - 绿 / Full minus green
			21 ~ 119	-50 ~ -1
			120 ~ 145	中性/无光效/Neutral/No effect
			146 ~ 244.	1 ~ 50
			245 ~ 255	全 + 绿 / Full plus green

通道/Channel	功能/Function	参数名/Parameter	DMX数值/DMX Value	实际参数/Practical parameter
18-19	彩光导入参数/ Parameter of RGB fade	成饱和度/ or Saturation	0~255	SAT: 0-100
20-39	彩光导入参数/ Parameter of RGB fade	参考颜色/ Refer to color 1		参考颜色/Refer to color 1
5	彩光流动参数/ Parameter of RGB flow	速度/Speed	0~255	1~100
6		方向/Direction	0~255
7		保留/Save	0~255
8		保留/Save	0~255
9		颜色数量/ Color number	0~255	数量/NO: 2-8
10		颜色/Color	0~127	2000K - 10000K
10		颜色/Color	128~255	HIS
11-12		色温/ACCT 或 Air 色相/ Hue	0~255	2000K - 10000K
11-12		色温/ACCT 或 Air 色相/ Hue	0~255	HUE: 0~360
13-14		品红/绿/Magenta/Green 或 Air	0 ~ 10	中性/无光效/Neutral/No effect
			11~20	全 - 绿 / Full minus green
			21~119	- 50 - 1
			120~145	中性/无光效/Neutral/No effect
			146~244	1~50
			245~255	全 + 绿 / Full plus green
		饱和度/Saturation	0~255	SAT: 0-100
15-69		参考颜色/Refer to color 1		参考颜色/Refer to color 1
5	彩光迅速参数/ Parameter of RGB chase	速度/Speed	0~255	1~100
6		方向/Direction	0~255
7		模式/Mode	0~255
8		颜色长度/ Color length	0~255	大小/Size: 1~8
9		颜色数量/ Color number	0~255	数量/NO: 2-8
10		颜色/Color	0~127	CCT
10		颜色/Color	128~255	HSI
11-12		色温/ACCT 或 Air 色相/Hue	0~255	2000K - 10000K
11-12		色温/ACCT 或 Air 色相/Hue	0~255	HUE: 0~360
13-14		品红/绿/Magenta/Green 或 Air	0~10	中性/无光效/Neutral/No effect
			11~20	全 - 绿 / Full minus green
			21~119	- 50 - 1
			120~145	中性/无光效/Neutral/No effect
			146~244.	1~50
			245~255	全 - 绿 / Full plus green
		饱和度/Saturation	0~255	SAT: 0-100
15-49	彩光逐条参数/ Parameter of RGB chase	参考颜色/1/ Refer to color 1		参考颜色/1/Refer to color 1

计算公式 /Calculation formula:

计算亮度 /Brightness

8Bit

亮度数值

DMX 数值 = 0.3922

亮足数值 = DMX 数值 *0.3922

Brightness value

DMX value = 0.3922

Brightness value - DMX value*0.3922

168bit

充度数值

DMX 数值 = 0.001526

亮度数值 = DMX 载值 * 0.001526

Brightness value

DMX value = 0.001526

Brightness value = DMX value* 0.001526

计算色温 /CCT

88bit

色温数值·2000

DMX 数值 = 31.640625

包涵数值 = DMX 数值 * 31.540625 + 2000

CCT value-2000

DMX value = 31.640625

CCT value = DMX value* 31.640625 +2000

16Bit

色温数值-2000

DMX 数值 = 0.123598

色温载值 - DMX 数值 * 0.123598 - 2000

CCT value-2000

DMX value = 0.123598

CCT value = DMX value* 0.123598 >2000

计算 x,y 坐标 /x,y coordinate

88bit

x值\*255

DMX(x值) = 0.8

y值*255

DMX(y值)=0.8

x value\*755

DMX(x value) = 0.8

y value*265

DMX(y value) = 0.8

16Bit

×值\*65535

DMX(x值)=0

v值*65535

DMX(4x值)=0

x value\*65535

DMX(x value) = 0.8

y value*65535

DMX(y value) = 0.8

Inhaltsverzeichnis Klicken Sie auf einen Titel, um darauf zuzugreifen

TP2R
目录/Catalogue
计算公式 /Calculation formula:
计算亮度 /Brightness
亮度数值
Brightness value
充度数值
计算色温 /CCT
色温数值·2000
CCT value-2000
色温数值-2000
计算 x,y 坐标 /x,y coordinate
x值\*255
x value\*755
×值\*65535
x value\*65535

Handbuch-Assistent

Angetrieben von Anthropic

Warten auf Ihre Nachricht

Produktinformationen

Marke : GODOX

Modell : TP2R

Kategorie : Beleuchtung
