Pro HDSP2X4 - Separator Kanex - Kostenlose Bedienungsanleitung

Produkttyp	HDMI-Splitter
Modell	Pro HDSP2X4
Hersteller	Kanex
Eingänge	1 × HDMI (Typ A)
Ausgänge	4 × HDMI (Typ A)
Maximale Videoauflösung	4K @ 60 Hz (3840 × 2160)
Unterstützte Audioformate	LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio
HDCP-Kompatibilität	HDCP 2.2 und 1.4
Übertragungsrate	Bis zu 18 Gbit/s
Maximale Kabellänge (Eingang)	10 m (32 ft) bei 1080p
Maximale Kabellänge (Ausgang)	10 m (32 ft) bei 1080p
Stromversorgung	5 V DC, 2 A (Netzteil im Lieferumfang)
Leistungsaufnahme	max. 5 W
Abmessungen (B × T × H)	150 × 80 × 25 mm
Gewicht	200 g
Gehäusematerial	Metall (schwarz)
Betriebstemperatur	0 °C bis 40 °C
Lagertemperatur	-20 °C bis 60 °C
Relative Luftfeuchtigkeit (Betrieb)	10 % bis 85 % (nicht kondensierend)
Zertifizierungen	CE, FCC, RoHS
Lieferumfang	Splitter, Netzteil, Bedienungsanleitung

Häufig gestellte Fragen - Pro HDSP2X4 Kanex

Wie schließe ich den Pro HDSP2X4 an?

Unterstützt der Splitter 4K-Auflösung?

Warum wird kein Bild angezeigt?

Kann ich den Splitter an einem PC-Monitor und einem Fernseher gleichzeitig nutzen?

Benötigt der Splitter eine externe Stromversorgung?

Unterstützt der Splitter HDCP 2.2?

Kann ich den Splitter über längere Kabel betreiben?

Was bedeuten die LEDs am Gerät?

Kann ich den Splitter auch für Audio-only-Signale nutzen?

Wie reinige ich den Splitter?

BEDIENUNGSANLEITUNG Pro HDSP2X4 Kanex

KanexPro™

HDSP2X4

HDMI 2 x 4 Splitter with Full HD 1080p

Setup Guide

Table of Contents

1) Introduction....3
2) Specifications. 4
3) Package Contents 4
4) Unit Layout & Description 5
5) Connection and Operation 5
6) Connection Diagram. 6
7) Warranty....6

Notice

KanexPro ^™ reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.

| Introduction

HDMI 2 x 4 Splitter with Full HD 1080p

The KanexPro 2x4 splitter is an economical and easy to use splitter that distributes two inputs in to four identical outputs. The conforming outputs provide signal equalization and regeneration built-in to the splitter, for long distance transmission of HDMI signals up to 50 feet (15 meters). In addition, the splitter is fully optimized for routing video and embedded multi-channel digital audio to multiple display environments.

Compatible with computer resolutions up to WUXGA (1920x1200 @ 60Hz), including HDTV 1080p/60. The Mini HDMI splitter fully conforms to HDMI 1.3 Specifications and is HDCP compliant.

Features:

• Distribute HDMI audio and video signals from two input to four outputs
• Splitter can be cascaded for additional HDMI inputs
  • Supports data rates up to 6.75 Gbps
  • Supports full HD 1080p (1920 x 1080@60Hz)
  • Computer resolution up to WUXGA (1920 x1200@60Hz)
• Conforms to HDMI 1.3 specifications- (Deep color, HD lossless audio formats & Lip Sync)
  • Supports Dolby Digital, DTS-HD and Dolby True HD audio
  • EDID & HDCP compliant
• Front-panel control for switching the two inputs
• Front-panel LED,s for input/ output signal presence
• Rack-mountable metal enclosure
  • 5VDC external power supply included

2

Specifications

Interface: Input: HDMI x2

Output: HDMI x4

Operating Frequency: Video Amplifier Bandwidth of 6.75 Gbps

Vertical Frequency Range 60Hz

Maximum Resolution: 1920x1080p@60Hz

Color Depth: 12bit per channel

Power Supply: 5V DC@2A, 5W

Environmental: Operating Temperature: 0°C to +70°C

Operating Humidity: 10% to 85% RH (no condensation)

Storage Temperature: -10°C to +80°C

Storage Humidity: 5% to 90 % RH (no condensation)

Regulatory Approvals Converter: FCC, CE, UL

Regulatory Approvals Power Supply: FCC, CE, UL

Dimensions: 10.6"x7.1"x1.6" (270x181x40mm)

Weight: 3.1lbs (1416g)

Warranty: 1 Year limited

3

Package Contents

1) Splitter Unit x1

2)5V DC Power Supply x1

4

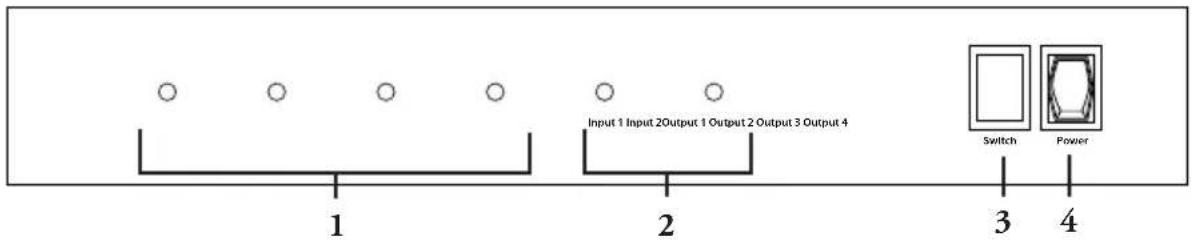

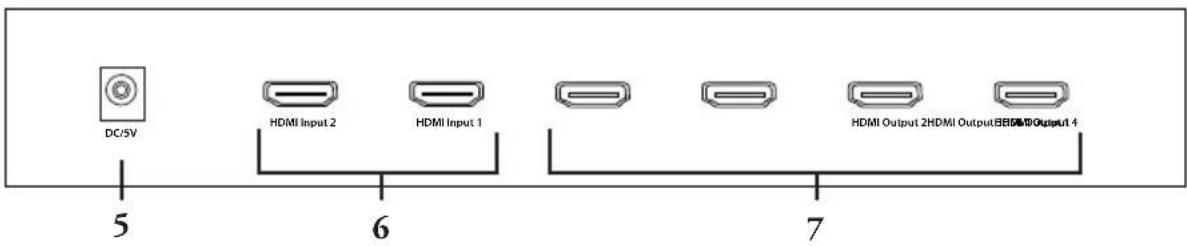

Unit Layout & Description

Transmitter

Front

Back

1) Output LED

a. Indicates which output is active

2) Input LED

a. Indicates which input is active

3) Switch Button

a. Press button to switch inputs (default is set to Input 1)

4) Power Switch

a. Powers the unit on/off

5) 5V/DC Connector

a. Connect the 5V power supply to this port

6) HDMI Input

a. Connect HDMI source such as gaming console, set top box, or etc

7) HDMI Output

a. Connect to HDMI display such as HDTV, projector, etc

5

Connection and Operation

1) Connect HDMI source devices(PS3, Blu-Ray Players, etc) to the HDMI input ports on the Splitter unit.

2) Connect HDMI displays (HDTV, Projector, Monitors, etc) to the Splitter unit.

3) Connect the 5V@2.5A power supply to the Splitter and power on unit.

4) Press the Switch button to switch Input sources from Input 1 to Input 2 (Input 1 is default setting)

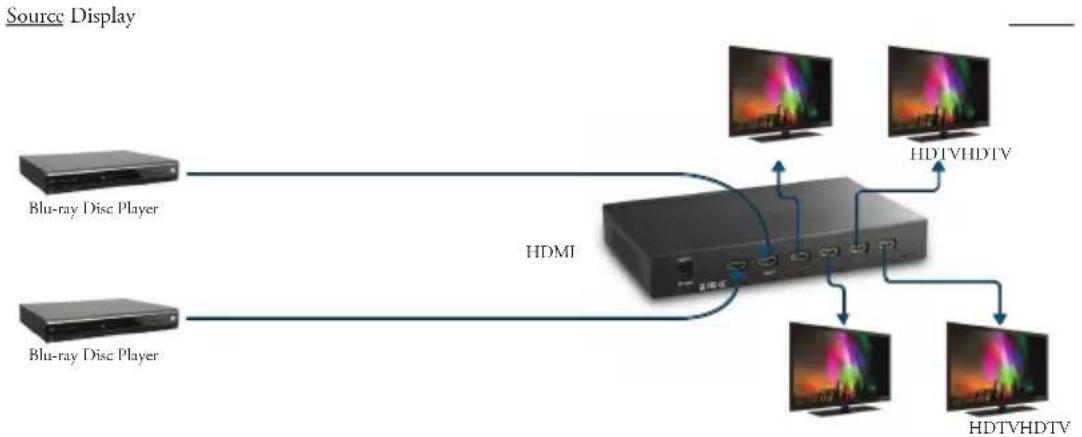

6 Connection Diagram

7 Warranty

A. Limited Warranty

KanexPro™ warrants that (a) its products (the "Product") will perform greatly in agreement with the accompanying written materials for a period of 12 months (1 full year) from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 1 year.

B. CUSTOMER REMEDIES

KanexPro's entire liability and Customer's exclusive remedy shall be, at KanexPro option, either return of the price paid for the product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customer's receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be warranted for the remainder of the original warranty period or 1 year, whichever is longer.

C. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, KANEXPRO DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.

D. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL KANEXPRO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF KANEXPRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

KanexPro™

Brea, California

KanexPro.com

MPN: HDSP2X4

HDMI are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Kanex is a trademark of Apogee Inc., registered in the U.S. HDBaseT™ is a trademark of HDBaseT™ alliance. Blu-Ray is a trademark of Blu-ray Disc Association. Playstation is the registered trademark of Sony Computer Entertainment Inc.
