| Produkttyp | Digitale Spiegelreflexkamera (DSLR) |
| Marke | Canon |
| Modell | EOS D2000 |
| Sensor | 2,0-Megapixel-CCD-Sensor (Typ CY2-0998) |
| Objektivanschluss | Canon EF-Bajonett |
| Sucher | Pentaprisma mit einstellbarem Dioptrienausgleich |
| Verschluss | Elektronisch gesteuerter Schlitzverschluss (CG1-3034-070) |
| Belichtungsmessung | Mehrfeldmessung, Selektivmessung, Integralmessung |
| Fokussierung | Phasendetektions-AF (AF-Einheit CG1-3038) |
| ISO-Empfindlichkeit | ISO 200–1600 (typisch) |
| Speichermedium | CompactFlash (CF) Karte (PC Card Slot) |

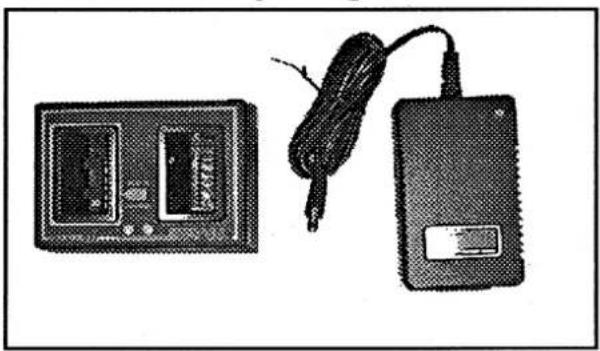

| Stromversorgung | Akku-Ladegerät (CY2-1004), Netzadapter (CY2-1005), Auto-Adapter (CY2-1007) |
| Abmessungen (ca.) | 160 x 120 x 80 mm |
| Gewicht (ca.) | 1,5 kg (ohne Objektiv) |
| Anschlüsse | Fernbedienungsanschluss, PC-Terminal |
| Besonderheiten | Spiegelvorauslösung, Tiefenschärfeprüfung, AE-Lock |
| Reinigung & Pflege | Sensor und Spiegel vorsichtig mit Blasebalg reinigen; Kontakte mit Isopropylalkohol pflegen |
| Sicherheitshinweise | Nur Original-Zubehör verwenden; vor Feuchtigkeit und Stößen schützen |
| Ersatzteile & Reparatur | Ersatzteile über Canon Service; Reparatur durch Fachpersonal |
Häufig gestellte Fragen - EOS D2000 CANON
Wie wird die Kamerabatterie geladen?
Verwenden Sie das mitgelieferte Akku-Ladegerät CY2-1004. Schließen Sie das Ladegerät an eine Steckdose an und legen Sie den Akku ein. Der Ladevorgang beginnt automatisch.
Welche Speicherkarten sind kompatibel?
Die Canon EOS D2000 unterstützt CompactFlash (CF) Karten. Verwenden Sie Karten mit einer Kapazität von bis zu 2 GB, um Kompatibilitätsprobleme zu vermeiden.
Wie setze ich die Kamera auf die Werkseinstellungen zurück?
Drücken Sie die MENU-Taste, navigieren Sie zu den Einstellungen und wählen Sie „Zurücksetzen auf Standardeinstellungen“. Bestätigen Sie mit dem Einstellrad.
Kann ich ein Stativ verwenden?
Ja, die Kamera hat ein Stativgewinde an der Unterseite (Teil CY2-1013). Verwenden Sie ein handelsübliches Stativ mit 1/4-Zoll-Gewinde.
Wie reinige ich den Bildsensor?
Schalten Sie die Kamera aus, entfernen Sie das Objektiv und heben Sie den Spiegel mit der Funktion Spiegelvorauslösung an. Verwenden Sie einen Blasebalg, um Staub vom Sensor zu entfernen. Berühren Sie den Sensor nicht.
Welche Objektive passen an die Kamera?
Alle Objektive mit Canon EF-Bajonett sind kompatibel. EF-S-Objektive sind nicht geeignet, da sie für APS-C-Sensoren entwickelt wurden.
Wie stelle ich die Dioptrienkorrektur ein?
Drehen Sie am Dioptrien-Einstellrad (Teil CB1-7125) neben dem Sucher, bis das Sucherbild scharf erscheint.
Was bedeutet der Fehler „Err 01“?
Dieser Fehler weist auf ein Problem mit dem Objektivkontakt hin. Reinigen Sie die Kontakte am Objektiv und an der Kamera mit einem trockenen Tuch. Tritt der Fehler weiterhin auf, wenden Sie sich an den Canon Service.
Kann ich externe Blitze verwenden?
Ja, über den PC-Terminal-Anschluss (Teil CF1-2152) können Sie externe Blitze anschließen. Verwenden Sie Blitzgeräte mit einer Zündspannung von max. 6 V.
Wie finde ich Ersatzteile für die Kamera?
Ersatzteile sind über den Canon Service erhältlich. Geben Sie die Teilenummern aus dem Parts Catalog (z. B. C12-8372) an, um die richtigen Komponenten zu bestellen.
Benutzerfragen zu EOS D2000 CANON
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Noch keine Fragen. Stellen Sie die erste.
Laden Sie die Anleitung für Ihr Kamera kostenlos im PDF-Format! Finden Sie Ihr Handbuch EOS D2000 - CANON und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. EOS D2000 von der Marke CANON.
BEDIENUNGSANLEITUNG EOS D2000 CANON
CANON DIGITAL CAMERA
EOS · D2000 C
C12-8372
EOS · D6000 C
C12-8373
PARTS CATALOG
This Parts Catalog includes New parts necessary for the EOS D6000, as well as parts changes reported in SMR (Service Manual Reports) through December, 1998.
このパーツカタログは、EOS D6000の発売に伴い追加設定された部品の情報、及び98/12までに発行されたサービスマニュアルレポートの部品変更情報を盛り込んであります。
01 1998/Apr.
02 1998/Dec.
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

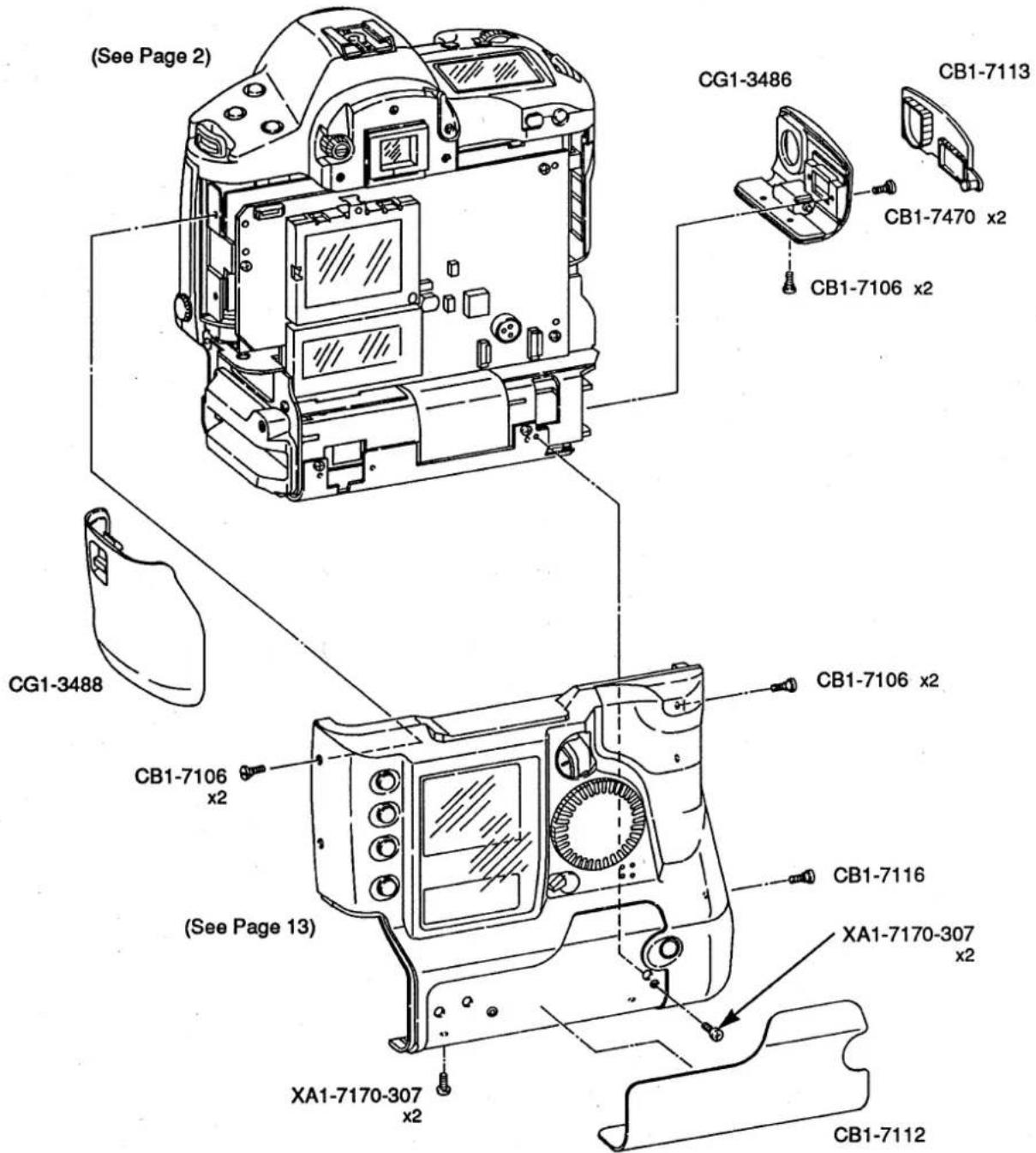

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| * | CB1-7106-000 | 6 | SCREW | ||
| * | CB1-7112-000 | C | 1 | COVER, LEATHER (VG) | 縦グリップレザー |
| * | CB1-7113-000 | C | 1 | CAP, CONNECTOR | コネクターキャップ |
| * | CB1-7116-000 | 1 | SCREW | ||
| * | CB1-7470-000 | 2 | SCREW | ||
| * | CG1-3486-000 | C | 1 | CONNECTOR PANEL UNIT | 通信コネクターパネル |
| * | CG1-3488-000 | C | 1 | DOOR UNIT | ドアユニット |
| XA1-7170-307 | 4 | SCREW | |||
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

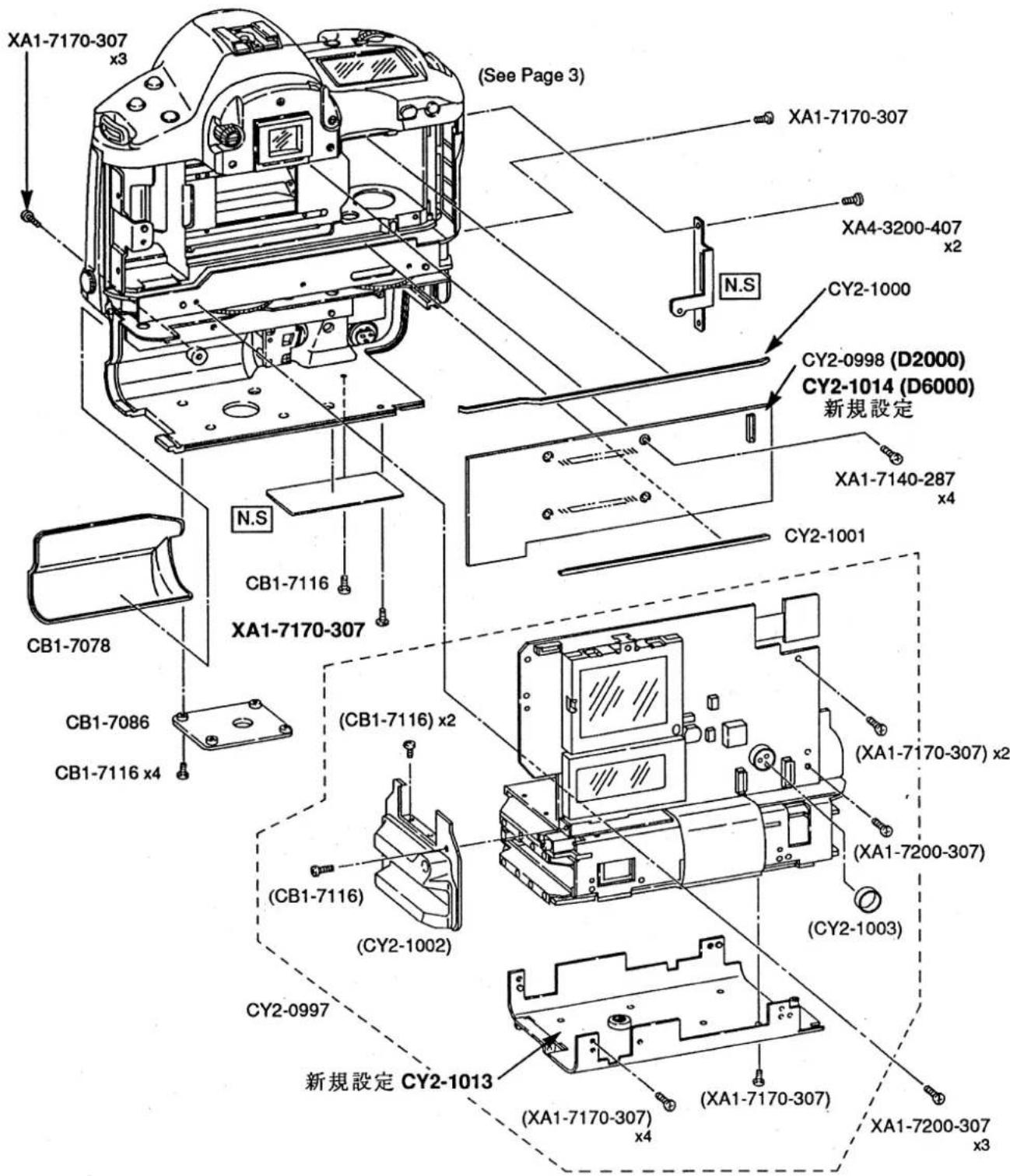

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| * | CB1-7078-000 | C | 1 | COVER, RUBBER (VG) | 縦グリップラバー |
| * | CB1-7086-000 | C | 1 | CASE, BOTTOM | 底ケース |
| * | CB1-7116-000 | 98 | SCREW | ||
| * | CY2-0997-000 | D | 1 | DIGITAL ASS'Y | デジタルユニット |
| * | CY2-0998-000 | D | 1 | PCB ASS'Y, IMAGER (D2000) | CCDユニット (D2000) |
| * | CY2-1000-000 | C | 1 | GASKET, LIGHT LEAK (UPPER) | 遮光ガスケット(上) |
| * | CY2-1001-000 | D | 1 | GASKET, LIGHT LEAK (LOWER) | 遮光ガスケット(下) |
| * | CY2-1002-000 | D | 1 | FACEPLATE, PC CARD SLOT | PCスロット化粧板 |
| * | CY2-1003-000 | D | 1 | ISOLATOR, MICROPHONE | マイクロフォン保護ゴム |
| XA1-7140-287 | 4 | SCREW | |||
| XA1-7170-307 | 1H12 | SCREW | |||
| XA1-7200-307 | 4 | SCREW | |||
| * | XA4-3200-407 | 2 | SCREW | ||
| * | CY2-1013-000 | D | 1 | STIFFENER PLATE ASS'Y | 三脚座プレート |
| * | CY2-1014-000 | D | 1 | PCB ASS'Y, IMAGER (D6000) | CCDユニット(D6000) |
CANON EOS - D2000 C CANON EOS - D6000 C
C12-8372
C12-8373

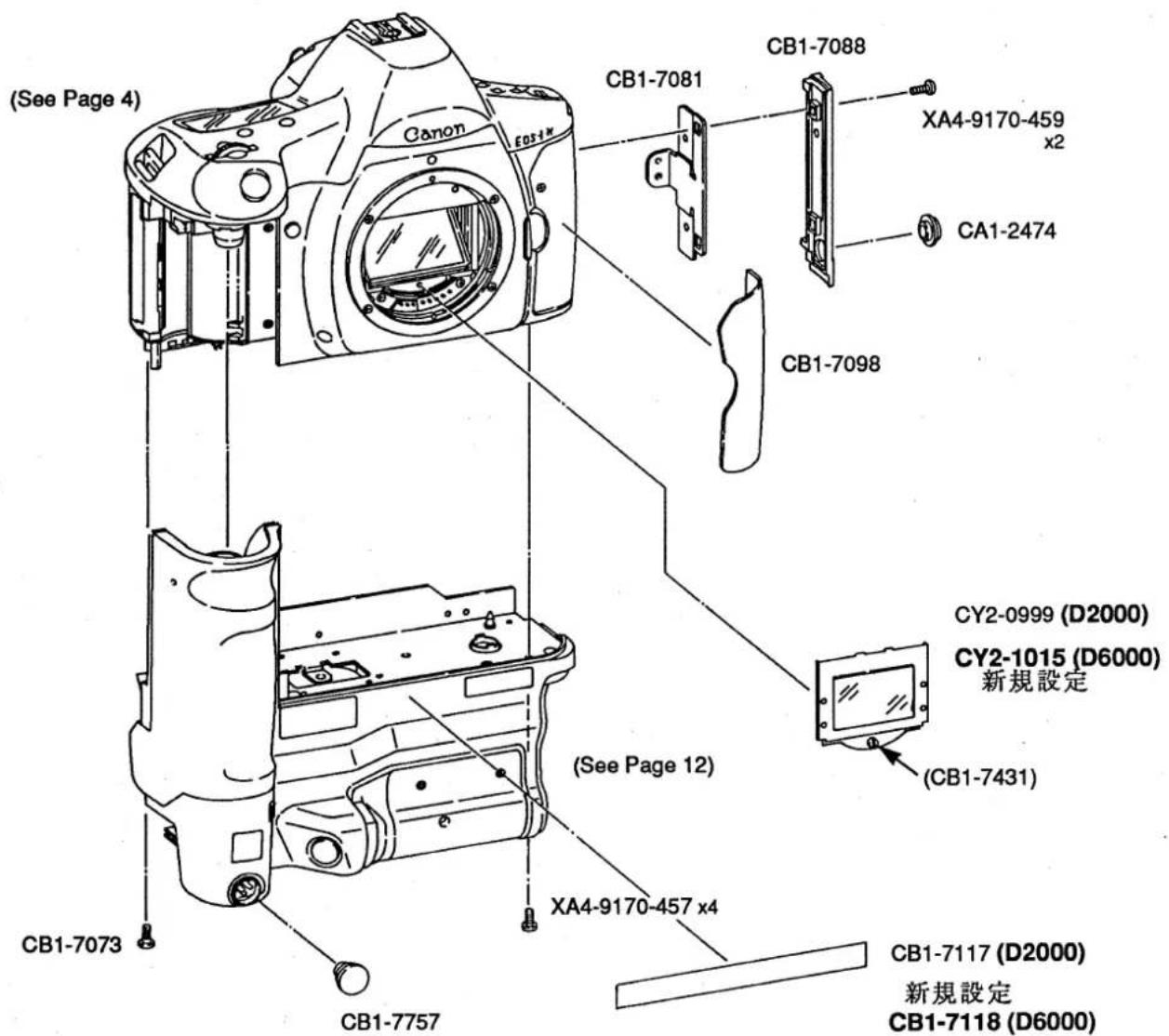

PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373
| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-2474-000 | A | 1 | CAP, P.C. TERMINAL | PCターミナルキャップ | |
| * | CB1-7073-000 | 1 | SCREW | ||
| * | CB1-7081-000 | D | 1 | BRACKET, LEFT | 左ブラケット |
| * | CB1-7088-000 | C | 1 | COVER, LATCH | ラッチカバー |
| * | CB1-7098-000 | C | 1 | COVER, LEATHER (FRONT PANEL) | 前カバーレザー |
| * | CB1-7117-000 | C | 1 | PLATE, NAME (D-2000) | ネームプレート (D-2000) |
| * | CB1-7431-000 | 1 | SCREW | ||
| * | CB1-7757-000 | C | 1 | CAP, TERMINAL | リモコンターミナルキャップ |
| * | CY2-0999-000 | C | 1 | FILTER, ANTI-ALIASING | 赤外カットローバスフィルター |
| XA4-9170-457 | 4 | SCREW | |||
| XA4-9170-459 | 2 | SCREW | |||
| * | CB1-7118-000 | D | 1 | PLATE, NAME (D6000) | ネームプレート (D6000) |
| * | CY2-1015-000 | D | 1 | FILTER, ANTI-ALIASING (D6000) | フィルター (D6000) |
CANON EOS - D2000 C CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

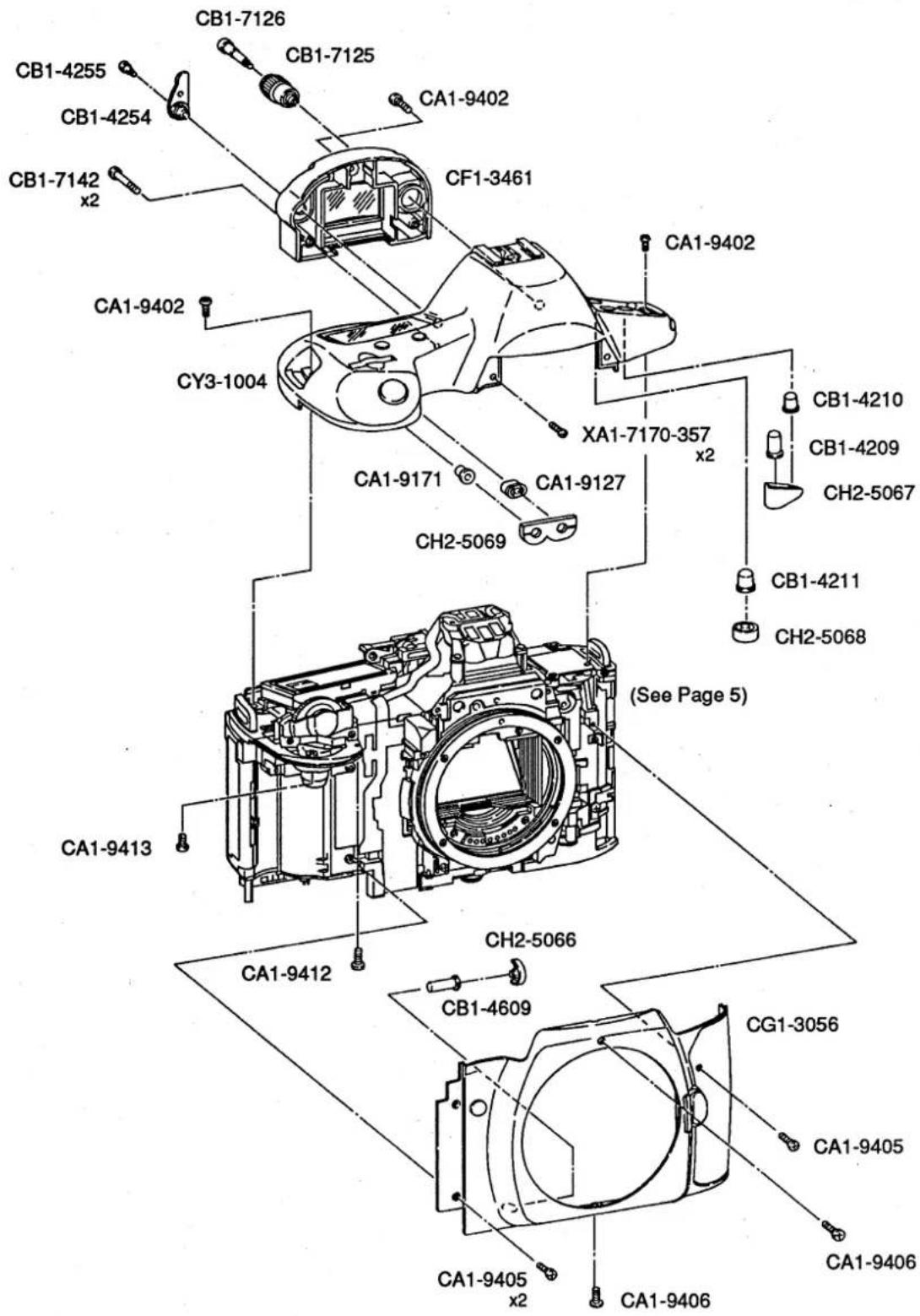

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-9127-000 | D | 1 | BUTTON, AE LOCK | AEロックボタン | |
| CA1-9171-000 | D | 1 | BUTTON, AV | AVボタン | |
| CA1-9402-000 | 3 | SCREW | |||
| CA1-9405-000 | 3 | SCREW | |||
| CA1-9406-000 | 2 | SCREW | |||
| CA1-9412-000 | 1 | SCREW | |||
| CA1-9413-000 | 1 | SCREW | |||
| CB1-4209-000 | D | 1 | BUTTON, MODE 1 | モード1ボタン | |
| CB1-4210-000 | D | 1 | BUTTON, MODE 2 | モード2ボタン | |
| CB1-4211-000 | D | 1 | BUTTON, MODE 3 | モード3ボタン | |
| CB1-4254-000 | D | 1 | LEVER, EYEPIECE SHUTTER | アイピースシャッターレバー | |
| CB1-4255-000 | 1 | SCREW | |||
| CB1-4609-000 | D | 1 | BUTTON, STOP DOWN | 深度確認ボタン | |
| * | CB1-7125-000 | D | 1 | DIAL, EYEPIECE ADJUSTING | 視度調ダイヤル |
| * | CB1-7126-000 | D | 1 | SHAFT, EYEPIECE ADJUSTING | 視度調ダイヤル軸 |
| * | CB1-7142-000 | 2 | SCREW | ||
| * | CF1-3461-000 | C | 1 | COVER ASS'Y, EYEPIECE | 接眼カバー |
| CG1-3056-000 | C | 1 | COVER ASS'Y, FRONT | エプロンユニット | |
| CH2-5066-000 | D | 1 | SWITCH, STOP DOWN | 深度確認スイッチ | |
| CH2-5067-000 | D | 1 | SWITCH, MODE | モードスイッチ | |
| CH2-5068-000 | D | 1 | SWITCH, METERING MODE | 測光モードスイッチ | |
| CH2-5069-000 | D | 1 | SWITCH, AE LOCK | AEロックスイッチ | |
| * | CY3-1004-000 | C | 1 | COVER ASS'Y, TOP | 上カバーユニット |
| XA1-7170-357 | 2 | SCREW | |||
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

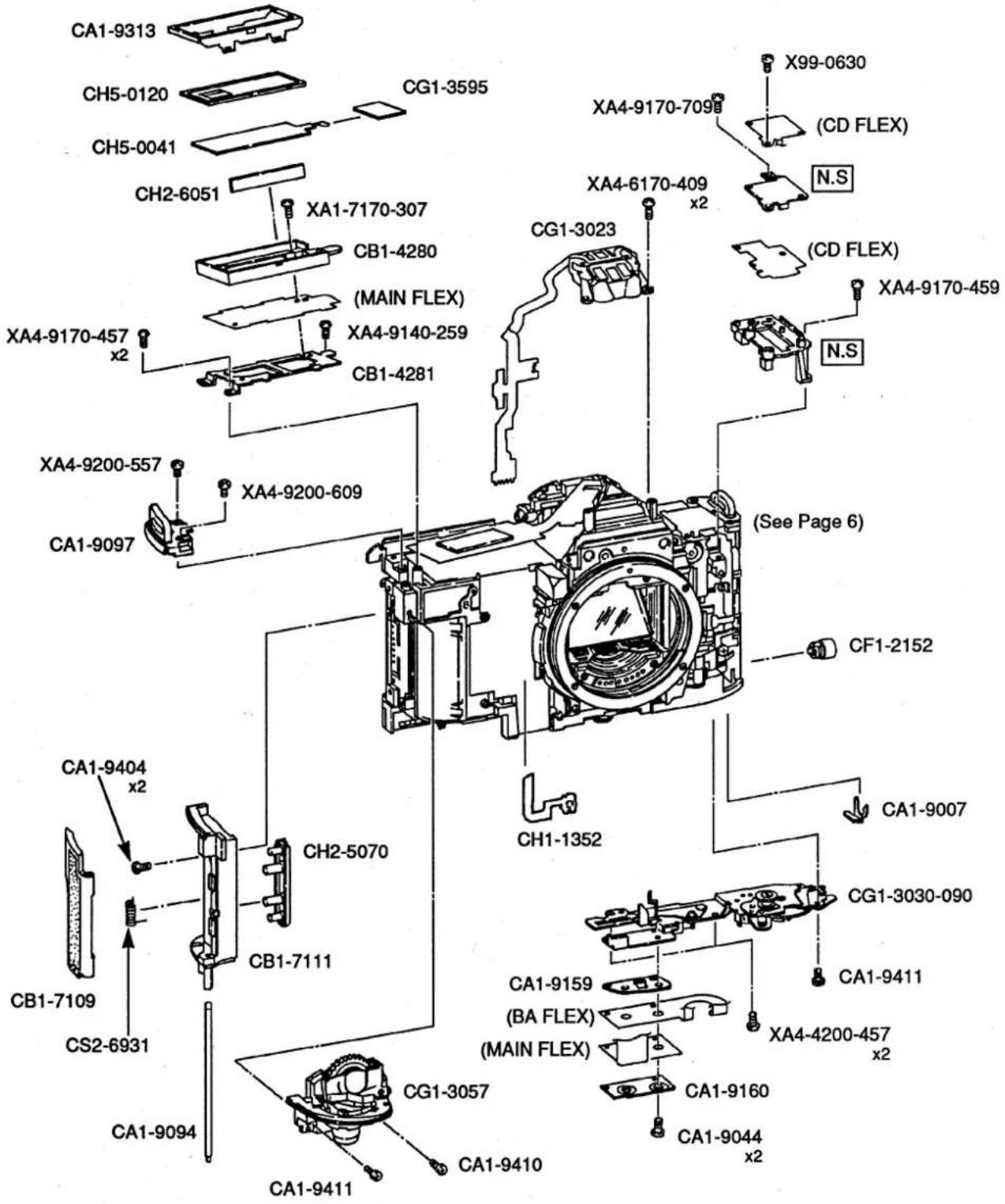

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-9007-000 | D | 1 | RETAINER | PCリティナー | |
| CA1-9044-000 | 2 | SCREW | |||
| CA1-9094-000 | E | 1 | SHAFT, PALM WING | パームウイング軸 | |
| CA1-9097-000 | D | 1 | LUG, NECKSTRAP (RIGHT) | 耳環(右) | |
| CA1-9159-000 | D | 1 | PAD, FLEX. CONNECTION | フレキコネクトゴム | |
| CA1-9160-000 | E | 1 | BASE, FLEX. CONNECTION | フレキコネクト押え | |
| CA1-9313-000 | E | 1 | FRAME, LCD | LCD窓 | |
| CA1-9404-000 | 2 | SCREW | |||
| CA1-9410-000 | 1 | SCREW | |||
| CA1-9411-000 | 2 | SCREW | |||
| CB1-4280-000 | E | 1 | CASE, LCD | LCDケース | |
| CB1-4281-000 | E | 1 | BASE, LCD | LCD地板 | |
| * | CB1-7109-000 | C | 1 | WING, PALM | パームウィング |
| * | CB1-7111-000 | C | 1 | HOLDER, SWITCH | 隠れSWホルダー |
| CF1-2152-000 | D | 1 | TERMINAL, PC | PCターミナル | |
| CG1-3023-000 | D | 1 | SUPERIMPOSE ASS'Y | SIユニット | |
| CG1-3030-090 | D | 1 | CHARGE UNIT | チャ-ジユニット | |
| CG1-3057-000 | D | 1 | MAIN DIAL UNIT | メインダイヤルユニット | |
| * | CG1-3595-000 | D | 1 | PCB ASS'Y, SUB-C | サブ基板ユニットC |
| * | CH1-1352-000 | E | 1 | MSFLX | 深度確認SWフレキ |
| CH2-5070-000 | D | 1 | SWITCH, CF | 隠れスイッチ | |
| CH2-6051-000 | D | 1 | CONNECTOR, ELASTIC | コネクター | |
| CH5-0041-000 | D | 1 | ELECTRO LUMINESCENCE | EL | |
| CH5-0120-000 | D | 1 | LCD, EXTERNAL | 外部LCD | |
| CS2-6931-000 | E | 1 | SPRING, COIL | パームウィングバネ | |
| X99-0630-000 | 1 | SCREW | |||
| XA1-7170-307 | 1 | SCREW | |||
| XA4-4200-457 | 2 | SCREW | |||
| XA4-6170-409 | 2 | SCREW | |||
| XA4-9140-259 | 1 | SCREW | |||
| XA4-9170-457 | 2 | SCREW | |||
| XA4-9170-459 | 1 | SCREW | |||
| XA4-9170-709 | 1 | SCREW | |||
| XA4-9200-557 | 1 | SCREW | |||
| XA4-9200-609 | 1 | SCREW | |||
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

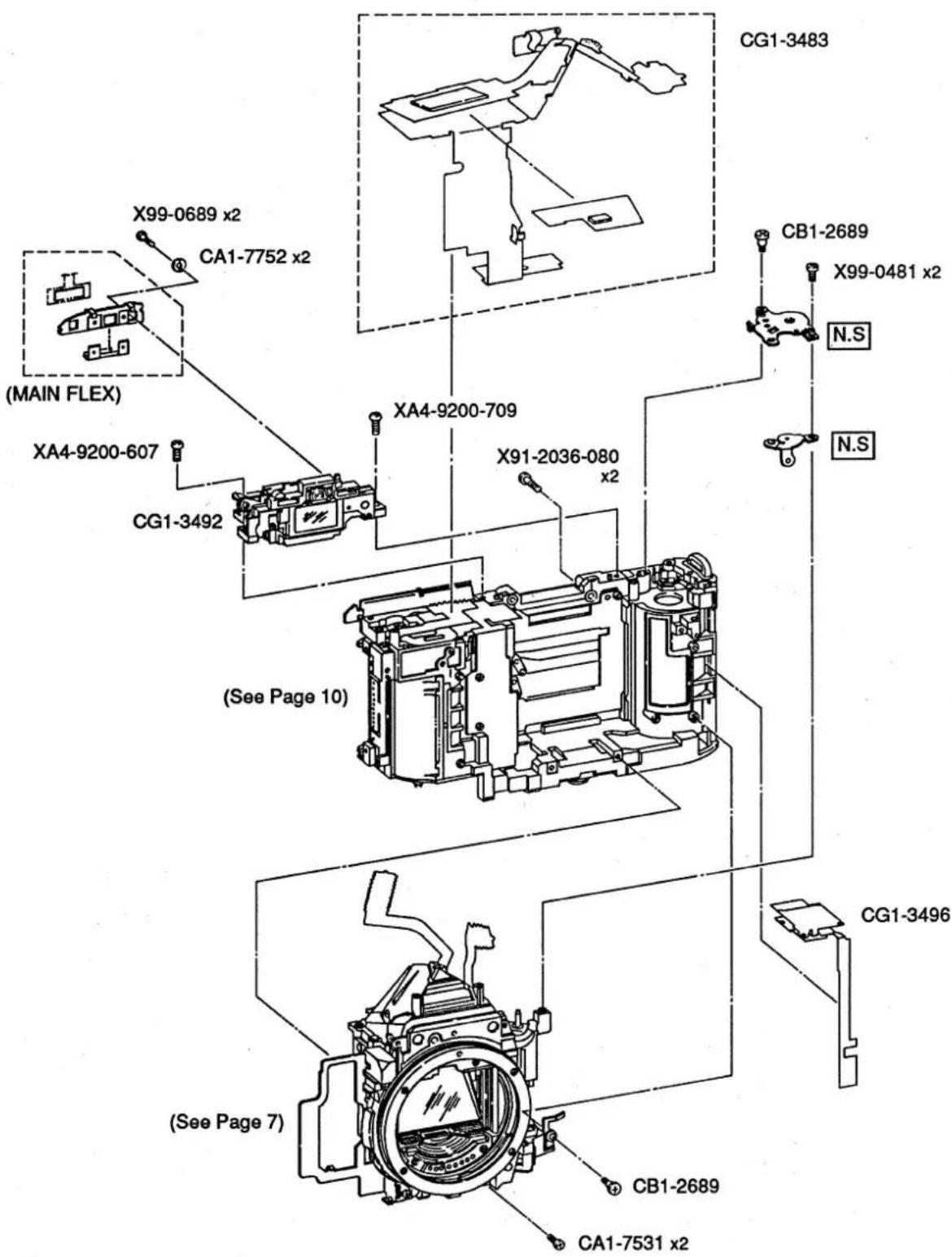

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-7531-000 | 2 | SCREW | |||
| CA1-7752-000 | E | 2 | WASHER, WAVE | 測光ワッシャー | |
| CB1-2689-000 | 2 | SCREW | |||
| * | CG1-3483-000 | C | 1 | FPC ASS'Y, MAIN | メインフレキユニット |
| * | CG1-3492-000 | C | 1 | EYEPIECE ADJUSTMENT UNIT | 視度調ユニット |
| * | CG1-3496-000 | C | 1 | FPC ASS'Y, D-CD | D-CD-モジュール |
| X91-2036-080 | 2 | SCREW | |||
| X99-0481-000 | 2 | SCREW | |||
| X99-0689-000 | 2 | SCREW | |||
| XA4-9200-607 | 1 | SCREW | |||
| XA4-9200-709 | 1 | SCREW | |||
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373

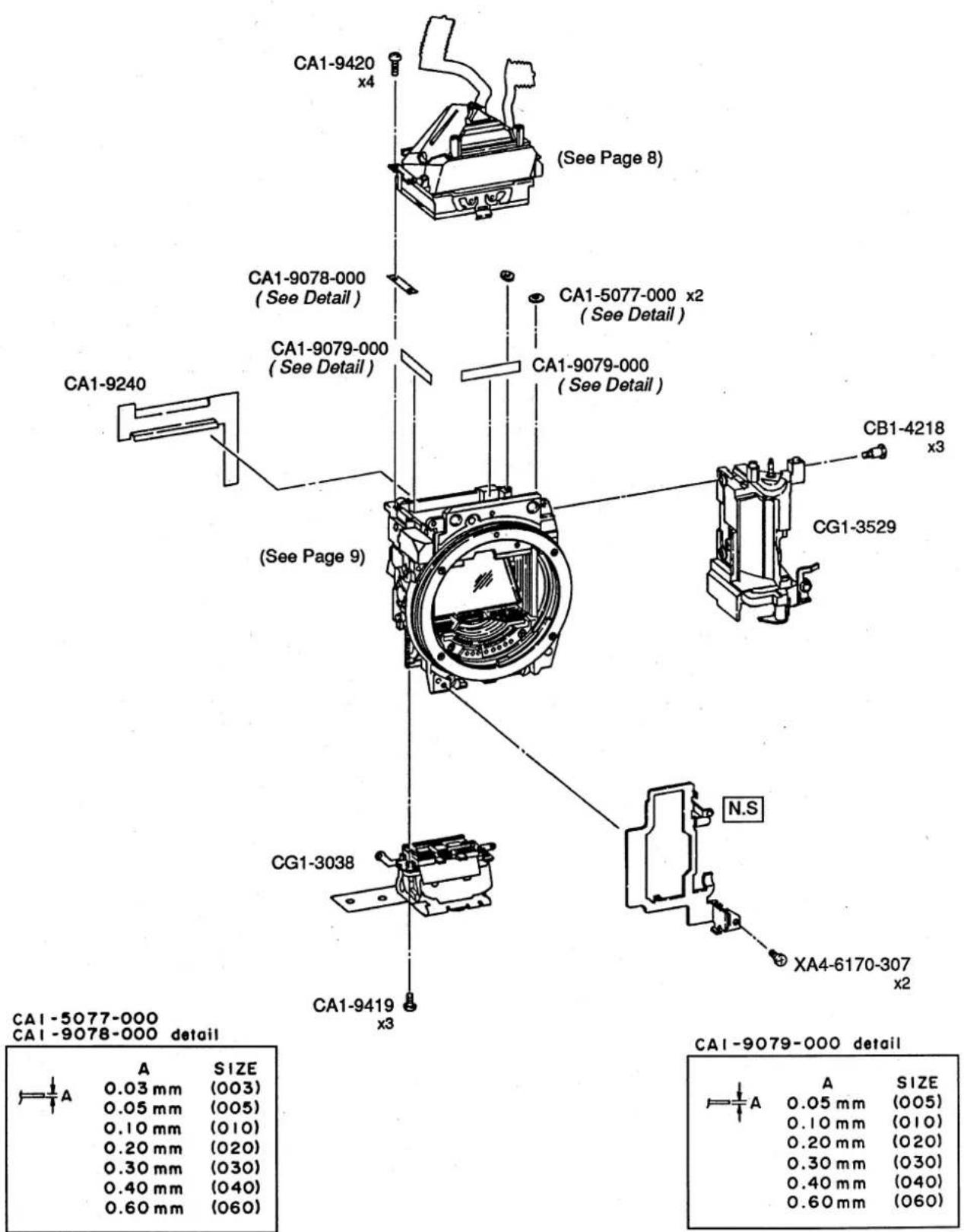

CAI-5077-000
CAI-9078-000 detail
A SIZE
0.03 mm (003)
0.05 mm (005)
0.10 mm (010)
0.20 mm (020)
0.30 mm (030)
0.40 mm (040)
0.60 mm (060)
CAI-9079-000 detail
A SIZE
0.05 mm (005)
0.10mm (010)
0.20 mm (020)
0.30mm (030)
0.40 mm (040)
0.60mm (060)
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373
| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-5077-000(XXX) | E | 2 | WASHER, FINDER FOCUSING | ファインダーワッシャー | |
| CA1-9078-000(XXX) | E | 1 | SHIM, FINDER FOCUSING | ピント調整板 | |
| CA1-9079-000(XXX) | E | 2 | SHIM, PARALLAX ADJUSTING | 視野バラ調板 | |
| CA1-9240-000 | E | 1 | CURTAIN, LIGHT SHIELD | ミラ-BOX遮光幕 | |
| CA1-9419-000 | 3 | SCREW | |||
| CA1-9420-000 | 4 | SCREW | |||
| CB1-4218-000 | 3 | SCREW | |||
| CG1-3038-000 | D | 1 | AFUNIT | AFユニット | |
| * | CG1-3529-000 | D | 1 | MOTOR BASE UNIT | モーターベースユニット |
| XA4-6170-307 | 2 | SCREW | |||
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

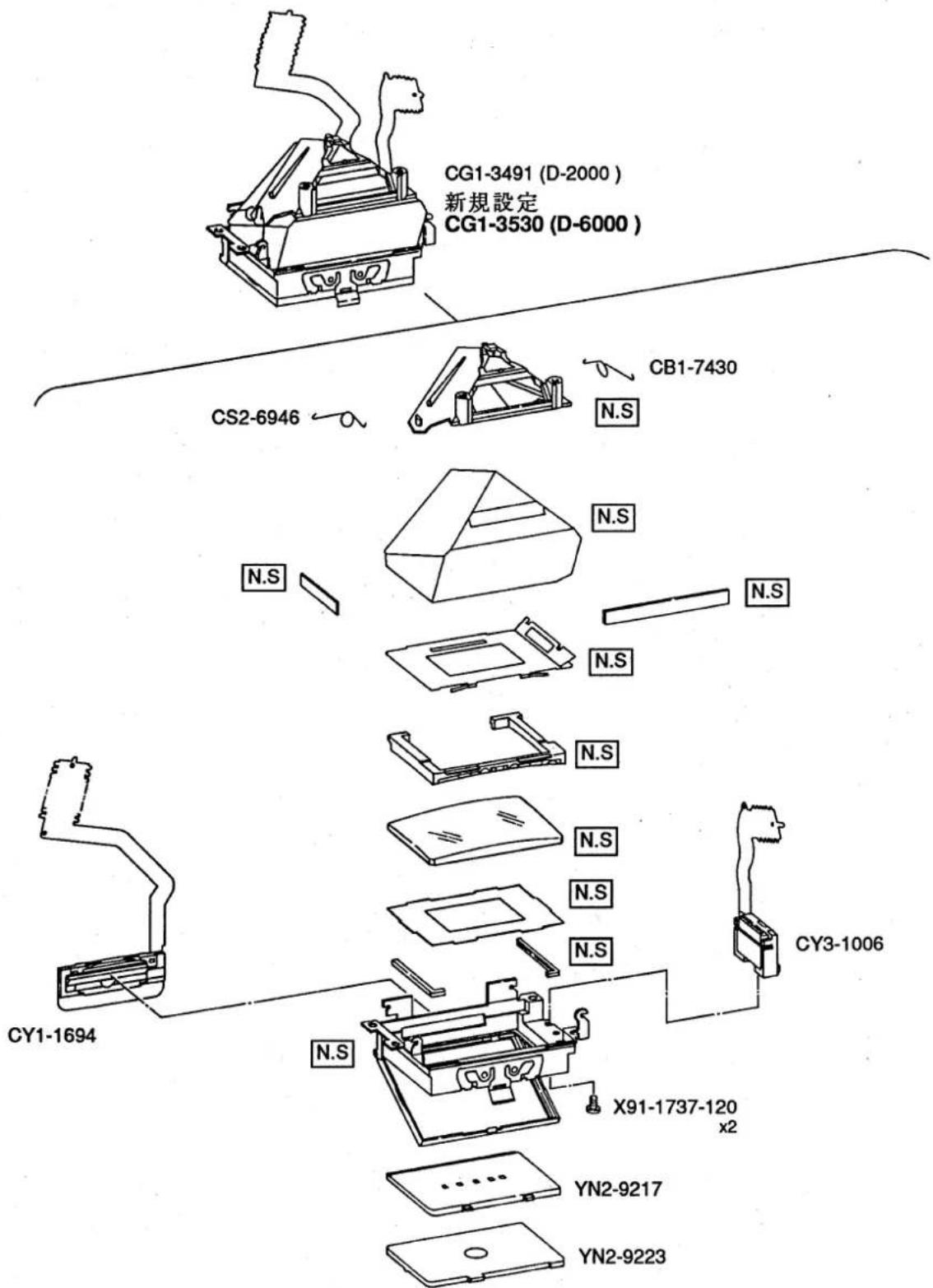

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| * | CB1-7430-000 | D | 1 | SPRING | ペンタ押えバネ(左) |
| * | CG1-3491-000 | D | 1 | PENTAPRISM UNIT (D-2000) | ペンタユニット(D-2000) |
| CS2-6946-000 | E | 1 | SPRING | ペンタ押えバネ(右) | |
| CY1-1694-000 | D | 1 | LCD UNIT (HORIZONTAL) | HLCユニット | |
| * | CY3-1006-000 | D | 1 | LCD UNIT (VERTICAL) | VLCユニット |
| X91-1737-120 | 2 | SCREW | |||
| YN2-9217-000 | D | 1 | MASK, AF FRAME | AFフレーム板 | |
| YN2-9223-000 | D | 1 | SCREEN, FOCUSING | ビント板 | |
| * | CG1-3530-000 | D | 1 | PENTAPRISM UNIT (D6000) | ペンタユニット(D6000) |
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

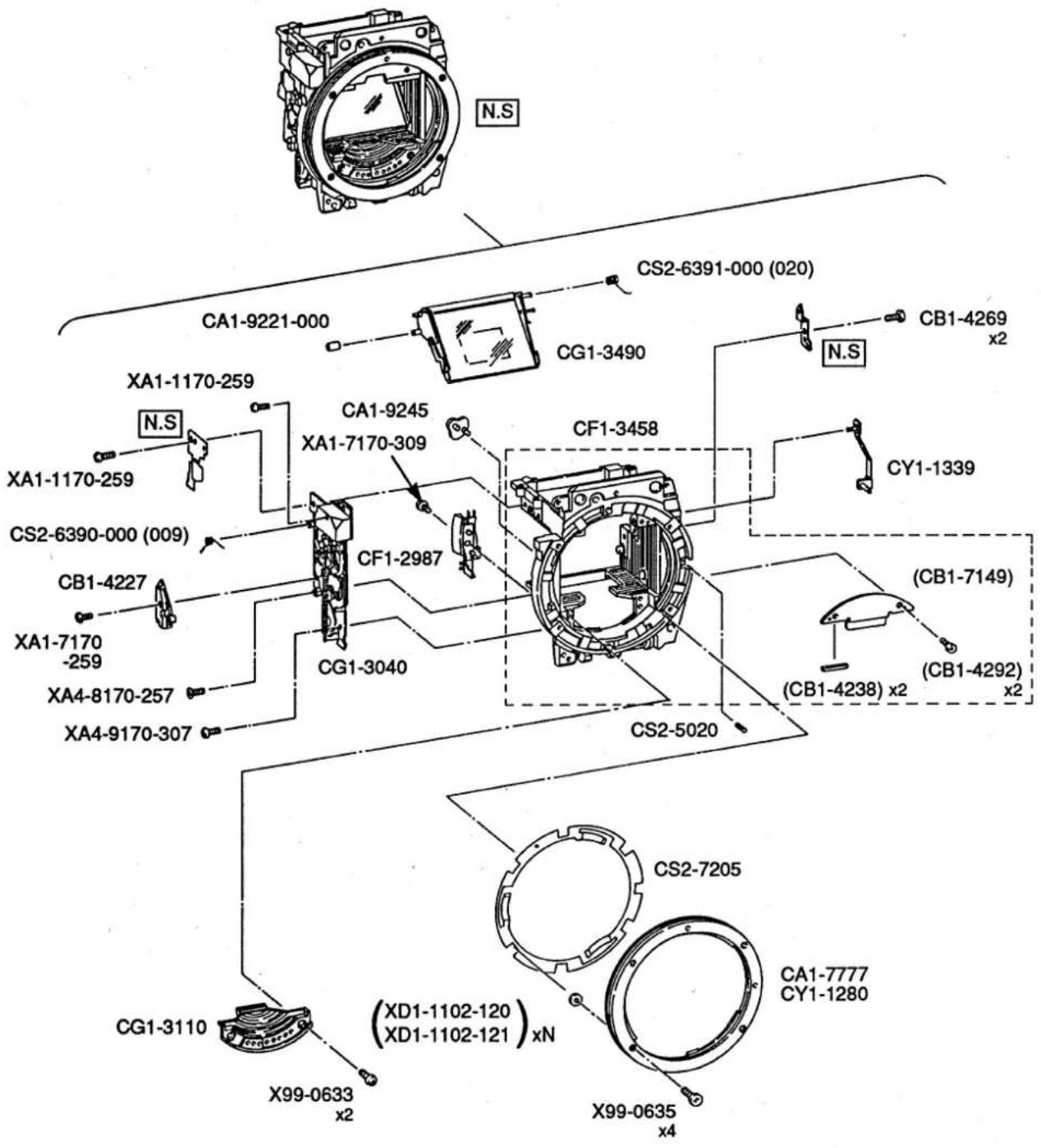

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-7777-000 | D | 1 | MOUNT, BODY | マウント | |
| CA1-9221-000 | E | 1 | COLLAR, SUB MIRROR | サブミラーカラー | |
| CA1-9245-000 | D | 1 | LEVER, SENSOR | 検知レバー | |
| CB1-4227-000 | D | 1 | SWITCH, MIRROR UP | ミラースイッチ | |
| CB1-4238-000 | D | 2 | CUSHION, MIRROR | ミラークッション | |
| CB1-4269-000 | 2 | SCREW | |||
| CB1-4292-000 | 2 | SCREW | |||
| * | CB1-7149-000 | D | 1 | PLATE, LIGHT SHIELD | 前板遮光板 |
| CF1-2987-000 | D | 1 | SWITCH, LENS | レンズスイッチ | |
| * | CF1-3458-000 | D | 1 | FRONT PANEL ASS'Y | 前板ユニット |
| CG1-3040-000 | D | 1 | MIRRORMECHANISM UNIT | ミラーQRユニット | |
| CG1-3110-000 | D | 1 | MOUNT CONTACT ASS'Y | 接点座ユニット | |
| * | CG1-3490-000 | D | 1 | MIRRORUNIT | ミラーユニット |
| CS2-5020-000 | E | 1 | SPRING, COIL | ロックピンバネ | |
| CS2-6390-000(009) | E | 1 | SPRING | メインミラー戻しバネ | |
| CS2-6391-000(020) | E | 1 | SPRING | サブミラー戻しバネ | |
| CS2-7205-000 | E | 1 | SPRING | マウントバネ | |
| CY1-1280-000 | D | 1 | MOUNT, BODY | マウント(サービス専用) | |
| CY1-1339-000 | E | 1 | LOCKPIN UNIT | ロックピンユニット | |
| X99-0633-000 | 2 | SCREW | |||
| X99-0635-000 | 4 | SCREW | |||
| XA1-1170-259 | 2 | SCREW | |||
| XA1-7170-259 | 1 | SCREW | |||
| XA1-7170-309 | 1 | SCREW | |||
| XA4-8170-257 | 1 | SCREW | |||
| XA4-9170-307 | 1 | SCREW | |||
| XD1-1102-120 | E | N | WASHER | ||
| XD1-1102-121 | E | N | WASHER | ||
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

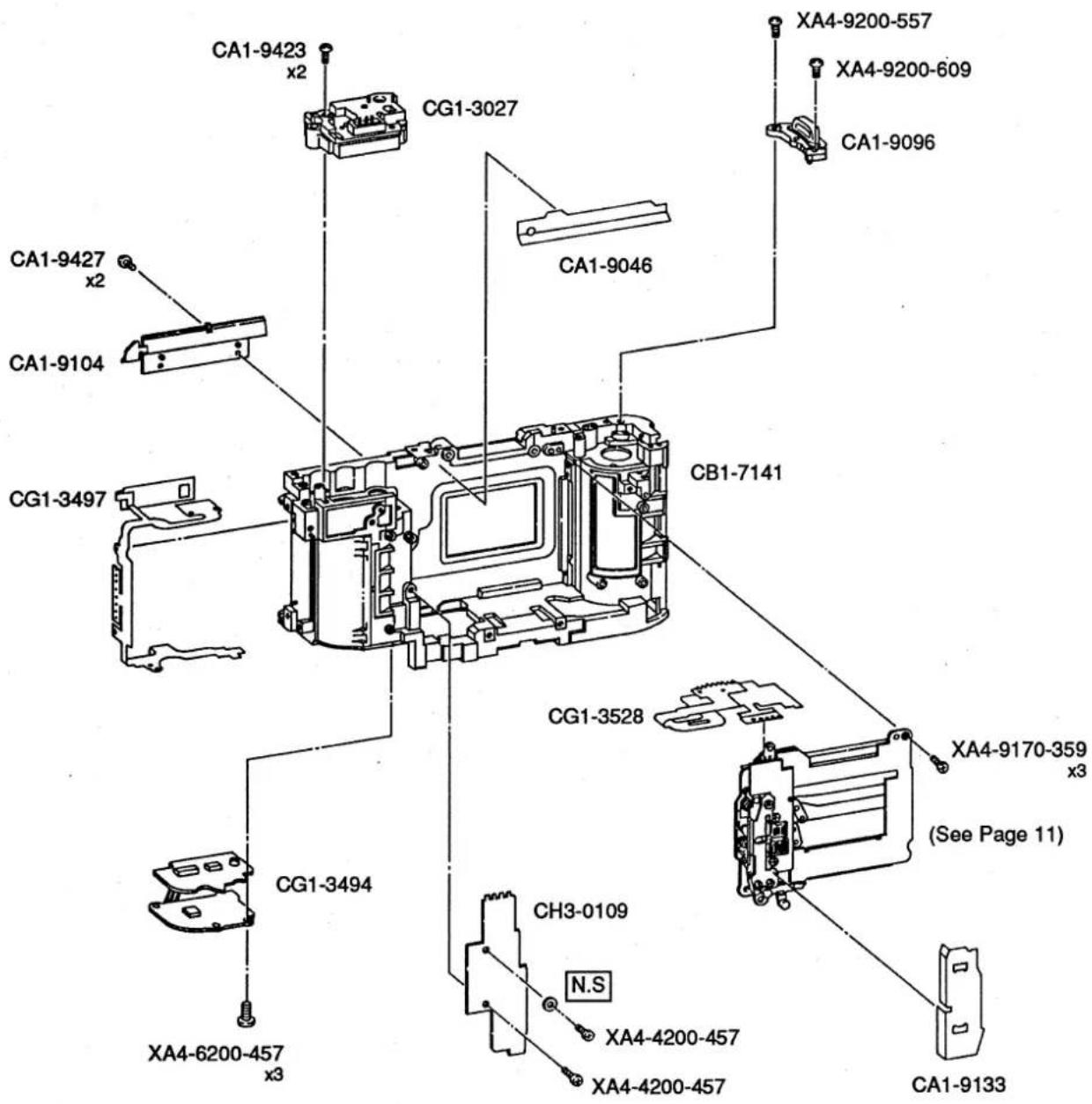

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-9046-000 | E | 1 | PLATE, LIGHT SHIELD | アパーチャ遮光板 | |
| CA1-9096-000 | D | 1 | LUG, NECKSTRAP (LEFT) | 耳環(左) | |
| CA1-9104-000 | E | 1 | PANEL, BLIND | スイッチ受け | |
| CA1-9133-000 | E | 1 | SHEET, DUST | シャッター防塵カバー | |
| CA1-9423-000 | 2 | SCREW | |||
| CA1-9427-000 | 2 | SCREW | |||
| * | CB1-7141-000 | D | 1 | BODY | 本体 |
| CG1-3027-000 | D | 1 | SIGNAL UNIT | 信号ユニット | |
| * | CG1-3494-000 | C | 1 | PCB ASS'Y, MOTOR | モーター基板ユニット |
| * | CG1-3497-000 | C | 1 | FPC ASS'Y, CF SWITCH | 隠れSWフレキユニット |
| * | CG1-3528-000 | C | 1 | FPC ASS'Y, D-SDC | D-SDCフレキユニット |
| CH3-0109-000 | D | 1 | DC/DC CONVERTER | DC/DCコンバータ | |
| XA4-4200-457 | 2 | SCREW | |||
| XA4-6200-457 | 3 | SCREW | |||
| XA4-9170-359 | 3 | SCREW | |||
| XA4-9200-557 | 1 | SCREW | |||
| XA4-9200-609 | 1 | SCREW | |||
Pg11
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

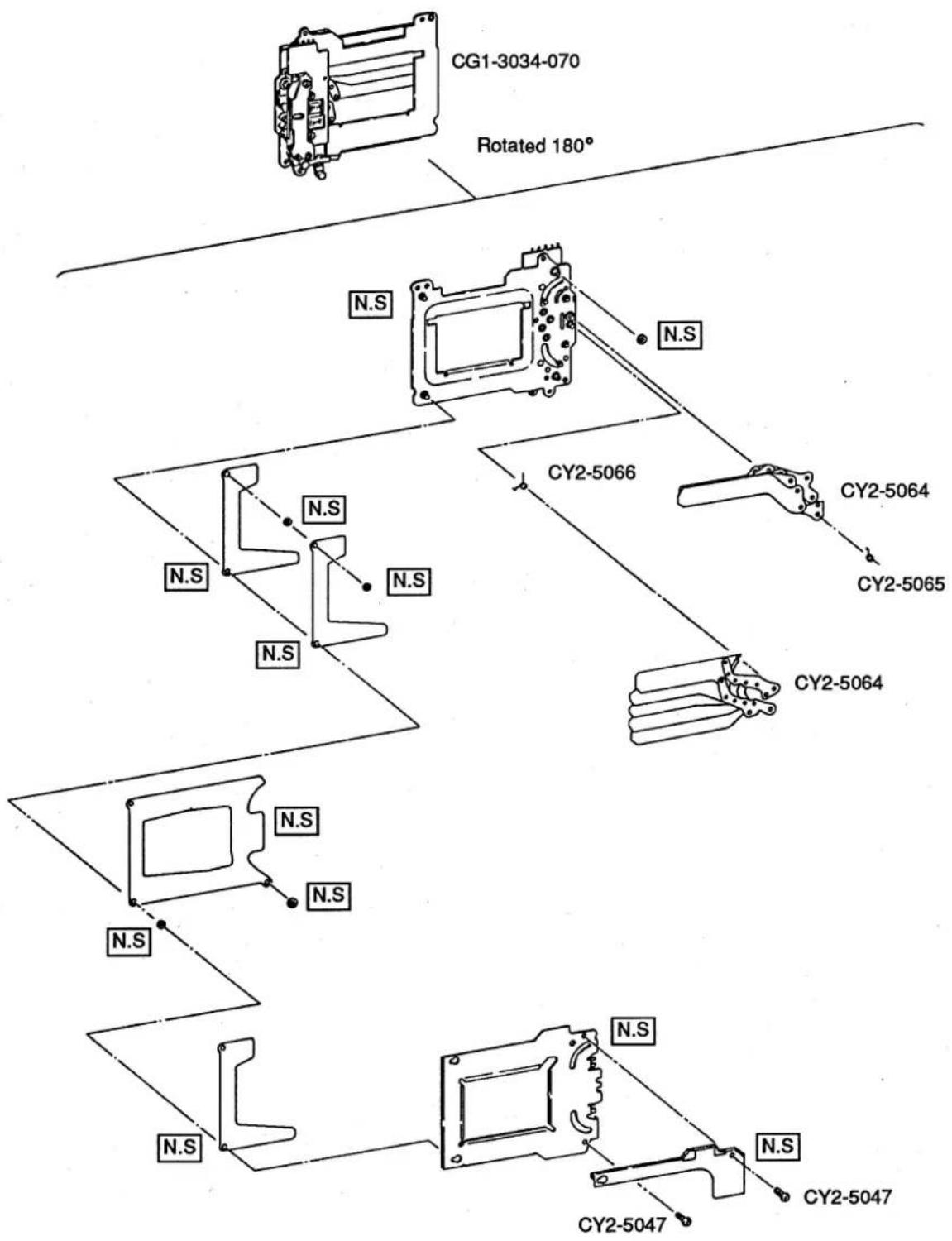

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CG1-3034-070 | C | 1 | SHUTTER UNIT | シャッターユニット | |
| CY2-5047-000 | 2 | SCREW | |||
| CY2-5064-000 | C | 2 | SHUTTER CURTAIN ASS'Y | シャッター幕 | |
| CY2-5065-000 | E | 1 | SPRING | 後戻しバネ | |
| CY2-5066-000 | E | 1 | SPRING | 先アームバネ | |
Pg12
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

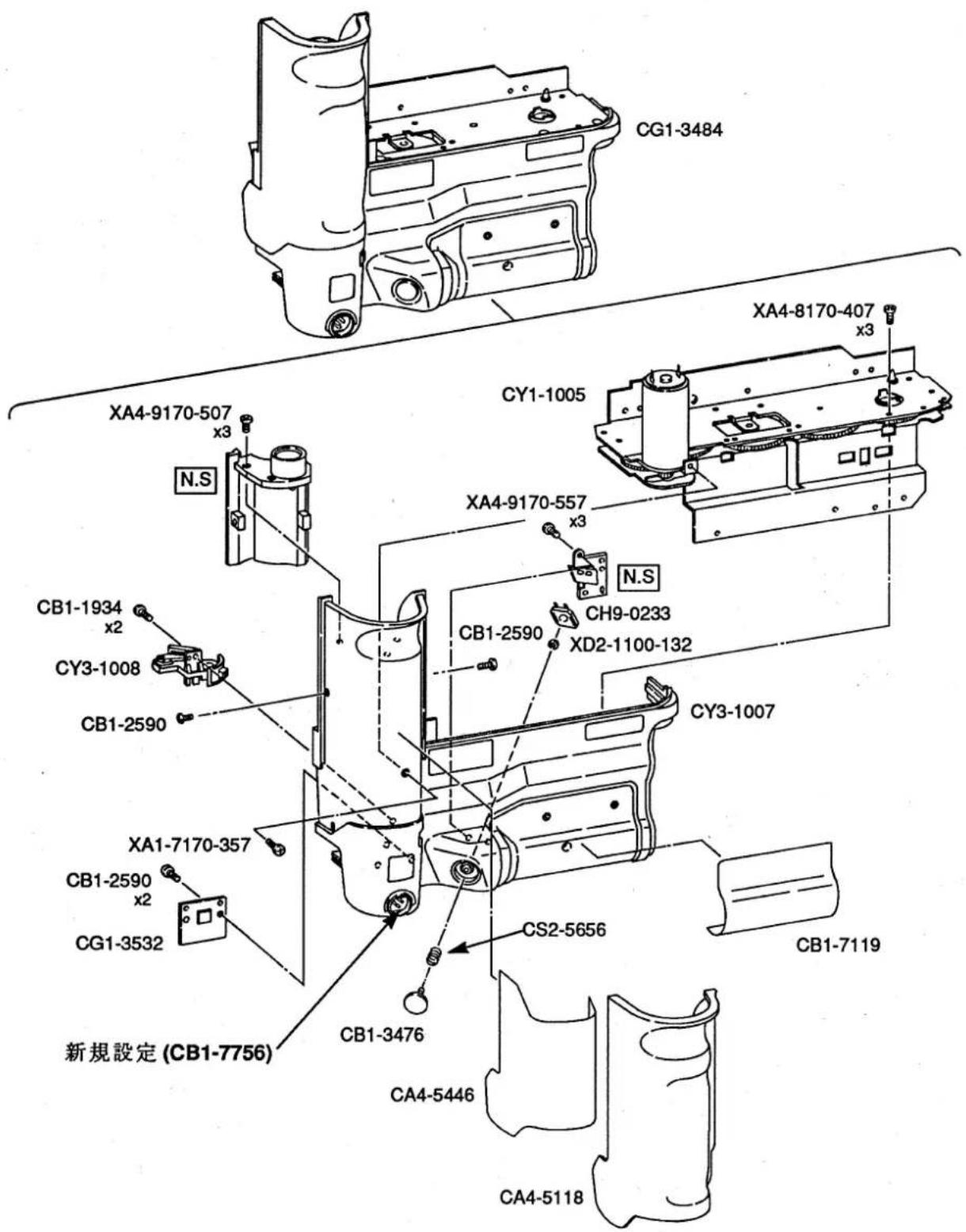

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA4-5118-000 | C | 1 | GRIP, RUBBER | グリップゴム | |
| CA4-5446-000 | E | 1 | TAPE, DOUBLE-SIDED | 両面テープ | |
| CB1-1934-000 | 2 | SCREW | |||
| CB1-2590-000 | 4 | SCREW | |||
| CB1-3476-000 | D | 1 | BUTTON, RELEASE | 縦レリーズボタン | |
| * | CB1-7119-000 | D | 1 | TAPE, DOUBLE-SIDED | 両面テープ |
| * | CG1-3484-000 | C | 1 | CASE ASS'Y, FRONT | 前ケースユニット |
| * | CG1-3532-000 | D | 1 | PCB ASS'Y, WB | WB基板ユニット |
| CH9-0233-000 | D | 1 | SWITCH, RELEASE | レリ-ズスイッチ | |
| CS2-5656-000 | E | 1 | SPRING, COIL | レリーズボタンバネ | |
| * | CY3-1005-000 | D | 1 | DRIVE UNIT | ドライブユニット |
| * | CY3-1007-000 | C | 1 | CASE, FRONT | 前ケース |
| * | CY3-1008-000 | D | 1 | SWITCH BASE UNIT | 縦レリーズ切換えスイッチ |
| XA1-7170-357 | 1 | SCREW | |||
| XA4-8170-407 | 3 | SCREW | |||
| XA4-9170-507 | 3 | SCREW | |||
| XA4-9170-557 | 3 | SCREW | |||
| XD2-1100-132 | E | 1 | RING, E | Eリング | |
| * | CB1-7756-000 | D | 1 | JACK, REMOTE-CONTROL | リモコンジャック |
Pg13
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373

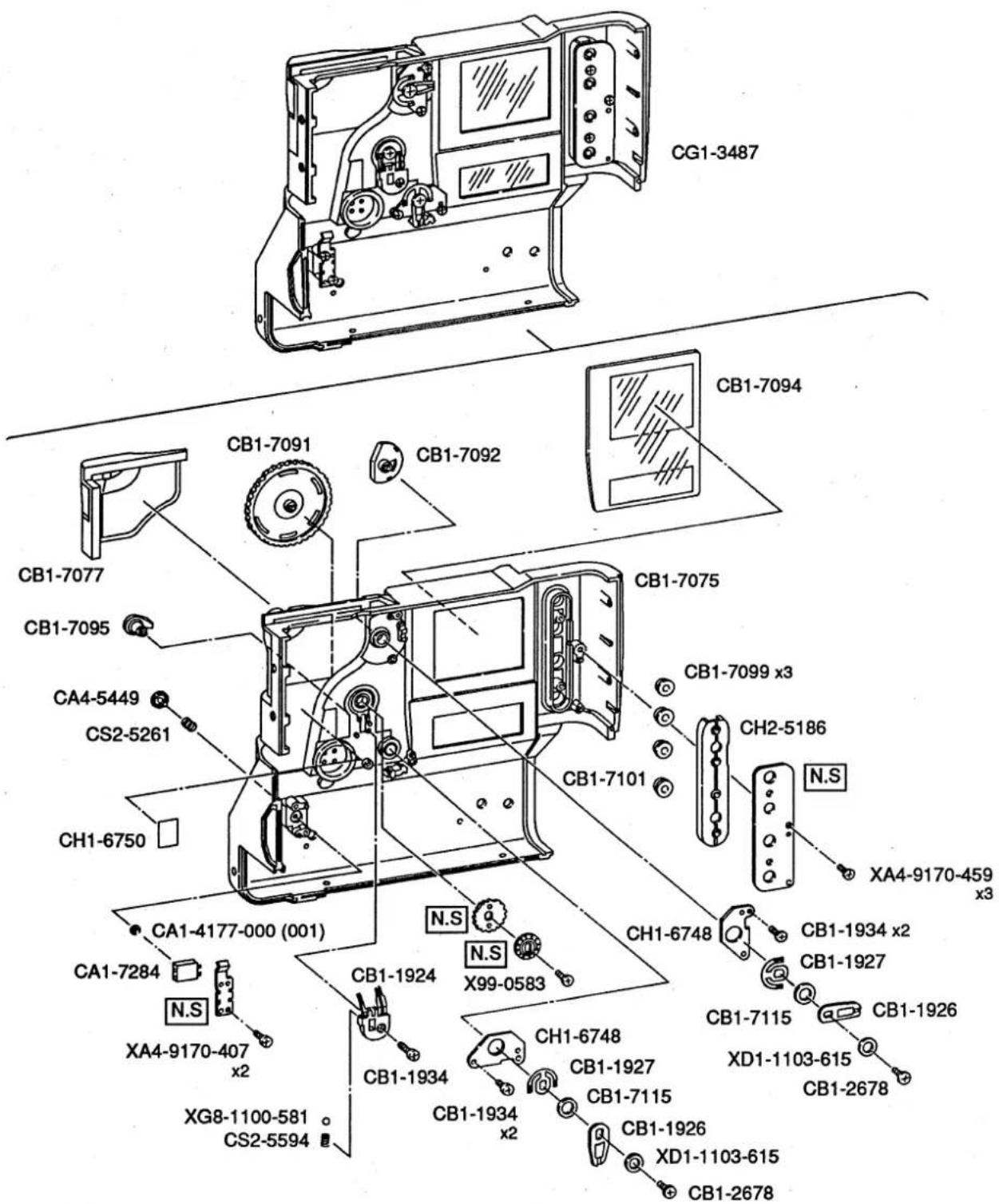

| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| CA1-4177-000(001) | E | 1 | RING,C | モールドトメワ | |
| CA1-7284-000 | D | 1 | SWITCH,PUSH | ブッシュスイッチ | |
| CA4-5449-000 | D | 1 | BUTTON,MD-AE LOCK | MD-AEロックボタン | |
| CB1-1924-000 | D | 1 | CONTACT, REAR DIAL | サブダイヤル接片 | |
| CB1-1926-000 | E | 2 | DETENT,DIAL | スイッチクリック | |
| CB1-1927-000 | D | 2 | CONTACT, REAR SWITCH | リアスイッチ接片 | |
| CB1-1934-000 | 5 | SCREW | |||
| CB1-2678-000 | 2 | SCREW | |||
| * | CB1-7075-000 | C | 1 | CASE, REAR | 後ケース |
| * | CB1-7077-000 | C | 1 | GRIP, REAR CASE | 後ケースグリップ |
| * | CB1-7091-000 | C | 1 | DIAL, REAR | サブダイヤル |
| * | CB1-7092-000 | D | 1 | LEVER, DIAL LOCK SWITCH | ダイヤルロックSWレバー |
| * | CB1-7094-000 | C | 1 | WINDOW, REAR LCD | 後LCD窓 |
| * | CB1-7095-000 | D | 1 | LEVER, MAIN SWITCH | メインSWレバー |
| * | CB1-7099-000 | D | 3 | BUTTON, SELECT (BLACK) | セレクトSWボタン(黒) |
| * | CB1-7101-000 | D | 1 | BUTTON, SELECT (WHITE) | セレクトSWボタン(白) |
| * | CB1-7115-000 | D | 2 | SPACER, | スイッチスペーサー |
| * | CG1-3487-000 | C | 1 | CASE ASS'Y, REAR | 後ケースユニット |
| * | CH1-6748-000 | D | 2 | PCB, REAR SWITCH | リアスイッチ基板 |
| * | CH1-6750-000 | D | 1 | PCB, EXTENSION-D | 中継基板D |
| * | CH2-5186-000 | D | 1 | SWITCH, SELECT | セレクトスイッチ |
| CS2-5261-000 | E | 1 | SPRING, COIL | MD-AEロックボタンバネ | |
| CS2-5594-000 | E | 1 | SPRING, COIL | クリックバネ | |
| X99-0583-000 | 1 | SCREW | |||
| XA4-9170-407 | 2 | SCREW | |||
| XA4-9170-459 | 3 | SCREW | |||
| * | XD1-1103-615 | 2 | WASHER | ||
| XG8-1100-581 | E | 1 | BALL, STEEL | クリックボール | |
CANON EOS - D2000 C
CANON EOS - D6000 C
C12-8372
C12-8373
Accessories

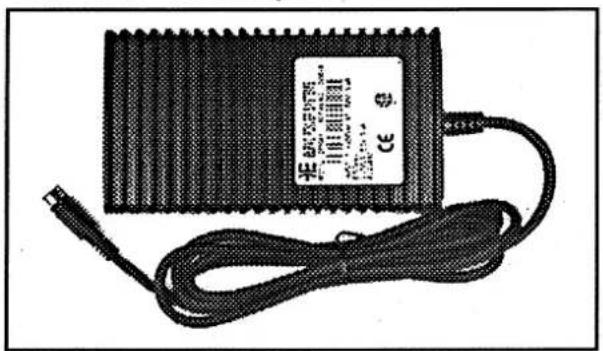

CY2-1005 AC Adapter
CANON EOS - D6000 C
C12-8372
C12-8373

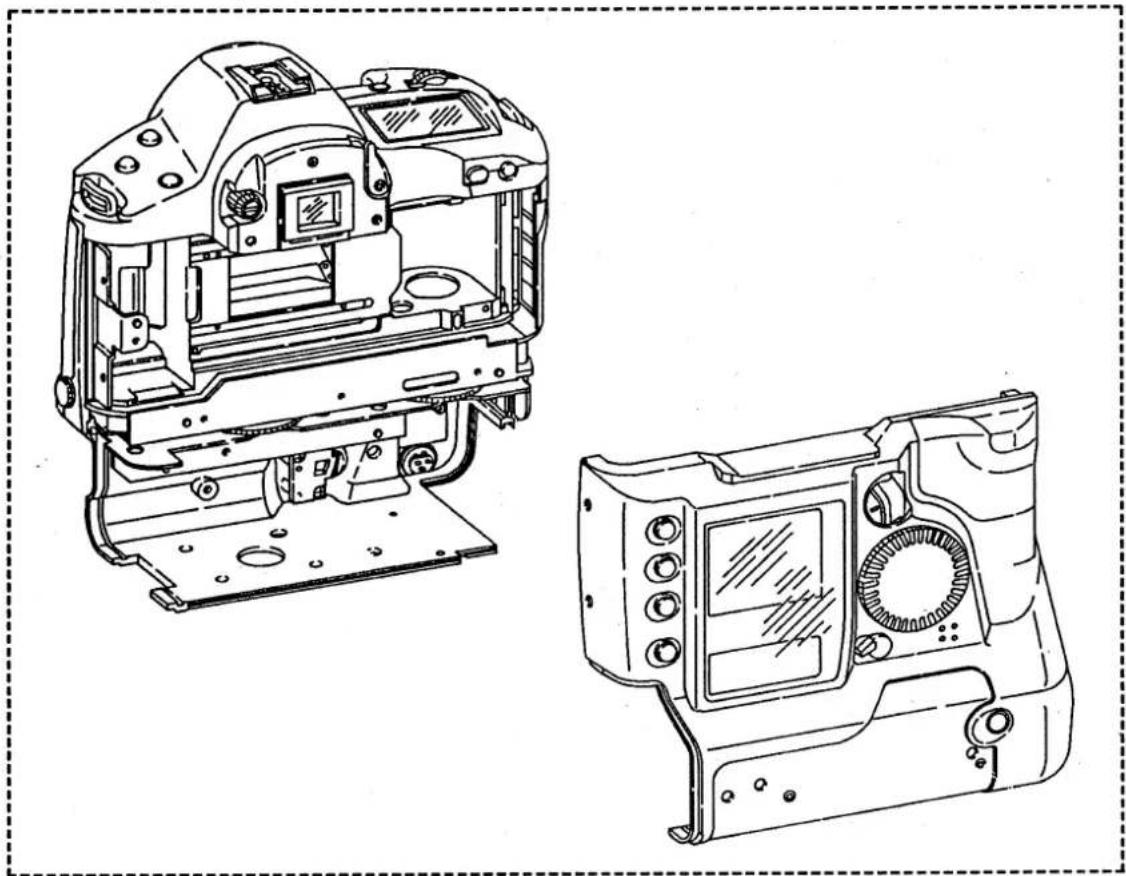

Base Body Unit
CY3-1084 (D2000)
CY3-1133 (D6000) 新規設定
REF.NO. C12-8372
REF.NO. C12-8373
| NEW | PARTS NO. | CLASS | QTY | DESCRIPTION | |
| * | CY2-1004-000 | C | 1 | BATTERY CHARGER KIT | バッテリーチャージャーキット |
| * | CY2-1005-000 | C | 1 | AC ADAPTER PACK | ACアダプターパック |

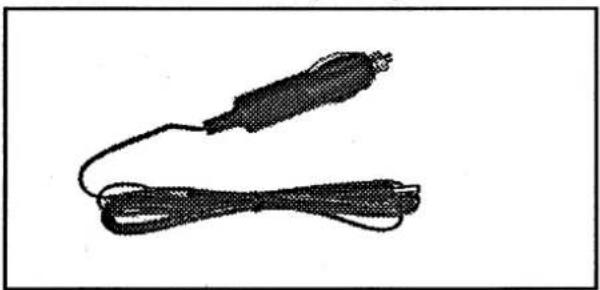

| * | CY2-1007-000 | C | 1 | CAR BATTERY ADAPTER | カーバッテリーアダプター |
| * | CY3-1084-000 | C | 1 | BODY UNIT, EOS D (M15+) | D2000ベースボディユニット |

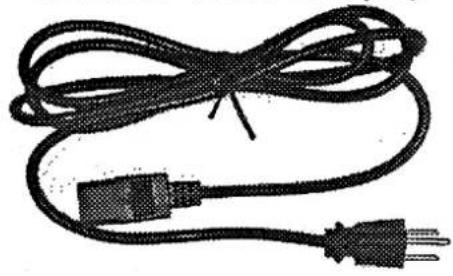

| * | CY2-1008-000 | D | 1 | POWER CORD, UA | 電源ケーブル (UA) |
| * | CY2-1009-000 | D | 1 | POWER CORD, BF | 電源ケーブル (BF) |
| * | CY2-1010-000 | D | 1 | POWER CORD, EU | 電源ケーブル (EU) |
| * | CY2-1011-000 | D | 1 | POWER CORD, 3B | 電源ケーブル (3B) |
| * | CY2-1012-000 | D | 1 | POWER CORD, S | 電源ケーブル (S) |
| * | CY3-1133-000 | D | 1 | BODY UNIT, EOS D (M16) | D6000ベースボディユニット |
ELECTRIC PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373
| NEW | SYMBOL | PARTS NO. | DESCRIPTION | REMARK | PAGE |
| FUSE | WD8-5050-000(200) | FUSE | JAA-5002-501 | ||
| FBPC1, 2 | WE8-5148-000 | FILTER, NOISE | FSOH050RN01 | ||
| * | CF1-3463-000 | LEAD WIRE ASS'Y, P5 | |||
| * | CF1-3464-000 | LEAD WIRE ASS'Y, P6 | |||
| * | CF1-3482-000 | LEAD WIRE ASS'Y, C1(R) | |||
| * | CF1-3483-000 | LEAD WIRE ASS'Y, C2(R) | |||
| * | CF1-3484-000 | LEAD WIRE ASS'Y, C3(R) | |||
| * | CF1-3485-000 | LEAD WIRE ASS'Y, C3(P) | |||
| * | CF1-3486-000 | LEAD WIRE ASS'Y, P8 | |||
| * | CF1-3487-000 | LEAD WIRE ASS'Y, C1(P) | |||
| * | CF1-3488-000 | LEAD WIRE ASS'Y, C2(P) | |||
| * | CF1-3489-000 | LEAD WIRE ASS'Y, P7 | |||
| * | CF1-3491-000 | LEAD WIRE ASS'Y, P4 | |||
| CH2-2777-000 | TWIN LEADS WIRE | ||||
| CH2-2796-000 | SHIELDED LEADS WIRE | ||||
| CH2-4173-000 | TWIN LEADS WIRE | ||||
| CH2-4174-000 | TWIN LEADS WIRE | ||||
| CH2-4176-000 | SHIELDED LEADS WIRE | ||||
| Y11-3701-000 | LEAD WIRE | WHITE | |||
| Y11-3702-000 | LEAD WIRE | BLACK | |||
| Y11-3706-000 | LEAD WIRE | ORANGE | |||
| Y11-3707-000 | LEAD WIRE | YELLOW | |||
| Y11-3709-000 | LEAD WIRE | GREEN | |||
| Y11-3711-000 | LEAD WIRE | BLUE | |||
| Y11-3713-000 | LEAD WIRE | BROWN | |||
| Y11-3714-000 | LEAD WIRE | GRAY | |||
| Y11-3901-000 | LEAD WIRE | WHITE | |||
| Y11-3902-000 | LEAD WIRE | BLACK | |||
| Y11-3903-000 | LEAD WIRE | RED | |||
| Y11-3904-000 | LEAD WIRE | PINK | |||
| Y11-3906-000 | LEAD WIRE | ORANGE | |||
| Y11-3907-000 | LEAD WIRE | YELLOW | |||
| Y11-3909-000 | LEAD WIRE | GREEN | |||
| Y11-3911-000 | LEAD WIRE | BLUE | |||
| Y11-3912-000 | LEAD WIRE | PURPLE | |||
| Y11-3913-000 | LEAD WIRE | BROWN | |||
| Y11-3914-000 | LEAD WIRE | GRAY | |||
| Y11-4402-000 | LEAD WIRE | BLACK | |||
| Y11-4403-000 | LEAD WIRE | RED | |||
| Y11-4411-000 | LEAD WIRE | BLUE | |||
| Y11-5002-000 | LEAD WIRE | BLACK | |||
| Y11-5003-000 | LEAD WIRE | RED | |||
| Y11-5014-000 | LEAD WIRE | GRAY |
INDEX OF PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373
| NEW | PARTS NO. | PAGE | NEW | PARTS NO. | PAGE |
| CA1-2474-000 | 3 | CB1-2678-000 | 13 | ||
| CA1-4177-000(001) | 13 | CB1-2689-000 | 6 | ||
| CA1-5077-000(XXX) | 7 | CB1-3476-000 | 12 | ||
| CA1-7284-000 | 13 | CB1-4209-000 | 4 | ||
| CA1-7531-000 | 6 | CB1-4210-000 | 4 | ||
| CA1-7752-000 | 6 | CB1-4211-000 | 4 | ||
| CA1-7777-000 | 9 | CB1-4218-000 | 7 | ||
| CA1-9007-000 | 5 | CB1-4227-000 | 9 | ||
| CA1-9044-000 | 5 | CB1-4238-000 | 9 | ||
| CA1-9046-000 | 10 | CB1-4254-000 | 4 | ||
| CA1-9078-000(XXX) | 7 | CB1-4255-000 | 4 | ||
| CA1-9079-000(XXX) | 7 | CB1-4269-000 | 9 | ||
| CA1-9094-000 | 5 | CB1-4280-000 | 5 | ||
| CA1-9096-000 | 10 | CB1-4281-000 | 5 | ||
| CA1-9097-000 | 5 | CB1-4292-000 | 9 | ||
| CA1-9104-000 | 10 | CB1-4609-000 | 4 | ||
| CA1-9127-000 | 4 | * | CB1-7073-000 | 3 | |
| CA1-9133-000 | 10 | * | CB1-7075-000 | 13 | |
| CA1-9159-000 | 5 | * | CB1-7077-000 | 13 | |
| CA1-9160-000 | 5 | * | CB1-7078-000 | 2 | |
| CA1-9171-000 | 4 | * | CB1-7081-000 | 3 | |
| CA1-9221-000 | 9 | * | CB1-7086-000 | 2 | |
| CA1-9240-000 | 7 | * | CB1-7088-000 | 3 | |
| CA1-9245-000 | 9 | * | CB1-7091-000 | 13 | |
| CA1-9313-000 | 5 | * | CB1-7092-000 | 13 | |
| CA1-9402-000 | 4 | * | CB1-7094-000 | 13 | |
| CA1-9404-000 | 5 | * | CB1-7095-000 | 13 | |
| CA1-9405-000 | 4 | * | CB1-7098-000 | 3 | |
| CA1-9406-000 | 4 | * | CB1-7099-000 | 13 | |
| CA1-9410-000 | 5 | * | CB1-7101-000 | 13 | |
| CA1-9411-000 | 5 | * | CB1-7106-000 | 1 | |
| CA1-9412-000 | 4 | * | CB1-7109-000 | 5 | |
| CA1-9413-000 | 4 | * | CB1-7111-000 | 5 | |
| CA1-9419-000 | 7 | * | CB1-7112-000 | 1 | |
| CA1-9420-000 | 7 | * | CB1-7113-000 | 1 | |
| CA1-9423-000 | 10 | * | CB1-7115-000 | 13 | |
| CA1-9427-000 | 10 | * | CB1-7116-000 | 1,2 | |
| CA4-5118-000 | 12 | * | CB1-7117-000 | 3 | |
| CA4-5446-000 | 12 | * | CB1-7118-000 | 3 | |
| CA4-5449-000 | 13 | * | CB1-7119-000 | 12 | |
| CB1-1924-000 | 13 | * | CB1-7125-000 | 4 | |
| CB1-1926-000 | 13 | * | CB1-7126-000 | 4 | |
| CB1-1927-000 | 13 | * | CB1-7141-000 | 10 | |
| CB1-1934-000 | 12,13 | * | CB1-7142-000 | 4 | |
| CB1-2590-000 | 12 | * | CB1-7149-000 | 9 |
INDEX OF PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373
| NEW | PARTS NO. | PAGE | NEW | PARTS NO. | PAGE |
| * | CB1-7430-000 | 8 | * | CH1-1352-000 | 5 |
| * | CB1-7431-000 | 3 | * | CH1-6748-000 | 13 |
| * | CB1-7470-000 | 1 | * | CH1-6750-000 | 13 |
| * | CB1-7756-000 | 12 | CH2-2777-000 | ||
| * | CB1-7757-000 | 3 | CH2-2796-000 | ||
| CF1-2152-000 | 5 | CH2-4173-000 | |||
| CF1-2987-000 | 9 | CH2-4174-000 | |||
| * | CF1-3458-000 | 9 | CH2-4176-000 | ||
| * | CF1-3461-000 | 4 | CH2-5066-000 | 4 | |
| * | CF1-3463-000 | CH2-5067-000 | 4 | ||
| * | CF1-3464-000 | CH2-5068-000 | 4 | ||
| * | CF1-3482-000 | CH2-5069-000 | 4 | ||
| * | CF1-3483-000 | CH2-5070-000 | 5 | ||
| * | CF1-3484-000 | * | CH2-5186-000 | 13 | |
| * | CF1-3485-000 | CH2-6051-000 | 5 | ||
| * | CF1-3486-000 | CH3-0109-000 | 10 | ||
| * | CF1-3487-000 | CH5-0041-000 | 5 | ||
| * | CF1-3488-000 | CH5-0120-000 | 5 | ||
| * | CF1-3489-000 | CH9-0233-000 | 12 | ||
| * | CF1-3491-000 | CS2-5020-000 | 9 | ||
| CG1-3023-000 | 5 | CS2-5261-000 | 13 | ||
| CG1-3027-000 | 10 | CS2-5594-000 | 13 | ||
| CG1-3030-090 | 5 | CS2-5656-000 | 12 | ||
| CG1-3034-070 | 11 | CS2-6390-000(009) | 9 | ||
| CG1-3038-000 | 7 | CS2-6391-000(020) | 9 | ||
| CG1-3040-000 | 9 | CS2-6931-000 | 5 | ||
| CG1-3056-000 | 4 | CS2-6946-000 | 8 | ||
| CG1-3057-000 | 5 | CS2-7205-000 | 9 | ||
| CG1-3110-000 | 9 | CY1-1280-000 | 9 | ||
| * | CG1-3483-000 | 6 | CY1-1339-000 | 9 | |
| * | CG1-3484-000 | 12 | CY1-1694-000 | 8 | |
| * | CG1-3486-000 | 1 | * | CY2-0997-000 | 2 |
| * | CG1-3487-000 | 13 | * | CY2-0998-000 | 2 |
| * | CG1-3488-000 | 1 | * | CY2-0999-000 | 3 |
| * | CG1-3490-000 | 9 | * | CY2-1000-000 | 2 |
| * | CG1-3491-000 | 8 | * | CY2-1001-000 | 2 |
| * | CG1-3492-000 | 6 | * | CY2-1002-000 | 2 |
| * | CG1-3494-000 | 10 | * | CY2-1003-000 | 2 |
| * | CG1-3496-000 | 6 | * | CY2-1004-000 | 14 |
| * | CG1-3497-000 | 10 | * | CY2-1005-000 | 14 |
| * | CG1-3528-000 | 10 | * | CY2-1006-000 | 14 |
| * | CG1-3529-000 | 7 | * | CY2-1007-000 | 14 |
| * | CG1-3530-000 | 8 | * | CY2-1008-000 | 14 |
| * | CG1-3532-000 | 12 | * | CY2-1009-000 | 14 |
| * | CG1-3595-000 | 5 | * | CY2-1010-000 | 14 |
INDEX OF PARTS LIST
REF.NO. C12-8372
REF.NO. C12-8373
| NEW | PARTS NO. | PAGE | NEW | PARTS NO. | PAGE |
| * | CY2-1011-000 | 14 | XA4-9170-459 | 3, 5, 13 | |
| * | CY2-1012-000 | 14 | XA4-9170-507 | 12 | |
| * | CY2-1013-000 | 2 | XA4-9170-557 | 12 | |
| * | CY2-1014-000 | 2 | XA4-9170-709 | 5 | |
| * | CY2-1015-000 | 3 | XA4-9200-557 | 5, 10 | |
| CY2-5047-000 | 11 | XA4-9200-607 | 6 | ||
| CY2-5064-000 | 11 | XA4-9200-609 | 5, 10 | ||
| CY2-5065-000 | 11 | XA4-9200-709 | 6 | ||
| CY2-5066-000 | 11 | XD1-1102-120 | 9 | ||
| * | CY3-1004-000 | 4 | XD1-1102-121 | 9 | |
| * | CY3-1005-000 | 12 | * | XD1-1103-615 | 13 |
| * | CY3-1006-000 | 8 | XD2-1100-132 | 12 | |
| * | CY3-1007-000 | 12 | XG8-1100-581 | 13 | |
| * | CY3-1008-000 | 12 | Y11-3701-000 | ||
| * | CY3-1084-000 | 15 | Y11-3702-000 | ||
| * | CY3-1133-000 | 15 | Y11-3706-000 | ||
| WD8-5050-000(200) | Y11-3707-000 | ||||
| WE8-5148-000 | Y11-3709-000 | ||||
| X91-1737-120 | 8 | Y11-3711-000 | |||
| X91-2036-080 | 6 | Y11-3713-000 | |||
| X99-0481-000 | 6 | Y11-3714-000 | |||
| X99-0583-000 | 13 | Y11-3901-000 | |||
| X99-0630-000 | 5 | Y11-3902-000 | |||
| X99-0633-000 | 9 | Y11-3903-000 | |||
| X99-0635-000 | 9 | Y11-3904-000 | |||
| X99-0689-000 | 6 | Y11-3906-000 | |||
| XA1-1170-259 | 9 | Y11-3907-000 | |||
| XA1-7140-287 | 2 | Y11-3909-000 | |||
| XA1-7170-259 | 9 | Y11-3911-000 | |||
| XA1-7170-307 | 1,2,5 | Y11-3912-000 | |||
| XA1-7170-309 | 9 | Y11-3913-000 | |||
| XA1-7170-357 | 4, 12 | Y11-3914-000 | |||
| XA1-7200-307 | 2 | Y11-4402-000 | |||
| * | XA4-3200-407 | 2 | Y11-4403-000 | ||
| XA4-4200-457 | 5, 10 | Y11-4411-000 | |||
| XA4-6170-307 | 7 | Y11-5002-000 | |||
| XA4-6170-409 | 5 | Y11-5003-000 | |||
| XA4-6200-457 | 10 | Y11-5014-000 | |||
| XA4-8170-257 | 9 | YN2-9217-000 | 8 | ||
| XA4-8170-407 | 12 | YN2-9223-000 | 8 | ||
| XA4-9140-259 | 5 | ||||
| XA4-9170-307 | 9 | ||||
| XA4-9170-359 | 10 | ||||
| XA4-9170-407 | 13 | ||||
| XA4-9170-457 | 3, 5 |
Inhaltsverzeichnis
Klicken Sie auf einen Titel, um darauf zuzugreifen
Handbuch-Assistent
Angetrieben von Anthropic
Warten auf Ihre Nachricht
Produktinformationen
Marke : CANON
Modell : EOS D2000
Kategorie : Kamera
