BU106 - Ladegerät Xtorm - Kostenlose Bedienungsanleitung

Produkttyp	Ladegerät
Marke	Xtorm
Modell	BU106
Eingangsspannung	100-240 V AC
Ausgangsleistung	max. 18 W (USB-C PD)
Anzahl der USB-Anschlüsse	2 (1x USB-C, 1x USB-A)
Schnellladefunktion	Power Delivery (PD) & Quick Charge 3.0
Kompatible Geräte	Smartphones, Tablets, Kopfhörer
Gehäusematerial	Kunststoff, feuerfest
Abmessungen (L x B x H)	ca. 5,5 x 4,0 x 2,8 cm
Gewicht	ca. 50 g
Kabellänge	nicht enthalten (Netzteil fest)
Schutzfunktionen	Überspannungs-, Überstrom-, Kurzschluss- und Übertemperaturschutz
Betriebstemperatur	0 °C bis 35 °C
LED-Anzeige	Betriebs-LED (blau)
Energieeffizienz	Level VI
Steckertyp	EU-Stecker (Typ C)
Zertifizierungen	CE, RoHS, FCC
Lieferumfang	Ladegerät, Bedienungsanleitung
Garantie	2 Jahre

Häufig gestellte Fragen - BU106 Xtorm

Ist das Xtorm BU106 mit dem iPhone 14 kompatibel?

Ja, das Ladegerät unterstützt USB-C Power Delivery und lädt iPhones mit vollem Schnelllade-Standard.

Kann ich das Ladegerät auch im Ausland verwenden?

Ja, der Eingangsspannungsbereich von 100-240 V AC ermöglicht den weltweiten Einsatz. Ein Länderadapter wird jedoch benötigt.

Wie schnell lädt das Ladegerät ein Samsung Galaxy S23?

Mit bis zu 18 W lädt es das Galaxy S23 in ca. 1 Stunde auf 50 % auf, abhängig vom verwendeten USB-C-Kabel.

Hat das Ladegerät einen Überhitzungsschutz?

Ja, es besitzt einen integrierten Übertemperaturschutz, der das Gerät bei zu hohen Temperaturen abschaltet.

Kann ich zwei Geräte gleichzeitig laden?

Ja, der USB-C- und der USB-A-Anschluss können gleichzeitig verwendet werden. Die maximale Gesamtleistung beträgt 18 W.

Ist ein USB-Kabel im Lieferumfang enthalten?

Nein, das Ladegerät wird ohne Kabel geliefert. Bitte verwenden Sie ein USB-C-zu-Lightning oder USB-C-zu-C-Kabel.

Kann ich das Ladegerät für mein Tablet verwenden?

Ja, es ist für Tablets mit bis zu 18 W Ladeleistung geeignet, z. B. iPad (2018 und neuer) oder Samsung Galaxy Tab.

Wie reinige ich das Ladegerät?

Trennen Sie das Ladegerät vom Stromnetz und wischen Sie es mit einem trockenen Tuch ab. Keine Flüssigkeiten verwenden.

Woran erkenne ich, dass das Ladegerät defekt ist?

Wenn die LED nicht leuchtet oder das Gerät kein Gerät lädt, kann ein Defekt vorliegen. Kontaktieren Sie den Support für Ersatz.

Gibt es eine Garantie auf das Xtorm BU106?

Ja, Xtorm gewährt eine 2-jährige Garantie auf das Ladegerät. Bewahren Sie den Kaufbeleg auf.

BEDIENUNGSANLEITUNG BU106 Xtorm

XTORM-BUSINESS.EU

Xtorm keeps people charged wherever and whenever needed. Whether you need your own Power Bank or a bigger Charging Solution, with Xtorm products you will always have some extra energy at hand! With Xtorm Business products we offer a whole new product line that is completely focused on providing charging solutions on a large scale. Nowadays our everyday lives revolve around mobile devices, people bring their smartphone, tablet or laptop everywhere they go. If any of these items would run out of energy we would be feeling very powerless. That is why everyone is in need of power. With the Xtorm Business product line we offer companies a solution to provide their customers with power they need.

More energy.

xtorm

Business

USER MANUAL

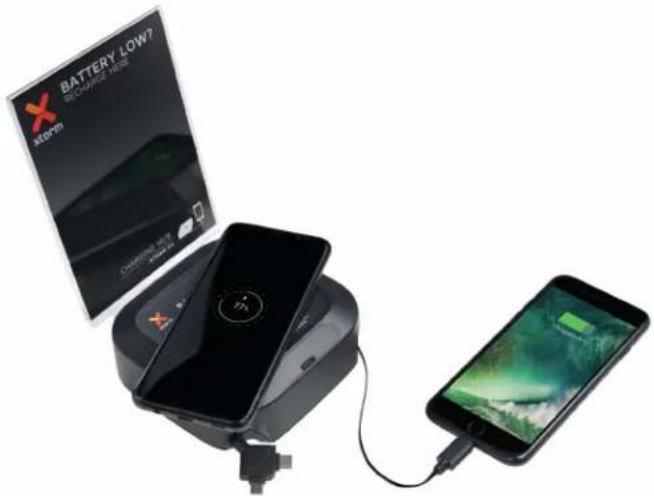

BU106 - Table Top Wireless

INDEX

page

1. SPECIFICATIONS & OVERVIEW ____ 1
2. IN THE BOX ____ 3
3. DESCRIPTION AND FUNCTION ____ 5
4. INTENDED USE ____ 5
5. NOTES ON SAFETY 6
6. WARRANTY AND LIABILITY ____ 7
7. TROUBLE SHOOTING ____ 7
8. NOTE ON WASTE DISPOSAL ____ 8
9. CONNECTING AND OPERATING ____ 9

1. SPECIFICATIONS & OVERVIEW

Colour:

Dimensions:

Output:

Wireless Output

Input:

black

display 155 x 109mm

Power Hub 120 x 120 x 45mm

1x USB C with micro USB

dual cable 5V/1A

1x Apple Lightning cable 5V/1A

1x USB 2.0 charging port

5W

12V/3A

POWER HUB

TABLE TOP

2X cable output WIRELESS

2

IN THE BOX

1x

AC adapter

1x

Table Top Wireless

1x

Power cord

3

2x

Apple Lightning connector

USB C with Micro USB

Built-in charging cable

1 x Apple Lightning connector

1 x USB C with micro USB dual cable

1x

User manual

4

3. DESCRIPTION AND FUNCTION

The Table Top Wireless is a charging solution ideal for hospitality venues, public places and events.

4. INTENDED USE

Use this device only in dry or interior rooms. If you do not attend to the regulations and safety notes it might cause fatal accidents, injuries and damages to property.

5. NOTES ON SAFETY

ATTENTION! Only skilled electricians may assemble and disassemble the housing of the product. There is a risk of electric shock and short circuit.

• This product is not a toy and is not meant for children. It contains small parts which can be swallowed and injure when used inappropriately.
- Please install the system and attached devices in a way that individuals cannot be injured and objects cannot be damaged for example by dropping and stumbling.
- Please remove the packing materials, because children may cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalation of incidentals and insulation material.
• To prevent fire or shock hazard avoid places with high temperature, or humidity, or places that may come in contact with water.
- Do not install the product near air conditioner openings, or places with an excessive amount of dust, smoke or vibrations.
- Place the product only on horizontal and flat surfaces to avoid falling.
• Do not modify or alter the product and accessories.
• Do not use any damaged parts.
• Plug and unplug all cables and adaptors slowly and carefully.
• If trouble occurs, immediately disconnect the device from the wall socket.
- During transport, observe the details listed in the Chapter 'Specifications' and 'Care, maintenance and transport' and implement measures suitable for transport e.g. use of original package.
- For questions, defects, mechanical damages, malfunctions, and other functional problems which cannot be resolved by this manual, please contact your dealer for repair or replacement.

6

WARRANTY AND LIABILITY

• The manufacturer grants a 1 year warranty to a new device.
• Product warranty only applies to the product itself, as the manufacturer has no influence on installation.
In case of any fault or damage to your device, please contact your dealer and if necessary provide your sales slip or invoice as evidence of the purchase. Your dealer will either repair the fault on site or send it to the manufacturer. The work of our technicians will be considerably easier when the fault is described in detail. If your dealer cannot be contacted, you can also contact the manufacturer directly.
• The manufacturer is not liable for damage to persons or property caused by improper installation or operation.
• Any use other than described in this user manual is not permitted, and causes loss of warranty, loss of guarantee and non-liability.
• We reserve our right for misprints and changes of the device, packing or user manual.

7.

TROUBLE SHOOTING

PROBLEM	HELP
The device does not charge	• When a device is fully charged it will automatically stop charging, therefore no charging is shown.• Check all connections for tight fitting
Failure of the Female USB function	Make sure to use a fitting and compatible USB charging cable
Other problems	Contact Xtorm at: [phone]

7

8

NOTE ON WASTE DISPOSAL

According to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers waste. The consumer is committed by law to deposit electrical and electronic devices to a public collecting point or to the dealer at the end of the devices lifetime. Particulars are regulated in national right. The symbol shown on the product, in the manual or on the packaging refers to these terms. This way of disposing used devices contributes to environmental protection.

9. CONNECTING AND OPERATING

1. Connect the included power cord to the AC adapter then to the Table Top Wireless on the backside. To charge the Table Top.
2. Attach the advertising board.
3. Security lock hole can be used (Security lock not included).
4. Start charging.

1.

2.

3.

4.
