PDICBTL3F - Lautsprecher Pyle - Kostenlose Bedienungsanleitung

Produkttyp	Einbaulautsprecher mit Bluetooth und LED-Licht
Marke	Pyle
Modell	PDICBTL3F
Lautsprecheranzahl	2 (pro Set)
Lautsprechergröße	3,0 Zoll (ca. 7,6 cm)
Maximale Ausgangsleistung	100 Watt (gesamt)
Gehäusematerial	Aluminiumlegierung
LED-Licht	5 Watt, integriert
Bluetooth	Ja, 2-Kanal
Ausschnittdurchmesser	3,7 Zoll (ca. 94 mm)
Einbautiefe	2,4 Zoll (ca. 61 mm)
Stromversorgung	Externes Netzteil (mitgeliefert)
Einsatzbereich	Innenräume (Wohnung, Wohnmobil, Geschäfte, Hotels)
Installation	Deckenmontage mit Schnappbefestigung
Mitgeliefertes Zubehör	Bluetooth-Controller, Netzteil, Installationsschablone
Reinigung	Mit trockenem, weichem Tuch abwischen; keine aggressiven Reiniger
Sicherheitshinweis	Vor der Installation Hauptstrom abschalten; nur für Innenräume

Häufig gestellte Fragen - PDICBTL3F Pyle

Wie installiere ich den Lautsprecher PDICBTL3F?

Kann ich den Lautsprecher im Freien verwenden?

Wie verbinde ich mein Smartphone per Bluetooth?

Kann ich die LED-Lampe austauschen?

Welche maximale Leistung hat der Lautsprecher?

Welche Ausschnittgröße wird für die Deckenmontage benötigt?

Enthält das Set einen Bluetooth-Controller?

Kann ich mehrere Lautsprecherpaare mit einem Bluetooth-Controller verbinden?

Wie reinige ich den Lautsprecher?

Welches Netzteil benötige ich?

BEDIENUNGSANLEITUNG PDICBTL3F Pyle

PYLE®
PyleUSA.com

Technical line drawing of a dual-chamber air vent or fan assembly (no text or symbols)

Aluminum Alloy-Frame Speakers

PDIC3FR

PDIC35

PDIC4

Aluminum Alloy-Frame Speakers,5W LED Light

PDICLE3FR PDICLE35 PDICLE4

Aluminum Alloy-Frame Speakers,2-Channel Bluetooth

Wireless Technology,5W LED Light

PDICBTL3F

PDICBTL35

PDICBTL4

Aluminum Alloy-Frame Speakers,4-Channel Bluetooth

Wireless Technology,5W LED Light

PDIC4CBTL3B PDIC4CBTL35B PDIC4CBTL4B

ALUMINUM ALLOY-FRAME SPEAKER INSTALLATION MANUAL

Additional Aluminum Frame Speakers & Options:

Model Number	Amount of Speakers	Speaker Size	MAX Output Power	Aluminum Housing	Built-in Tweeler	LED Light Bulb	Bluetooth Receiver	Cut-Out Diameter	Mounting Depth
PDIC3FR	2	3.0"	100 Watt	•				3.7"	2.2"
PDICLE3FR	2	3.0"	100 Watt	•		•		3.7"	2.4"
PDICBTL3F	2	3.0"	100 Watt	•		•	•	3.7"	2.4"
PDIC4CBTL3B	4	3.0"	200 Watt	•		•	•	3.7"	2.4"
PDIC35	2	3.5"	140 Watt	•	•			4.2"	2.5"
PDICLE35	2	3.5"	140 Watt	•	•	•		4.2"	2.7"
PDICBTL35	2	3.5"	140 Watt	•	•	•		4.2"	2.7"
PDIC4CBTL35B	4	3.5"	280 Watt	•	•	•	•	4.2"	2.7"
PDIC4	2	4.0"	160 Watt	•	•			4.5"	2.7"
PDICLE4	2	4.0"	160 Watt	•	•	•		4.5"	3.0"
PDICBTL4	2	4.0"	160 Watt	•	•	•	•	4.5"	3.0"
PDIC4CBTL4B	4	4.0"	320 Watt	•	•	•	•	4.5"	3.0"

PYLE®
PyleUSA.com

1600-63rd Street

Brooklyn,NY 11204 USA

Installation And Use Instructions

- This product for indoor lighting LED and music player integration products, specific installation please refer to the following figure.

- Before installing the product, for your personal safety, be sure to cut off the main power switch.

1. Cut the ceiling according to the template, as shown in Picture 1.

2.Picture 2-1 is the speaker wire terminal; Picture 2-2 is LED wire port, connects to the port in Picture 2-3; Picture2-4 is LED transformer input.

3. After connecting wires correctly, pull upwards the speaker spring, and push the speaker into the mounting hole, as shown in Picture 3.

4. As shown in Picture 4, turn on the light switch, you can have both of the music and light.

Use Place

- This product is suitable for use in indoor home, touring car, commercial shop decoration, hotels and other indoor places.

Thank you for purchasing this PYLE Aluminum Alloy-Frame speaker system. Bluetooth Wireless Technology,5W LED LightIt is astate-of-the-art product carefully designed and manufactured for your installationneeds,and has been thoroughly tested to ensure consistent and reliable performance.

If you have any question about the installation or operation of your PYLE

Aluminum Alloy-Frame speaker system. Bluetooth Wireless Technology, 5W LED LightIt which are not answered by this manual, contact your dealer immediately.

Bluetooth Connection Diagram
2 CHANNEL

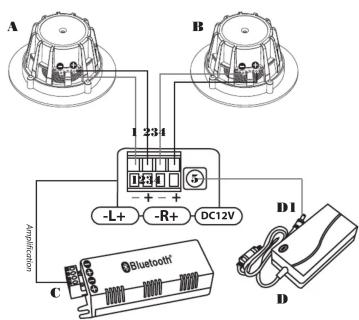

- As shown in pictures, A is speaker, B is speaker, C is bluetooth controller, D is power adapter.

- As shown in Picture C, port (1)(2) connect to the negative pole of speaker in Picture A, port (3)(4) connect to the positive pole of speaker in Picture B, port (5) connects to power adapter in Picture D's D1port.

Bluetooth Connection Diagram
4 CHANNEL

- As shown in pictures, A is speaker, B is speaker, C is bluetooth controller, D is power adapter, E is speaker, F is speaker.

- As shown is Picture C, port (1)(2) connect to the negative pole of speaker in Picture A, port (3)(4) connect to the positive pole of speaker in Picture B, port (6)(7) connect to the positive pole of speaker in Picture E, port (8)(9) connect to the positive pole of speaker in Picture F, port (5) connects to power adapter in Picture D's D1 port.
