Force XT 6359B - Dachbox THULE - Kostenlose Bedienungsanleitung

Produkttyp	Dachbox
Marke	Thule
Modell	Force XT 6359B (XXL)
Abmessungen (L x B x H)	210 x 82 x 44 cm
Gewicht	23,4 kg
Maximale Zuladung	75 kg
Volumen	610 Liter
Material	ABS-Kunststoff, schlagfest
Schließsystem	Thule One-Key System (Zentralverriegelung)
Montagesystem	Power-Grip, schnelle und einfache Montage
Öffnungsseite	Beidseitig, für einfache Beladung
Farbe	Glänzend Schwarz
Garantie	Lebenslange eingeschränkte Garantie (bei Registrierung)
Zubehör im Lieferumfang	Montageanleitung, Schlossset, Spannriemen
Optional erhältlich	Thule MultiLift, Thule One-Key Schlösser
Reinigung	Mit milder Seife und Wasser, keine aggressiven Reiniger
Nutzung bei automatischer Waschanlage	Vorher entfernen
Geschwindigkeitshinweis	Angepasste Geschwindigkeit, siehe Fahrzeughandbuch
Konformität	TÜV-geprüft, City-Crash-getestet

Häufig gestellte Fragen - Force XT 6359B THULE

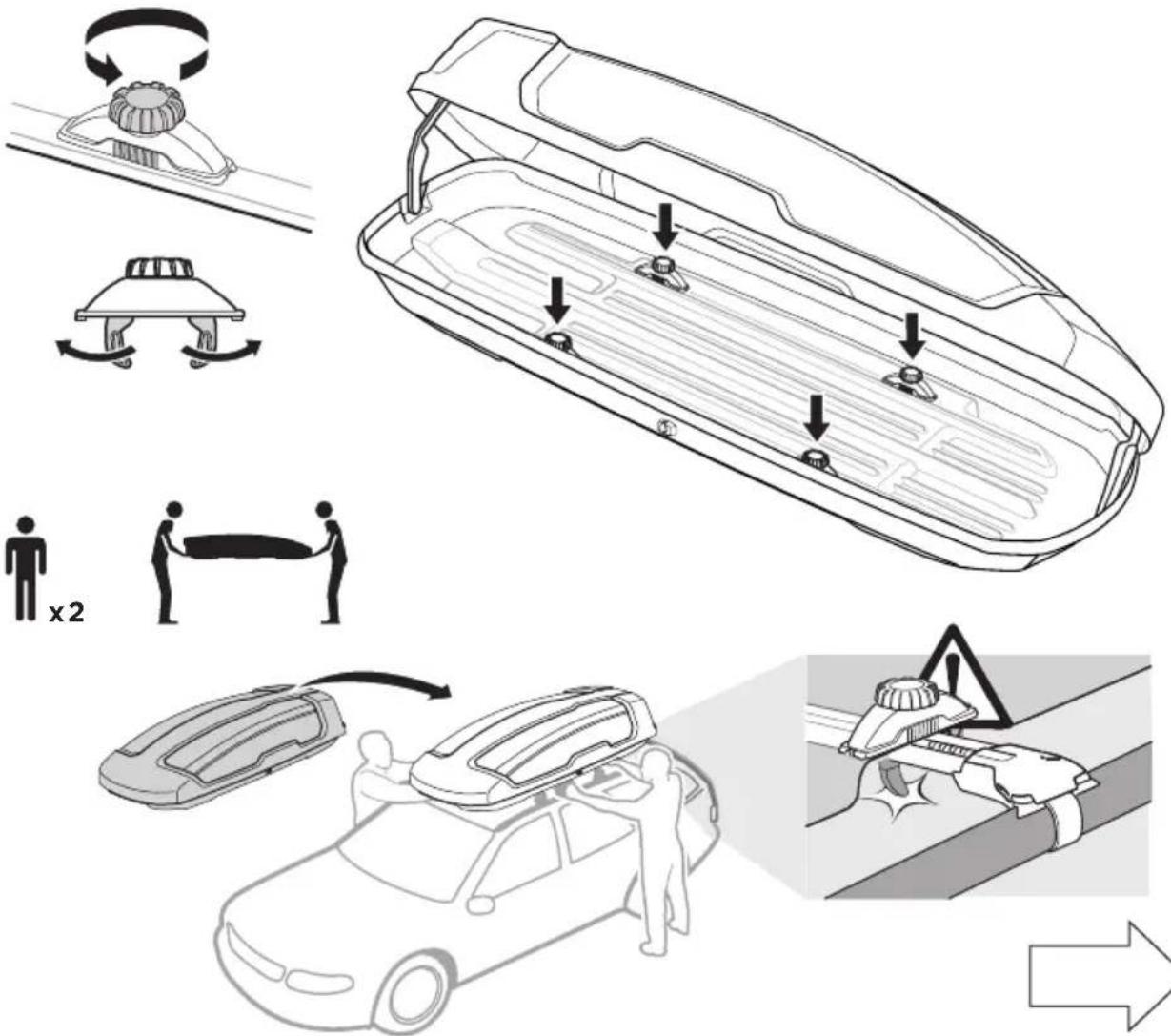

Wie montiere ich die Thule Force XT Dachbox?

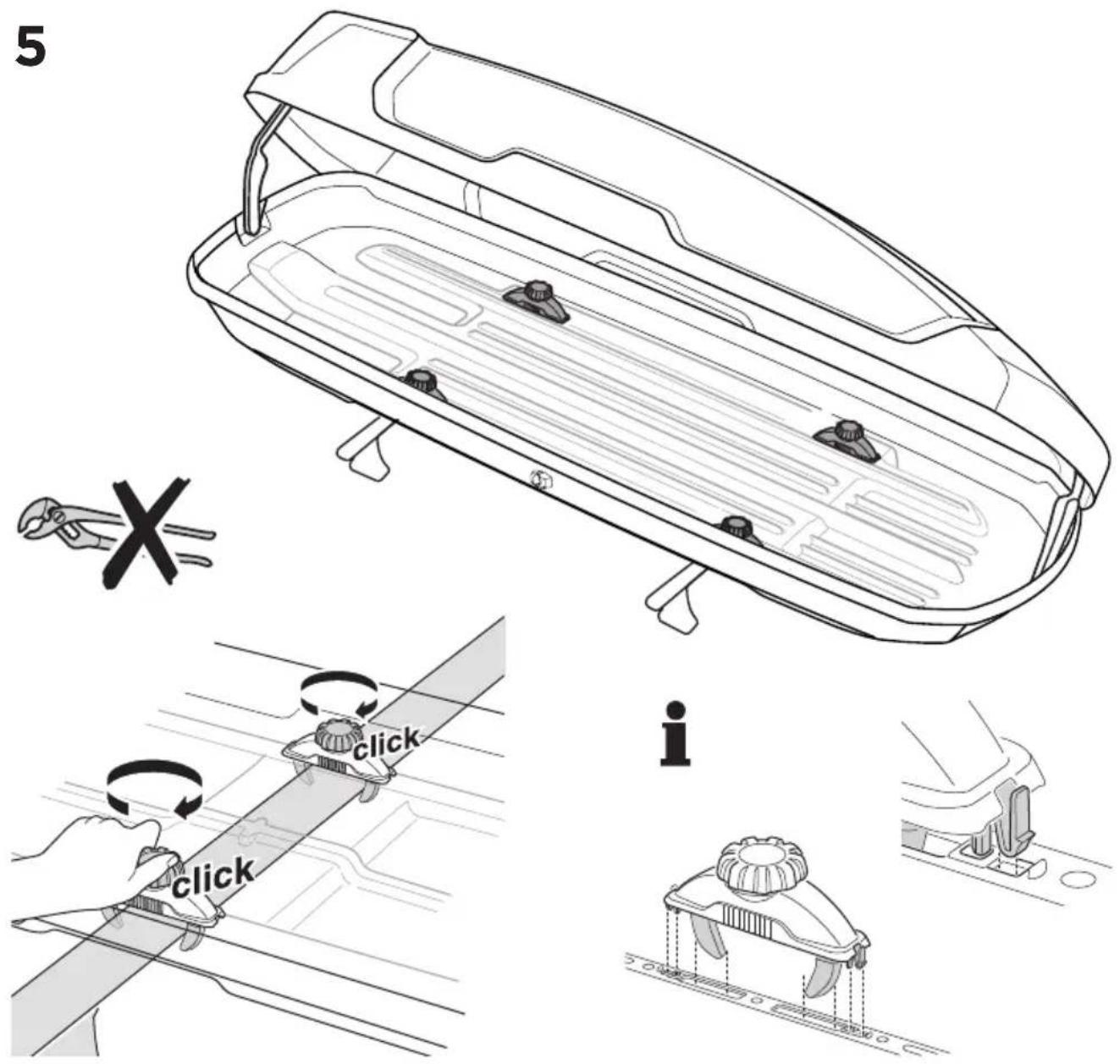

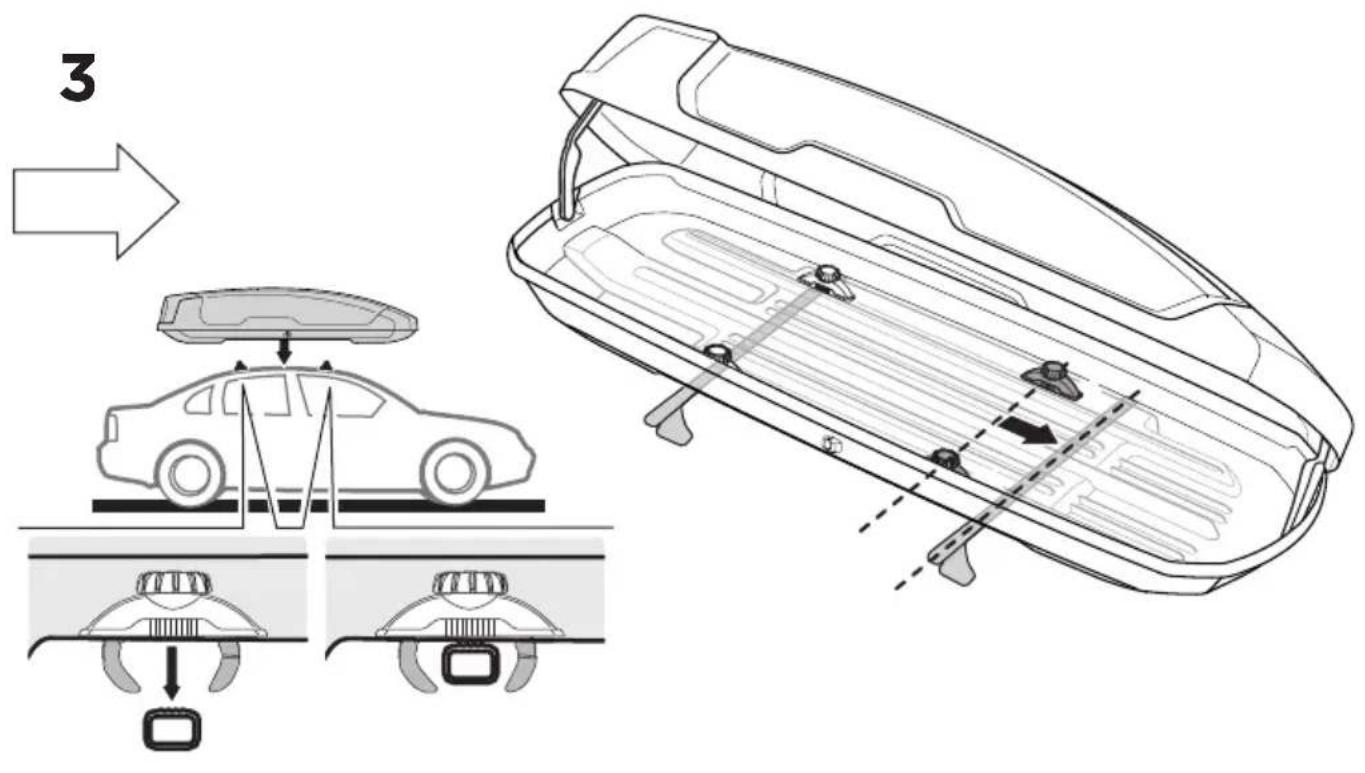

Die Montage erfolgt mit dem Power-Grip Montagesystem. Legen Sie die Box auf die Dachträger, zentrieren Sie sie und ziehen Sie die Spannschrauben mit einem Drehmoment von 5 Nm fest. Die genaue Anleitung finden Sie in der beiliegenden Bedienungsanleitung.

Wie hoch ist die maximale Dachlast für mein Fahrzeug?

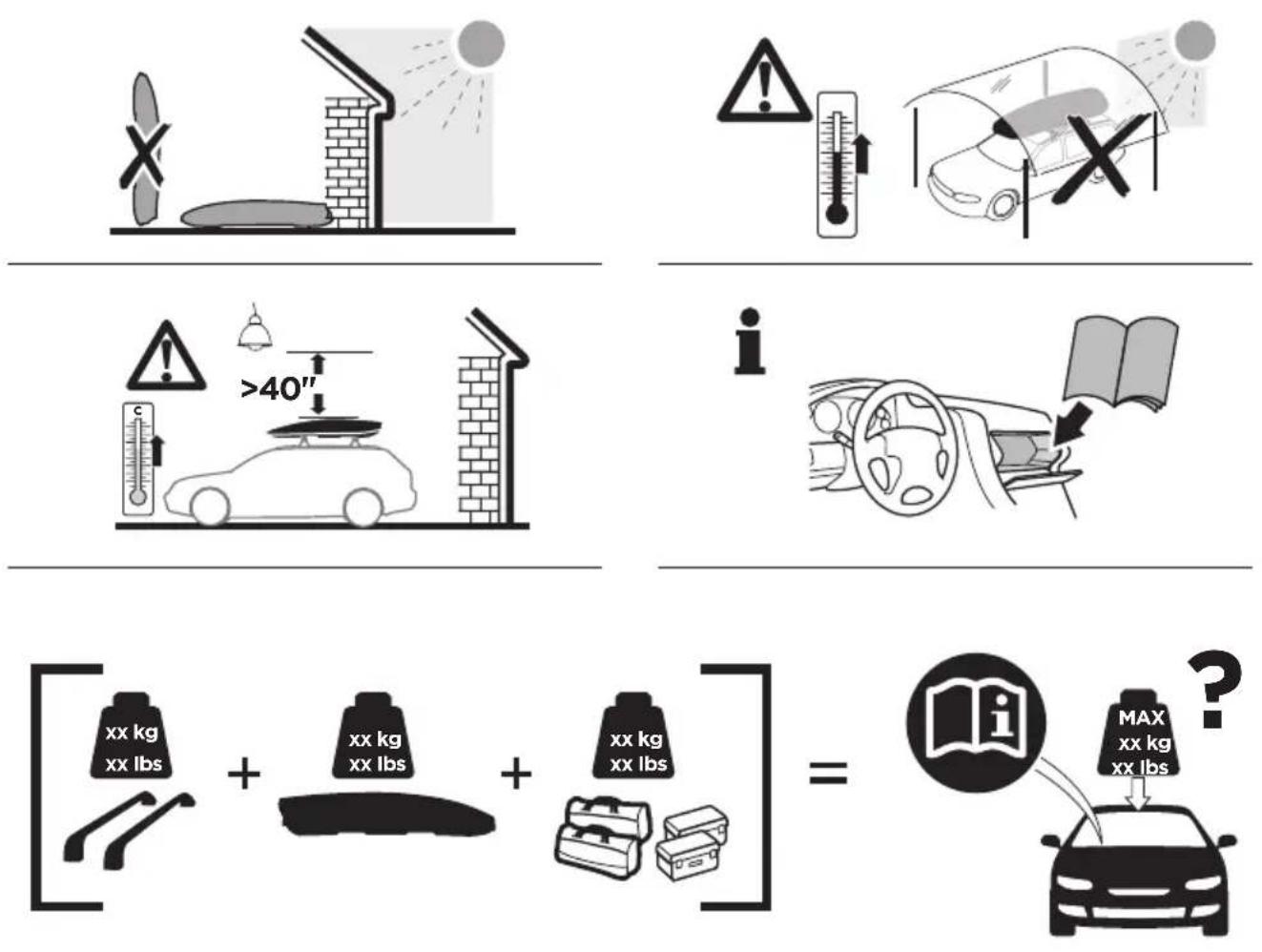

Die maximale Dachlast ergibt sich aus dem geringeren Wert zwischen der Angabe in der Fahrzeugzulassung und der maximalen Zuladung der Dachbox (75 kg). Beachten Sie, dass das Gewicht der Dachbox (23,4 kg) mitgerechnet wird.

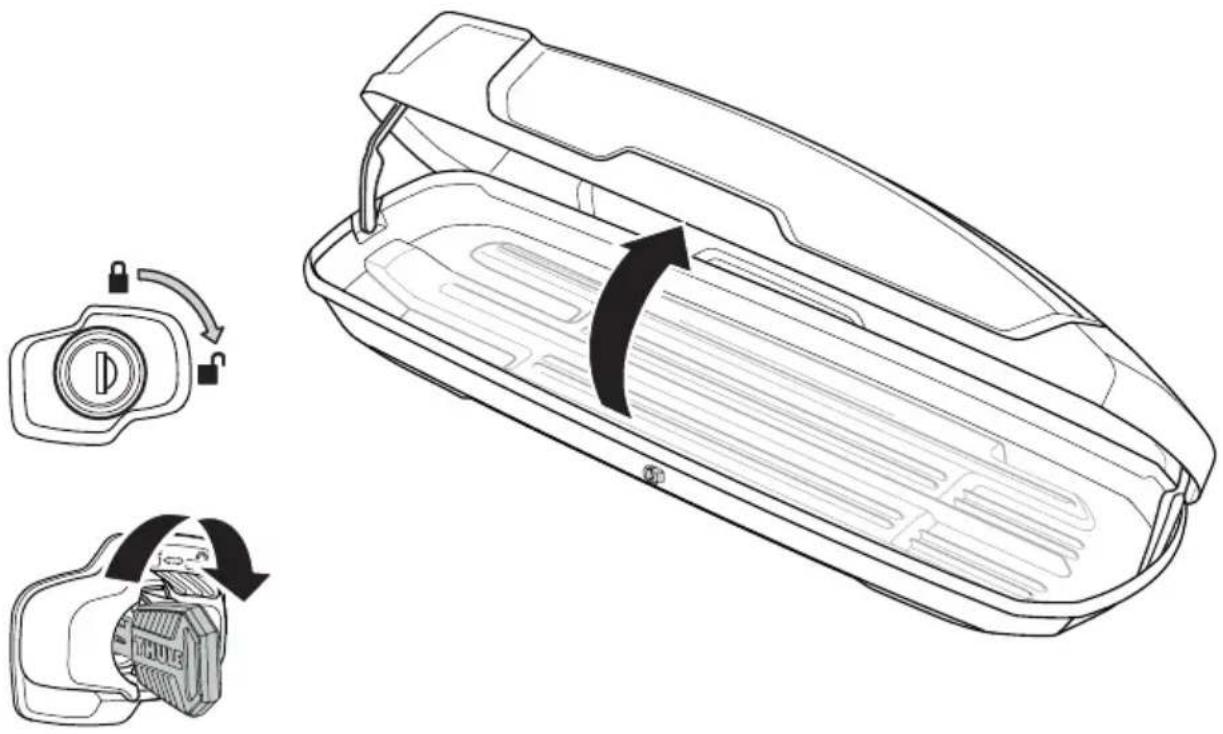

Kann die Dachbox beidseitig geöffnet werden?

Ja, die Thule Force XT kann beidseitig geöffnet werden. Das erleichtert die Beladung von beiden Seiten des Fahrzeugs.

Ist das Schloss austauschbar oder nachrüstbar?

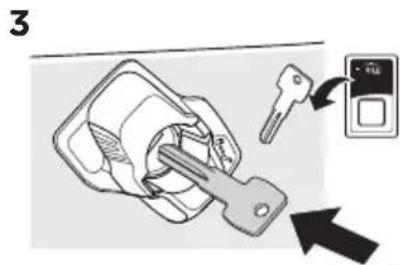

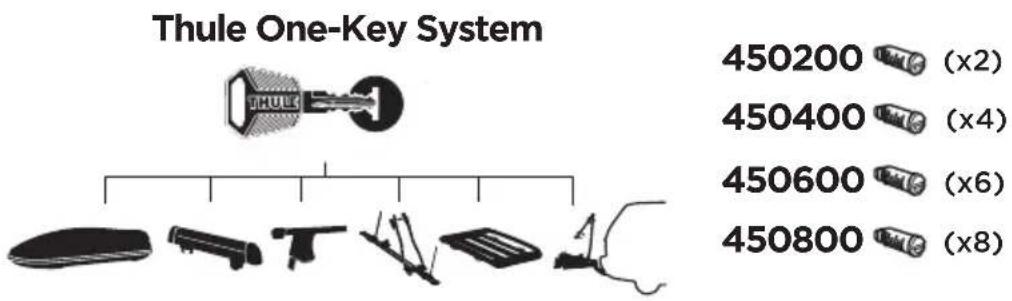

Das Schloss ist Teil des Thule One-Key Systems. Sie können zusätzliche Schlösser (z.B. 450200) kaufen und das Schloss auf Ihren eigenen Schlüsselcode anpassen.

Wie reinige ich die Dachbox richtig?

Verwenden Sie milde Seife und Wasser sowie ein weiches Tuch. Vermeiden Sie aggressive Reinigungsmittel, Scheuerschwämme oder Hochdruckreiniger, da diese die Oberfläche beschädigen können.

Kann ich die Dachbox im Winter verwenden?

Ja, die Dachbox ist für den ganzjährigen Einsatz geeignet. Achten Sie jedoch auf Schnee- und Eisablagerungen und entfernen Sie diese vor der Fahrt. Die maximale Zuladung darf auch im Winter nicht überschritten werden.

Welches Zubehör ist für die Thule Force XT erhältlich?

Erhältlich sind das Thule MultiLift (Artikel 572004) zum leichteren Heben, zusätzliche Thule One-Key Schlösser (450200, 450400, 450600, 450800) sowie Spannriemen und Befestigungssets.

Wie schwer ist die Dachbox?

Das Gewicht der Thule Force XT 6359B (XXL) beträgt 23,4 kg (51,6 lbs).

Passt die Dachbox auf mein Auto?

Die Dachbox passt auf die meisten Dachträger mit T-Nut oder Rundstange. Prüfen Sie vor dem Kauf die Kompatibilität mit Ihrem Fahrzeug und Dachträgersystem in der aktuellen Thule Fit Guide.

Wo finde ich die vollständige Bedienungsanleitung?

Die Bedienungsanleitung liegt der Dachbox bei und kann auch auf der Thule-Website als PDF heruntergeladen werden. Suchen Sie nach 'Thule Force XT 6359B Anleitung'.

BEDIENUNGSANLEITUNG Force XT 6359B THULE

> Instructions

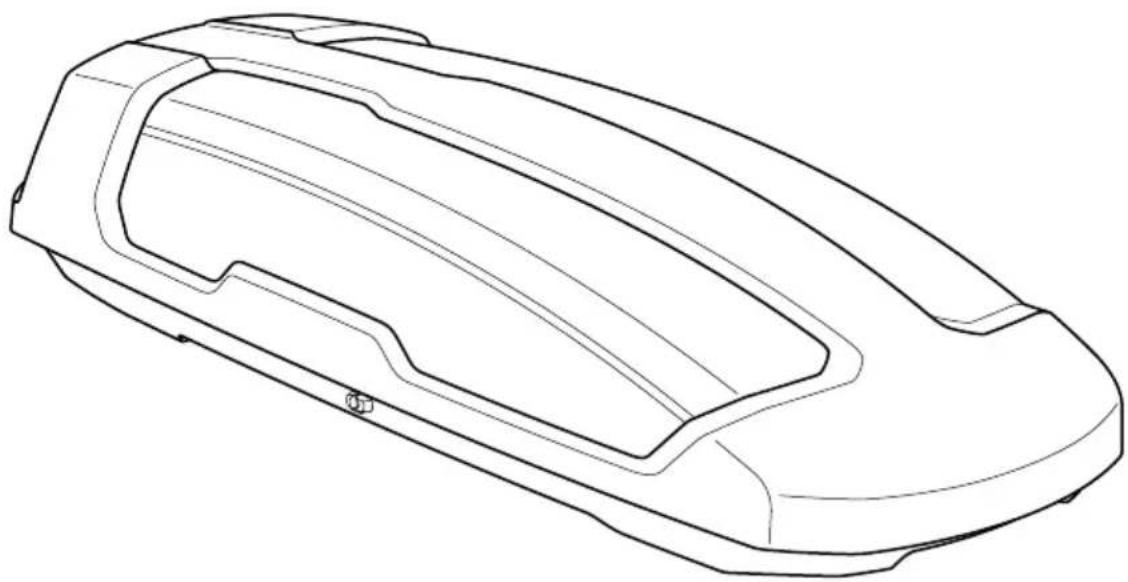

Thule Force XT

6356B, 6357B, 6358B, 6359B

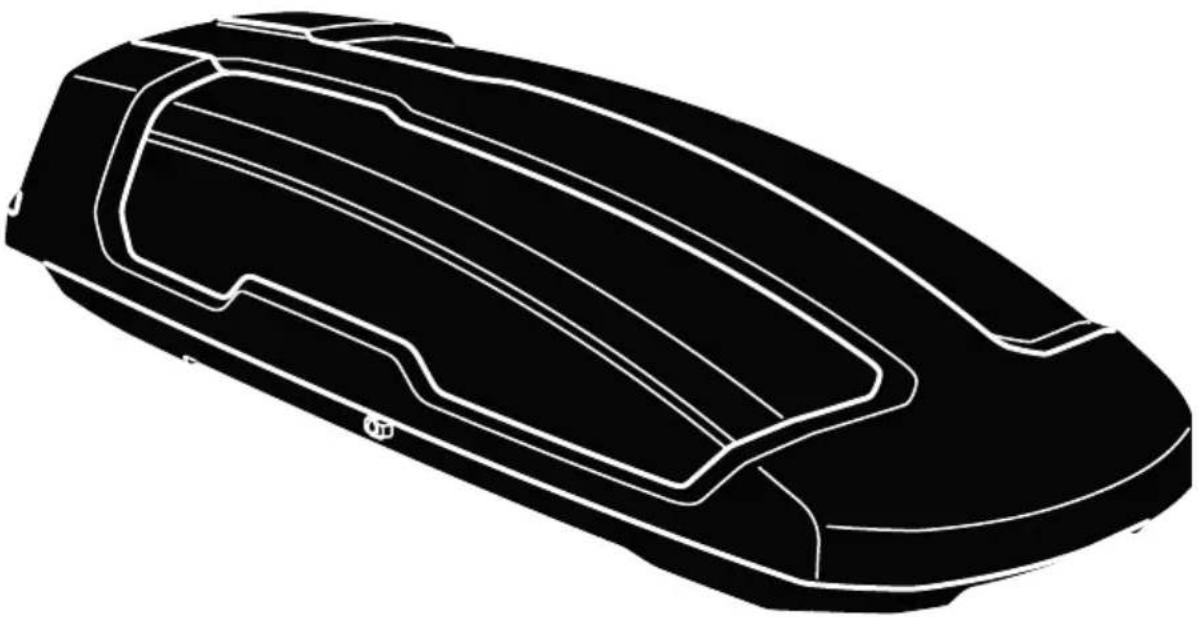

Silhouette of a black plastic or plastic container with white outline patterns (no text or symbols)

EN Roof box for roof-mounted racks
FR Coffre pour barres de toit
ES Cofre portaequipajes para barras de techo
PT Caixa bagageira para barras de tejadilho

Silhouette of a person reading a book (no text or symbols visible)

Line drawing of a mechanical component or housing (no text or symbols)

x1

x1

Simple line drawing of a rolled-up cable with a clamped bracket (no text or symbols)

x3

x2

i

Max 165 lbs

Line drawing of a car front bumper with no text or symbols

Sport 32.4 lbs
L 41.2 lbs
XL 47 lbs
XXL 51.6 lbs

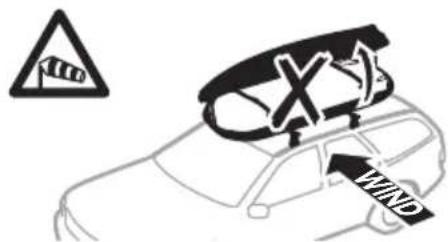

Illustration of a car with a large 'X' symbol above its roof, flanked by windows and corner brackets (no text or symbols present)

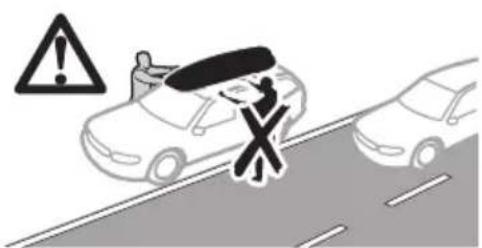

Illustration of a person using a tool to interact with a large object, with an exclamation mark symbol nearby (no text or labels present)

Simple line drawing of a car parked near a brick wall with a roof and exhaust cone (no text or symbols)

Diagram showing a car being washed with a bag, with no visible text or symbols

1

Technical line drawing of a mechanical component with internal parts and directional arrows indicating motion (no text or symbols)

2

4

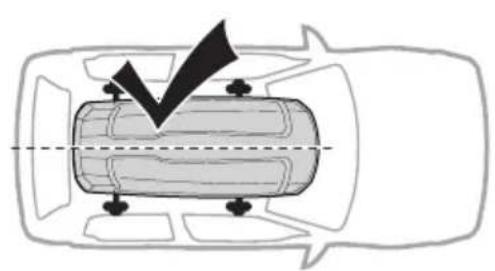

Top-down diagram of a car showing a vehicle with a checkmark and directional arrows, no text or symbols present.

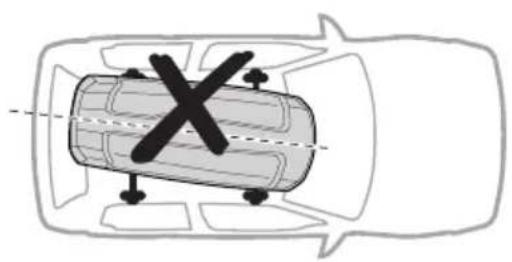

Top-down diagram of a car showing a cross symbol on the side panel (no text or labels)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Pure diagram of a mechanical component with curved arrows indicating motion or force (no text or symbols)

Pure diagram of a mechanical component with no text, numbers, or symbols

Pure technical diagram of a mechanical component without any text, numbers, or symbols

6

7

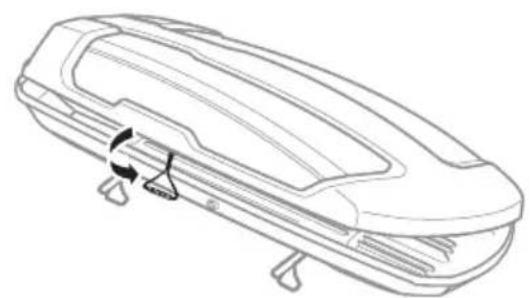

Line drawing of a streamlined object with a curved arrow indicating rotation or movement (no text or symbols)

!

8

EN Accessories
ES Accesorios
FR Accessoires
PT Acessórios

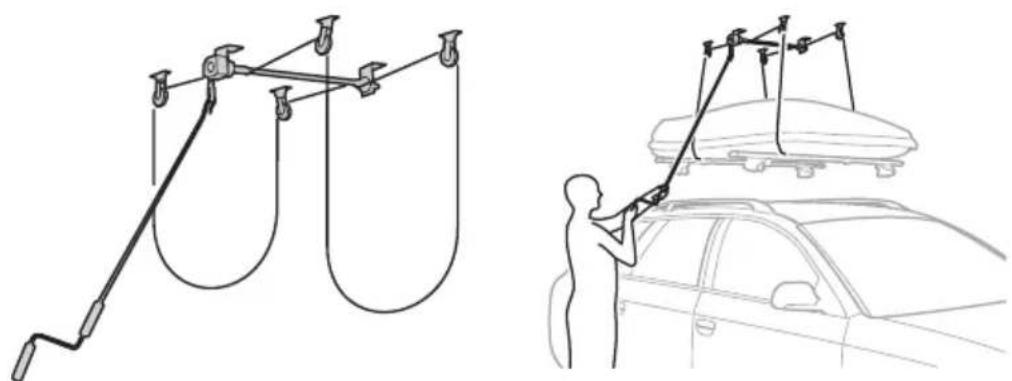

Thule MultiLift
572004

Technical line drawing showing a pulley system and a person using a lift device on a car (no text or symbols)

Diagram of a mechanical component with a black arrow pointing to it, no text or symbols present

Diagram of a mechanical component with a black arrow indicating direction (no text or symbols)

Mechanical component diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols)

Illustration showing a mechanical component being lifted by a rotating brush (no text or symbols present)

Hand holding a small electrical plug with a black arrow pointing to it, no text or symbols present

THULE RACK GUIDELINES

When using Thule Load carriers and accessories, the user must understand the precautions. The points listed below will assist you in using the rack system and will encourage safety.

• For quality fits and safety, use only the recommended rack or accessory as stated in Thule's current Fit Guide. Do not assume a rack will fit, always check the current Fit Guide when obtaining a new vehicle.
• The maximum load specified in the assembly instructions is not to be exceeded. However, this limit is always subordinate to the maximum load recommended by the manufacturer of the car itself. It is always the lower maximum recommended load that applies. Max roof load = load carrier weight + any fitted carrier accessories + the weight of the load itself.
• Always make sure all doors are open when mounting a roof rack system. Make sure all knobs, bolts, screws, straps, and locks are firmly attached, tightened and locked before every trip. Knobs, bolts, screws, straps and locks must be periodically inspected for signs of wear, corrosion, and fatigue. Check your load at stops during the trip to ensure continued fastening security.

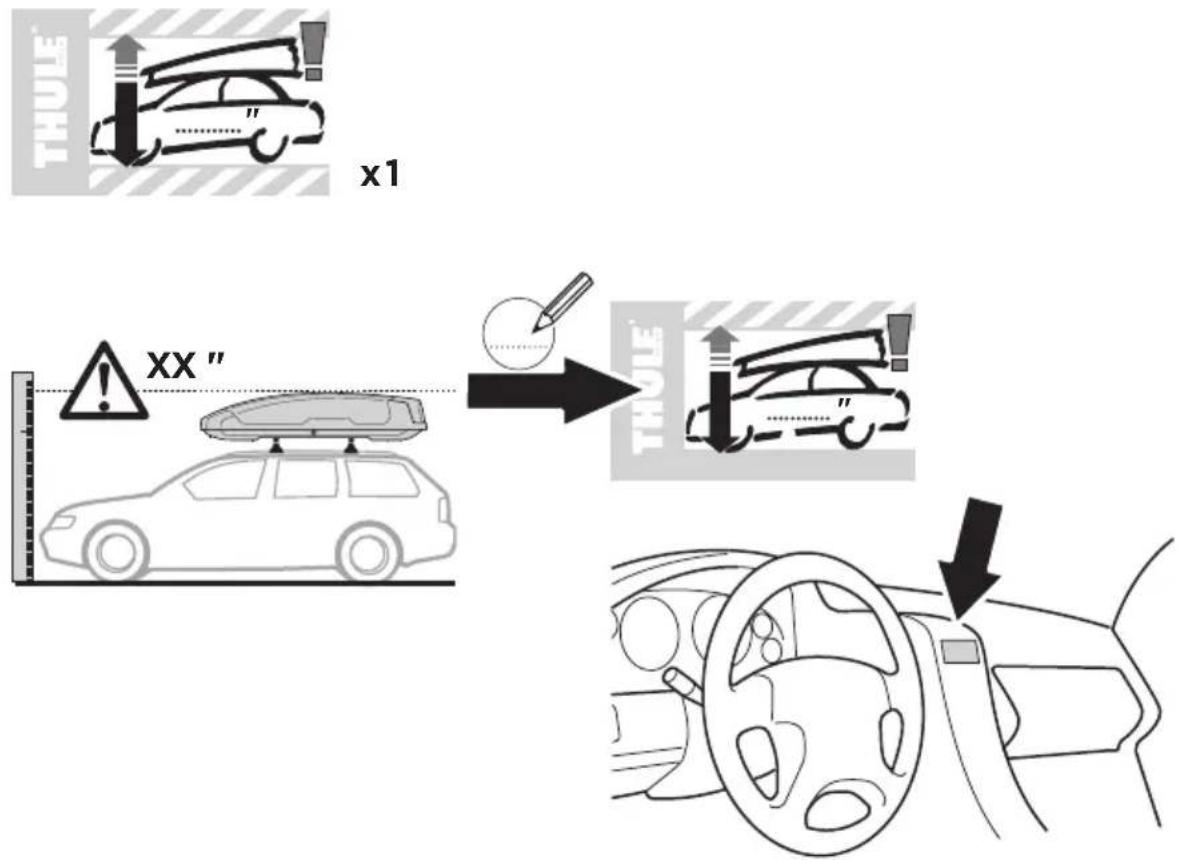

• Check local and state laws governing projection of objects beyond the perimeter of a vehicle. Be aware of the width and height of your cargo since low clearance branches, bridges, and parking garages can affect the load. All cargo will affect the vehicle's driving behavior. Never drive with any lock, knob or rack in an open or unlocked position. All long loads such as, but not limited to, sailboards, surfboards, kayaks, canoes, and lumber must be tied down front and rear to the bumpers or tow hooks of the vehicle.

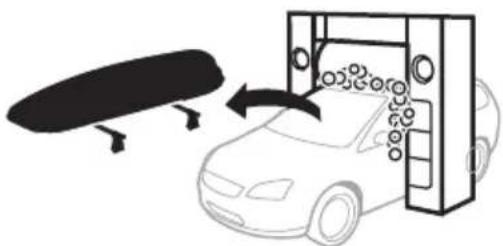

• Remove your Thule rack and accessories when they are not in use and before entering automatic car washes.
• All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Thule locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period. Place at least one key in the glove compartment.
• For safety to your vehicle and rack system, obey all posted speed limits and traffic cautions. Adapt your speed to the conditions of the road and the load being carried.
• Do not use Thule load carriers and accessories for purposes other than those for which they were designed. Do not exceed their carrying capacity. Failure to follow these guidelines or the product's instructions will void the warranty.

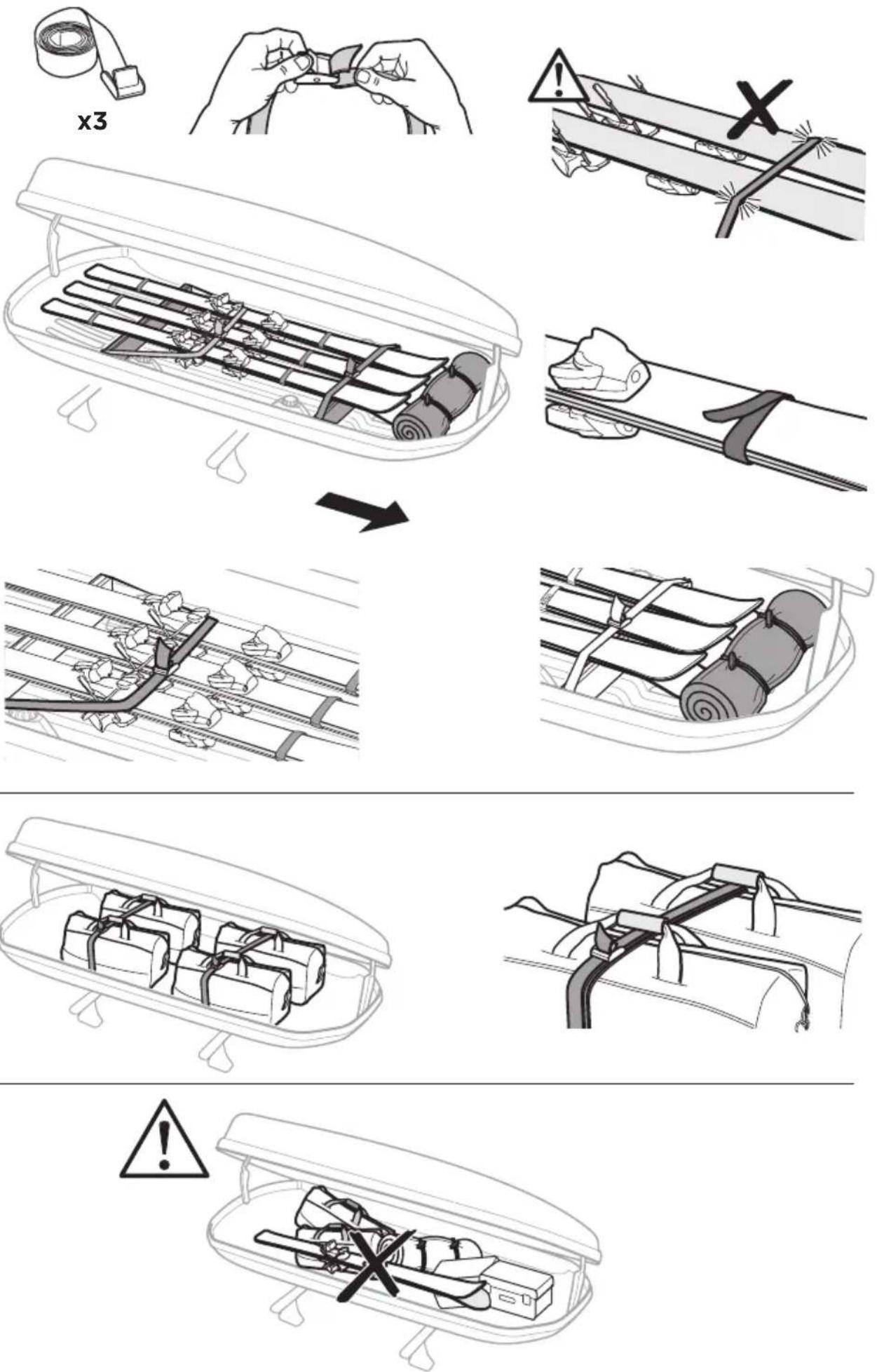

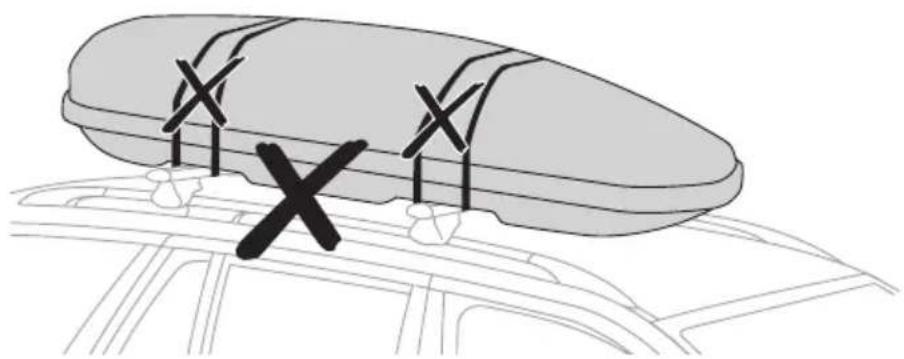

• All loads must be secured using the provided straps.
• Consult with your Thule dealer if you have any questions regarding the operations and limits of Thule products. Review all instructions and warranty information carefully.
• Not for use on trailers or towed vehicles.
  • Not for offroad use.
• Keep bicycle tires away from hot exhaust.

Thule Inc. • 42 Silvermine Road • Seymour, CT 06483

Thule Canada Inc. • 710 Bernard • Granby QC J2J 0H6

North American Consumer Service: Toll Free 800-238-2388 / Fax [phone] • www.thule.com

THULE CAR RACK SYSTEMS LIMITED LIFETIME WARRANTY

[ EFFECTIVE JANUARY 1, 2006] Register online at www.thule.com/warranty

THULE will warranty all THULE brand car rack systems and its accessories manufactured by THULE during the time that an original retail purchaser owns the product. This warranty terminates if a purchaser transfers the product to any other person.

Subject to the limitations and exclusions described in this warranty, THULE will remedy defects in materials or workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. In addition, THULE may elect, at its option, not to repair or replace a defective product but rather issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new THULE load carrier system.

No warranty is given for defects caused by normal wear and tear, cosmetic rust, scratches, accidents, unlawful vehicle operation, or modification of, or any types of repair of, a load carrier system other than those authorized by THULE.

No warranty is given for defects resulting from conditions beyond THULE's control including, but not limited to, misuse, overloading, or failure to assemble, mount or use the product in accordance with THULE's written instructions or guidelines included with the product or made available to the purchaser.

In the event that a product is defective, the purchaser should contact the THULE dealer from whom the product was purchased or an Authorized Thule Service Center. If the dealer or Authorized Thule Service Center is not able to correct the defect, the purchaser should contact THULE in writing or by phone using the contact information listed at the bottom of this page.

In the event that a product needs to be returned to THULE, a THULE technician at the address or telephone number listed below will provide the purchaser with the appropriate mailing address and any additional instructions. Please note that the purchaser will be responsible for the cost of mailing the product to THULE and that proof of purchase in the form of an original purchase invoice or receipt and a detailed description of the defect must be included in the mailing.

DISCLAIMER OF LIABILITY

REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT OR THE ISSUANCE OF A REFUND OR CREDIT (AS DETERMINED BY THULE) IS A PURCHASER'S EXCLUSIVE REMEDY UNDER THIS WARRANTY. DAMAGE TO A PURCHASER'S VEHICLE, CARGO AND/OR TO ANY OTHER PERSON OR PROPERTY IS EXCLUDED.

THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

THULE'S SOLE LIABILITY TO ANY PURCHASER IS LIMITED TO THE REMEDY SET FORTH ABOVE. IN NO EVENT WILL THULE BE LIABLE FOR ANY LOST PROFITS, LOST SALES, OR FOR ANY CONSEQUENTIAL, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR PUNITIVE DAMAGES OR FOR ANY OTHER DAMAGES OF ANY KIND OR NATURE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT BE APPLICABLE.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
