Ci3160RL - Lautsprecher KEF - Kostenlose Bedienungsanleitung
Finden Sie kostenlos die Bedienungsanleitung des Geräts Ci3160RL KEF als PDF.
| Produkttyp | Einbau-Lautsprecher (In-Wall / In-Ceiling) |
| Modell | Ci3160RL |
| Marke | KEF |
| Serie | CI-Serie (Extreme Theatre) |
| Treiber-Technologie | Uni-Q®-Treiberanordnung mit Tangerine-Wellenleiter |
| Hochtöner | 25 mm (1 Zoll) Aluminium-Kalotte |
| Tiefmitteltöner | 160 mm (6,5 Zoll) Hybrid-Aluminiummembran |
| Frequenzgang | 55 Hz – 28 kHz (±3 dB) |
| Empfindlichkeit | 89 dB (2,83 V/1 m) |
| Impedanz | 8 Ω (min. 4,5 Ω) |
| Empfohlene Verstärkerleistung | 20 – 150 W |
| THX-Zertifizierung | THX Select2 / Ultra2 (in Kombination mit Subwoofern) |
| Ausschnittmaße (B × H) | 470 × 204 mm (rechteckig) |
| Einbautiefe | 95 mm |
| Abmessungen (B × H × T) | 501 × 235 × 100 mm |
| Gewicht | 3,2 kg |
| Gehäusematerial | ABS-Kunststoff, pulverbeschichtetes Stahlgitter |
| Farbe | Weiß (lackiert, überstreichbar) |
| Schutzklasse | IP44 (bei korrekter Montage) |
| Lieferumfang | Lautsprecher, Montageschablone, Gitter, Bedienungsanleitung |
| Besonderheiten | Ultraflaches Design, magnetisches Gitter, korrosionsbeständig |
| Garantie | 5 Jahre (bei Registrierung) |
Häufig gestellte Fragen - Ci3160RL KEF
Benutzerfragen zu Ci3160RL KEF
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Lautsprecher kostenlos im PDF-Format! Finden Sie Ihr Handbuch Ci3160RL - KEF und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. Ci3160RL von der Marke KEF.
BEDIENUNGSANLEITUNG Ci3160RL KEF


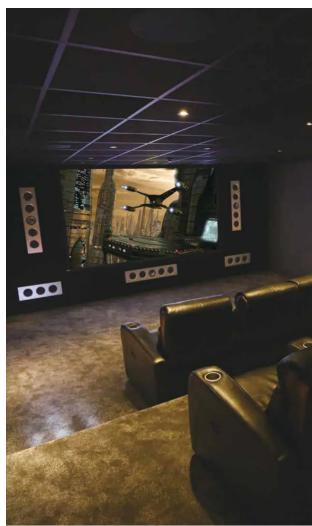

Interior view of a dimly lit theater or playhouse with large screens and spotlights, featuring leather sofas and spotlights (no visible text or symbols)


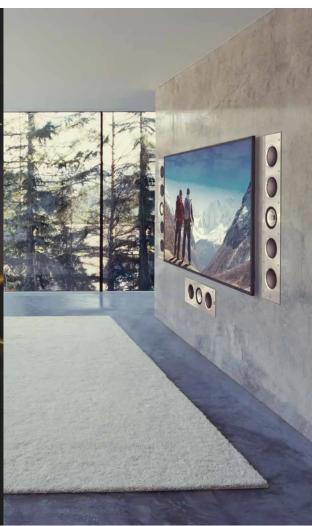

Interior view of a modern minimalist room with a large wall-mounted artwork on the right and a white rug on the left, featuring forested mountains in the background (no text or symbols visible).
INSTALLED SUBWOOFERS
If you want your bass to be heard but not seen, KEF offers a wide selection of installed subwoofers with incredible sonic performance whilst remaining visually discreet. The foundation of the range, the powerful KASA500 amplifier (250WkZ) featuring selectable customized equalisation and compression limiting, is designed to maximize the performance of each KEF subwoofer option which includes three superlative subwoofers: The C200Q5b-THX with a massive Binch driver, the CJ160RLb-THX with three 6.5inch woofers on a rigid aluminum baffle, and the swite CJ200TRb that requires only 59mm of mounting depth.
Not only do these subwoofers provide a perfect visual match to our Extreme Theatre speakers they also perfectly enhance the sonic capabilities of the entire KEF line, providing you with a true high performance discrete theatre system. Refined yet gutay, two C3160RLb-THX, or four of the C200QSb-THX powered by the KASAS00 meet THX Select2 standards; double that to achieve THX Ultra2. In passive mode, the C200TRb and C200QSb-THX can be used with a stereo amplifier to provide the bass response of an 8inch speaker for a smaller in-wall or in-ceiling mounting.
THX
EXTREME HOME THEATRE
For the ultimate custom installed home cinema, the formidable Ci-REFERENCE and Ci-R Series has the jaw-dropping acoustic capabilities of the classic KEF floonstander It's named after, with all the drama and emotional intensity of full theatre sound quality. A complete system certified to THX Ultra2Select2 standards, the Ci-REFERENCE and Ci-R Series consists of two powerful in-ceiling performance that can be combined with one of four in-wall models and a choice of two sensational new powered subwoofer configurations. As you might expect, its towering performance sets a new standard for custom installed speakers.
EXTREMELY LOW PROFILE
With its patented ultra-low profile speaker driver, the revolutionary T Series fits snugly into even the narrowest voids while delivering all the lavishly detailed and evenly dispersed imagery of KEF's latest tangerine waveguide technology. Comprised of a Round model and a Square model requiring less than 36mm of mounting depth, and a revolutionary 200mm sub-woofer that needs 59mm of depth, the T Series allows you to install a speaker that delivers full audiophile quality sound even when mounting space is at a premium. As easy to fit as any other KEF architectural speakers, and an equally accomplished sonic performer, it's another example of KEF innovation benefiting the installer as much as the listener.
CI FEATURES AND TECHNOLOGIES
Whatever your budget, you'll find that the clarity, depth and sheer realism of the sound you experience with KEF architectural speakers is enhanced by technologies found nowhere else.
Uni-Q driver array - KEF's patented Uni-Q driver technology places the tweeter at the acoustic centre of the bass/midrange cone so that both act as a single source, dispersing sound widely and evenly over a large area. No matter the placement, KEF custom installation speakers deliver effortlessly natural sound with minimal distortion to every person in the room.
Special Grille Treatment - The powder-coated grille undergoes a unique plating process to ensure long life and corrosion resistance even in humid environments.
Tangerine waveguide - As well as protecting the driver, this enhances Uni-Q's exceptionally wide dispersion characteristics.
KEF CI SPEAKER PLACEMENT TOOL
Simple to use, with pull-down menus and sliders to define the room size, desired volume and coverage pattern, the KEF CI speaker placement software generates optimum speaker locations, wiring diagrams and sound coverage topography to help you determine the right number of speakers for the area concerned.
To download the tool, please visit: https://us.kef.com/product-support
HIDE YOUR SPEAKERS.
NOT YOUR SOUND
For music or movies, your installation needs to deliver the flawlessly accurate three-dimensional sound you'd expect from the best conventional speakers - startlingly dear and breathtakingly realistic. And that's exactly what our □ range does.
KEF's passion for acoustic excellence shines through in every model. By combining radically innovative engineering with sophisticated design technologies, the Ci range achieves what used to be thought impossible: compact custom installation speakers that sound as compelling as an audiophile quality hi-fi system, no matter where you sit.
With impeccable cosmetics, There is a KEF architectural speaker for every situation, including where space is at a premium or when a speaker needs to blend seamlessly into its surroundings. The speakers have even been engineered to excel in the more humid areas of the home, such as bathrooms and pool areas.
All KEF speakers are timbre-matched, with each other and with KEF's extensive range of home speakers, so any combination you specify for different listening areas will have the same tonal colour for a perfectly consistent soundstage.
Fast, easy installation has always been valued by architectural speakers installers. With only a few simple steps and KEF's unique design features, our architectural speakers can be fitted quickly, with no special skills. Once the hole is cut and the cable run, the area is soon flooded with great high definition sound.
UNI-Q
KEF's patented Uni-Q driver technology is a feat of acoustical engineering, precisely aligning the acoustic centres of both the tweeter and midrange/bass driver. The result is a point source that effortlessly reproduces sound just as it was captured in the recording, with clear highs, smooth midrange and fast, clean bass all with minimal, sound-damaging distortion. Imaging is precise, and with Uni-Q's signature wide off-axis response, all of the benefits are delivered to every person in the room.
"Hide your speakers, not your sound" - by eliminating the traditional 'sweet spot,' Uni-Q allows for complete freedom of positioning, ideal for placement where aesthetics are important without compromising on sound quality. For Extreme Theatre, when installed in-ceiling and close to the wall, the front speakers precisely match the sound to the on-screen action.
| Tail Rectangle Rectangle Square | Soundlight Square | Round Soundlight Round | |||||||||||
| Wooler | 5 x 160 mm(5 x 63 m) | 3 x 160 mm(5 x 63 m) | 4 x 100 mm(4 x 4 m) | 200 mm(8 m) | 160 mm(63 m) | 200 mm(8 m) | 160 mm (6.5 m)T Series115mm×95 m) | 120 mm(5.25 m) | 100 mm(4 m) | 200 mm(8 m) | 160 mm (6.5 m)T Series115mm×95 m) | 120 mm(5.25 m) | 75 mm(3 m) |
| Cut-out | WD4 x 200 mm(41.42 x 8.02 m) | AW4 x 200 mm(25.98 x 8.02 m) | 470 x 194 mm(30.74 x 4.49 m) | 334 x 230 mm(31.15 x 9.37 m) | 274 x 194 mm(30.79 x 2.64 m) | 338 x 230 mm(3.37 x 9.37 m) | 194 x 194 mm(7.44 x 2.64 m) | 118 x 108 mm(4.21 x 4.32 m) | 112 x 112 mm(4.41 x 4.41 m) | D240 mm(D240 m) | D196 mm(D174 m) | D118 mm(D96.42 m) | D118 mm(D940 m) |
| REFERENCEExtreme Theatre |  | ||||||||||||
| R SERIESExtreme Theatre |  | XTXCC004A-THX | TXCKC004A-THX | TXCKC004A-THX | |||||||||
| Q SERIESUni-Q Driver | [0x80]Extrangsten | [0x80]Extrangsten | [0x87]Extrangsten | [0x64]Extrangsten | [0x64]Extrangsten | [0x64]Extrangsten | [0x97]C008QS | [0x20]C008QR | [0x20]Changsten | [0x44]C008QR | [0x27]C008QR | ||
| C SERIESUni-Q Driver | G190 20L | C040 20S | C0130 20S | C028 2CR | C040 2CR | C0130 2CR | |||||||
| E SERIESUni-Q Driver | C040 20S | C028RA | C040ER | C0130R | |||||||||
| C SERIESDual Stereo | C018C36 | C018C06 | |||||||||||
| FL SERIESFlush Mount | C0130261 | C0130261 | |||||||||||
| T SERIES & SUBWOOFERSThin Speakers & Subworkers | Subwoofer300K * 300K***CU08KA-THXK000R Suppens | Subwoofer300K * 300K***CU08QA-THXK000R Suppens | ThaC040TS | Schweizer ThinCU08TRsKu000R Suppens | ThaC040TR | CU070R | |||||||
| Rough-in Frame | REF50SL | REF50SL | REF40SL | REF50SL | REF50SL | REF50SL | REF50SL | REF10SL | REF10SL | REF20SR | REF10SR | REF15SR | REF15SR |
| Rear Enclosure | NA | NA | NA | RNC20SL | RNC16NS | RNC20SExcluding C008-THX & C008QA-THX | RNC40NS | RNC130S | RNC16NS | RNC20SRExcluding C008-THX | RNC16SR | RNC15SR | RNC15SR |
SUBWOOFER
| Woofer | 200 mm(8 in.) | 254 mm(10 in.) | 305 mm(12 in.) | 165 mm(6.5 in.) | 225 mm(9 in.) |
| Dimensions × W × D with rear paneland fast | 293 × 293 × 310 mm(11.5 × 11.5 × 12.2 m.) | 370 × 353 × 370 mm(14.6 × 13.9 × 14.6 m.) | 410 × 393 × 410 mm(16.1 × 13.5 × 16.1 m.) | 246 × 256 × 248 mm(9.68 × 10.07 × 9.76 m.) | 353 × 330 × 361 mm(13.9 × 11.8 × 14.2 m.) |
KEP's range of powerful, yet easily integrated subcoolers feature cutting-edge acoustic and proprietary DSP technologies in order to deliver an impactful, detailed performance. Flexible installation options ensure any system can benefit from the addition of a KEP subcooler.
OUTDOOR
| Woofer | 160 mm(8.5 in.) | 130 mm(5.25 in.) |
| Dimensions(H x W x D) | 300 × 120 × 263.5 mm( 11.8 × 9 × 10.37 in.) | 262 × 197 × 235 mm( 10.5 × 7.75 × 9.25 in.) |
| Finish | White/Black | White/Black |
OPTIONAL
| AMPLIFICATION |
KAGA500 is a powerful 2x250V Class D stereo amplifier. With powerful, bespoke DSP utilizing KEF's propriety 6RX technology that extends the bass depth dynamically. KAGA500 unlocks the full potential of the driver's power at any listening level. Custom EQ settings optimize the performance of KBP subwoofers into any installation, and limitless system configurations are possible through the inclusion of high-level speaker and low level inputs, plus signal pass-through with full range or adjustable high pass operation. Rackmount cars included.
ACCESSORIES
| Steel Rough-In Frames (see table for product codes) | Steel Rear Enclosures (see table for product codes) |
| Rough in Frames (new construction brackets) are used with in-wall and in-coiling speakers and are available for most models. Installed during the pre-wiring of a new construction installation, they allow the installer to restore the space in the wall or ceiling and simplify cutaway the covered hole size. | Metal Rear Enclosures (back boxes) are available for most models of KIP architectural speakers. Installed during the pre-wiring of a new construction installation they provide a sealed enclosure for the loudspeaker and reduce sound transmission to the room behind the speaker. |
SPEAKER NOMENCLATURE
| CI160C R ds | |||||
| SPECIAL APPLICATION | |||||
| dbDual Series | bSubwayductor | THXapproved | TTransformer | ||
| SHAPE | |||||
| RRound | SSquare | LLectonic | THMarried | CClear Car | |
| RANGE NAME | |||||
| REFReference | RRSeries | QQSeries | TTSeries | CCSeries | EESeries |
| WOOFER SIZE (MM) | |||||
| CUSTOM INSTALLATION | |||||
FEATURES
EXTREME HOME THEATRE
A complete system certified to THX Ultra2Select2 standards, the CI-REFERENCE and O-R Series consists of two powerful in-ceiling speakers that can be combined with one of four in-wall models and a choice of two sensational new powered subwoofer configurations. As you might expect, its towering performance sets a new standard for custom installed speakers.
UNI-Q® KEP's patented Uni-Q driver technology places the tweeter at the acoustic centre of the bass/midrange cone so that both act as a single source, dispensing sound widely and overly over a large area. No matter the placement, KEP custom installation speakers deliver effortlessly natural sound with minimal distortion to every person in the room.
INSTALLED SUBWOOFER
With three subworkers to choose from, the elegant CJ3160PLb-THX with 3 lighting fast 6.5" woofers, the powerful and flexible square CJ200Q8b-THX with a massive 8" driver, and the swite CJ200TRa that mounts in under 59min, there is a KEP installed subwoofer for any room or installation. When driven by the powerful KAS4500 amplifier (2x250V), whose custom DSP EQ curves allow them to adapt to any sonic situation, the KEP installed subwoofers are the foundation for your theatre or music room, unseaching all of the impact, drama, and intensity of any movie soundtrack while preserving valuable floor spaced KEP's THX Select and Ultra certified in-wall subworkers are built with a serious regard for aesthetic appeal that will make even the most demanding interior designer fall in love.
OUTDOOR
Weatherproof, IP65 certified and salt spray tested, marine quality Venture Series outdoor models can flood your pool, garden or yacht with high-quality sound, even in the most extreme atmospheric conditions.
- Weatherproof scaled enclosure - Salt spray tested for over 1200 hours - Operating temperature range: -40 to +70C (-40 to +158P) - Independent test lab certified IP65 - Aluminium grille and mounting bracket, 1½"-20 threaded inserts for mounting options - Stainless steel / brass hardware - Rotatable logo
EXTREMELY LOW PROFILE
When nothing else will fit at 40mm (1.57in.) deep, requiring a mounting depth of only 36mm (1.42in.), the C160TR round, the C160TS square, and the C2(80TR) subwoofer at 59mm are the smallest architectural speakers in the world; and all fit snugly into even the narrowest voids without compromising audio performance.
ULTRA THIN BEZEL
Offers the slimmest visible rim around the speaker while casting virtually no shadow. Designed to sit tight to the wall or ceiling with no visible gap. KEF speakers disappear as if part of the ceiling. Coupled with a magnetic grille that is as silent as it is acoustically transparent. KEF architectural speakers are fast and easy to install for the ultimate in discreet installation.
DUAL STEREO
For areas with space for only one speaker; IGP's CI Series Dual Stereo model plays left and right channels from a single unit containing twin tweeters and a dual voice coil woofer;
SOUNDLIGHTS
As discreet as LED downlights, KBF's tiny Soundlights give you big speaker performance with outstanding sound coverage, thanks to Uni-Q's exceptionally wide dispersion.
*EF O subwoofer requires the KASA500 subwoofer amplifier. ** Ultra 2 certification requires 4 x C0M0RL0-THX or 4 janx x C080Q5b-THX used with 2 x RASA500. *** Select 2 certification requires 2 x C0M0RL0-THX or 2 janx x C080Q5b-THX used with 1 x RASA500. (-) Not all accessories and finishes are available in all markets. Contact your local dealer for specific range details. THX and the THX tags are trademarks of THX U32 which are registered in some jurisdictions. All rights reserved.
