| Produkttyp | Waschmaschine |
| Marke | Teka |
| Modell | WMT40840 |
| Abmessungen (H x B x T) | 85 cm x 60 cm x 60 cm |
| Gewicht | 70 kg |
| Stromversorgung | 220-240 V, 50 Hz |
| Leistungsaufnahme | 2000 W |
| Fassungsvermögen | 8 kg |
| Schleuderdrehzahl | 1400 U/min |
| Energieeffizienzklasse | A++ |
| Programme | Baumwolle, Synthetik, Feinwäsche, Schnell, Eco, Dampf |
| Temperaturwahl | kalt bis 90 °C |
| Wasseranschluss | Kaltwasser (3/4 Zoll) |
| Trommelmaterial | Edelstahl |
| Kindersicherung | Ja |
| Startzeitvorwahl | Ja, bis 24 Stunden |
| Überlaufschutz | Ja |
| Schaumerkennung | Ja |
| Reinigungstürdichtung | Regelmäßig mit feuchtem Tuch reinigen |
| Filterreinigung | Nach jedem Waschgang prüfen und reinigen |
| Ersatzteile | Unter www.teka.com erhältlich |
| Reparaturindex | 8/10 (leicht reparierbar) |
Häufig gestellte Fragen - WMT40840 TEKA
Benutzerfragen zu WMT40840 TEKA
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Waschmaschine kostenlos im PDF-Format! Finden Sie Ihr Handbuch WMT40840 - TEKA und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. WMT40840 von der Marke TEKA.
BEDIENUNGSANLEITUNG WMT40840 TEKA
Quick Cycle
DESCRIPTION
LIFE STYLE Total
COLOURS
REFERENCE
ExpertCare Series Free Standing Washing Machine with 15 washing programs
REF. 113910003 EAN. 8434778016581
FEATURES
ExpertCare series
Free standing Washing Machine
Electronic control panel with display
Washing capacity: 8 kg
15 washing programs
Fast program: 15 minutes
ECO mode program
Wool care program
Anti-allergies mode
Delay timer function
Speed wash function
Extra rinse function
Anti-allergies mode
SmartWash system
Maximum spinning speed: 1400 RPM
Automatic water regulation
Automatic door lock safety system
Child lock
Balance control system
SoftCare drum
Delay timer: 1-24 hours
30 cm wide porthole door

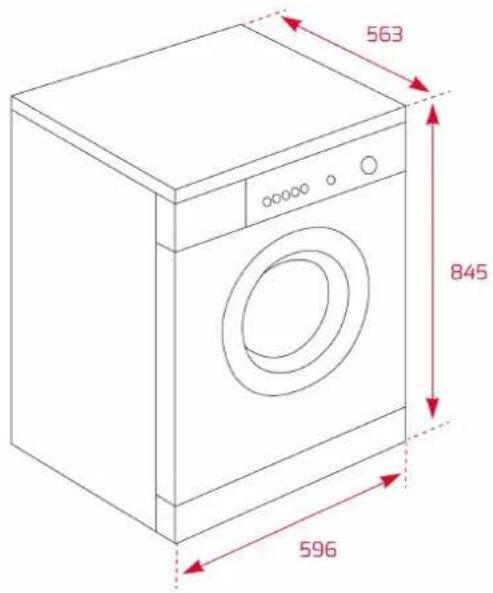

DIMENSIONS
Product height (mm): 845
Product width (mm): 596
Product depth (mm): 563
Product length (mm):
Net weight (Kg): 70,5
TECH SPECS
PRODUCT SHEET
Type of installation: Free standing
Energy consumption (kWh/year): 194
Water consumption (litres/year): 10224
POWER SUPPLY
Frequency (Hz): 50
Power rate (V): 220-240
Plug type: EU
Cable Connection Length (cm): 160
Maximum Nominal Power (W): 2200
Nominal power motor (W): No
Power of heating element (W): 1850
Water outlet hose length (m): 1.635
Water inlet hose length (m): 1470
PARTICULAR
CHARACTERISITICS
Stainless Steel Drum: Yes
Glass door diameter (cms): 47
Number of programs: 15
Control panel: ELECTRONIC
Electronic washing management: Yes
CONTROL INDICATOR LIGHTS
SPECIAL FUNCTIONS
EQUIPMENT
PRODUCT INFORMATION SHEET (UE) 2019/2014
Child lock: Yes
Auto lock door: Yes
Cancel spin cycle button: Yes
Removable work top: Yes
Selected program indicator: Yes
Remaining time: Yes
Fast program: Yes
Fast program (minutes): 15
Economic program: Yes
Delicate fabrics: Yes
Adjustable Feet Back: Yes
Adjustable feet front: Yes
Supplier's name or trade mark : TEKA
Supplier's address : C/Cajo, 17, 39011, Santander, Spain
Model identifier : WMT 40840 WH
General product parameters
Rated capacity for the eco 40-60 programme (Kg) : 8
Dimensions (cm)
Height : 84,5
Width : 59,6
Depth: 56,3
Consumption and efficiency
Energy Efficiency Index (a): 69
Energy efficiency class (a): C
Washing efficiency index (a): 1,04
Rinsing effectiveness (g/kg) (a): 5
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.: 0,627
Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.: 48
Maximum temperature inside the treated textile (a) (°C)
Remaining moisture content (a) (%)
Spin speed (a) (rpm)
Rated capacity: 1330
Half: 1330
Quarter: 1330
Spin-drying efficiency class (a): B
Eco 40-60 programme duration (a) (h:min)
Other
Type: Free standing
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW): 76
Airborne acoustical noise emission class (a) (spinning phase): B
Off-mode (W): 1
TECHNICAL DOCUMENTATION (UE) 2019/2014
Standby mode (W): 1
Delay start (W) (if applicable): 4
Networked standby (W) (if applicable): 2
Minimum duration of the guarantee offered by the supplier (b): 2
This product has been designed to release silver ions during the washing cycle YES/NO: 0
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:
(a) for the eco 40-60 programme.
(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(c) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.
Rated capacity for the eco 40-60 programme, at 0,5 kg intervals (c): 8
Energy consumption of the eco 40-60 programme at rated capacity (EW,full): 1,041
Energy consumption of the eco 40-60 programme at half rated capacity (EW, 12 ): 0.49
Energy consumption of the eco 40-60 programme at quarter rated capacity (EW,1/4): 0,27
Weighted energy consumption of the eco 40-60 programme (EW): 0,622
Standard energy consumption of the eco 40-60 programme (SCEW): 0,909
Energy Efficiency Index (EEIW): 68,4
Water consumption of the eco 40-60 programme at rated capacity (WW,full): 52
Water consumption of the eco 40-60 programme at half rated capacity (WW, 12 ): 44
Water consumption of the eco 40-60 programme at quarter rated capacity (WW,1/4): 37
Weighted water consumption (WW): 45
Washing efficiency index of the eco 40-60 programme at rated capacity (lw): 1,04
Washing efficiency index of the eco 40-60 programme at half rated capacity (lw): 1,05
Washing efficiency index of the eco 40-60 programme at quarter rated capacity (lw): 1,04
Rinsing effectiveness of the eco 40-60 programme at rated capacity (IR): 4,9
Rinsing effectiveness of the eco 40-60 programme at half rated capacity (IR): 4,7
Rinsing effectiveness of the eco 40-60 programme at quarter rated capacity (IR): 4,6
Spin speed in the spinning phase of the eco 40-60 programme at rated capacity (S): 1331
Spin speed in the spinning phase of the eco 40-60 programme at half rated capacity (S): 1332
Spin speed in the spinning phase of the eco 40-60 programme at quarter rated capacity (S): 1330
Airborne acoustical noise emissions during eco 40-60
programme (spinning phase): 76
Power consumption in 'off mode' (Po): 0,5
Power consumption in 'standby mode' (Psm): 1
Power consumption in 'standby mode' (Psm) in condition of networked standby (if applicable): 2
Power consumption in 'delay start' (Pds) (if applicable): 4
Additional information:
(c) where appropriate, the references of the harmonised standards
applied;
(d) where appropriate, the other technical standards and specifications used;
(e) the details and the results of calculations performed in accordance with Annex IV;
(f) a list of all equivalent models including the model identifier.

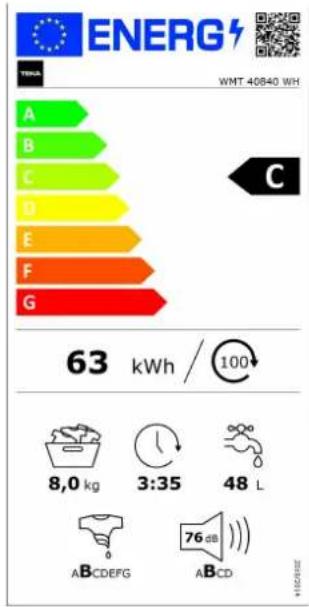

ENERGY LABEL
bar
| Level | Energy Consumption (kWh) | |---|---| | A | 63 | | B | 63 | | C | 63 | | D | 63 | | E | 63 | | F | 63 | | G | 63 | | Metric | Value | | :--- | :--- | | Energy Consumption (kWh) / 100% | 63 | | | 8,0 kg | | | 3:35 | | | 48 L | | | 76 dB | | | ABCDEFG | | | ABCD |
Marke : TEKA
Modell : WMT40840
Kategorie : Waschmaschine
