BEDIENUNGSANLEITUNG S3-A Solidsteel
solidsteel

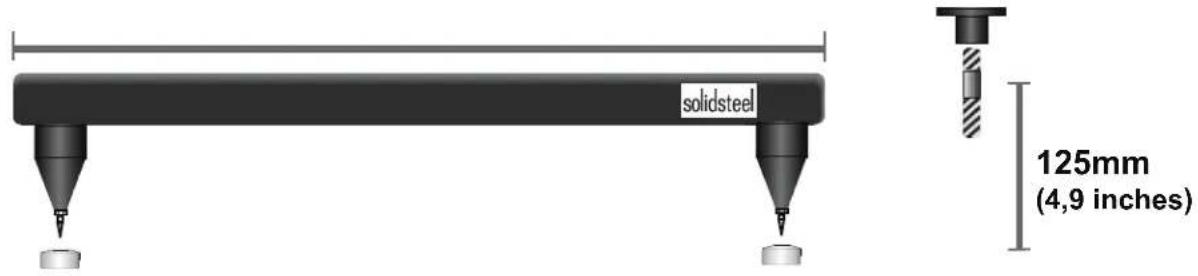

S3-A Audio Base
Width of 430 mm (16,9 inches) and Depth of 583 mm (23,0 inches)
Width of 404 mm (15,9 inches) and Depth of 480 mm (18,9 inches)
Series
Drawing from the prestigious Hyperspike technology, we have created this new S3 Series. The solid and essential structure provides superb audio performance and its modularity allows you to enhance and customize the space between the shelves. The clean lines also can make it very pleasant the aesthetic result. Each of the stems it's composed of aluminum tube painted and filled with special damping material for a good "tune" with the shelves.
Audio Tables
Model Description Outer Dimensions mm | inch Inner Shelves Dim. mm | inch Colour
| W584 H465 D430 | W500 H325 D430 | |||
| S3-2 | Audio table 2 shelves | 23,0x18,3x16,9 | 19,7x12,8x16,9 | Black |
| W584 H655 D430 | W500 H245/245 D430 | |||
| S3-3 | Audio table 3 shelves | 22,0x25,80x16,90 | 19,7x9,6/9,6x16,9) | Black |
| W584 H885 D430 | W500 H225/225/245 D430 | |||
| S3-4 | Audio table 4 shelves | 23,0x34,8x16,9 | 19,7x8,9/8,9/9,6x16,9 | Black |
| W584 H1035 D430 | W500 H205/205/205/205 D430 | |||
| S3-5 | Audio table 5 shelves | 23,0x40,7x16,9 | 19,7x8,0/8,0/8,0/8,0x16,9 | Black |
| W584 H500 D430 | W500 H305 D430 | |||
| S5-2 | Audio table 2 shelves | 23,0x19,7x16,9 | 19,7x12,0x16,9 | Black |
| W584 H755 D430 | W500 H205/305 D430 | |||
| S5-3 | Audio table 3 shelves | 23,0x29,7x16,9 | 19,7x8,0/12,0x16,9 | Black |
| W584 H1010 D430 | W500 H205/205/305 D430 | |||
| S5-4 | Audio table 4 shelves | 23,0x39,7x16,9 | 19,7x8,0/8,0/12,0x16,9 | Black |
| W584 H1085 D430 | W500 H185/185/185/185 D430 | |||
| S5-5 | Audio table 5 shelves | 23,0x42,7x16,9 | 19,7x7,3/7,3/7,3/7,3x16,9 | Black |
Audio Table for Power-Amps
| Model | Description | Outer Dimensions mm | inch | Inner Shelves Dim. mm | inch | Colour |
| W430 H120 D583 | W430 D583 | |||
| S3-A | Audio Table for Power-Amps | 16,9x4,7x16,9 | 16,9x16,9 | Black |
Wall Shelf
| Model | Description | Dimensions | Inner Shelves Dim. mm | inch | Colour |
| W550 H160/50 D470 | W550 H160/50 D470 | |||
| WS-5 | Wall shelf for turntable | 21,7x6,3/2,0x18,5 | 19,7x16,1 | Black |
Stands for Bookshelf Loudspeakers
| Model | Description | Dimensions | Inner Shelves Dim. mm | inch | Colour |
| SS-5 | Stands for Bookshelf Loudspeakers | W330 H525 D310 | W190 x D190 | |
| 13,0x20,7x12,2 | 7,5x7,5 | Black | ||
| SS-5s | Stands for Bookshelf Loudspeakers | W330 H525 D310 | W190 x D190 | |
| 13,0x20,7x12,2 | 7,5x7,5 | Silver | ||
| SS-6 | Stands for Bookshelf Loudspeakers | W330 H625 D310 | W160 x D160 | |
| 13,0x20,7x12,2 | 7,5x7,5 | Black | ||
| SS-6s | Stands for Bookshelf Loudspeakers | W330 H625 D310 | W160 x D160 | |
| 13,0x20,7x12,2 | 7,5x7,5 | Silver | ||
| SS-7 | Stands for Bookshelf Loudspeakers | W330 H725 D310 | W160 x D160 | |
| 13,0x28,5x12,2 | 6,3x6,3 | Black | ||
| SS-7s | Stands for Bookshelf Loudspeakers | W330 H725 D310 | W160 x D160 | |
| 13,0x28,5x12,2 | 6,3x6,3 | Silver | ||
| NS-6 | Stands for Bookshelf Loudspeakers | W230 H625 D280 | W160 x D160 | |
| 9,1x24,6x11,0 | 6,3x6,3 | Black | ||
| NS-7 | Stands for Bookshelf Loudspeakers | W230 H725 D280 | W160 x D160 | |
| 9,1x28,5x11,0 | 6,3x6,3 | Black | ||
| NS-10 | Stands for Bookshelf Loudspeakers | W230 H1020 D280 | W160 x D160 | |
| 9,1x40,1x11,0 | 6,3x6,3 | Black |
Solidsteel reserves the right to amend details of the specifications without notice in line with technical developments.
www.solidsteel.it
solidsteel
