BEDIENUNGSANLEITUNG Vantec-15 DAS Audio
User's Manual
VANTEC
SERIES
VANTEC-12/VANTEC-15/VANTEC-215
VANTEC-18 / VANTEC-218
CONTENTS
SAFETY PRECAUTIONS 3
WARRANTY 4
DECLARATION OF CONFORMITY 5
INTRODUCTION 6 a 7
CONFIGURATIONS 8 a 11

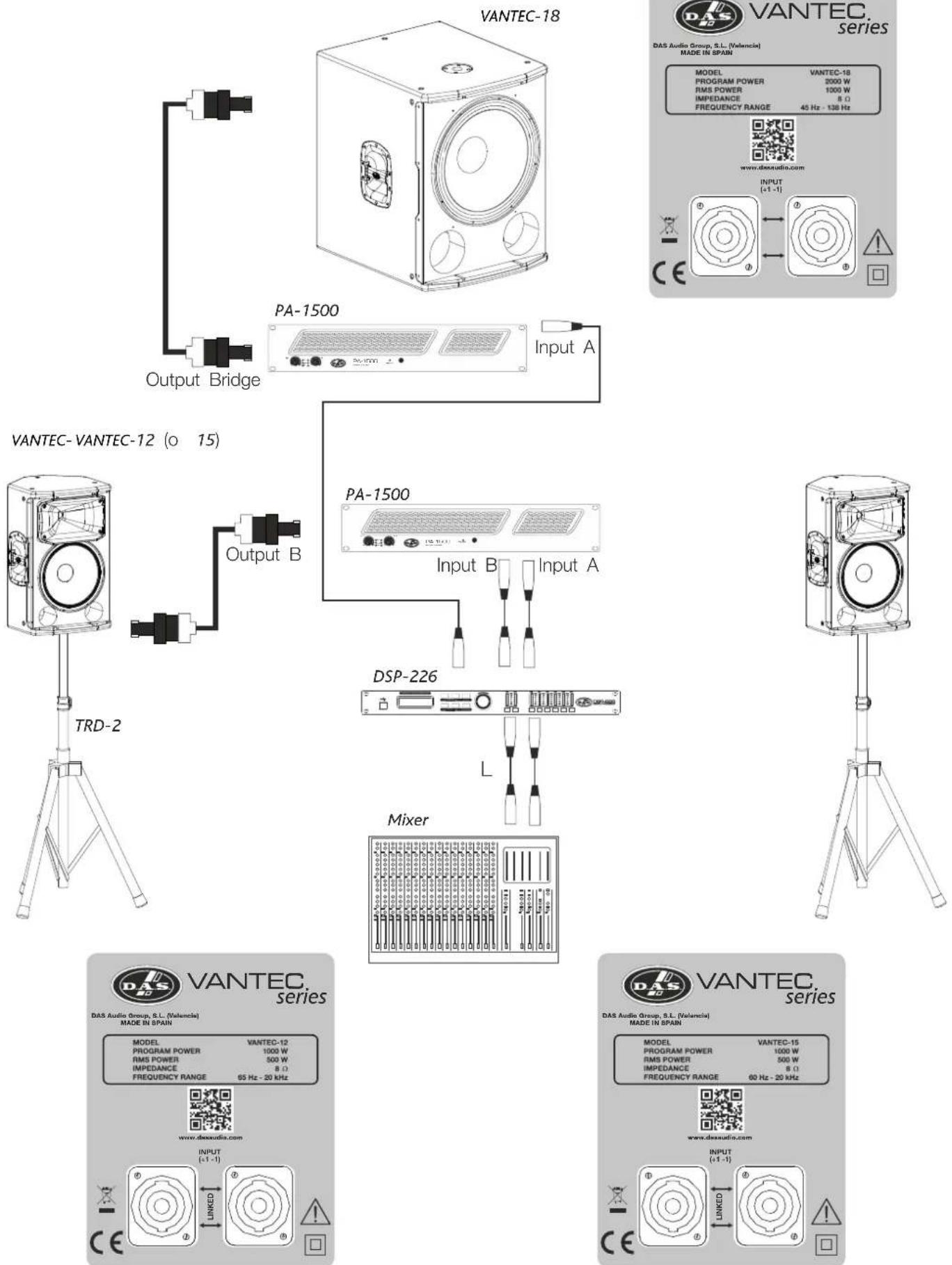

2x VANTEC-12 (VANTEC-15) + 1x VANTEC-18

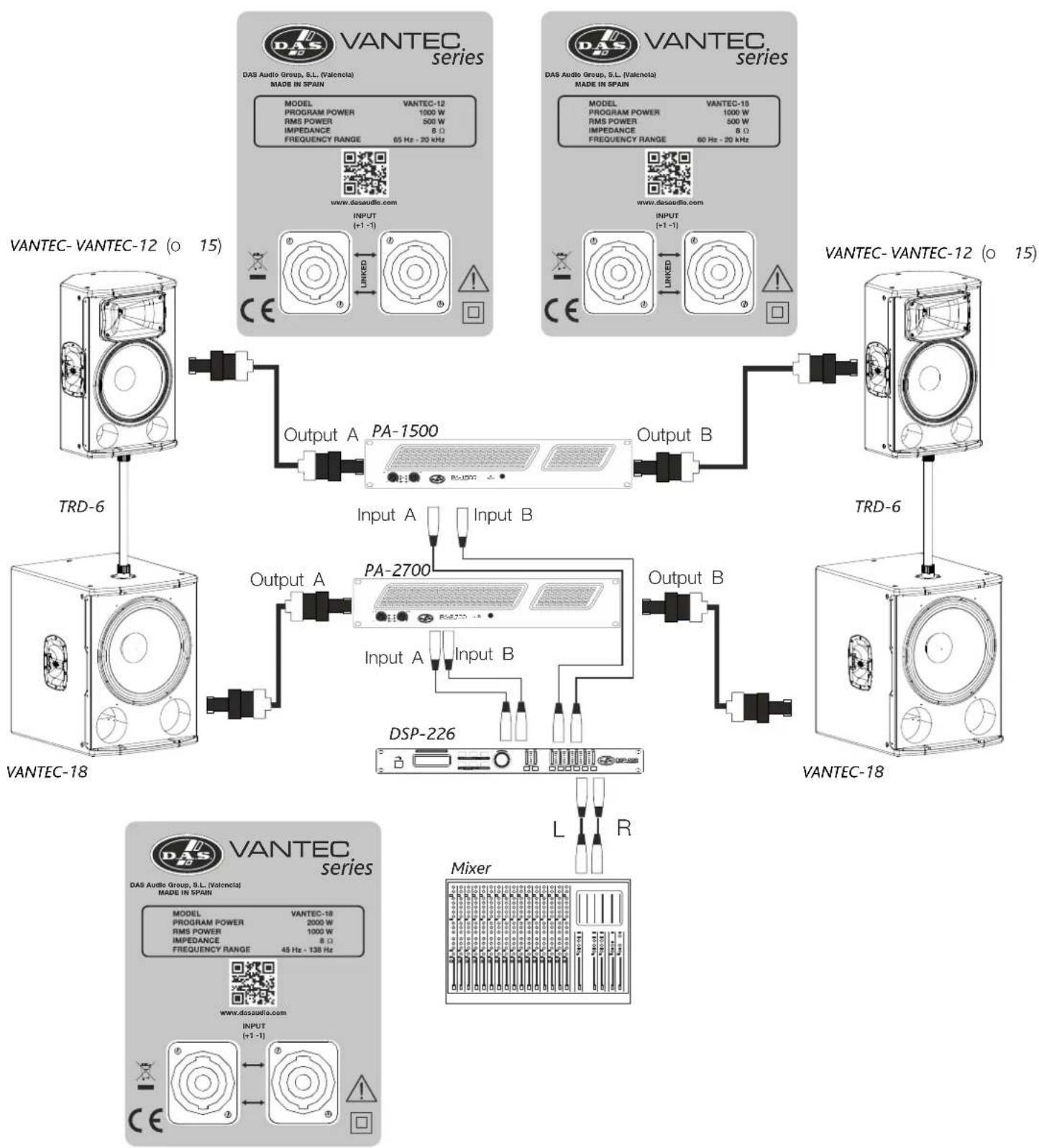

2x VANTEC-12 (VANTEC-15) + 2x VANTEC-18

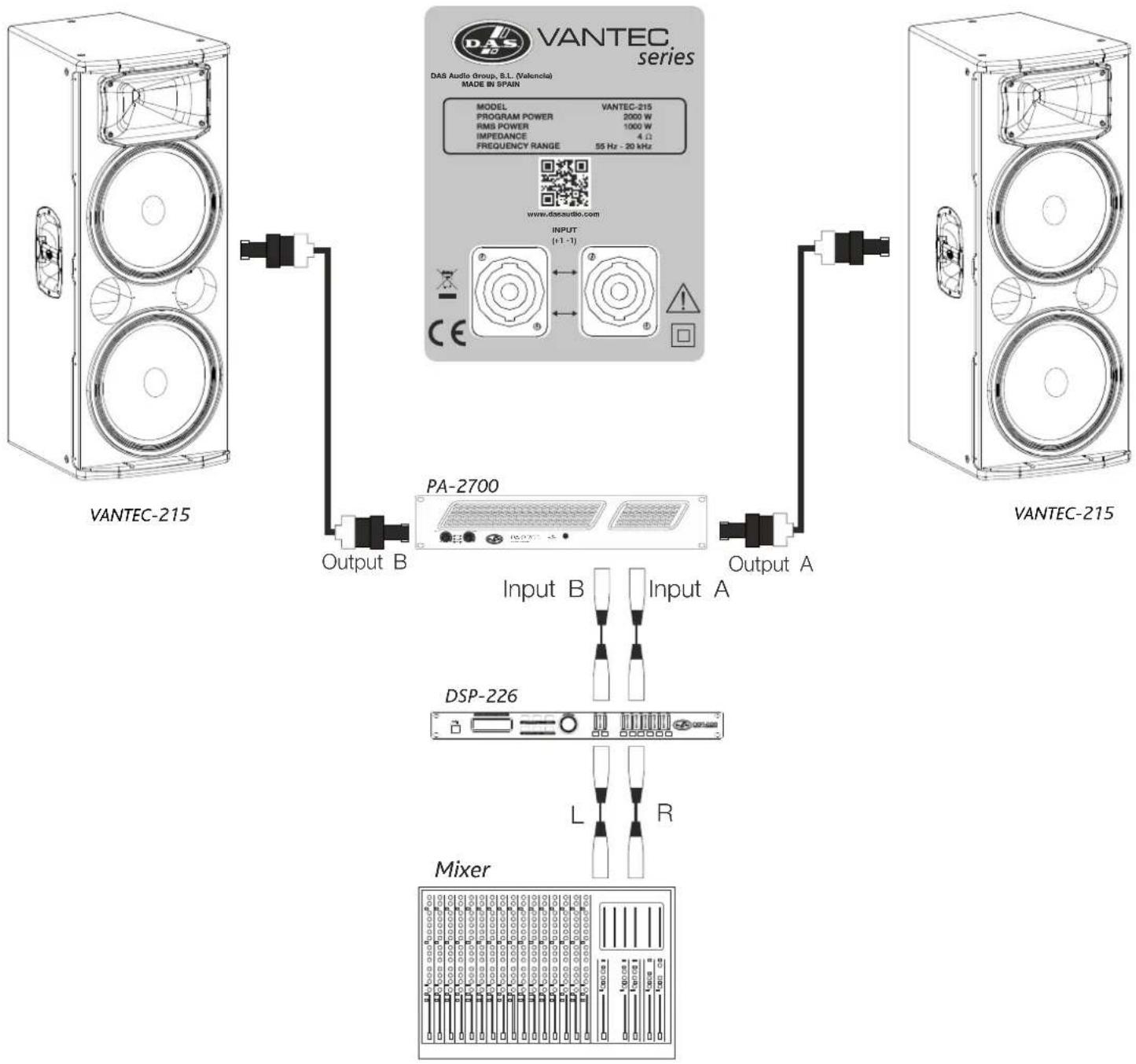

2X VANTEC-215
Monitors with VANTEC
LINE DRAWINGS 12 a 13
SPECIFICATIONS 13
RIGGING SYSTEM 14 a 15
Cajas acústicas pasivas / Passive loudspeaker enclosures
Conserve y lea todas estas instrucciones.
Siga todas las advertencias.
El signo de exclamación dentro de un triángulo indica la existencia de componentes internos cuyo reemplazo puede afectar a la seguridad.

Keep these instructions.
Heed all warnings. Follow all instructions.
The exclamation point inside an equilateral triangle indicates the existence of internal components whose substitution may affect safety.
El doble cuadrado indica equipo de Clase II. The double square

Class II device.
Las especificaciones se encuentran en la etiqueta de la parte posterior del producto.
The specifications can be found on the rear label of the product.
El colgado del equipo sólo debe realizarse utilizando los herrajes de colgado recomendados y por personal cualificado. No cuelgue la caja de las asas.
The appliance should be flown only from the rigging points and by qualified personnel. Do not suspend the box from the handles.
No exponga este equipo a la lluvia o humedad. No exponga el equipo a salpicaduras ni coloque sobre él objetos que contengan líquidos, tales como vasos y botellas. Equipo IP-20.
Do not expose this device to rain or moisture. Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit. IP-20 equipment.
Este símbolo indica que el presente producto no puede ser tratado como residuo doméstico normal, sino que debe entregarse en el correspondiente punto de recogida de equipos eléctricos y electrónicos.

This symbol on the product indicates that this product should not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
Equipo diseñado para funcionar entre -25°C y 45°C. La humedad relativa máxima del 95%.
Working temperature ranges from -25°C to 45°C. The maximum relative humidity of 95%.
El cableado exterior conectado al equipo requiere de su instalación por una persona instruida o el uso de cables flexibles ya preparados.
The outer wiring connected to the device requires installation by an instructed person or the use of a flexible cable already prepared.
El equipo cuenta con dos conectores de entrada en paralelo para facilitar la conexión de varias cajas en paralelo.
Note that the two Speakon input connectors are wired in parallel to provide easy parallel connection of several enclosures.
No emplace altavoces en proximidad a equipos sensibles a campos magnéticos, tales como monitores de televisión o material magnético de almacenamiento de datos.

Do not place loudspeakers in proximity to devices sensitive to magnetic fields such as television monitors or data storage magnetic material.
Para las cajas con vaso para trípode, la altura máxima de seguridad desde el suelo a la base de la caja montada sobre trípode modelo TRD-2, con pies a 55 cm del eje del trípode, es:

For enclosures with tripod socket, the maximum safety height from floor to bottom of enclosure when mounting on a TRD-2 tripod, with legs spread 55cm from the central pole, is:
VANTEC-12---->115 cm
VANTEC-15---->105 cm
VANTEC-12---->115 cm
VANTEC-15---->105 cm
No existen partes ajustables por el usuario en el interior de este equipo. Cualquier operación de mantenimiento o reparación debe ser realizada por personal cualificado. Es necesario el servicio técnico cuando el aparato se haya dañado de alguna forma, tal como que haya caído líquido o algún objeto en el interior del aparato, haya sido expuesto a lluvia o humedad, no funcione correctamente o haya recibido un golpe.
No user serviceable parts inside. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
Limpie con un paño seco. No use limpiadores con disolventes.
Clean only with a dry cloth. Do not use any solvent based cleaners.
GARANTÍA
Todos nuestros productos están garantizados por un periodo de 24 meses desde la fecha de compra.
Las garantías sólo serán válidas si son por un defecto de fabricación y en ningún caso por un uso incorrecto del producto.
Las reparaciones en garantía pueden ser realizadas, exclusivamente, por el fabricante o el servicio de asistencia técnica autorizado.
Otros cargos como portes y seguros, son a cargo del comprador en todos los casos.
Para solicitar reparación en garantía es imprescindible que el producto no haya sido previamente manipulado e incluir una fotocopia de la factura de compra.
WARRANTY
All our products are warranted against any manufacturing defect for a period of 2 years from date of purchase.
The warranty excludes damage from incorrect use of the product.
All warranty repairs must be exclusively undertaken by the factory or any of its authorised service centers.
To claim a warranty repair, do not open or intend to repair the product.
Return the damaged unit, at shippers risk and freight prepaid, to the nearest service center with a copy of the purchase invoice.

DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY
DAS Audio Group, S.L.
C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España (Spain).
Declara que :VANTEC-12/VANTEC-15/VANTEC-215/VANTEC-18 Declares that :VANTEC-12/VANTEC-15/VANTEC-215/VANTEC-18
Cumple con los objetivos esenciales de las Directivas: Abide by essential objectives relating Directives:
• De Baja Tensión / Low Voltage 2014/35/UE
• RoHS 2011/65/UE
• RAEE (WEEE) 2012/19/UE
Y es conforme a las siguientes Normas Armonizadas Europeas: In accordance with Harmonized European Norms:
- EN 60065:2014.- Audio, video and similar electronic apparatus. Safety requirements.
- EN 50581:2012.- Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances.
INTRODUCTION
The Vantecseries inherits the exceptional sound quality and rugged build that have made DAS professional systems an international sound reinforcement standard. Designed from "real world" experience, they offer users outstanding performance, absolute reliability, and unparalleled convenience. Whether it is in a high-profile venue or on the stage of a major event, the vantec series will provide the power and definition needed to make your performance a success.
Features


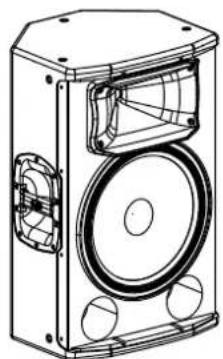

- Two-way full-range system
- 12" bass loudspeaker
- Compression driver with titanium diaphragm
- Symmetric enclosure design for stage monitor use

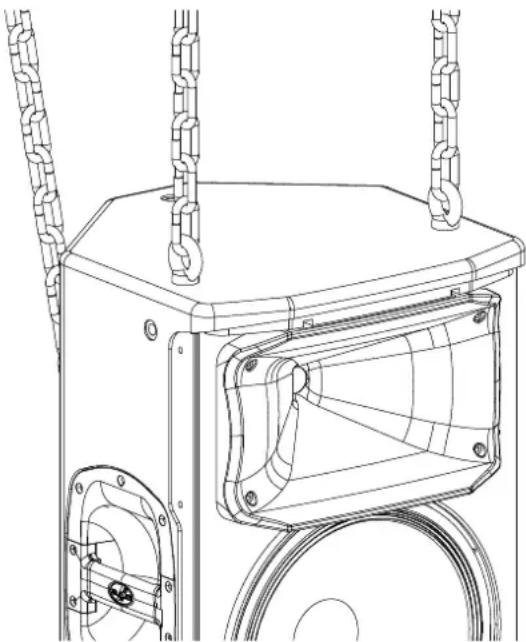

- Built-in rigging points (eyebolt based)
- Stand mountable
The VANTEC-12 is a 2-way passive full-range loudspeaker that utilizes a 12" low frequency transducer and a 1" exit compression driver. The multi-angle cabinet is constructed of Birch plywood protected by an environmentally friendly black paint finish. Two bar handles and a steel grille are provided. A 35mm tripod socket allows for stand mounting with two possible angles 0° or -10°.


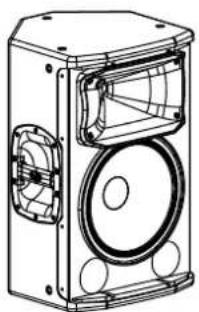

-Two-way, full-range system
-15" bass loudspeaker
-Compression driver with titanium diaphragm
-Symmetric enclosure design for stage monitor use
-Built-in rigging points (eyebolt based)
-Stand mountable
This 2-way passive full-range loudspeaker utilizes a 15" low frequency transducer and a 1" exit compression driver with titanium diaphragm. The cabinet is constructed of Birch plywood and finished with an environmentally friendly black paint finish. Two bar handles are provided and a steel grille protects components. A 35 mm tripod socket allows for stand mounting with two possible angles 0° or -10°. Rigging points provide a safe and simple solution for suspending the VANTEC-15.


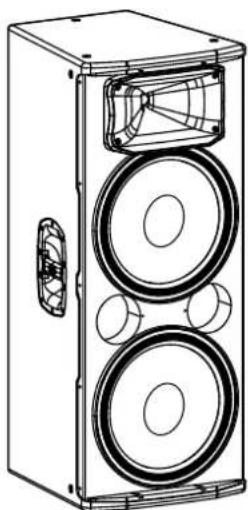

-Two-way, full-range system
-2 x 15" bass loudspeaker
-Compression driver with titanium diaphragm
-Built-in rigging points (eyebolt based)
The VANTEC-215 is a 2-way passive full range loudspeaker utilizes two 15" bass loudspeakers for extra low frequency punch and higher SPL. High frequencies are handled by a 1" compression driver with titanium diaphragm. The trapezoidal cabinet is constructed using Birch plywood and protected with a hard-wearing black paint finish. Two bar handles and a steel grille sealed against corrosion using a polyamide powder coat finish are provided. Rigging points provide a safe and simple way to fly the VANTEC-215 cabinets.


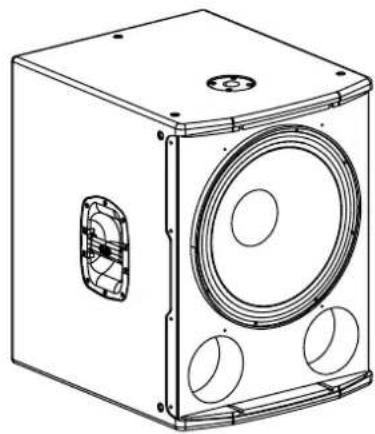

-Bass-reflex subwoofer system
-18" low frequency transducer
-Precise and powerful bass reproduction
-Top located pole mount socket
The VANTEC-18 bass system incorporates a 18" low frequency transducer with a 4" voice coil mounted as a direct radiator into a bass-reflex cabinet. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The VANTEC-18 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the VANTEC-18 and two bar handles makes moving easy.


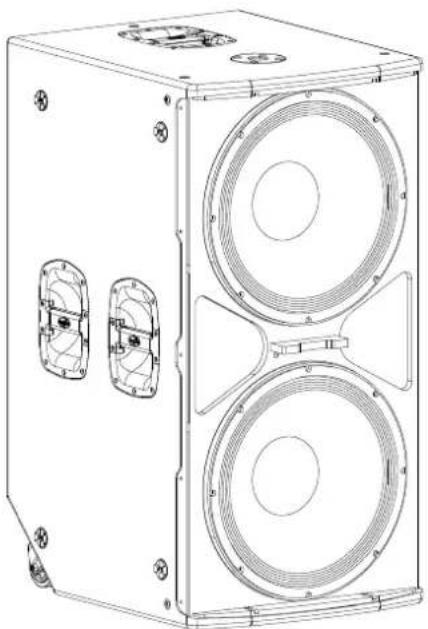

- Bass-reflex subwoofer system
- Twin 18LX long excursion transducer
- Precise and powerful bass reproduction
- Top located pole mount socket
- Rigging points
- Rear located wheels for easy movement
The VANTEC-218 bass system incorporates the legendary 18LX low frequency transducer with a 4" voice coil mounted as direct radiator into a bass-reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish. The VANTEC-218 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the VANTEC-218. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier.
CONFIGURATIONS
subgraph_VANTEC-18["DAIS Audio Group (o 15)"]
A["TRD-6"] --> B["Output A"]
C["VANTEC-18"] --> D["Output A"]
E["VANTEC-18"] --> F["Output A"]
G["VANTEC-18"] --> H["Output A"]
I["VANTEC-18"] --> J["Output A"]
K["VANTEC-18"] --> L["Output A"]
M["VANTEC-18"] --> N["Output A"]
O["VANTEC-18"] --> P["Output A"]
Q["VANTEC-18"] --> R["Output A"]
S["VANTEC-18"] --> T["Output A"]
U["VANTEC-18"] --> V["Output A"]
W["VANTEC-18"] --> X["Output A"]
Y["VANTEC-18"] --> Z["Output A"]
AA["VANTEC-18"] --> AB["Output A"]
AC["VANTEC-18"] --> AD["Output A"]
AE["VANTEC-18"] --> AF["Output A"]
AG["VANTEC-18"] --> AH["Output A"]
AI["VANTEC-18"] --> AJ["Output A"]
AK["VANTEC-18"] --> AL["Output A"]
AM["VANTEC-18"] --> AN["Output A"]
AO["VANTEC-18"] --> AP["Output A"]
AQ["VANTEC-18"] --> AR["Output A"]
AS["VANTEC-18"] --> AT["Output A"]
AU["VANTEC-18"] --> AV["Output A"]
AW["VANTEC-18"] --> AX["Output A"]
AY["VANTEC-12 (o 15)"]
end
subgraph_VANTEC-series["DAIS Audio Group (o 15)"]
B -->|OUTPUT A| PA["PA-1500"]
D -->|OUTPUT B| PA
PA -->|INPUT A| DSP["DSP-226"]
PA -->|INPUT B| DSP
DSP -->|L/R| Mixer
end
subgraph_VANTEC-series["DAIS Audio Group (o 15)"]
B -->|OUTPUT B| DSP
D -->|OUTPUT B| DSP
DSP -->|L/R| Mixer
end
style VANTEC-series fill:#f9f,stroke:#333
style VANTEC-series fill:#ccf,stroke:#333


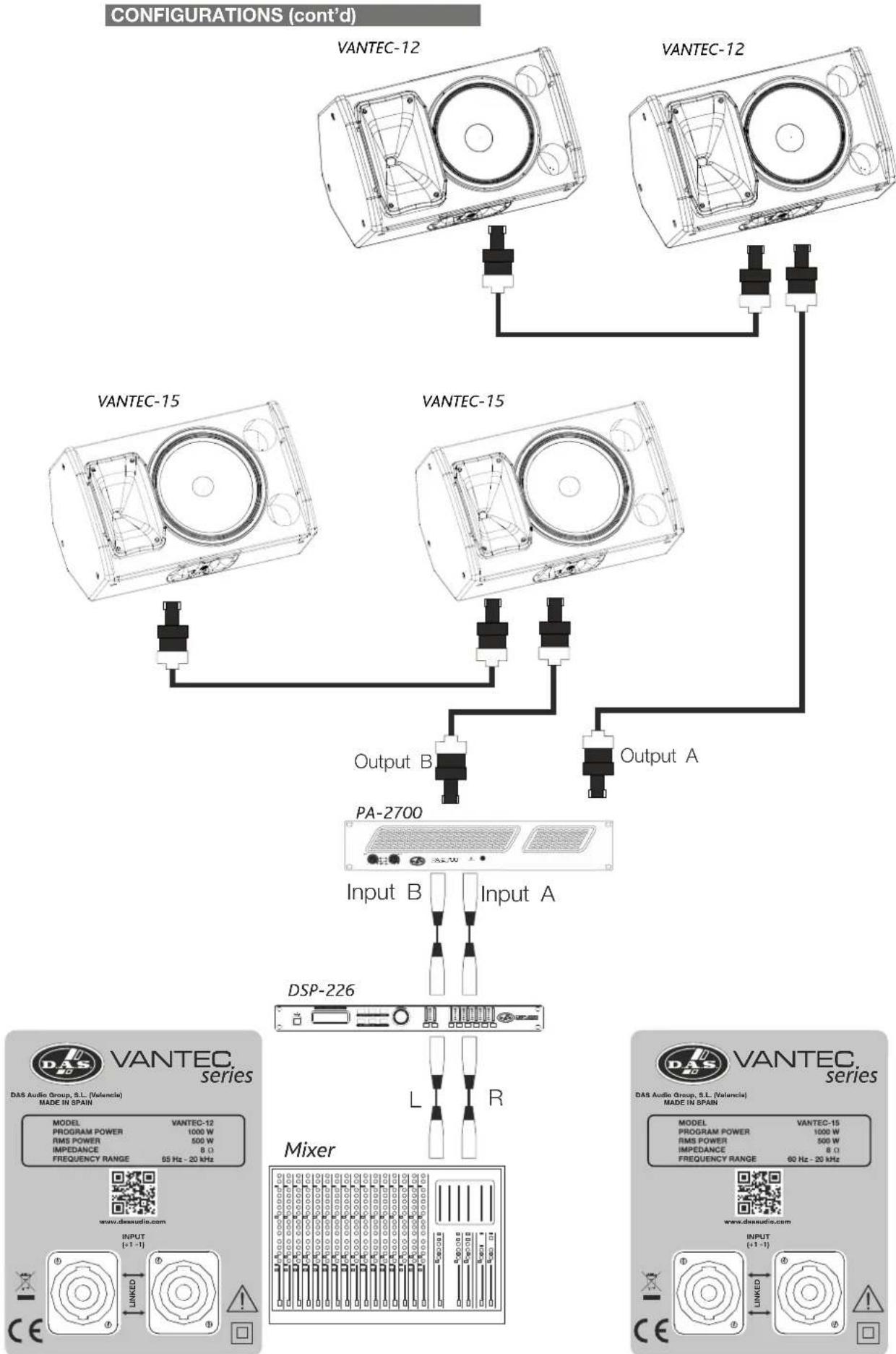

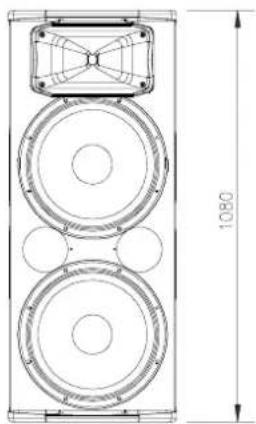

ALL DIMENSIONS IN MILLIMETERS

SPECIFICATIONS
| Model | VANTEC-12 | VANTEC-15 | VANTEC-215 | VANTEC-18 | VANTEC-218 |
| Peak Power Handling (-10 dB) | 2000 W | 2000 W | 4000 W | 4000 W | 8000 W |
| RMS Power Handling ^TM | 500 W | 500 W | 1000 W | 1000 W | 2000 W |
| Frequency Range (-10 dB) | 65 Hz - 20 kHz | 60 Hz - 20 kHz | 55 Hz - 20 kHz | 45 Hz - 138 Hz | 30 Hz - 125 Hz |
| HF Horn Coverage Angles(-6dB) | 90° x 50° | 90° x 50° | 90° x 50° | - | - |
| On-axis Sensitivity 1 W / 1m | 98 dB SPL | 99 dB SPL | 102 dB SPL | 98 dB SPL | 101 dB SPL |
| Rated Maximum Peak SPL | 135 dB | 135 dB | 138 dB | 134 dB | 140 dB |
| Nominal Impedance | 8 ohms | 8 ohms | 4 ohms | 8 ohms | 4 ohms |
| Transducers/Replacement Parts | LF: 12F / GM-12F | LF: 15F / GM-15F | LF: 2x 15F / GM-15F | LF: 18LX / GM-18LX | LF: 2x 18LX / GM-18LX |
| HF: M-28 / M-28 | HF: M-28 / M-28 | HF: M-28 / M-28 | |||
| Enclosure Material | Birch Plywood | Birch Plywood | Birch Plywood | Birch Plywood | Birch Plywood |
| Color/Finish Connectors | Black ISO-flex Paint | Black ISO-flex Paint | Black ISO-flex Paint | Black ISO-flex Paint | Black ISO-flex Paint |
| 2x NL4 Speakon | 2x NL4 Speakon | 2x NL4 Speakon | 2x NL4 Speakon | 2x NL4 Speakon | |
| Dimensions (H x W x D) | 61 x 38 x 37.5 cm | 71 x 44.4 x 37.5 cm | 108 x 44.4 x 50.2 cm | 71 x 54 x 65 cm | 106 x 54 x 67 cm |
| 24 x 15 x 14.8 in | 28 x 17.5 x 14.8 in | 42.5 x 17.5 x 19.8 in | 28 x 21.3 x 25.6 in | 41.7 x 21.3 x 26.4 in | |
| Weight Accessories | 19 kg (41.8 lb) | 22.8 kg (50.2 lb) | 40 kg (88 lb) | 35 kg (77 lb) | 70 kg (154 lb) |

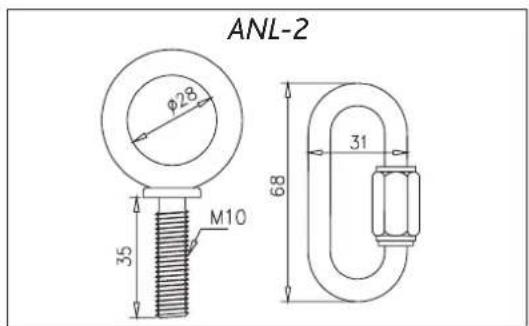

| ANL-2 Eye Bolt | ANL-2 Eye Bolt | ANL-2 Eye Bolt | ANL-2 Eye Bolt | ANL-2 Eye Bolt | |
| TRD-2 Speaker Stand | TRD-2 Speaker Stand | FUN-VT215 Cover | TRD-6 Pole Mount | TRD-6 Pole Mount | |
| TRD-6 Pole Mount | TRD-6 Pole Mount | FUN-VT18 Cover | |||
| FUN-VT12 Cover | FUN-VT15 Cover |
Notes: (1) Based on a 2 hour test continuously applying 6 dB crest factor pink noise (IEC shaped).
DAS Audio Group, S.L. continuously strives to enhance its products through investigation and development. All specifications are subject to change without prior notice.

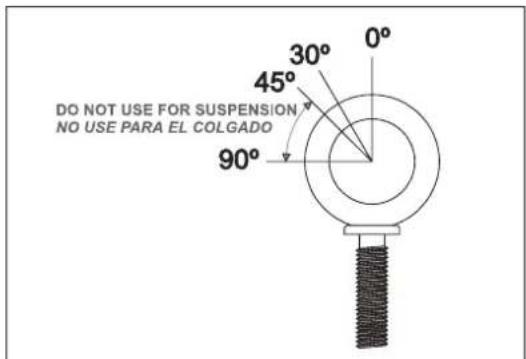

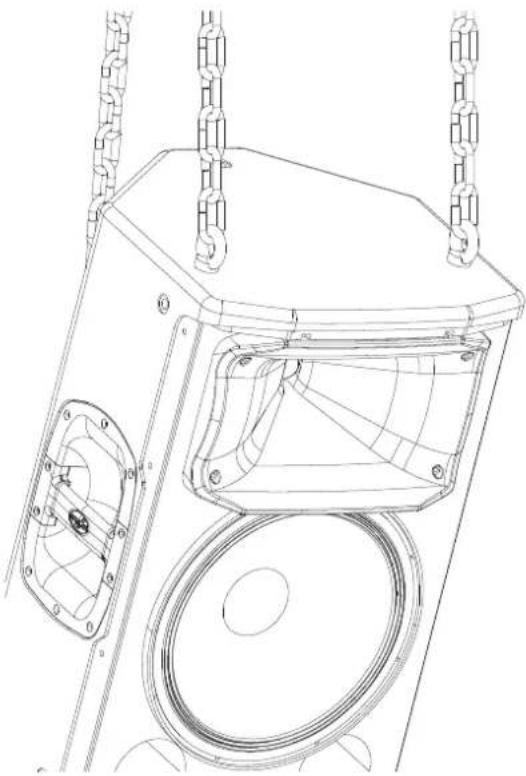

RIGGING
Warnings
This manual contains needed information for flying DAS Audio cabinets, description of the elements and safety precautions. To perform any operations related to flying the system, read the present document first, and act on the warnings and advice given. The goal is to allow the user to become familiar with the mechanical elements required to fly the acoustic system, as well as the safety measures to be taken during set-up and teardown.
Only experienced installers with adequate knowledge of the equipment and local safety regulations should fly speaker boxes. It is the user's responsibility to ensure that the systems to be flown (including flying accessories) comply with state and local regulations.
The working load limits in this manual are the results of tests by independent laboratories. It is the user's responsibility to stay within safe limits. It is the user's responsibility to follow and comply with safety factors, resistance values, periodical supervisions and warnings given in this manual. Product improvement by means of research and development is on going at DAS Specifications are subject to change without notice.
It is common practice to apply 5:1 safety factors for enclosures and static elements. For slings and elements exposed to material fatigue due to friction and load variation the following ratios must be met; 5:1 for steel cable slings, 4:1 for steel chain slings and 7:1 polyester slings. Thus, an element with a breaking load limit of 1000 kg may be statically loaded with 200 kg (5:1 safety factor) and dynamically loaded with 142 kg (7:1 safety factor).
When flying a system, the working load must be lower than the resistance of each individual flying point in the enclosure, as well as each box. Hanging hardware should be regularly inspected and suspect units replaced if in doubt. This is important to avoid injury and absolutely no risks should be taken in this respect. It is highly recommended that you implement an inspection and maintenance program on flying elements, including reports to be filled out by the personnel that will carry out the inspections. Local regulations may exist that, in case of accident, may require you to present evidence of inspection reports and corrective actions after defects were found.
Absolutely no risks should be taken with regards to public safety. When flying enclosures from ceiling support structures, extreme care should be taken to assure the load bearing capabilities of the structures so that the installation is absolutely safe. Do not fly enclosures from unsafe structures. Consult a certified professional if needed. All flying accessories that are not supplied by DAS Audio are the user's responsibility. Use at your own risk.
Introduction
Flyable vantec series models feature 6 internal steel angles, with 2 mounting threads each, so that 12 flying points are available (2 on each side, 3 on the top panel and 3 on the bottom panel and 2 on the rear panel). Eyebolt flying points are factory sealed with M10 screws, which are replaced with eyebolts on the flying points as required. Flying with eyebolts is very economical and safe, and is specially recommended for fixed installations where the boxes are permanently fixed.
The illustration shows the internal metal hardware of an enclosure with eyebolt flying.
The Allen-head screws must be removed and replaced by M10 eyebolts on one side of the enclosure. Each rigging point has 200 kg (440 lb) working load limit. Then choose the slings or chains of required load resistance and length, bearing in mind that the length difference between the front and back slings or chains will determine the vertical orientation. Alternatively, the back bottom eyebolt points can be used to provide vertical orientation.
The ANL-2 set is an optional set of four eyebolts and four carabiners. (Dimensions are in millimetres).
When using eyebolts it is important to bear in mind that the rated working load is only true for a load applied in the plane of the eye, and is significantly reduced for other angles. The drawing illustrates the concept. The table shows the variation of the working load as a function of the load angle. In the case of the ANL-2 eyebolt, this means that the 200 kg working load becomes 60 kg at 45 degrees. Do not use eyebolt flying if the load angle is higher than 45 degrees.
| % Working load | 100% | 85% | 30% | 25% |
DAS Audio Group, S.L.
C/. Islas Baleares, 24
46988 Fuente del Jarro
Valencia, SPAIN
Tel. +34 96 134 0860
DAS Audio of America, INC.
6900 NW 52th Street
Miami, FL 33166 - U.S.A.
TOLL FREE: 1 888 DAS 4 USA
DAS Audio Asia PTE. LTD.
3 Temasek Avenue, Centennial
Tower #34-36
Singapore 039190
Tel. +65 6549 7760
DAS do Brasil LTDA.
Rua Dos Andradas, 382 SL
Santa Efigênia, São Paulo
Brasil. CEP: 01208-000
Tel. +551133330764
