TGW 6500 PRODUCT DESCRIPTION SHEET


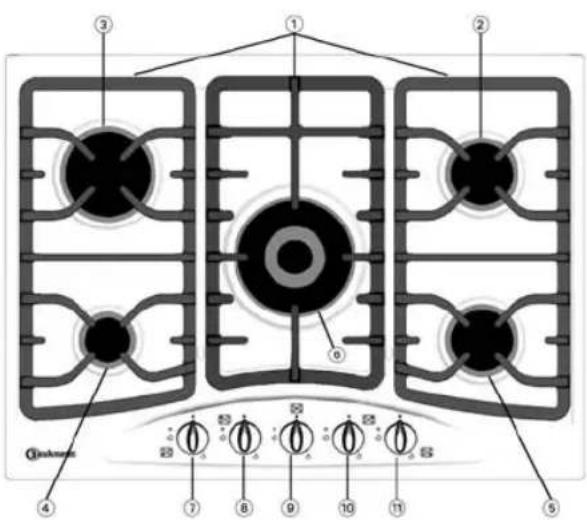

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ Quickener- Removable panstand grids
2-5. Medium burners - Large burner
- Small burner
- Triple crown burner
- Small burner control knob
- Large burner control knob
- Triple crown burner control knob
- Medium burner control knob
- Medium burner control knob
Symbols
Shaded circle
Large flame and star
Small flame
Tap closed
Maximum opening/delivery and electric ignition
Minimum opening or reduced delivery
Operation of burners with safety device and electric ignition
To light one of the burners:
- Press the relative knob and turn it anticlockwise to the large flame and star setting.
- At the same time, hold the knob down until the burner ignites.
• After the burner has ignited, keep the knob pressed down for about 10 seconds. - Release the knob.
If the burner does not ignite, repeat the operations described above.
Note:
— Should particular local conditions of the delivered gas make ignition of the burner difficult, it is advisable to repeat the operation with the knob turned to the small flame setting 🔊
— The burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of a sudden draught, an interruption in the gas delivery, boiling over of liquids, etc.).
— The separator panel, positioned beneath the cooktop at a minimum distance of 20 mm, must be sealed.

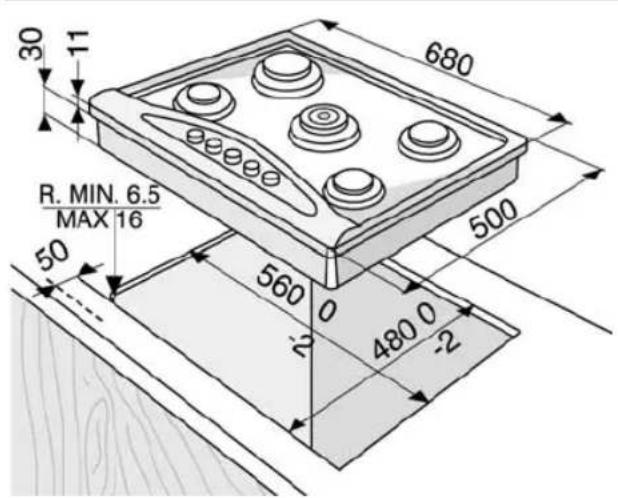

DIMENSIONS OF COOKING HOB AND WORKTOP (mm)


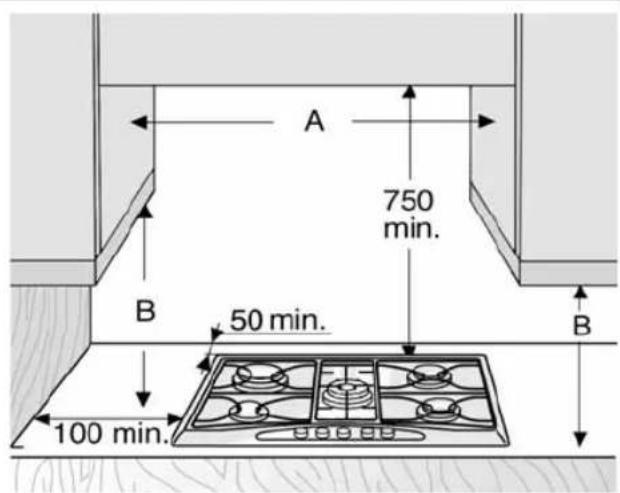

A 750 min. B 50 min. B 100 min.NOTE: If the distance "A" between the wall cabinets is between 600 mm and 680 mm, the height "B" must be a minimum of 520 mm.
If the distance "A" between the wall cabinets is greater than the width of the cooktop, the height "B" must be a minimum of 400 mm.
Before installing a hood above the cooktop please refer to the hood instructions, which specify the correct distance. In case of installation of an oven under the cooktop, please refer to the separate oven instructions.
INJECTORS TABLE CATEGORY II2E+3+
| Type of gas used | Type of burner | Injector marking | Rated heat capacity kW | Rated consumption | Reduced heat capacity kW | Gas pressure mbar | ||
| min. | rat. max. | |||||||
| NATURAL GAS (Methane) G20 | Triple crown | 132 | 3.30 | 314 l/h | 1.50 | 17 20 | 25 | |
| large | 128 | 3.00 | 286 l/h | 0.60 | ||||
| medium | 94 | 1.65 | 157 l/h | 0.35 | ||||
| small | 76 | 1.00 | 95 l/h | 0.30 | ||||
| LIQUID | Triple crown | 92 | 3.30 | 240 g/h | 1.50 | 20 28-30 35 | ||
| PETROLEUM | large | 85 | 3.00 | 218 g/h | 0.60 | |||
| GAS | medium | 65 | 1.65 | 120 g/h | 0.35 | |||
| (Butane) G30 | small | 50 | 1.00 | 73 g/h | 0.30 | |||
| LIQUID | Triple crown | 92 | 3.30 | 236 g/h | 1.50 | 25 37 45 | ||
| PETROLEUM | large | 85 | 3.00 | 214 g/h | 0.60 | |||
| GAS | medium | 65 | 1.65 | 118 g/h | 0.35 | |||
| (Propane) G31 | small | 50 | 1.00 | 71 g/h | 0.30 | |||
| Type of gas used | Appliance model | Total rated heat capacity kW | Total rated consumption | Air required ( m^3 ) for burning 1m^3 of gas |
| G20 20 mbar | 3C-1R-2SR-1AUX | 10.60 | 1009 l/h | 9.52 |
| G30 28-30 mbar | 3C-1R-2SR-1AUX | 10.60 | 771 g/h | 30.94 |
| G31 37 mbar | 3C-1R-2SR-1AUX | 10.60 | 757 g/h | 23.80 |
NB: To replace the injectors, refer to the "INSTRUCTIONS FOR USE" handbook, "INSTALLATION" section. In this product, the triple crown burner has only one injector (D), therefore the instructions given in point 6 do not have to be followed.
