BEDIENUNGSANLEITUNG Panzer 500 IGS Audio
IGS Audio
- Maja 76d
41400 Myslowice
Poland
M: +48 601597592
www.igsaudio.com
Date: 02/Jan/2013
10-slot, 500-series module power supply


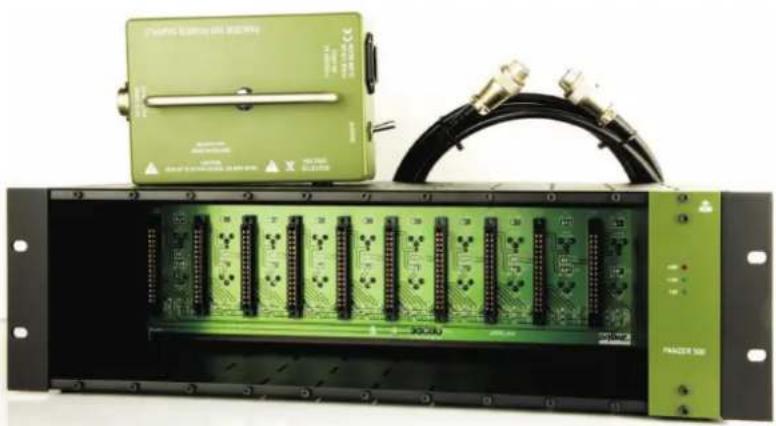

Green industrial network equipment with multiple connectors and a cable, no visible text or symbols on the main components.User's manual
CAUTION / AVIS
RISK OF ELECTRICAL SHOCK. DO NOT OPEN. RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE TOP OR BOTTOM COVER. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
IGS Audio
- Maja 76d
41400 Myslowice
Poland
M: +48 601597592
www.igsaudio.com
PANZER 500
10-slot, 500-series module power supply


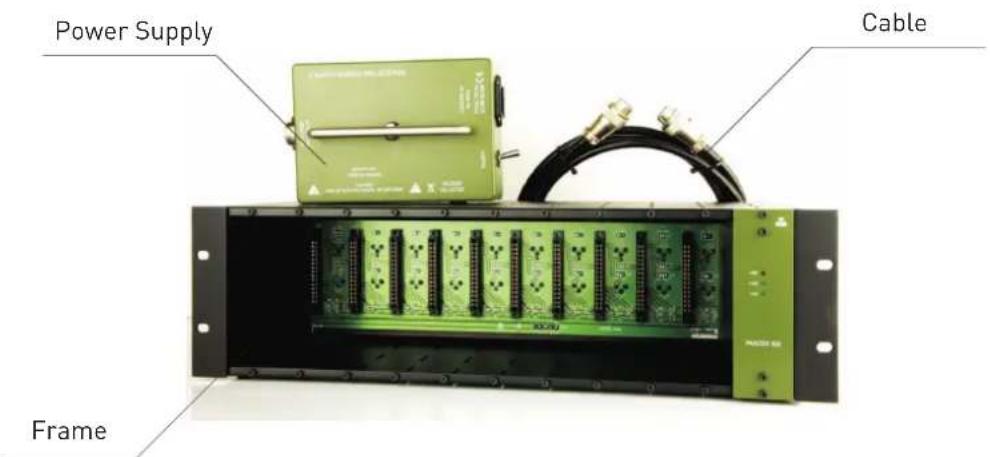

Power Supply Cable FrameUser's manual
Thank you for purchasing the IGS Audio equipment.
- Description.
The Panzer 500 is a 10-slot frame power supply. It's fully compatible with any 500 series modules.
The Panzer 500 contains:
- Frame
- Power Supply
- Cable.
-
Installation:
-
Remove your hardware from a packing box
-
Set your mains voltage (230V/115V) on Power Supply
-
Plug your modules into the Frame
-
Connect the Frame into the Power Supply
-
Connect all your audio cables (XLR)
-
Be careful, check your connections twice
-
Switch on the Panzer 500
-
Check the LED indicators
The Panzer 500 is ready to work now in your audio setup.
IGS Audio
- Maja 76d
41400 Myslowice
Poland
M: +48 601597592
www.igsaudio.com
PANZER 500
10-slot, 500-series module power supply


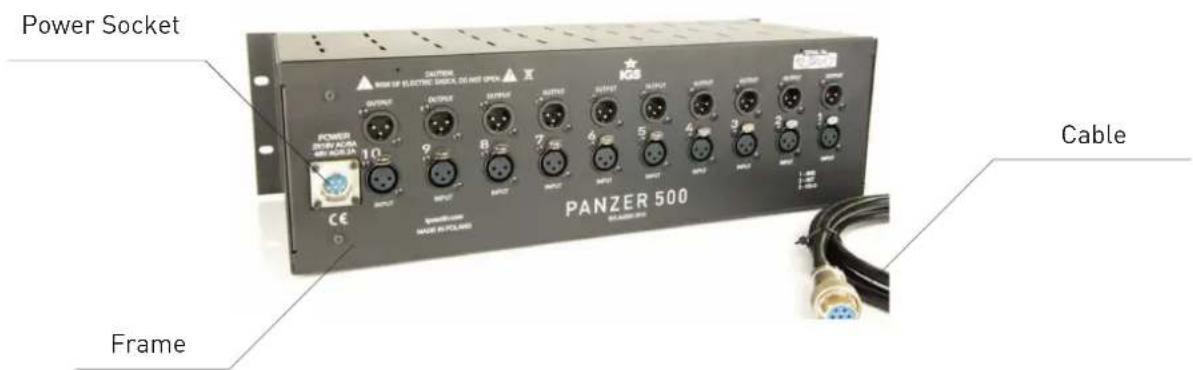

Power Socket POWER SPRING ACJA SPRING ACJA PANZER 500 Frame CableUser's manual
3. Specyfication.
- 10-slot unit for 500-series modules
- 19" rack mount unit
- External linear power supply
- 115/230 VAC
- +16V DC / 2.5A, -16V DC / 2.5A / +48V DC / 0.2A
- Output current 4.2A (420mA per slot)
- Overload and shortcut protection
- Link channel jumper option
- Voltage LED indicators on front panel
- Long lasting EDAC and XLR connectors
- Swiss made power socket
- Industrial standard inter-connectors
- Rubber bottoms
- Package dim: 200x400x500mm
- Sipping Weight: 8.1kg
- Don't connect your gear wet or frozen right after the shipping
- Don't put it on the rain or snow
- Don't put it into the fire.
- Don't open covers
- Don't remove warranty stickers
- Don't change any settings inside
IGS Audio
- Maja 76d
41400 Myslowice
Poland
M: +48 601597592
www.igsaudio.com
PANZER 500
10-slot, 500-series module power supply
WARRANTY CERTIFICATE
This warranty is valid for 3 years from first purchase of the Panzer 500.
Serial number:
Date:
Signature:
The Warranty doesn't cover:
- mechanical damages
- bad connections
- improper using
- Don't connect your gear wet or frozen right after the shipping
- Don't put it on the rain or snow
- Don't put it into the fire.
- Don't open covers
- Don't remove warranty stickers
- Don't change any settings inside
- Maja 76d
41400 Myslowice
Poland
M: +48 601597592
www.igsaudio.com
IGS Audio declares, that our all its products
was developed and manufactured in accordance with the following harmonized European standard, concerning basic requirements for electrical equipment covered by:
EN 55103-1 Electromagnetic compatibility – Product family standard for audio,
EN 55103-2 Electromagnetic compatibility – Product family standard for audio,
EN 60950 Safety of information technology equipment
EN 60268-3:2000, Sound system equipment - Part 3: Amplifiers (IEC 60268-3:2000)
EN 60065:1998, Audio, video and similar electronic apparatus. Safety requirements
PN-EN 61558-2-1 - Separating transformers
PN-EN 50366 - Home usage equipment
IGS Audio appreciates your business and we thank you for working with us.
- Maja 76d
41400 Myslowice
Poland
M: +48 601597592
www.igsaudio.com
IGS Audio declares, that our all its products
was developed and manufactured in accordance with the following harmonized European standard, concerning basic requirements for electrical equipment covered by:
1.
Low Voltage Directive LVD 2006/95/EC:
PN-EN 61010-1:2011 (EN 61010-1:2010),
2.
RoHS 2002/95/EC and RoHS2 2011/65/EU
3.
The IGS Audio products doesn't contains:
- Pb,
- Batteries,
- Switching power supplies.
4.
The typical live time of IGS Audio products is about 30 years.
IGS Audio appreciates your business and we thank you for working with us.
