BEDIENUNGSANLEITUNG Blade BP1000.1 V2 Massive

MASSIVE®

BLADE(BP) SERIES AMPLIFIERS

BP 500.2

BP1000.2

BP1500.2

BP 800.4

BP1000.4

BP1500.5

BP600.1

BP1000.1

BP1200.1

BP2000.1

BP4000.1

BP6000.1

BP8000.1

BP8000 ®

INTRODUCTION

Congratulations!

And thank you for purchasing a "Massive Audio" BLADE(BP) amplifier for your car audio system. You now own an amplifier of uncompromising design and engineering incorporating the latest advances in technology. This handcrafted amplifier is designed to deliver the demands of serious sound competitors. You will soon discover that "BLADE(BP)" amplifiers display a fine balance between high quality, performance and reliability; all proven qualities of "Massive Audio" products.

"Massive Audio" amplifiers are the result of American Craftsmanship using only the highest quality components and quality control standards. In order to provide you with many years of listening pleasure, we recommend you to have your new amplifier installed by an Authorized "Massive Audio Dealer." This will ensure the proper installation of your product, and will also increase the length of your warranty to ONE YEAR.

(Please see the warranty section of this manual for more details.)

Please take a moment to thoroughly read this manual to ensure that you get the maximum benefit from this new addition to your car audio system. When installed properly, this unit will provide years of trouble-free performance.

Should your amplifier ever need service or replacement due to theft, please record the following information, which will help protect your investment.

Model #: ____

Dealer's Name: ____

Date of Purchase: ____

Installation Shop and Date: ____

DESIGN FEATURES

1 OHM STABLE DESIGN (MONO AMPS-BP1200.1, BP2000.1)
2 OHM STABLE DESIGN (CLASS A/B FULL RANGE MONO AMPS-BP600.1, BP1000.1)
2 OHM STABLE DESIGN (CLASS D FULL RANGE MONO AMPS-BP4000.1, BP6000.1, BP8000.1)
☑ DUAL COOLING FANS FOR TEMPERATURE CONTROL (BP4000.1, BP6000.1, BP8000.1)
√ MIL SPEC PCB WITH SMD PARTS
√ BUILT-IN NOISE REDUCTION CIRCUITRY
√ FULL MOSFET WITH HIGH GRADE SWITCHING DEVICES
√ BUILT-IN AUTO SENSING TURN ON FUNCTION (HI-INPUTS)
12V REMOTE OUTPUT FOR EXTERNAL DEVICES (HI-INPUTS)
☑ 0\~12DB VARIABLE BASS BOOST
√ NEXT GENERATION ADVANCED 5 WAY PROTECTION CIRCUITRY
☑ WORLD WIDE STANDARDS COMPLIANT. (ROHS, E-MARK, CTA-2006, CE)

BLADE BΓUDE

RoHS E8 CE Massive Power Standard CTA-2006 Compliance MASSIVE

AMPLIFIER FUNCTIONS

1. SPEAKERS

CONNECT SPEAKERS/SUBWOOFERS TO THESE TERMINALS. BE SURE TO CHECK WIRE FOR PROPER POLARITY. NEVER CONNECT THE SPEAKER CABLES TO CHASSIS GROUND.

2. +12 VOLT POWER

CONNECT THIS TERMINAL THROUGH A FUSE OR CIRCUIT BREAKER TO THE POSITIVE TERMINAL OF THE VEHICLE BATTERY OR THE POSITIVE TERMINAL OF AN ISOLATED AUDIO SYSTEM BATTERY.

3. AUTO SENSING TURN ON FUNCTION / REM OUT(HI-INPUTS)

WHEN USE HI-INPUT, THE AMP CAN DETECT THE DC OFFSET FROM THE HIGH LEVEL INPUT SIGNAL TO AUTO TURN ON/OFF. WHEN THE AMP TURNS ON, THE REM TERMINAL WILL OUTPUT +12V DC TO CONTROL THE OTHER DEVICE TURN ON/OFF.

REM IN: WHEN USE LOW LEVEL INPUT, THE AMP REM IN SHOULD BE CONNECTED TO THE REM OUT OF THE SOURCE UNIT. THE HEAD UNIT CONTROLS THE AMP TURN ON/OFF.

4. GND

CONNECT THIS CABLE DIRECTLY TO THE FRAME OF THE VEHICLE. MAKE SURE THE METAL FRAME HAS BEEN STRIPPED OF ALL PAINT DOWN TO THE BARE METAL.

USE THE SHORTEST DISTANCE POSSIBLE. IT IS ALWAYS A GOOD IDEA TO REPLACE THE FACTORY GROUND AT THIS TIME WITH A LARGER CABLE EQUAL TO THE NEW DIRECTLY TO THE VEHICLE BATTERY GROUND TERMINAL OR ANY OTHER FACTORY GROUND POINTS.

5. RCA INPUT/AUTO HI-LOW LINE CONVERTOR

THESE RCA INPUT JACKS CONNECT WITH YOUR SOURCE UNIT RCA LOW LEVEL OUTPUTS OR VIA OPTIONAL ADAPTER WITH YOUR SOURCE UNIT SPEAKER HIGH LEVEL OUTPUTS. THE USE OF HIGH QUALITY TWISTED PAIR CAR AUDIO CABLES IS RECOMMENDED TO MIND POSSIBILITY OF DISTURBANCE THE AUDIO SIGNAL.

6. REMOTE(MONO BLOCKS)

CONNECT THE REMOTE CONTROLLER TO CONTROL THE SUBWOOFER AMPLIFIER VOLUME FROM THE DRIVER SEAT LOCATION, FOR EASE OF ADJUSTMENT DURING PLAYING.

7. GAIN CONTROL

THE GAIN CONTROL WILL MATCH THE AMPLIFIERS SENSITIVITY TO THE SOURCE UNITS SIGNAL VOLTAGE. THE OPERATING RANGE IS 9V TO 200MV(250MV). THIS IS NOT A VOLUME CONTROL!

8. LOW PASS FILTER CONTROL

THIS CONTROL IS USED TO SELECT THE DESIRED LOW PASS X-OVER FREQUENCY.

9. SUBSONIC FILTER CONTROL

THIS CONTROL CAN FILTED OUT UNWANTED LOW FREQUENCY FROM 15Hz to 55Hz. THIS FUNCTION WILL INCREASE THE POWER HANDLING OF YOUR WOOFERS.

10.BASS BOOST LEVEL KNOB(MONO BLOCK)

THIS CONTROL ADJUST THE BOOST LEVEL OF THE BASSBOOST CENTER FREQUENCY. IT CAN BE ADJUSTED FROM 0 TO 12dB. COMBINING WITH BASSBOOTST FREQUENCY, YOU CAN ACCURATELY MATCH THE AMPLIFIER PERFORMANCE TO WOOFER RESPONSE.

11.Bass Boost FREQ KNOB(MONO BLOCK)

THIS CONTROL THE BOOSTED CENTER FREQUENCY. THE FREQUENCY CAN BE ADJUSTED FROM 50Hz to 750Hz, ACCORDING THE YOUR CAR AUDIO SYSTEM PERFORMANCE. (EG. WHEN YOU ADJUST THIS KNOB TO 50Hz, AMPLIFIER WILL BOOST THE FREQUENCY AROUND 50Hz.) THIS FUNCTION SHOULD BE ADJUSTED COMBINING WITH BASSBOOST LEVEL TUNING.

12.X-OVER MODE(FULL RANGE)

THIS SWITCH WORKS TOGETHER WITH THE FREQ TO ADJUST THE OPERATING FREQUENCY RANGE OF THE AMP. WHEN SWITCH TO LPF OR HPF, THE CORRESPONDING FILTER CAN ADJUST THE OPERATING FREQUENCY RANGE BETWEEN 50Hz to 3KHz. WHEN PUSHING THE SUBWOOFER, PLEASE SWITCH TO LPF MODE; WHEN PUSHING SMALL CALIBER FULL FREQUENCY SPEAKER, MIDDLE AND HIGH FREQUENCY LOUDSPEAKER, PLEASE SWITCH TO HPF MODE. WHEN

PUSHING LARGE CALIBER FULL FREQUENCY SPEAKER, PLEASE SWITCH TO FULL MODE. WHEN SWITCH TO FULL MODE, THE FILTERS WILL NOT FUNCTION.

WARNING: USE BUTTONS AND HPF KNOB CORRECTLY TO PREVENT LOW FREQUENCY DAMAGE TO TWEETERS.

13.FREQUENCY CONTROL(FULL RANGE)

THIS SWITCH WORKS TOGETHER WITH X-OVER FOR HIGH PASS FREQUENCY CROSSOVER WARNING: USE BUTTONS AND HPF KNOB CORRECTLY TO PREVENT LOW FREQUENCY DAMAGE TO TWEETERS.

14. POWER INDICATOR

THIS LED WILL LIGHT UP WHEN AMPLIFIER WORKS PROPERLY.

15. PROTECTION INDICATOR

THIS RED LED WILL LIGHT UP AND WILL BE FLASHING IF THERE IS A FAULT PRESENTED TO THE AMPLIFIER. PLEASE DISCONNECT THE AMPLIFIER AND RESOLVE THE FAULT BEFORE RECONNECTING THE AMPLIFIER.

16. NO INDICATOR

INDICATOR THE AMPLIFIER IS GROUNDED, AND RECEIVING +12V AND REM POWER.

17. CLIP INDICATOR(BP4000.1, BP6000.1, BP8000.1)

THIS LED INDICATES WHEN CLIPPING IS PRESENT WHILE PLAYING SOURCE MATERIAL. IF THE CLIP LED IS FLASHING IT ALSO INDICATES THE CLIP LIMITER IS ENGAGING. AT THIS POINT IT IS SUGGESTED TO ADJUST THE AMPLIFIERS GAIN LEVEL UNTIL THE CLIP LED IS ONLY FLASHING ON PEAK BASS NOTES. THE CLIP LIMITER PROTECTION CAN BE OVERDRIVEN RESULTING IN POSSIBLE DAMAGE TO YOUR SPEAKERS AND/OR THE AMPLIFIER.

18. DUAL INTERNAL COOLING FANS(BP4000.1,BP6000.1,BP8000.1)

WHEN THE DEVICE IS RUNNING, THE FAN STARTS TO RUN AT A SPEED OF 3500 PER SECOND WHEN THE DEVICE SURFACE TEMPERATURE REACHES 50 DEGREES. IF THE DEVICE TEMPERATURE REACHES 80 DEGREES, INSIDE OF THE THERMAL PROTECTION STARTS AUTOMATICALLY, THE DEVICE WILL STOP WORKING. BUT, THE FAN WILL STILL KEEP THE SAME RUNNING SPEED FOR THE DEVICE COOLING.

PANEL LAYOUT

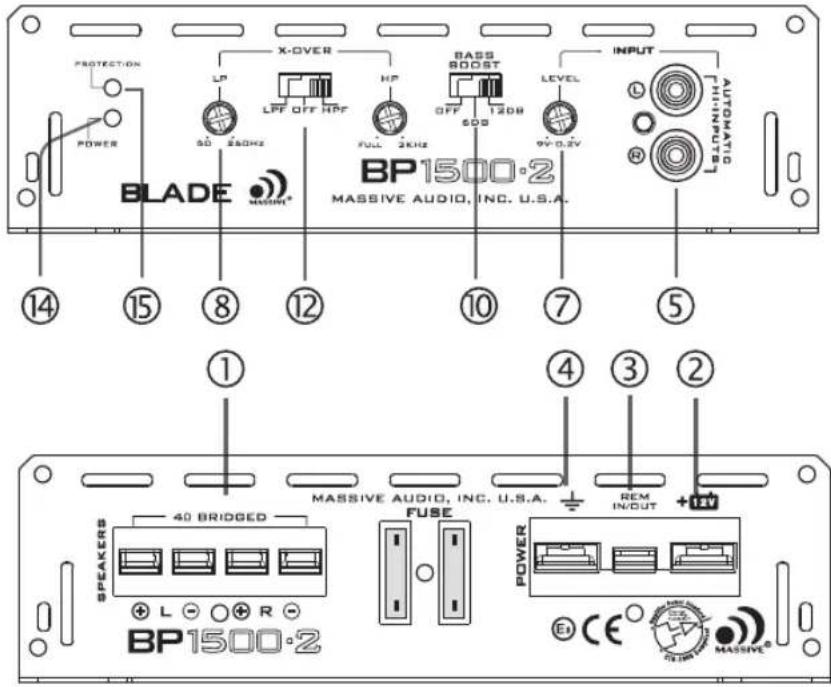

FIG 1. Z-CH AMPLIFIER PANEL LAYOUT
BP500.2/BP1000.2/BP1500.2

PROTECTION POWER BLADE X-OVER LP LPF OFF HPF HP FULL 2KHz BASS BOOST OFF 12dB LEVEL 9V 0.2V INPUT AUTOMATIC [HI-INPUTS] ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ BRIDGED MASSIVE AUDIO, INC. U.S.A. FUSE 40 BLED POWER L ⊖ R ⊖ BP1500-2 POWER CE ○ MASSIVE®

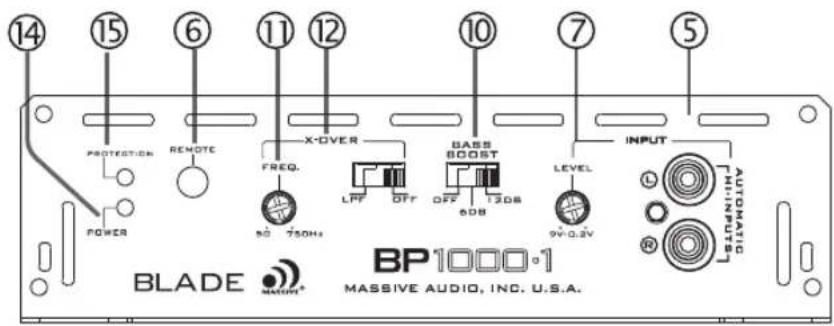

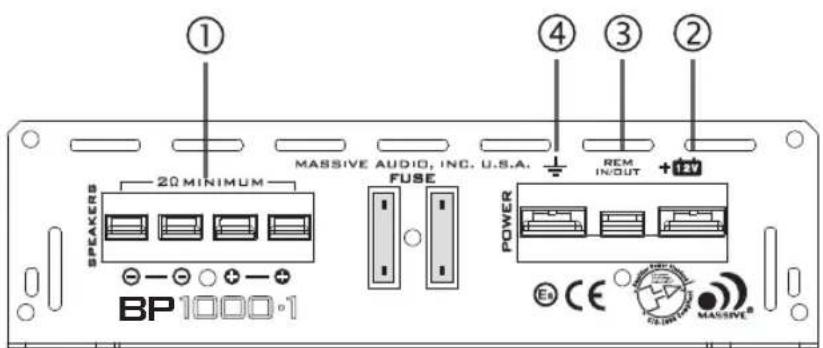

FIG 2. MONO AMPLIFIER PANEL LAYOUT

BP600.1/BP1000.1

14 15 6 11 12 10 7 5 POWER PROTECTION REMOTE X-OVER FREQ. 50 750Hz LFF OFF 3.0B BASS BOOST 9V-0.2V LEVEL INPUT AUTOMATIC [INPUTS] BLADE MASSIVE AUDIO, INC. U.S.A. BP10000-1

① MASSIVE AUDIO, INC. U.S.A. ② ③ ④ REEM INPUT +12V POWER SPEAKERS 20 MINIMUM FUSE BP1000-1 Ex CE O CERI MASSIVE®

PANEL LAYOUT

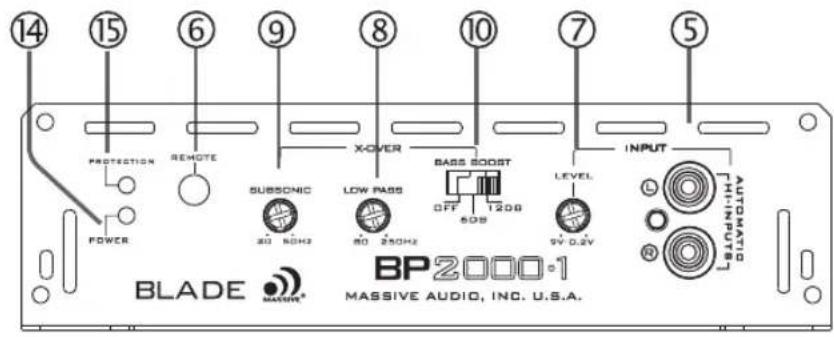

FIG 2. MONO AMPLIFIER PANEL LAYOUT
BP1200.1/BP2000.1

14 15 6 9 8 10 7 5 PROTECTION REMOTE X-OVER BASS BOOST OFF 1200 50V LEVEL 9V 0.2V INPUT AUTOMATIC [HI-INPUTS] POWER BLADE MASSIVE® BP2000-1 MASSIVE AUDIO, INC. U.S.A.

① MASSIVE AUDIO, INC. U.S.A. FUSE 10 MINIMUM POWER BP2000.1 ④ ③ ② REM IN/OUT +12V E® CE ○ MASSIVE®

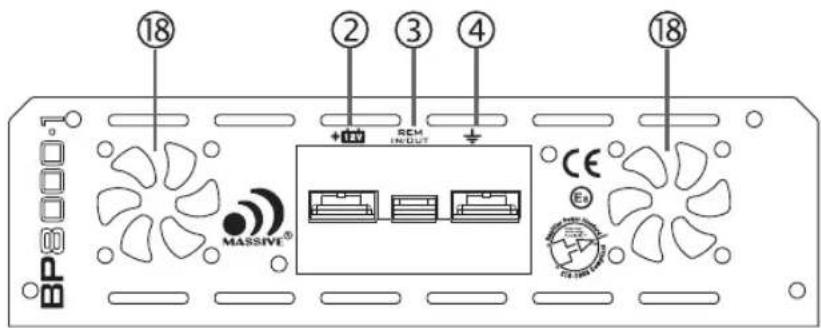

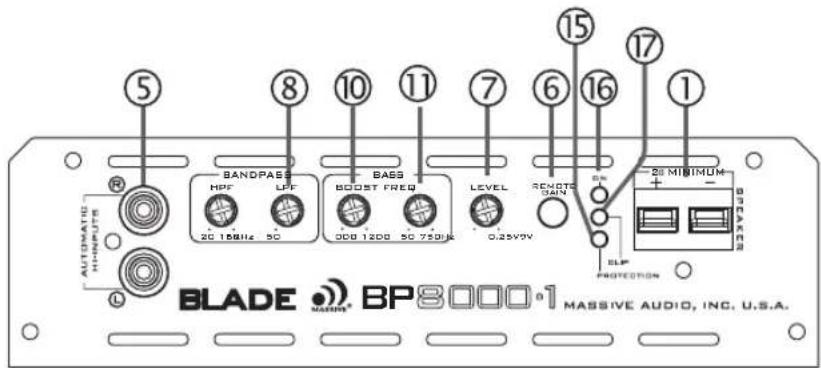

BP4000.1/BP6000.1/BP8000.1

5 AUTOMATIC MININPUTS R BANDPASS HPF 2C 15MHz 5C LFP BASSE BOOST FRED 000 1200 5C 7500V LEVEL 0.25VYV 6 REWOATE 3AIN 15 16 17 25 MINIMUM BLADE MASS® BP8000® 1 MASSIVE AUDIO, INC. U.S.A. ELF PROTECTION

⑱ ② ③ ④ SEM INDUSTRY MASSIVE® CE Global Network

PANEL LAYOUT

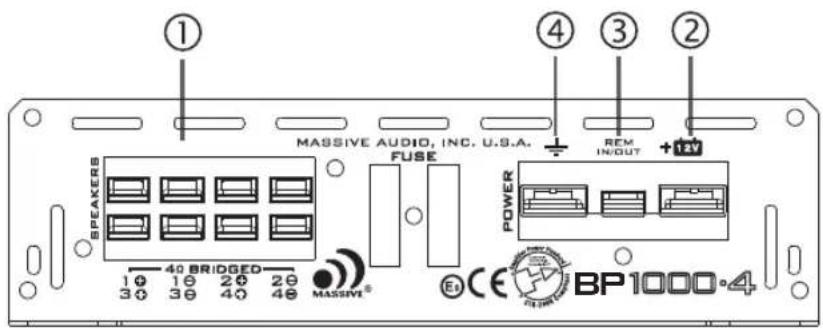

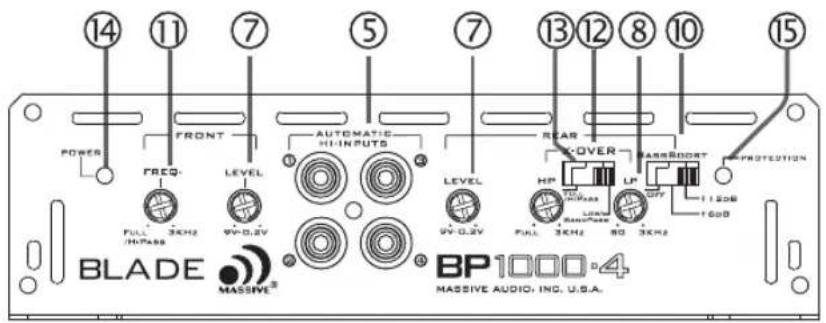

FIG 3. 4-CH AMPLIFIER PANEL LAYOUT
BP800.4/BP1000.4

14 11 7 5 7 13 12 8 10 15 POWER FRONT Aromatic HI-INPUTS LEVEL REAR POWER FLU 3KHz LEVEL 9V-0.2V 9V-0.2V FLU 3KHz LPG 3KHz MASSOORT PROTECTION BLADE MASSIVE® BP1000 4 MASSIVE AUDIO, INC. U.S.A.

MASSIVE AUDIO, INC. U.S.A. FUSE POWER +12V ① ② ③ ④ BPEAKERS 40 BRIDGED 1 10 20 20 30 30 40 40 MASSIVE® CE BP1000-4

FIG 4. 5-CH AMPLIFIER PANEL LAYOUT
BP1500.5

AUTO HINPUTS FRONT REAR SUBWODER LEVEL HV-0.2V HP LEVEL HV-0.2V 15 500Hz 60.3kHz LEVEL HV-0.2V X10 15 300Hz PROTECTION BLADE MASSIVE AUDIO, INC. U.S.A. POWER 1 ① ⑦ ⑨ ⑧ ⑩ ⑥ ④ ③ ② 10 50 FUSE POWER POWER 10 10 20 20 50 30 30 40 48 50 40 BRIDGED BP1500-5 MASSIVE E4 CE GELP

WIRING DIAGRAM

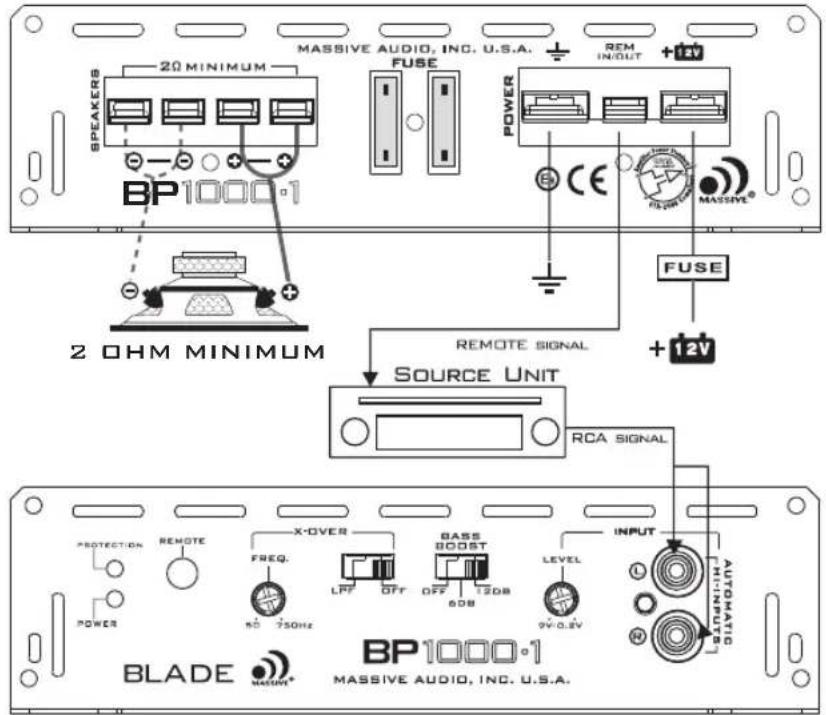

FIG 5. MONO AMPLIFIER WIRING
BP600.1/BP1000.1

MASSIVE AUDIO, INC. U.S.A. 20 MINIMUM FUSE POWER +12V 2 OHM MINIMUM REMOTE SIGNAL +12V SOURCE UNIT RCA SIGNAL PROTECTION REMOTE X-OVER FREQ. LFF OFF OFF 60dB BASS BOOST LEVEL 9V 0.2V INPUT AUTOOMATIC H-INPUTS BLADE MASSIVE® BP10000-1 MASSIVE AUDIO, INC. U.S.A.

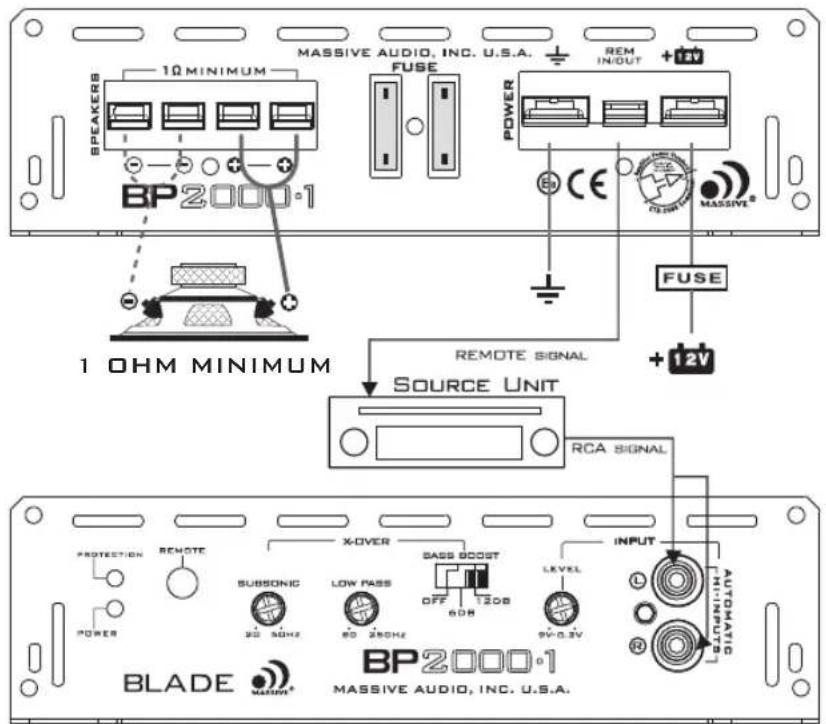

BP1200.1/BP2000.1

MASSIVE AUDIO, INC. U.S.A. 1Ω MINIMUM FUSE POWER CE +12V FUSE 1 OHM MINIMUM REMOTE SIGNAL SOURCE UNIT RCA SIGNAL PROTECTION REMOTE X-OVER SUBSONIC LOW PASS GASS BOOST OFF 1208 LEVEL 9V 0.3V POWER BLADE MASSIVE BPF2000-1 MASSIVE AUDIO, INC. U.S.A. AUTOMATIC H-INPUTS

WIRING DIAGRAM

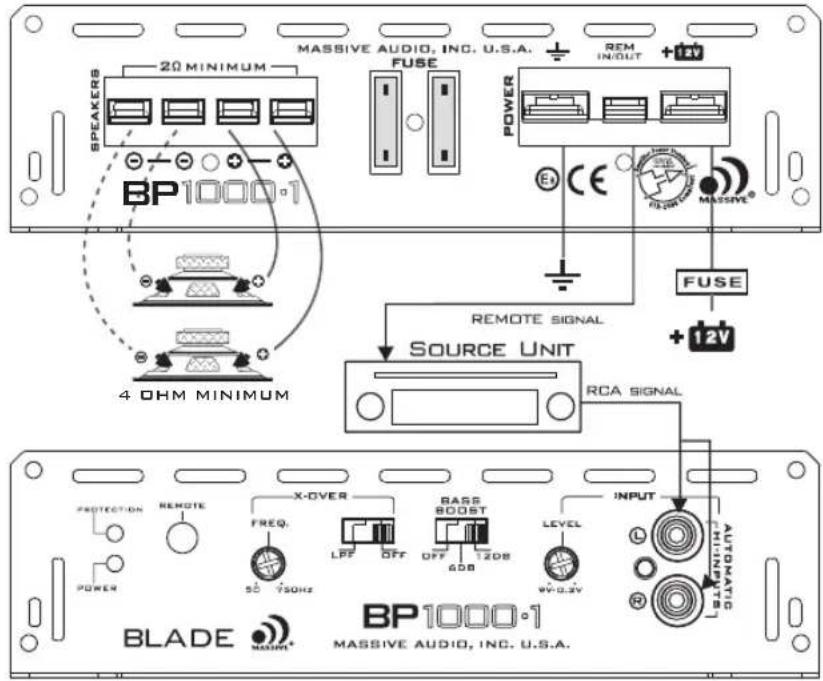

FIG 6. MONO AMPLIFIER WIRING

BP600.1/BP1000.1

MASSIVE AUDIO, INC. U.S.A. FUSE 20 MINIMUM POWER +12V REEM IN-OUT 4 OHM MINIMUM REMOTE SIGNAL SOURCE UNIT +12V RCA SIGNAL PROTECTION REMOTE X-OVER BASE BOOST LEVEL POWER 50 75GHz LFF OFF OFF 12dB WV-0.3V AUTOMATIC MINI-INPUTS BLADE MASSIVE AUDIO, INC. U.S.A. BP1000-1

BP1200.1/BP2000.1

MASSIVE AUDIO, INC. U.S.A. 10 MINIMUM FUSE POWER +12V CE MAXISIVE® 2 OHM MINIMUM REMOTE SIGNAL SOURCE UNIT +12V RCA SIGNAL PROTECTION REMOTE SUBSONIC X-OVER BASS BOOST INPUT 60 50Hz LOW PASS OFF 120B LEVEL 60 250Hz 600 4.3V POWER BLADE MASSIVE® BP2000-1 MASSIVE AUDIO, INC. U.S.A. AUTOMATIC OUTPUT

* SUBWOOFER LOADS CANNOT BE LESS THAN THE MINIMUM STABLE IMPEDANCE RATED IN THIS MANUAL. THE TWO NEGATIVE AND POSITIVE SPEAKER TERMINANLS ARE WIRED INTERNALLY. ONLY ONE NEAGATIVE AND ONE POSITIVE TERMINALIS REQUIRED WHEN WIRING TO BP MONO AMPLIFIERS.

WIRING DIAGRAM

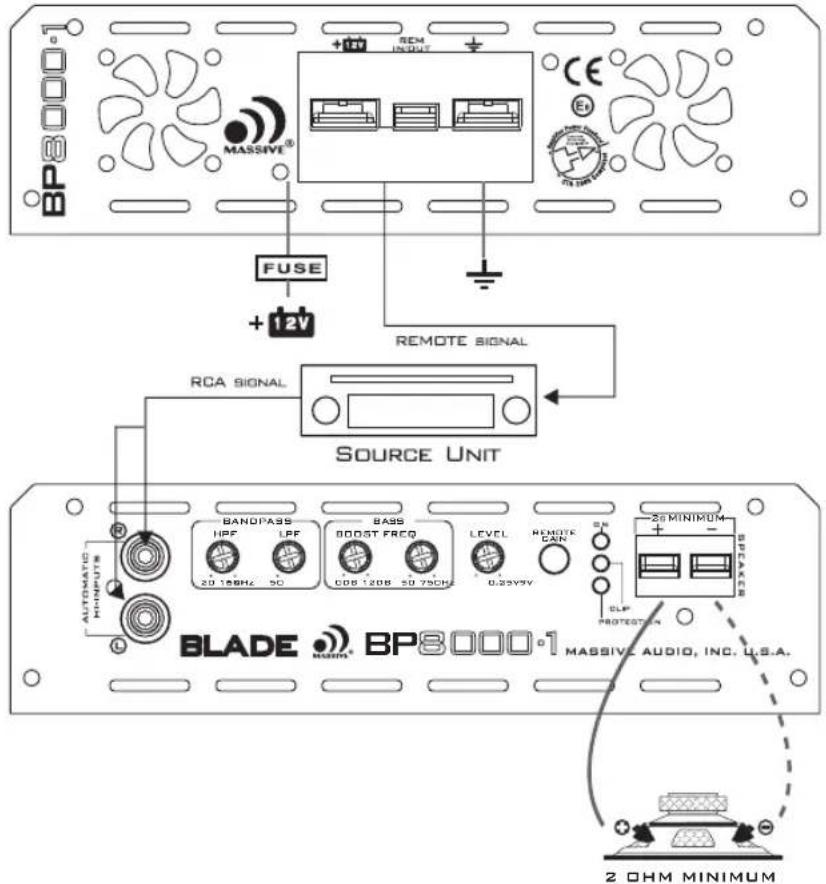

FIG 7. MONO AMPLIFIER WIRING
BP4000.1/BP6000.1/BP8000.1

MASSIVE® +100 REM INPUT CE + FUSE + 12V REMOTE SIGNAL RCA SIGNAL SOURCE UNIT AUTOMATIC MINIINPUTS R BANDIPASS HPF 20 18GHz 5C LFP BASS BOOST FREQ CDS 120B 50 75GHz LEVEL 0.25V9V REMOTE CAN SN 26 MINIMUM SPEAKER CLP PROTECTION BLADE MAXIM® BP8000 1 MASSIVE AUDIO, INC. U.S.A. 2 OHM MINIMUM

WIRING DIAGRAM

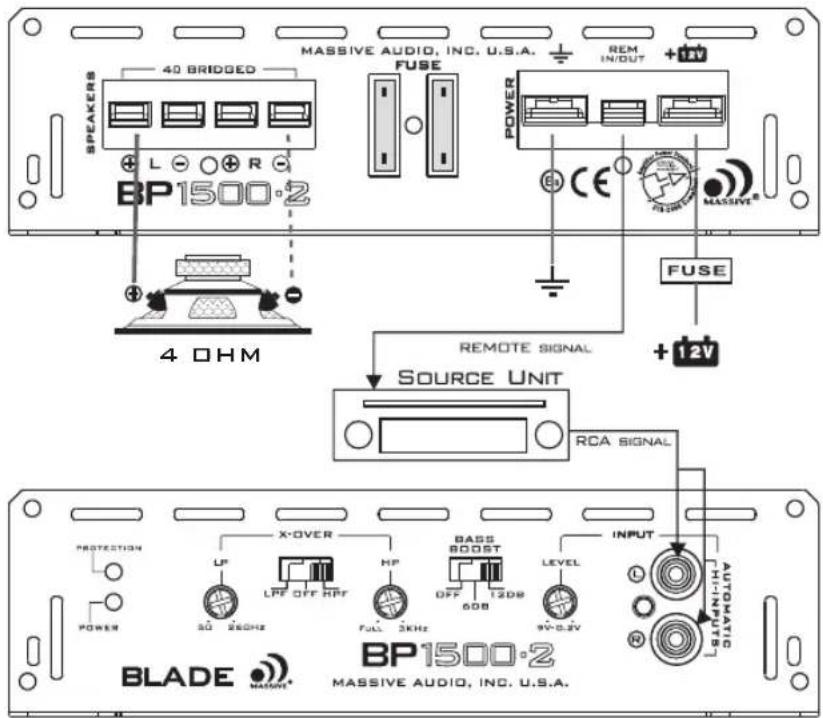

FIG 8. BP500.2/1000.2/1500.2 AMPLIFIER WIRING (1-CHANNEL MODE)

MASSIVE AUDIO, INC. U.S.A. 40 BRIDGED FUSE POWER CE +12V MASSIVE® 4 OHM REMOTE SIGNAL +12V SOURCE UNIT RCA SIGNAL PROTECTION X-OVER LP LFP OFF HPR HP BASS BOOST OFF 1208 LEVEL 9V-0.3V INPUT AUTOHATIC L R BLADE MASSIVE® MASSIVE AUDIO, INC. U.S.A.

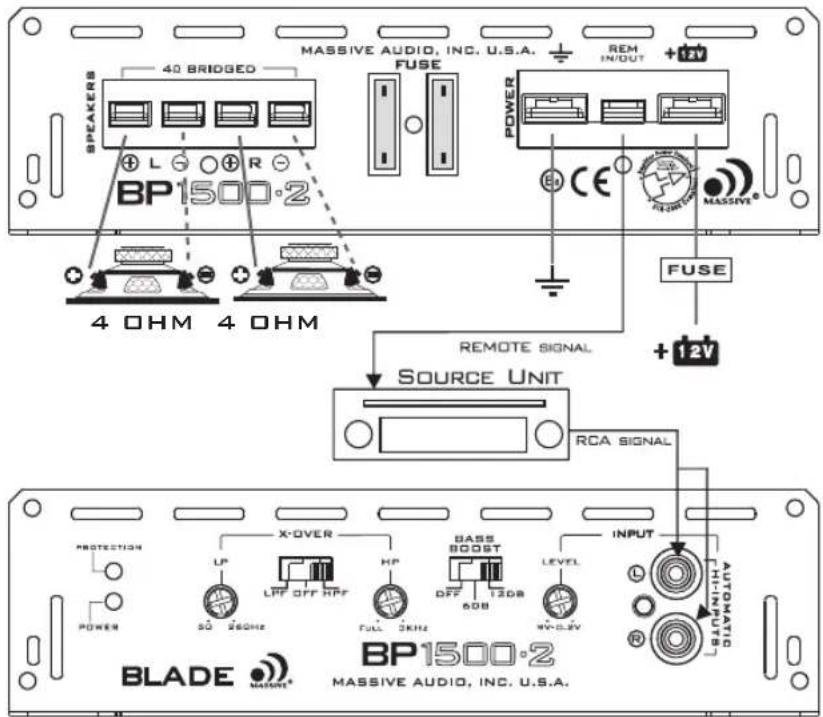

FIG 9. BP500.2/1000.2/1500.2 AMPLIFIER WIRING (2-CHANNEL MODE)

MASSIVE AUDIO, INC. U.S.A. + - REEM +12V 40 BRIDGED FUSE POWER CE MASSIVE® FUSE +12V 4 OHM 4 OHM REMOTE SIGNAL SOURCE UNIT RCA SIGNAL PROTECTION X-OVER LP LPP OFF HPR HP BASS BOOST OFF 1308 LEVEL HV-0.5V POWER 50 26GHz FULL 3KHz BLADE MASSIVE® MAXIVE AUDIO, INC. U.S.A. INPUT AUTO-MATIO L R

WIRING DIAGRAM

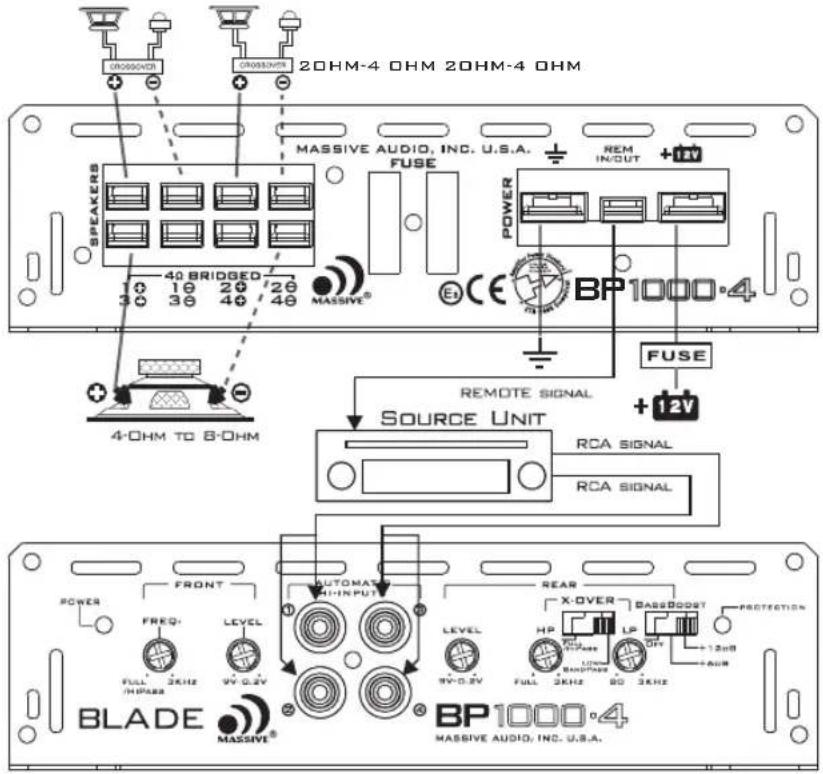

FIG 10. BP800.4/1000.4 AMPLIFIER WIRING (3-CHANNEL MODE)

20HM-4 OHM 20HM-4 OHM MASSIVE AUDIO, INC. U.S.A. FUSE POWER REEM IN/OUT +1V 40 BRIDGED 30 10 26 26 /26 40 36 46 48 MASSIVE® BP1000·4 4-OHM TO 8-OHM REMOTE SIGNAL SOURCE UNIT RCA SIGNAL RCA SIGNAL POWER FRONT AUTOMATING MINIINPUT REAR X-OVER BASSDOORT PROTECTION FULL 3KHZ LEVEL 9V 0.5V 9V 0.5V FULL 3KHZ 80 3KHZ +12dB +AUR BLADE MASSIVE® BP1000·4 MASSIVE AUDIO, INC. U.S.A.

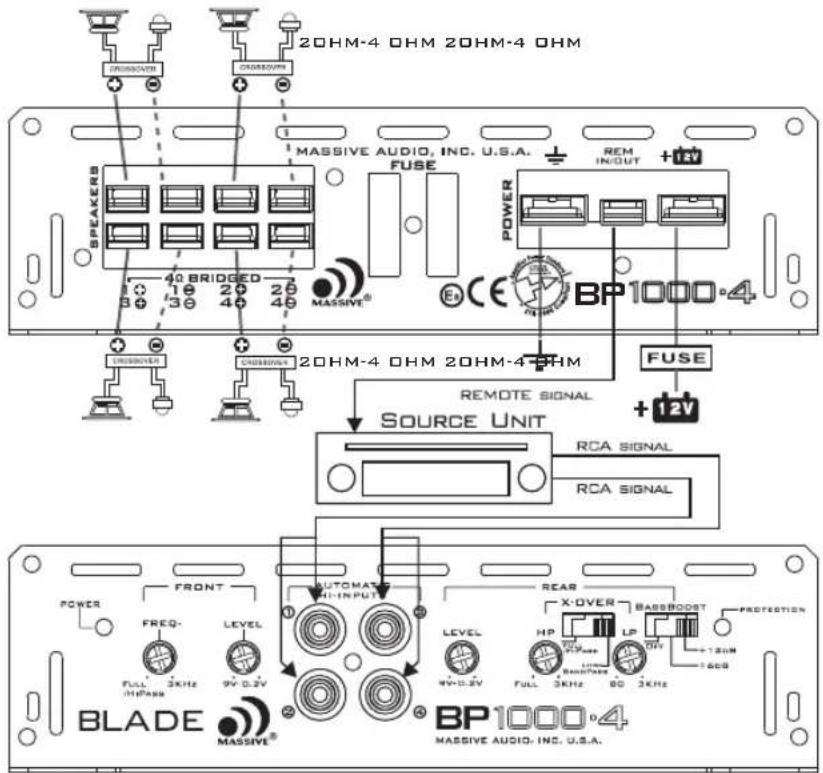

FIG 11. BP800.4/1000.4 AMPLIFIER WIRING (4-CHANNEL MODE)

20HM-4 OHM 20HM-4 OHM MASSIVE AUDIO, INC. U.S.A. FUSE POWER +12V REMARKING 40 BRIDGED 30 10 20 26 30 40 40 20HM-4 OHM 20HM-4 OHM REMOTE SIGNAL SOURCE UNIT RCA SIGNAL RCA SIGNAL POWER FRONT AUTOMANATE +INPUT LEVEL 9V-0.2V FLU 3KHz 9V-0.2V FLU 3KHz 60 3KHz X-OVER BASSBOOST PROTECTION HP LP OFF +120H 160H BLADE MASSIVE® BP1000 4 MASSIVE AUDIO, INC. U.S.A.

WIRING DIAGRAM

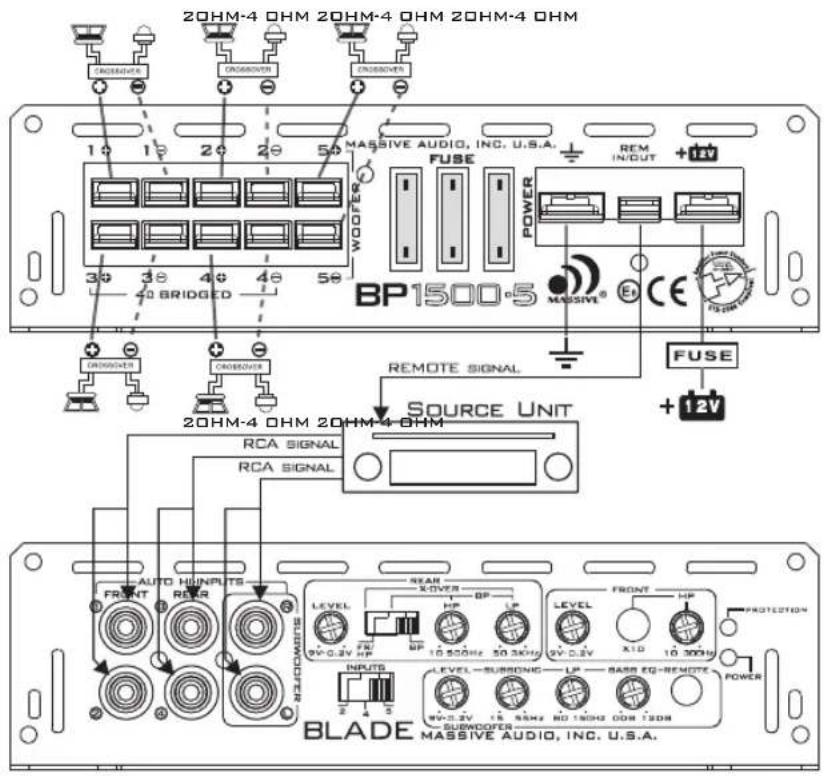

FIG 12. BP1500.5 AMPLIFIER WIRING (4-CHANNEL MODE)

20HM-4 OHM 20HM-4 OHM 20HM-4 OHM INJAMETER CROSSOVER CROSSOVER CROSSOVER 1 1 2 2 50 MASSIVE AUDIO, INC. U.S.A. WHOTER 3 3 4 4 50 BP1500-5 FUSE POWER REEM INPUT +12V FUSE 20HM-4 OHM 20HM-4 OHM RCA SIGNAL RCA SIGNAL SOURCE UNIT AUTO HINPUTS FRONT REVER NEAR X-OVER BP LEVEL HV 0.2V HP 10 500Hz 50 3kHz HV 0.2V ELEVEL SUBSONIC LP BASB EQ-REMOTE POWER PROTECTION BALADE MASSIVE AUDIO, INC. U.S.A.

20HM-4 OHM 10 10 20 20 50 MASSIVE AUDIO, INC. U.S.A. 40 BRIDGED WOOFER 30 30 40 40 50 BP1500-5 MASSIVE® CE POWER + - FUSE REMOTE SIGNAL 12V SOURCE UNIT + RCA SIGNAL RCA SIGNAL AUTO H INPUTS FRONT REA SUBMODER SEAR X-OVEN LP LEVEL HP LP HV-0.3V HP 10 S20Hz 50 KCHG X10 10 S20Hz PROTECTION INVOICE LEVEL-SUBSONIC-LP-BASS EQ-REMOTE POWER HV-2.3V 15 55Hz 80 150Hz 009 1209 BLADE MASSIVE AUDIO, INC. U.S.A.

TROUBLE SHOOTING

Symptom	Possible Remedy
Amplifier will not power up	Check to make sure you have a good ground connection.Check that there is battery power on the (+)terminal .Check all fuses, replace if necessary .Make sure that the Protection LED is not illuminated.
Protection LED Comes on	Check for short circuits on speaker leads.Check that the speaker load is not beyond the minimum load.Remove speaker lead, and reset the amplifier. If the protection LED still comes on, then the amplifier is faulty and needs servicing .
No output	Check that the RCA audio cables are plugged into the proper inputs.Check all speakers wiring.Check the headunit output and the amplifier level setting.
Low output	Reset the level Control.Check the Crossover Control settings.
High hiss in The speakers	Check the RCA cable is not shorted to power ground at amplifier side.Check the amplifier grounding.
Distorted sound	Check that the Input level control is set to match the signal level of the head unit. Always try to set the Input level as low as possible.Check that all crossover frequencies are properly set.Check for short circuits on the speaker leads
Amplifier gets Very hot	Check that the minimum load impedance for the amplifier model is correct.Check that there is good air circulation around the amplifier.In some applications, It may be necessary to add an external cooling fan.Do not mount amplifier upside down.

SPECIFICATIONS

BP500.2

BP1000.2

BP1500.2

BP800.4

BP1000.4

BP600.1

BP1000.1

BP1200.1

BP2000.1

BP4000.1

BP6000.1

BP8000.1

BP1500.5

CHANNELS

2

2

2

4

4

1

1

1

1

1

1

1

5

PEAK OUTPUT POWER@14.4V

250W X 2

500W X 2

750W X 2

200W X 4

250Wx4

600W X 1

1000Wx1

1200W X 1

2000W X 1

4000W X 1

6000W X 1

8000W X 1

250wx4+500W

RMS @ 4 OHMS

80W X 2

160W X 2

240W X 2

60W X 4

80Wx4

150W X 1

250Wx1

300W X 1

500W X 1

1000W X 1

1500W X 1

2000W X 1

80wx4+200wx1

RMS @ 2 OHMS

160W X 2

240W X 2

480W X 2

120W X 4

160Wx4

300W X 1

455Wx1

500W X 1

900W X 1

2000W X 1

3000W X 1

4000W X 1

160wx4+500wx1

RMS @ 1 OHMS

N/A

N/A

N/A

N/A

N/A

N/A

N/A

600W X 1

1000W X 1

N/A

N/A

N/A

N/A+N/A

RMS BRIDGED @ 4 OHMS

320W X 1

640W X 1

960W X 1

240W X 2

320Wx2

N/A

N/A

N/A

N/A

N/A

N/A

N/A

320wx2+200wx1

FREQUENCY RESPONSE

15Hz-30KHz

15Hz-30KHz

15Hz-30KHz

10Hz-35KHz

10Hz-35KHz

15Hz-30KHz

15Hz-30KHz

15Hz-250Hz

15Hz-250Hz

20Hz-16KHz

20Hz-16KHz

20Hz-16KHz

15Hz-30KHz

INPUT SENSITIVITY

0.2~9.0V

0.2~9.0V

0.2~9.0V

0.2~9.0V

0.2~9.0V

0.2~9.0V

0.2~9.0V

0.2~9.0V

0.2~9.0V

0.25~9.0V

0.25~9.0V

0.25~9.0V

0.2~9.0V

SIGNAL TO NOISE RATIO

>90dB >90dB

>90dB

>90dB

>90dB

>90dB

>90dB

>95dB >95dB

>60dB

>60dB

>60dB

>90dB

THO&NOISE

<0.10% <0.10%

<0.10%

<0.10% <0.10%

<0.10% <0.10%

<0.10% <2.5%

<0.10%

<0.05%

<2.5%

<2.5%

<0.10%

LOW PASS CROSS FREQUENCY

50Hz-260Hz

50Hz-260Hz

50Hz-260Hz

80Hz-3KHz

80Hz-3KHz

50Hz-750Hz

50Hz-750Hz

80Hz-250Hz

80Hz-250Hz

50Hz-16KHz

50Hz-16KHz

50Hz-16KHz

50Hz-3KHz(CH3&4)80Hz-150Hz(CH5)

HIGH PASS CROSS FREQUENCY

FULL-3KHZ

JEOGIOKHZ

FULL-3KHz

FULL-3KHz

N/A

N/A

N/A

N/A

20Hz-50Hz

20Hz-50Hz

20Hz-50Hz

10Hz-300Hz(CH1&2)10Hz-500Hz(CH3&4)

SUBSONIC FILTER

N/A

N/A

N/A

N/A

N/A

N/A

N/A

20Hz-50Hz

20Hz-50Hz

N/A

N/A

N/A

15Hz-55Hz

BASS EQ

0-600/1208@45Hz

0-600/1208@45Hz

0-600/1208@45Hz

0-600/1208@45Hz

0-600/1208@45Hz

0-600/1208@45Hz

0-600/1208@45Hz

0-600/1268@45Hz

0-1268@ (50Hz-750Hz)

0-1268@ (50Hz-750Hz)

0-1268@ (50Hz-750Hz)

0-1268@ (50Hz-750Hz)

0-1268@45Hz

MINIMUM IMPEDANCE

20HM STEREO

20HM STEREO

20HM STEREO

20HM STEREO

20HM STEREO

20HM MONO

20HM MONO

10HM MONO

10HM MONO

20HM MONO

20HM MONO

20HM MONO

20HM STEREO+20HM MONO

FUSE SIZE

25A x 1

45A x 1

35A x 2

25A x 2

30A x 2

15A x 2

25A x 2

25A x 2

40A x 2

EXTERNAL (150A)

EXTERNAL (250A)

EXTERNAL (350A)

25A x 3

DIMENSIONS(LXHXW)MM

200X51X180

240X51X180

320X51X180

300X51X180

320X51X180

280X51X180

300X51X180

320X51X180

340X51X180

251X55X190

321X55X190

721X55X190

380X51X180

DIMENSIONS(LXHXW)INCH

7.9X2.0X7.1

9.48X2.0X7.1

12.6X2.0X7.1

12.6X2.0X7.1

11.0X2.0X7.1

11.8X2.0X7.1

12.6X2.0X7.1

13.4X2.0X7.1

9.9X2.2X7.5

12.6X2.2X7.5

16.6X2.2X7.5

15.0X2.0X7.1

SUBJECT TO TECHNICAL CHANGE

WARRANTY

- Massive Audio, Inc. warrants all manufactured amplifier products to be free from defect in material and workmanship for a period not to exceed ONE YEAR* from the date of original purchase when installed by an authorized “Massive Audio” dealer. Units that are not installed by an authorized “Massive Audio” dealer maintain a warranty not to exceed 90 days from the original purchase date by the original purchaser.

Products that display abuse such as power deficiency, over driving the amplifier or clipping the input require purchase of a new PCB for replacement.

“Massive Audio” obligations under this warranty are limited to repairing or replacing, at its own sole option, any such defective products. This warranty does not apply to equipment that has been damaged by accident, negligence, or misapplication or has been altered or modified in anyway. This warranty applies only to the original purchaser who must have properly registered the product within 30 days of purchase.

Except as provided herein, Massive Audio, Inc. makes no warranties or representations, express or implied, including any warranty implied by law, whether for merchantability or fitness for a particular purpose and shall be effective only for the period that this express warranty is effective. SEE THE WARRANTY REGISTRATION CARD TO ADDITIONAL INFORMATION.

* DUE TO CONSTANT IMPROVEMENT PRICES AND SPECS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTIFICATION.

Massive Audio Inc.

2261 S. Atlantic Blvd.

City of Commerce, CA 90040 U.S.A.

www.massiveaudio.com
