BEDIENUNGSANLEITUNG PLMRS6B Pyle
PYLE
PyleUSA.com
4" -inch Speaker Pairs
Model: PLMRS43WL - PLMRS43BL
4" -inch Speaker Pairs with Built-in LED Lights
Model: PLMRS5W - PLMRS5B
5.25" -inch Speaker Pairs
Model: PLMRS53WL - PLMRS53BL
5.25" -inch Speaker Pairs with Built-in LED Lights
Model: PLMRS6W - PLMRS6B
6.5" -inch Speaker Pairs
Model: PLMRS63WL - PLMRS63BL
6.5" -inch Speaker Pairs with Built-in LED Lights
These speakers were designed and manufactured for your installation needs and have been thoroughly tested to ensure consistent and reliable performance.
For further information, installation assistance or product troubleshooting visit us on PyleUSA.com
Speakers & Options:
| Model Number | Speaker Size | Max Output Power | LED Light Bulb | Cut-Out Diameter | Mounting Depth |
| PLMRS4W | 4” | 100 Watt | 3.7” | 0.9” | |
| PLMRS4B | 4” | 100 Watt | 3.7” | 0.9” | |
| PLMRS43WL | 4” | 100 Watt | Blue Illumination | 3.7” | 0.9” |
| PLMRS43BL | 4” | 100 Watt | Blue Illumination | 3.7” | 0.9” |
| PLMRS5W | 5.25” | 180 Watt | 4.7” | 0.9” | |
| PLMRS5B | 5.25” | 180 Watt | 4.7” | 0.9” | |
| PLMRS53WL | 5.25” | 180 Watt | Blue Illumination | 4.7” | 0.9” |
| PLMRS53BL | 5.25” | 180 Watt | Blue Illumination | 4.7” | 0.9” |
| PLMRS6W | 6.5” | 240 Watt | 5.3” | 0.92” | |
| PLMRS6B | 6.5” | 240 Watt | 5.3” | 0.92” | |
| PLMRS63WL | 6.5” | 240 Watt | Blue Illumination | 5.3” | 0.92” |
| PLMRS63BL | 6.5” | 240 Watt | Blue Illumination | 5.3” | 0.92” |
| Model Number M | Total Speaker Diameter | Total Speaker Depth | Frequency Response | Speaker Weight | |
| PLMRS4W | 5.2” -inches 1.5” | -inches 90Hz | -18khz | 0.66 lbs.(Each)3 | |
| PLMRS4B | 5.2” -inches | 1.5” -inches | 3.4 Oz | 90Hz-18khz | 0.66 lbs.(Each) |
| PLMRS43WL | 5.2” -inches 1.5” | -inches 90Hz | -18khz 0.66 lbs.(Each) | 3.4 Oz | |
| PLMRS43BL | 5.2” -inches 1.5” | -inches 90Hz | -18khz 0.66 lbs.(Each) | 3.4 Oz | |
| PLMRS5W | 6.4” - inches 1.6” | -inches 80Hz | -18KHz | 0.88 lbs.(Each) | |
| PLMRS5B | 6.4” - inches | 1.6” - inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS53WL | 6.4” - inches | 1.6” - inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS53BL | 6.4” - inches 1.6” | -inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS6W | 7.3” - inches | 1.6” - inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
| PLMRS6B | 7.3” - inches 1.6” | -inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
| PLMRS63WL | 7.3” - inches 1.6” | -inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
| PLMRS63BL | 7.3” - inches 1.6” | -inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
Features:
• Includes (2) Component Speakers
• Waterproof & Weather-Resistant Design
• Rugged Marine Grade Construction
• Low-Profile Slim Style Speaker Housing
• 2-Way Full Range Stereo Sound Reproduction
• Molded ABS Machined Basket and Grill
• Universal Standard OEM Replacement Size
- For Boat, Marine Watercraft & Off-Road Vehicles
What's in the Box:
• (2) Marine Speakers
• (2) Speaker Connection Wires, 9.8' ft.
Technical Specs:
• Voice Coil Type: Aluminum
• Construction Material: Engineered ABS
- Impedance: 4 Ohm

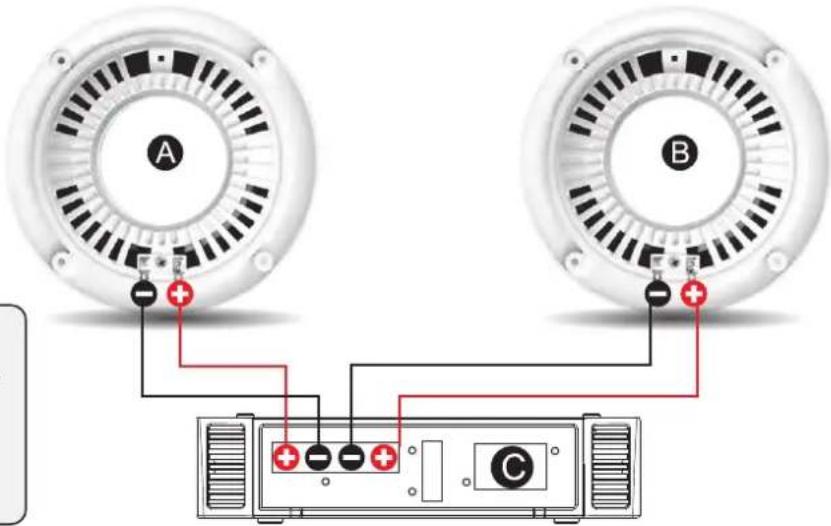

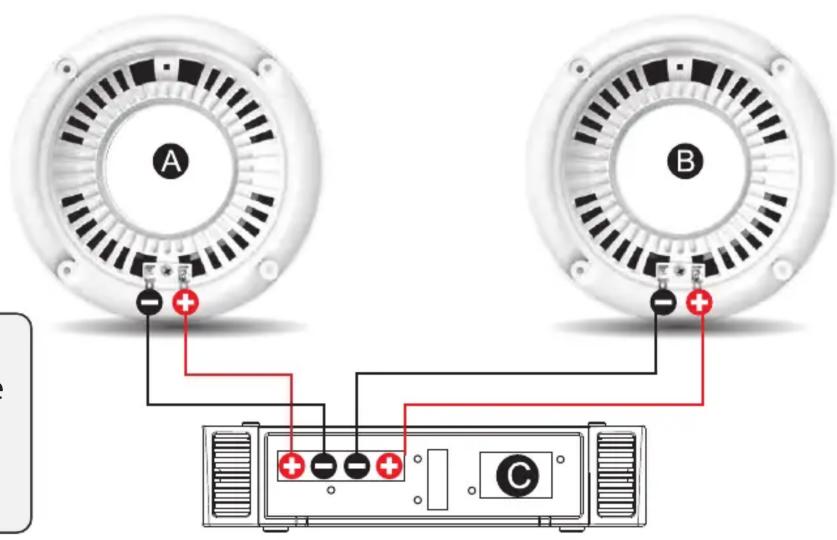

Speaker Wiring
Models: PLMRS4W - PLMRS4B PLMRS5W - PLMRS5B PLMRS6W - PLMRS6B Speaker Pairs
- Connect the red and black cables to their respective positive and negative terminals.
- Speakers 'A' and 'B' connect to an amplifier source 'C'


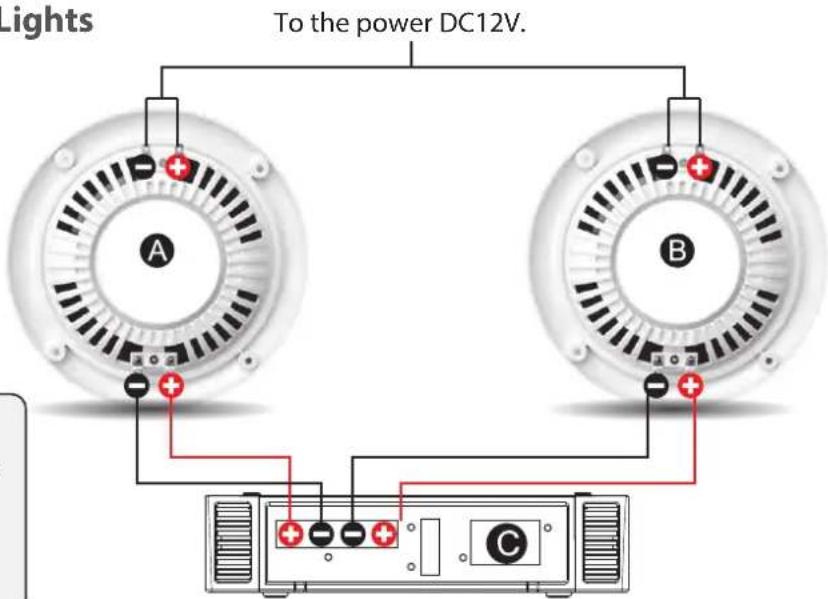

Models: PLMRS43WL - PLMRS43BL PLMRS53WL - PLMRS53BL PLMRS63WL - PLMRS63BL Speaker Pairs Built-in LED Lights
- Speakers 'A' and 'B' connect to an amplifier source 'C'
