BEDIENUNGSANLEITUNG GC-D432HLAM LG

Owner's Manual

REFRIGERATOR FREEZER

Please read carefully the manual instruction and safety caution before operating your refrigerator and retain it for future reference.

CONTENTS

IMPORTANT SAFETY INFORMATION...... 3

INSTALLATION 11

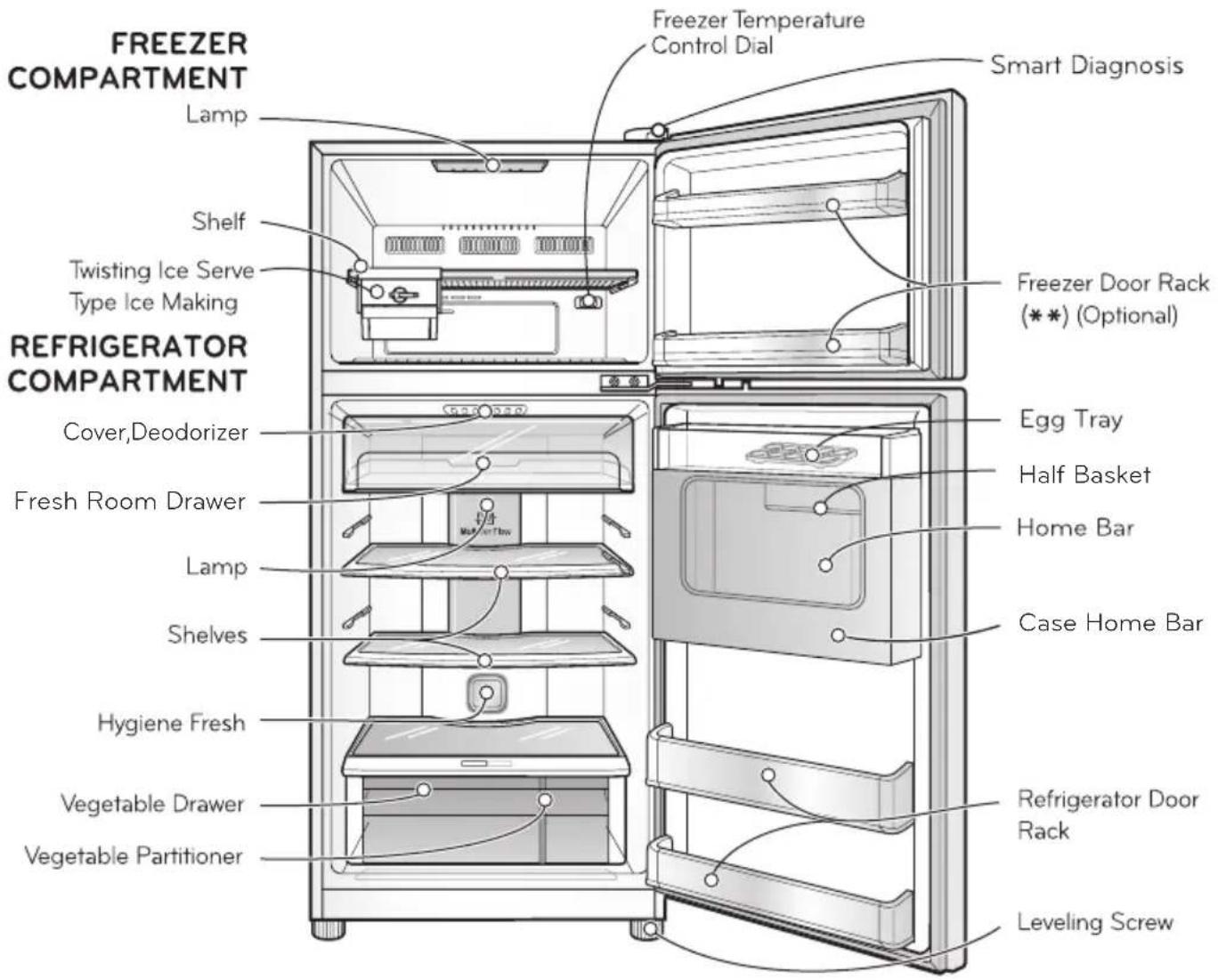

INNER PARTS 12

OPERATIONS 13

Starting

Before Setting The Temperature

Door Alarm

Self Test

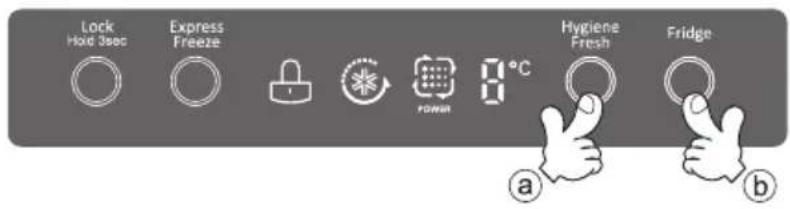

Controls For Refrigerator Compartment

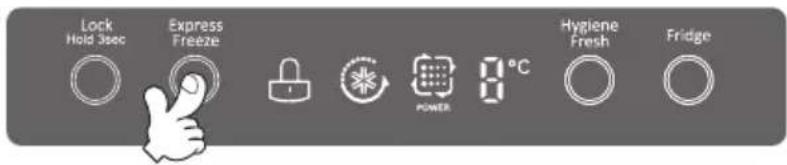

Express Freeze

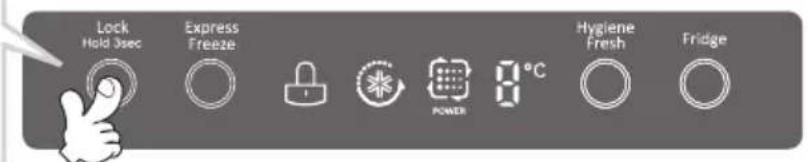

Lock

Hygiene Fresh

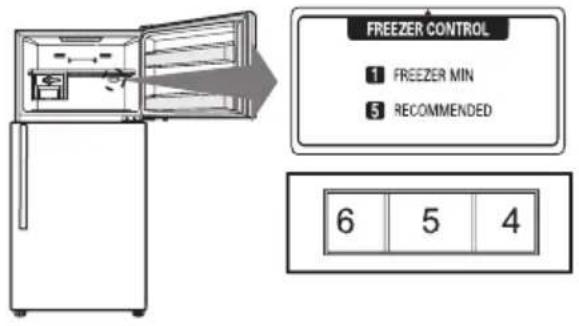

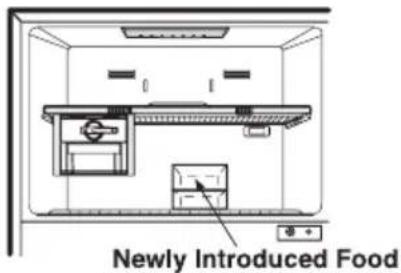

Controls For Freezer Compartment

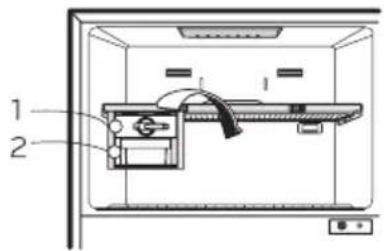

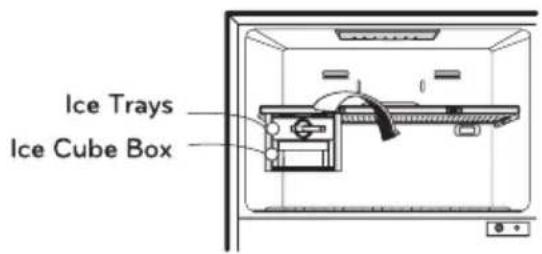

Ice Making

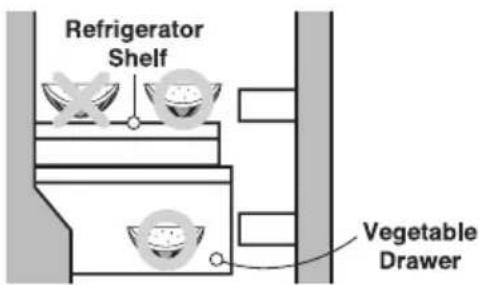

Vegetable Drawer

Fresh Room Drawer

Defrosting

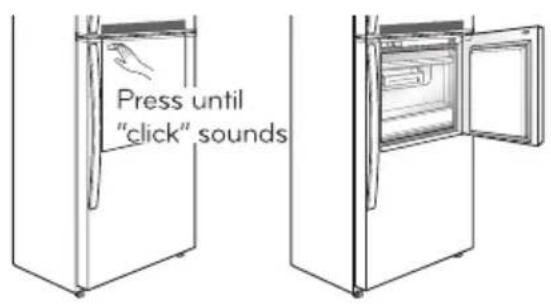

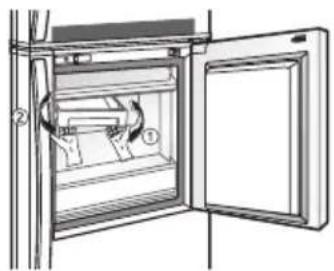

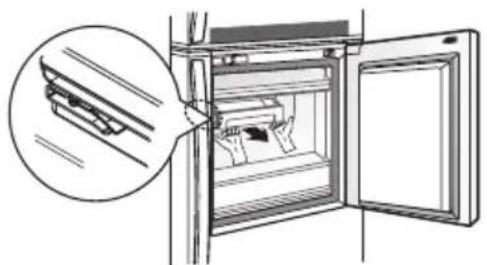

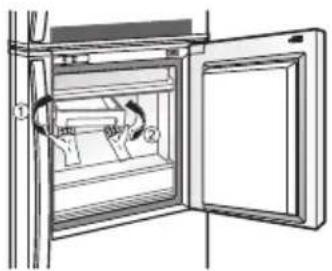

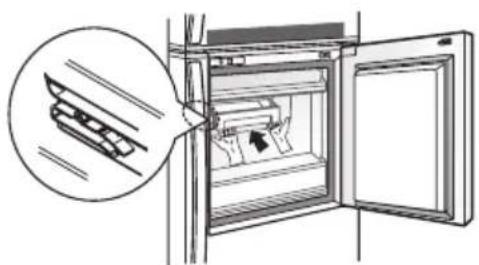

Home Bar

SUGGESTIONS ON FOOD STORAGE .... 19

CLEANING 20

GENERAL INFORMATION......21

LAMP REPLACEMENT....21

IMPORTANT WARNINGS 22

BEFORE CALLING FOR SERVICE 23

SMART DIAGNOSIS

(Only for applied models) 24

EARTH(GROUNDING)

CONSTRUCTION 25

(Optional)

Cartoon illustration of a smiling rectangular box character with arms and legs, waving (no text or symbols)

IMPORTANT SAFETY INFORMATION

WARNING

⚠️ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartment of the appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible.

When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1 m^2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazard can hurt you or others or cause damage to the product. All safety messages will beeded by the safety alert symbol and the hazard signal word WARNING, or CAUTION.

These words mean:

WARNING

You will be hurt or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

Do not use many power outlets.

• Using several devices at one outlet may cause fire.

• The electric leakage breaker may damage food and the dispenser may be leaked.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Prevent the power cord from being squeezed or imprinted if the refrigerator is pushed in after the power plug is extracted during the installation.

It becomes the cause of fire or electric shock.

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a refrigerator with a sad face and a broken handle, connected to a broken door (no text or symbols)

Do not allow the power cord bent or pressed

by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a 'NO' sign and a fan beside it (no text or symbols on the refrigerator itself)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Do not extend or modify the length of the power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a smiling refrigerator with a 'NO' sign, accompanied by a person holding a phone (no text or symbols on the refrigerator itself)

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

• It may cause electric shock or injury.

- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Illustration of a child standing beside an open refrigerator with a smiling face (no text or symbols)

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Illustration of a hand holding a tool near a cloth, no text or symbols present

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children playing with airplanes, no text or symbols present

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

NO After 5minutes

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 inches

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

Be sure to use grounded exclusive proper voltage consent for the power plug. Be sure to use grounded extension consents when extension consents are used. It becomes the cause of fire.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a child holding a box while standing beside a refrigerator (no text or symbols)

Do not cling to the door or the shelves of the door or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

Cartoon illustration of a person hanging from an open refrigerator with a 'NO' hand gesture (no text or symbols on the refrigerator itself)

Prevent children from entering the product.

It may endanger the life of a child if the child enters the refrigerator.

Cartoon illustration of a distressed refrigerator with a child inside, showing no text or symbols (no readable text)

Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a smiling rectangular box character with arms and legs, holding a 'NO' sign (no text or symbols on the box itself)

Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration of a smiling rectangular character holding a bottle and a crossed-out pill, with no visible text or symbols.

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a small bottle, no text or symbols present.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Cartoon illustration showing a refrigerator with a sad face and 'NO' sign, accompanied by crossed-out items and a crossed-out box.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not use drier to dry the inside, nor light a candle to remove odor.

It may cause explosion or fire.

Cartoon illustration of a smiling open book with a hand waving and a small airplane inside (no text or symbols)

Do not use the combustible spray near the refrigerator.

It may cause fire.

Cartoon illustration of a refrigerator with a sad face and a crossed-out hand gesture, accompanied by a small robot holding a 'NO' sign (no text or symbols on the main image)

In case of thunder and lightning, or not in use for a long

period of time, detach the power plug.

There is a danger of electric shock or fire.

Cartoon illustration of a smiling refrigerator with arms and a small electrical outlet (no text or symbols)

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

• The explosion by spark may cause fire or burn.
- Because this refrigerator uses natural gas as the environment-friendly refrigerant, even as small amount is combustible. When the gas is leaked by the severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

Cartoon illustration of a smiling refrigerator and a child running away from a doorway (no text or symbols)

Install in places away from the fire such as the place where

flammable gas is leaked.

It may cause fire.

Cartoon illustration of a distressed refrigerator and a box with steam rising (no text or symbols)

Do not use the refrigerator if it has been submerged in water

without having it checked by a qualified electrician.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a worker holding a tool (no text or symbols)

Do not spray water at the outside or the inside of the refrigerator or do not clean it

with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling book character and a girl holding a bag, with no visible text or symbols

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a girl running with a stethoscope and a smiling book character (no text or symbols present)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center. It may cause fire.

Down-block office Service center

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Illustration of a child holding a broom next to a smiling refrigerator (no text or symbols)

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling refrigerator with arms and legs crossed out, no text or symbols present.

What to do with your old refrigerator, Your refrigerator contain liquid (refrigerant,

lubricant) made of recyclable materials. All these materials must be sent to a recycling waste disposal site as they can be reused after a specific recycling process. Contact your local city Council for proper disposal advise.

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the

backside. It may cause electric shock or injury.

Illustration of two cartoon refrigerators with no visible text or symbols, one with a person and the other with a figure and crossed-out X (no text or symbols present)

Completely empty inside before taking out the container from the door.

Illustration of hands holding a mechanical component with directional arrows indicating movement (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not remove the cover on the back.

Cartoon illustration of a book character with a sad face and a 'NO' sign, no text or symbols present

Do not use an Adapter on the back.

Cross-shaped diagram with a hand holding a device and emitting sound waves (no text or symbols)

Place all the components in the right places before connecting the power.

Cartoon illustration of a smiling refrigerator with open door and electrical outlet (no text or symbols)

Never leave lit candles or incense on the

fridge, at risk of causing fire or product damage.

Cartoon illustration of a smiling refrigerator with a 'NO' hand and a cross on top, waving (no text or symbols on the refrigerator itself)

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the

freezer with wet

hands.

It may cause frostbite.

Cartoon illustration of a child holding a box while standing next to an open refrigerator with a 'NO' sign (no text or symbols on the main image)

Do not place the food in disorder inside the refrigerator.

The food may fall during opening and closing the door of the refrigerator and hurt people.

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Warning symbol showing a crossed-out X-shaped sign with bottles and a broken glass, indicating chemical hazard or toxicity.

Do not insert the hands into the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a smiling cheese block character and a child with arms crossed (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the

rear.

Otherwise, your hands may be slipped to cause (injury.

Because the product is heavy, carrying it alone may hurt people or accidents may occur.

Illustration of three workers in hard hats pulling a large object together (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

NO

IMPORTANT SAFETY INFORMATION

Do not put any living animal in the

refrigerator.

It may cause the animal died.

NO

Do not use products such as grinding sponge, brush, iron, or even special products to clean stainless steel, soap products such as alcohol, kerosene, gasoline, wax, or solvent, or strong chemicals such as chlorine, detergent, or vinegar, for the purpose of gloss. These products may damage the protective

lacquer, and they may cause risk or stain on the surface of the refrigerator.

Cartoon illustration of a refrigerator with a 'NO' sign and two characters holding signs (no text or symbols on the main subjects)

Avoid the contact of oil or fat on the plastic parts. They may cause damage.

When the power cord is damaged, let a technician to replace

it to remove the danger of an accident.

ce Technician

Do not lean on the doors, Hinges may deregulate

Themselves, harming seal cooler and compromising performance.

Cartoon illustration of a child running with arms crossed, next to a book character with a 'NO' sign (no text or symbols on the character or background)

Do not apply oil in the door connection part in any circumstances. It may cause damage to the plastic

parts.

NO

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Do not store excessive water bottle or side dish container, etc. in the door basket.

It will make you put excessive force to take out the water bottle or side dish container from the basket, and it may damage the basket or it may cause injury of your hand hitting the surrounding structure.

WARNING

Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH ITS PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND

MAINTENANCE, AND ALSO SUPPLIES SOOME USEFUL HINTS.

INSTALLATION

1. Select a good location.
   Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. Air must circulate properly around your refrigerator to ensure efficient operation. If your refrigerator is placed in a recessed area in the wall, allow at least 10 inches (25 cm) or greater clearance above the refrigerator and 2 inches (5 cm) or more from the wall. The refrigerator should be elevated 1 inch (2.5 cm) from the floor, especially if the floor is carpeted.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.

1. Don't install this appliance below 5°C. It may cause the debasement of the refrigerator.

2. This appliance is intended to be used in household and similar applications such as:

3. Staff kitchen areas in shops, offices and other working environments.

4. Farm houses and by clients in hotels, motels and other residential type environments.
5. Bed and breakfast type environments.
6. Catering and similar non-retail applications.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to storing food, leave your refrigerator on for 2 or 3 hours.

Check the flow of cold air in the freezer compartment to ensure proper cooling.

Your refrigerator is now ready for use.

FREEZER COMPARTMENT Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Cover,Deodorizer Fresh Room Drawer Lamp Shelves Hygiene Fresh Vegetable Drawer Vegetable Partitioner Freezer Temperature Control Dial Smart Diagnosis Freezer Door Rack (**) (Optional) Egg Tray Half Basket Home Bar Case Home Bar Refrigerator Door Rack Leveling Screw

- To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

BEFORE SETTING THE TEMPERATURE

• The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings (the controls for the refrigerator and freezer compartments) not be changed unless necessary.
• This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
• The default setting of the temperature control button for the refrigerator compartment is '3°C'.
• The default setting of the temperature control dial for the freezer compartment is '5'.
• This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.

DOOR ALARM

When the door of the refrigerator or the freezer is open for 1 minute, an alarm will sound three times. If the door remains open, the alarm will repeat every 30 seconds.

SELF TEST

• Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
• If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.

OPERATIONS

CONTROLS FOR REFRIGERATOR COMPARTMENT

Lock Hold 3sec Express Freeze Lock Power 8°C Hygiene Fresh Fridge a b

• Press 'Fridge' button to control refrigerator temperature.
• Whenever pressing the button, the LED emits light.
• Press 'Hygiene Fresh' button to operate hygiene motor.
• The number showing up on the LED luminesce indicate the temperature of refrigerator compartment.
• You can select the desired setting point seven steps, from '0°C' to '6°C'.

- Press ⓑ button, Fridge temperature will be down each 1°C.

- Press ⓐ button, Hygiene Fresh motor will be on, power mode, off.

EXPRESS FREEZE

- The Express Freeze feature operates when the refrigerator first turn on.

The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.

Lock Hold 3sec Express Freeze Lock Power 8°C Hygiene Fresh Fridge

- If warm food is placed into the refrigerator, Express Freeze can be started with the button on the control panel. Express Freeze will shut off when the temperature reaches the proper level or it can be shut off manually by pressing the Express Freeze button.

LOCK

- LOCK

Press and hold the Lock button for 3 seconds to lock the Lock. When it is locked, the Lock LED will be on and the other button will not operate. To unlock, press and hold the Lock button for 3 seconds again.

Lock Hold 3sec Express Freeze Hygiene Fresh Fridge

OPERATIONS

HYGIENE FRESH

CAUTION

Before installing or using the product, make sure to read the owner's manual carefully to use the product accurately as intended. This HYGIENE FRESH filter has the antibacterial function of removing the virus or bacteria inside the refrigerator and the deodorizer function to remove the scent.

The function has tested and has been certificated by authorized institutions Intertek

- Switch over to use mode

Switch over to use mode.

• To use the HYGIENE FRESH filter, press the ○ button on the display panel on the front side of the door and switch over to the AUTO or POWER mode.

(Whenever you press the button, the HYGIENE FRESH filter will be switched to OFF → AUTO → POWER → OFF.)

CAUTION

When the user switches to AUTO or POWER mode, the LED around the filter is also turned on. Open the door to check whether the LED around the filter is also turned on. Do not put in your finger or alien particles inside the fan. It can be caused of an injury or malfunction.

CAUTION

• Do not wash the HYGIENE FRESH filter by using water because it can be caused of malfunction.
  • This filter may not be effective for all types of bacteria and virus.
  • This is effective to remove the bacteria which is not on the food in the refrigerator.

CONTROLS FOR FREEZER COMPARTMENT

FREEZER CONTROL 1 FREEZER MIN 5 RECOMMENDED 6 5 4

• To lower the temperature in the freezer, turn the knob right and set to a higher number.
• To raise the temperature in the freezer, turn the knob left and set to a smaller number.
• When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High (6 \~ 7).

• Knob 7 is for quick freezing in the freezer compartment. The refrigerator can be operated continuously or the refrigerator compartment can be warmer. When the quick freezing is finished, please return to set the Knob at RECOMMENDED.

• Setting the Freezer Knob at 7 will satisfy . Setting the Freezer Knob at RECOMMENDED will have sufficient freezing effect, so it is recommended to set the Knob at RECOMMENDED.
  • Refrigerator temperature would be warmer when the Freezer temperature set to be colder.

ICE MAKING

Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
- To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop in to the ice cube box.

WARNING

Fill with potable water only.

You can disassemble the Ice Maker to secure space in the freezer.

• Twisting Ice Serve Type: Remove 1 and 2

1. Ice Tray
2. Ice Cube Box.

WARNING

• Do not use anything other than water.
  • Fill the water up to the marked line..

Line drawing of a griddle being poured into a rack (no text or symbols)

Ice Trays Ice Cube Box

Diagram of a refrigerator interior with labeled parts 1 and 2, showing internal components and airflow direction.

OPERATIONS

VEGETABLE DRAWER

Vegetable Partitioner

- Fix the partitioner by inserting it at the rear side of vegetable box as shown in the figure.

How to use

• Vegetable drawer can be used through the control of knob.
• Check the position of knob prior to store the food.
• Do not locate the knob on the middle point.

Partitioner

FRESH ROOM DRAWER

- When the door is opened, the warmer air doesn't influence in the fresh room drawer. So you can keep food fresher in it.

Line drawing of a refrigerator with a close-up inset showing the interior shelf (no text or symbols)

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.

OPERATIONS

HOME BAR

How to use Home Bar

• Press the button at the top left side of Home Bar until "click" sounds.
• You can use various storage spaces inside Home Bar to systematically store food.
• Do not use the button to close Home Bar.
  • Store food that is frequently taken out and used.
• You don't have to open the door and it saves electricity.
• LED lamp is turned on for easy taking out of the contents when Home Bar is open.
• Do not hang on Home Bar for safety reasons.

Press until "click" sounds

How to disassemble Home Bar basket

Diagram of an open refrigerator with a close-up view of the door and drawer (no text or symbols)

1. If you lightly lift and take out the basket, the basket is hooked into the grooves at the left and right side of the drawer.

Line drawing of a refrigerator with an open door and a person inside (no text or symbols)

1. At this time, hold the both ends of the basket, lift with force to separate one side, and separate the other side.

How to assemble Home Bar basket

Diagram showing a refrigerator with an open door, indicating a closed refrigerator with a hand pointing to the interior panel.

1. Place the basket on the guide and push in to be hooked into the wide groove.

Diagram of an open refrigerator with a door and internal compartments (no text or symbols)

1. At this time, hold both ends of the basket, insert one side with force, and assemble the other side.

Caution Please follow the guidelines. Otherwise, it may be damaged.

How to disassemble Home Bar cover

- Lift Home Bar cover upward and pull to separate and take out.

Illustration of hands installing or adjusting a door panel with arrows indicating movement (no text or symbols)

Caution Before the disassembly, take out all food to empty inside the refrigerator.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• It is recommended to load food at least 15mm against back of freezer wall, it will keep good air circulation in the freezer compartment.
• Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

Newly Introduced Food

- Freezer Door Basket, marked ( ** ) is -12^ compartment, that is suitable for short term storage of frozen food (optional).

REFRIGERATOR COMPARTMENT

• Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
• It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the

refrigerator to avoid being frozen by the cool circulating in the refrigerator.

- Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.

- When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.

Refrigerator Shelf Vegetable Drawer

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry. For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild Detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a Soft cloth. Do not use appliance wax, bleach, or other products containing chlorine on stainless steel.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INNER PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Do not use: Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Only use dish washable solution, and soapy water when cleaning.
  • Using harsh cleaning chemicals will cause the external finishes to change colour.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may

sometimes get warm, especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Anti-Condensation Pipe

LAMP REPLACEMENT

- This product use LED lamp which not intend to be replaced by user, please contact authorized service center for lamp replacement.

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.

It will cause electric shock or fire.

H. No Electric Plug

VERY DANGEROUS ATTRACTION

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

DISPOSAL OF THE OLD APPLIANCE

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

SMART DIAGNOSIS (Only for applied models)

Smart diagnosis function is...

Use the function to contact the service center and receive precise diagnosis when the refrigerator malfunctions or fails. Use it only to connect to the consultant and do not use it in normal times.

How to use the function

1. Close all refrigerator doors, and press and hold display lock button to make it locked state.

If the display is already in locked state,

press and hold lock button to reset the lock and press and hold the lock button again to make it locked state.

Lock Hold Only.

CAUTION

If it passes 5 minutes in locked state, smart diagnosis function will not be activated, so be careful.

1. Press and hold fridge temperature button for 3 seconds or longer.

(All display screens will be turned off, and in a while, 3 will be displayed on the fridge temperature display part.)

8 °C Fridge Fridge

1. Open all refrigerator compartment and freezer compartment doors, and place the telephone near the speaker hole at the top right side.

Check if the speaking side(microphone) of the telephone is toward the speaker hole.

Simple line drawing of a computer mouse with a magnified inset showing the device (no text or symbols)

1. Do not take away the telephone while data is being transmitted.

During the data transmission for smart diagnosis, wait with the telephone placed near the speaker hole at the top right side. The remaining time for data transmission is displayed on the display screen.

CAUTION

The transmission sound may be irritating. Do not take away the telephone until the sound stops for good diagnosis.

1. After the completion of the data transmission, listen to the explanation of the consultant about the result of the smart diagnosis.

When the data transmission is completed, along with the display of the data transmission completion, the refrigerator will be automatically turned off and on a few seconds later.

Listen to the explanation of the consultant about the result of the analyzed diagnosis and follow the instructions.

Be aware!

■ Difference of the regional call qualities may have influence on the function.
■ If you use home phone, better communication performance will enable much better service.
■ Smart diagnosis data transmission may not be fluent due to call quality problem, and in such case, smart diagnosis service may be difficult.

EARTH (GROUNDING) CONSTRUCTION (OPTIONAL)

Assemble (Install) the earth firmly. (Applicable to some models only)

When the earth connection is unstable, it can cause a problem or an electric shock in case of electricity leakage.

When installing and using the product in the following location, you must do an earth construction by requesting to your retailer. (Earth construction is not free.)

- Unfloored or dirt floored (room with dirt and no floor), concrete floor etc., and location where leakage and dew drops can occur including locations where water can drip such as near the sink, basement etc. Connect the earth wire to the earth connecting screw on the rear side of the product.

Do not connect the earth wire to the following locations.

• Water pipe and gas pipe have the possibility of explosion and flammable danger.

- Telephone line earth and lightning rod are dangerous with high current in case of lightning.

When installing near wet locations, you are obligated to install the circuit breaker in addition to the earth wire. Consult with your retailer.

Diagram showing a toilet and a wall-mounted electrical outlet with a switch, indicating electrical connection or safety warning.

Earth (grounding) construction (Applicable to some models only)

It is recommended to install the earth to prevent electric shock in case of electricity leakage. About connection

- Connect the earth line to the earth wire assembly screw on the back of the refrigerator.

Do not connect the earth wire to the following locations.

- Gas pipe

It can cause an explosion and can be flammable.

- Telephone earth wire and lightning rod It is dangerous during lighting.

• Water pipe and water tap

The earth wire connection will not work when the middle of the water pipe is made of plastic. When installing the product in a humid or wet location, you must install the earth wire.

Ex) • Unfloored or dirt floored room (Room with dirt and no floor), concrete floor

• Location where it can get wet such as near the sink
• Location where water can leak or is humid such as basement
  • Other wet or humid location

Especially, for locations where it always get wet such as near the restaurant sink, you are obligated by the law to install a circuit breaker in addition to the earth wire.

After consulting with your retailer or electric construction company, you must do the earth wire construction (Type 3 earth construction). Earth construction is not done for free.

ns. ÷④

MEMO

LG

Life's Good
