PB224 Phantom Pwr Supply
Roils Corporation Salt Lake City, UT 10/05
The PB224 is for powering two phantom powered micros- phones. The unit uses a 100kHz switching power supply to eliminate noise generated by common power supplies. The PB224 has pull-down resistors so it will work with any mixer
- Operates on two 9 volt alkaliene batteries, or the Rolls PS27 12VDC adapter - High frequency switching power supply to eliminate noise
- Dual 48 Volt Phantom Power Supply - Power condenser microphoons requiring phantom power
BATTERY POWERED
PB224 Mic Power II

ROLLS

PB224

MIC POWER IIb

BATTERY POWERED

Dual 48 Volt Phantom

Power Supply

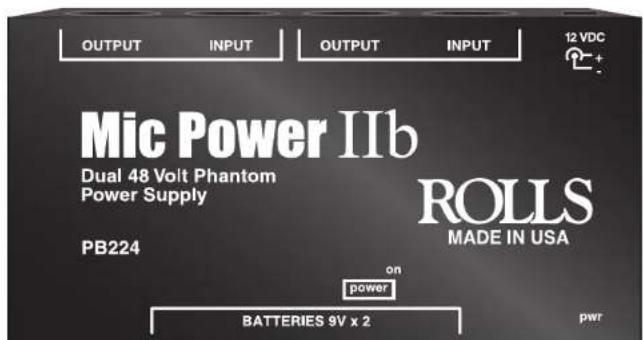

OUTPUT INPUT OUTPUT INPUT 12 VDC + - Mic Power IIb Dual 48 Volt Phantom Power Supply ROLLS MADE IN USA PB224 on power BATTERIES 9V x 2 PWR

Owners Manual

INTRODUCTION

Thank you for purchasing the PB224 Mic Power IIb Dual 48 Volt Phantom Power Supply. This unit is designed and manufactured to provide 48 volts of clean dc power for two of your favorite condenser microphones on two 9 volt alkaline batteries, or the Rolls PS27 AC adapter.

Powered microphones provide much greater dynamic range, lower noise, and better sound quality.

OPERATION

As shown in Figure 1, connect the two condenser microphones to three conductor XLR cables, and to each Input connector on the PB224. Connect the PB224 Outputs to a mixer or other audio input devices via other XLR cables.

Make sure the PB224 has two fresh 9 Volt alkaline batteries installed, or the Rolls PS27 adapter is connected to an AC outlet and to the 12VDC input. Apply power to the unit by moving the power switch to the on position. The LED on the front of the unit will light. The PB224 provides no audio gain as it is not a microphone preamp.

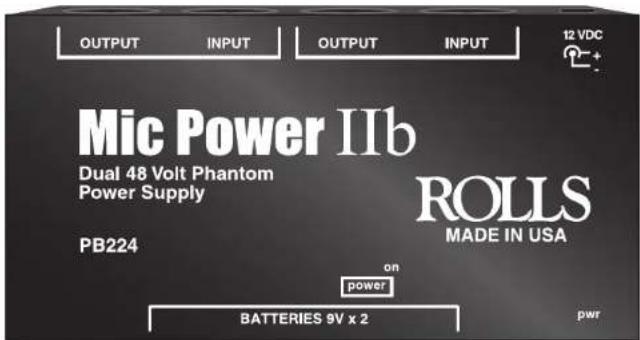

OUTPUT INPUT OUTPUT INPUT 12 VDC + - Mic Power IIb Dual 48 Volt Phantom Power Supply ROLLS MADE IN USA PB224 on power BATTERIES 9V x 2 pwr

CONNECTION

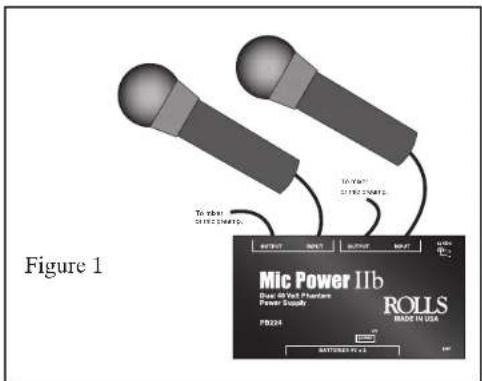

Figure 1 Mic Power IIb Dual-Oral Phantom Power Supply PDB24 ROLLS MADE IN USA BATTERS BY #3

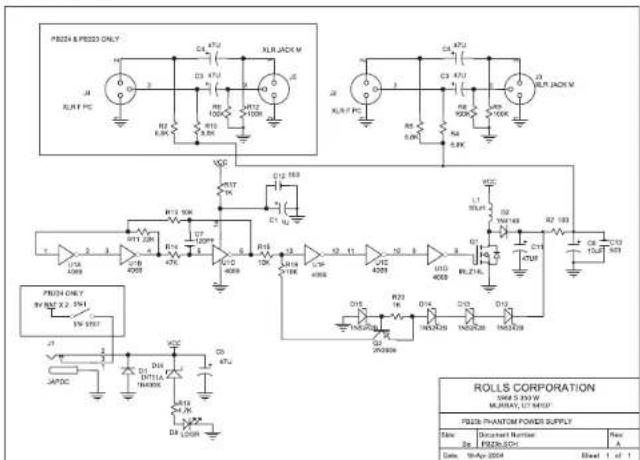

SCHEMATIC

P8224 & PRESS ONLY JLRF PC C1 6.5V D3 4.7V R10 100V R13 6.5V XLR JACK M XLR F PC C2 4.7V D3 4.7V R4 9.0V R5 9.0V R6 9.0V R7 9.0V R8 9.0V R9 9.0V R10 9.0V R11 10K R12 10K R13 10K R14 10K R15 10K R16 10K R17 10K R18 10K R19 10K R20 10K R21 10K R22 10K R23 10K R24 10K R25 10K R26 10K R27 10K R28 10K R29 10K R30 10K R31 10K R32 10K R33 10K R34 10K R35 10K R36 10K R37 10K R38 10K R39 10K R40 10K R41 10K R42 10K R43 10K R44 10K R45 10K R46 10K R47 10K R48 10K R49 10K R50 10K R51 10K R52 10K R53 10K R54 10K R55 10K R56 10K R57 10K R58 10K R59 10K R60 10K R61 10K R62 10K R63 10K R64 10K R65 10K R66 10K R67 10K R68 10K R69 10K R70 10K R71 10K R72 10K R73 10K R74 10K R75 10K R76 10K R77 10K R78 10K R79 10K R80 10K R81 10K R82 10K R83 10K R84 10K R85 10K R86 10K R87 10K R88 10K R89 10K R90 10K R91 10K R92 10K R93 10K R94 10K R95 10K R96 10K R97 10K R98 10K R99 10K RYSS CORPORATION SINK S-353W MLTRAL D7-MDDY RYSS TRANSOM POWER SUPPLY Date: Dec. Date: May-25/25/25 Printers: File: PS23-ECO; Break: I of I ROLLS CORPORATION

SPECIFICATIONS

Phantom Voltage: 48V

Jacks: 2 ea: Male and Female XLR jacks,

5mm DC input jack

Power Input 2 ea: 9V Alkaline Batteries

12 - 18 VCD (Rolls PS27)

Size: 5.45" x 2.875" x 2.25"

Weight: 2 lb (.9 Kg)
