INSTALLING THE HERCULES 2.0 TRIPOD HEAD


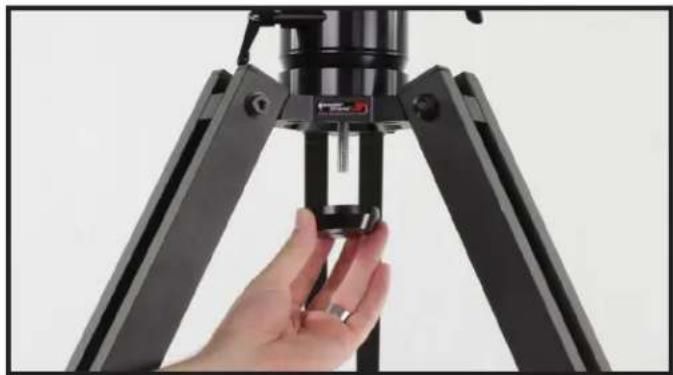

Hand holding a black camera on a tripod, no visible text or symbolsSTEP 1
Remove the handle and aluminum plate from the Hercules head so all you have left is the threaded rod.


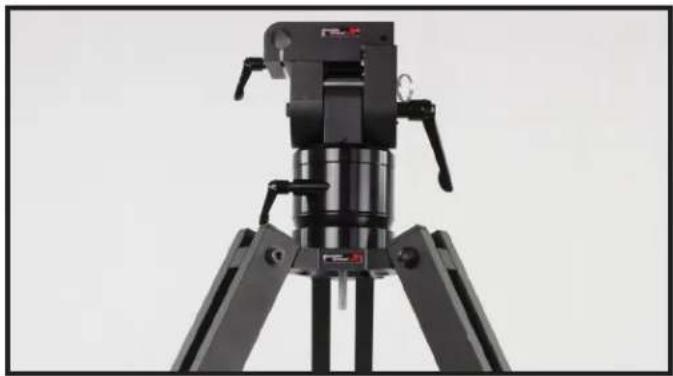

Close-up of a hand holding a small metallic object mounted on a tripod frame (no visible text or symbols)STEP 3
Slide the aluminum plate back on to the threads. See notes below on optional placement of plate.


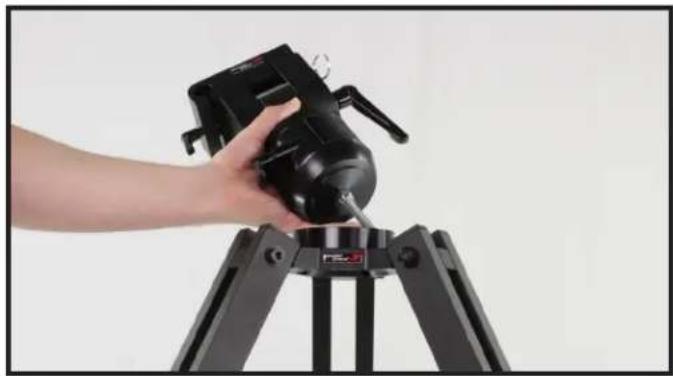

Close-up of a black tripod-mounted camera or tripod with adjustable arms and a central cylindrical component (no visible text or symbols)STEP 2
Insert the threaded rod through the bowl of your tripod. The head is designed for both 75mm and 100mm bowls.


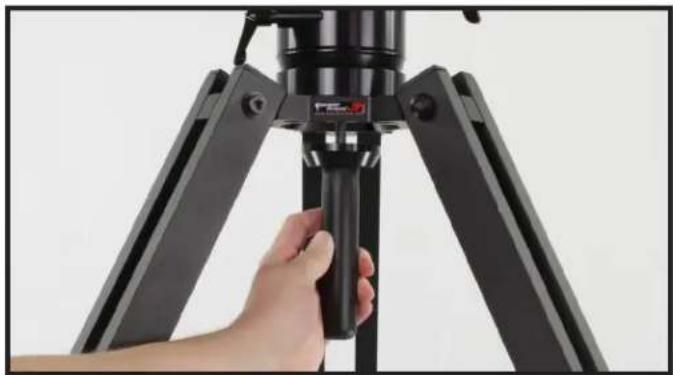

Close-up of a hand adjusting a black tripod-mounted device with a handle (no visible text or symbols)STEP 4
Thread the handle back on and tighten so the plate is flat and tight against the bottom of your tripod bowl.
CHOOSING DIRECTION OF BOTTOM PLATE


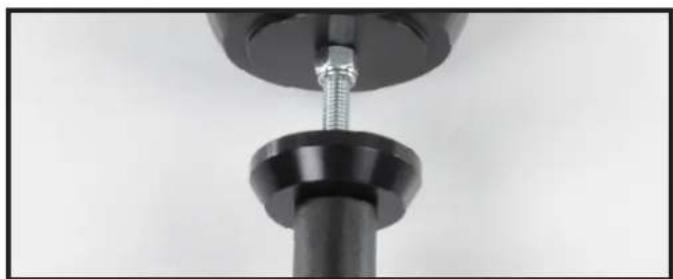

Close-up of a mechanical component with a threaded screw inserted into a black cylindrical base (no text or symbols visible)For light duty operation, place the plate with the cup facing up. This allows you to pivot the ball of the Hercules in your tripod for leveling as normal.


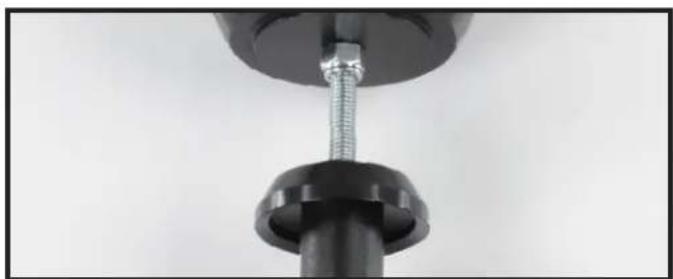

Close-up of a mechanical clamp or fixture with a threaded rod inserted into a black cylindrical base (no text or symbols visible)For heavy duty operation, such as when using a full crane on the Hercules head, mount the plate with the flat side toward the bottom of your tripod bowl to prevent slipping.
